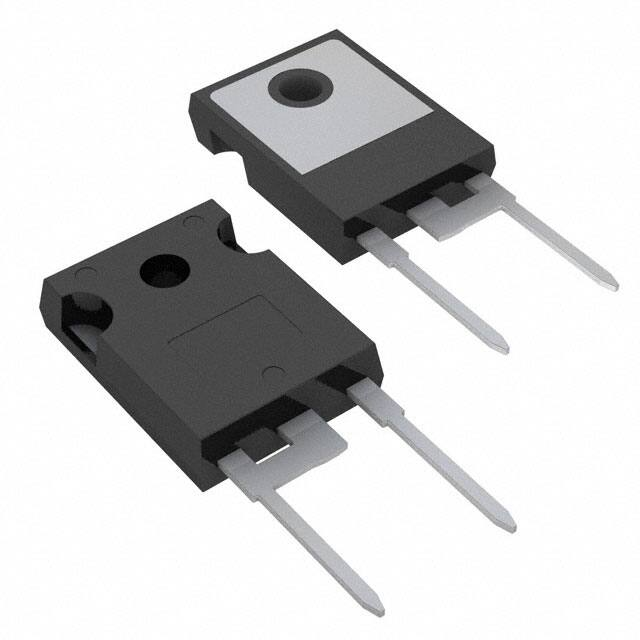

VS-E4PH6006L-N3

VS-E4PH6006L-N3 www.vishay.com Vishay Semiconductors Hyperfast Soft Recovery Diode, 60 A FRED Pt® Gen 4 FEATURES Base cathode • Gen 4 FRED Pt® technology 2 • Low IRRM and reverse recovery charge 2 • Very low forward voltage drop 1 3 TO-247AD 2L • Polyimide passivated chip for high reliability standard 3 Anode 1 Cathode • 175 °C operating junction temperature • Designed and qualified according to JEDEC®-JESD 47 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 PRIMARY CHARACTERISTICS IF(AV) 60 A DESCRIPTION VR 600 V VF at IF 1.48 V Gen 4 Fred technology, state of the art, ultralow VF, soft switching optimized for Discontinuous (Critical) Mode (DCM) and IGBT F/W diode. The minimized conduction loss, optimized stored charge and low recovery current minimized the switching losses and reduce over dissipation in the switching element and snubbers. trr typ. see Recovery table TJ max. 175 °C Package TO-247AD 2L Circuit configuration Single ABSOLUTE MAXIMUM RATINGS PARAMETER Cathode to anode voltage SYMBOL TEST CONDITIONS MAX. UNITS 600 V VR Average rectified forward current IF(AV) TC = 106 °C 60 Single pulse forward current IFSM TC = 25 °C, tp = 8.3 ms, half sine wave 425 Operating junction and storage temperatures TJ, TStg A -55 to +175 °C ELECTRICAL SPECIFICATIONS (TJ = 25 °C unless otherwise specified) PARAMETER Breakdown voltage, blocking voltage Forward voltage SYMBOL VBR, VR VF Reverse leakage current IR Junction capacitance CT TEST CONDITIONS IR = 100 μA MIN. TYP. MAX. 600 - - IF = 50 A - 1.68 - IF = 60 A - 1.75 2.0 IF = 50 A, TJ = 125 °C - 1.44 - IF = 60 A, TJ = 125 °C - 1.55 - IF = 50 A, TJ = 150 °C - 1.39 - IF = 60 A, TJ = 150 °C - 1.48 1.65 VR = VR rated - - 50 TJ = 125 °C, VR = VR rated - - 500 VR = 600 V - 30 - UNITS V μA pF Revision: 19-Feb-2019 Document Number: 95898 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-E4PH6006L-N3 www.vishay.com Vishay Semiconductors DYNAMIC RECOVERY CHARACTERISTICS (TJ = 25 °C unless otherwise specified) PARAMETER SYMBOL Reverse recovery time trr Peak recovery current IRRM Reverse recovery charge MIN. TYP. MAX. TJ = 25 °C TEST CONDITIONS - 68 - TJ = 125 °C - 92 - - 20 - - 40 - IF = 60 A dIF/dt = 1000 A/μs VR = 400 V TJ = 25 °C TJ = 125 °C Qrr UNITS ns A TJ = 25 °C - 945 - TJ = 125 °C - 2500 - MIN. TYP. MAX. - - 0.6 40 nC THERMAL - MECHANICAL SPECIFICATIONS PARAMETER SYMBOL TEST CONDITIONS UNITS Thermal resistance, junction to case RthJC Thermal resistance, junction to ambient RthJA Typical socket mount - - Thermal resistance, case to heat sink RthCS Mounting surface, flat, smooth and greased - 0.25 - - 6.0 - g - 0.21 - oz. 6.0 (5) - 12 (20) kgf · cm (lbf · in) Weight Mounting torque Case style TO-247AD 2L 1000 E4PH6006L 1000 IR - Reverse Current (μA) IF - Instantaneous Forward Current (A) Marking device °C/W 100 TJ = 175 °C 10 TJ = 150°C TJ = 125°C TJ = 25 °C 1 175 °C 100 150 °C 10 125 °C 1 0.1 25 °C 0.01 0.001 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 VF - Forward Voltage Drop (V) Fig. 1 - Typical Forward Voltage Drop Characteristics 0 200 400 600 VR - Reverse Voltage (V) Fig. 2 - Typical Values of Reverse Current vs. Reverse Voltage Revision: 19-Feb-2019 Document Number: 95898 2 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-E4PH6006L-N3 www.vishay.com Vishay Semiconductors CT - Junction Capacitance (pF) 1000 100 10 0 100 200 300 400 500 600 VR - Reverse Voltage (V) Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage ZthJC - Thermal Impedance Junction to Case (°C/W) 10 0.50 0.20 0.10 0.05 0.02 0.01 1 0.1 single pulse 0.01 0.001 0.01 0.1 1 10 t1 - Rectangular Pulse Duration (s) Fig. 4 - Maximum Thermal Impedance ZthJC Characteristics 180 Average Power Loss (W) Allowable Case Temperature (°C) 180 160 140 120 DC Square wave (D = 0.50) 80% rated VR applied 100 80 150 RMS limit 120 90 D = 0.01 D = 0.05 D = 0.10 D = 0.20 D = 0.50 60 30 0 0 20 40 60 80 100 0 10 20 30 40 50 60 70 80 90 IF(AV) - Average Forward Current (A) IF(AV) - Average Forward Current (A) Fig. 5 - Max. Allowable Case Temperature vs. Average Forward Current Fig. 6 - Forward Power Loss Characteristics Note Formula used: TC = TJ - (Pd + PdREV) x RthJC; Pd = forward power loss = IF(AV) x VFM at (IF(AV)/D) (see Fig.5) PdREV = inverse power loss = VR1 x IR (1 - D); IR at VR = rated VR (1) Revision: 19-Feb-2019 Document Number: 95898 3 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-E4PH6006L-N3 www.vishay.com Vishay Semiconductors 3000 130 120 2500 110 125 °C 125 °C Qrr (nC) trr (ns) 100 2000 90 80 25 °C 1500 1000 25 °C 70 500 60 50 0 400 500 600 700 800 900 400 1000 500 600 700 800 900 1000 dIF/dt (A/μs) dIF/dt (A/μs) Fig. 7 - Typical Reverse Recovery Time vs. dIF/dt Fig. 8 - Typical Stored Charge vs. dIF/dt 50 45 40 35 125 °C Irec (A) 30 25 20 25 °C 15 10 5 0 400 500 600 700 800 900 1000 dIF/dt (A/μs) Fig. 9 - Typical Reverse Recovery vs. dIF/dt Revision: 19-Feb-2019 Document Number: 95898 4 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-E4PH6006L-N3 www.vishay.com Vishay Semiconductors ORDERING INFORMATION TABLE Device code VS- E 4 P H 60 06 L -N3 1 2 3 4 5 6 7 8 9 1 - Vishay Semiconductors product 2 - Circuit configuration: E = single diode 2 pins 3 - FRED Gen 4 4 - P = TO-247 package 5 - Process type: H = hyperfast recovery 6 - Current rating (60 = 60 A) 7 - Voltage rating (06 = 600 V) 8 - L = long lead 9 - Environmental digit: -N3 = halogen-free, RoHS-compliant, and totally lead (Pb)-free ORDERING INFORMATION (Example) PREFERRED P/N QUANTITY PER TUBE MINIMUM ORDER QUANTITY PACKAGING DESCRIPTION VS-E4PH6006L-N3 25 500 Antistatic plastic tube LINKS TO RELATED DOCUMENTS Dimensions www.vishay.com/doc?95536 Part marking information www.vishay.com/doc?95648 Revision: 19-Feb-2019 Document Number: 95898 5 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Outline Dimensions www.vishay.com Vishay Semiconductors TO-247AD 2L DIMENSIONS in millimeters and inches A A (3) (6) F P E B (2) R/2 A2 S (Datum B) Ø K M D BM F P1 A D2 Q 2xR (2) D1 (4) D 1, 2 4 D 3 Thermal pad (5) L1 C L See view B (4) E1 A 0.01 M D B M View A - A C 2 x b2 2xb 2x e A1 0.10 M C A M (b1, b3) Plating Base metal D D (c) c1 C C (b, b2) (4) Section C - C, D - D SYMBOL MILLIMETERS View B INCHES MIN. MAX. MIN. MAX. A 4.65 5.31 0.183 0.209 A1 2.21 2.59 0.087 0.102 NOTES SYMBOL MILLIMETERS INCHES MIN. MAX. MIN. MAX. E 15.29 15.87 0.602 0.625 E1 13.46 - 0.53 - A2 1.50 2.49 0.059 0.098 e 5.46 BSC b 0.99 1.40 0.039 0.055 ØK 0.254 b1 0.99 1.35 0.039 0.053 L 19.81 20.32 0.780 0.800 b2 1.65 2.39 0.065 0.094 L1 3.71 4.29 0.146 0.169 b3 1.65 2.34 0.065 0.092 ØP 3.56 3.66 0.14 0.144 c 0.38 0.89 0.015 0.035 Ø P1 - 6.98 - 0.275 NOTES 3 0.215 BSC 0.010 c1 0.38 0.84 0.015 0.033 Q 5.31 5.69 0.209 0.224 D 19.71 20.70 0.776 0.815 3 R 4.52 5.49 0.178 0.216 D1 13.08 - 0.515 - 4 S D2 0.51 1.35 0.020 0.053 5.51 BSC 0.217 BSC Notes (1) Dimensioning and tolerancing per ASME Y14.5M-1994 (2) Contour of slot optional (3) Dimension D and E do not include mold flash. These dimensions are measured at the outermost extremes of the plastic body (4) Thermal pad contour optional with dimensions D1 and E1 (5) Lead finish uncontrolled in L1 (6) Ø P to have a maximum draft angle of 1.5 to the top of the part with a maximum hole diameter of 3.91 mm (0.154") (7) Outline conforms to JEDEC® outline TO-247 with exception of dimension A min., D, E min., Q min., S, and note 4 Revision: 28-May-2018 Document Number: 95536 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 09-Jul-2021 1 Document Number: 91000
