VSKY05301006
www.vishay.com
Vishay Semiconductors

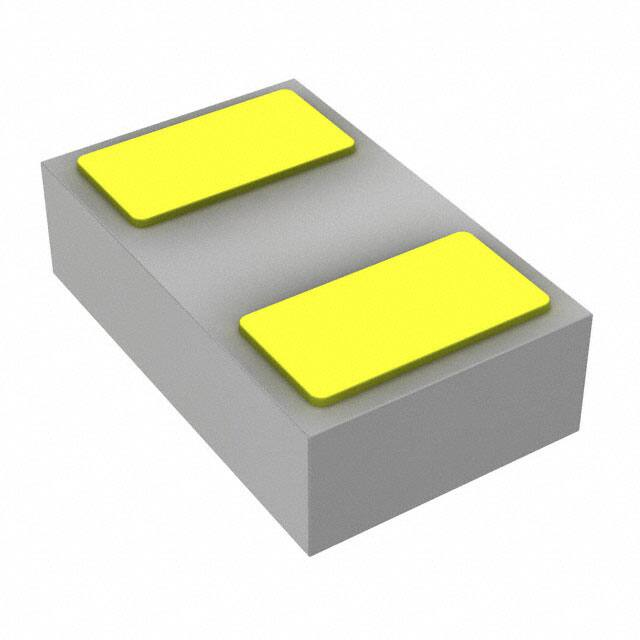

Schottky Rectifier Surface-Mount FlipKY® Gen 2
FEATURES
• Schottky diode for high-speed switching
• Very low dimensions:
1.0 mm x 0.6 mm x 0.29 mm
XX
• 0.5 A forward current
M
M
Y
Y
• Low forward voltage drop (typ. 405 mV at 0.5 A)
• Low reverse current (< 15 μA at 10 V)
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS AVAILABLE
3D 3D
3D Models
Models
Related
Documents
Footprints
PARTS TABLE
PART
ORDERING CODE
CIRCUIT
CONFIGURATION
PACKAGE
NAME
Single
CLP1006-2L
VSKY05301006 VSKY05301006-G4-08
TYPE
TAPED UNITS PER REEL
WEIGHT
(8 mm TAPE ON 7" REEL)
CODE
3A
0.400 mg
10 000
MINIMUM
ORDER
QUANTITY
10 000
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
VALUE
UNIT
Maximum repetitive reverse voltage
VRRM
30
V
Maximum average forward rectified current
IF(AV)
0.5
A
8.3 ms half sine-wave
IFSM
12
A
Footprint acc. fig. 4
Ptot
450
mW
SYMBOL
VALUE
UNIT
RthJA
280
K/W
Tj
150
°C
Tstg
-65 to +150
°C
Surge forward current
Power dissipation
THERMAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
Thermal resistance junction to ambient air
TEST CONDITION
JEDEC®
51-3
Acc.
footprint acc fig. 4
Maximum operating junction temperature
Storage temperature range
ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
Leakage current
Forward voltage
Diode capacitance
TEST CONDITION
SYMBOL
TYP.
MAX.
UNIT
VR = 10 V
IR
-
15
μA
VR = 30 V
IR
-
75
μA
IF = 100 mA
VF
0.335
0.360
V
IF = 0.5 A
VF
0.405
0.430
V
VR = 0 V, f = 1 MHz
CD
140
-
pF
Rev. 1.3, 27-Feb-2019
Document Number: 85940
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
VSKY05301006
www.vishay.com
Vishay Semiconductors
RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted)
Axis Title
Axis Title
1000
160
10000
TJ = 150 °C
140
125 °C
120
25 °C
10
50 °C
75 °C
2nd line
CD (pF)
1st line
2nd line
2nd line
IF (mA)
1000
80
60
100
100 °C
1
1000
100
1st line
2nd line
100
10000
f = 1 MHz
100
40
20
0.1
10
0
0.1
0.2
0.3
0.4
0
0.5
10
0
10
30
VF (V)
2nd line
VR (V)
2nd line
Fig. 1 - Typical Forward Current vs. Forward Voltage
Fig. 3 - Typical Capacitance vs. Reverse Voltage
Axis Title
Axis Title
125 °C
100 °C
1000
1st line
2nd line
1000
75 °C
100
50 °C
10
100
25 °C
1
0.1
10
0
5
10
15
20
25
30
1000
10000
100
1000
10
100
1st line
2nd line
Tj = 150 °C
10 000
2nd line
Zth - Thermal Impedance (K/W)
10000
100 000
2nd line
IR (µA)
20
1
0.001
0.01
0.1
1
10
100
10
1000
VR (V)
2nd line
tp - Pulse Width (s)
2nd line
Fig. 2 - Typical Reverse Leakage Current vs. Reverse Voltage
Fig. 4 - Typical Thermal Impedance vs. Time
Rev. 1.3, 27-Feb-2019
Document Number: 85940
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
VSKY05301006
www.vishay.com
Vishay Semiconductors
PACKAGE DIMENSIONS in millimeters: CLP1006-2L
b
L3
b
L2
e
A1
A
D
E
min.
max.
A
A1
0.25
0.29
0.02
0.53
b
0.48
D
0.59
0.63
E
e
0.99
1.03
L2
0.23
0.28
L3
0.23
0.28
0.65
Document no.:S8-V-3906.04-039 (4)
Created - Date: 02. April 2015
22784
Footprint and soldering recommendation:
please see Application Note: www.vishay.com/doc?85917
Rev. 1.3, 27-Feb-2019
Document Number: 85940
3
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
VSKY05301006
www.vishay.com
Vishay Semiconductors
CARRIER TAPE in millimeters: CLP1006-2L
A-A
1.15 ± 0.05
max
. 5°
Ø 0.3 ± 0.10
0.2 ± 0.05
+0.3
-0.1
4 ± 0.1
Section
8
A
+0.1
0.0
3.5 ± 0.05
Ø 1.5
1.75 ± 0.1
2 ± 0.05
A
B
B
B-B
0.37 ± 0.05
Section
5°
0.7 ± 0.05
Cummulative tolerances of 10 sprocket holes is +/-0.2 mm
Carrier tape CLP1006-2L
S8-V-3906.04-051 (4)
03.02.2016
22937
ORIENTATION IN CARRIER CLP1006-2L
Unreeling direction
Cathode marking
Top view
Orientation in Carrier CLP1006-2L (VSKY)
S8-V-3906.04-052 (4)
03.02.2016
22938
Rev. 1.3, 27-Feb-2019
Document Number: 85940
4
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
