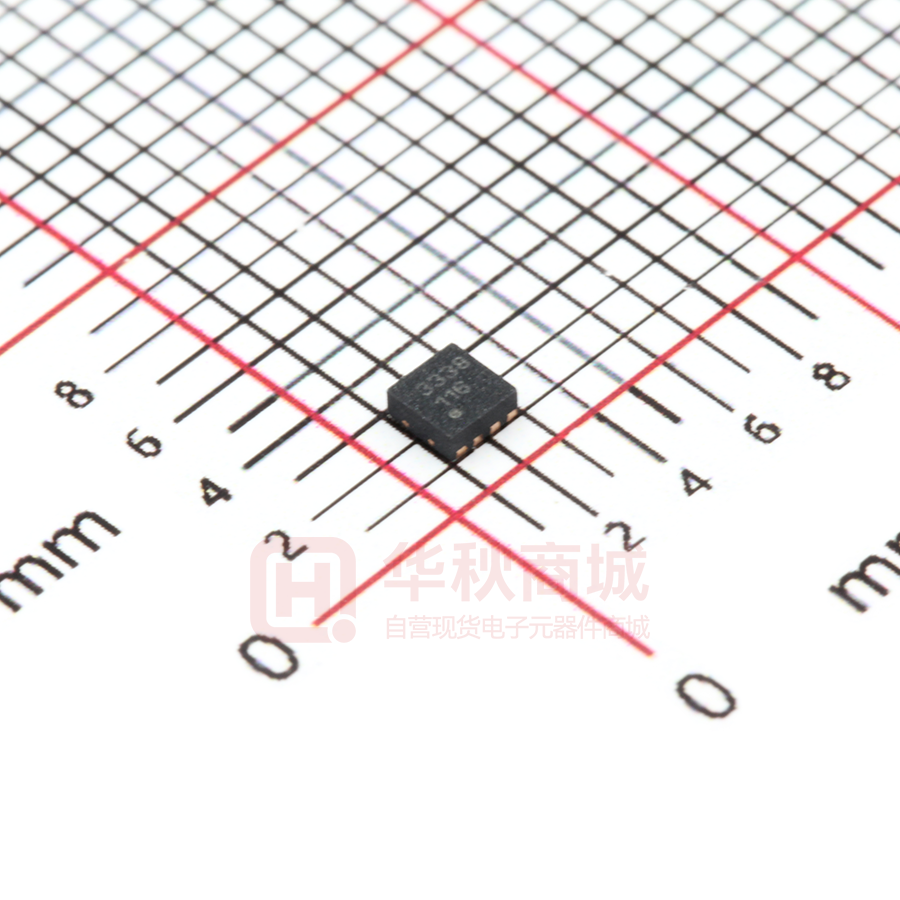

VSOP38338

VSOP383.. www.vishay.com Vishay Semiconductors Preamplifier Circuit for IR Remote Control (valid July 2016 onwards) FEATURES • Narrow bandpassfilter for all common carrier frequencies • High immunity against DC light • Intelligent AGC to suppress disturbance from fluorescent lamps and CRTs • Low power consumption • Wide supply voltage range • High immunity against ripple on the supply voltage • Output active low • IC manufactured in CMOS technology • Small QFN package with 2 mm width • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 22906 DESIGN SUPPORT TOOLS click logo to get started DESCRIPTION The VSOP383.. is designed for use in an IR receiver application together with a photo pin diode. It is a sophisticated receiver concept that is very sensitive to data signals and compatible with the most common data formats for IR remote control. On the other hand it is immune to DC current caused by DC light sources such as tungsten bulbs. The disturbance signal of fluorescent lamps is suppressed; there are no unwanted pulses at the output. Models Available MECHANICAL DATA Pinning: 1, 4, 5 = N.C., 2 = VS, 3 = OUT, 6, 8 = GND, 7 = IN PARTS TABLE AGC NOISY ENVIRONMENTS AND SHORT BURSTS (AGC3) Carrier frequency 36 kHz VSOP38336 (1) 38 kHz VSOP38338 (2)(3)(4)(5) Package VSOP Pinning 1, 4, 5 = N.C., 2 = VS, 3 = OUT, 6, 8 = GND, 7 = IN Dimensions (mm) 2.0 W x 2.0 H x 0.76 D Mounting SMD Application Remote control (1) Best remote control code MCIR (2) Mitsubishi BLOCK DIAGRAM (simplified) (3) RECS-80 Code (4) r-map Input, from photodiode Controlled gain amplifier Automatic threshold Intecontrol grator 100 Ω 33 kΩ Output, to μC VS VSOP383.. IN OUT Bandpassfilter Automatic gain control XMP-1, XMP-2 APPLICATION CIRCUIT + VS Bias (5) GND GND 0.22 μF VS = 2.5 V to 5.5 V Microcontroller or other logic to decode the IR signal 0V 21536-2 The RC filter is optional to improve the EOS robustness and the immunity to supply voltage ripple. We recommend to keep the distance between the photodiode and the input of the VSOP383.. as short as possible. 21537-4 Vishay recommends using a photodiode with at least 2.3 mm2 area. The connection between the photodiode and pin 7 should be kept as short as possible and carefully shielded to prevent noise coupling. Rev. 1.2, 04-Apr-18 1 Document Number: 82748 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VSOP383.. www.vishay.com Vishay Semiconductors ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL VALUE UNIT Supply voltage Pin 2 VS -0.3 to +6 V Supply current Pin 2 IS 3 mA Output voltage Pin 3 VO -0.3 to (VS + 0.3) V Output sink current Pin 3 IO 5 mA Tamb ≤ 85 °C Power dissipation Ptot 10 mW Operating temperature range Tamb -25 to +85 °C Storage temperature range Tstg -25 to +85 °C Pin 2, pin 3, MIL-STD-883C VESD 2000 V Pin 7, MIL-STD-883C VESD 500 V Pin 2, pin 3, MIL-STD-883C VESD 200 V Pin 7, MIL-STD-883C VESD 100 V ESD stress, HBM ESD stress, MM Note • Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect the device reliability. ELECTRICAL CHARACTERISTICS (Tamb = -30 °C to +85 °C) PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT VS 2.5 - 5.5 V Supply voltage IIN = 0, VS = 5 V IS 0.27 0.35 0.45 mA Output voltage low (pin 3) Supply current (pin 2) IOL = 2 mA VOL - - 100 mV Output voltage high (pin 3) IOL = 0 VOH VS - 0.25 - - V RPU - 33 - kΩ Internal pull up resistor (pin 2, pin 3) Max. input DC current VIN > 0 IIN-DCmax. 400 - - μA IIN-DC = 0, fC = fBPF IIN-min. - 400 800 pA IIN-DC = 100 μA, fC = fBPF IIN-min. - 5 10 nA IIN-DC = 0, fC = fBPF, IIN = 0.8 nA to 50 μA, testsignal see fig. 1, BER ≤ 2% tpo tpi - 6/f0 tpi tpi + 6/f0 μs Accuracy of bandpass center frequency Tamb = + 25 °C fBPF f0 - 4 % f0 f0 + 4 % kHz Bandwidth of bandpassfilter - 3 dB, f0 = 38 kHz B - 3.8 - kHz Min. signal detection current Output pulse width IIN burst length tpI VOUT output pulse width tpo one carrier cycle 1/fC IIN burst length of input signal tpi output pulse width tpo 21538 VOUT Fig. 1 - Testsignal Rev. 1.2, 04-Apr-18 2 Document Number: 82748 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VSOP383.. www.vishay.com Vishay Semiconductors TYPICAL CHARACTERISTICS (Tamb = 25 °C, VS = 3.3 V, unless otherwise specified) Output Pulse Width (ms) 0.9 tpo 0.8 0.7 0.6 0.5 TOFF 0.4 0.3 0.2 Testsignal: tpi = 0.6 ms 0.1 burst repetition time = 1.2 ms 0 0.1 10 21539 1000 2.5 2.0 1.5 f = 10 kHz 1.0 f = f0 0.5 f = 100 Hz 0 100 000 1 IIN - Input Current (nA) IIN-min. - Minimum Detection Current (nA) 1 1 21541 10 100 1000 1000 0.5 0.45 0.4 0.35 0.3 0.25 0.2 0.15 0.1 0.05 0 - 30 21542 DC Input Current (µA) - 10 10 30 50 70 90 Tamb - Ambient Temperature (°C) Fig. 3 - Sensitivity vs. DC Input Current Fig. 6 - Sensitivity vs. Temperature 1.0 1.6 1.4 Maximum Envelope Duty Cycle IIN-min. - Minimum Detection Current (nA) 100 Fig. 5 - Suppression of Ripple on Supply Voltage 10 0.1 0.1 10 ΔVS - AC Ripple on VS (mVPP) 21540 Fig. 2 - Output Pulse Diagram IIN-min. - Minimum Detection Current (nA) 3.0 IIN-min. - Minimum Detection Current (nA) 1.0 VSOP38338 1.2 1.0 0.8 0.6 0.4 0.9 VSOP383.. 0.8 0.7 0.6 0.5 0.4 IIN = 5 nA 0.3 0.2 0.1 0 0.2 33 35 37 39 41 0 43 20 40 60 80 100 Frequency (kHz) N - Burstlength (Carrier Cycles) Fig. 4 - Bandpassfilter Characteristic Fig. 7 - Maximum Envelope Duty Cycle Rev. 1.2, 04-Apr-18 3 Document Number: 82748 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VSOP383.. www.vishay.com Vishay Semiconductors PACKAGE DIMENSIONS in millimeters 2 Marking area For example 38 kHz 2 3338 YWW PIN 1 indicator 0.1 Chamfered corner PIN 1 indicator 0.25 x 45° 1.6 ± 0.15 4 1 0.76 ± 0.05 0.2 ref. 1. Coplanarity (0.1 mm) applies to the exposed pad as well as the exposed terminals. 2. Package dimension does not include mold flash, protrusions, burrs or metal smearing. Pinning: 1. n.c. 2. VS 0.9 ± 0.15 3. Out Exposed pad 4. n.c. 5. n.c. 6. GND 7. IN 5 (8 x) 0.3 ± 0.1 8 (8 x) 0.25 ± 0.05 0.2 min. 8. GND Proposed hole layout from component side (for reference only) 0.5 typ. (6 x) 10:1 (8 x) 0.65 technical drawings according to DIN specifications 0.35 (8 x) 1.3 Not indicated tolerances ± 0.1 Drawing-No.: 6.550-5314.01-4 Issue: 3; 07.12.15 0.5 (6 x) Rev. 1.2, 04-Apr-18 4 Document Number: 82748 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VSOP383.. www.vishay.com Vishay Semiconductors ASSEMBLY INSTRUCTIONS Reflow Soldering Manual Soldering • Set the furnace temperatures for pre-heating and heating in accordance with the reflow temperature profile as shown in the diagram. Exercise extreme care to keep the maximum temperature below 260 °C. The temperature shown in the profile means the temperature at the device surface. Since there is a temperature difference between the component and the circuit board, it should be verified that the temperature of the device is accurately being measured • Use a soldering iron of 25 W or less. Adjust the temperature of the soldering iron below 300 °C • Finish soldering within 3 s • Handle products only after the temperature has cooled off. • Handling after reflow should be done only after the work surface has been cooled off VISHAY LEAD (PB)-FREE REFLOW SOLDER PROFILE Axis Title 300 10000 255 °C 240 °C 250 2nd line Temperature (°C) max. 260 °C 245 °C 217 °C 1000 200 max. 20 s 150 max. 120 s max. 100 s 100 100 Max. ramp up 3 °C/s 50 Max. ramp down 6 °C/s Max. 2 cycles allowed 0 0 19800 Rev. 1.2, 04-Apr-18 50 100 150 200 250 10 300 Time (s) 5 Document Number: 82748 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VSOP383.. www.vishay.com Vishay Semiconductors TAPING VERSION VSOP DIMENSIONS in millimeters Rev. 1.2, 04-Apr-18 6 Document Number: 82748 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VSOP383.. www.vishay.com Vishay Semiconductors REEL DIMENSIONS in millimeters Reel Width Reel Size 22610 REEL REEL SIZE (inch) REEL WIDTH (mm) TRAILER LENGTH (mm) LEADER LENGTH (mm) QANTITY PER REEL 7 8.4 160 400 3000 LABEL Standard bar code labels for finished goods The standard bar code labels are product labels and used for identification of goods. The finished goods are packed in final packing area. The standard packing units are labeled with standard bar code labels before transported as finished goods to warehouses. The labels are on each packing unit and contain Vishay Semiconductor GmbH specific data. VISHAY SEMICONDUCTOR GMBH STANDARD BAR CODE PRODUCT LABEL (finished goods) PLAIN WRITTING Item-description ABBREVIATION LENGTH - 18 Item-number INO 8 Selection-code SEL 3 LOT-/serial-number BATCH 10 COD 3 (YWW) Plant-code PTC 2 Quantity QTY 8 Accepted by ACC - Packed by PCK - MIXED CODE - xxxxxxx+ Company logo TYPE LENGTH Data-code Mixed code indicator Origin LONG BAR CODE TOP Item-number N 8 Plant-code N 2 Sequence-number X 3 Quantity N 8 Total length - 21 SHORT BAR CODE BOTTOM TYPE LENGTH Selection-code X 3 Data-code N 3 Batch-number X 10 Filter - 1 Total length - 17 Rev. 1.2, 04-Apr-18 7 Document Number: 82748 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VSOP383.. www.vishay.com Vishay Semiconductors ESD PRECAUTION VISHAY SEMICONDUCTORS STANDARD BAR CODE LABELS Proper storage and handling procedures should be followed to prevent ESD damage to the devices especially when they are removed from the antistatic shielding bag. Electrostatic sensitive devices warning labels are on the packaging. The Vishay Semiconductors standard bar code labels are printed at final packing areas. The labels are on each packing unit and contain Vishay Semiconductors specific data. 16962 Rev. 1.2, 04-Apr-18 8 Document Number: 82748 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
