WSKW0612
www.vishay.com
Vishay Dale

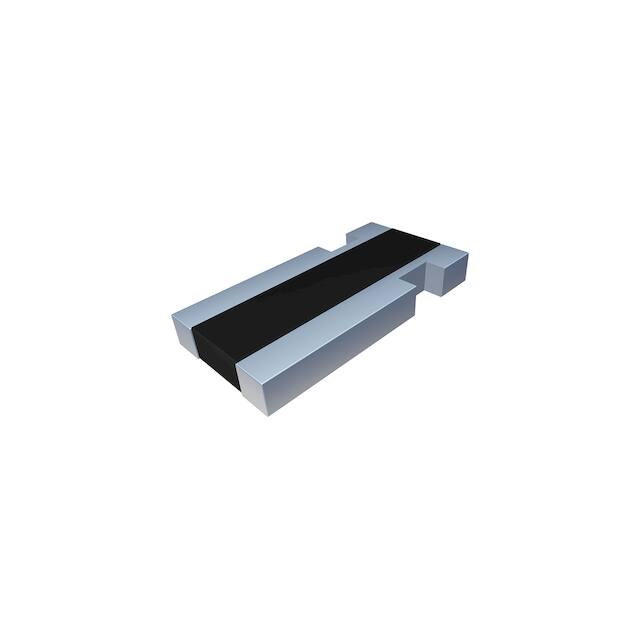

Power Metal Strip® Resistors, High Power,
Surface-Mount, 4-Terminal
FEATURES
• 4-terminal design
• All welded construction of the Power Metal
Strip® resistors are ideal for all types of
current sensing, voltage division, and pulse
applications
Available
• Proprietary processing technique produces
low resistance values
Available
• Solid metal nickel-chrome and manganesecopper alloy resistive element
with low TCR (< 20 ppm/°C)
• Sulfur resistance by construction that is
unaffected by high sulfur environments
LINKS TO ADDITIONAL RESOURCES
Available
• Low thermal EMF (< 3 μV/°C)
3D 3D
Design Tools
Available
• AEC-Q200 qualified (1)
3D Models
• PATENT(S): www.vishay.com/patents
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
Notes
* This datasheet provides information about parts that are RoHS-compliant and / or parts that are non-RoHS-compliant. For example, parts
with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details
• Follow link to Overview of Automotive Grade Products for more details: www.vishay.com/doc?49924
(1) Flame retardance test may not be applicable to some resistor technologies
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
SIZE
POWER RATING
P70 °C
W
TOLERANCE
±%
RESISTANCE VALUE
RANGE (1)
Ω
WEIGHT
(typical)
g/1000 pieces
WSKW0612
0612
1.0
1.0, 5.0
0.5m to 5m
8.5
Note
Other values may be available, contact factory
(1)
GLOBAL PART NUMBER INFORMATION
Global Part Numbering Example: WSKW06121L000FEA (visit www.vishay.net Vishay Dale parts numbering manual for all options)
W
S
K
W
0
6
1
2
1
L
0
0
0
F
E
A
GLOBAL MODEL
(8 digits)
RESISTANCE VALUE (1)
(5 digits)
TOLERANCE CODE
(1 digit)
PACKAGING CODE (2)
(2 digits)
SPECIAL (3)
(up to 2 digits)
WSKW0612
L = mΩ
L5000 = 0.0005 Ω
5L000 = 0.005 Ω
F = ± 1.0 %
J = ± 5.0 %
EA = lead (Pb)-free, tape / reel
EK = lead (Pb)-free, bulk
(dash number)
from 1 to 99 as
applicable
Notes
(1) WSL marking (www.vishay.com/doc?30327)
(2) Packaging code: EB (lead (Pb)-free) are non-standard packaging codes designating 1000 piece reels. These non-standard packaging codes
are identical to our standard EA (lead (Pb)-free), except that they have a package quantity of 1000 pieces
(3) Follow link for customization capabilities: www.vishay.com/doc?48163
PATENT(S): www.vishay.com/patents
This Vishay product is protected by one or more United States and international patents.
Revision: 04-Oct-2021
Document Number: 30332
1
For technical questions, contact: ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
WSKW0612
www.vishay.com
Vishay Dale
TECHNICAL SPECIFICATIONS
PARAMETER
UNIT
RESISTOR CHARACTERISTICS
-300 / +50 for 0.5 mΩ to 0.99 mΩ
Component temperature coefficient
(including terminal) (1)
TCR measured from -55 °C to 150 °C
ppm/°C
Element TCR (2)
ppm/°C
< 20
Operating temperature range
°C
-65 to +170
Maximum working voltage (3)
V
(P x R)1/2
± 150 for 1 mΩ and 2 mΩ
± 75 for 3 mΩ to 5 mΩ
Notes
• TCR for Current Sensing (white paper): www.vishay.com/doc?30405
(1) Component TCR - total TCR that includes the TCR effects of the resistor element and the copper terminal
(2) Element TCR - only applies to the alloy used for the resistor element
(3) Maximum working voltage - the WSL is not voltage sensitive, but is limited by power / energy dissipation and is also not ESD sensitive
DIMENSIONS
T
W
H
c
d
l
A
B
b
a
L
Note
• Surface-mount solder profile recommendations: www.vishay.com/doc?31052
DIMENSIONS in inches (millimeters)
MODEL
WSKW0612
L
W
H
T
A
B
0.060 ± 0.010
(1.50 ± 0.254)
0.120 ± 0.010
(3.05 ± 0.254)
0.018 ± 0.010
(0.457 ± 0.254)
0.015 ± 0.010
(0.381 ± 0.254)
0.020 ± 0.005
(0.51 ± 0.127)
0.020 ± 0.005
(0.51 ± 0.127)
SOLDER PAD DIMENSIONS in inches (millimeters)
MODEL
WSKW0612
a
b
c
d
l
0.040 (1.01)
0.135 (3.43)
0.030 (0.762)
0.015 (0.381)
0.030 (0.76)
4 TERMINAL KELVIN CONNECTIONS
CONSTRUCTION OUTLINE
E1
I1
E2
5
I2
2
4
Notes
• E1 and E2: voltage sense connection
• I1 and I2: current connection
Revision: 04-Oct-2021
3
1
Notes
1. Resistive element: Mn-Cu
2. Terminal: solid copper and element with 100 % Sn finish
3. Terminal to element weld
4. Laser calibration
5. High temperature encapsulant: siliconized polyester coating
material
Document Number: 30332
2
For technical questions, contact: ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
WSKW0612
www.vishay.com
Vishay Dale
DERATING
Axis Title
10000
120
1000
80
1st line
2nd line
2nd line
Rated Power (%)
100
60
100
40
20
0
-65-55 -25
10
0
25
50 70 100 125 150 170
Ambient Temperature (°C)
PULSE CAPABILITY
click to get started
VE
TI
A
R
ST
U
ILL
S
SE
O
RP
PU
LY
ON
www.vishay.com/resistors/power-metal-strip-calculator
PERFORMANCE
TEST
CONDITIONS OF TEST
TEST LIMITS
TYPICAL
Thermal shock
-55 °C to +150 °C, 1000 cycles, 15 min at each extreme
± 1.0 %
0.20 %
Low temperature storage
-65 °C for 24 h
± 0.5 %
0.1 % (24 h)
High temperature exposure
2000 h at +170 °C
± 1.0 %
± 0.2 %
Bias humidity
+85 °C, 85 % RH, 10 % bias, 1000 h
± 0.5 %
0.20 %
Mechanical shock
100 g’s for 6 ms, 5 pulses
± 0.5 %
0.01 %
Vibration
Frequency varied 10 Hz to 2000 Hz in 1 min, 3 directions, 12 h
± 0.5 %
0.01 %
Load life
2000 h at +70 °C, 1.5 h “ON”, 0.5 h “OFF”
± 1.0 %
-0.20 %
Resistance to solder heat
+260 °C solder, 10 s to 12 s dwell, 25 mm/s emergence
± 0.5 %
0.05 %
Moisture resistance
MIL-STD-202, method 106, 0 % power, 7b not required
± 1.0 %
0.01 %
Revision: 04-Oct-2021
Document Number: 30332
3
For technical questions, contact: ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
WSKW0612
www.vishay.com
PACKAGING
Vishay Dale
(1)
REEL
MODEL
WSKW0612
TAPE WIDTH
DIAMETER
PIECES/REEL
CODE
8 mm / embossed plastic
178 mm / 7"
4000
EA
Notes
• Embossed carrier tape per EIA-481
(1) Additional packaging details at www.vishay.com/doc?20051
REEL ORIENTATION
Revision: 04-Oct-2021
Document Number: 30332
4
For technical questions, contact: ww2bresistors@vishay.com
