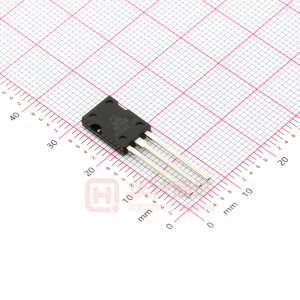

BT134-600

TIGER ELECTRONIC CO.,LTD Product specification Triacs sensitive gate GENERAL DESCRIPTION Glass passivated triacs in a plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, BT134-600 ABSOLUTE MAXIMUM RATINGS ( Ta = 25℃ ) Parameter Repetitive peak off-state voltages RMS on-state current Non-repetitive peak on-state current Max. Operating Junction Temperature Storage Temperature Symbol VDRM VRRM IT(RMS) ITSM Tj Tstg Typ 600 4.0 25 110 -45~150 Unit V A A ℃ ℃ SOT82 ELECTRICAL CHARACTERISTICS ( Ta = 25℃ ) Parameter Repetitive peak off-state voltages RMS on-state current On-state voltage Holding current T2+G+ Gate trigger current T2+GT2-GT2-G+ T2+G+ Latching current T2+GT2-GT2-G+ Gate trigger voltage VGT VD = 12 V; IT = 0.1 A IL VD = 12 V; IGT = 0.1 A IGT VD = 12 V; IT = 0.1 A Symbol VDRM VRRM IT(RMS) VT IH full sine wave; Tmb ≤107 ℃ IT=5A VD = 12 V; IGT = 0.1 A Test Conditions Min — — — — — — — — — — — — — Typ 600 4 1.4 1.2 2.0 2.5 2.5 5.0 1.6 4.5 1.2 2.2 0.7 Max — — 1.7 10 5.0 5.0 5.0 10 10 15 10 15 1.5 V mA mA Unit V A V mA
