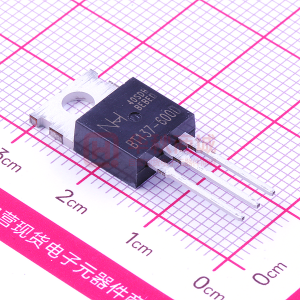

BT137-600D

TIGER ELECTRONIC CO.,LTD Product specification Triacs sensitive gate GENERAL DESCRIPTION Passivated, sensitive gate triacs in a plastic envelope, intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants. ABSOLUTE MAXIMUM RATINGS ( Ta = 25℃ ) Parameter Repetitive peak off-state voltages RMS on-state current Non-repetitive peak on-state current Max. Operating Junction Temperature Storage Temperature Symbol VDRM VRRM IT(RMS) ITSM Tj Tstg Typ 600 8.0 65 110 -45~150 Unit V A A ℃ ℃ BT137-600D TO-220 ELECTRICAL CHARACTERISTICS ( Ta = 25℃ ) Parameter Repetitive peak off-state voltages RMS on-state current On-state voltage Holding current T2+G+ Gate trigger current T2+GT2-GT2-G+ T2+G+ Latching current T2+GT2-GT2-G+ Gate trigger voltage VGT VD = 12 V; IT = 0.1 A IL VD = 12 V; IGT = 0.1 A IGT VD = 12 V; IT = 0.1 A Symbol VDRM VRRM IT(RMS) VT IH full sine wave; Tmb ≤107 ℃ IT=10A VD = 12 V; IGT = 0.1 A Test Conditions Min — — — — — — — — — — — — — Typ 600 8 1.3 1.5 2.5 3.5 3.5 6.5 1.6 8.5 1.2 2.5 0.7 Max — — 1.65 10 5 5 5 10 15 20 15 20 1.5 V mA mA Unit V A V mA
