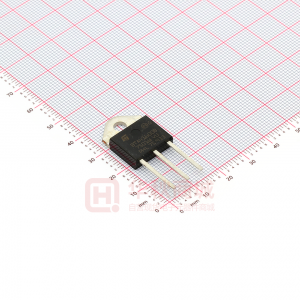

BTA41-600B

TIGER ELECTRONIC CO.,LTD Product specification 40A TRIACS GENERAL DESCRIPTION BTA/BTB41-600B Available either in through-hole or surface-mount packages, the BTA/BTB41 - 600B triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers, ... The snubberless versions (BTA/BTB...W series) are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards. ABSOLUTE MAXIMUM RATINGS ( Ta = 25 C) PARAMETER Repetitive peak off-state voltages peak off-state reverse voltages RMS on-state current Non-repetitive peak on-state current Max. Operating Junction Temperature Storage Temperature Symbol VDRM VRRM IT ITSM Tj Tstg Value 600 600 40.0 420 110 -45~150 Unit V V A A o O A1 A2 G C o TO-3P C ELECTRICAL CHARACTERISTICS ( Ta = 25 C) PARAMETER Repetitive peak off-state voltages Repetitive peak off-state current On-state voltage Holding current T2+G+ Gate trigger Current T2+GT2-GT2-G+ T2+G+ Gate trigger Voltage T2+GT2-GT2-G+ Symbol Test Conditions ID=0.1mA Min. 600 Max Unit V O VDRM IDRM VTM IH VDRM=520V IT=60A IT=0.5A,IGT=50mA 10 1.55 80 50 uA V mA IGT 50 VAK=12V RL=30 mA 50 100 1.3 VGT VD=12V RL=30 1.3 1.3 1.3 V
