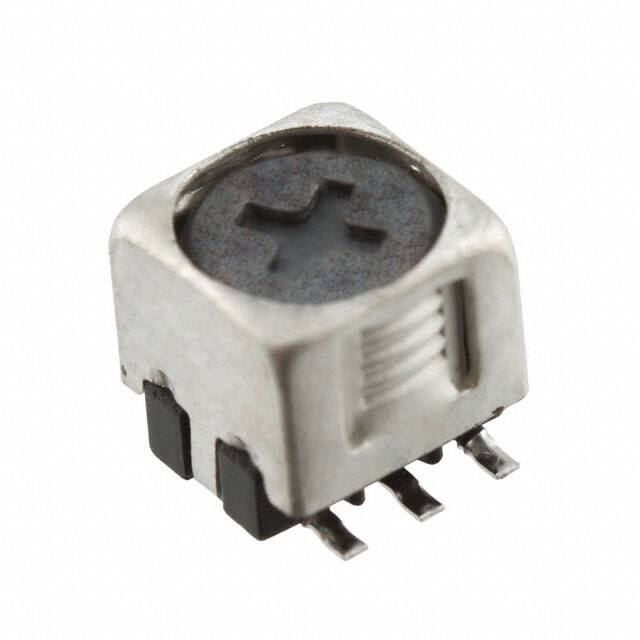

Page 36 (5CCD) 5CCD Series (SURFACE MOUNT) Technical Specification Frequency Range : Inductance Range : Operating Temperature : Unloaded Q : Inductance Variable Range : Temperature Coefficient : Quantity per Reel : 0.1MHz - 2MHz 0.1MHz - 15MHz (High Freq) 1uH - 1400uH -10°C to +60°C 30/65 (ref) Lo±3 to 5% (ref) TC(L) 80 ± 120ppm/°C TC(L) 140 ± 120ppm/°C (High Freq) TC(F) -40 ± 120ppm/°C TC(F) -80 ± 120ppm/°C (High Freq) 1000 pcs Features ● ● ● ● ● ● ● ● ● ● ● ● Dimensions 6.0x5.7x5.5 max (mm) For re-flow soldering Reflows at 235°C - 245ºC (5 - 10 secs max) Adjustable type. Low temperature coefficient core ensures minimal frequency drift. Available with tow internal capacitors, (4 to 1000pf) up to 5 terminals for transformer or taps. Fixed drum and adjustable cup core ferrites provides precise tolerance of setting and protection from EMI. TOKO’s exclusive threaded metallic shielding provides precise tolerances of setting and protection from electrostatic interference. High interference. High Q, typically 50, provides high performance for size. TOKO features a unique manufacturing technique to create a smooth and consistent torque level between tuning core and coil former. Reduces core damage during alignment and firmly holds final setting. TOKO 5CCD VARIABLE INDUCTORS TOKO Ref 614BN-9018Z Inductance Tol. Qu Test Freq of L (MHz) Notes BEC Ref 1.8uH ±3% 45 7.96 H.Fr 302034 http://217.34.228.137/Pages/VARSMD/page36.htm (1 of 3)03/03/2005 05:03:16 ã Page 36 (5CCD) 614BN-9020IB 2uH ±3% 45 7.96 H.Fr 302035 614BN-9022Z 2.2uH ±3% 45 7.96 H.Fr 302036 614BN-9024IB 2.4uH ±3% 50 7.96 H.Fr 302037 614BN-9027IB 2.7uH ±3% 50 7.96 H.Fr 302038 614BN-9030Z 3.0uH ±3% 50 7.96 H.Fr 302039 614BN-9033Z 3.3uH ±3% 55 7.96 H.Fr 302040 614BN-9036IB 3.6uH ±4% 55 7.96 H.Fr 302041 614BN-9039Z 3.9uH ±4% 55 7.96 H.Fr 302042 614BN-9043Z 4.3uH ±4% 55 7.96 H.Fr 302043 614BN-9047Z 4.7uH ±4% 55 7.96 H.Fr 302044 614BN-90511B 5.1uH ±4% 65 7.96 H.Fr 302045 614BN-9056Z 5.6uH ±4% 65 7.96 H.Fr 302046 614BN-9062Z 6.2uH ±4% 65 7.96 H.Fr 302047 614BN-9068Z 6.8uH ±4% 65 7.96 H.Fr 302048 614BN-9075Z 7.5uH ±4% 65 7.96 H.Fr 302049 614BN-9082Z 8.2uH ±4% 65 7.96 H.Fr 302050 614BN-9091Z 9.1uH ±4% 45 7.96 H.Fr 302051 614BN-9100Z 10uH ±5% 45 2.52 H.Fr 302052 614BN-9110Z 11uH ±5% 45 2.52 H.Fr 302053 614BN-9120Z 12uH ±5% 45 2.52 H.Fr 302054 614BN-9130Z 13uH ±5% 45 2.52 H.Fr 302055 614BN-9150Z 15uH ±5% 45 2.52 H.Fr 302056 614BN-9160Z 16uH ±5% 45 2.52 H.Fr 302057 614BN-9180Z 18uH ±5% 45 2.52 H.Fr 302058 614BN-9200Z 20uH ±5% 45 2.52 H.Fr 302059 614BN-9220Z 22uH ±5% 45 2.52 H.Fr 302060 614BN-9240Z 24uH ±5% 45 2.52 H.Fr 302061 614BN-9270Z 27uH ±5% 45 2.52 H.Fr 302062 614BN-9300Z 30uH ±5% 45 2.52 H.Fr 302063 614BN-9330Z 33uH ±5% 45 2.52 H.Fr 302064 614BN-9360Z 36uH ±5% 45 2.52 H.Fr 302065 http://217.34.228.137/Pages/VARSMD/page36.htm (2 of 3)03/03/2005 05:03:16 ã Page 36 (5CCD) 614BN-9390Z 39uH ±5% 45 2.52 H.Fr 302066 614BN-9430Z 43uH ±5% 45 2.52 H.Fr 302067 614BN-9470Z 47uH ±5% 45 2.52 H.Fr 302068 614BN-9510Z 51uH ±5% 45 2.52 H.Fr 302069 614BN-9560Z 56uH ±5% 45 2.52 H.Fr 302070 614BN-9620Z 62uH ±5% 45 2.52 H.Fr 302071 614BN-9680Z 68uH ±5% 30 2.52 H.Fr 302072 614BN-9750Z 75uH ±5% 30 2.52 302073 614AN-9820Z 82uH ±5% 30 2.52 302074 614BN-9910Z 91uH ±5% 30 2.52 302075 614BN-9100Z 100uH ±5% 45 0.796 302076 TOKO Ref 5CCD 614BN Series 1+ 0.86 25+ 0.77 http://217.34.228.137/Pages/VARSMD/page36.htm (3 of 3)03/03/2005 05:03:16 ã 100+ 0.69 500+ POA 1000+ POA 5000+ POA
