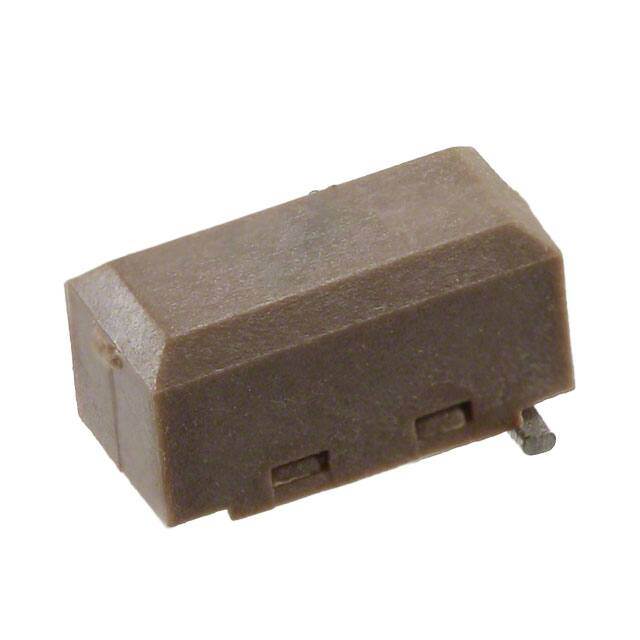

656LZ-06K=P3

34 TYPE Air Core Inductors 33CS/ 36CS Meeting Your Needs 33CS The 33CS/36CS Series inductor family combines exceptionally high Q values only achieved by an airwound coil, with automatic placement capability. The high frequency range capability and durable mechanical stability make this component very attractive for signal conditioning in a wide variety of applications. The 33CS/ 36CS Series is an airwound coil designed for auto placement and compatibility. 36CS Features • • • • • • Inductance Range: 6.8–49.8nH Machine autoplaceable Reflow solderability High Q Excellent environmental and mechanical characteristics Packaged on tape and reel in 2,000 piece quantity Tolerance: ±0.2 Unit: mm STANDARD PARTS SELECTION GUIDE TYPE 33CS TOKO Part Number Winding Turns Y655LY-01K=P3 Y655LY-02K=P3 Y655LY-03K=P3 Y655LY-04K=P3 1.5 2.5 3.5 4.5 6.8 10.5 15.3 21.6 5.5 6.5 7.5 8.5 9.5 22.0 27.5 33.1 41.1 49.8 Q (min.) Testing Frequency (MHz min.) Self Resonant Frequency (MHz min.) Rated DC Current (mA max.) ±10 ±10 ±10 ±10 70 75 75 75 150 150 150 150 3,000 3,000 3,000 2,500 1,000 1,000 1,000 1,000 ±10 ±10 ±10 ±10 ±10 85 85 85 85 85 150 150 150 150 150 2,500 2,200 2,000 2,000 1,700 1,000 1,000 1,000 1,000 1,000 Inductance Tolerance nH (%) TYPE 36CS 656LZ-05K=P3 656LZ-06K=P3 656LZ-07K=P3 656LZ-08K=P3 656LZ-09K=P3 Note: =P3 is added to each part number to indicate tape and reel packaging. 1.800.PIK.TOKO www.tokoam.com 1.847.297.0070 R-LOG1101A
