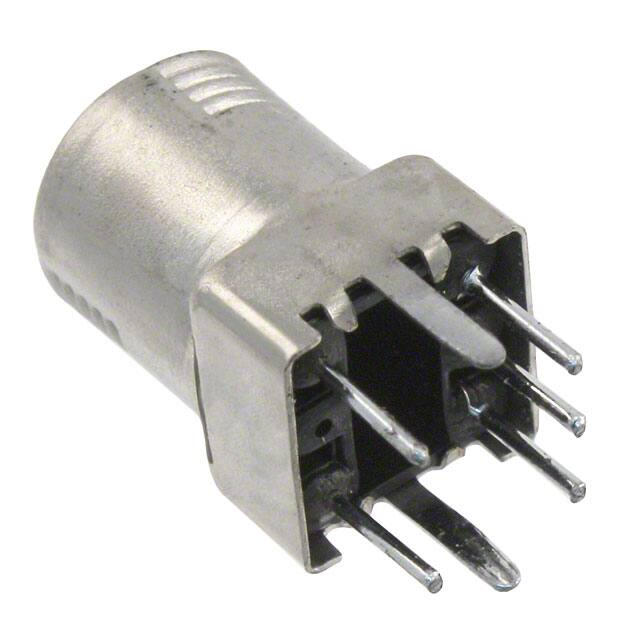

A119ANS-T1038Z

TYPE 7P Variable Coils 7mm TYPE 7P High Frequency 7mm TYPE 7P High Frequency with Internal Capacitor(1) Frequency Range: 2–20MHz Inductance Range: 1–82µH Temperature Coefficient of : Inductor TC (L) 220±220ppm/°C With Internal Capacitor TC (F) 0±250ppm/°C Internal Capacitance Values: 5-100pF(1) Features Unit: mm • Ideal for use as an FM IFT and in detector circuits. • Unique design features a cup core adjustor, threaded directly into the shield can, allowing the use of larger cores. This produces the superior, large signal characteristics typically associated with 10mm types. STANDARD COILS SELECTION GUIDE (1) Cross slit core (Philips type) also available upon request. TYPE 7P High Frequency TOKO Part Number Inductance Range (µH) Q (min.) Test Frequency (MHz) A119ANS-T1029Z A119ANS-T1030Z A119ANS-T1031Z A119ANS-T1032Z A119ANS-T1033Z 4.7±10% 5.6±10% 6.8±10% 8.2±10% 10.0±10% 80 80 80 80 80 7.96 7.96 7.96 7.96 2.52 A119ANS-T1034Z A119ANS-T1035Z A119ANS-T1036Z A119ANS-T1037Z A119ANS-T1038Z 12.0±10% 15.0±10% 18.0±10% 22.0±10% 27.0±10% 80 80 80 80 80 2.52 2.52 2.52 2.52 2.52 A119ANS-T1039Z A119ANS-T1040Z A119ANS-T1041Z A119ANS-T1042Z A119ANS-T1043Z 33.0±10% 39.0±10% 47.0±10% 56.0±10% 68.0±10% 80 80 80 80 80 2.52 2.52 2.52 2.52 2.52 A119ANS-T1044Z 82.0±10% 80 2.52 TYPE 7P High Frequency with Internal Capacitor TOKO Part Number Turns Ratio: 1-3/2-3 1-3/4-6 Others 119AC-470033N0 119AC-470052N0 119AC-470072N0 119AC-470073N0 119AC-470084L0 14:3 14:5 14:7 14:7 14:3 14:2 14:2 14:3 119AC-470112N0 119AC-750111M0 119AC-750112M0 119FC-560061N0 119FC-820051N0 14:11 14:2 12:6 10:5 12:1 10:1 119LC-470033N0 119LC-470053N0 119LC-470073N0 14:3 14:5 14:7 14:3 14:3 14:3 2-3/4-6 11:1 2-3/4-6 11:2 Tuning Capacitance (pF) Q Test Frequency (MHz) 47+5(ext) 47+5(ext) 47+5(ext) 47+5(ext) 47+3(ext) 100±20% 110±20% 110±20% 110±20% 90±20% 10.7 10.7 10.7 10.7 10.7 47+5(ext) 75+5(ext) 75+5(ext) 56+0(ext) 82+0(ext) 120±20% 100±20% 100±20% 120±20% 110±20% 10.7 10.7 10.7 10.7 10.7 47+5(ext) 47+5(ext) 47+5(ext) 65±20% 70±20% 70±20% 10.7 10.7 10.7 69
