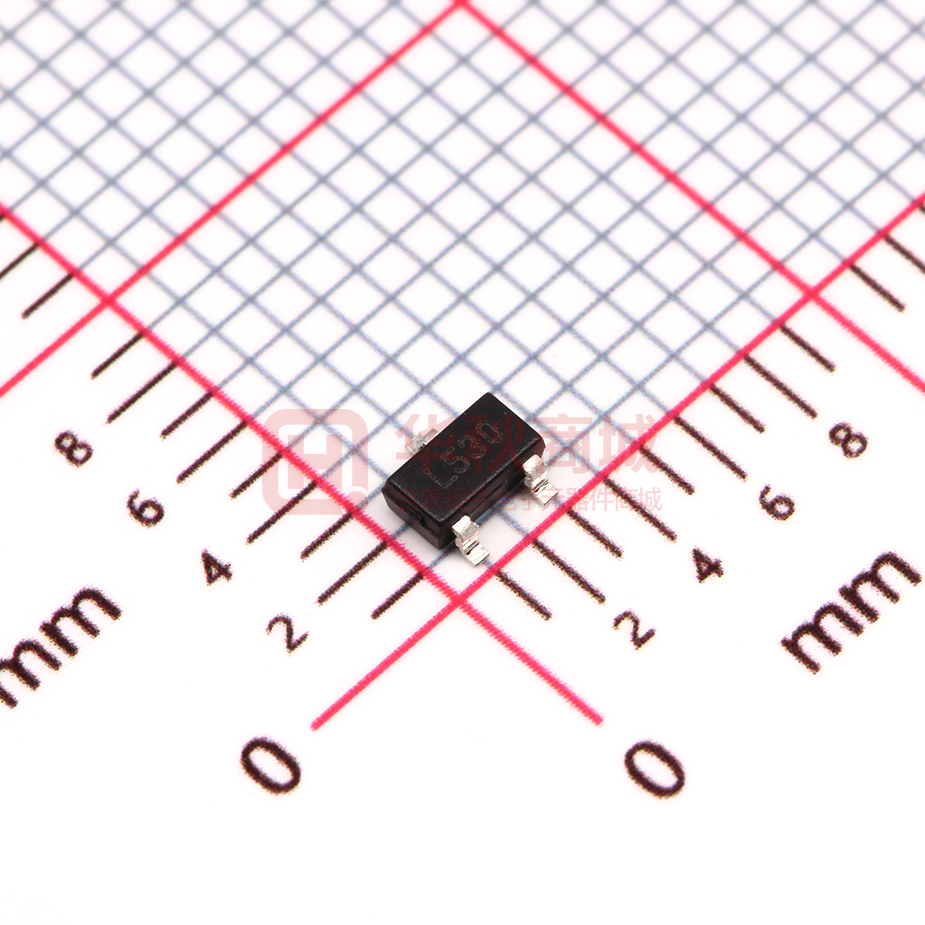

XC61CN1502MR

XC61C Series ETR0201_016 Low Voltage Detectors (VDF= 0.8V～1.5V) Standard Voltage Detectors (VDF 1.6V～6.0V) ■GENERAL DESCRIPTION The XC61C series are highly precise, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-ch open drain output configurations are available. ■APPLICATIONS ■FEATURES ●Microprocessor reset circuitry ●Memory battery back-up circuits ●Power-on reset circuits ●Power failure detection ●System battery life and charge voltage monitors Highly Accurate : ± 2% : ± 1%(Standard Voltage VD: 2.6V~5.1V) Low Power Consumption : 0.7μA (TYP.) [VIN=1.5V] Detect Voltage Range : 0.8V ~ 6.0V in 0.1V increments Operating Voltage Range : 0.7V ~ 6.0V (Low Voltage) 0.7V～10.0V (Standard Voltage) Detect Voltage Temperature Characteristics : ±100ppm/℃ (TYP.) Output Configuration : N-ch open drain or CMOS Packages : SSOT-24 SOT-23 SOT-89 Environmentally Friendly : EU RoHS Compliant, Pb Free ■TYPICAL APPLICATION CIRCUITS ■TYPICAL PERFORMANCE CHARACTERISTICS 1/16 XC61C Series ■PIN CONFIGURATION ■PIN ASSIGNMENT PIN NUMBER PIN NAME FUNCTIONS VIN Supply Voltage Input 3 VSS Ground 1 VOUT Output - NC No Connection SSOT-24 SOT-23 SOT-89 2 3 2 4 2 1 1 3 - ■PRODUCT CLASSIFICATION ●Ordering Information XC61C①②③④⑤⑥⑦-⑧(*1) DESIGNATOR ITEM SYMBOL ① Output Configuration C N ②③ Detect Voltage 08 ~ 60 ④ Output Delay ⑤ Detect Accuracy 0 1 2 NR NR-G MR MR-G PR PR-G ⑥⑦-⑧ (*1) (*1) Packages (Order Unit) DESCRIPTION CMOS output N-ch open drain output e.g.0.9V → ②0, ③9 e.g.1.5V → ②1, ③5 No delay Within ±1% (VDF(T)=2.6V~5.1V) Within ±2% SSOT-24 (3,000pcs/Reel) SSOT-24 (3,000pcs/Reel) SOT-23 (3,000pcs/Reel) SOT-23 (3,000pcs/Reel) SOT-89 (1,000pcs/Reel) SOT-89 (1,000pcs/Reel) The “-G” suffix denotes Halogen and Antimony free as well as being fully EU RoHS compliant. 2/16 XC61C Series ■BLOCK DIAGRAMS (1) CMOS Output (2) N-ch Open Drain Output ■ABSOLUTE MAXIMUM RATINGS Ta = 25OC PARAMETER SYMBOL *1 *2 Input Voltage Output Current VIN IOUT N-ch Open Drain Output *1 VOUT SOT-23 SOT-89 Operating Ambient Temperature Storage Temperature 50 mA V VSS -0.3 ~ 9.0 V VSS -0.3 ~ 12.0 N-ch Open Drain Output *2 SSOT-24 Power Dissipation UNITS VSS -0.3 ~ VIN +0.3 CMOS Output Voltage RATINGS VSS-0.3 ~ 9.0 VSS-0.3 ~ 12.0 150 Pd 150 mW Topr Tstg 500 -40～+85 -55～+125 ℃ ℃ *1: Low voltage: VDF(T)=0.8V~1.5V *2: Standard voltage: VDF(T)=1.6V~6.0V 3/16 XC61C Series ■ELECTRICAL CHARACTERISTICS VDF (T) = 0.8V to 6.0V ± 2% VDF (T) = 2.6V to 5.1V ± 1% PARAMETER SYMBOL Detect Voltage VDF CONDITIONS VDF(T)=0.8V~1.5V *1 VDF(T)=1.6V~6.0V *2 VDF(T)=2.6V~5.1V *2 Hysteresis Range VHYS Supply Current ISS Operating Voltage *1 Operating Voltage *2 VIN VIN = 1.5V VIN = 2.0V VIN = 3.0V VIN = 4.0V VIN = 5.0V VDF(T) = 0.8V to 1.5V VDF(T) = 1.6V to 6.0V N-ch VDS = 0.5V Output Current *1 CMOS, P-ch VDS = 2.1V IOUT Output Current *2 N-ch VDS = 0.5V CMOS, P-ch VDS = 2.1V CMOS Output (Pch) Leakage ILEAK Current N-ch Open Drain Temperature ΔVDF/ Characteristics (ΔTopr･VDF) Delay Time tDLY (VDR→VOUT inversion) NOTE: *1: Low Voltage: VDF(T)=0.8V~1.5V *2: Standard Voltage: VDF(T)=1.6V~6.0V VDF (T): Nominal detect voltage Release Voltage: VDR = VDF + VHYS 4/16 VIN=VDFx0.9, VOUT=0V VIN=6.0V, VOUT=6.0V*1 VIN = 0.7V VIN = 1.0V VIN = 6.0V VIN = 1.0V VIN = 2.0V VIN = 3.0V VIN = 4.0V VIN = 5.0V VIN = 8.0V MIN. VDF(T) x 0.98 VDF(T) x 0.99 VDF x 0.02 0.7 0.7 0.10 0.85 1.0 3.0 5.0 6.0 7.0 - TYP. VDF x 0.05 0.7 0.8 0.9 1.0 1.1 0.80 2.70 -7.5 2.2 7.7 10.1 11.5 13.0 -10.0 MAX. VDF(T) x 1.02 VDF(T) x 1.01 VDF x 0.08 2.3 2.7 3.0 3.2 3.6 6.0 10.0 -1.5 -2.0 - -10 - VDF(T) VDF(T) Ta=25℃ UNITS CIRCUITS V 1 V 1 V 1 μA 2 V 1 3 4 mA 3 4 nA 3 - 10 100 -40℃ ≦ Topr ≦ 85℃ - ±100 - ppm/ ℃ 1 Inverts from VDR to VOUT - 0.03 0.20 ms 5 VIN=10.0V, VOUT=10.0V*2 XC61C Series ■OPERATIONAL EXPLANATION (Especially prepared for CMOS output products) ① When input voltage (VIN) is higher than detect voltage (VDF), output voltage (VOUT) will be equal to VIN. (A condition of high impedance exists with N-ch open drain output configurations.) ② When input voltage (VIN) falls below detect voltage (VDF), output voltage (VOUT) will be equal to the ground voltage (VSS) level. ③ When input voltage (VIN) falls to a level below that of the minimum operating voltage (VMIN), output will become unstable. (As for the N-ch open drain product of XC61CN, the pull-up voltage goes out at the output voltage.) ④ When input voltage (VIN) rises above the ground voltage (VSS) level, output will be unstable at levels below the minimum operating voltage (VMIN). Between the VMIN and detect release voltage (VDR) levels, the ground voltage (VSS) level will be maintained. ⑤ When input voltage (VIN) rises above detect release voltage (VDR), output voltage (VOUT) will be equal to VIN. (A condition of high impedance exists with N-ch open drain output configurations.) ⑥ The difference between VDR and VDF represents the hysteresis range. ●Timing Chart 5/16 XC61C Series ■NOTES ON USE 1. Please use this IC within the stated absolute maximum ratings. For temporary, transitional voltage drop or voltage rising phenomenon, the IC is liable to malfunction should the ratings be exceeded. 2. When a resistor is connected between the VIN pin and the power supply with CMOS output configurations, oscillation may occur as a result of voltage drops at RIN if load current (IOUT) exists. (refer to the Oscillation Description (1) below) 3. When a resistor is connected between the VIN pin and the power supply with CMOS output configurations, irrespective of N-ch open-drain output configurations, oscillation may occur as a result of through current at the time of voltage release even if load current (IOUT) does not exist. (refer to the Oscillation Description (2) below ) 4. Please use N-ch open drain output configuration, when a resistor RIN is connected between the VIN pin and power source. In such cases, please ensure that RIN is less than 10kΩ and that C is more than 0.1μF, please test with the actual device. (refer to the Oscillation Description (1) below) 5. With a resistor RIN connected between the VIN pin and the power supply, the VIN pin voltage will be getting lower than the power supply voltage as a result of the IC's supply current flowing through the VIN pin. 6. In order to stabilize the IC's operations, please ensure that VIN pin input frequency's rise and fall times are more than 2 μ s/ V. 7. Torex places an importance on improving our products and its reliability. However, by any possibility, we would request user fail-safe design and post-aging treatment on system or equipment. Power supply ●Oscillation Description (1) Load current oscillation with the CMOS output configuration When the voltage applied at power supply, release operations commence and the detector's output voltage increases. Load current (IOUT) will flow at RL. Because a voltage drop (RIN x IOUT) is produced at the RIN resistor, located between the power supply and the VIN pin, the load current will flow via the IC's VIN pin. The voltage drop will also lead to a fall in the voltage level at the VIN pin. When the VIN pin voltage level falls below the detect voltage level, detect operations will commence. Following detect operations, load current flow will cease and since voltage drop at RIN will disappear, the voltage level at the VIN pin will rise and release operations will begin over again. Oscillation may occur with this " release - detect - release " repetition. Further, this condition will also appear via means of a similar mechanism during detect operations. (2) Oscillation as a result of through current Since the XC61C series are CMOS IC S, through current will flow when the IC's internal circuit switching operates (during release and detect operations). Consequently, oscillation is liable to occur as a result of drops in voltage at the through current's resistor (RIN) during release voltage operations. (refer to Figure 3) Since hysteresis exists during detect operations, oscillation is unlikely to occur. Power supply 6/16 Power supply XC61C Series 100kΩ* 7/16 XC61C Series ■TYPICAL PERFORMANCE CHARACTERISTICS ●Low Voltage Note : Unless otherwise stated, the N-ch open drain pull-up resistance value is 100kΩ. 8/16 XC61C Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) ●Low Voltage (Continued) (4) N-ch Driver Output Current vs. VDS ＸＣ６１ＣＣ０９０２ (０.９Ｖ) ＸＣ６１ＣＣ１１０２(１.１Ｖ) VIN =0.8V 1.0 0.8 0.6 0.7V 0.4 0.2 0 0.2 0.4 0.6 0.8 Ta=25℃ VIN =0.8V 1.0 0.8 0.6 0.7V 0.4 0.2 0 1.0 Ta=25℃ 1.2 0 0.2 0.4 VDS (V) ＸＣ６１ＣＣ１５０２(１.５Ｖ) 0.8 1.5 1.0 0.5 0 1.0 0.2 0.4 0.6 0.8 1.0 VDS (V) Ta=25℃ VIN =0.8V 1.0 0.8 0.6 0.7V 0.4 0.2 0 0.2 0.4 0.6 0.8 VIN =1.4V 6.0 1.0V 2.0 0 1.0 1.2V 4.0 0 0.2 0.4 VDS (V) 0.6 0.8 1.0 1.2 1.4 VDS (V) (5) N-ch Driver Output Current vs. Input Voltage ＸＣ６１ＣＣ０９０２ (０.９Ｖ) ＸＣ６１ＣＣ１１０２ (１.１Ｖ) ＸＣ６１ＣＣ１５０２(１.５Ｖ) 5.0 Output Current: IOUT (mA) VDS=0.5V 2.0 1.5 1.0 Ta=85℃ 25℃ 0.5 -40℃ 0 0.2 0.4 0.6 0.8 Ta=-40℃ VDS=0.5V 4.0 25℃ 3.0 2.0 80℃ 1.0 0 1.0 10 Output Current: IOUT (mA) 2.5 Output Current: IOUT (mA) 0 ＸＣ６１ＣＣ１５０２(１.５Ｖ) Ta=25℃ 1.2 0 VIN =1.0V 2.0 8.0 Output Current: IOUT (mA) Output Current: IOUT (mA) 0.6 2.5 VDS (V) 1.4 0 Output Current: IOUT (mA) Ta=25℃ 1.2 0 ＸＣ６１ＣＣ１１０２(１.１Ｖ) 3.0 1.4 Output Current: IOUT (mA) Output Current: IOUT (mA) 1.4 0 Input Voltage: VIN (V) 0.2 0.4 0.6 0.8 1.0 VDS=0.5V 25℃ 6 4 85℃ 2 0 1.2 Ta=-40℃ 8 0 Input Voltage: VIN (V) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 Input Voltage: VIN (V) (6) P-ch Driver Output Current vs. Input Voltage ＸＣ６１ＣＣ０９０２ (０.９Ｖ) ＸＣ６１ＣＣ１１０２　(１.１Ｖ) Ta= 25℃ VDS=2.1V 8 1.5V 6 1.0V 4 0.5V 2 0 1 2 3 4 Input Voltage: VIN (V) 5 12 6 VDS=2.1V 10 8 1.5V 6 1.0V 4 0.5V 2 0 0 1 2 3 4 Input Voltage: VIN (V) 5 6 Output Current: IOUT (mA) Ta= 25℃ 10 0 ＸＣ６１ＣＣ１５０２(１.５Ｖ) 12 Output Current: IOUT (mA) Output Current: IOUT (mA) 12 Ta= 25℃ 10 VDS=2.1V 8 1.5V 6 1.0V 4 0.5V 2 0 0 1 2 3 4 5 6 Input Voltage: VIN (V) 9/16 XC61C Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) ●Standard Voltage ＸＣ６１ＣＣ２７０２ (２.７Ｖ) 3.5 3.5 3.0 3.0 Supply Current: ISS (μA) Supply Current: ISS (μA) (1) Supply Current vs. Input Voltage ＸＣ６１ＣＣ１８０２ (１.８Ｖ） 2.5 2.0 Ta=85℃ 25℃ 1.5 1.0 -40℃ 0.5 0 0 2 4 6 8 2.5 2.0 1.0 -40℃ 0.5 0 10 0 Input Voltage: VIN (V) 3.0 3.0 2.5 1.5 4 6 8 10 ＸＣ６１ＣＣ４５０２ (４.５Ｖ) 3.5 Supply Current: ISS (μA) Supply Current: ISS (μA) ＸＣ６１ＣＣ３６０２ (３.６Ｖ) Ta=85℃ 25℃ 2 Input Voltage: VIN (V) 3.5 2.0 Ta=85℃ 25℃ 1.5 1.0 -40℃ 0.5 0 2.5 2.0 Ta=85℃ 25℃ 1.5 1.0 -40℃ 0.5 0 0 2 4 6 8 10 0 Input Voltage: VIN (V) 2 4 6 8 10 Input Voltage: VIN (V) (2) Detect, Release Voltage vs. Ambient Temperature ＸＣ６１ＣＣ１８０２ (１.８Ｖ) ＸＣ６１ＣＣ２７０２ (２.７Ｖ) 1.85 Detect, Release Voltage: VDF, VDR (V) Detect, Release Voltage: VDF, VDR (V) 1.90 VDR 1.80 VDF 1.75 -50 -25 0 25 50 75 100 2.80 VDR 2.75 2.70 VDF 2.65 -50 Ambient Temperature : Ta (℃) ＸＣ６１ＣＣ３６０２ (３.６Ｖ) Detect, Release Voltage: VDF, VDR (V) Detect, Release Voltage: VDF, VDR (V) 25 50 75 100 4.7 VDR 3.7 3.6 VDF -25 0 25 50 75 Ambient Temperature : Ta (℃) 10/16 0 ＸＣ６１ＣＣ４５０２ (４.５Ｖ) 3.8 3.5 -50 -25 Ambient Temperature : Ta (℃) 100 VDR 4.6 4.5 VDF 4.4 -50 -25 0 25 50 75 Ambient Temperature : Ta (℃) 100 XC61C Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) ●Standard Voltage (Continued) (3) Output Voltage vs. Input Voltage ＸＣ６１ＣＮ１８０２ （１.８V) ＸＣ６１ＣＮ２７０２ （２.７Ｖ) 3 2 1 0 0 Ta=25℃ Output Voltage: VOUT (V) Output Voltage: VOUT (V) Ta=25℃ 1 2 1 0 2 0 1 Input Voltage: VIN (V) ＸＣ６１ＣＮ３６０２ (３.６V) 5 3 2 1 0 Ta=25℃ Output Voltage: VOUT (V) Ta=25℃ Output Voltage: VOUT (V) 3 ＸＣ６１ＣＮ４５０２ (４.５V) 4 0 2 Input Voltage: VIN (V) 1 2 3 4 3 2 1 0 4 0 1 Input Voltage: VIN (V) 2 3 4 5 Input Voltage: VIN (V) Note : The N-channel pull up resistance is 100k N-ch open open drain drain pull up resistance valuevalue is 100kΩ. Ω. (4) N-ch Driver Output Current vs. VDS ＸＣ６１ＣＣ１８０２ (１.８Ｖ) ＸＣ６１ＣＣ２７０２ (２.７V) 10 30 VIN =1.5V Ta=25℃ Output Current: I OUT (mA) Output Current: I OUT (mA) Ta=25℃ 8 6 4 1.0V 2 0 0 0.5 1.0 1.5 20 2.0V 15 10 1.5V 5 1.0V 0 2.0 VIN =2.5V 25 0 0.5 1.0 80 80 Ta=25℃ VIN =3.0V 30 2.5V 20 2.0V 10 1.5V 0.5 1.0 1.5 VDS (V) 2.0 2.5 3.0 Output Current: I OUT (mA) Output Current: I OUT (mA) 40 0 2.0 2.5 3.0 XC61CC4502 (4.5V) ＸＣ６１ＣＣ３６０２ (３.６Ｖ) 0 1.5 VDS (V) VDS (V) ＸＣ６１ＣＣ４５０２ (４.５V) XC61CC4502 (4.5V品 ) Ta=25℃ Ta=25℃ 70 70 60 60 VIN =4.0V VIN =4.0V 3.5V 3.5V 50 50 40 40 3.0V 3.0V 30 30 2.5V 2.5V 20 20 2.0V 2.0V 10 10 00 1.5V 1.5V 0 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 VDS (V) VDS (V) 11/16 XC61C Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) ●Standard Voltage (Continued) (4) N-ch Driver Output Current vs. VDS ＸＣ６１ＣＣ１８０２ (１.８V) 1000 Output Current: IOUT (μA) VIN =0.8V Ta=25℃ Output Current: IOUT (μA) ＸＣ６１ＣＣ２７０２ （２.７V) 1000 800 600 0.7V 400 200 0 0 0.2 0.4 0.6 0.8 Ta=25℃ 800 600 400 0.7V 200 0 1.0 VIN =0.8V 0 0.2 0.4 ＸＣ６１ＣＣ３６０２ (３.６V) Ta=25℃ VIN =0.8V 600 400 0.7V 200 0 0.2 1.0 ＸＣ６１ＣＣ４５０２ (４.５V) Ta=25℃ 800 0 0.8 1000 Output Current: IOUT (μA) Output Current: IOUT (μA) 1000 0.6 VDS (V) VDS (V) 0.4 0.6 0.8 600 400 0.7V 200 0 1.0 VIN =0.8V 800 0 0.2 0.4 VDS (V) 0.6 0.8 1.0 VDS (V) (5) N-ch Driver Output Current vs. Input Voltage ＸＣ６１ＣＣ１８０２ (１.８V) ＸＣ６１ＣＣ２７０２ (２.７V) 15 25 VDS=0.5V Ta=-40℃ 10 Output Current: IOUT (mA) Output Current: IOUT (mA) VDS=0.5V 25℃ 5 85℃ 0 0 0.5 1.0 1.5 25℃ 15 10 85℃ 5 0 2.0 0 Input Voltage: VIN (V) ＸＣ６１ＣＣ３６０２ (３.６V) 1.5 2.0 2.5 3.0 ＸＣ６１ＣＣ４５０２ (４.５V) VDS=0.5V Ta=-40℃ 25 Output Current: IOUT (mA) Output Current: IOUT (mA) 1.0 40 VDS=0.5V 25℃ 20 15 10 85℃ 5 0 1 2 3 Input Voltage: VIN (V) 12/16 0.5 Input Voltage: VIN (V) 30 0 Ta=-40℃ 20 4 Ta=-40℃ 30 25℃ 20 85℃ 10 0 0 1 2 3 Input Voltage: VIN (V) 4 5 XC61C Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) ●Standard Voltage (Continued) (6) P-ch Driver Output Current vs. Input Voltage ＸＣ６１ＣＣ１８０２ (１.８V) ＸＣ６１ＣＣ２７０２ (２.７V) 15 15 VDS=2.1V Output Current: IOUT (mA) Output Current: IOUT (mA) VDS=2.1V 1.5V 10 1.0V 5 0.5V 0 1.5V 10 1.0V 5 0.5V 0 0 2 4 6 8 10 0 2 Input Voltage: VIN (V) 4 8 10 Input Voltage: VIN (V) ＸＣ６１ＣＣ３６０２ (３.６V) ＸＣ６１ＣＣ４５０２ (４.５V) 15 15 VDS=2.1V VDS=2.1V Output Current: IOUT (mA) Output Current: IOUT (mA) 6 1.5V 10 1.0V 5 0.5V 0 1.5V 10 1.0V 5 0.5V 0 0 2 4 6 Input Voltage: VIN (V) 8 10 0 2 4 6 8 10 Input Voltage: VIN (V) 13/16 XC61C Series ■PACKAGING INFORMATION ●SSOT-24 ●SOT-23 2.0±0.1 +0.15 0.25 -0.1 +0.15 0.25 -0.1 +0.1 0 -0 +0.15 0.25 -0.1 +0.15 0.35 -0.1 0.05 +0.1 0.125 -0.05 1.3±0.2 4.0±0.25 14/16 （0.25) （1.85) （0.4) 1.5±0.1 (0.1) 1.0±0.2 2.5±0.1 (0.4) ●SOT-89 XC61C Series ■MARKING RULE ● SSOT-24, SOT-23, SOT-89 4 ① represents integer of detect voltage and CMOS Output (XC61CC series) 3 ① ② 1 MARK A B C D E F H ④ 2 3 CONFIGURATION CMOS CMOS CMOS CMOS CMOS CMOS CMOS VOLTAGE (V) 0.X 1.X 2.X 3.X 4.X 5.X 6.X N-Channel Open Drain Output (XC61CN series) ③ ④ 1 MARK K L M N P R S 2 CONFIGURATION N-ch N-ch N-ch N-ch N-ch N-ch N-ch VOLTAGE (V) 0.X 1.X 2.X 3.X 4.X 5.X 6.X ② represents decimal number of detect voltage ③ 2 ① 1 ④ ② ② ① 3 MARK 0 1 2 3 4 VOLTAGE (V) X.0 X.1 X.2 X.3 X.4 MARK 5 6 7 8 9 VOLTAGE (V) X.5 X.6 X.7 X.8 X.9 ③ represents delay time (Except for SSOT-24) MARK DELAY TIME PRODUCT SERIES 3 No Delay Time XC61Cxxx0xxx ④ represents production lot number Based on the internal standard. (G, I, J, O, Q, W excluded) 15/16 XC61C Series 1. The product and product specifications contained herein are subject to change without notice to improve performance characteristics. Consult us, or our representatives before use, to confirm that the information in this datasheet is up to date. 2. The information in this datasheet is intended to illustrate the operation and characteristics of our products. We neither make warranties or representations with respect to the accuracy or completeness of the information contained in this datasheet nor grant any license to any intellectual property rights of ours or any third party concerning with the information in this datasheet. 3. Applicable export control laws and regulations should be complied and the procedures required by such laws and regulations should also be followed, when the product or any information contained in this datasheet is exported. 4. The product is neither intended nor warranted for use in equipment of systems which require extremely high levels of quality and/or reliability and/or a malfunction or failure which may cause loss of human life, bodily injury, serious property damage including but not limited to devices or equipment used in 1) nuclear facilities, 2) aerospace industry, 3) medical facilities, 4) automobile industry and other transportation industry and 5) safety devices and safety equipment to control combustions and explosions. Do not use the product for the above use unless agreed by us in writing in advance. 5. Although we make continuous efforts to improve the quality and reliability of our products; nevertheless Semiconductors are likely to fail with a certain probability. So in order to prevent personal injury and/or property damage resulting from such failure, customers are required to incorporate adequate safety measures in their designs, such as system fail safes, redundancy and fire prevention features. 6. Our products are not designed to be Radiation-resistant. 7. Please use the product listed in this datasheet within the specified ranges. 8. We assume no responsibility for damage or loss due to abnormal use. 9. All rights reserved. No part of this datasheet may be copied or reproduced unless agreed by Torex Semiconductor Ltd in writing in advance. TOREX SEMICONDUCTOR LTD. 16/16
