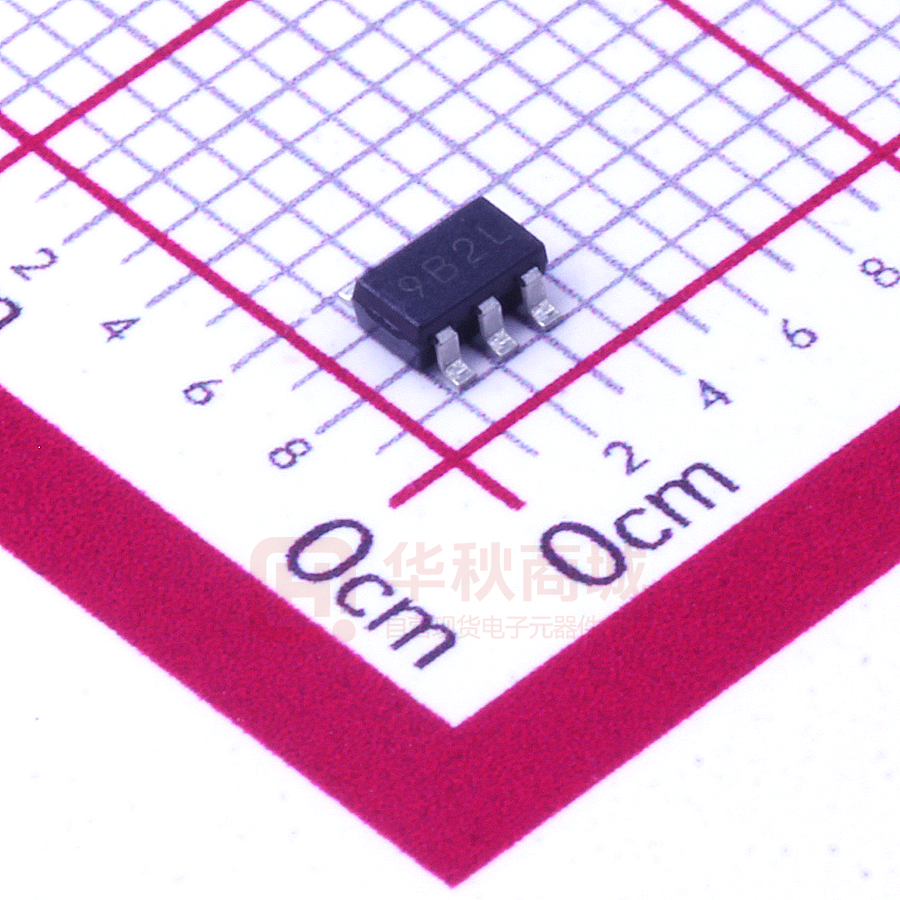

XC6209B332MR

XC6209/XC6212 Series ETR0306_006 High Speed LDO Regulators Low ESR Cap.Compatible,Output ON/OFFControl ■GENERAL DESCRIPTION The XC6209/XC6212 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. Output voltage is selectable in 0.05V increments within a range of 0.9V ~ 6.0V. The series is also compatible with low ESR ceramic capacitors which give added output stability. This stability can be maintained even during load fluctuations due to the excellent transient response of the series. The current limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. The CE function enables the output to be turned off, resulting in greatly reduced power consumption. ■APPLICATIONS ■FEATURES ●Mobile phones, Cordless phones Maximum Output Current ●Wireless communication equipment ●Portable games ●Cameras, Video recorders ●Portable AV equipment ●Reference voltage Dropout Voltage Maximum Operating Voltage Output Voltage Range Highly Accurate ●Battery powered equipment Low Power Consumption Standby Current High Ripple Rejection Operating Ambient Temperature Low ESR Capacitor Compatible Packages Environmentally Friendly ■TYPICAL APPLICATION CIRCUIT : 150mA (300mA=XC6209 E to H types) : 60mV @ 30mA : 200mV @ 100mA : 2.0V ~ 10V : 0.9V ~ 6.0V(0.05V increments) : ±2% (VOUT>1.5V) ±30mV (VOUT≦1.5V) : 25μA (TYP.) : Less than 0.1μA (TYP.) : 70dB (10kHz) : -40℃~ +85℃ : Ceramic capacitor : SOT-25 USP-6B (XC6209) SOT-89-5 (XC6209) : EU RoHS Compliant, Pb Free ■TYPICAL PERFORMANCE CHARACTERISTICS 1/31 XC6209/XC6212 Series ■PIN CONFIGURATION [XC6209] CE 6 1 VIN VSS 5 2 NC 3 VOUT NC 4 USP-6B (BOTTOM VIEW) *The dissipation pad for the USP-6B package should be solder-plated in recommended mount pattern and metal masking so as to enhance mounting strength and heat release. If the pad needs to be connected to other pins, it should be connected to the VSS pin. [XC6212] ■PIN ASSIGNMENT SOT-25 1 2 3 PIN NUMBER XC6209 SOT-89-5 USP-6B 4 1 2 5 3 6 XC6212 SOT-25 3 2 4 PIN NAME FUNCTIONS VIN VSS CE Input Ground ON/OFF Control 4 1 2,4 5 NC No Connection 5 5 3 1 VOUT Output ■FUNCTIONS TYPE Type A, B, E, F Type C, D, G, H H=High Level L=Low Level 2/31 CE H L H L OPERATIONAL STATE ON OFF OFF ON XC6209/XC6212 Series ■PRODUCT CLASSIFICATION ●Ordering Information XC6209①②③④⑤⑥-⑦ XC6212①②③④⑤⑥-⑦ DESIGNATOR ITEM SYMBOL A B C Type of Regulator CE Pin Logic ① D E F G H Output Voltage ②③ 09～60 30～60 2 Output Voltage Accuracy ④ 1 A B ⑤⑥-⑦ (*4) Packages (Order Unit) MR MR-G PR PR-G DR DR-G DESCRIPTION (*2) 150mA, Active High, Pull-down resistor built-in (Semi-custom) 150mA, Active High, No pull-down resistor (Standard) (*2) 150mA, Active Low, Pull-up resistor built-in (Semi-custom) 150mA, Active Low, No pull-up resistor (Semi-custom) (*1) (*2) 300mA , Active High, Pull-down resistor built-in (Semi-custom) ( *1) 300mA , Active High, No pull-down resistor (Standard) (*1) (*2) 300mA , Active Low, Pull-up resistor built-in (Semi-custom) (*1) 300mA , Active Low, No pull-up resistor (Semi-custom) Output Voltage Range: 0.9V～6.0V e.g. : 3.0V⇒②=3, ③=0 For 1% product, output voltage range is 3.0V～6.0V. (*3) 0.1V increments, Accuracy: ±2% e.g.: 2.80V⇒②=2, ③=8, ④=2 0.1V increments, Accuracy: ±1% e.g.: 3.00V⇒②=3, ③=0, ④=1 (*3) 0.05V increments, Accuracy: ±2% e.g.: 2.85V⇒②=2, ③=8, ④=A 0.05V increments, Accuracy: ±1% e.g.: 3.05V⇒②=3, ③=0, ④=B SOT-25 (3,000/Reel) SOT-25 (3,000/Reel) SOT-89-5 (for XC6209 only) (1,000/Reel) SOT-89-5 (for XC6209 only) (1,000/Reel) USP-6B (for XC6209 only) (3,000/Reel) USP-6B (for XC6209 only) (3,000/Reel) (*1) The maximum output current of type E～H depends on setting output voltage. With the pull-up resistor or pull-down resistor built-in types, the supply current during operation will increase by VIN / 2MΩ (TYP.). (*3) The output voltage accuracy is ±30mV at VOUT≦1.5V. (*4) The “-G” suffix denotes Halogen and Antimony free as well as being fully RoHS compliant. (*2) 3/31 XC6209/XC6212 Series ■BLOCK DIAGRAM XC6209, XC6212 Type A, E XC6209, XC6212 Type B, D, F, H XC6209, XC6212 Type C, G * Diodes inside the circuits are ESD protection diodes and parasitic diodes. 4/31 XC6209/XC6212 Series ■ABSOLUTE MAXIMUM RATINGS Ta=25℃ PARAMETER Input Voltage Output Current Output Voltage CE Input Voltage SYMBOL VIN IOUT VOUT VCE SOT-25 Power Dissipation SOT-89-5 Pd USP-6B Operating Ambient Temperature Storage Temperature Topr Tstg RATINGS 12.0 500 (*1) VSS - 0.3 ~ VIN + 0.3 VSS - 0.3 ~ VIN + 0.3 250 (*2) 600(PCB mounted) 500 (*2) 1300(PCB mounted) 120 (*2) 1000(PCB mounted) -40 ~ +85 -55 ~ +125 UNITS V mA V V mW ℃ ℃ All voltages are described based on the VSS. (*1) IOUT≦Pd/(VIN-VOUT) (*2) This is a reference data taken by using the test board. Please refer to page 25 to 27 for details. 5/31 XC6209/XC6212 Series ■ELECTRICAL CHARACTERISTICS XC6209/XC6212 (Type A, B) PARAMETER SYMBOL Output Voltage (2％)(*5) Output Voltage (1％) (*6) VOUT(E) (*3) CONDITIONS IOUT=30mA Maximum Output Current IOUTMAX - Load Regulation △VOUT 1mA≦IOUT≦100mA Dropout Voltage (*4) MIN. VOUT(T)(*2)×0.98 VOUT(T)(*2)×0.99 150 - TYP. VOUT(T) (*2) MAX. VOUT(T)(*2)×1.02 VOUT(T)(*2)×1.01 - - 15 50 Ta=25℃ UNITS CIRCUIT V ① mA ① mV ① Vdif1 IOUT=30mA E-1 mV Vdif2 IOUT=100mA E-2 mV Supply Current (Type A) Supply Current (Type B) IDD Stand-by Current ISTB Line Regulation △VOUT/ (△VIN･VOUT) VCE=VIN=VOUT(T)+1.0V When VOUT≦0.95V, VIN=VCE=2.0V VIN=VOUT(T)+1.0V,VCE=VSS When VOUT≦0.95V, VIN=2.0V VOUT(T)+1.0V≦VIN≦10V When VOUT≦0.95,2.0V=VIN≦10V IOUT=30mA When VOUT≦1.75V, IOUT=10mA - 28 ① 55 μA ② - 25 50 - 0.01 0.10 μA ② - 0.01 0.20 ％/V ① 2 - 10 V - - 100 - ppm/℃ ① - 70 - dB ④ - 300 - mA ① - 50 - mA ① Input Voltage VIN Output Voltage Temperature Characteristics △VOUT/ (△Topr･VOUT) Power Supply Rejection Ratio PSRR Current Limit Ilim Short Current ISHORT CE ”H” Level Voltage VCEH - 1.6 - VIN V ① - - 0.25 V ① 0.8 - 5.0 μA ② μA ② IOUT=30mA -40℃≦Topr≦85℃ VIN=[VOUT(T)+1.0]V+1.0Vp-pAC When VOUT≦1.5V, VIN=2.5V+1.0Vp-pAC IOUT=50mA, f=10kHz VIN=VOUT(T)+1.0V, VCE=VSS When VOUT≦1.75, VIN=VOUT(T)+2.0V VIN=VOUT(T)+1.0V, VCE=VSS When VOUT≦1.75, VIN=VOUT(T)+2.0V CE ”L” Level Voltage VCEL - CE ”H” Level Current (Type A) CE ”H” Level Current (Type B) ICEH VIN=VCE=VOUT(T)+1.0V, When VOUT≦0.95V, VIN=VCE=2.0V CE ”L” Level Current ICEL VIN=VOUT(T)+1.0V,VCE=VSS When VOUT≦0.95V, VIN=2.0V *1: Unless otherwise stated, VIN=VOUT(T)+1.0V. -0.1 -0.1 0.1 - 0.1 If VOUT is less than 0.95V, VIN= 2.0V. *2: VOUT(T) is Nominal output voltage *3: VOUT(E) is Effective output voltage (I.e. the output voltage when "VOUT(T)+1.0V" is provided at the VIN pin while maintaining a certain IOUT value). *4: Vdif={VIN1-VOUT1} VOUT1 is the voltage equal to 98% of the output voltage whenever an amply stabilized VOUT(T)+1.0V is input for every IOUT. VIN1 is the input voltage when VOUT1 appears while input voltage is gradually decreased. *5: If VOUT(T) is less than 1.45V, VOUT(T) -30mV (MIN.), VOUT(T) + 30mV (MAX.) *6: Only for the VOUT(T) is more than 3.0V products. 6/31 XC6209/XC6212 Series ■ELECTRICAL CHARACTERISTICS Ta=25℃ XC6209/XC6212 (Type C, D) PARAMETER Output Voltage SYMBOL CONDITIONS (*5) (2%) Output Voltage (*6)(1%) VOUT(E) (*3) Maximum Output Current IOUTMAX Load Regulation ΔVOUT Vdif1 Vdif2 Dropout Voltage (*4) Supply Current (Type C) Supply Current (Type D) IDD Stand-by Current ISTB Line Regulation ΔVOUT/ (ΔVIN・VOUT) IOUT=30mA MIN. VOUT(T)(*2)×0.98 VOUT(T)(*2)×0.99 - TYP. VOUT(T)(*2) MAX. CIRCUIT V ① - mA ① 50 mV ① mV ① μA ② VOUT(T)(*2)×1.02 VOUT(T)(*2)×1.01 150 - 1mA≦IOUT≦100mA - 15 IOUT=30mA - E-1 IOUT=100mA - E-2 VIN=VOUT(T)+1.0V When VOUT≦0.95V, VIN=2.0V VCE=VSS - 28 UNITS 55 - 25 50 VIN=VOUT(T)+1.0V, VCE=VIN When VOUT≦0.95V, VIN=VCE=2.0V - 0.01 0.10 μA ② VOUT(T)+1.0V≦VIN≦10Ｖ VOUT≦0.95V is 2.0V≦VIN≦10V IOUT=30mA When VOUT≦1.75V, IOUT=10mA - 0.01 0.20 %/V ① - 2 - 10 V - IOUT=30mA -40℃≦Topr≦85℃ - ±100 - ppm/℃ ① VIN=[VOUT(T)+1.0]V+1.0Vp-pAC When VOUT≦1.5V, VIN=2.5V+1.0Vp-pAC IOUT=50mA, f=10kHz - 70 - dB ④ Input Voltage VIN Output Voltage Temperature Characteristics ΔVOUT/ (ΔTopr・VOUT) Power Supply Rejection Ratio PSRR Current Limit Ilim VIN=VOUT(T)+1.0V, VCE=VSS When VOUT≦1.75V, VIN=VOUT(T)+2.0V - 300 - mA ① Short Current ISHORT VIN=VOUT(T)+1.0V, VCE=VSS When VOUT≦1.75V, VIN=VOUT(T)+2.0V - 50 - mA ① CE "H" Level Voltage VCEH - 1.6 - VIN V ① CE "L" Level Voltage VCEL - - - 0.25 V ① CE "H" Level Current ICEH VCE=VIN=VOUT(T)+1.0V When VOUT≦0.95V, VCE=VIN=2.0V -0.1 - 0.1 μA ② -5.0 - -0.8 ICEL VIN=VOUT(T)+1.0V, VCE=VSS When VOUT≦0.95V, VIN=2.0V μA ② -0.1 - 0.1 CE "L" Level Current (Type C) CE "L" Level Current (Type D) *1: Unless otherwise stated, VIN=VOUT(T)+1.0V. If VOUT is less than 0.95V, VIN= 2.0V. *2: VOUT(T) is Nominal output voltage *3: VOUT(E) is Effective output voltage (I.e. the output voltage when "VOUT(T)+1.0V" is provided at the VIN pin while maintaining a certain IOUT value). *4: Vdif={VIN1-VOUT1} VOUT1 is the voltage equal to 98% of the output voltage whenever an amply stabilized VOUT(T)+1.0V is input for every IOUT. VIN1 is the input voltage when VOUT1 appears while input voltage is gradually decreased. *5: If VOUT(T) is less than 1.45V, VOUT(T) -30mV (MIN.), VOUT(T) + 30mV (MAX.) *6: Only for the VOUT(T) is more than 3.0V products. 7/31 XC6209/XC6212 Series ■ELECTRICAL CHARACTERISTICS (Continued) XC6209/XC6212 (Type E,F) PARAMETER Output Voltage (2％)(*5) SYMBOL CONDITIONS VOUT(E) (*3) IOUT=30mA IOUTMAX VIN=E-3(*7) Load Regulation △VOUT Load Regulation 2 △VOUT2 Output Voltage (1％)(*6) Maximum Output Current Dropout Voltage (*4) MIN. VOUT(T)(*2)x0.98 VOUT(T)(*2)x0.99 TYP. VOUT(T)(*2) MAX. VOUT(T)(*2)x1.02 V ① - mA ① (*2) VOUT(T) x1.01 E-4 - 1mA< IOUT
