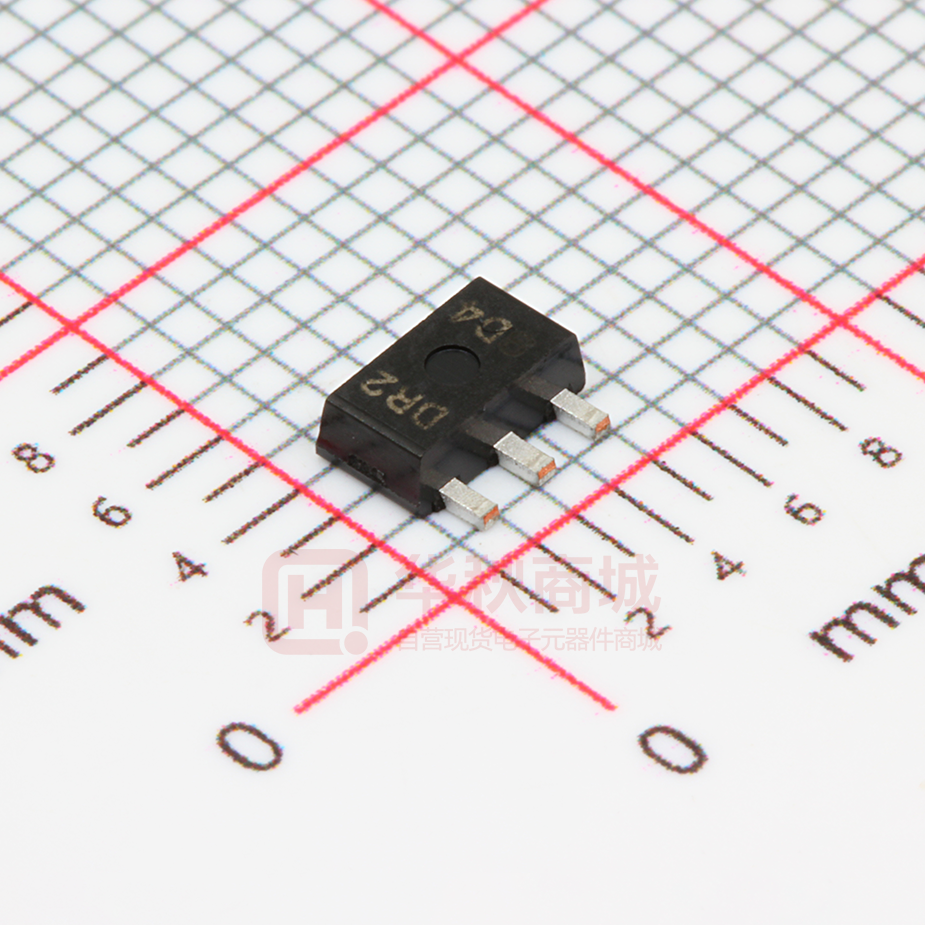

XC6214P332PR-G

◆CMOS Low Power Consumption : 8μA (TYP.) ◆Maximum Output Current : More than 500mA ◆Current Limit Circuit Built-In ◆Thermal Shutdown Circuit Built-In ◆Ceramic Capacitor Compatible ■APPLICATIONS ■GENERAL DESCRIPTION ■FEATURES The XC6214 series are highly precise, low noise, high current, positive voltage low dropout regulators. They are fabricated using Torex’s CMOS process. The series features a voltage reference, an error amplifier, a current limiter, a thermal protection circuit, and a phase compensation circuit plus a driver transistor. The output voltage is selectable in 100mV increments within the range of 1.5V to 5.0V. (Output voltage 1.5V, 1.8V, 2.5V, and 3.3V are standard products. Output voltage 3.0V is under development to be a standard product. Other than these voltages are available as semi-custom products.) The series is also compatible with low ESR ceramic capacitors, which give added output stability. This stability can be maintained even during load fluctuations due to the excellent transient response of the series. The over current protection circuit and the thermal shutdown circuit are built in. The over current protection circuit will operate when the output current reaches current limit level. The thermal shutdown circuit will operate when the junction temperature reaches temperature limit level. Maximum Output Current ■TYPICAL APPLICATION CIRCUIT ●DVD, CD-ROM, HDD drive equipment ●Portable AV equipment (Cameras, VCRs, etc.) ●Wireless Communication equipment (Mobile & Cordless phone, etc.) ●Desktop computers, Note book computer, PDAs ●Network equipment (Wireless LAN etc.) ●Reference voltage ●Battery powered equipment Dropout Voltage Operating Voltage Range Output Voltage High Accuracy Low Power Consumption Ripple Rejection Rate Operating Temperature Range Packages : More than 500mA (800mA limit) : 500mV @ IOUT = 500mA (VOUT=3.3V) : 1.8V ~ 6.0V : 1.5V, 1.8V, 2.5V, 3.3V, (standard) 3.0V (under development) Other voltages between 1.5V to 5.0V (semi-custom) : Setting voltage accuracy ±2% : 8μA (TYP.) : 40dB @ 1kHz : - 40℃ ~ 85℃ : SOT-26 SOT-89 ■TYPICAL PERFORMANCE CHARACTERISTICS ○Dropout Voltage vs. Output Current XC6214P332 CIN=CL=1.0µF(ceramic) 1.2 VIN CIN 1.0uF VSS Topr=85oC 25oC -40oC 1.0 CL 1.0uF RL Dropout Voltage : Vdif (V) VIN VOUT 0.8 0.6 0.4 0.2 0.0 0 100 200 300 400 500 Output Current : IOUT (mA ) XC6214 ETR0318_004.doc 1 XC6214 Series ■PIN CONFIGURATION 6 5 4 1 2 3 1 SOT-26 (TOP VIEW) 2 3 SOT-89 (TOP VIEW) * The 2, 4 and 5 pins of the SOT-26 package are the common VSS pins in the package. For a heat design, in case of connecting the heat dissipation pad to a circuit, Please use the 2, 4, and 5 pins as the VSS pin on the PCB board ■PIN ASSIGNMENT PIN NUMBER SOT-26 SOT-89 PIN NAME FUNCTIONS 1 2 VIN Power Input 2, 4, 5 1 VSS Ground 3 - NC No Connection 6 3 VOUT Output ■PRODUCT CLASSIFICATION ●Ordering Information XC6214P ①②③④⑤ 2 DESIGNATOR DESCRIPTION SYMBOL DESCRIPTION ① ② Output Voltage 15 ~ 50 ③ Output Voltage Accuracy 2 : Within ±2% ex.) 2.50V products → ①=2, ②=5, ③=2 ④ Package M : SOT-26 P : SOT-89 ⑤ Device Orientation R : Embossed tape, standard feed L : Embossed tape, reverse feed : ex.) 3.0V products → ①=3, ②=0 XC6214 Series ■PACKAGING INFORMATION ●SOT-26 ●SOT-89 3 XC6214 Series ■MARKING RULE ●SOT-89 ①Represents product series MARK D PRODUCT SERIES XC6214Pxx2xx ②Represents output voltage range MARK P R SOT－89 (TOP VIEW) VOLTAGE (V) 1.5 ~ 3.0 3.1 ~ 5.0 ③Represents output voltage MARK VOLTAGE (V) 0 3.1 1 3.2 2 3.3 3 3.4 4 3.5 5 3.6 6 3.7 7 3.8 8 3.9 9 4.0 A 4.1 B 4.2 C 4.3 D 4.4 E 1.5 4.5 PRODUCT SERIES XC6214Pxx2xx XC6214Pxx2xx MARK F H K L M N P R S T U V W Y Z VOLTAGE (V) 1.6 4.6 1.7 4.7 1.8 4.8 1.9 4.9 2.0 5.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 - ④Represents the last digit of the production year (ex.) MARK PRODUCTION YEAR 4 2004 5 2005 ⑤Represents the production month MARK A B C D MONTH January February March April MARK E F G H MONTH May June July August ⑥Represents production lot number 0 to 9, A to Z repeated (G, I, J, O, Q, W excepted). Note: No character inversion used. 4 MARK J K L M MONTH September October November December XC6214 Series ■MARKING RULE (Continued) ●SOT-26 ①Represents product series 6 5 a b 4 c ① ② ③ ④ e 1 f g 2 SOT-26 (TOP VIEW) MARK D d PRODUCT SERIES XC6214Pxx2xx ②Represents output voltage range MARK P R h 3 VOLTAGE (V) 1.5 ~ 3.0 3.1 ~ 5.0 PRODUCT SERIES XC6214Pxx2xx XC6214Pxx2xx ③Represents output voltage MARK VOLTAGE (V) 0 3.1 1 3.2 2 3.3 3 3.4 4 3.5 5 3.6 6 3.7 7 3.8 8 3.9 9 4.0 A 4.1 B 4.2 C 4.3 D 4.4 E 1.5 4.5 MARK F H K L M N P R S T U V W Y Z VOLTAGE (V) 1.6 4.6 1.7 4.7 1.8 4.8 1.9 4.9 2.0 5.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 - ④Represents production lot number 0 to 9, A to Z repeated (G, I, J, O, Q, W excepted). Note: No character inversion used. a, b, c, d Represents production year MARK a □ - b □ c □ - PRODUCTION YEAR d □ - 2004 2005 2006 2007 *Markings of the year 2004 to 2007 are repeated from 2008. ex.) 2004→2008, 2005→2009, 2006→2010, 2007→2011. e, f, g, h Represents production month e □ □ □ - MARK f g □ □ □ □ □ □ h - PRODUCTION MONTH January February March April May June e □ □ □ - MARK f g □ □ □ □ □ h □ □ □ □ □ PRODUCTION MONTH July August September October November December 5 XC6214 Series S ■BLOCK DIAGRAM VIN VOUT Current Limit Thermal Shutdown S S + - Voltage Reference VSS ■ABSOLUTE MAXIMUM RATINGS Ta=25℃ PARAMETER Input Voltage Output Current * Output Voltage SOT-26 Power Dissipation SOT-89 Operating Temperature Range Storage Temperature Range * IOUT ≧ Pd / (VIN – VOUT) * * Refer to ■POWER DISSIPATION 6 SYMBOL VIN IOUT VOUT Pd Topr Tstg RATINGS - 0.3 ~ + 6.5 800 * VSS – 0.3 ~ VIN + 0.3 ** 500 - 40 ~ + 85 - 55 ~ + 125 UNITS V mA V mW ℃ ℃ XC6214 Series ■ELECTRICAL CHARACTERISTICS Ta=25 ℃ ●XC6214P152 PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT Output Voltage VOUT(E) (*1) VIN=2.5V, IOUT=50mA 1.470 1.500 1.530 V ① Maximum Output Current IOUTmax VIN=2.5V, VOUT=VOUT(E) ×0.90 500 - - mA ① Load Regulation △VOUT VIN=2.5V, 1mA≦IOUT≦200mA - 20 50 mV ① Dropout Voltage (*2) Vdif IOUT=500mA - 800 1200 mV ① Supply Current ISS VIN=2.5V - 8 15 μA ② Line Regulation △VOUT △VIN・VOUT IOUT=50mA 2.5V≦VIN≦6.0V - 0.05 0.20 %/V ① Input Voltage VIN 1.8 - 6.0 V - Output Voltage △VOUT IOUT=50mA - 40℃≦ Topr ≦85℃ - ±100 - ppm /℃ ① VIN=2.5V, VOUT=0V - 50 - mA ① Temperature Characteristics △Topr・VOUT Short-Circuit Current Ilim NOTE: *1: VOUT(E) : Effective output voltage (i.e. the output voltage when “VOUT(T)+1.0V” is provided at the VIN pin while maintaining a certain IOUT value.) *2: Vdif={VIN1 (*4) (*3) -VOUT1 } *3: VOUT1= A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input. *4: VIN1=The Input Voltage when VOUT1 appears as input voltage is gradually decreased. *5: Unless otherwise stated, {VIN=VOUT(T) +1.0V} ●XC6214P182 Ta=25 ℃ PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT Output Voltage VOUT(E) (*1) VIN=2.8V, IOUT=50mA 1.764 1.800 1.836 V ① Maximum Output Current IOUTmax VIN=2.85V, VOUT=VOUT(E)×0.90 500 - - mA ① Load Regulation △VOUT VIN=2.8V, 1mA≦IOUT≦200mA - 20 50 mV ① Dropout Voltage (*2) Vdif IOUT=500mA - 700 1050 mV ① Supply Current ISS △VOUT △VIN・VOUT VIN=2.8V - 8 15 μA ② IOUT=50mA - 0.05 0.20 %/V ① 1.8 - 6.0 V - - ±100 - ppm /℃ ① - 50 - mA ① Line Regulation VIN △VOUT Output Voltage △Topr・V OUT Temperature Characteristics 2.8V≦VIN≦6.0V Input Voltage Short-Circuit Current Ilim IOUT=50mA - 40℃ ≦ Topr ≦85℃ VIN=2.8V, VOUT=0V NOTE: *1: VOUT(E) : Effective output voltage (i.e. the output voltage when “VOUT(T)+1.0V” is provided at the VIN pin while maintaining a certain IOUT value.) *2: Vdif={VIN1 (*4) (*3) -VOUT1 } *3: VOUT1= A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input. *4: VIN1=The Input Voltage when VOUT1 appears as input voltage is gradually decreased. *5: Unless otherwise stated, {VIN=VOUT(T) +1.0V} 7 XC6214 Series ■ELECTRICAL CHARACTERISTICS (Continued) ●XC6214P252 Ta=25 ℃ PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT Output Voltage VOUT(E) (*1) VIN=3.5V, IOUT=50mA 2.450 2.500 2.550 V ① Maximum Output Current IOUTmax VIN=3.5V, VOUT=VOUT(E)×0.93 500 - - mA ① Load Regulation △VOUT VIN=3.5V, 1mA≦IOUT≦200mA - 20 50 mV ① Dropout Voltage (*2) Vdif IOUT=500mA - 600 900 mV ① Supply Current ISS △VOUT △VIN・VOUT VIN=3.5V - 8 15 μA ② IOUT=50mA - 0.05 0.20 %/ V ① 1.8 - 6.0 V - - + 100 - ppm /℃ ① - 50 - mA ① Line Regulation VIN △VOUT Temperature Characteristics △Topr・VOUT 3.5V≦VIN≦6.0V Input Voltage Output Voltage Short-Circuit Current Ilim IOUT=50mA - 40℃≦Topr ≦85℃ VIN=3.5V, VOUT=0V NOTE: *1: VOUT(E) : Effective output voltage (i.e. the output voltage when “VOUT(T)+1.0V” is provided at the VIN pin while maintaining a certain IOUT value.) *2: Vdif={VIN1 (*4) (*3) -VOUT1 } *3: VOUT1= A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input. *4: VIN1=The Input Voltage when VOUT1 appears as input voltage is gradually decreased. *5: Unless otherwise stated, {VIN=VOUT(T) +1.0V} ●XC6214P302 (Under development) PARAMETER SYMBOL Ta=25 ℃ CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT Output Voltage VOUT(E) (*1) VIN=4.0V, IOUT=50mA 2.940 3.000 3.060 V ① Maximum Output Current IOUTmax VIN=4.0V, VOUT=VOUT(E)×0.96 500 - - mA ① Load Regulation △VOUT VIN=4.3V, 1mA≦IOUT≦200mA - 20 50 mV ① Dropout Voltage (*2) Vdif IOUT=500mA - 560 820 mV ① Supply Current ISS △VOUT △VIN・VOUT VIN=4.0V - 8 15 μA ② - 0.05 0.20 %/ V ① 1.8 - 6.0 V - - + 100 - ppm /℃ ① - 50 - mA ① Line Regulation VIN △VOUT Temperature Characteristics △Topr・VOUT IOUT=50mA 4.0V≦VIN≦6.0V Input Voltage Output Voltage Short-Circuit Current Ilim IOUT=50mA - 40℃≦Topr ≦85℃ VIN=4.0V, VOUT=0V NOTE: *1: VOUT(E) : Effective output voltage (i.e. the output voltage when “VOUT(T)+1.0V” is provided at the VIN pin while maintaining a certain IOUT value.) *2: Vdif={VIN1 (*4) (*3) -VOUT1 } *3: VOUT1= A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input. *4: VIN1=The Input Voltage when VOUT1 appears as input voltage is gradually decreased. *5: Unless otherwise stated, {VIN=VOUT(T) +1.0V} 8 XC6214 Series ■ELECTRICAL CHARACTERISTICS (Continued) ●XC6214P332 Ta=25 ℃ PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT Output Voltage VOUT(E) (*1) VIN=4.3V, IOUT=50mA 3.234 3.300 3.366 V ① Maximum Output Current IOUTmax VIN=4.3V, VOUT=VOUT(E) x 0.96 500 - - mA ① Load Regulation △VOUT VIN=4.3V, 1mA≦IOUT≦200mA - 20 50 mV ① Dropout Voltage (*2) Vdif IOUT=500mA - 500 750 mV ① Supply Current ISS VIN=4.3V - 8 15 μA ② Line Regulation △VOUT △VIN・VOUT 4.3V≦VIN≦6.0V - 0.05 0.20 %/V ① Input Voltage VIN 1.8 - 6.0 V - Output Voltage △VOUT - ±100 - ppm /℃ ① - 50 - mA ① Temperature Characteristics △Topr・VOUT Short-Circuit Current Ilim IOUT=50mA IOUT=50mA - 40℃≦Topr≦85℃ VIN=4.3V, VOUT=0V NOTE: *1: VOUT(E) : Effective output voltage (i.e. the output voltage when “VOUT(T)+1.0V” is provided at the VIN pin while maintaining a certain IOUT value.) *2: Vdif={VIN1 (*4) (*3) -VOUT1 } *3: VOUT1= A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input. *4: VIN1=The Input Voltage when VOUT1 appears as input voltage is gradually decreased. *5: Unless otherwise stated, {VIN=VOUT(T) +1.0V} 9 XC6214 Series ■TEST CIRCUITS ●Circuit ① VIN V VSS CIN=1.0uF (ceramic) A VOUT CL=1.0uF (ceramic) V ●Circuit ② A CIN=1.0uF (ceramic) 10 VIN VOUT VSS OPEN RL XC6214 Series ■OPERATIONAL EXPLANATION S The voltage, divided by resistors R1 & R2, which are connected to the VOUT pin is compared with the internal reference voltage by the error amplifier. The P-channel MOSFET, which is connected to the VOUT pin, is then driven by the subsequent output signal. The output voltage at the VOUT pin is controlled & stabilized by negative feedback. The current limit circuit and over current protection operate in relation to the level of output current and heat. VIN VOUT Current Limit Thermal Shutdown S S + - Voltage Reference VSS With the XC6214 series regulator, a stable output voltage is achievable even if low ESR capacitors are used, as a phase compensation circuit is built-in to the regulator. In order to ensure the stability of the load transient response and line transient response, we suggest that an output capacitor (CL) be connected as close as possible, between the output pin (VOUT) and the VSS pin. Please use an output capacitor (CL) with a capacitance more than 0.1μF. We also suggest an input capacitor (CIN) of 0.1μF: this should be connected between VIN and VSS in order to stabilize input power source. The XC6214 series regulator offers a combination of current limit and circuit protection by means of a built-in fixed current limiter circuit and a foldback circuit. When the load current reaches the current limit level, the fixed current limiter circuit operates and output voltage drops. As a result of this drop in output voltage, the foldback circuit operates, the output voltage drops further and output current decreases. When the output pin is shorted, a current of about 50mA flows. When the junction temperature of the built-in driver transistor reaches the temperature limit level (150℃ TYP.), the thermal shutdown circuit operates and the driver transistor will be set to OFF. The thermal shutdown function will be released (automatically recovered) when the junction temperature decreases to the thermal shutdown release temperature level (125℃ TYP.) and the IC re-starts the operation. ■NOTES ON USE 1. Please use this IC within the stated absolute maximum ratings. The IC is liable to malfunction should the ratings be exceeded. 2. Where wiring impedance is high, operations may become unstable due to noise and/or phase lag depending on output current. Please strengthen VIN and VSS wiring in particular. 3. Please wire the input capacitor (CIN) and the output capacitor (CL) as close to the IC as possible. 4. Output voltage may increase when the IC is used at light load current (around 0 to 2uA) depending on temperature conditions, etc. 11 XC6214 Series ■POWER DISSIPATION The 2, 4 and 5 pins of the SOT-26 package are the common VSS pins at the heat dissipation pads. For increasing power dissipation of the package, please use the 2, 4, and 5 pins as the VSS pin on the PCB board. 600 Power Dissipation (mW) 500 400 300 200 100 0 0 25 50 75 100 Ambient Temperature ( C) O ●SOT-26 PCB Specification Material Size Board Thickness Heat Dissipation Wire Size Through Holes (eleven) 12 : Glass epoxy G10 : 25mm×25mm : 1.0mm : 23mm×23mm : φ0.5mm 125 XC6214 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (1) Output Voltage vs. Output Current XC6214P152 XC6214P152 　　　VIN=2.7V CIN=CL=1.0µF(ceramic ） 1.6 1.4 Output Voltage : VOUT (V) Output Voltage : VOUT (V) 1.6 　　　V IN=2.7V CIN=CL=1.0µF(ceramic ） 1.5 1.4 Topr=85o C 25o C -40o C 1.3 1.2 1.0 0.8 0.6 0.4 Topr=85o C 25o C -40o C 0.2 0.0 1.2 0 100 200 300 400 0.0 500 0.2 0.4 0.8 1.0 1.2 Output Current : IOUT (mA ) Output Current : IOUT (mA ) XC6214P182 XC6214P182 VIN=2.85V CIN=CL=1.0µF(ceramic ） 1.9 0.6 V IN=2.85V CIN=CL=1.0µF(ceramic ） 2.0 Output Voltage : VOUT (V) Output Voltage : VOUT (V) 1.8 1.8 1.7 1.6 Topr=85o C 25o C -40o C 1.6 1.4 1.2 1.0 0.8 0.6 Topr=85o C 25o C -40o C 0.4 0.2 0.0 1.5 0 100 200 300 400 0.0 500 0.2 0.4 V IN=3.5V CIN=CL=1.0µF(ceramic ） 1.2 2.5 2.4 Topr=85oC 25oC -40oC VIN=3.5V CIN=CL=1.0µF(ceramic ） 3.0 Output Voltage : VOUT (V) Output Voltage : VOUT (V) 1.0 XC6214P252 XC6214P252 2.3 0.8 Output Current : IOUT (mA) Output Current : IOUT (mA) 2.6 0.6 2.5 2.0 1.5 1.0 Topr=85o C 25o C -40o C 0.5 0.0 2.2 0 100 200 300 Output Current : IOUT (mA ) 400 500 0.0 0.2 0.4 0.6 0.8 1.0 1.2 Output Current : IOUT (mA ) 13 XC6214 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (1) Output Voltage vs. Output Current (Continued) XC6214P332 3.4 V IN=4.3V CIN=CL=1.0µF(ceramic ） 3.5 3.0 Output Voltage : VOUT (V) Output Voltage : VOUT (V) XC6214P332 V IN=4.3V CIN=CL=1.0µF(ceramic ） 3.3 3.2 3.1 Topr=85o C 25o C -40o C 3.0 2.5 2.0 1.5 Topr=85o C 25o C -40o C 1.0 0.5 0.0 0 100 200 300 400 500 0.0 0.2 Output Current : IOUT (mA ) 0.4 0.6 0.8 1.0 1.2 Output Current : IOUT (mA ) (2) Output Voltage vs. Input Voltage XC6214P152 Topr=25o C CIN=CL=1.0µF(ceramic ） 1.7 1.6 Output Voltage : VOUT (V) Output Voltage : VOUT (V) 1.7 XC6214P152 Topr=25o C CIN=CL=1.0µF(ceramic ） 1.5 1.4 1.3 IOUT=1mA 50mA 200mA 1.2 1.6 1.5 1.4 1.3 IOUT=1mA 50mA 200mA 1.2 1.1 2.0 1.1 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 Input Voltage : V IN (V ) 2.5 3.0 3.5 4.0 4.5 5.0 Input V oltage : V IN (V ) Topr=25 C CIN=CL=1.0µF(ceramic ） Topr=25o C CIN=CL=1.0µF(ceramic ） o 1.6 IOUT=1mA 50mA 200mA 1.2 1.8 1.6 1.4 IOUT=1mA 50mA 200mA 1.2 1.0 1.0 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 Input Voltage : V IN (V ) 14 2.0 Output Voltage : VOUT (V) Output Voltage : VOUT (V) 1.8 1.4 6.0 XC6214P182 XC6214P182 2.0 5.5 3.0 3.5 4.0 4.5 5.0 Input V oltage : V IN (V) 5.5 6.0 XC6214 Series ■TYPICAL PERFORMANCE CHARACTER (Continued) (2) Output Voltage vs. Input Voltage (Continued) XC6214P252 2.7 2.5 2.3 2.1 IOUT=1mA 50mA 200mA 1.9 Topr=25o C CIN=CL=1.0µF(ceramic ） 2.7 Output Voltage : VOUT (V) Output Voltage : VOUT (V) XC6214P252 Topr=25o C CIN=CL=1.0µF(ceramic ） 1.7 2.5 2.3 2.1 IOUT=1mA 50mA 200mA 1.9 1.7 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 3.0 3.5 4.0 XC6214P332 5.5 6.0 3.1 2.9 IOUT=1mA 50mA 200mA Topr=25o C CIN=CL=1.0µF(ceramic ） 3.5 Output Voltage : VOUT (V) Output Voltage : VOUT (V) 3.3 2.7 5.0 XC6214P332 Topr=25o C CIN=CL=1.0µF(ceramic ） 3.5 4.5 Input V oltage : V IN (V ) Input V oltage : VIN (V) 2.5 3.3 3.1 2.9 IOUT=1mA 50mA 200mA 2.7 2.5 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 4.0 4.5 5.0 5.5 6.0 Input V oltage : V IN (V) Input V oltage : V IN (V) (3) Dropout Voltage vs. Output Current XC6214P182 XC6214P152 CIN=CL=1.0µF(ceramic) Topr=85o C 25o C -40o C 1.0 0.8 0.6 0.4 0.2 Minimum Operating Voltage 0.0 CIN=CL=1.0µF(ceramic) 1.2 Dropout Voltage : Vdif (V) Dropout Voltage : Vdif (V) 1.2 1.0 0.8 0.6 0.4 Topr=85o C 25o C -40o C 0.2 0.0 0 100 200 300 Output Current : IOUT (mA ) 400 500 0 100 200 300 400 500 Output Current : IOUT (mA) 15 XC6214 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (3) Dropout Voltage vs. Output Current (Continued) XC6214P332 XC6214P252 CIN=CL=1.0µF(ceramic) 1.2 Topr=85o C 25o C -40o C Topr=85o C 25o C -40o C 1.0 Dropout Voltage : Vdif (V) Dropout Voltage : Vdif (V) 1.0 CIN=CL=1.0µF(ceramic) 1.2 0.8 0.6 0.4 0.2 0.8 0.6 0.4 0.2 0.0 0.0 0 100 200 300 400 Output Current : IOUT (mA ) 0 500 100 200 300 400 500 Output Current : IOUT (mA) (4) Supply Current vs. Input Voltage XC6214P152 20.0 Topr=85o C 25o C -40o C 15.0 10.0 5.0 CIN=1.0µF(ceramic ） 20.0 Supply Current : ISS (uA) Supply Current : ISS (uA) XC6214P182 CIN=1.0µF(ceramic ） 0.0 Topr=85o C 25o C -40o C 15.0 10.0 5.0 0.0 0.0 1.0 2.0 3.0 4.0 5.0 6.0 0.0 1.0 Input V oltage : VIN (V ) 2.0 3.0 4.0 Input V oltage : V IN (V ) CIN=1.0µF(ceramic ） 15.0 10.0 5.0 CIN=1.0µF(ceramic ） 20.0 Supply Current : ISS (uA) Supply Current : ISS (uA) Topr=85o C 25o C -40o C Topr=85oC 25oC -40oC 15.0 10.0 5.0 0.0 0.0 0.0 1.0 2.0 3.0 4.0 Input V oltage : VIN (V) 16 6.0 XC6214P332 XC6214P252 20.0 5.0 5.0 6.0 0.0 1.0 2.0 3.0 4.0 Input V oltage : VIN (V ) 5.0 6.0 XC6214 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (5) Output Voltage vs. Ambient Temperature XC6214P182 XC6214P152 VIN=2.5V CIN=CL=1.0µF (ceramic) 1.55 1.50 IOUT=0mA =1mA =50mA =200mA 1.45 1.90 Output Voltage : VOUT (V) Output Voltage : VOUT (V) 1.60 IOUT=0mA =1mA =50mA =200mA 1.85 1.80 1.75 1.70 1.40 -60 -40 -20 0 20 40 60 80 -60 100 -40 -20 0 20 40 60 A mbient Temperature:Topr （℃） Ambient Temperature:Topr （℃） XC6214P252 XC6214P332 VIN=3.5V CIN=CL=1.0µF (ceramic) 2.55 2.50 IOUT=0mA =1mA =50mA =200mA 2.45 80 100 VIN=4.3V CIN=CL=1.0µF (ceramic) 3.40 Output Voltage : VOUT (V) 2.60 Output Voltage : VOUT (V) VIN=2.8V CIN=CL=1.0µF (ceramic) 3.35 3.30 IOUT=0mA =1mA =50mA =200mA 3.25 3.20 2.40 -60 -40 -20 0 20 40 60 80 -60 100 -40 Ambient Temperature:Topr （℃） -20 0 20 40 60 80 100 Ambient Temperature:Topr （℃） (6) Supply Current vs. Ambient Temperature XC6214P152 15.0 10.0 5.0 0.0 VIN=2.8V CIN=CL=1.0µF (ceramic) 20.0 Supply Current : ISS (uA) 20.0 Supply Current : ISS (uA) XC6214P182 V IN=2.5V CIN=CL=1.0µF (ceramic) 15.0 10.0 5.0 0.0 -60 -40 -20 0 20 40 60 A mbient Temperature:Topr （℃） 80 100 -60 -40 -20 0 20 40 60 80 100 A mbient Temperature:Topr （℃） 17 XC6214 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (6) Supply Current vs. Ambient Temperature (Continued) XC6214P332 XC6214P252 20.0 Supply Current : ISS (uA) Supply Current : ISS (uA) 20.0 15.0 10.0 5.0 15.0 10.0 5.0 0.0 0.0 -60 -40 -20 0 20 40 60 A mbient Temperature:Topr （℃） 18 VIN=4.3V CIN=CL=1.0µF (ceramic) V IN=3.5V CIN=CL=1.0µF (ceramic) 80 100 -60 -40 -20 0 20 40 60 A mbient Temperature:Topr （℃） 80 100 XC6214 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (7) Input Transient Response 1.8 Input Voltage 2 1.4 Output V oltage 0 2.2 4 2.0 3 Input V oltage 1.6 2 Output V oltage 1 Time （ 200µsec/div ） Time （ 200µsec/div ） 3 Input Voltage 1 5 2.3 4 2.3 3 2.1 1.9 1.7 Output Voltage Input V oltage Time （ 200µsec/div ） XC6214P252 IOUT=1mA , Topr=25 C CIN=CL=1.0µF(ceramic) o 2.9 1 2.7 2.5 Output Voltage 2.3 2.1 0 Time （ 200µsec/div ） Input Voltage : VIN (V) 4 Output Voltage : VOUT （V) Input Voltage : VIN (V) 3.1 2 6 3.3 5 Input V oltage 1.5 0 XC6214P252 3 1.7 1 Time （ 200µsec/div ） 6 1.9 2 Output Voltage 1.5 0 2.5 2.5 2.1 2 IOUT=200mA , Topr=25o C CIN=CL=1.0µF(ceramic) Output Voltage : VOUT （V) 4 XC6214P182 Input Voltage : VIN (V) XC6214P182 IOUT=1mA, Topr=25o C CIN=CL=1.0µF(ceramic) Output Voltage : VOUT (V) Input Voltage : VIN (V) 5 1.4 1.2 0 1.2 1.8 IOUT=200mA , Topr=25o C CIN=CL=1.0µF(ceramic) 3.3 5 3.1 4 2.9 3 Input V oltage 2.5 2 1 2.7 Output V oltage 2.3 2.1 0 Time （ 200µsec/div ） 19 Output Voltage : VOUT （ V) 1 1.6 5 Output Voltage : VOUT （V) 2.2 2.0 3 IOUT=200mA, Topr=25o C CIN=CL=1.0µF(ceramic) Input Voltage : VIN (V) 4 XC6214P152 Output Voltage : VOUT （V) Input Voltage : VIN (V) 5 XC6214P152 IOUT=1mA , Topr=25o C CIN=CL=1.0µF(ceramic) XC6214 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (7) Input Transient Response (Continued) 6 3.9 4 3.7 Input Voltage 3 3.5 2 3.3 1 3.1 Output V oltage 5 4.1 3.9 4 3.7 Input Voltage 3 3.5 2 3.3 1 Output Voltage 0 2.9 0 IOUT=200mA , Topr=25o C CIN=CL=1.0µF(ceramic) 3.1 Output Voltage : VOUT （V) Input Voltage : VIN (V) 5 4.1 Input Voltage : VIN (V) 6 XC6214P332 Output Voltage : VOUT （V) XC6214P332 IOUT=1mA, Topr=25o C CIN=CL=1.0µF(ceramic) 2.9 Time （ 200µsec/div ） Time （ 200µsec/div ） (8) Load Transient Response (8) Load Transient Response XC6214P152 XC6214P152 Output Voltage 200 1 150 0 100 50mA -1 50 1mA Output Current -2 Output Voltage : VOUT (V) 2 3 250 Output Current : IOUT （ mA) Output Voltage : VOUT (V) 3 2 Output Voltage 600 0 400 200mA -1 200 3 Output Current -2 0 Time (1msec/div) XC6214P182 　　　 V IN=2.8V, Topr=25o C CIN= CL=1.0µF(ceramic) 800 1 1mA 0 1000 Time (1msec/div) XC6214P182 250 　　　 V IN=2.8V , Topr=25o C CIN= CL=1.0µF(ceramic) 3 1000 1 150 0 100 50mA 50 1mA Output Current -2 0 Time (1msec/div) 20 Output Voltage : VOUT (V) 200 Output Current: IOUT （ mA) Output Voltage : VOUT(V) Output Voltage 2 -1 Output Current : IOUT （ mA) 　　　 V IN=2.5V , Topr=25o C CIN= CL=1.0µF(ceramic) Output V oltage 2 800 600 1 400 0 200mA 200 -1 -2 1mA Output Current Time (1msec/div) 0 Output Current : IOUT （ mA) 　　　 VIN=2.5V , Topr=25 C CIN= CL=1.0µF(ceramic) o XC6214 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (8) Load Transient Response (Continued) XC6214P252 150 Output V oltage 100 2 50mA 1 1mA 0 50 Output Current 800 4 3 Output V oltage 200mA 1 0 Time (1msec/div) 200 4 150 Output V oltage 100 2 50mA 50 1 1mA XC6214P332 　　　 VIN=4.3V , Topr=25oC CIN= CL=1.0µF(ceramic) 5 Output Voltage : VOUT (V) Output Voltage : VOUT (V) 250 Output Current : IOUT（mA) XC6214P332 　　　 VIN=4.3V , Topr=25o C CIN= CL=1.0µF(ceramic) 3 200 Output Current 0 Time (1msec/div) 5 600 400 2 1mA 0 1000 800 4 3 Output V oltage 200mA 1 1mA 0 600 400 2 Output Current 0 1000 200 Output Current 0 0 Time (1msec/div) Time (1msec/div) (9) Ripple Rejection Rate XC6214P152 60 50 40 30 20 10 　　　V IN=2.5V DC+0.5p-pA C , IOUT=200mA 　　　　　　　　　 CL=1.0uF(ceramic) 70 Ripple Rejection Rate : RR (dB) 70 Ripple Rejection Rate : RR (dB) XC6214P152 　　　V IN=2.5V DC+0.5p-pA C , IOUT=50mA 　　　　　　　　　 CL=1.0uF(ceramic) 60 50 40 30 20 10 0 0 0.01 0.1 1 Ripple Frequency : f (kHz) 10 0.01 0.1 1 Ripple Frequency : f (kHz) 10 21 Output Current : IOUT （ mA) 3 5 Output Voltage : VOUT (V) 200 4 　　　 VIN=3.5V , Topr=25o C CIN= CL=1.0µF(ceramic) Output Current : IOUT （ mA) 250 Output Current : IOUT（mA) 5 Output Voltage : VOUT (V) XC6214P252 　　　 V IN=3.5V , Topr=25o C CIN= CL=1.0µF(ceramic) XC6214 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (9) Ripple Rejection Rate (Continued) XC6214P182 XC6214P182 　　　V IN=2.8VDC+0.5p-pA C , IOUT=50mA 　　　　　　　　　 CL=1.0uF(ceramic) 60 70 Ripple Rejection Rate : RR (dB) Ripple Rejection Rate : RR (dB) 70 50 40 30 20 10 　　　V IN=2.8V DC+0.5p-pA C , IOUT=200mA 　　　　　　　　　　 CL=1.0uF(ceramic) 0 60 50 40 30 20 10 0 0.01 0.1 1 Ripple Frequency : f (kHz) 10 0.01 0.1 1 Ripple Frequency : f (kHz) XC6214P252 XC6214P252 　　　V IN=3.5V DC+0.5p-pA C , IOUT=50mA 　　　　　　　　　 CL=1.0uF(ceramic) 60 50 40 30 20 10 　　　VIN=3.5V DC+0.5p-pAC , IOUT=200mA 　　　　　　　　　 CL=1.0uF(ceramic) 70 Ripple Rejection Rate : RR (dB) Ripple Rejection Rate : RR (dB) 70 60 50 40 30 20 10 0 0 0.01 0.1 1 0.01 10 　　　VIN=4.3V DC+0.5p-pAC , IOUT=50mA 　　　　　　　　　 CL=1.0uF(ceramic) 10 60 50 40 30 20 10 　　　VIN=4.3V DC+0.5p-pA C , IOUT=200mA 　　　　　　　　　 CL=1.0uF(ceramic) 70 Ripple Rejection Rate : RR (dB) Ripple Rejection Rate : RR (dB) 1 XC6214P332 XC6214P332 70 0.1 Ripple Frequency : f (kHz) Ripple Frequency : f (kHz) 60 50 40 30 20 10 0 0 0.01 22 10 0.1 1 Ripple Frequency : f (kHz) 10 0.01 0.1 1 Ripple Frequency : f (kHz) 10
