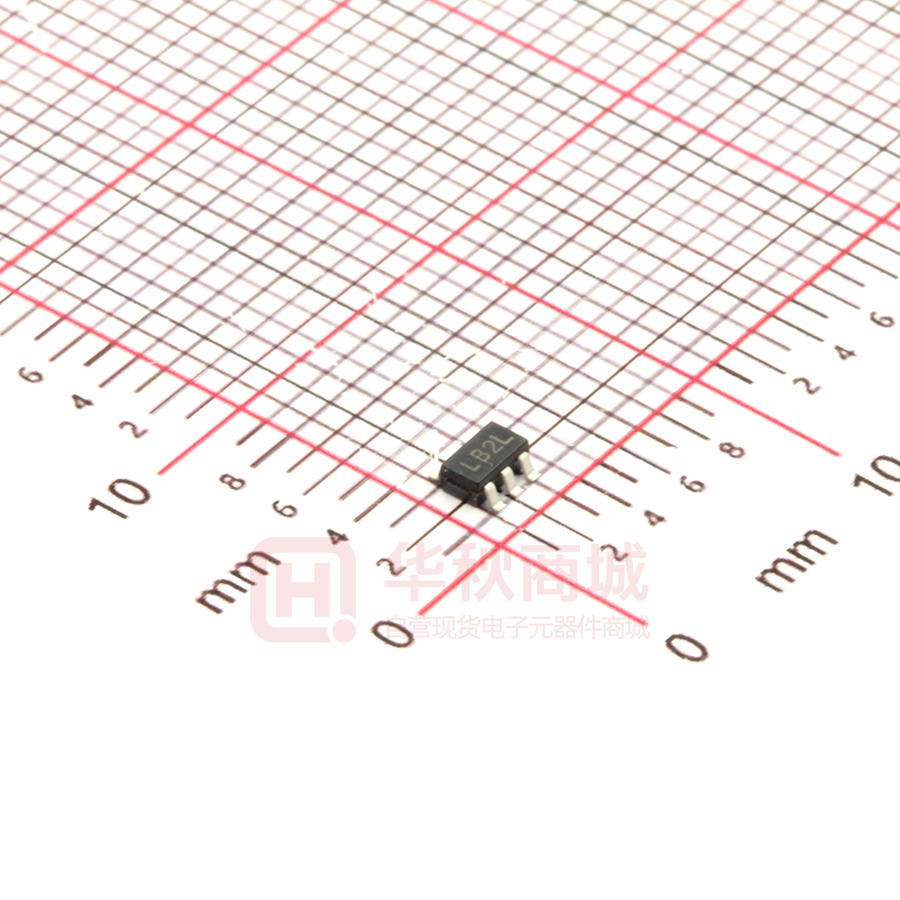

XC6219B332MR

XC6219 Series ETR03007-011a 300mA High Speed LDO Regulators with ON/OFF Switch ■GENERAL DESCRIPTION The XC6219 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the XC6219 series is ideal for today’s cutting edge mobile phone. Internally the XC6219/XC6211 includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators. The XC6219/XC6211’s current limiters' foldback circuit also operates as a short protect for the output current limiter and. the output pin. The output voltage is set by laser trimming.Voltages are selectable in 50mV steps within a range of 0.9V to 5.0V. The XC6219 series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability.This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption. ■FEATURES ■APPLICATIONS Maximum Output Current ●Smart phones / Mobile phones ●Portable games ●Digital still cameras / Camcorders ●Reference voltage sources ●Multi-function power supplies Dropout Voltage Operating Voltage Range Output Voltage Range Highly Accuracy Low Power Consumption Standby Current High Ripple Rejection Operating Ambient Temperature Low ESR Capacitor Ultra Small Packages Environmentally Friendly ■TYPICAL APPLICATION CIRCUIT ●XC6219 series : 150mA (VOUT1.8V, A~D type) 300mA (VOUT>1.3V, E~H type) : 200mV @ 100mA : 2.0V ~ 6.0V : 0.9V ~ 5.0V (0.05V steps) : +2% (VOUT>1.5V) +30mV (VOUT≦1.5V) +1% (VOUT≧3.0V) : 25μA (TYP.) : Less than 0.1μA (TYP.) : 65dB @10kHz : -40℃ ~ 85℃ : Ceramic capacitor compatible : SOT-25 SOT-89-5 USP-6B : EU RoHS Compliant, Pb Free ■TYPICAL PERFORMANCE CHARACTERISTICS ●Ripple Rejection Rate XC6219x302 1 VIN 2 VSS 3 CE VOUT VIN=4.0V, DC+1Vp-pAC IOUT=50mA, CL=1uF (ceramic) 5 CL 1µF NC 4 CIN 1µF SOT-25 1/27 XC6219 Series ■BLOCK DIAGRAM XC6219 series Type B, D, F, H XC6219 series Type A, E VIN ON/OFF Control CE VIN CE each　circuit ON/OFF Control each　circuit R Pull Down - - Current Limit Error Amp + + Error Amp Current Limit VOUT VOUT R2 R2 R1 Voltage Reference R1 VSS XC6219 series Type C, G VIN R Pull Up ON/OFF Control CE + each　circuit Error Amp Current Limit VOUT R2 R1 Voltage Reference VSS *Diode inside the circuit are an ESD protection diode and a parasitic diode. 2/27 Voltage Reference VSS XC6219 Series ■PRODUCT CLASSIFICATION ●Ordering Information XC6219 ①②③④⑤⑥-⑦(*1) DESIGNATOR ITEM SYMBOL ① CE Pin Logic A B C D E F G H ②③ Output Voltage 09 ~ 50 2(*3) ④ Output Voltage Accuracy 1(*2) A(*3) B(*2) ⑤⑥-⑦ (*1) (*2) (*3) Packages (Order Unit) MR-G PR-G DR-G DESCRIPTION 150mA, Active high, pull-down resistor built in (Semi-custom) 150mA, Active high , no pull-down resistor built in (Standard) 150mA, Active low, pull-up resistor built in (Semi-custom) 150mA, Active low, no pull-up resistor built in (Semi-custom) 300mA, Active high, pull-down resistor built in (Semi-custom) 300mA, Active high, no pull-down resistor built in (Standard) 300mA, Active low, pull-up resistor built in (Semi-custom) 300mA, Active low, no pull-up resistor built in (Semi-custom) e.g. ②=3, ③=0, → 3.0V 0.1V increments, ±2% accuracy e.g. ②=2, ③=8, ④=2 → 2.80V, ±2% 0.1V increments, ±1% accuracy e.g. ②=3, ③=0, ④=1 → 3.00V, ±1% 0.05V increments, ±2% accuracy e.g. ②=2, ③=8, ④=A → 2.85V, ±2% 0.05V increments, ±1% accuracy e.g. ②=3, ③=0, ④=B → 3.05V, ±1% SOT-25 (3,000pcs/Reel) SOT-89-5 (1,000pcs/Reel) USP-6B (3,000pcs/Reel) The “-G” suffix denotes Halogen and Antimony free as well as being fully EU RoHS compliant. Output voltage of the ±1% accuracy product is 3.0V or more. Output voltage accuracy of the VOUT≦1.5V is ±30mV. 3/27 XC6219 Series ■PIN CONFIGURATION VOUT VOUT NC 5 4 1 2 3 VIN VSS CE 5 VSS VIN 2 4 1 2 3 NC VSS CE SOT-25 SOT-89-5 (TOP VIEW) (TOP VIEW) CE 6 1 VIN VSS 5 2 NC * The dissipation pad for the USP-6B package should be solder-plated in recommended mount pattern and metal masking so as to enhance mounting strength and hear release. If the pad needs to be connected to other pins, it should be connected to the VSS pin. 3 VOUT NC 4 USP-6B (BOTTOM VIEW) ■PIN ASSIGNMENT SOT-25 1 2 3 4 5 PIN NUMBER SOT-89-5 4 2 3 1 5 USP-6B 1 5 6 2, 4 3 PIN NAME FUNCTIONS VIN VSS CE NC VOUT Power Input Ground ON / OFF Control No Connection Output ■FUNCTION TYPE A, E PIN NAME CE TYPE B, F SIGNAL STATUS L Stand-by H Active OPEN Stand-by TYPE C, G PIN NAME CE PIN NAME CE SIGNAL STATUS L Stand-by H Active OPEN Undefined state SIGNAL STATUS L Active H Stand-by OPEN Undefined state TYPE D,H SIGNAL STATUS L Active H Stand-by OPEN Stand-by PIN NAME CE *If XC6219 B, D, F, H types are used with the CE pin opened, the IC goes into “Undefined state”. The CE pin voltage should be fixed in low or high for stable operation. 4/27 XC6219 Series ■ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL RATINGS UNITS Input Voltage VIN 7 V Output Voltage VOUT VSS - 0.3 ~ VIN + 0.3 V CE Pin Voltage VCE VSS - 0.3 ~ VIN + 0.3 V 250 SOT-25 600 (40mm x 40mm Standard board) (*1) 760 (JESD51-7 board) (*1) Power Dissipation (Ta=25℃) SOT-89 Pd 500 1300 (40mm x 40mm Standard board) (*1) mW 760 (JESD51-7 board) (*1) 120 USP-6B 1000 (40mm x 40mm Standard board) (*1) Operating Ambient Temperature Topr -40 ~ 85 ℃ Storage Temperature Tstg -55 ~ 125 ℃ All voltages are described based on the VSS pin. (*1) The power dissipation figure shown is PCB mounted and is for reference only. Please refer to PACKAGING INFORMATION for the mounting condition. 5/27 XC6219 Series ■ELECTRICAL CHARACTERISTICS ●XC6219 Type A,B PARAMETER Ta=25℃ SYMBOL CONDITIONS MIN. Output Voltage (*5) VOUT(T)(*2) (2%) ×0.98 Output Voltage (*6) VOUT(E) (*3) IOUT=30mA (1%) Maximum Output Current Load Regulation Dropout Voltage (*4) ×0.99 Supply Current VOUT(T)(*2) ×1.02 VOUT(T)(*2) VOUT(T)(*2) - - 1.8V≦VOUT(T)≦5.0V 240 - - ΔVOUT 1mA≦IOUT≦100mA - 15 50 Vdif1 IOUT=30mA - E-1 Vdif2 IOUT=100mA - E-2 IOUTMAX IDD VCE=VIN=VOUT(T)+1.0V VOUT≦0.95V, VIN=VCE=2.0V ISTB VIN=VOUT(T)+1.0V、VCE=VSS VOUT≦0.95V, VIN=2.0V UNITS CIRCUIT V ① mA ① mV ① mV ① μA ② ×1.01 150 (Type B) Stand-by Current MAX. VOUT(T)(*2) 0.9V≦VOUT(T)≦1.75V Supply Current (Type A) VOUT(T)(*2) TYP. - 28 55 - 25 50 - 0.01 0.10 μA ② - 0.01 0.20 %/V ① 2 - 6 V - - ±100 - ppm/℃ ① - E-3 - dB ④ - 300 mA ① 240 300 - - 50 - mA ① VOUT(T)+1.0V≦VIN≦6.0Ｖ Line Regulation ΔVOUT/ (ΔVIN・VOUT) VOUT≦0.95V, 2.0V≦VIN≦6.0V IOUT=30mA VOUT≦1.75V, IOUT=10mA Input Voltage Output Voltage Temperature Characteristics VIN ΔVOUT/ (ΔTopr・VOUT) IOUT=30mA -40℃≦Topr≦85℃ VIN=[VOUT(T)+1.0]V+1.0Vp-pAC Power Supply Rejection Ratio PSRR VOUT≦1.5, VIN=2.5V+1.0VppAC IOUT=50mA、f=10kHz VIN=VOUT(T)+2.0V、VCE=VIN Current Limiter Ilim 0.9V≦VOUT(T)≦1.75V VIN=VOUT(T)+1.0V、VCE=VIN 1.8V≦VOUT(T)≦5.0V VIN=VOUT(T)+1.0V、 VCE=VIN Short Circuit Current ISHORT CE ‘High’ Level Voltage VCEH - 1.6 - VIN V ① CE ‘Low’ Level Voltage VCEL - - - 0.25 V ① -0.10 - 5.0 μA ② -0.10 - 0.10 -0.10 - 0.10 μA ② VOUT≦1.75V, VIN=VOUT(T)+2.0V CE ‘High’ Level Current (Type A) CE ‘High’ Level Current ICEH VIN=VCE=VOUT(T)+1.0V VOUT≦0.95V, VIN=VCE=2.0V (Type B) CE ‘Low’ Level Current ICEL VIN=VOUT(T)+1.0V、VCE=VSS VOUT≦0.95V, VIN=2.0V (*1) Unless otherwise stated, VIN=VOUT(T)+1.0V. If VOUT is less than 0.95V, VIN= 2.0V. (*2) VOUT(T) = Specified output voltage (*3) VOUT(E) = Effective output voltage (*4) Vdif={VIN1-VOUT1 } The output voltage when "VOUT(T)+1.0V" is provided at the VIN pin while maintaining a certain IOUT value. VOUT1=A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input. VIN1=The Input Voltage when VOUT1 appears as Input Voltage is gradually decreased. （*5） If VOUT(T) is less than 1.45V, VOUT(T) -30mV (MIN.), VOUT(T) + 30mV (MAX.) （*6） Only for the VOUT(T) is more than 3.0V products. 6/27 XC6219 Series ■ELECTRICAL CHARACTERISTICS ●XC6219 Type C,D PARAMETER Ta=25℃ SYMBOL CONDITIONS (2%) Output Voltage (*6) VOUT(E) (*3) IOUT=30mA (1%) Maximum Output Current MIN. VOUT(T)(*2) Output Voltage (*5) ×0.98 VOUT(T)(*2) ×0.99 Dropout Voltage (*4) MAX. UNITS CIRCUIT V ① mA ① mV ① mV ① μA ② VOUT(T)(*2) VOUT(T)(*2) ×1.02 VOUT(T)(*2) VOUT(T)(*2) ×1.01 0.9V≦VOUT(T)≦1.75V 150 - - 1.8V≦VOUT(T)≦5.0V 240 - - ΔVOUT 1mA≦IOUT≦100mA - 15 50 Vdif1 IOUT=30mA - E-1 Vdif2 IOUT=100mA - E-2 VIN=VOUT(T)+1.0V - 28 55 - 25 50 - 0.01 0.10 μA ② - 0.01 0.20 %/V ① 2 - 6 V - - ±100 - ppm/℃ ① - E-3 - dB ④ - 300 mA ① 240 300 - - 50 - mA ① IOUTMAX Load Regulation TYP. Supply Current (Type C) IDD Supply Current VOUT≦0.95V, VIN=2.0V VCE=VSS (Type D) Stand-by Current ISTB VIN=VOUT(T)+1.0V、VCE=VIN VOUT≦0.95V, VIN=VCE=2.0V VOUT(T)+1.0V≦VIN≦6.0Ｖ Line Regulation ΔVOUT/ (ΔVIN・VOUT) VOUT≦0.95V, 2.0V≦VIN≦6.0V IOUT=30mA VOUT≦1.75V, IOUT=10mA Input Voltage Output Voltage Temperature Characteristics VIN ΔVOUT/ (ΔTopr・VOUT) IOUT=30mA -40℃≦Topr≦85℃ VIN=[VOUT(T)+1.0]V+1.0Vp-pAC Power Supply Rejection Ratio PSRR VOUT≦1.5, VIN=2.5V+1.0VppAC IOUT=50mA、f=10kHz VIN=VOUT(T)+2.0V、VCE=VSS Current Limiter Ilim 0.9V≦VOUT(T)≦1.75V VIN=VOUT(T)+1.0V、VCE=VSS 1.8V≦VOUT(T)≦5.0V VIN=VOUT(T)+1.0V、 VCE=VIN Short Circuit Current ISHORT CE ‘High’ Level Voltage VCEH - 1.6 - VIN V ① CE ‘Low’ Level Voltage VCEL - - - 0.25 V ① -0.10 - 0.10 μA ② -5.0 - 0.10 μA ② -0.10 - 0.10 CE ‘High’ Level Current ICEH VOUT≦1.75V, VIN=VOUT(T)+2.0V VCE=VIN=VOUT(T)+1.0V VOUT≦0.95V, VCE=VIN=2.0V CE ‘Low’ Level Current (Type C) CE ‘Low’ Level Current ICEL VIN=VOUT(T)+1.0V,VCE=VSS VOUT≦0.95V, VIN=2.0V (Type D) (*1) Unless otherwise stated, VIN=VOUT(T)+1.0V. If VOUT is less than 0.95V, VIN= 2.0V. (*2) VOUT(T) = Specified output voltage (*3) VOUT(E) = Effective output voltage (*4) Vdif={VIN1-VOUT1 } The output voltage when "VOUT(T)+1.0V" is provided at the VIN pin while maintaining a certain IOUT value. VOUT1=A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input. VIN1=The Input Voltage when VOUT1 appears as Input Voltage is gradually decreased. （*5） If VOUT(T) is less than 1.45V, VOUT(T) -30mV (MIN.), VOUT(T) + 30mV (MAX.) （*6） Only for the VOUT(T) is more than 3.0V products. 7/27 XC6219 Series ■ELECTRICAL CHARACTERISTICS Ta=25℃ ●XC6219 Type E,F PARAMETER SYMBOL CONDITIONS (2%) Output Voltage (*6) VOUT(E) (*3) IOUT=30mA (1%) Maximum Output VIN=E-5 (*7) Load Regulation ΔVOUT Load Regulation2 ΔVOUT2 Dropout Voltage (*4) Supply Current MAX. UNITS CIRCUIT V ① - mA ① VOUT(T)(*2) VOUT(T)(*2) ×1.02 VOUT(T)(*2) VOUT(T)(*2) ×1.01 - 1mA≦IOUT≦100mA - 15 50 mV ① 1mA≦IOUT≦300mA - - 100 mV ① Vdif1 IOUT=30mA - E-1 Vdif2 IOUT=100mA - E-2 mV ① μA ② IDD VCE=VIN=VOUT(T)+1.0V VOUT≦0.95V, VCE=VIN=2.0V (Type F) Stand-by Current TYP. E-4 Supply Current (Type E) ×0.98 VOUT(T)(*2) ×0.99 IOUTMAX Current MIN. VOUT(T)(*2) Output Voltage (*5) ISTB VIN=VOUT(T)+1.0V、VCE=VSS VOUT≦0.95V, VCE=VIN=2.0V - 28 55 - 25 50 - 0.01 0.10 μA ② - 0.01 0.20 %/V ① 2 - 6 V - - ±100 - ppm/℃ ① - 70 - dB ④ - 380 - mA ① - 50 - mA ① VOUT(T)+1.0V≦VIN≦6.0Ｖ Line Regulation ΔVOUT/ (ΔVIN・VOUT) VOUT≦0.95V, 2.0V≦VIN≦6.0V IOUT=30mA VOUT≦1.75V, IOUT=10mA Input Voltage Output Voltage Temperature Characteristics VIN ΔVOUT/ (ΔTopr・VOUT) IOUT=30mA -40℃≦Topr≦85℃ VIN=[VOUT(T)+1.0]V+1.0Vp-pAC Power Supply Rejection Ratio PSRR VOUT≦1.5, VIN=2.5V+1.0VppAC IOUT=50mA、f=10kHz VIN=VOUT(T)+2.0V、VCE=VIN Current Limiter Ilim 0.9V≦VOUT(T)≦1.75V VIN=VOUT(T)+1.0V、VCE=VIN 1.8V≦VOUT(T)≦5.0V VIN=VOUT(T)+1.0V、 VCE=VIN Short Circuit Current ISHORT CE ‘High’ Level Voltage VCEH - 1.6 - VIN V ① CE ‘Low’ Level Voltage VCEL - - - 0.25 V ① -0.10 - 5.0 μA ② -0.10 - 0.10 -0.1 - 0.1 μA ② VOUT≦1.75V, VIN=VOUT(T)+2.0V CE ‘High’ Level Current (Type E) CE ‘High’ Level Current ICEH VIN=VCE=VOUT(T)+1.0V VOUT≦0.95V, VIN=VCE=2.0V (Type F) CE ‘Low’ Level Current (*1) ICEL VIN=VOUT(T)+1.0V、VCE=VSS VOUT≦0.95V, VIN=2.0V Unless otherwise stated, VIN=VOUT(T)+1.0V. If VOUT is less than 0.95V, VIN= 2.0V. (*2) VOUT(T) = Specified output voltage (*3) VOUT(E) = Effective output voltage (*4) Vdif={VIN1-VOUT1 } The output voltage when "VOUT(T)+1.0V" is provided at the VIN pin while maintaining a certain IOUT value. VOUT1=A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input. VIN1=The Input Voltage when VOUT1 appears as Input Voltage is gradually decreased. （*5） If VOUT(T) is less than 1.45V, VOUT(T) -30mV (MIN.), VOUT(T) + 30mV (MAX.) （*6） Only for the VOUT(T) is more than 3.0V products. Please refer to the “Voltage Chart” table. （*7） 8/27 XC6219 Series ■ELECTRICAL CHARACTERISTICS Ta=25℃ ●XC6219 Type G,H PARAMETER SYMBOL CONDITIONS MIN. Output Voltage (*5) VOUT(T)(*2) (2%) ×0.98 Output Voltage (*6) VOUT(E) (*3) IOUT=30mA (1%) Maximum Output ×0.99 IOUTMAX VIN=E-5 (*7) Load Regulation ΔVOUT Load Regulation2 ΔVOUT2 Current Dropout Voltage (*4) Supply Current UNITS CIRCUIT VOUT(T)(*2) V ① - mA ① ×1.02 VOUT(T)(*2) VOUT(T)(*2) ×1.01 - 1mA≦IOUT≦100mA - 15 50 mV ① 1mA≦IOUT≦300mA - - 100 mV ① Vdif1 IOUT=30mA - E-1 Vdif2 IOUT=100mA - E-2 mV ① VCE=VIN=VOUT(T)+1.0V - 28 55 μA ② - 25 50 - 0.01 0.10 μA ② - 0.01 0.20 %/V ① 2 - 6 V - - ±100 - ppm/℃ ① - 70 - dB ④ - 380 - mA ① - 50 - mA ① IDD VOUT≦0.95V, VIN=2.0V VCE=VSS (Type H) Stand-by Current MAX. VOUT(T)(*2) E-4 Supply Current (Type G) VOUT(T)(*2) TYP. ISTB VIN=VOUT(T)+1.0V、VCE=VIN VOUT≦0.95V, VCE=VIN=2.0V VOUT(T)+1.0V≦VIN≦6.0Ｖ Line Regulation ΔVOUT/ (ΔVIN・VOUT) VOUT≦0.95V, 2.0V≦VIN≦6.0V IOUT=30mA VOUT≦1.75V, IOUT=10mA Input Voltage Output Voltage Temperature Characteristics VIN ΔVOUT/ (ΔTopr・VOUT) IOUT=30mA -40℃≦Topr≦85℃ VIN=[VOUT(T)+1.0]V+1.0Vp-pAC Power Supply Rejection Ratio PSRR VOUT≦1.5, VIN=2.5V+1.0VppAC IOUT=50mA、f=10kHz VIN=VOUT(T)+2.0V、VCE=VSS Current Limiter Ilim 0.9V≦VOUT(T)≦1.75V VIN=VOUT(T)+1.0V、VCE=VSS 1.8V≦VOUT(T)≦5.0V VIN=VOUT(T)+1.0V、 VCE=Vss Short Circuit Current ISHORT CE ‘High’ Level Voltage VCEH - 1.6 - VIN V ① CE ‘Low’ Level Voltage VCEL - - - 0.25 V ① -0.10 - 0.10 μA ② -5.0 - 0.10 μA ② -0.10 - 0.10 CE ‘High’ Level Current ICEH VOUT≦1.75V, VIN=VOUT(T)+2.0V VCE=VIN=VOUT(T)+1.0V VOUT≦0.95V, VCE=VIN=2.0V CE ‘Low’ Level Current (Type G) CE ‘Low’ Level Current ICEL VIN=VOUT(T)+1.0V、VCE=VSS VOUT≦0.95V, VIN=2.0V (Type H) (*1) Unless otherwise stated, VIN=VOUT(T)+1.0V. If VOUT is less than 0.95V, VIN= 2.0V. (*2) VOUT(T) = Specified output voltage (*3) VOUT(E) = Effective output voltage (*4) Vdif={VIN1-VOUT1 } The output voltage when "VOUT(T)+1.0V" is provided at the VIN pin while maintaining a certain IOUT value. VOUT1=A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input. VIN1=The Input Voltage when VOUT1 appears as Input Voltage is gradually decreased. （*5） If VOUT(T) is less than 1.45V, VOUT(T) -30mV (MIN.), VOUT(T) + 30mV (MAX.) （*6） Only for the VOUT(T) is more than 3.0V products. Please refer to the “Voltage Chart” table. （*7） 9/27 XC6219 Series ■ELECTRICAL CHARACTERISTICS (Continued) ●Voltage Chart SYMBOL E-0 E-1 PARAMETER OUTPUT VOLTAGE OUTPUT VOLTAGE (2%) (1%) (V) (V) 10/27 VOUT DROPOUT DROPOUT VOLTAGE2 (mV) (IOUT=30mA) (IOUT=100mA) Ta=25℃ Ta=25℃ Ta=25℃ Vdif2 PSRR VOUT Vdif1 MIN MAX MIN MAX 0.90 0.870 0.930 - - 0.95 0.920 0.980 - - 1.00 0.970 1.030 - - 1.05 1.020 1.080 - - 1.10 1.070 1.130 - - 1.15 1.120 1.180 - - 1.20 1.170 1.230 - - 1.25 1.220 1.280 - - 1.30 1.270 1.330 - - 1.35 1.320 1.380 - - 1.40 1.370 1.430 - - 1.45 1.420 1.480 - - 1.50 1.470 1.530 - - 1.55 1.519 1.581 - - 1.60 1.568 1.632 - - 1.65 1.617 1.683 - - 1.70 1.666 1.734 - - 1.75 1.715 1.785 - - 1.80 1.764 1.836 - - 1.85 1.813 1.887 - - 1.90 1.862 1.938 - - 1.95 1.911 1.989 - - 2.00 1.960 2.040 - - 2.05 2.009 2.091 - - 2.10 2.058 2.142 - - 2.15 2.107 2.193 - - 2.20 2.156 2.244 - - 2.25 2.205 2.295 - - 2.30 2.254 2.346 - - 2.35 2.303 2.397 - - 2.40 2.352 2.448 - - 2.45 2.401 2.499 - - 2.50 2.450 2.550 - - 2.55 2.499 2.601 - - 2.60 2.548 2.652 - - 2.65 2.597 2.703 - - 2.70 2.646 2.754 - - 2.75 2.695 2.805 - - 2.80 2.744 2.856 - - 2.85 2.793 2.907 - - 2.90 2.842 2.958 - - 2.95 2.891 3.009 - - E-3 Power VOLTAGE1 (mV) OUTPUT VOLTAGE VOUT(T) E-2 TYP MAX TYP MAX 1100 1110 1150 1200 1000 1010 1050 1100 900 910 950 1000 800 810 850 900 700 710 750 800 600 610 650 700 500 510 550 600 400 410 500 550 300 310 400 450 200 210 300 400 120 150 280 380 Supply Rejection Ratio TYP 65 350 330 80 120 240 310 290 70 100 220 270 70 XC6219 Series ■ELECTRICAL CHARACTERISTICS (Continued) ●Voltage Chart SYMBOL E-0 E-1 PARAMETER OUTPUT VOLTAGE OUTPUT VOLTAGE (2%) (1%) (V) (V) VOUT VOUT MIN MAX MIN MAX 3.00 2.940 3.060 2.970 3.030 3.05 2.989 3.111 3.020 3.081 3.10 3.038 3.162 3.069 3.131 3.15 3.087 3.213 3.119 3.182 3.20 3.136 3.264 3.168 3.232 3.25 3.185 3.315 3.218 3.283 3.30 3.234 3.366 3.267 3.333 3.35 3.283 3.417 3.317 3.384 3.40 3.332 3.468 3.366 3.434 3.45 3.381 3.519 3.416 3.485 3.50 3.430 3.570 3.465 3.535 3.55 3.479 3.621 3.515 3.586 3.60 3.528 3.672 3.564 3.636 3.65 3.577 3.723 3.614 3.687 3.70 3.626 3.774 3.663 3.737 3.75 3.675 3.825 3.713 3.788 3.80 3.724 3.876 3.762 3.838 3.85 3.773 3.927 3.812 3.889 3.90 3.822 3.978 3.861 3.939 3.95 3.871 4.029 3.911 3.990 4.00 3.920 4.080 3.960 4.040 4.05 3.969 4.131 4.010 4.091 4.10 4.018 4.182 4.059 4.141 4.15 4.067 4.233 4.109 4.192 4.20 4.116 4.284 4.158 4.242 4.25 4.165 4.335 4.208 4.293 4.30 4.214 4.386 4.257 4.343 4.35 4.263 4.437 4.307 4.394 4.40 4.312 4.488 4.356 4.444 4.45 4.361 4.539 4.405 4.494 4.50 4.410 4.590 4.455 4.545 4.55 4.459 4.641 4.504 4.595 4.60 4.508 4.692 4.554 4.646 4.65 4.557 4.743 4.603 4.696 4.70 4.606 4.794 4.653 4.747 4.75 4.655 4.845 4.702 4.797 4.80 4.704 4.896 4.752 4.848 4.85 4.753 4.947 4.801 4.898 4.90 4.802 4.998 4.851 4.949 4.95 4.851 5.049 4.900 4.999 5.00 4.900 5.100 4.950 5.050 E-3 Power DROPOUT DROPOUT VOLTAGE1 (mV) VOLTAGE2 (mV) (IOUT=30mA) (IOUT=100mA) Ta=25℃ Ta=25℃ Ta=25℃ Vdif1 Vdif2 PSRR OUTPUT VOLTAGE VOUT(T) E-2 TYP MAX TYP MAX Supply Rejection Ratio TYP 270 90 200 250 60 50 70 80 180 230 70 160 210 11/27 XC6219 Series ■ELECTRICAL CHARACTERISTICS (Continued) ●Specification & Condition by Series SYMBOL CONDITION, RATINGS OUTPUT VOLTAGE (V) INPUT VOLTAGE (V) E-4 MAX. OUTPUT CURRENT (mA) VIN MIN 0.90 ~ 0.95 2.5 260 1.00 ~ 1.05 2.5 260 1.10 ~ 1.15 2.6 270 1.20 ~ 1.25 2.7 290 1.30 ~ 1.35 2.8 1.40 ~ 1.45 2.9 1.50 ~ 1.95 3.0 2.00 ~ 6.00 VOUT(T)+1.0 * VOUT(T)=Nominal output voltage 12/27 E-5 300 XC6219 Series ■TEST CIRCUITS Circuit ① VIN V CE CIN=1.0uF (ｾﾗﾐｯｸ) ceramic A VOUT VSS CL=1.0uF (ｾﾗﾐｯｸ) ceramic RL V V VCE Circuit ② A VIN CE A OPEN VOUT VSS VCE Circuit ③ VIN CE CIN=1.0uF ceramic (ｾﾗﾐｯｸ) VOUT VSS F.F.T CL=1.0uF (ｾﾗﾐｯｸ) ceramic VCE IOUT=10mA Circuit ④ VIN VIN={VOUT+1}VDC + 1.0Vp-pAC VOUT≦1.5V VIN=2.5VDC+1.0Vp-pAC VOUT IOUT=50mA CE V VSS CL=1.0uF (ｾﾗﾐｯｸ) ceramic V VCE *TEST CIRCUIT VCE (CE Pin Voltage) ACTIVE XC6219 Type A,B,E,F: VCE=VIN XC6219 Type C,D,G,H: VCE=VSS STANDBY XC6219 Type A,B,E,F: VCE=VSS XC6219 Type C,D,G,H: VCE=VIN 13/27 XC6219 Series ■OPERATIONAL EXPLANATION The voltage divided by resistors R1 & R2 is compared with the internal reference voltage by the error amplifier. The Pchannel MOSFET, which is connected to the VOUT pin, is then driven by the subsequent output signal. The output voltage at the VOUT pin is controlled and stabilized by a system of negative feedback. The current limit circuit and short protect circuit operate in relation to the level of output current. Further, the IC's internal circuitry can be shutdown via the CE pin's signal With the XC6219 series, a stable output voltage is achievable even if used with low ESR capacitors as a phase compensation circuit is built-in. In order to ensure the effectiveness of the phase compensation, we suggest that an output capacitor (CL) is connected as close as possible to the output pin (VOUT) and the VSS pin. Please use an output capacitor with a capacitance value of at least 1.0μF. Also, please connect an input capacitor (CIN) of 1.0μF between the VIN pin and the VSS pin in order to ensure a stable power input. Stable phase compensation may not be ensured if the capacitor runs out capacitance when depending on bias and temperature. In case the capacitor depends on the bias and temperature, please make sure the capacitor can ensure the actual capacitance. The XC6219 series includes a combination of a fixed current limiter circuit & a foldback circuit, which aid the operations of the current limiter and circuit protection. When the load current reaches the current limit level, the fixed current limiter circuit operates and output voltage drops. As a result of this drop in output voltage, the foldback circuit operates, output voltage drops further and output current decreases. When the output pin is shorted, a current of about 50mA flows. The IC's internal circuitry can be shutdown via the signal from the CE pin with the XC6219 series. In shutdown mode, output at the VOUT pin will be pulled down to the VSS level via R1 & R2. The operational logic of the IC's CE pin is selectable (please refer to the selection guide). Note that as the standard XC6219B type's regulator 1 and 2 are both ' High Active/No Pull-Down', operations will become unstable with the CE pin open. Although the CE pin is equal to an inverter input with CMOS hysteresis, with either the pull-up or pull-down options, the CE pin input current will increase when the IC is in operation. We suggest that you use this IC with either a VIN voltage or a VSS voltage input at the CE pin. If this IC is used with the correct specifications for the CE pin, the operational logic is fixed and the IC will operate normally. However, supply current may increase as a result of through current in the IC's internal circuitry. ■NOTES ON USE 1. For temporary, transitional voltage drop or voltage rising phenomenon, the IC is liable to malfunction should the ratings be exceeded. 2. Where wiring impedance is high, operations may become unstable due to noise and/or phase lag depending on output current. Please keep the resistance low between VIN and VSS wiring in particular. 3. Please wire the input capacitor (CIN) and the output capacitor (CL) as close to the IC as possible. 4. The IC is controlled with constant current start-up. Start-up sequence control is requested to draw a load current after even nominal output voltage rising up the output voltage. 5. Torex places an importance on improving our products and their reliability. We request that users incorporate fail-safe designs and post-aging protection treatment when using Torex products in their systems. 14/27 XC6219 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (1) Output Voltage vs. Output Current XC6219x182 XC6219x182 Topr=85℃ 25℃ -40℃ XC6219x252 XC6219x252 Topr=85℃ 25℃ -40℃ XC6219x302 XC6219x302 Topr=85℃ 25℃ -40℃ 15/27 XC6219 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (2) Output Voltage vs. Input Voltage XC6219x182 XC6219x182 XC6219x252 XC6219x252 XC6219x302 16/27 XC6219x302 XC6219 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (3) Dropout Voltage vs. Output Current XC6219x252 XC6219x182 XC6219x302 (4) Supply Current vs. Input Voltage XC6219x182 XC6219x252 Topr=85℃ Topr=85℃ 25℃ 25℃ -40℃ -40℃ 17/27 XC6219 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (4) Supply Current vs. Input Voltage (Continued) XC6219x302 Topr=85℃ 25℃ -40℃ (5) Output Voltage vs. Ambient Temperature XC6219x182 XC6219x302 18/27 XC6219x252 XC6219 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (6) Supply Current vs. Ambient Temperature XC6219x182 XC6219x252 XC6219x302 19/27 XC6219 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (7) Input Transient Response XC6219x182 XC6219x182 XC6219x252 XC6219/11x252 20/27 XC6219x182 XC6219/11x252 XC6219x252 XC6219x252 XC6219/11x252 XC6219 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (7) Input Transient Response (Continued) XC6219x302 XC6219x302 XC6219x302 (8) Load Transient Response XC6219x182 XC6219x182 21/27 XC6219 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (8) Load Transient Response (Continued) XC6219x182 VIN=2.8V, trr=tf=5use CL=1μF (ceramic), CL=1uF (ceramic) XC6219x252 VIN=3.5V, trr=tf=5use CL=1μF (ceramic), CL=1uF (ceramic) XC6219x302 VIN=4.0V, trr=tf=5use CL=1μF (ceramic), CL=1uF (ceramic) 22/27 XC6219x252 VIN=3.5V, trr=tf=5use CL=1μF (ceramic), CL=1uF (ceramic) XC6219x252 VIN=3.5V, trr=tf=5use CL=1μF (ceramic), CL=1uF (ceramic) XC6219x302 VIN=4.0V, trr=tf=5use CL=1μF (ceramic), CL=1uF (ceramic) XC6219 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (8) Load Transient Response (Continued) XC6219x302 VIN=4.0V, trr=tf=5use CL=1μF (ceramic), CL=1uF (ceramic) (9) Ripple Rejection Rate XC6219x182 VIN=2.8V, DC+1Vp-pAC IOUT=50mA, CL=1uF (ceramic) XC6219x252 VIN=3.5V, DC+1Vp-pAC IOUT=50mA, CL=1uF (ceramic) XC6219x302 VIN=4.0V, DC+1Vp-pAC IOUT=50mA, CL=1uF (ceramic) 23/27 XC6219 Series ■PACKAGING INFORMATION For the latest package information go to, www.torexsemi.com/technical-support/packages PACKAGE OUTLINE / LAND PATTERN THERMAL CHARACTERISTICS SOT-25 SOT-25 PKG SOT-25 Power Dissipation SOT-89-5 SOT-89-5 PKG SOT-89-5 Power Dissipation USP-6B USP-6B PKG USP-6B Power Dissipation 24/27 XC6219 Series ■MARKING RULE ●SOT-25, SOT-89-5 5 ① ① represents product series 4 ② ③ ④ PRODUCT SERIES L XC6219xxxxxx 3 ② represents type of regulator SOT-25 (TOP VIEW) VOUT 100mV INCREMENTS 1 2 MARK VOUT:0.1~3.0V 5 2 ④ 4 2 SOT-89-5 (TOP VIEW) 3 VOUT 50mV INCREMENTS PRODUCT SERIES VOUT:3.1~6.0V VOUT:0.15~3.05V VOUT:3.15~6.05V V X Y Z V X Y Z ③ ② ① 1 MARK A B C D A B C D E F H K E F H K L M N P L M N P XC6219Axxxxx XC6219Bxxxxx XC6219Cxxxxx XC6219Dxxxxx XC6219Exxxxx XC6219Fxxxxx XC6219Gxxxxx XC6219Hxxxxx ③ represents output voltage MARK 0 1 2 3 4 5 6 7 8 9 A B C D E OUTPUT VOLTAGE (V) 0.9 1.0 1.1 1.2 1.3 1.4 1.5 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 0.95 1.05 1.15 1.25 1.35 1.45 1.55 3.15 3.25 3.35 3.45 3.55 3.65 3.75 3.85 3.95 4.05 4.15 4.25 4.35 4.45 4.55 MARK F H K L M N P R S T U V X Y Z OUTPUT VOLTAGE (V) 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 4.6 4.7 4.8 4.9 5.0 - 1.65 1.75 1.85 1.95 2.05 2.15 2.25 2.35 2.45 2.55 2.65 2.75 2.85 2.95 3.05 4.65 4.75 4.85 4.95 - ④ represents production lot number 0 to 9, A to Z reverse character of 0 to 9, A to Z repeated (G, I, J, O, Q, W excluded) 25/27 XC6219 Series ■MARKING RULE (Continued) ●USP-6B ①② represents product series MARK ① ② 1 9 PRODUCT SERIES XC6219xxxxDx ③ represents type of regulator USP-6B (TOP VIEW) MARK TYPE PRODUCT SERIES A B C D E F Z H High Active, pull-down resistor built-in (semi-custom) High Active, no pull-down resistor built-in (standard) Low Active, pull-up resistor built-in (semi-custom) Low Active, no pull-up resistor built-in (semi-custom) High Active, pull-down resistor built-in (semi-custom) High Active, no pull-down resistor built-in (standard) Low Active, pull-up resistor built-in (semi-custom) Low Active, no pull-up resistor built-in (semi-custom) XC6219AxxxMx XC6219BxxxMx XC6219CxxxMx XC6219DxxxMx XC6219ExxxDx XC6219FxxxDx XC6219GxxxDx XC6219HxxxDx ④ represents product series MARK VOLTAGE (V) PRODUCT SERIES 3 5 3.X 5.X XC6219x3xxDx XC6219x5xxDx PRODUCT SERIES SYMBOL VOLTAGE PRODUCT SERIES ⑤ represents output voltage MARK VOLTAGE 0 1 2 3 4 5 6 7 8 9 X.0 X.1 X.2 X.3 X.4 X.5 X.6 X.7 X.8 X.9 XC6219xx0xDx XC6219xx1xDx XC6219xx2xDx XC6219xx3xDx XC6219xx4xDx XC6219xx5xDx XC6219xx6xDx XC6219xx7xDx XC6219xx8xDx XC6219xx9xDx ⑥ represents production lot number 0 to 9, A to Z repeated (G, I, J, O, Q, W excluded) * No character inversion used. 26/27 A B C D E F H K L M X.05 X.15 X.25 X.35 X.45 X.55 X.65 X.75 X.85 X.95 XC6219xx0ADx XC6219xx1ADx XC6219xx2ADx XC6219xx3ADx XC6219xx4ADx XC6219xx5ADx XC6219xx6ADx XC6219xx7ADx XC6219xx8ADx XC6219xx9ADx XC6219 Series 1. The product and product specifications contained herein are subject to change without notice to improve performance characteristics. Consult us, or our representatives before use, to confirm that the information in this datasheet is up to date. 2. The information in this datasheet is intended to illustrate the operation and characteristics of our products. We neither make warranties or representations with respect to the accuracy or completeness of the information contained in this datasheet nor grant any license to any intellectual property rights of ours or any third party concerning with the information in this datasheet. 3. Applicable export control laws and regulations should be complied and the procedures required by such laws and regulations should also be followed, when the product or any information contained in this datasheet is exported. 4. The product is neither intended nor warranted for use in equipment of systems which require extremely high levels of quality and/or reliability and/or a malfunction or failure which may cause loss of human life, bodily injury, serious property damage including but not limited to devices or equipment used in 1) nuclear facilities, 2) aerospace industry, 3) medical facilities, 4) automobile industry and other transportation industry and 5) safety devices and safety equipment to control combustions and explosions. Do not use the product for the above use unless agreed by us in writing in advance. 5. Although we make continuous efforts to improve the quality and reliability of our products; nevertheless Semiconductors are likely to fail with a certain probability. So in order to prevent personal injury and/or property damage resulting from such failure, customers are required to incorporate adequate safety measures in their designs, such as system fail safes, redundancy and fire prevention features. 6. Our products are not designed to be Radiation-resistant. 7. Please use the product listed in this datasheet within the specified ranges. 8. We assume no responsibility for damage or loss due to abnormal use. 9. All rights reserved. No part of this datasheet may be copied or reproduced unless agreed by Torex Semiconductor Ltd in writing in advance. TOREX SEMICONDUCTOR LTD. 27/27
