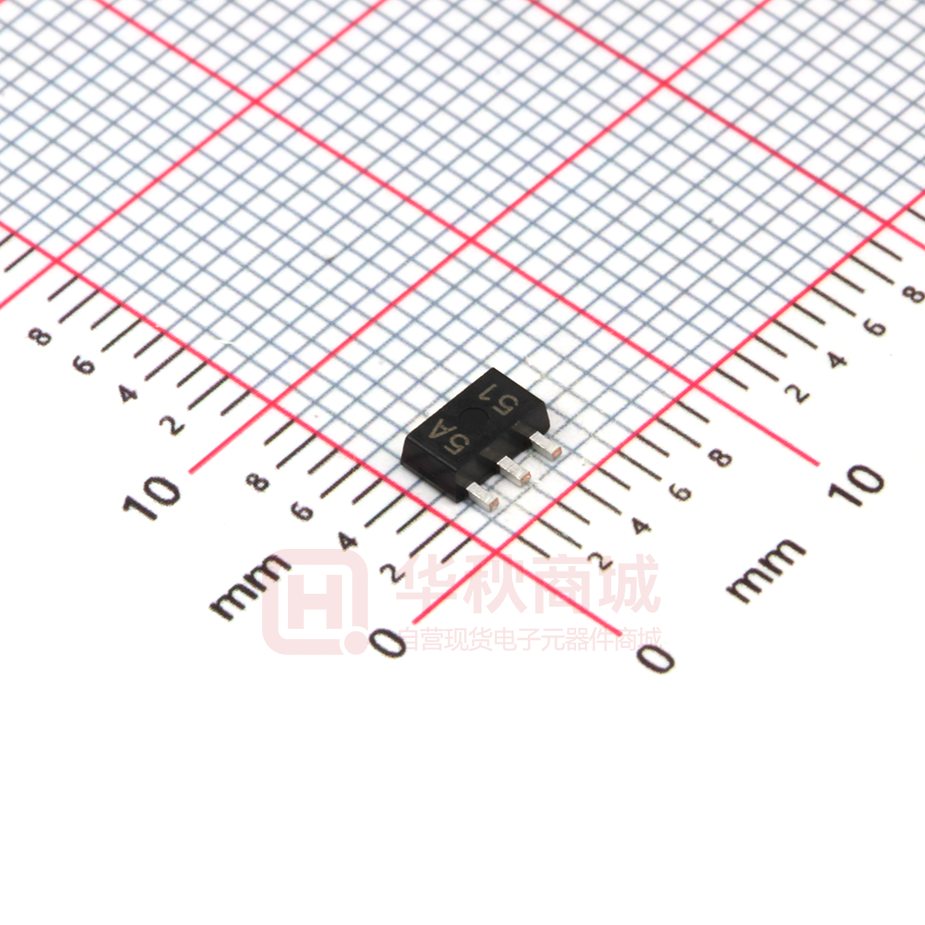

XC62KN5002PR

XC62K Series ETR0313_007a Negative Voltage Regulators ■GENERAL DESCRIPTION The XC62K series are highly precise, low power consumption, negative voltage regulators, manufactured using CMOS and laser trimming technologies. The series achieves high output currents with small input-output voltage differentials, and consists of a high precision voltage reference, an error correction circuit, and an output driver with current limitation. SOT-23, SOT-89, USP-6B packages are available. ■APPLICATIONS ■FEATURES ●Multi-function power supplies. Dropout Voltage : 0.38V＠100mA ●Smart phones / Mobile phones. ●Mobile devices / terminals. : 0.12V@50mA (VOUT=-5.0V) Maximum Output Current : 100mA (within MAX. power dissipation, VOUT= -5.0V) Output Voltage Range : -2.1V ~ -6.0V (0.1V increments) -5.0, -4.0, -3.0V, -2.5V standard (All other voltages are semi-custom) Highly Accurate : Setting output voltage ±2% (±1% for semi-custom products) Low Power Consumption : 3.0μA @ VOUT= -5.0V (TYP.) Output Voltage Temperature Characteristics : ±100ppm/℃ (TYP.) Line Regulation : 0.1%/V (TYP.) CMOS Low Power Consumption Packages : SOT-23 SOT-89 USP-6B Environmentally Friendly : EU RoHS Compliant, Pb Free ■TYPICAL APPLICATION CIRCUIT ■ TYPICAL PERFORMANCE CHARACTERISTICS 1/16 XC62K Series ■PIN CONFIGURATION -VIN NC VSS NC -VOUT NC *The dissipation pad for the USP-6B package should be solder-plated in recommended mount pattern and metal masking so as to enhance mounting strength and heat release. If the pad needs to be connected to other pins, it should be connected to the VSS pin. ■PIN ASSIGNMENT PIN NUMBER PIN NAME FUNCTIONS -VIN Power Supply Input 4 VSS Ground 2 -VOUT Output 1,3,5 NC No Connection SOT-23 SOT-89 USP-6B 2 3 6 3 2 1 1 - - ■PRODUCT CLASSIFICATION ●Ordering Information XC62K①②③④⑤⑥⑦-⑧(*1) (*1) MARK ITEM SYMBOL ① Polarity of Output Voltage N ②③ Output Voltage 21 ~ 60 ④ Temperature Characteristics 0 ⑤ Output Voltage Accuracy ⑥⑦-⑧ Packages (Order Unit) 1 2 MR-G PR-G DR-G DESCRIPTION Negative e.g. VOUT – 2.1V → ②=2, ③=1 VOUT – 6.0V → ②=6, ③=0 + 100ppm (TYP.) + 1% (Semi-custom) + 2% SOT-23 (3,000pcs/Reel) SOT-89 (1,000pcs/Reel) USP-6B (3,000pcs/Reel) The “-G” suffix denotes Halogen and Antimony free as well as being fully EU RoHS compliant. 2/16 XC62K Series ■BLOCK DIAGRAM ■ABSOLUTE MAXIMUM RATINGS Ta=25℃ UNITS PARAMETER SYMBOL RATINGS Input Voltage VIN -12.0 V Output Current IOUT 200 mA Output Voltage VOUT -VSS-0.3 ~ VIN+0.3 V SOT-23 Power Dissipation 150 Pd 500 Operating Ambient Temperature Topr -40 ~ 85 ℃ Storage Temperature Tstg -40 ~ 125 ℃ SOT-89 USP-6B mW 100 Note: Please ensure that IOUT is less than Pd/(VOUT-VIN). 3/16 XC62K Series ■ELECTRICAL CHARACTERISTICS Ta=25℃ PARAMETER SYMBOL Output Voltage VOUT(E)(*2) Maximum Output Current IOUTmax Load Regulation △VOUT Dropout Voltage Vdif1(*3) Vdif2(*3) IOUT={E4-1}(*4)mA Supply Current ISS Line Regulation △VOUT/ (△VIN・VOUT) Input Voltage VIN Output Voltage Temperature Characteristics △VOUT/ (△VIN・VOUT) CONDITIONS IOUT=20mA VIN=VOUT(T)(*1)-1.0V VIN=VOUT(T)-1.0V VOUT(E)≧VOUT(T)×0.9 VIN=VOUT(T)－1.0V MIN. TYP. MAX. UNITS CIRCUIT E1-1(*4) VOUT(T) E1-2(*4) V 2 mA 4 E2(*4) - 40 80 mV 4 IOUT={E4-2}(*4)mA - 120 380 300 600 mV 3 VIN=VOUT(T)-1.0V - E5-1(*4) E5-2(*4) μA 1 - 0.1 0.3 %V 3 - - -10.0 V - - ±100 - ppm/ ℃ - 1mA≦IOUT≦{E3}mA IOUT=20mA VIN≧VOUT(T)-1.0V VIN≦-10.0V IOUT=20mA －40℃≦Topr≦85℃ *1: VOUT(T)=Specified output voltage *2: VOUT(E)=Effective output voltage i.e. the output voltage when "VOUT(T) -1.0V" is provided at the VIN pin while maintaining a certain IOUT value). *3: Vdif1,Vdif2 =Vdif={VIN1(*5) - VOUT1(*4)} VOUT1 =A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T) -1.0V} is input. VIN1=The input voltage when a voltage equal to 98% of VOUT(E) appears. *4: Refer to the “Voltage chart”. 4/16 XC62K Series ■ELECTRICAL CHARACTERISTICS (Continued) ●Conditions Chart ●Voltage Chart SYMBOL PARAMETER SETTING OUTPUT VOLTAGE(V) E1-1 E1-2 E1-1 E1-2 E2 E5-1 MAXIMUM OUTPUT OUTPUT VOLTAGE (V) VOLTAGE (V) (2% products) (1% products) CURRENT E3 SUPPLY LOAD CURRENT1 REGULATION (μA) (mV) (mA) IOUTmax ISS E4-1 E4-2 DROPOUT VOLTAGE (mV) IOUT Vdif1 Vdif2 MIN MAX MIN MAX MIN TYP MAX CONDITIONS CONDITIONS CONDITIONS 2.1 2.058 2.142 - - 40 2.5 6.0 30 30 60 2.2 2.156 2.244 - - ↑ ↑ ↑ ↑ ↑ ↑ 2.3 2.254 2.346 - - ↑ ↑ ↑ ↑ ↑ ↑ 2.4 2.352 2.448 - - ↑ ↑ ↑ ↑ ↑ ↑ 2.5 2.450 2.550 2.475 2.525 ↑ ↑ ↑ ↑ ↑ ↑ 2.6 2.548 2.652 2.574 2.626 ↑ ↑ ↑ ↑ ↑ ↑ 2.7 2.646 2.754 2.673 2.727 ↑ ↑ ↑ ↑ ↑ ↑ 2.8 2.744 2.856 2.772 2.828 ↑ ↑ ↑ ↑ ↑ ↑ 2.9 2.842 2.958 2.871 2.929 ↑ ↑ ↑ ↑ ↑ ↑ 3.0 2.940 3.060 2.970 3.030 60 ↑ ↑ 40 40 80 3.1 3.038 3.162 3.069 3.131 ↑ ↑ ↑ ↑ ↑ ↑ 3.2 3.136 3.264 3.168 3.232 ↑ ↑ ↑ ↑ ↑ ↑ 3.3 3.234 3.366 3.267 3.333 ↑ ↑ ↑ ↑ ↑ ↑ 3.4 3.332 3.468 3.366 3.434 ↑ ↑ ↑ ↑ ↑ ↑ 3.5 3.430 3.570 3.465 3.535 ↑ ↑ ↑ ↑ ↑ ↑ 3.6 3.528 3.672 3.564 3.636 ↑ ↑ ↑ ↑ ↑ ↑ 3.7 3.626 3.774 3.663 3.737 ↑ ↑ ↑ ↑ ↑ ↑ 3.8 3.724 3.876 3.762 3.838 ↑ ↑ ↑ ↑ ↑ ↑ 3.9 3.822 3.978 3.861 3.939 ↑ ↑ ↑ ↑ ↑ ↑ 4.0 3.920 4.080 3.960 4.040 80 3.0 6.5 45 45 90 4.1 4.018 4.182 4.059 4.141 ↑ ↑ ↑ ↑ ↑ ↑ 4.2 4.116 4.284 4.158 4.242 ↑ ↑ ↑ ↑ ↑ ↑ 4.3 4.214 4.386 4.257 4.343 ↑ ↑ ↑ ↑ ↑ ↑ 4.4 4.312 4.488 4.356 4.444 ↑ ↑ ↑ ↑ ↑ ↑ 4.5 4.410 4.590 4.455 4.545 ↑ ↑ ↑ ↑ ↑ ↑ 4.6 4.508 4.692 4.554 4.646 ↑ ↑ ↑ ↑ ↑ ↑ 4.7 4.606 4.794 4.653 4.747 ↑ ↑ ↑ ↑ ↑ ↑ 4.8 4.704 4.896 4.752 4.848 ↑ ↑ ↑ ↑ ↑ ↑ 4.9 4.802 4.998 4.851 4.949 ↑ ↑ ↑ ↑ ↑ ↑ 5.0 4.900 5.100 4.950 5.050 100 ↑ 7.0 50 50 100 5.1 4.998 5.202 5.049 5.151 ↑ ↑ ↑ ↑ ↑ ↑ 5.2 5.096 5.304 5.148 5.252 ↑ ↑ ↑ ↑ ↑ ↑ 5.3 5.194 5.406 5.247 5.353 ↑ ↑ ↑ ↑ ↑ ↑ 5.4 5.292 5.508 5.346 5.454 ↑ ↑ ↑ ↑ ↑ ↑ 5.5 5.390 5.610 5.445 5.555 ↑ ↑ ↑ ↑ ↑ ↑ 5.6 5.488 5.712 5.544 5.656 ↑ ↑ ↑ ↑ ↑ ↑ 5.7 5.586 5.814 5.643 5.757 ↑ ↑ ↑ ↑ ↑ ↑ 5.8 5.684 5.916 5.742 5.858 ↑ ↑ ↑ ↑ ↑ ↑ 5.9 5.782 6.018 5.841 5.959 ↑ ↑ ↑ ↑ ↑ ↑ 6.0 5.880 6.120 5.940 6.060 ↑ ↑ ↑ ↑ ↑ ↑ VOUT(T) VOUT(E) OUTPUT E5-2 Note) The symbol is as same as that in the chart of electrical characteristics. 5/16 XC62K Series ■TEST CIRCUITS Circuit 1. Supply Current Circuit 2. Output Voltage The measurement value at the time VIN=VOUT(T)(TYP.) -1V is defined as output voltage. Circuit 3. Line Regulation Dropout Voltage Circuit 4. Load Regulation, Maximum Output Current 6/16 XC62K Series ■NOTES ON USE 1) For the phenomenon of temporal and transitional voltage decrease or voltage increase, the IC may be damaged or deteriorated if IC is used beyond the absolute MAX. specifications. 2) Please ensure that values for input capacitance, CIN and out capacitance, CL, are more than 1μF (Tantalum). 3) Torex places an importance on improving our products and their reliability. We request that users incorporate fail-safe designs and post-aging protection treatment when using Torex products in their systems. 7/16 XC62K Series ■TYPICAL PERFORMANCE CHARACTERISTICS (1) Output Voltage vs. Output Current XC62KN3002（-3.0V）　　 VIN＝－4.0V Output Voltage:VOUT（V） － 3.10 － 3.05 Topr＝－ 30℃ －3.00 －2.95 80℃ 25℃ － 2.90 － 2.85 －2.80 0 20 40 60 80 Output Current:IOUT（mA） 8/16 100 XC62K Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (2) Output Voltage vs. Input Voltage Output Voltage: VOUT(V) XC62KN4002(-4.0V) 9/16 XC62K Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (4) Supply Current vs. Input Voltage 10/16 Dropout Voltage : Vdif (mV) Dropout Voltage : Vdif (mV) Dropout Voltage : Vdif (mV) (3) Dropout Voltage vs. Output Current XC62K Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (5) Output Voltage vs. Ambient Temperature Ambient Temperature : Topr(℃) Ambient Temperature : Topr(℃) Ambient Temperature : Topr(℃) Ambient Temperature : Topr(℃) Ambient Temperature : Topr(℃) (6) Supply Current vs. Ambient Temperature Ambient Temperature : Topr(℃) (7) Input Transient Response 1 11/16 XC62K Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (7) Input Transient Response 1 (8) Input Transient Response 2 12/16 XC62K Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (9) Load Transient Response (10) Ripple Rejection Rate 13/16 XC62K Series ■PACKAGING INFORMATION For the latest package information, please visit www.torex.co.jp/technical-support/packages/ PACKAGE OUTLINE / LAND PATTERN THERMAL CHARACTERISTICS SOT-23 SOT-23 PKG SOT-23 Power Dissipation SOT-89 SOT-89 PKG SOT-89 Power Dissipation USP-6B USP-6B PKG USP-6B Power Dissipation 14/16 XC62K Series ■ MARKING RULE ●SOT-23, SOT-89 ① represents integral number of output voltage 3 ① ② MARK 2 3 4 ③ ④ 1 2 ② ④ ③ MARK 5 6 VOLTAGE (V) 5.X 6.X ② represents decimal number of output voltage SOT-23 (TOP VIEW) ① VOLTAGE (V) 2.X 3.X 4.X MARK A B C D E VOLTAGE (V) x.0 x.1 x.2 x.3 x.4 MARK F H K L M VOLTAGE (V) x.5 x.6 x7 x.8 x.9 ③ represents polarity of output voltage 1 2 SOT-89 (TOP VIEW) MARK 5 3 POLARITY Negative ④ represents production lot number 0 to 9, A to Z repeated, reverse character 0 to 9, A to Z repeated (G, I, J, O, Q, W excluded) ●USP-6B ① represents production series MARK K PRODUCT SERIES XC62KNxx0xDx ② represents polarity of output voltage USP-6B (TOP VIEW) MARK N POLARITY －(Negative) PRODUCT SERIES XC62KNxx0xDx ③④ represents output voltage (ex.) MARK ③ 3 5 ④ 3 0 VOLTAGE (V) PRODUCT SERIES 3.3 5.0 XC62KN330xDx XC62KN500xDx ⑤ represents temperature characteristics MARK 0 TEMPERATURE CHARACTERISTICS + 100 ppm (TYP.) PRODUCT SERIES XC62KNxx0xDx ⑥ represents production lot number 0 to 9, A to Z repeated (G, I, J, O, Q, W excluded) Note: No character inversion used. 15/16 XC62K Series 1. The product and product specifications contained herein are subject to change without notice to improve performance characteristics. Consult us, or our representatives before use, to confirm that the information in this datasheet is up to date. 2. The information in this datasheet is intended to illustrate the operation and characteristics of our products. We neither make warranties or representations with respect to the accuracy or completeness of the information contained in this datasheet nor grant any license to any intellectual property rights of ours or any third party concerning with the information in this datasheet. 3. Applicable export control laws and regulations should be complied and the procedures required by such laws and regulations should also be followed, when the product or any information contained in this datasheet is exported. 4. The product is neither intended nor warranted for use in equipment of systems which require extremely high levels of quality and/or reliability and/or a malfunction or failure which may cause loss of human life, bodily injury, serious property damage including but not limited to devices or equipment used in 1) nuclear facilities, 2) aerospace industry, 3) medical facilities, 4) automobile industry and other transportation industry and 5) safety devices and safety equipment to control combustions and explosions. Do not use the product for the above use unless agreed by us in writing in advance. 5. Although we make continuous efforts to improve the quality and reliability of our products; nevertheless Semiconductors are likely to fail with a certain probability. So in order to prevent personal injury and/or property damage resulting from such failure, customers are required to incorporate adequate safety measures in their designs, such as system fail safes, redundancy and fire prevention features. 6. Our products are not designed to be Radiation-resistant. 7. Please use the product listed in this datasheet within the specified ranges. 8. We assume no responsibility for damage or loss due to abnormal use. 9. All rights reserved. No part of this datasheet may be copied or reproduced unless agreed by Torex Semiconductor Ltd in writing in advance. TOREX SEMICONDUCTOR LTD. 16/16
