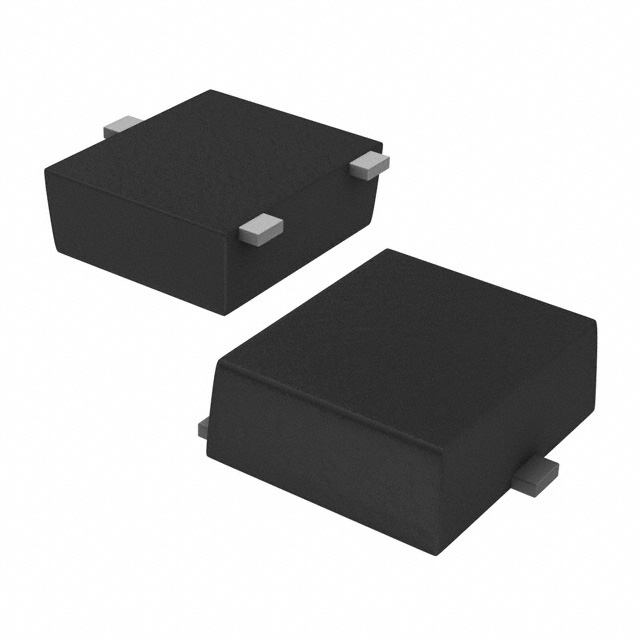

SSM3J134TU
TOSHIBA Field-Effect Transistor Silicon P-Channel MOS Type (U-MOSⅥ)
SSM3J134TU
○ Power Management Switch Applications
•
•
Unit: mm
1.5 V drive
Low ON-resistance: RDS(ON) = 240 mΩ (max) (@VGS = -1.5 V)
RDS(ON) = 168 mΩ (max) (@VGS = -1.8 V)
RDS(ON) = 123 mΩ (max) (@VGS = -2.5 V)
RDS(ON) = 93 mΩ (max) (@VGS = -4.5 V)
Absolute Maximum Ratings (Ta = 25°C)
Characteristic
Drain-Source voltage
Power dissipation
Rating
Unit
VDSS
-20
V
V
VGSS
±8
DC
ID (Note 1)
-3.2
Pulse
IDP (Note 1)
-6.4
PD (Note 2)
500
Gate-Source voltage
Drain current
Symbol
t < 1s
A
mW
1000
Channel temperature
Tch
150
°C
Storage temperature range
Tstg
−55 to 150
°C
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling
Precautions”/“Derating Concept and Methods”) and individual
reliability data (i.e. reliability test report and estimated failure rate,
etc).
1: Gate
UFM
2: Source
3: Drain
JEDEC
―
JEITA
―
TOSHIBA
2-2U1A
Weight: 6.6mg (typ.)
Note 1: The channel temperature should not exceed 150°C during use.
Note 2: Mounted on a FR4 board.
2
(25.4 mm × 25.4 mm × 1.6 mm, Cu Pad: 645 mm )
Marking
Equivalent Circuit (top view)
3
3
JJM
1
2
1
2
Start of commercial production
2011-02
1
2014-03-01
SSM3J134TU
Electrical Characteristics (Ta = 25°C)
Characteristic
Drain-source breakdown voltage
Symbol
Test Conditions
V (BR) DSS ID = -1 mA, VGS = 0 V
V (BR) DSX ID = -1 mA, VGS = 5 V
.(Note 4)
Typ.
Max
Unit
-20
⎯
⎯
V
-15
⎯
⎯
V
⎯
⎯
-1
μA
Drain cut-off current
IDSS
Gate leakage current
IGSS
VGS = ±8 V, VDS = 0 V
⎯
⎯
±1
μA
Vth
VDS = -3 V, ID = -1 mA
-0.3
⎯
-1.0
V
S
Gate threshold voltage
⏐Yfs⏐
Forward transfer admittance
Drain–source ON-resistance
RDS (ON)
Input capacitance
Ciss
Output capacitance
Coss
VDS = -3 V, ID = -1.0 A
(Note 3)
2.9
5.8
⎯
ID = -1.5 A, VGS = -4.5 V
(Note 3)
⎯
78.5
93
ID = -1.0 A, VGS = -2.5 V
(Note 3)
⎯
97.5
123
ID = -0.5 A, VGS = -1.8 V
(Note 3)
⎯
120
168
ID = -0.25 A, VGS = -1.5 V
(Note 3)
⎯
141
240
⎯
290
⎯
⎯
44
⎯
VDS = -10 V, VGS = 0 V
f = 1 MHz
⎯
32
⎯
ton
VDD = -10 V, ID = -0.5 A
⎯
12
⎯
Turn-off time
toff
VGS = 0 to -2.5 V, RG = 4.7 Ω
⎯
46.2
⎯
⎯
4.7
⎯
⎯
0.4
⎯
⎯
1.0
⎯
⎯
0.9
1.2
Crss
Total gate charge
Qg
Gate-source charge
Qgs1
Gate-drain charge
Qgd
Drain-source forward voltage
VDSF
VDD = -10 V, ID = -2.0 A,
VGS = -4.5 V
ID = 3.2 A, VGS = 0 V
(Note 3)
mΩ
pF
Turn-on time
Reverse transfer capacitance
Switching time
VDS = -20 V, VGS = 0 V
Min
ns
nC
V
Note 3: Pulse test
Note 4: If a forward bias is applied between gate and source, this device enters V(BR)DSX mode. Note that the
drain-source breakdown voltage is lowered in this mode.
Switching Time Test Circuit
(a) Test Circuit
0V
(b) VIN
90%
OUT
0
IN
10%
−2.5 V
RG
−2.5V
10 μs
RL
VDD
(c) VOUT
VDD = －10 V
RG = 4.7 Ω
Duty ≤ 1%
VIN: tr, tf < 5 ns
Common Source
Ta = 25°C
VDS (ON)
90%
10%
VDD
tr
ton
tf
toff
Notice on Usage
Vth can be expressed as the voltage between gate and source when the low operating current value is ID = -1 mA for
this product. For normal switching operation, VGS (on) requires a higher voltage than Vth and VGS (off) requires a lower
voltage than Vth. (The relationship can be established as follows: VGS (off) < Vth < VGS (on).)
Take this into consideration when using the device.
Handling Precaution
When handling individual devices that are not yet mounted on a circuit board, make sure that the environment is
protected against electrostatic discharge. Operators should wear antistatic clothing, and containers and other objects that
come into direct contact with devices should be made of antistatic materials.
Thermal resistance Rth (ch-a) and power dissipation PD vary depending on board material, board area, board thickness
and pad area. When using this device, please take heat dissipation into consideration
2
2014-03-01
SSM3J134TU
ID – VDS
ID – VGS
-8
-10
-2.5 V
-4.5 V
-1
(A)
(A)
-1.8 V
Drain current
Drain current
ID
ID
-6
VGS = -1.5 V
-4
-2
Common Source
Ta = 25 °C
0
Pulse Test
0
-0.2
-0.4
-0.6
-0.8
Drain–source voltage
VDS
Common Source
VDS = -3 V
Pulse Test
-0.1
- 25 °C
Ta = 100 °C
-0.01
25 °C
-0.001
-0.0001
0
-1
-1.0
(V)
Gate–source voltage
Drain–source ON-resistance
RDS (ON) (mΩ)
200
25 °C
Ta = 100 °C
100
- 25 °C
-2
-4
-6
Gate–source voltage
300
VGS
-2.5 V
100
VGS = -4.5 V
0
-2.0
-4.0
-6.0
ID
-8.0
(A)
Vth – Ta
-1.0 A / -2.5 V
Gate threshold voltage
Drain–source ON-resistance
RDS (ON) (mΩ)
-1.8 V
-1.0
200
-0.5 A / -1.8 V
-0.25 A / -1.5 V
100
ID = -1.5 A / VGS = -4.5 V
Ambient temperature
200
Drain current
Pulse Test
50
-1.5 V
(V)
RDS (ON) – Ta
0
Pulse Test
0
-8
Common Source
0
−50
(V)
Common Source
Ta = 25°C
100
Ta
Common Source
VDS = -3 V
ID = -1 mA
Vth (V)
Drain–source ON-resistance
RDS (ON) (mΩ)
300
ID = -1.5 A
Common Source
Pulse Test
0
VGS
RDS (ON) – ID
RDS (ON) – VGS
300
0
-2.0
-0.5
0
−50
150
(°C)
0
50
Ambient temperature
3
100
Ta
150
(°C)
2014-03-01
SSM3J134TU
10
Common Source
VDS = -3 V
Ta = 25°C
Pulse Test
(A)
(S)
⎪Yfs⎪
IDR – VDS
|Yfs| – ID
10
IDR
Drain reverse current
Forward transfer admittance
3
1
0.3
0.1
-0.01
-1
-0.1
Drain current
ID
Common Source
VGS = 0 V
Pulse Test
D
1
IDR
G
-25 °C
S
0.1
Ta =100 °C
0.001
0
-10
0.5
(A)
1.0
Drain–source voltage
C – VDS
1000
25 °C
0.01
VDS
(V)
t – ID
10000
Common Source
VDD = -10 V
VGS = 0 to -2.5 V
Ta = 25 °C
RG = 4.7Ω
toff
300
1000
(ns)
Ciss
tf
100
30
Switching time
Capacitance
t
C
(pF)
1.5
Coss
Common Source
Crss
Ta = 25 °C
f = 1 MHz
VGS = 0 V
100
10 ton
tr
10
-0.1
-1
-10
Drain-source voltage
VDS
1
-0.001
-100
(V)
-0.01
-0.1
Drain current
-1
ID
-10
(A)
Dynamic Input Characteristic
-8
Gate–source voltage
VGS
(V)
Common Source
ID = -2.0 A
Ta = 25°C
-6
-4
VDD = - 10 V
VDD = - 16 V
-2
0
0
2
4
Total gate charge
6
8
Qg
10
(nC)
4
2014-03-01
SSM3J134TU
Rth – tw
PD – Ta
1000
b
Power dissipation PD (mW)
Transient thermal impedance Rth (°C/W)
600
a
100
10
1
0.001
Single pulse
a: Mounted on FR4 board
(25.4mm × 25.4mm × 1.6mm , Cu Pad : 645 mm2)
b: Mounted on FR4 Board
(25.4mm × 25.4mm × 1.6mm , Cu Pad : 0.36 mm2×3)
0.01
0.1
1
Pulse Width
10
100
800
600
400
200
0
-40
600
tw (s)
Mounted on FR4 board
(25.4mm × 25.4mm × 1.6mm , Cu Pad : 645 mm2)
-20
0
20
40
60
80
Ambient temperature
5
100
120 140
Ta
(°C)
160
2014-03-01
SSM3J134TU
