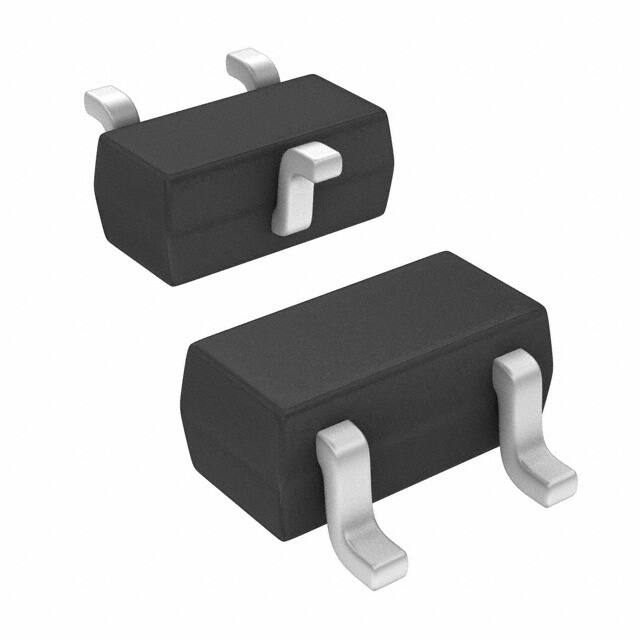

SSM3K44FS,LF

SSM3K44FS TOSHIBA Field Effect Transistor Silicon N Channel MOS Type SSM3K44FS High Speed Switching Applications Analog Switching Applications • • Unit: mm Compact package suitable for high-density mounting Low ON-resistance : RDS(ON) = 4.0 Ω (max) (@VGS = 4 V) : RDS(ON) = 7.0 Ω (max) (@VGS = 2.5 V) Absolute Maximum Ratings (Ta = 25°C) Characteristic Symbol Rating Unit Drain-Source voltage VDSS 30 V Gate-Source voltage VGSS ±20 V DC ID 100 Pulse IDP 200 Drain current Drain power dissipation (Ta = 25°C) PD (Note 1) mA 150 mW Channel temperature Tch 150 °C Storage temperature range Tstg −55 to 150 °C JEDEC ― JEITA ― Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in TOSHIBA 2-2H1B temperature, etc.) may cause this product to decrease in the Weight: 2.4 mg (typ.) reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc). 2 Note 1: mounted on an FR4 board (25.4 mm × 25.4 mm × 1.6 mm, Cu Pad : 0.36mm ×3) Note: Marking Equivalent Circuit 3 3 NT 1 2 1 2 Handling Precaution When handling individual devices (which are not yet mounted on a circuit board), be sure that the environment is protected against electrostatic electricity. Operators should wear anti-static clothing, and containers and other objects that come into direct contact with devices should be made of anti-static materials. Start of commercial production 2009-12 1 2014-03-01 SSM3K44FS Electrical Characteristics (Ta = 25°C) Characteristic Symbol Test Condition Min Typ. Max Unit IGSS VGS = ±14 V, VDS = 0 V ⎯ ⎯ ±1 μA V (BR) DSS ID = 0.1 mA, VGS = 0 V 30 ⎯ ⎯ V IDSS VDS = 30 V, VGS = 0 V ⎯ ⎯ 1 μA Gate threshold voltage Vth VDS = 3 V, ID = 0.1 mA 0.8 ⎯ 1.5 V Forward transfer admittance |Yfs| VDS = 3 V, ID = 10 mA 25 ⎯ ⎯ mS Drain-Source ON resistance RDS (ON) ID = 10 mA, VGS = 4 V ⎯ 2.2 4.0 ID = 10 mA, VGS = 2.5 V ⎯ 4.0 7.0 ⎯ 8.5 ⎯ ⎯ 5.3 ⎯ ⎯ 9.4 ⎯ Gate leakage current Drain-Source breakdown voltage Drain Cut-off current Input capacitance Ciss Reverse transfer capacitance Crss Output capacitance Coss Switching time VDS = 3 V, VGS = 0 V, f = 1 MHz Turn-on time ton VDD = 5 V, ID = 10 mA, ⎯ 50 ⎯ Turn-off time toff VGS = 0 to 5 V ⎯ 200 ⎯ Ω pF ns Switching Time Test Circuit (a) Test circuit (b) VIN 5V OUT 5V 90% IN 50 Ω 0 10 μs RL VDD 0V (c) VOUT VDD = 5 V Duty ≤ 1% VIN: tr, tf < 5 ns (Zout = 50 Ω) Common source Ta = 25°C 10% VDD 10% 90% VDS (ON) tr ton tf toff Precaution Let Vth be the voltage applied between gate and source that causes the drain current (ID) to be low (0.1mA for the SSM3K44FS). Then, for normal switching operation, VGS(on) must be higher than Vth, and VGS(off) must be lower than Vth. This relationship can be expressed as: VGS(off) < Vth < VGS(on). Take this into consideration when using the device 2 2014-03-01 SSM3K44FS ID – VDS ID – VGS 250 1000 Common Source VDS = 3 V 100 2.7 150 Drain current ID Drain current ID Common Source Ta = 25°C 3 (mA) 4 (mA) 200 10 2.5 100 2.3 50 Ta = 100°C 10 −25°C 25°C 1 0.1 VGS = 2.1 V 0 0 0.5 1 1.5 Drain-Source voltage 0.01 0 2 1 VDS (V) 2 3 Gate-Source voltage RDS (ON) –ID VGS (V) RDS (ON) – VGS 10 6 Common Source Common Source ID = 10 mA 5 8 Drain-Source ON-resistance RDS (ON) (Ω) Drain-Source ON-resistance RDS (ON) (Ω) Ta = 25°C 6 VGS = 2.5 V 4 4V 2 4 Ta = 100°C 3 25°C 2 −25°C 1 0 0 40 80 120 160 0 0 200 2 Drain current ID (mA) 4 Common Source ID = 10 mA Vth (V) 1.8 6 5 VGS = 2.5 V 4 3 4V 2 1 0 −25 8 10 VGS (V) Vth – Ta 2 Gate threshold voltage Drain-Source ON-resistance RDS (ON) (Ω) 7 6 Gate-Source voltage RDS (ON) – Ta 8 4 1.6 Common Source ID = 0.1 mA VDS = 3 V 1.4 1.2 1 0.8 0.6 0.4 0.2 0 25 50 75 100 125 0 −25 150 Ambient temperature Ta (°C) 0 25 50 75 100 125 150 Ambient temperature Ta (°C) 3 2014-03-01 SSM3K44FS ⎪Yfs⎪ – ID IDR – VDS 1000 250 Drain reverse current IDR (mA) Forward transfer admittance |Yfs| (mS) Common Source 500 V DS = 3 V 300 Ta = 25°C 100 50 30 10 5 3 1 1 10 100 200 Common Source VGS = 0 V Ta = 25°C D 150 S 100 50 0 0 1000 IDR G −0.2 Drain current ID (mA) −0.4 −0.6 Drain-Source voltage t – ID 3000 Switching time t (ns) Switching time t (ns) toff tf 300 100 30 10 0.1 ton toff 500 tf 300 ton 100 50 tr 1 10 10 0.1 100 1 10 PD – Ta 250 30 Drain power dissipation PD (mW) Common Source VGS = 0 V f = 1 MHz Ta = 25°C 50 10 Ciss Coss 5 3 Crss 1 0.5 0.3 1 Drain-Source voltage 100 Drain current ID (mA) C – VDS (pF) (V) 30 tr 100 Capacitance C −1.4 1000 Drain current ID (mA) 0.1 0.1 −1.2 Common Source VDD = 3 V VGS = 0 to 2.5 V Ta = 25°C 5000 500 50 VDS 10000 Common Source VDD = 5 V VGS = 0 to 5 V Ta = 25°C 5000 1000 −1 t – ID 10000 3000 −0.8 10 VDS (V) Cu Pad: 0.36 mm2 ×3) 200 150 100 50 0 0 100 Mounted on FR4 board (25.4 mm × 25.4 mm × 1.6 mm, 20 40 60 80 100 120 140 160 Ambient temperature Ta (°C) 4 2014-03-01 SSM3K44FS RESTRICTIONS ON PRODUCT USE • Toshiba Corporation, and its subsidiaries and affiliates (collectively "TOSHIBA"), reserve the right to make changes to the information in this document, and related hardware, software and systems (collectively "Product") without notice. • This document and any information herein may not be reproduced without prior written permission from TOSHIBA. Even with TOSHIBA's written permission, reproduction is permissible only if reproduction is without alteration/omission. • Though TOSHIBA works continually to improve Product's quality and reliability, Product can malfunction or fail. Customers are responsible for complying with safety standards and for providing adequate designs and safeguards for their hardware, software and systems which minimize risk and avoid situations in which a malfunction or failure of Product could cause loss of human life, bodily injury or damage to property, including data loss or corruption. Before customers use the Product, create designs including the Product, or incorporate the Product into their own applications, customers must also refer to and comply with (a) the latest versions of all relevant TOSHIBA information, including without limitation, this document, the specifications, the data sheets and application notes for Product and the precautions and conditions set forth in the "TOSHIBA Semiconductor Reliability Handbook" and (b) the instructions for the application with which the Product will be used with or for. Customers are solely responsible for all aspects of their own product design or applications, including but not limited to (a) determining the appropriateness of the use of this Product in such design or applications; (b) evaluating and determining the applicability of any information contained in this document, or in charts, diagrams, programs, algorithms, sample application circuits, or any other referenced documents; and (c) validating all operating parameters for such designs and applications. TOSHIBA ASSUMES NO LIABILITY FOR CUSTOMERS' PRODUCT DESIGN OR APPLICATIONS. • PRODUCT IS NEITHER INTENDED NOR WARRANTED FOR USE IN EQUIPMENTS OR SYSTEMS THAT REQUIRE EXTRAORDINARILY HIGH LEVELS OF QUALITY AND/OR RELIABILITY, AND/OR A MALFUNCTION OR FAILURE OF WHICH MAY CAUSE LOSS OF HUMAN LIFE, BODILY INJURY, SERIOUS PROPERTY DAMAGE AND/OR SERIOUS PUBLIC IMPACT ("UNINTENDED USE"). Except for specific applications as expressly stated in this document, Unintended Use includes, without limitation, equipment used in nuclear facilities, equipment used in the aerospace industry, medical equipment, equipment used for automobiles, trains, ships and other transportation, traffic signaling equipment, equipment used to control combustions or explosions, safety devices, elevators and escalators, devices related to electric power, and equipment used in finance-related fields. IF YOU USE PRODUCT FOR UNINTENDED USE, TOSHIBA ASSUMES NO LIABILITY FOR PRODUCT. For details, please contact your TOSHIBA sales representative. • Do not disassemble, analyze, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part. • Product shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable laws or regulations. • The information contained herein is presented only as guidance for Product use. No responsibility is assumed by TOSHIBA for any infringement of patents or any other intellectual property rights of third parties that may result from the use of Product. No license to any intellectual property right is granted by this document, whether express or implied, by estoppel or otherwise. • ABSENT A WRITTEN SIGNED AGREEMENT, EXCEPT AS PROVIDED IN THE RELEVANT TERMS AND CONDITIONS OF SALE FOR PRODUCT, AND TO THE MAXIMUM EXTENT ALLOWABLE BY LAW, TOSHIBA (1) ASSUMES NO LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OR LOSS, INCLUDING WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF OPPORTUNITIES, BUSINESS INTERRUPTION AND LOSS OF DATA, AND (2) DISCLAIMS ANY AND ALL EXPRESS OR IMPLIED WARRANTIES AND CONDITIONS RELATED TO SALE, USE OF PRODUCT, OR INFORMATION, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, ACCURACY OF INFORMATION, OR NONINFRINGEMENT. • Do not use or otherwise make available Product or related software or technology for any military purposes, including without limitation, for the design, development, use, stockpiling or manufacturing of nuclear, chemical, or biological weapons or missile technology products (mass destruction weapons). Product and related software and technology may be controlled under the applicable export laws and regulations including, without limitation, the Japanese Foreign Exchange and Foreign Trade Law and the U.S. Export Administration Regulations. Export and re-export of Product or related software or technology are strictly prohibited except in compliance with all applicable export laws and regulations. • Please contact your TOSHIBA sales representative for details as to environmental matters such as the RoHS compatibility of Product. Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS. 5 2014-03-01
