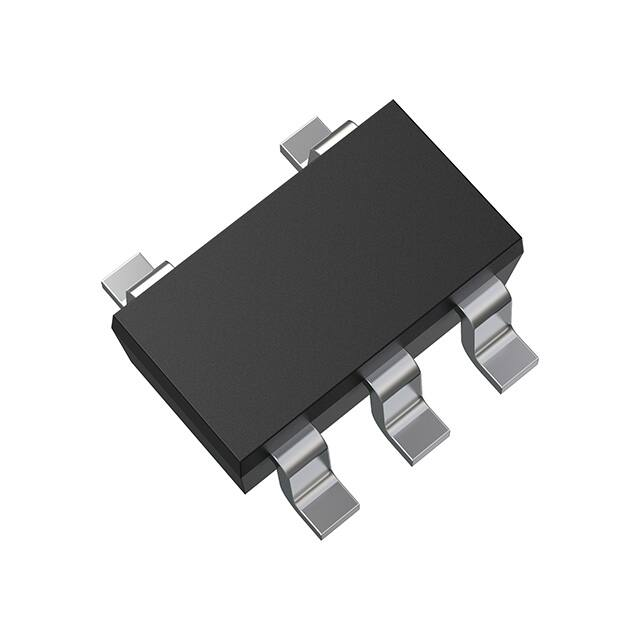

TC75S102F,LF(CT

TC75S102F TOSHIBA CMOS Linear Integrated Circuit Silicon Monolithic Single Operational Amplifier Ultra-Low supply current TC75S102F Features • • • • Input and Output Full Range Ultra-Low supply current 0.27µA (Typ.) @VDD=1.5V Low Input offset voltage 1.3mV (Max) @VDD=1.5V Wide Operating Voltage Range 1.5V to 5.5V Absolute Maximum Ratings (Ta = 25°C) Characteristics SMV Symbol Rating Unit VDD - VSS 6 V DVIN ±6 V VIN VDD to VSS V Output voltage VOUT VSS -0.3V to VDD +0.3V ≤ VSS + 6V V Output current IOUT ±25 mA Power dissipation PD 200 mW Operating temperature Topr -40 to 105 °C Storage temperature Tstg -55 to 150 °C Supply voltage Differential input voltage Input voltage Weight: SMV (SOT-25)(SC-74A) :14 mg (typ.) Note1: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc). Operating Ratings (Ta = -40 to 105°C) Characteristics Supply voltage Symbol Rating Unit VDD - VSS 1.5 to 5.5 V Note2: A higher load capacitance will increase the risk of voltage oscillation. Allow sufficient capacitance value when designing your circuit and using this product to prevent voltage oscillation. Note3: This device is sensitive to electrostatic discharge. Please ensure equipment, operator and tools are adequately earthed when handling. Start of commercial production 2020-06 © 2020 Toshiba Electronic Devices & Storage Corporation 1 2020-06-05 TC75S102F Marking (top view) 5 Pin Assignment (top view) IN (-) 4 VDD 5 4 - SA2 1 2 + 1 OUT 3 2 VSS 3 IN (+) Electrical Characteristics DC Characteristics (VDD = 1.5V, VSS = GND, Ta = 25°C, VIN = VDD/2, unless otherwise noted.) Characteristics Input offset voltage Input offset voltage drift Input offset current Input bias current Symbol Test Circuit VIO Test Condition Min Typ. Max Unit 1 RS = 1 kΩ, RF = 100kΩ -1.3 -0.1 1.3 mV VIOdrift 1 RS = 1 kΩ, RF = 100kΩ - 2.8 - µV/°C IIO - - 1 - pA II - - - 1 - pA 0 - VDD V 64 139 - dB RL ≥ 100 kΩ 1.4 - - 4 RL ≥ 100 kΩ - - 0.1 CMRR 2 VIN = 0 to 1.5V 53 80 SVRR 1 VDD = 1.5 to 5.0V 61 80 - dB Supply current IDD 5 Ta = -40 to 105°C - 0.27 0.60 µA Ta = 25°C - 0.27 0.46 µA Source current Isource 6 - 0.34 0.6 - mA Isink 7 - 0.28 0.4 - mA Common mode input voltage CMVIN 2 GV - VOH 3 VOL Common mode input signal rejection ratio Supply voltage rejection ratio Voltage gain (open loop) Maximum output voltage Sink current RS = 1 kΩ, RF = 100kΩ - - V dB AC Characteristics (VDD = 0.75 V, VSS = -0.75 V, Ta = 25°C) Symbol Test Circuit Test Condition Min Typ. Max Unit fT - - - 0.5 - kHz Phase margin Φm - - - 53 - degrees Slew Rate SR - - - 0.37 - V/ms Characteristics Unity Gain Cross Frequency © 2020 Toshiba Electronic Devices & Storage Corporation 2 2020-06-05 TC75S102F DC Characteristics (VDD = 5.0V, VSS = GND, Ta = 25°C, VIN=VDD/2, unless otherwise noted.) Characteristics Symbol Test Circuit VIO 1 VIOdrift 1 IIO - II - CMVIN 2 GV - VOH 3 VOL Min Typ. Max Unit RS = 1 kΩ, RF = 100 kΩ -1.7 -0.1 1.7 mV RS = 1 kΩ, RF = 100 kΩ - 2.4 - µV/°C - - 1 - pA - - 1 - pA 0 - VDD V 80 100 - dB RL ≥ 100 kΩ 4.9 - - 4 RL ≥ 100 kΩ - - 0.1 CMRR 2 VIN = 0 to 5.0V 59 80 - dB Supply current IDD 5 Ta = -40 to 105°C - 0.35 0.7 µA Ta = 25°C - 0.35 0.54 µA Source current Isource 6 - 7.8 11 - mA Isink 7 - 8.2 10 - mA Input offset voltage Input offset voltage drift Input offset current Input bias current Common mode input voltage Voltage gain (open loop) Maximum output voltage Common mode input signal rejection ratio Sink current Test Condition RS = 1 kΩ, RF = 100 kΩ - V AC Characteristics (VDD = 2.5 V, VSS = -2.5 V, Ta = 25°C) Symbol Test Circuit Test Condition Min Typ. Max Unit fT - - - 0.63 - kHz Phase margin Φm - - - 63 - degrees Slew Rate SR - - - 0.45 - V/ms Characteristics Unity Gain Cross Frequency © 2020 Toshiba Electronic Devices & Storage Corporation 3 2020-06-05 TC75S102F Test Circuit 1. SVRR, VIO SVRR For each of the two VDD values, measure the VOUT value, as indicated below, and calculate the value of SVRR using the equation shown. When VDD = 1.5 V, VDD = VDD1 and VOUT = VOUT1 When VDD = 5.0 V, VDD = VDD2 and VOUT = VOUT2 • • VDD RF RS SVRR=20log �� RF RS VOUT 5 VIO Measure the value of VOUT and calculate the value of VIO using the following equation. • VDD/2 VIO = �VOUT - 2. CMRR, CMVIN VDD • RF RS CMRR=20log �� RF RS VDD/2 VDD RS �× 2 RF +RS CMRR Measure the VOUT value, as indicated below, and calculate the value of the CMRR using the equation shown. When VIN = 0 V, VIN = VIN1 and VOUT = VOUT1 When VIN = 5.0 V, VIN = VIN2 and VOUT = VOUT2 VOUT VIN RF +RS VDD1 -VDD2 �× � VDD1 VDD2 RS �VOUT1 - � �� - �VOUT2 - � �� 2 2 VIN1 - VIN2 RF +RS � × � VOUT1 - VOUT2 RS • CMVIN Input range within which the CMRR specification guarantees VOUT value (as varied by the VIN value). • VOH 3. VOH VDD VDD -0.05V 2 VIN2 = VDD +0.05V 2 RL VOH VIN1 = VIN1 VIN2 4. VOL VDD • VOL RL VIN1 = VOL VIN1 VIN2 = VDD +0.05V 2 VDD -0.05V 2 VIN2 © 2020 Toshiba Electronic Devices & Storage Corporation 4 2020-06-05 TC75S102F 5. IDD VDD M IDD VDD/2 6. Isource VDD VDD -0.05 2 M VDD +0.05 2 7. Isink VDD M VDD +0.05 2 VDD -0.05 2 © 2020 Toshiba Electronic Devices & Storage Corporation 5 2020-06-05 TC75S102F Package Dimensions SMV (SOT-25)(SC-74A) Unit: mm Weight : 14 mg ( typ.) © 2020 Toshiba Electronic Devices & Storage Corporation 6 2020-06-05 TC75S102F RESTRICTIONS ON PRODUCT USE Toshiba Corporation and its subsidiaries and affiliates are collectively referred to as “TOSHIBA”. Hardware, software and systems described in this document are collectively referred to as “Product”. • TOSHIBA reserves the right to make changes to the information in this document and related Product without notice. • This document and any information herein may not be reproduced without prior written permission from TOSHIBA. Even with TOSHIBA's written permission, reproduction is permissible only if reproduction is without alteration/omission. • Though TOSHIBA works continually to improve Product's quality and reliability, Product can malfunction or fail. Customers are responsible for complying with safety standards and for providing adequate designs and safeguards for their hardware, software and systems which minimize risk and avoid situations in which a malfunction or failure of Product could cause loss of human life, bodily injury or damage to property, including data loss or corruption. Before customers use the Product, create designs including the Product, or incorporate the Product into their own applications, customers must also refer to and comply with (a) the latest versions of all relevant TOSHIBA information, including without limitation, this document, the specifications, the data sheets and application notes for Product and the precautions and conditions set forth in the "TOSHIBA Semiconductor Reliability Handbook" and (b) the instructions for the application with which the Product will be used with or for. Customers are solely responsible for all aspects of their own product design or applications, including but not limited to (a) determining the appropriateness of the use of this Product in such design or applications; (b) evaluating and determining the applicability of any information contained in this document, or in charts, diagrams, programs, algorithms, sample application circuits, or any other referenced documents; and (c) validating all operating parameters for such designs and applications. TOSHIBA ASSUMES NO LIABILITY FOR CUSTOMERS' PRODUCT DESIGN OR APPLICATIONS. • PRODUCT IS NEITHER INTENDED NOR WARRANTED FOR USE IN EQUIPMENTS OR SYSTEMS THAT REQUIRE EXTRAORDINARILY HIGH LEVELS OF QUALITY AND/OR RELIABILITY, AND/OR A MALFUNCTION OR FAILURE OF WHICH MAY CAUSE LOSS OF HUMAN LIFE, BODILY INJURY, SERIOUS PROPERTY DAMAGE AND/OR SERIOUS PUBLIC IMPACT ("UNINTENDED USE"). Except for specific applications as expressly stated in this document, Unintended Use includes, without limitation, equipment used in nuclear facilities, equipment used in the aerospace industry, lifesaving and/or life supporting medical equipment, equipment used for automobiles, trains, ships and other transportation, traffic signaling equipment, equipment used to control combustions or explosions, safety devices, elevators and escalators, and devices related to power plant. IF YOU USE PRODUCT FOR UNINTENDED USE, TOSHIBA ASSUMES NO LIABILITY FOR PRODUCT. For details, please contact your TOSHIBA sales representative or contact us via our website. • Do not disassemble, analyze, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part. • Product shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable laws or regulations. • The information contained herein is presented only as guidance for Product use. No responsibility is assumed by TOSHIBA for any infringement of patents or any other intellectual property rights of third parties that may result from the use of Product. No license to any intellectual property right is granted by this document, whether express or implied, by estoppel or otherwise. • ABSENT A WRITTEN SIGNED AGREEMENT, EXCEPT AS PROVIDED IN THE RELEVANT TERMS AND CONDITIONS OF SALE FOR PRODUCT, AND TO THE MAXIMUM EXTENT ALLOWABLE BY LAW, TOSHIBA (1) ASSUMES NO LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OR LOSS, INCLUDING WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF OPPORTUNITIES, BUSINESS INTERRUPTION AND LOSS OF DATA, AND (2) DISCLAIMS ANY AND ALL EXPRESS OR IMPLIED WARRANTIES AND CONDITIONS RELATED TO SALE, USE OF PRODUCT, OR INFORMATION, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, ACCURACY OF INFORMATION, OR NONINFRINGEMENT. • Do not use or otherwise make available Product or related software or technology for any military purposes, including without limitation, for the design, development, use, stockpiling or manufacturing of nuclear, chemical, or biological weapons or missile technology products (mass destruction weapons). Product and related software and technology may be controlled under the applicable export laws and regulations including, without limitation, the Japanese Foreign Exchange and Foreign Trade Law and the U.S. Export Administration Regulations. Export and re-export of Product or related software or technology are strictly prohibited except in compliance with all applicable export laws and regulations. • Please contact your TOSHIBA sales representative for details as to environmental matters such as the RoHS compatibility of Product. Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS. https://toshiba.semicon-storage.com/ © 2020 Toshiba Electronic Devices & Storage Corporation 7 2020-06-05
