TC78H660FTG
TOSHIBA CD process Integrated Circuit Silicon Monolithic
TC78H660FTG
Dual H Bridge driver IC
1. Outline
The TC78H660FTG is a dual H Bridge driver IC which incorporates DMOS
with low on-resistance in output transistors.
It can control two DC brushed motors or one stepping motor.

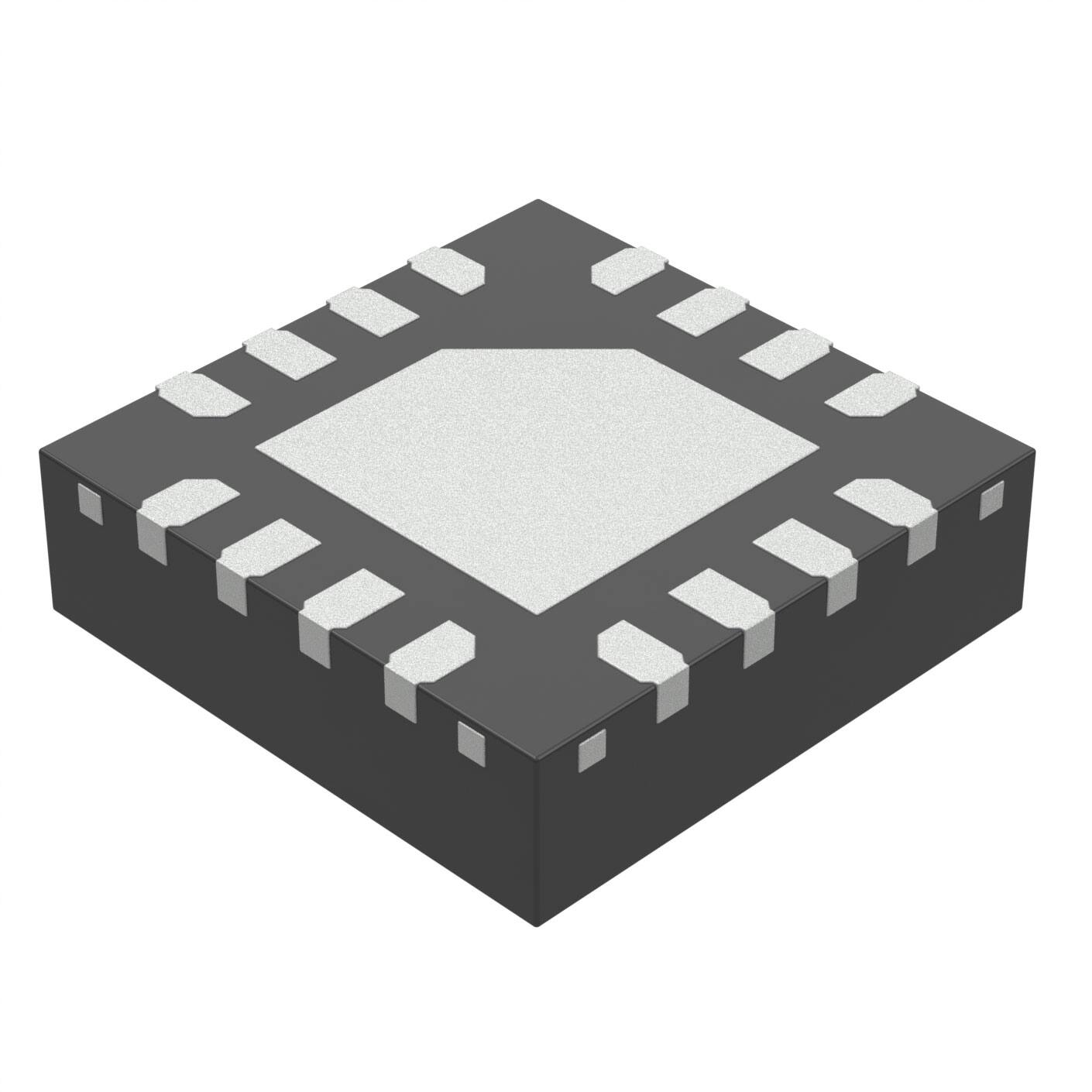

P-VQFN16-0303-0.50-001
Weight: 22.9 mg (typ.)
2. Features
•
Built-in Dual H Bridge
•
PWM controlled constant-current drive
•
Power supply operating voltage: 2.5 V to 16.0 V
•
Output current ratings: 2.0 A (max)
•
Low on-resistance (High + Low side = 0.48 Ω (typ.)) MOSFET output stage
•
Built-in Sense resistor less current control architecture (Advanced Current Detection System)
•
Multi error detect functions (Thermal shutdown (TSD), Over current (ISD)) and Under voltage lockout(UVLO))
•
Error detection (TSD/ISD) flag output function
•
Built-in VCC regulator for internal circuit
•
Chopping frequency of a motor can be adjusted by external resistor
•
Selectable Forward / Reverse / Stop / Brake modes
•
Small QFN package with thermal pad (16pin)
Note: Please be careful about thermal conditions during using.
Start of commercial production
2020-09
© 2019-2020
Toshiba Electronic Devices & Storage Corporation
1
2020-07-14
TC78H660FTG
3. Pin Assignment
(Top View)
IN2B /
Enable B
IN1B /
Enable A
15
16
IN2A /
Phase B
14
MODE /
ERR
13
IN1A / Phase A
1
12
STBY
AGND
2
11
OSCM
VM
3
10
VREF
4
9
PGND_B
TC78H660FTG
PGND_A
5
OUT_A+
6
7
OUT_A- OUT_B-
8
OUT_B+
Note: Please solder the corner pads and the rear thermal pad of the QFN package, to the GND pattern of the PCB.
2
2020-07-14
TC78H660FTG
4. Pin Description
Pin No.
MODE = Low
MODE = High
Pin description
1
IN1A
Phase A
2
AGND
