TC7PZ07FU
CMOS Digital Integrated Circuits
Silicon Monolithic
TC7PZ07FU
1. Functional Description
•
Dual Non-Inverter (Open Drain)
2. Features
(1)
AEC-Q100 (Rev. H) (Note 1)
(2)
Wide operating temperature range: Topr = -40 to 125 (Note 2)
(3)
High output current: ±24 mA (min) at VCC = 3.0 V
(4)
Super high speed operation: tPZL = 2.3 ns (typ.) at VCC = 5.0 V, CL = 50 pF
(5)
Operation voltage range: VCC = 1.65 to 5.5 V
(6)
5.5 V tolerant inputs
(7) 5.5 V power down protection output
Note 1: This device is compliant with the reliability requirements of AEC-Q100. For details, contact your Toshiba sales
representative.
Note 2: For devices with the ordering part number ending in J(CT. Topr = -40 to 85 for the other devices.

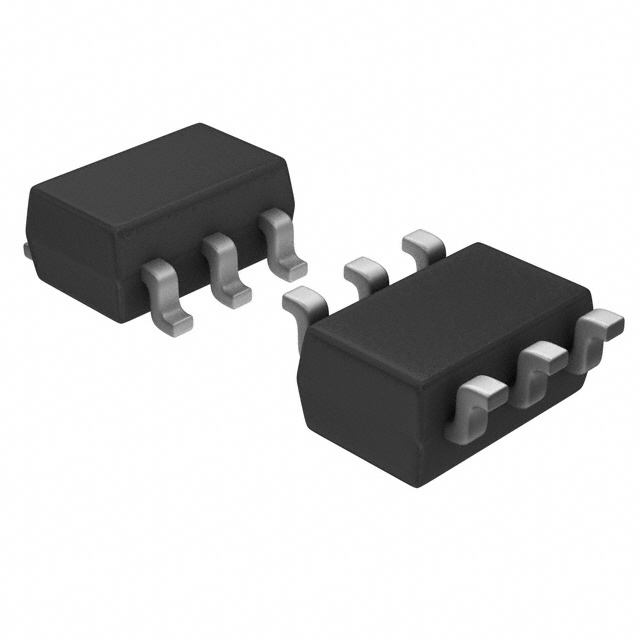

3. Packaging
US6
Start of commercial production
©2015-2019
Toshiba Electronic Devices & Storage Corporation
1
2015-09
2019-08-07
Rev.4.0
TC7PZ07FU
4. Marking and Pin Assignment
Marking
Pin Assignment (Top view)
5. IEC Logic Symbol
6. Truth Table
Z:
A
Y
L
L
H
Z
High impedance
7. Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 )
Characteristics
Symbol
Note
Rating
Unit
Supply voltage
VCC
-0.5 to 6.0
V
Input voltage
VIN
-0.5 to 6.0
V
DC output voltage
VOUT
Input diode current
IIK
(Note 1)
(Note 2)
-0.5 to 6.0
V
-20
mA
Output diode current
IOK
-20
mA
DC output current
IOUT
50
mA
VCC/ground current
ICC
±100
mA
Power dissipation
PD
200
mW
Storage temperature
Tstg
-65 to 150
Note:
Exceeding any of the absolute maximum ratings, even briefly, lead to deterioration in IC performance or even
destruction.
Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings and the operating ranges.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
Note 1: IOUT absolute maximum rating must be observed.
Note 2: VOUT < GND
©2015-2019
Toshiba Electronic Devices & Storage Corporation
2
2019-08-07
Rev.4.0
TC7PZ07FU
8. Operating Ranges (Note)
Characteristics
Symbol
Supply voltage
Note
Test Condition
Rating
Unit
1.65 to 5.5
V
1.5 to 5.5
VCC
(Note 1)
Input voltage
VIN
0 to 5.5
V
Output voltage
VOUT
0 to 5.5
V
Operating temperature
Topr
(Note 2)
-40 to 125
(Note 3)
-40 to 85
Input rise and fall time
dt/dv
VCC = 1.8 ± 0.15 V, 2.5 ± 0.2 V
0 to 20
VCC = 3.3 ± 0.3 V
0 to 10
VCC = 5.0 ± 0.5 V
0 to 5
ns/V
Note:
The operating ranges must be maintained to ensure the normal operation of the device.
Unused inputs must be tied to either VCC or GND.
Note 1: Data retention only
Note 2: For devices with the ordering part number ending in J(CT.
Note 3: For devices except those with the ordering part number ending in J(CT.
9. Electrical Characteristics
9.1. DC Characteristics (Unless otherwise specified, Ta = 25 )
Characteristics
Symbol
Test Condition
VCC (V)
Min
Typ.
Max
Unit
V
High-level input voltage
VIH
1.65 to 1.95
VCC × 0.75
2.3 to 5.5
VCC × 0.7
Low-level input voltage
VIL
1.65 to 1.95
VCC × 0.25
2.3 to 5.5
VCC × 0.3
Low-level output voltage
VOL
1.65
0.0
0.1
2.3
0.0
0.1
3.0
0.0
0.1
3-state output OFF-state
leakage current
VIN = VIL
IOL = 100 µA
4.5
0.0
0.1
IOL = 4 mA
1.65
0.08
0.24
IOL = 8 mA
2.3
0.1
0.3
IOL = 16 mA
3.0
0.15
0.4
IOL = 24 mA
3.0
0.22
0.55
IOL = 32 mA
4.5
0.22
0.55
V
V
IOZ
VIN = VIH
VOUT = VCC or GND
5.5
±5
µA
Input leakage current
IIN
VIN = 5.5 V or GND
0 to 5.5
±1
µA
Power-OFF leakage
current
IOFF
VIN or VOUT = 5.5 V
0
1
µA
Quiescent supply current
ICC
VIN = 5.5 V or GND
1.65 to 5.5
1
µA
©2015-2019
Toshiba Electronic Devices & Storage Corporation
3
2019-08-07
Rev.4.0
TC7PZ07FU
9.2. DC Characteristics (Unless otherwise specified, Ta = -40 to 85 )
Characteristics
High-level input voltage
Low-level input voltage
Low-level output voltage
Symbol
Test Condition
VIH
Min
Max
Unit
1.65 to 1.95
VCC × 0.75
V
2.3 to 5.5
VCC × 0.7
1.65 to 1.95
VCC × 0.25
2.3 to 5.5
VCC × 0.3
1.65
0.1
2.3
0.1
3.0
0.1
4.5
0.1
IOL = 4 mA
1.65
0.24
IOL = 8 mA
2.3
0.3
IOL = 16 mA
3.0
0.4
IOL = 24 mA
3.0
0.55
IOL = 32 mA
VIL
VOL
VCC (V)
VIN = VIL
IOL = 100 µA
V
V
4.5
0.55
3-state output OFF-state
leakage current
IOZ
VIN = VIH
VOUT = VCC or GND
5.5
±10
µA
Input leakage current
IIN
VIN = 5.5 V or GND
0 to 5.5
±10
µA
Power-OFF leakage current
IOFF
VIN or VOUT = 5.5 V
0
10
µA
Quiescent supply current
ICC
VIN = 5.5 V or GND
1.65 to 5.5
10
µA
9.3. DC Characteristics (Note) (Unless otherwise specified, Ta = -40 to 125 )
Characteristics
Symbol
Test Condition
VCC (V)
Min
Max
Unit
V
High-level input voltage
VIH
1.65 to 1.95
VCC × 0.75
2.3 to 5.5
VCC × 0.7
Low-level input voltage
VIL
1.65 to 1.95
VCC × 0.25
2.3 to 5.5
VCC × 0.3
Low-level output voltage
VOL
1.65
0.1
2.3
0.1
3.0
0.1
3-state output OFF-state
leakage current
Input leakage current
VIN = VIL
IOL = 100 µA
V
V
4.5
0.1
IOL = 4 mA
1.65
0.7
IOL = 8 mA
2.3
0.45
IOL = 16 mA
3.0
0.6
IOL = 24 mA
3.0
0.8
IOL = 32 mA
4.5
0.8
±20
µA
IOZ
VIN = VIH
VOUT = VCC or GND
5.5
IIN
VIN = 5.5 V or GND
0 to 5.5
±20
µA
Power-OFF leakage current
IOFF
VIN or VOUT = 5.5 V
0
100
µA
Quiescent supply current
ICC
VIN = 5.5 V or GND
1.65 to 5.5
100
µA
Note:
For devices with the ordering part number ending in J(CT.
©2015-2019
Toshiba Electronic Devices & Storage Corporation
4
2019-08-07
Rev.4.0
TC7PZ07FU
9.4. AC Characteristics (Unless otherwise specified, Ta = 25 , Input: tr = tf = 3 ns)
Characteristics
Propagation delay time
Symbol
Note
tPZL
tPLZ
Input capacitance
Test
Condition
VCC (V)
CL (pF)
Min
Typ.
Max
Unit
RL = 500 Ω
1.8 ± 0.15
50
ns
RL = 500 Ω
1.8
5.5
9.5
2.5 ± 0.2
1.2
3.7
5.8
3.3 ± 0.3
0.8
2.9
4.4
5.0 ± 0.5
0.5
2.3
3.5
1.8 ± 0.15
1.8
4.3
9.5
2.5 ± 0.2
50
1.2
2.8
5.8
3.3 ± 0.3
0.8
2.1
4.4
5.0 ± 0.5
0.5
1.4
3.5
ns
CIN
0 to 5.5
4
pF
Output capacitance
COUT
0 to 5.5
3
pF
Power dissipation
capacitance
CPD
3.3
4
pF
8
(Note 1)
5.5
Note 1: CPD is defined as the value of the internal equivalent capacitance which is calculated from the operating current
consumption without load. Average operating current can be obtained by the equation.
ICC(opr) = CPDVCCfIN + ICC/2 (per gate)
9.5. AC Characteristics
(Unless otherwise specified, Ta = -40 to 85 , Input: tr = tf = 3 ns)
Characteristics
Propagation delay time
Symbol
Test Condition
VCC (V)
CL (pF)
Min
Max
Unit
tPZL
RL = 500 Ω
1.8 ± 0.15
50
1.8
10.5
ns
2.5 ± 0.2
1.2
6.4
3.3 ± 0.3
0.8
4.8
5.0 ± 0.5
tPLZ
RL = 500 Ω
0.5
3.9
1.8
10.5
2.5 ± 0.2
1.2
6.4
3.3 ± 0.3
0.8
4.8
5.0 ± 0.5
0.5
3.9
1.8 ± 0.15
50
ns
9.6. AC Characteristics (Note)
(Unless otherwise specified, Ta = -40 to 125 , Input: tr = tf = 3 ns)
Characteristics
Propagation delay time
Symbol
Test Condition
VCC (V)
CL (pF)
Min
Max
Unit
tPZL
RL = 500 Ω
1.8 ± 0.15
50
1.8
12.0
ns
2.5 ± 0.2
1.2
7.5
3.3 ± 0.3
0.8
5.5
5.0 ± 0.5
tPLZ
Note:
RL = 500 Ω
0.5
4.5
1.8
12.0
2.5 ± 0.2
1.2
7.5
3.3 ± 0.3
0.8
5.5
5.0 ± 0.5
0.5
4.5
1.8 ± 0.15
50
ns
For devices with the ordering part number ending in J(CT.
©2015-2019
Toshiba Electronic Devices & Storage Corporation
5
2019-08-07
Rev.4.0
TC7PZ07FU
9.7. AC Characteristics Measurement Circuit and AC Waveform
AC Characteristics Measurement Circuit
©2015-2019
Toshiba Electronic Devices & Storage Corporation
AC Waveform
6
2019-08-07
Rev.4.0
TC7PZ07FU
Package Dimensions
Unit: mm
Weight: 0.007 g (typ.)
Package Name(s)
JEDEC: SOT-363
Nickname: US6
©2015-2019
Toshiba Electronic Devices & Storage Corporation
7
2019-08-07
Rev.4.0
TC7PZ07FU
RESTRICTIONS ON PRODUCT USE
Toshiba Corporation and its subsidiaries and affiliates are collectively referred to as "TOSHIBA".
Hardware, software and systems described in this document are collectively referred to as "Product".
• TOSHIBA reserves the right to make changes to the information in this document and related Product without notice.
• This document and any information herein may not be reproduced without prior written permission from TOSHIBA. Even with TOSHIBA's
written permission, reproduction is permissible only if reproduction is without alteration/omission.
• Though TOSHIBA works continually to improve Product's quality and reliability, Product can malfunction or fail. Customers are responsible
for complying with safety standards and for providing adequate designs and safeguards for their hardware, software and systems which
minimize risk and avoid situations in which a malfunction or failure of Product could cause loss of human life, bodily injury or damage
to property, including data loss or corruption. Before customers use the Product, create designs including the Product, or incorporate
the Product into their own applications, customers must also refer to and comply with (a) the latest versions of all relevant TOSHIBA
information, including without limitation, this document, the specifications, the data sheets and application notes for Product and the
precautions and conditions set forth in the "TOSHIBA Semiconductor Reliability Handbook" and (b) the instructions for the application
with which the Product will be used with or for. Customers are solely responsible for all aspects of their own product design or applications,
including but not limited to (a) determining the appropriateness of the use of this Product in such design or applications; (b) evaluating
and determining the applicability of any information contained in this document, or in charts, diagrams, programs, algorithms, sample
application circuits, or any other referenced documents; and (c) validating all operating parameters for such designs and applications.
TOSHIBA ASSUMES NO LIABILITY FOR CUSTOMERS' PRODUCT DESIGN OR APPLICATIONS.
• PRODUCT IS NEITHER INTENDED NOR WARRANTED FOR USE IN EQUIPMENTS OR SYSTEMS THAT REQUIRE
EXTRAORDINARILY HIGH LEVELS OF QUALITY AND/OR RELIABILITY, AND/OR A MALFUNCTION OR FAILURE OF WHICH MAY
CAUSE LOSS OF HUMAN LIFE, BODILY INJURY, SERIOUS PROPERTY DAMAGE AND/OR SERIOUS PUBLIC IMPACT
("UNINTENDED USE").
Except for specific applications as expressly stated in this document, Unintended Use includes, without limitation, equipment used in
nuclear facilities, equipment used in the aerospace industry, lifesaving and/or life supporting medical equipment, equipment used for
automobiles, trains, ships and other transportation, traffic signaling equipment, equipment used to control combustions or explosions,
safety devices, elevators and escalators, and devices related to power plant.
IF YOU USE PRODUCT FOR UNINTENDED USE, TOSHIBA ASSUMES NO LIABILITY FOR PRODUCT.
For details, please contact your TOSHIBA sales representative or contact us via our website.
• Do not disassemble, analyze, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part.
• Product shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any
applicable laws or regulations.
• The information contained herein is presented only as guidance for Product use. No responsibility is assumed by TOSHIBA for any
infringement of patents or any other intellectual property rights of third parties that may result from the use of Product. No license to any
intellectual property right is granted by this document, whether express or implied, by estoppel or otherwise.
• ABSENT A WRITTEN SIGNED AGREEMENT, EXCEPT AS PROVIDED IN THE RELEVANT TERMS AND CONDITIONS OF SALE
FOR PRODUCT, AND TO THE MAXIMUM EXTENT ALLOWABLE BY LAW, TOSHIBA (1) ASSUMES NO LIABILITY WHATSOEVER,
INCLUDING WITHOUT LIMITATION, INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OR LOSS, INCLUDING
WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF OPPORTUNITIES, BUSINESS INTERRUPTION AND LOSS OF DATA, AND
(2) DISCLAIMS ANY AND ALL EXPRESS OR IMPLIED WARRANTIES AND CONDITIONS RELATED TO SALE, USE OF PRODUCT,
OR INFORMATION, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, ACCURACY OF INFORMATION, OR NONINFRINGEMENT.
• Do not use or otherwise make available Product or related software or technology for any military purposes, including without limitation,
for the design, development, use, stockpiling or manufacturing of nuclear, chemical, or biological weapons or missile technology products
(mass destruction weapons). Product and related software and technology may be controlled under the applicable export laws and
regulations including, without limitation, the Japanese Foreign Exchange and Foreign Trade Law and the U.S. Export Administration
Regulations. Export and re-export of Product or related software or technology are strictly prohibited except in compliance with all
applicable export laws and regulations.
• Please contact your TOSHIBA sales representative for details as to environmental matters such as the RoHS compatibility of Product.
Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances,
including without limitation, the EU RoHS Directive. TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING
AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
https://toshiba.semicon-storage.com/
©2015-2019
Toshiba Electronic Devices & Storage Corporation
8
2019-08-07
Rev.4.0
