TLP250
TOSHIBA Photocoupler GaAℓAs Ired & Photo-IC
TLP250
Industrial Inverter
Inverter For Air Conditioner
IGBT Gate Drive
Power MOS FET Gate Drive
Unit: mm

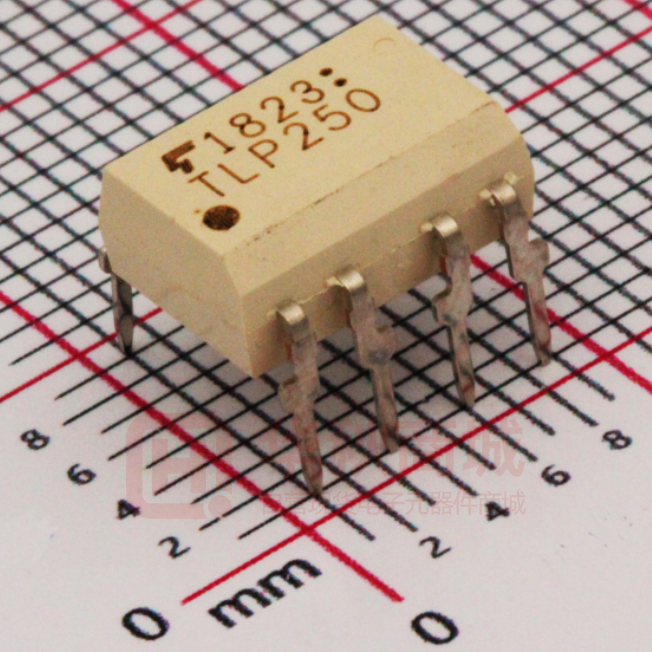

The TOSHIBA TLP250 consists of a GaAlAs light emitting diode and a
integrated photodetector.
This unit is 8-lead DIP package.
TLP250 is suitable for gate driving circuit of IGBT or power MOS FET.
•
Input threshold current: 5mA(max)
•
Supply current : 11mA(max)
•
Supply voltage : 10-35V
•
Output current : ±1.5A (max)
•
Switching time tpLH/tpHL): 0.5μs(max)
•
Isolation voltage: 2500Vrms(min)
•
UL recognized: UL1577, file No.E67349
•
c-UL approved : CSA Component Acceptance Service
•
Option(D4)
No. 5A, File No.E67349
TOSHIBA
11-10C4
Weight: 0.54 g (typ.)
VDE Approved : EN60747-5- 5
Note: When a EN60747-5-5 approved type is needed,
Please designate “Option(D4)”
Truth Table
Input
LED
Tr1
Tr2
On
On
Off
Off
Off
On
Schmatic
IF
Pin Configuration (top view)
I CC
(Tr 1)
2+
8
7
VF
3IO
(Tr 2)
A 0.1μF bypass capcitor must be
connected between pin 8 and 5 (See Note 5).
6
5
1
8
2
7
3
6
4
5
VCC
VO
1 : N.C.
2 : Anode
3 : Cathode
4 : N.C.
VO
5 : GND
6 : V O (Output)
7 : VO
8 : VCC
GND
Start of commercial production
1990-11
1
2017-05-26
TLP250
Absolute Maximum Ratings (Ta = 25°C)
Characteristic
Symbol
Forward current
Forward current derating (Ta ≥ 70°C)
LED
Peak transient forward curent
(Note 1)
Unit
IF
20
mA
ΔIF / ΔTa
-0.36
mA / °C
IFPT
1
A
Reverse voltage
VR
5
V
Diode power dissipation
PD
40
mW
△PD /°C
-0.72
mW / °C
125
°C
Diode power dissipation derating (Ta≥70°C)
Junction temperature
Tj
“H”peak output current (PW ≤ 2.5μs,f ≤ 15kHz)
(Note 2)
IOPH
-1.5
A
“L”peak output current (PW ≤ 2.5μs,f ≤ 15kHz)
(Note 2)
IOPL
+1.5
A
(Ta ≤ 70°C)
Output voltage
Detector
Rating
(Ta ≤ 85°C)
(Ta ≤ 70°C)
Supply voltage
(Ta ≤ 85°C)
35
VO
24
VCC
35
24
V
V
Output voltage derating (Ta ≥ 70°C)
ΔVO / ΔTa
-0.73
V / °C
Supply voltage derating (Ta ≥ 70°C)
ΔVCC / ΔTa
-0.73
V / °C
PC
800
mW
ΔPC / °C
-14.5
mW / °C
Tj
125
°C
Power dissipation
Power dissipation derating (Ta ≥ 70°C)
Junction temperature
Operating frequency
f
25
kHz
Operating temperature range
(Note 3)
Topr
-20 to 85
°C
Storage temperature range
Tstg
-55 to 125
°C
Lead soldering temperature (10 s)
Tsol
260
°C
BVS
2500
Vrms
Isolation voltage (AC, 60 s., R.H.≤ 60%)
(Note 4)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if
the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 1:
Pulse width PW ≤ 1μs, 300pps
Note 2:
Exporenential wavefom
Note 3:
Exporenential wavefom, IOPH ≤ -1.0A( ≤ 2.5μs), IOPL ≤ +1.0A( ≤ 2.5μs)
Note 4:
Device considerd a two terminal device: Pins 1, 2, 3 and 4 shorted together, and pins 5, 6, 7 and 8 shorted
together.
Recommended Operating Conditions
Characteristic
Symbol
Min
Typ.
Max
Unit
Input current, on
IF(ON)
7
8
10
mA
Input voltage, off
VF(OFF)
0
―
0.8
V
VCC
15
―
30
V
IOPH/IOPL
―
―
±0.5
A
Topr
-20
25
85
°C
Supply voltage
Peak output current
Operating temperature
Note: Recommended operating conditions are given as a design guideline to obtain expected performance of the
device. Additionally, each item is an independent guideline respectively. In developing designs using this
product, please confirm specified characteristics shown in this document.
Note : A ceramic capacitor(0.1μF) should be connected from pin 8 to pin 5 to stabilize the operation of the high gain
linear amplifier. Failure to provide the bypassing may impair the switching proparty. The total lead length
between capacitor and coupler should not exceed 1cm.
Note : Input signal rise time(fall time) 0V
―
1.2
5
mA
Threshold input
voltage
“Output
H→L”
VFHL
―
VCC1 = +15V, VEE1 = -15V
RL = 200Ω, VO < 0V
0.8
―
―
V
VCC
―
10
―
35
V
Capacitance
(input-output)
CS
―
VS = 0 V, f = 1MHz
Ta = 25°C
―
1.0
2.0
pF
Resistance(input-output)
RS
―
VS = 500V , Ta = 25°C
R.H.≤ 60%
1×1012
1014
―
Ω
Supply voltage
-
* All typical values are at Ta = 25°C
Note 1: Duration of IO time ≤ 50μs
3
2017-05-26
TLP250
Switching Characteristics (Ta = -20 to 70°C, unless otherwise specified)
Characteristic
Propagation
delay time
Symbol
L→H
tpLH
H→L
tpHL
Common mode transient
immunity at high level
output
CMH
Common mode transient
immunity at low level
output
CML
Test
Circuit
5
Test Condition
Min
Typ.
Max
―
0.15
0.5
―
0.15
0.5
VCM = 600V, IF = 8mA
VCC = 30V, Ta = 25°C
-5000
―
―
V / μs
VCM = 600V, IF = 0mA
VCC = 30V, Ta = 25°C
5000
―
―
V / μs
IF = 8mA
VCC1 = +15V, VEE1 = -15V
RL = 200Ω
Unit
μs
6
Note: All typical values are at Ta = 25°C
Test Circuit 1 : IOPH
1
Test Circuit 2 : IOPL
8
1
8
VCC
0.1μF
0.1μF
V8-6
IF
IOPH
4
8
1
VCC1
8
VCC1
0.1μF
VF
RL
4
V6-5
Test Circuit 4 : VOL
0.1μF
IF
IOPL
4
Test Circuit 3 : VOH
1
VCC
A
A
RL
V VOH
V
VOL
4
VEE1
VEE1
4
2017-05-26
TLP250
Test Circuit 5: tpLH, tpHL, tr tf
8
IF
IF
0.1μF
tr
tf
VCC1
VOH
VO
RL
VO
GND
VOL
tpLH
100Ω
80%
80%
tpHL
VEE1
Test Circuit 6: CMH, CML
8
1
SW IF
A
0.1μF
VCC
B
VO
4
VCM
+
VCM
-
600V
90%
10%
tf
tr
CML = 480 (V)
tr (μs)
SW: A(IF=8mA)
CMH = 480 (V)
tf (μs)
CMH
VO
3V
SW: B(IF=0)
26V
CHL
CML(CMH) is the maximum rate of rise (fall) of the common mode voltage that can be sustained with the output voltage
in the low (high) state.
5
2017-05-26
TLP250
I F – VF
Forward current IF
(mA)
50
30
ΔVF / ΔTa – IF
-2.6
Ta = 25 °C
Forward voltage temperature
coefficient ΔVF / ΔTa (mV / °C)
100
10
5
3
1
0.5
0.3
0.1
0.05
0.03
0.01
1.0
1.4
1.2
1.8
1.6
Forward voltage
VF
-2.4
-2.2
-2.0
-1.8
-1.6
-1.4
0.1
2.0
1
0.3 0.5
(V)
Forward current
IF – Ta
3
5
IF
(mA)
30
10
VCC – Ta
40
30
Allowable supply voltage VCC
Allowable forward current
IF (mA)
(V)
40
20
10
0
0
20
40
60
80
30
20
10
0
100
0
20
40
60
80
100
Ambient temperature Ta (°C)
Ambient temperature Ta (°C)
IOPH, IOPL – Ta
Allowable peak output current
IOPH, IOPL (A)
PW ≤ 2.5 μs, f ≤ 15 KHz
2
1
0
0
20
40
60
80
100
Ambient Temperature Ta (°C)
6
2017-05-26
TLP250
