TLP525G,TLP525G−2,TLP525G−4
TOSHIBA Photocoupler
GaAs IRed & Photo−Triac
TLP525G,TLP525G−2,TLP525G−4
Triac Drive
Programmable Controllers
AC−Output Module
Solid State Relay
Unit in mm

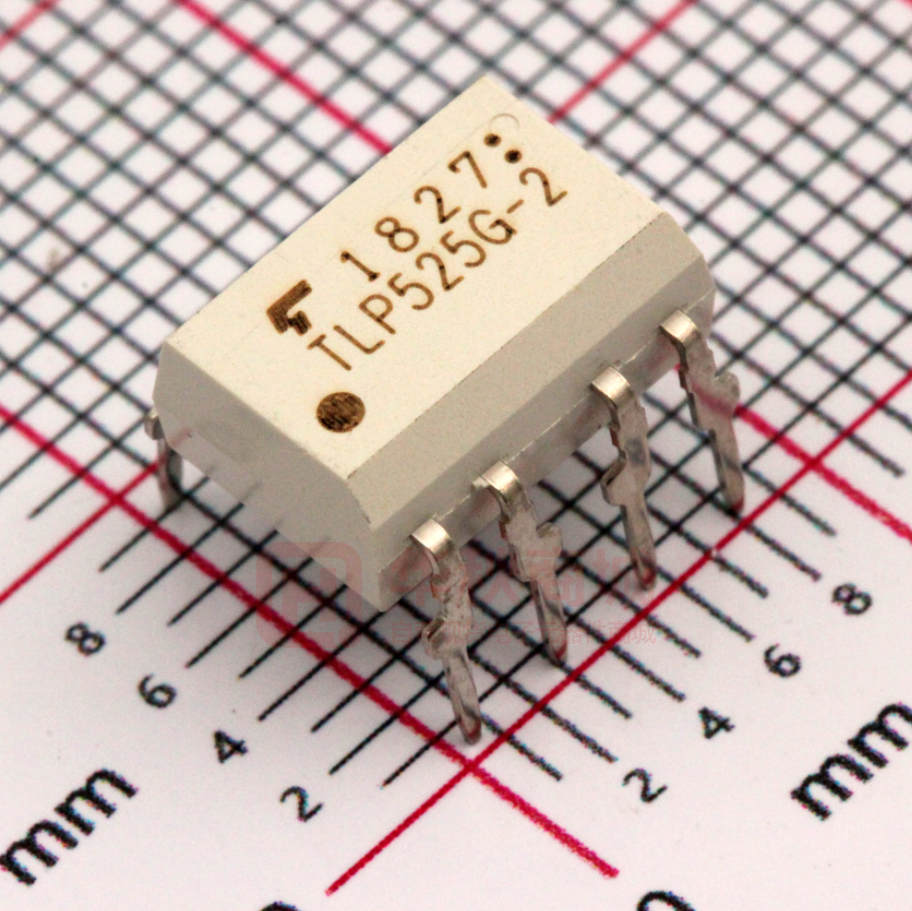

The TOSHIBA TLP525G, −2 and −4 consist of a photo−triac optically
coupled to a gallium arsenide infrared emitting diode.
The TLP525G−2 offers two isolated channels in an eight lead plastic
DIP package, while the TLP525G−4 provides four isolated channels in a
sixteen lead plastic DIP package.
•
Peak off−stage voltage: 400V (min.)
•
Trigger LED current: 10mA (max.)
•
Peak on−stage current: 2Apk (max.)
•
Isolation voltage: 2500Vrms (min.)
•
UL recognized: File no.E67349
TOSHIBA
11−5B2
Weight: 0.26g (typ.)
Pin Configurations (top view)
TOSHIBA
11−10C4
Weight: 0.54g (typ.)
TOSHIBA
11−20A3
Weight: 1.1g (typ.)
1
2010-10-01
TLP525G,TLP525G−2,TLP525G−4
Absolute Maximum Ratings (Ta = 25°C)
Rating
Characteristic
Symbol
TLP525G
TLP525G−2
TLP525G−4
Unit
IF
50
50
mA
IF / °C
−0.7 (Ta ≥ 53°C)
−0.5 (Ta ≥ 25°C)
mA / °C
Forward current
LED
Forward current derating
Pulse forward current
IFP
1 (100μs pulse, 100pps)
A
Reverse voltage
VR
5
V
Junction temperature
Tj
125
°C
VDRM
400
V
Off−state output terminal
voltage
Detector
On−state RMS
current
Ta = 25°C
IT (RMS)
Ta = 70°C
On−state current derating
(Ta≥25°C)
IT / °C
Peak on state current
100
80
50
40
−1.1
−0.9
mA
mA / °C
ITP
2 (100μs pulse, 120pps)
A
ITSM
1.2
A
Tj
115
°C
Storage temperature range
Tstg
−55 to 125
°C
Operating temperature range
Topr
−40 to 100
°C
Lead soldering temperature
Tsol
260 (10s)
°C
BVS
2500 (AC, 1min., R.H. ≤ 60%)
V rms
Peak nonrepetitive surge
current (PW = 10ms)
Junction temperature
Isolation voltage
(Note)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note:
Device considered a two terminal device: LED side pins shorted together and detector side pins shorted
together.
Recommended Operating Conditions
Characteristic
Symbol
Min.
Typ.
Max.
Unit
Supply voltage
VAC
―
―
120
Vac
Forward current
IF
15
20
25
mA
Peak on−state current
ITP
―
―
1
A
Operating temperature
Topr
−25
―
85
°C
Note: Recommended operating conditions are given as a design guideline to obtain expected performance of the
device. Additionally, each item is an independent guideline respectively. In developing designs using this
product, please confirm specified characteristics shown in this document.
2
2010-10-01
TLP525G,TLP525G−2,TLP525G−4
Individual Electrical Characteristics (Ta = 25°C)
Detector
LED
Characteristic
Symbol
Test Condition
Min.
Typ.
Max.
Unit
Forward voltage
VF
IF = 10mA
1.0
1.15
1.3
V
Reverse current
IR
VR = 5V
―
―
10
μA
Capacitance
CT
V = 0, f = 1MHz
―
30
―
pF
Peak off−state current
IDRM
VDRM = 400V
―
10
100
nA
Peak on−state voltage
VTM
ITM = 100mA
―
1.7
3.0
V
Holding current
Critical rate of rise
of off−state voltage
Critical rate of rise
of commutating voltage
IH
⎯
―
0.2
―
mA
dv / dt
Vin = 120Vrms, Ta = 85°C
(Figure 1)
200
500
―
V / μs
dv / dt (c)
Vin = 30Vrms, IT = 15mA
(Figure 1)
―
0.2
―
V / μs
Min.
Typ.
Max.
Unit
5
10
mA
0.8
―
pF
―
Ω
Coupled Electrical Characteristics (Ta = 25°C)
Characteristic
Symbol
Test Condition
Trigger LED current
IFT
VT = 3V
―
Capacitance input to output
CS
VS = 0, f = 1MHz
―
Isolation resistance
RS
VS = 500V, R.H. ≤ 60%
AC, 1 minute
Isolation voltage
BVS
5×10
10
10
14
2500
―
―
AC, 1 second, in oil
―
5000
―
DC, 1 minute, in oil
―
5000
―
Vrms
Vdc
Fig.1 dv / dt Test Circuit
3
2010-10-01
TLP525G,TLP525G−2,TLP525G−4
4
2010-10-01
TLP525G,TLP525G−2,TLP525G−4
5
2010-10-01
TLP525G,TLP525G−2,TLP525G−4
