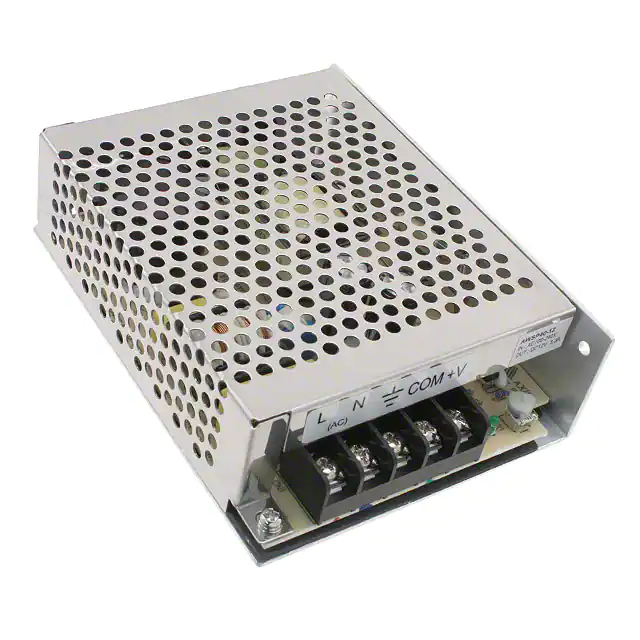

AWSP40-5

Switch Mode Power Supplies Single Output AC/DC Power Supply AWSP40-5 Description: The AWSP40-5 is a single output power supply. This power supply is designed for a wide variety applications where high reliability is desired, including applications for the industrial and telecommunications markets. Excellent performance specifications are provided, together with compliance to European EMC (EN55022, Class B and EN61000-3-2), and Low Voltage directive. Specifications (@25C) Input Characteristics: Input Voltage: Input Frequency Range: Max Input Current: Max Inrush Current: Leakage Current: 85-264Vac 47-63Hz 1.0A @ Vin (rated) 20A@110Vac, 40A@220Vac at cold start 110%, Non auto recovery Short circuit protection available. Avoid short circuit >30 sec. General Specifications: Switching Frequency: Dimension (LxWxH): Weight: Cooling: Isolation Resistance: Dielectric Strength: Warranty: 50kHz 129x98x38mm 360g net, 400g gross Natural Convection I/P—O/P, I/P—FG, O/P—FG: 500VDC/100Mohms I/P—O/P: 3KVac; I/P—FG: 2.5KVac; O/P—FG: 0.5KVac 1 min 2 years Environmental Specifications: Operating Temperature: Operating Humidity: Storage Temperature: Storage Humidity: Vibration: -10° to 60°C 20 to 90% RH, non-condensing -25 to 75°C 10 to 95% RH, non-condensing 10-55Hz, 2G 1min/cycle, period of 60min, each X, Y & Z axis EMC & Safety Specifications: EMC Emissions: ESD Susceptibility: Radiated Susceptibility: Fast Burst: Surge: Safety Approvals: Web: www.TriadMagnetics.com Phone 951-277-0757 Fax 951-277-2757 Conforms to EN55022, VCCI, CISPR22 Class B (Conducted & Radiated); IEC-61000-4-2, 61000-4-4, 61000-4-5, 61000-4-11 EN61000-4-2 (15kV/8kV) EN61000-4-3 (3Vmֿ¹) EN61000-4-4 (2kV) EN61000-4-5 (1kV/2kV) UL60950 (UL File No: E204980) 460 Harley Knox Blvd. Perris, California 92571 Publish Date: September 21, 2021 Switch Mode Power Supplies Single Output AC/DC Power Supply Outline Dimensions (mm): # 1,2 : AC INPUT #3 : FG (FRAME GROUND) #4 : DC OUTPUT –V #5 : DC OUTPUT +V Derating Curve: Connector Types: Input: Screw Terminals Output: Screw Terminals RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative. * Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’ website for the most current version. Web: www.TriadMagnetics.com Phone 951-277-0757 Fax 951-277-2757 460 Harley Knox Blvd. Perris, California 92571 Publish Date: September 21, 2021
