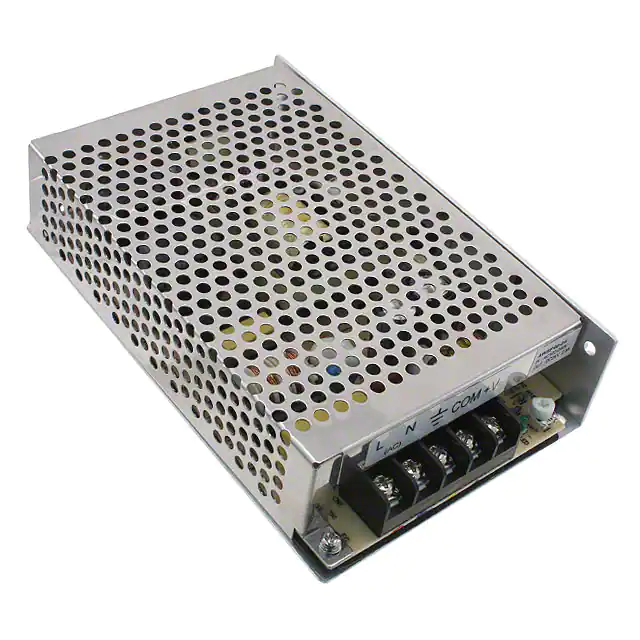

AWSP60-24

厂商：
TRIAD
封装：
-
描述：
AC/DC CONVERTER 24V 60W

数据手册：

下载AWSP60-24.pdf

立即购买

详情介绍
数据手册
价格&库存

AWSP60-24 数据手册

Switch Mode Power Supplies Single Output AC/DC Power Supply AWSP60-24 Description: The AWSP60-24 is a single output power supply. This power supply is designed for a wide variety applications where high reliability is desired, including applications for the industrial and telecommunications markets. Excellent performance specifications are provided, together with compliance to European EMC (EN55022, Class B and EN61000-3-2), and Low Voltage directive. Specifications (@25C) Input Characteristics: Input Voltage: Input Frequency Range: Max Input Current: Max Inrush Current: Leakage Current: 85-264Vac 47-63Hz 1.3A @ Vin (rated) 20A@110Vac, 40A@220Vac at cold start 110%, Non auto recovery Short circuit protection available. Avoid short circuit >30 sec. General Specifications: Switching Frequency: Dimension (LxWxH): Weight: Cooling: Isolation Resistance: Dielectric Strength: Warranty: 45kHz 160x98x38mm 450g net, 490g gross Natural Convection I/P—O/P, I/P—FG, O/P—FG: 500VDC/100Mohms I/P—O/P: 4.3KVdc; I/P—FG: 2.5KVac; O/P—FG: 0.5KVac 2 years Environmental Specifications: Operating Temperature: Operating Humidity: Storage Temperature: Storage Humidity: Vibration: -10° to 60°C 20 to 90% RH, non-condensing -25 to 75°C 10 to 95% RH, non-condensing 10-55Hz, 2G 1min/cycle, period of 60min, each X, Y & Z axis EMC & Safety Specifications: EMC Emissions: ESD Susceptibility: Radiated Susceptibility: Fast Burst: Surge: Safety Approval: Web: www.TriadMagnetics.com Phone 951-277-0757 Fax 951-277-2757 Conforms to EN55022, VCCI, CISPR22 Class B (Conducted & Radiated); IEC-61000-4-2, 61000-4-4, 61000-4-5, 61000-4-11 EN61000-4-2 (15kV/8kV) EN61000-4-3 (3Vmֿ¹) EN61000-4-4 (2kV) EN61000-4-5 (1kV/2kV) UL 60950 (UL File No: E204980) 460 Harley Knox Blvd. Perris, California 92571 Publish Date: September 21, 2021 Switch Mode Power Supplies Single Output AC/DC Power Supply Outline Dimensions (mm): # 1,2 : AC INPUT #3 : FG (FRAME GROUND) #4 : DC OUTPUT –V #5 : DC OUTPUT +V Derating Curve: Connector Types: Input: Screw Terminals Output: Screw Terminals RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative. * Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’ website for the most current version. Web: www.TriadMagnetics.com Phone 951-277-0757 Fax 951-277-2757 460 Harley Knox Blvd. Perris, California 92571 Publish Date: September 21, 2021

下载 PDF

AWSP60-24

1. 物料型号： - 型号：AWSP60-24

2. 器件简介： - AWSP60-24是一款单输出电源供应器，适用于需要高可靠性的多种应用场合，包括工业和电信市场。该电源供应器提供出色的性能规格，并符合欧洲EMC（EN55022, Class B 和 EN61000-3-2）和低压指令。

3. 引脚分配： - 输入：螺钉端子 - 输出：螺钉端子

4. 参数特性： - 输入电压：85-264Vac，47-63Hz，1.3A@Vin（额定值），20A@110Vac，40A@220Vac冷启动<3.5mA/240Vac - 输出电压：24Vdc，2.5A，60W±10%，100mV，+0.5%，+0.5%，81%，<0.03%/°C(10-50℃)，300ms最大@230Vac，20ms最小，100%负载@230Vac - 效率：81% - 启动时间：300ms最大@230Vac，20ms最小，100%负载@230Vac - 过载保护：负载>120%时115/230Vac，Vo>110%时Zener钳位，非自恢复，避免短路>30秒 - 短路保护：短路保护可用

5. 功能详解： - 该电源供应器具有45kHz的开关频率，160x98x38mm的尺寸，450g净重，490g毛重。支持自然对流和I/P-O/P, I/P-FG, O/P-FG的隔离电阻。工作温度范围为-10°C至60°C，存储温度范围为-25°C至75°C。

6. 应用信息： - 适用于需要高可靠性的多种应用场合，包括工业和电信市场。

7. 封装信息： - 外形尺寸（长x宽x高）：160x98x38mm - 重量：450g净重，490g毛重
