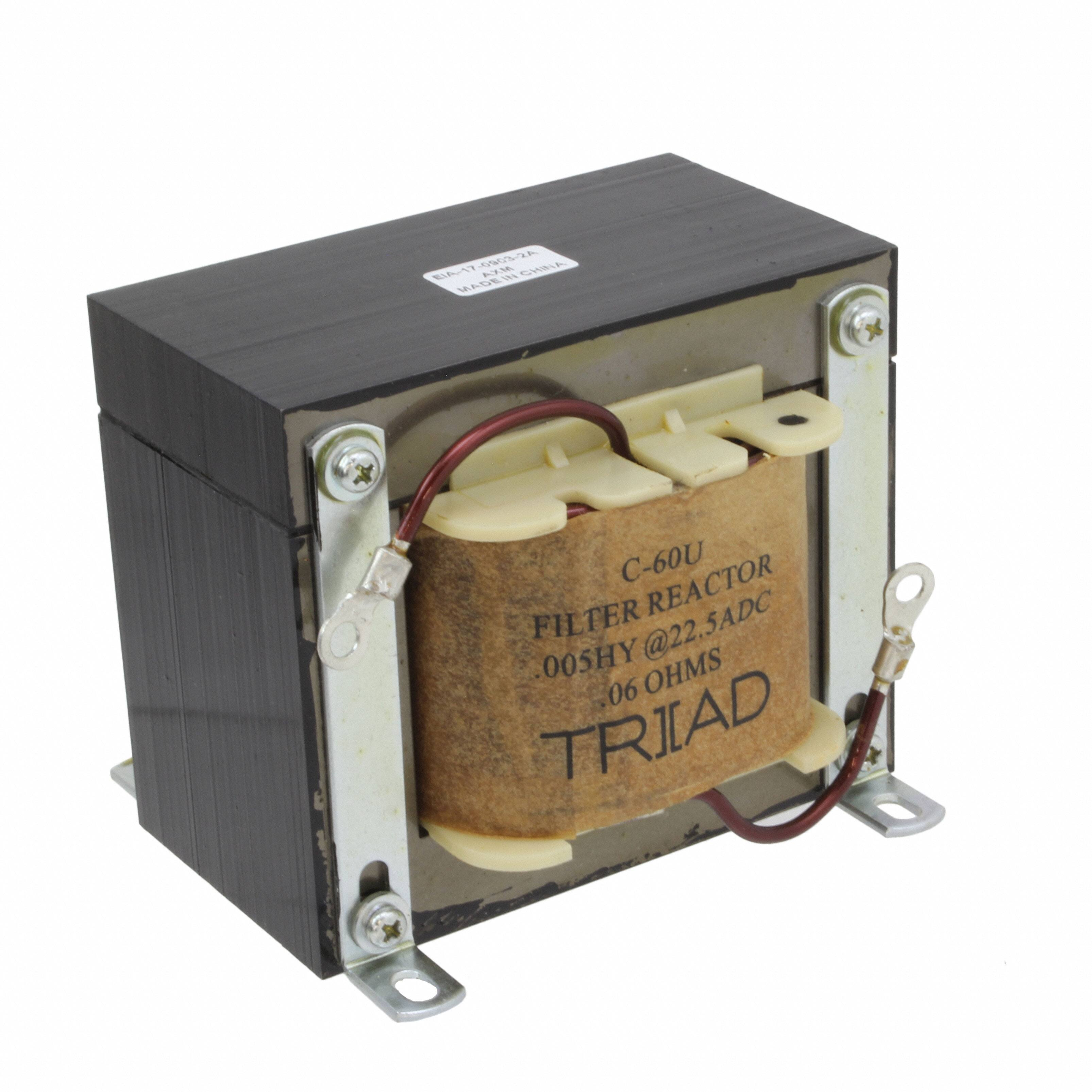

C-60U

Inductors C-60U Description: Smoothing chokes are power supply filter chokes having a core with an air gap which prevents saturation at maximum current. Hipot to 1500 VRMS between winding and core for safety. Electrical Specifications (@25C): Current Inductance †† Resistance DC Amps Henries Ohms 22.5 0.005 0.06 †† = Inductance tolerance -20%, + 50 % A Dimensions: Unit: In inches A B C D E 3.750 4.50 4.187 3.750 3.50 D Weight: 12.75 lbs. C Schematic: E B RoHS Compliance: As of manufacturing date February 2005, all standard products meet the requirements of 2011/65/EU, known as the RoHS initiative. * Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’ website for the most current version. Web: www.TriadMagnetics.com Phone 951-277-0757 Fax 951-277-2757 460 Harley Knox Blvd. Perris, California 92571 13/64 X 5/16 4 SLOTS. Publish Date: December 4, 2013
