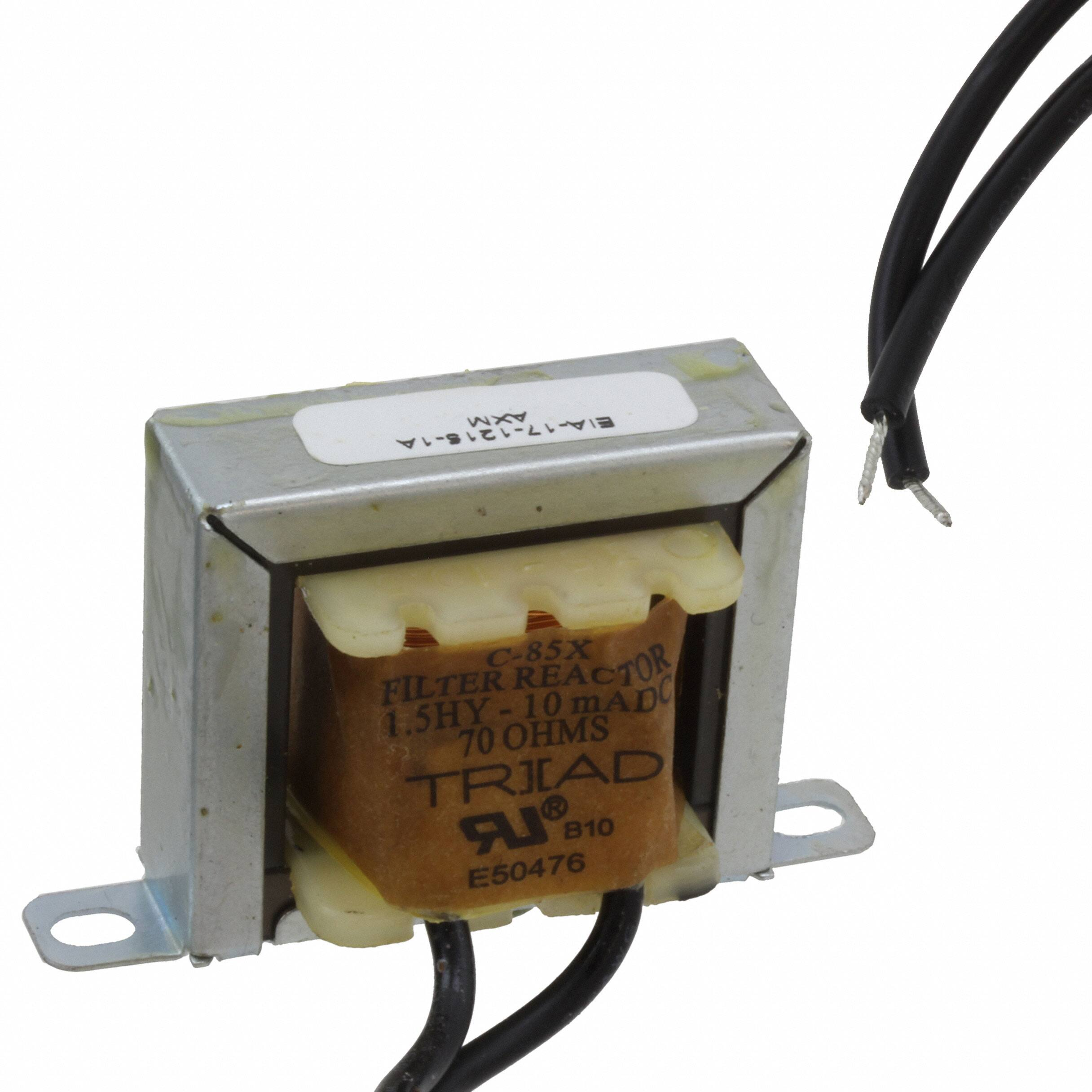

C-85X

Inductors C-85X Description: Smoothing chokes are power supply filter chokes having a core with an air gap which prevents saturation at maximum current. Hipot to 1500 VRMS between winding and core for safety. Electrical Specifications (@25C): Current Inductance †† Resistance DC M/A Henries Ohms 10.0 1.50 70.0 †† = Inductance tolerance -20%, + 50 % B D Dimensions: Unit: In inches A B C D 1.250 2.125 1.125 1.750 C Weight: 0.40 lbs. .187 DIA (REF) 2 HOLES Schematic: A BLK BLK BLK BLK RoHS Compliance: As of manufacturing date February 2005, all standard products meet the requirements of 2011/65/EU, known as the RoHS initiative. * Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’ website for the most current version. Web: www.TriadMagnetics.com Phone 951-277-0757 Fax 951-277-2757 460 Harley Knox Blvd. Perris, California 92571 Publish Date: December 4, 2013
