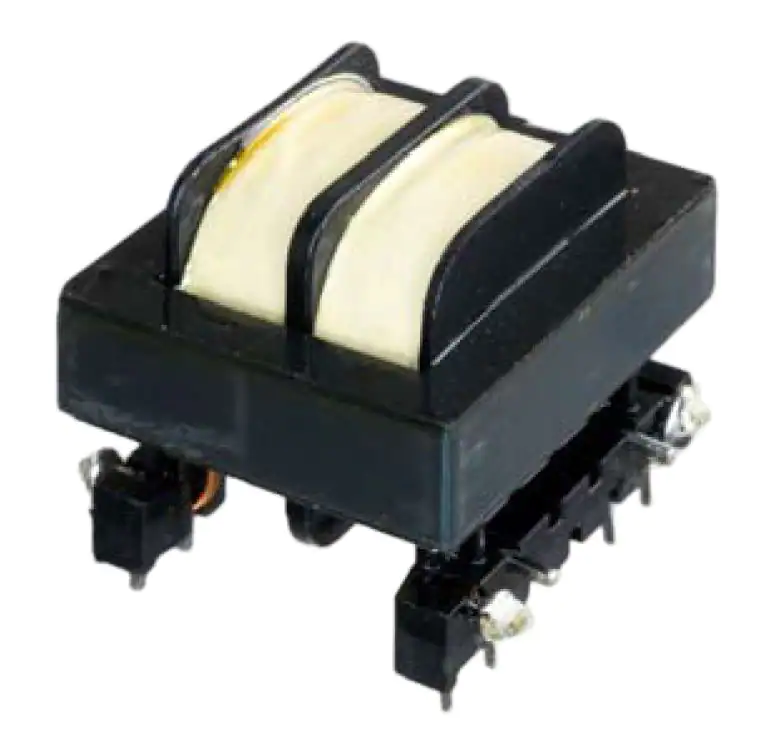

CME375-6-B

Switchmode/High Frequency Common Mode Inductors CME375-6 Description: Highly dependable Triad common mode EMI suppression inductors are used in various types of power supplies to eliminate noise common to all lines. These units also provide effective differential mode filtering. Meeting VDE, IEC, UL and CSA requirements, they minimize AC line transmitted interference often created by high frequency switching power supplies. Construction: Constructed with UL rated 130°C materials. Electrical Specifications (@20°C): A Min. Amps Max. DC (Ω) Min. Inductance* RMS Resistance Leakage 43.6 mH 1.750 .489 440.0 µH B *inductance per winding. Operating Temperature: -40° to +80°C C Dimensions: 6 1 A B C D E 1.5 Max 1.18 Max 0.092-0.187 1.26 Max 0.90 Nom E D Note: 1. Pin diameter: 0.036 SQ. 2. Units in inches. 3. Rated current yields approximately 40°C temperature rise. 4. Weight: .16 lbs. 7 12 0.200 Schematic: 7 12 1 0.200 0.600 6 PC B OA RD 0.900 HOLE P ATTE RN 12 7 RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative. 6 1 0.150 *Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics website for the most current version. For soldering and washing information please see http://www.triadmagnetics.com/faq.html Web: www.TriadMagnetics.com Phone 951-277-0757 Fax 951-277-2757 460 Harley Knox Blvd. Perris, California 92571 Publish Date: April 17, 2019 .062" Ø HOLES
