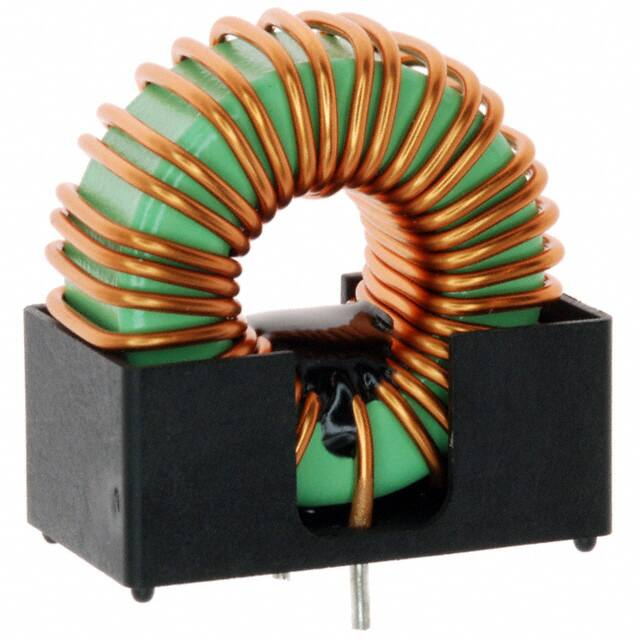

FIT106-1-B

Switchmode/High Frequency Toroidal Inductor FIT106-1 Description: The FIT106-1 toroidal inductor is specifically designed to minimize transients. It stores energy and therefore, conditions the output signal by leveling the current waveform providing a more stable current supply. Generally used in high frequency circuits, its standard design provides an economical solution in differential mode applications or as an output inductor. Electrical Specifications (@25C): Min. Inductance (µH) Rated Max No Bias At Bias DC Amps DCR (mΩ) 253.0 153.0 4.0 139.0 Note: No Bias inductance measured at .25V, 10KHZ. C F G (DIA.) Dimensions: A B C D E F G 1.30 .725 1.40 .500 .724 .125 .026±.003 A Units: In inches B Weight: .090 lbs. E Technical Notes: 1. Nominal inductance values are typically 10% higher than minimal rating. 2. Biased inductance measured at rated DC amps. 3. Operation at rated current yields approximately 40°C temperature rise over 20°C ambient. LEADS TINNED TO MTG SURFACE MIN. D RoHS Compliance: As of manufacturing date February 2005, all standard products meet the requirements of 2011/65/EU, known as the RoHS initiative. *Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics website for the most current version. For soldering and washing information please see http://www.triadmagnetics.com/faq.html Web: www.TriadMagnetics.com Phone 951-277-0757 Fax 951-277-2757 460 Harley Knox Blvd. Perris, California 92571 Publish Date: June 7, 2016
