RC-8

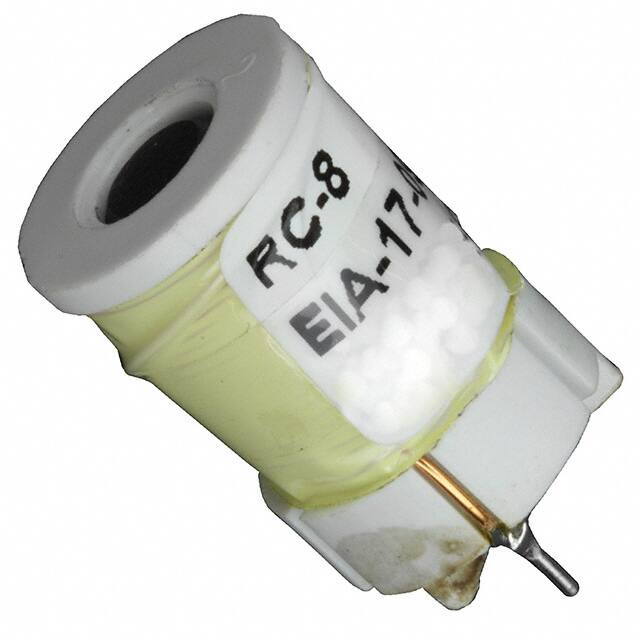

Switchmode/ High Frequency Rod Core Inductors RC-8 Description: Triad high current rod core inductors provide cost effective energy storage. By conditioning the output signal, the inductor smoothes out the current waveform to provide a more stable current. These low cost inductors are designed to be compatible with automated P.C.B. installation. Outline Dimensions: A. Dimensions: As figure show B. PIN DIM. : As figure show C. WT Lbs. : 0.03 Oz Type No. Unit: In inch +/- 10% Inductance DC Rated Current +/- 15% DC Resistance Ohms RC-8 250.0 uH 1.250A 0.210 Inductance at a frequency range of 20KHz to 200KHz Rated current 10 amps per pin maximum. Rated current renders approximately 40C temperature rise. RoHS Compliance: As of manufacturing date February 2005, all standard products meet the requirements of 2011/65/EU, known as the RoHS initiative. *Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics website for the most current version. For soldering and washing information please see http://www.triadmagnetics.com/faq.html Web: www.TriadMagnetics.com Phone 951-277-0757 Fax 951-277-2757 460 Harley Knox Blvd. Perris, California 92571 Publish Date: June 3, 2016
