A u d i o Tr a n s f o r m e r
D a t a / Vo i c e C o u p l i n g

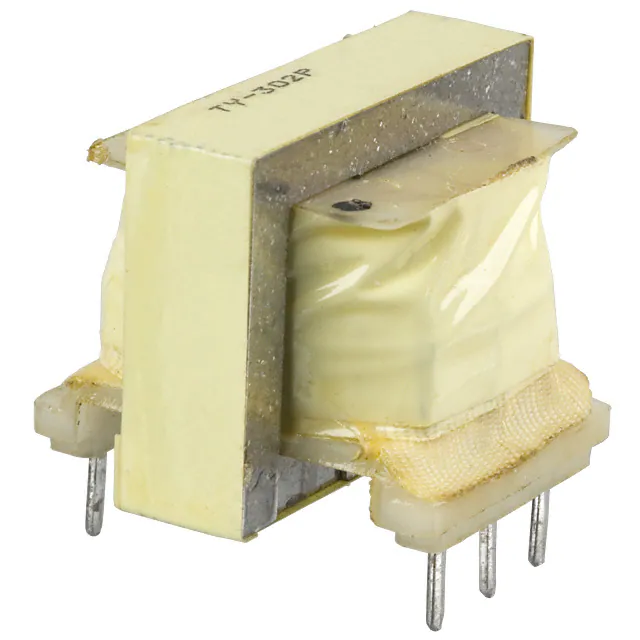

TY-30 2P
Description:
The TY series transformers are used for a variety of applications including
impedance matching, isolation, repeat coil, line balancing, bridging and
hybrid circuit.
Electrical Specifications at 25º C:
Impedance
Max. DC
Typ.
Typ.
Trans-Hybrid
DCR
(Ohms)
Current
Insertion
Return
Loss
(Ohms)
Pri
Sec
(mA)
Loss (dB)
Loss (dB)
(dB)
Pri
Sec
600 (4W)
600/600
0
.65
32
55
34
24/24
Designed to meet FCC Part 68
Longitudinal Balance: (FCC 68.310) – 60 dB min. 200 – 1000 Hz
45 dB min. 1000 – 4000 Hz
DOT A B OV E #1 P IN
ON B OB B IN FLA N GE
1.04
MA X
Dielectric Strength: (FCC 68.304) – 1500VAC
.870
MA X
Power Level: -45 dBm to +7 dBm
Frequency Range: 300 to 3500 Hz
PINS
.040 X .016
.150 MIN
1
Operating Temperature: -20°C ~ 85°C
2
3
MA X
Electrical Schematic:
.960
3
1
SEC 1
Z = 600
PRI
Z = 600
6
4
BOTH SECONDARIES MUST BE
LOADED FOR IMPEDANCE
SPECIFICATIONS TO BE ACCURATE.
2
SEC 2
Z = 600
5
. 200
. 200
. 060 DI A HO LES
6
5
4
. 781 + . 025, - . 015
RoHS Compliance: As of manufacturing date February 2016, all standard products
meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
1
2
*Upon printing, this document is considered “uncontrolled”. Please contact
Triad Magnetics website for the most current version. For soldering and
washing information please see http://www.triadmagnetics.com/faq.html
web:www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: May 31, 2019
