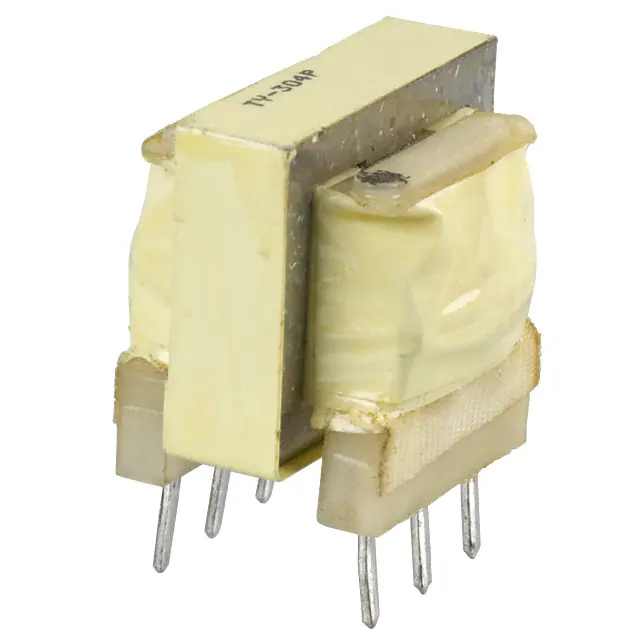

TY-304P-B

A u d i o Tr a n s f o r m e r D a t a / Vo i c e C o u p l i n g T Y- 3 0 4 P Description: The TY series transformers are used for a variety of applications including impedance matching, isolation, repeat coil, line balancing, bridging and hybrid circuits. Electrical Specifications at 25º C: Impedance Max. DC Typ. Typ. Typ. Freq. DCR (Ohms) Current Insertion Return Response (Ohms) Pri Sec (mA) Loss (dB) Loss (dB) (dB) Pri Sec 600 CT 600 CT 0 1.0 26 ±.5 42 60 CT=Center Tap DOT ABOVE TERMINAL #1 ON BOBBIN Designed to meet FCC Part 68 Longitudinal Balance: (FCC 68.310) – 60 dB min. 200 – 1000 Hz 45 dB min. 1000 – 4000 Hz Dielectric Strength: (FCC 68.304) – 1500VAC PC PINS .0 1 6 X .0 4 1 Power Level: -45 dBm to +7 dBm Frequency Range: Data/Voice = 300 to 3500 Hz Data = 800 to 3500 Hz 1 2 3 MAX .812 Operating Temperature: -20°C ~ 85°C MAX .740 Schematic: 4 1 PRIMARY 600 OHM .4 2 600 2 5 OHM CT 3 3/16 SECONDARY CT .790 MAX 6 RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative. *Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics website for the most current version. For soldering and washing information please see http://www.triadmagnetics.com/faq.html web:www.TriadMagnetics.com Phone 951-277-0757 Fax 951-277-2757 460 Harley Knox Blvd. Perris, California 92571 4 5 .187 .375 Publish Date: May 31, 2019 6
