MECHATRONIC DRIVE WITH STEPPER MOTOR
PANdrive
Hardware Version V1.2
HARDWARE MANUAL
+
+
PD-1141
Stepper Motor with
Controller / Driver
0.27 - 0.49 Nm / 24 V DC
USB, RS485, and S/D Interface
+
UNIQUE FEATURES
TRINAMIC Motion Control GmbH & Co. KG
Hamburg, Germany
www.trinamic.com
+
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
Table of Contents
1
2
3
Features........................................................................................................................................................................... 3
Order Codes ................................................................................................................................................................... 5
Mechanical and Electrical Interfacing ..................................................................................................................... 6
3.1
Dimensions ........................................................................................................................................................... 6
3.2
Stepper Motor Specifications ........................................................................................................................... 7
3.3
Connectors of PD-1141....................................................................................................................................... 8
3.3.1 Power and RS485 Connector ..................................................................................................................... 9
3.3.1.1 Power Supply .......................................................................................................................................... 9
3.3.1.2 RS485 ....................................................................................................................................................... 10
3.3.2 Multipurpose I/O Connector ..................................................................................................................... 11
3.3.2.1 Digital Inputs IN_0, IN_1, IN_2 ........................................................................................................ 12
3.3.2.2 Analog Input AIN_1 ............................................................................................................................. 13
3.3.2.3 Outputs OUT_0, OUT_1 ........................................................................................................................ 13
3.3.3 Step/Direction Connector .......................................................................................................................... 14
3.3.3.1 Step / Direction / Enable inputs....................................................................................................... 14
3.3.4 Motor Connector .......................................................................................................................................... 15
3.3.5 Mini-USB Connector .................................................................................................................................... 16
4
Reset to Factory Defaults ......................................................................................................................................... 17
5
On-Board LED .............................................................................................................................................................. 17
6
Operational Ratings ................................................................................................................................................... 18
7
Torque Curves ............................................................................................................................................................. 19
7.1.1 PD42-1-1141 Torque Curves ...................................................................................................................... 19
7.1.2 PD42-2-1141 Torque Curves ...................................................................................................................... 19
7.1.3 PD42-3-1141 Torque Curves ...................................................................................................................... 20
8
Functional Description .............................................................................................................................................. 21
9
PD-1141 Operational Description ........................................................................................................................... 22
9.1
Calculation: Velocity and Acceleration vs. Microstep and Fullstep Frequency ................................ 22
10 Life Support Policy ..................................................................................................................................................... 24
11 Revision History .......................................................................................................................................................... 25
11.1 Document Revision ........................................................................................................................................... 25
11.2 Hardware Revision ............................................................................................................................................ 25
12 References .................................................................................................................................................................... 25
www.trinamic.com
2
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
1
3
Features
The PANdrive™ PD-1141 is a full mechatronic solution with state of the art feature set. It is highly
integrated and offers a convenient handling. The PD-1141 includes a stepper motor and controller/driver
electronics. It can be used in many decentralized applications and has been designed for 0.27… 0.49 Nm
max. holding torque and 24V DC nominal supply voltage. With its high energy efficiency from TRINAMICs
coolStep technology cost for power consumption is kept down. The TMCL™ firmware allows for standalone
operation and direct mode.
MAIN CHARACTERISTICS
Motion controller
Motion profile calculation in real-time
On the fly alteration of motor parameters (e.g. position, velocity, acceleration)
High performance microcontroller for overall system control and serial communication protocol
handling
Bipolar stepper motor driver
Up to 256 microsteps per full step
High-efficient operation, low power dissipation
Dynamic current control
Integrated protection
stallGuard2 feature for stall detection
coolStep feature for reduced power consumption and heat dissipation
ready for dcStep
Interfaces
RS485 2-wire communication interface
USB full speed (12Mbit/s) device interface
Step/Direction/Enable interface (optically isolated) for external control of driver circuit
4 multipurpose inputs:
3x general-purpose digital inputs
(Alternate functions: STOP_L / STOP_R / HOME switch inputs)
1x dedicated analog input
2 general purpose outputs
2x open-drain 100 mA max.
Software
TMCL:
standalone operation or remote controlled operation,
program memory (non volatile) for up to 1024 TMCL commands, and
PC-based application development software TMCL-IDE available for free.
Electrical and mechanical data
Supply voltage: +24 V DC nominal (9… 28 V DC)
Motor current: up to 1.1 A RMS / 1.7 A peak (programmable)
0.27… 0.49 Nm max. holding torque (depends on motor)
Refer to separate TMCL Firmware Manual, too.
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
4
TRINAMICS UNIQUE FEATURES – EASY TO USE WITH TMCL
stallGuard2™
stallGuard2 is a high-precision sensorless load measurement using the back EMF on the
coils. It can be used for stall detection as well as other uses at loads below those which
stall the motor. The stallGuard2 measurement value changes linearly over a wide range
of load, velocity, and current settings. At maximum motor load, the value goes to zero or
near to zero. This is the most energy-efficient point of operation for the motor.
Load
[Nm]
stallGuard2
Initial stallGuard2
(SG) value: 100%
Max. load
stallGuard2 (SG) value: 0
Maximum load reached.
Motor close to stall.
Motor stalls
Figure 1.1 stallGuard2 load measurement SG as a function of load
coolStep™
coolStep is a load-adaptive automatic current scaling based on the load measurement via
stallGuard2 adapting the required current to the load. Energy consumption can be
reduced by as much as 75%. coolStep allows substantial energy savings, especially for
motors which see varying loads or operate at a high duty cycle. Because a stepper motor
application needs to work with a torque reserve of 30% to 50%, even a constant-load
application allows significant energy savings because coolStep automatically enables
torque reserve when required. Reducing power consumption keeps the system cooler,
increases motor life, and allows reducing cost.
0,9
Efficiency with coolStep
0,8
Efficiency with 50% torque reserve
0,7
0,6
0,5
Efficiency
0,4
0,3
0,2
0,1
0
0
50
100
150
200
250
300
350
Velocity [RPM]
Figure 1.2 Energy efficiency example with coolStep
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
2
5
Order Codes

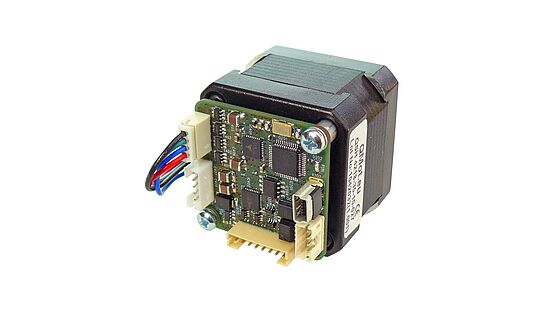

The PD-1141 is currently available with three NEMA 17 stepper motors.
The length of the PANdrives is specified without the length of the axis. For the overall length of the
product please add 24 mm.
Order code
PD42-1-1141-option
PD42-2-1141-option
PD42-3-1141-option
Description
PANdrive 0.27Nm max. holding torque
PANdrive 0.35Nm max. holding torque
PANdrive 0.49Nm max. holding torque
Size (mm3)
42 x 42 x 46.5
42 x 42 x 51
42 x 42 x 60
Table 2.1 PD-1141 order codes
The following options are available:
Firmware option
-TMCL
Description
Module pre-programmed with TMCL firmware
Order code example:
PD42-1-1141-TMCL
Table 2.2 PD-1141 firmware options
A cable loom set is available for this module:
Order code
PD-1141-CABLE
Description
Cable loom for PD-1141:
1x cable loom for power and RS485 connector (length 200mm)
1x cable loom for multipurpose I/O connector (length 200mm)
1x cable loom for S/D connector (length 200mm)
1x USB type A connector to mini-USB type B connector cable (length 1.5m)
Table 2.2 Cable loom order codes
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
3
6
Mechanical and Electrical Interfacing
3.1 Dimensions
The PD-1141 includes the TMCM-1141 stepper motor controller/driver module and a NEMA17 bipolar
stepper motor. Currently, there is a choice between three NEMA 17/42mm bipolar stepper motors with
different lengths and different holding torques.
24±1
20
4.5
22-0.05
42±1
37
5
Model
2
Length
13 max
22
Length of motor
PD42-1-1141
PD42-2-1141
33.5±1 mm
38±1 mm
PD42-3-1141
47±1 mm
34
3
2xM3
5
42±1
42±1
37 42±1
34
42±1
FRONT VIEW
Figure 3.1 PD-1141 dimensions
www.trinamic.com
REAR VIEW
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
7
3.2 Stepper Motor Specifications
MAIN CHARACTERISTICS OF THREE DIFFERENT MOTORS AVAILABLE AS PART OF THE PD-1141
Specifications
Units
Rated Voltage
Rated Phase Current
Phase Resistance at 20°C
Phase Inductance (typ.)
V
A
Ω
mH
Ncm
oz in
mNm
g cm2
Kg
Holding Torque (typ.)
Detent Torque
Rotor Inertia
Weight (Mass)
Insulation Class
Dielectic Strength (for one minute)
Connection Wires
Step Angle
Step angle Accuracy (max.)
Flange Size (max.)
Motor Length (max.)
Rear shaft hole depth
Rear shaft hole diameter
Axis Diameter
Axis Length (typ.)
Axis D-cut (0.5mm depth)
Maximum Radial Force
(20 mm from front flange)
Maximum Axial Force
Ambient temperature
Related PANdrive
QSH4218
-35-10-027
5.3
1.0
5.3
6.6
27
38
22
35
0.22
B
500
4
1.8
5
42.3
33.5
5.0
3.0
5.0
24
20
-41-10-035
4.5
1.0
4.5
7.5
35
50
25
54
0.28
B
500
4
1.8
5
42.3
38
5.0
3.0
5.0
24
20
-51-10-049
5.0
1.0
5.0
8.0
49
69
28
68
0.35
B
500
4
1.8
5
42.3
47
5.0
3.0
5.0
24
20
N
28
28
28
N
°C
10
-20…+50
PD42-1-1141
10
-20…+50
PD42-2-1141
10
-20…+50
PD42-3-1141
VAC
N°
°
%
mm
mm
mm
mm
mm
mm
mm
Table 3.1 NEMA 17 / 42mm stepper motor technical data
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
8
3.3 Connectors of PD-1141
The controller/driver board of the PD-1141 offers five connectors including the motor connector which is
used for attaching the motor coils to the electronics. Further, there is a connector for power and for the
RS485 interface. The USB interface and the step/direction interface have their own connectors. The 8pin
multipurpose I/O connector offers four multipurpose inputs and two general purpose outputs.
USB
Step /
Direction
4
1
1
Multipurpose
I/O
8
4
1
Motor
5
1
Power and
RS485
Figure 3.2 Overview connectors
Label
Connector type
Mating connector type
Connector housing CVIlux: CI01055000-A
Contacts CVIlux: CI01T011PE0-A
Power and
RS485
Connector
CI0105P1VK0-LF
CVIlux CI01 series, 5 pins, 2mm pitch
or
Connector housing JST: PHR-5
Contacts JST: SPH-002T-P0.5S
Wire: 0.22mm2
Connector housing CVIlux: CI01085000-A
Contacts CVIlux: CI01T011PE0-A
Multi-purpose
I/O Connector
CI0108P1VK0-LF
CVIlux CI01 series, 8 pins, 2mm pitch
or
Connector housing JST: PHR-8
Contacts JST: SPH-002T-P0.5S
Wire: 0.22mm2
Connector housing CVIlux: CI01045000-A
Contacts CVIlux: CI01T011PE0-A
Step/Direction
Connector
CI0104P1VK0-LF
CVIlux CI01 series, 4 pins, 2mm pitch
or
Connector housing JST: PHR-4
Contacts JST: SPH-002T-P0.5S
Wire: 0.22mm2
Connector housing CVIlux: CI01045000-A
Contacts CVIlux: CI01T011PE0-A
Motor
Connector
Mini-USB
Connector
CI0104P1VK0-LF
CVIlux CI01 series, 4 pins, 2mm pitch
Molex 500075-1517
Mini USB Type B vertical receptacle
or
Connector housing JST: PHR-4
Contacts JST: SPH-002T-P0.5S
Wire: 0.22mm2
Any standard mini-USB plug
Table 3.1 Connectors and mating connectors, contacts and applicable wire
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
9
3.3.1 Power and RS485 Connector
A 5pin single row connector is used for power supply and RS485 serial communication.
1
Pin
1
2
3
4
5
5
Label
GND
VDD
GND
RS485+
RS485-
Direction
Power (GND)
Power (Supply)
Power (GND)
Bidirectional
Bidirectional
Description
System and signal ground
VDD (+9 V… +28 V)
System and signal ground
RS485 interface, diff. signal (non-inverting)
RS485 interface, diff. signal (inverting)
Table 3.2 Connector for power supply and RS485
3.3.1.1 Power Supply
For proper operation care has to be taken with regard to power supply concept and design. Due to space
restrictions the PD-1141 includes about 40µF/35V of supply filter capacitors. These are ceramic capacitors
which have been selected for high reliability and long life time. The module includes a 28V suppressor
diode for over-voltage protection.
CAUTION!
Add external power supply capacitors!
It is recommended to connect an electrolytic capacitor of significant size (e.g. 470µF/35V)
to the power supply lines next to the PD-1141 especially if the distance to the power
supply is large (i.e. more than 2-3m)! In larger systems a zener diode circuitry might be
required in order to limit the maximum voltage when the motor is operated at high
velocities.
Rule of thumb for size of electrolytic capacitor:
In addition to power stabilization (buffer) and filtering this added capacitor will also
reduce any voltage spikes which might otherwise occur from a combination of high
inductance power supply wires and the ceramic capacitors. In addition it will limit slewrate of power supply voltage at the module. The low ESR of ceramic-only filter capacitors
may cause stability problems with some switching power supplies.
Do not connect or disconnect motor during operation!
Motor cable and motor inductivity might lead to voltage spikes when the motor is
disconnected / connected while energized. These voltage spikes might exceed voltage
limits of the driver MOSFETs and might permanently damage them. Therefore, always
disconnect power supply before connecting / disconnecting the motor.
Keep the power supply voltage below the upper limit of 28V!
Otherwise the driver electronics will seriously be damaged! Especially, when the selected
operating voltage is near the upper limit a regulated power supply is highly
recommended. Please see also chapter 6 (operating values).
There is no reverse polarity protection!
The module will short any reversed supply voltage due to internal diodes of the driver
transistors.
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
10
3.3.1.2 RS485
For remote control and communication with a host system the PD-1141 provides a two wire RS485 bus
interface. For proper operation the following items should be taken into account when setting up an
RS485 network:
1.
BUS STRUCTURE:
The network topology should follow a bus structure as closely as possible. That is, the
connection between each node and the bus itself should be as short as possible. Basically, it
should be short compared to the length of the bus.
Host
c:>
Slave
Slave
Slave
node
1
node
n-1
node
n
}
termination
resistor
(120 Ohm)
termination
resistor
(120 Ohm)
keep distance as
short as possible
RS485
Figure 3.3 Bus structure
2.
BUS TERMINATION:
Especially for longer busses and/or multiple nodes connected to the bus and/or high
communication speeds, the bus should be properly terminated at both ends. The PD-1141 does
not integrate any termination resistor. Therefore, 120 Ohm termination resistors at both ends of
the bus have to be added externally.
3.
NUMBER OF NODES:
The RS485 electrical interface standard (EIA-485) allows up to 32 nodes to be connected to a
single bus. The bus transceiver used on the PD-1141 units (SN65HVD3082ED) has just 1/8th of the
standard bus load and allows a maximum of 256 units to be connected to a single RS485 bus.
4.
NO FLOATING BUS LINES:
Avoid floating bus lines while neither the host/master nor one of the slaves along the bus line is
transmitting data (all bus nodes switched to receive mode). Floating bus lines may lead to
communication errors. In order to ensure valid signals on the bus it is recommended to use a
resistor network connecting both bus lines to well defined logic levels. In contrast to the
termination resistors this network is normally required just once per bus. Certain RS485 interface
converters available for PCs already include these additional resistors (e.g. USB-2-485).
Slave
Slave
node
n- 1
node
n
+5V
pull-up (1k)
RS485+ / RS485A
termination
resistor
(120 Ohm)
RS485- / RS485B
pull-down (1k)
GND
Figure 3.4 Bus lines with resistor network
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
11
3.3.2 Multipurpose I/O Connector
An 8pin 2mm pitch single row connector is available for all multipurpose inputs and outputs.
Pin
1
1
8
Label
GND
Direction
Power (GND)
2
VDD
Power (Supply)
3
OUT_0
Output
4
OUT_1
Output
5
IN_0
Input
6
IN_1
Input
7
IN_2
Input
8
IN_3
Input
Description
System and signal ground
VDD, connected to VDD pin of the power and
RS485 connector
Open-drain output (max. 100 mA)
Integrated freewheeling diode to VDD
Open-drain output (max. 100 mA)
Integrated freewheeling diode to VDD
Dedicated analog input,
Input voltage range: 0… +10V
Resolution: 12bit (0… 4095)
General purpose digital input (+24 V compatible)
Alternate function: left stop switch input
General purpose digital input (+24 V compatible)
Alternate function: right stop switch input
General purpose digital input (+24 V compatible)
Alternate function: home switch input
Table 3.4 Multipurpose I/O connector
Note:
-
All inputs have resistor based voltage input dividers with protection diodes. These resistors
also ensure a valid GND level when left unconnected.
-
For all digital inputs (IN_1, IN_2, IN_3) a 1k pull-up resistor to +5V can be activated. Then these
inputs have a default (unconnected) logic level of 1 and an external switch to GND can be
connected. This might be especially interesting in case these inputs are used as stop and home
switch inputs (alternate function).
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
12
3.3.2.1 Digital Inputs IN_1, IN_2, IN_3
The eight pin connector of the PD-1141 provides three multi-purpose digital inputs IN_1, IN_2 and IN_3.
All three inputs accept up-to +24 V input signals. They are protected against these higher voltages using
voltage resistor dividers together with limiting diodes against voltages below 0 V (GND) and above +3.3 V
DC (see figure below).
common switch for all
three digital inputs
+5V
1k
+3.3V
IN_0
IN_1
IN_2
10k
microcontroller (all)
and TMC429 (IN_0, IN_1)
22k
1nf
GND
GND
GND
Figure 3.5 General purpose inputs (simplified input circuit)
Refer to the PD-1141 TMCL Firmware Manual (SIO command) for further information about switching the
pull-up resistors for all digital inputs on / off.
The three digital inputs have alternate functionality depending on configuration in software. The
following functions are available:
Label
(pin)
IN_0 (6)
Default function
Alternate function 1
General purpose
digital input
STOP_L - left stop switch input
connected to processor and
TMC429 REF input (supporting
left
stop
functionality
in
hardware)
STOP_R - right stop switch input
connected to processor and
TMC429 REF input (supporting
right stop switch functionality in
hardware)
HOME - home switch input
(connected to processor)
IN_1 (7)
General purpose
digital input
IN_2 (8)
General purpose
digital input
Alternate function 2
IN_0 (6)
IN_1 (7)
IN_2 (8)
Table 3.7 Multipurpose inputs / alternate functions
All three digital inputs are connected to the on-board processor and can be used as general purpose
digital inputs (default).
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
13
3.3.2.2 Analog Input AIN_1
The eight pin connector of the PD-1141 provides one dedicated analog input AIN_1.
This dedicated analog input offers a full scale input range of 0… +10V with a resolution of the internal
analog-to-digital converter of the microcontroller of 12 bit (0… 4095).
The input is protected against higher voltages up-to +24 V using voltage resistor dividers together with
limiting diodes against voltages below 0 V (GND) and above +3.3 V DC (see figure below).
+3.3V
AIN_1
22k
ADC input
(microcontroller)
10k
10nF
GND
GND
GND
Figure 3.6 General purpose inputs (simplified input circuit)
3.3.2.3 Outputs OUT_0, OUT_1
The eight pin connector of the PD-1141 offers two general purpose outputs OUT_0 and OUT_1. These two
outputs are open-drain outputs and can sink up to 100 mA each. The outputs of the N-channel MOSFET
transistors are connected to freewheeling diodes each for protection against voltage spikes especially
from inductive loads (relais etc.) above supply voltage (see figure below).
Using free-wheeling diodes connected to VDD supply voltage:
None of the two outputs should be connected to any voltage above supply voltage of the module.
VDD
OUT_0,
OUT_1
microcontroller
GND
Figure 3.7 General purpose outputs
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
14
3.3.3 Step/Direction Connector
A 4pin 2mm pitch single row connector is available for the Step/Dir interface. This interface can be used
for connecting an external motion controller to the on-board driver stage instead of the integrated
motion controller.
All three Step/Dir/Enable signals are optically isolated. Therefore, an additional supply input (COMMON) is
available which has to be connected to a supply voltage between +5 V and +24 V for proper operation.
Pin
Label
COMMON
Direction
Power
(Supply input)
/ENABLE
Input
1
1
4
2
3
4
STEP
Input
DIRECTION Input
Description
Power supply input for the three Step / Direction
/ Enable signals. Accepts voltages between +5V
and +24V nom.
Enable input
(function depends on firmware)
Step pulse input
(connected to step input of TMC262 driver IC)
Direction input
(connected to direction input of TMC262 driver IC)
Table 3.5: Step/Direction connector
3.3.3.1 Step / Direction / Enable inputs
The inputs Step / Direction / Enable are electrically (optically) isolated from the power supply and all
other signals of the PD-1141. These inputs have one common reference input COMMON (see Figure 3.7).
The COMMON input should be connected to a positive supply voltage between +5V and +24V. Step /
Direction / Enable signals might be driven either by open-collector / open-drain outputs or by push-pull
outputs. In case of push-pull outputs the COMMON supply voltage should be equal / similar to the high
signal voltage level of the push-pull drivers.
+3.3V
Common
(5..24V)
microcontroller
8mA
Enable
TMC262
8mA
Step
TMC262
8mA
Direction
GND
Figure 3.8 Step/Dir/Enable inputs
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
15
3.3.4 Motor Connector
As motor connector a 4pin 2mm pitch single row connector is available. The motor connector is used for
connecting the four motor wires of the two motor coils of the bipolar stepper motor to the electronics.
1
4
Pin
1
2
3
4
Label
OB2
OB1
OA2
OA1
Direction
Output
Output
Output
Output
Pin
Pin
Pin
Pin
2
1
2
1
of
of
of
of
motor
motor
motor
motor
Description
coil B
coil B
coil A
coil A
Table 3.5 Motor connector
Example for connecting the QSH4218 NEMA 17 / 42mm stepper motors:
www.trinamic.com
Description
Motor coil B
Motor coil B
Motor coil A
Motor coil A
M
A
pin
pin
pin
pin
1
2
2
1
black
red
Coil
B
BAA
B
Motor connector pin Cable color
1
Red
2
Blue
3
Green
4
Black
green
QS4218 Motor
blue
TMCM-1141
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
16
3.3.5 Mini-USB Connector
A 5pin mini-USB connector is available on-board for serial communication (as alternative to the RS485
interface). This module supports USB 2.0 Full-Speed (12Mbit/s) connections.
Pin
1
5
1
2
3
4
5
Label
VBUS
DD+
ID
GND
Direction
Power
(supply input)
Bidirectional
Bidirectional
Power (GND)
Power (GND)
Description
+5V supply from host
USB Data –
USB Data +
Connected to signal and system ground
Connected to signal and system ground
Table 3.6 Connector for USB
For remote control and communication with a host system the PD-1141 provides a USB 2.0 full-speed
(12Mbit/s) interface (mini-USB connector). As soon as a USB host is connected the module will accept
commands via USB.
USB BUS POWERED OPERATION MODE
The PD-1141 supports both, USB self powered operation (when an external power is supplied via the
power supply connector) and USB bus powered operation, (no external power supply via power supply
connector).
On-board digital core logic will be powered via USB in case no other supply is connected (USB bus
powered operation). The digital core logic comprehends the microcontroller itself and also the EEPROM.
The USB bus powered operation mode has been implemented to enable configuration, parameter
settings, read-outs, firmware updates, etc. by just connecting an USB cable between module and host PC.
No additional cabling or external devices (e.g. power supply) are required.
Please note that the module might draw current from the USB +5V bus supply even in USB self powered
operation depending on the voltage level of this supply.
Motor movements are not possible in this operation mode. Therefore, connect the power connector and
change to USB self powered operation mode.
www.trinamic.com
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
4
17
Reset to Factory Defaults
It is possible to reset the PD-1141 to factory default settings without establishing a communication link.
This might be helpful in case communication parameters of the preferred interface have been set to
unknown values or got accidentally lost.
For this procedure two pads on the bottom side of the board have to be shortened.
Now, perform the following steps:
1.
2.
3.
4.
5.
6.
7.
Power supply off and USB cable disconnected
Short two pads as marked in Figure 4.1
Power up board (power via USB is sufficient for this purpose)
Wait until the on-board red and green LEDs start flashing fast (this might take a while)
Power-off board (disconnect USB cable)
Remove short between pads
After switching on power-supply / connecting USB cable all permanent settings have been
restored to factory defaults
Short these two pads
Figure 4.1 Reset to factory default settings
5
On-Board LED
The board offers an LED in order to indicate board status. The function of the LED is dependent on the
firmware version. With standard TMCL firmware the green LED should be flashing slowly during
operation. When there is no valid firmware programmed into the board or during firmware update the
green LED is permanently on.
BEHAVIOR OF LEDS WITH STANDARD TMCL FIRMWARE
Status
Heartbeat
Label
Run
Green LED
Figure 5.1 On-board LED
www.trinamic.com
Description
This green LED flashes slowly during operation.
PD-1141 Hardware Manual (Rev. 1.04 / 2013-JUL-23)
6
18
Operational Ratings
The operational ratings show the intended or the characteristic ranges and should be used as design
values.
In no case shall the maximum values be exceeded!
GENERAL OPERATIONAL RATINGS
Symbol
VDD
ICOIL_peak
ICOIL_RMS
IDD
TENV
Parameter
Power supply voltage for operation
Motor coil current for sine wave peak
(chopper regulated, adjustable via software)
Continuous motor current (RMS)
Power supply current
Environment temperature at rated current (no
forced cooling required)
Min
9
0
Typ
12… 24
0
Max
28
1.7
Unit
V
A
工商网监
湘ICP备2023018690号
