Motion Controller for Stepper Motors
Integrated Circuits
TMC4361A DATASHEET
TMC4361A Document Revision 1.22 • 2017-JAN-12
SHORT
SPEC
The S-ramp and sixPoint™ ramp motion controller for stepper motors is optimized for high
velocities, allowing on-the-fly changes. TMC4361A offers SPI and Step/Dir interfaces, as well
as an encoder interface for closed-loop operation.
NOTE:
TMC4361A is a product upgrade of TMC4361.
Features

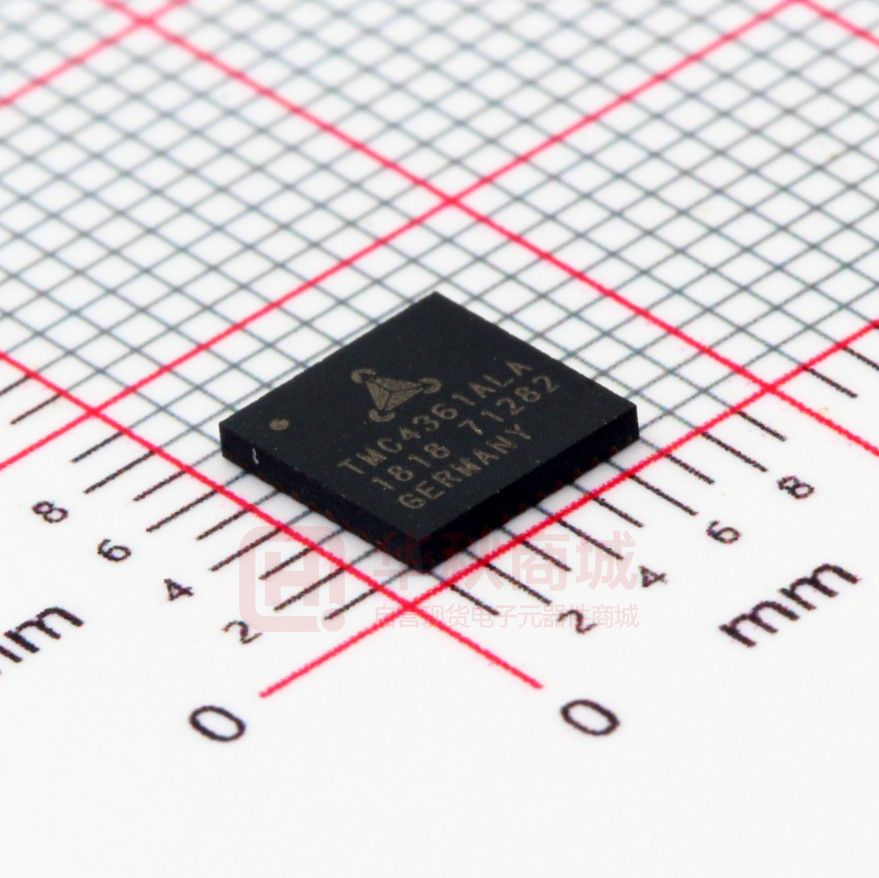

Figure 1: Sample Image
TMC4361A Closed-Loop Drive
*Marking details are explained on page 223.
SPI Interfaces for µC with easy-to-use protocol.
SPI Interfaces for SPI motor stepper drivers.
Encoder interface for incremental or serial encoders.
Closed-loop operation for Step and SPI drivers.
Integrated ChopSync™ and dcStep™ support.
Internal ramp generator generating S-shaped ramps
or sixPoint™ ramps supporting on-the-fly changes.
Controlled PWM output.
Reference switch handling.
Hardware and virtual stop switches.
Extensive Support of TMC stepper motor drivers.
Applications
Textile, sewing machines
CCTV, security
Printers, scanners
ATM, cash recycler
Office automation
POS
Factory automation
Lab automation
Pumps and valves
Heliostat controllers
CNC machines
Robotics
Block Diagram: TMC4361A Interfaces & Features
START
Ref. Switches
TMC4361
SPI to µC
INTR / TR to µC
CLK
NRST
SPI to
Master
Status Flags
Interrupt
Controller
Power-on
Reset
Ref. Switch
Processing
Timer Unit
S-Ramp
Generator
incl. trapezoid,
rectangle, 4bows
dcStep
Step
Sequencer
Current
Regulation
Driver
Interface:
SPI /
Step/Dir
Encoder
Interface
Safe Ramp Down
NFreeze
Figure 2: Block Diagram
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg,
Germany — Terms of delivery and rights to technical change
reserved. Download newest version at: www.trinamic.com.
Read entire documentation; especially the
Supplemental Directives in chapter 22 (page 224).
SHORT SPEC
Closed Loop
SPI
Step/Dir
ABN
SSI
SPI
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
2/230
Functional Scope of TMC4361A
TMC4361A is a miniaturized high-performance motion controller for stepper motor drivers,
particularly designed for fast and jerk-limited motion profile applications with a wide range
of ramp profiles. The S-shaped or sixPoint™ velocity profile, closed-loop and open-loop
features offer many configuration options to suit the user’s specifications, as presented
below:
S-Shaped
Velocity Profile
S-shaped ramp profiles are jerk-free. Seven ramp segments form the S-shaped
ramp that can be optimally adapted to suit the user’s requirements. High torque
with high velocities can be reached by calibrating the bows of the ramp, as
explained in this user manual.
v(t)
VMAX
t
Figure 3: S-shaped Velocity Profile
i
Closed-loop
Operation
Feature
More information on ramp configurations and other velocity profiles, e.g.
sixPoint™ ramps, are provided in chapter 6 (Page 28).
A typical hardware setup for closed-loop operation with a TMC262 stepper motor
gate driver is shown in the diagram below. In case internal MOSFETs are desired,
combine the TMC4361A with the TMC2620, the TMC261 or the TMC2660.
High level
interface
µC
SPI
TMC4361
Motion
Controller
SPI
TMC262
MOSFET
Motor Gate
Driver
Driver
Stage
M
Encoder
ABN/
SSI/SPI
Figure 4: Hardware Set-up for Closed-loop Operation with TMC262
Open-loop
Operation with
dcStep™ Feature
A typical hardware setup for dcStep operation with a TMC2130 stepper motor driver
is shown in the diagram below. This feature is also available for TMC26x stepper
motor drivers.
SPI
High level
interface
µC
SPI
TMC4361
Motion
Controller
S/D
TMC2130
Motor Driver
M
dcStep™ signals
Figure 5: Hardware Set-up for Open-loop Operation with TMC2130
Order Codes
Order code
Description
Size
TMC4361A-LA
Motion controller with closed-loop and dcStep features, QFN40
6 x 6 mm2
Table 1: TMC4361A Order Codes
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the Supplemental Directives on page 224.
SHORT SPEC
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
3/230
T A BL E O F C O NT E NT S
TMC4361A DATASHEET .................................................................................................... 1
SHORT SPEC ..................................................................................................................... 1
Features ........................................................................................................................... 1
Applications ..................................................................................................................... 1
Block Diagram: TMC4361A Interfaces & Features ........................................................... 1
Functional Scope of TMC4361A ........................................................................................ 2
Order Codes ..................................................................................................................... 2
TABLE OF CONTENTS ....................................................................................................... 3
MAIN MANUAL ............................................................................................................... 10
1. Pinning and Design-In Process Information ............................................................ 10
Pin Assignment: Top View .................................................................................................. 10
Pin Description .................................................................................................................. 11
System Overview ............................................................................................................... 13
2. Application Circuits .................................................................................................. 14
TMC4361A
TMC4361A
TMC4361A
TMC4361A
TMC4361A
Standard Connection: VCC=3.3V ....................................................................... 14
with TMC26x Stepper Connection....................................................................... 14
with TMC248 Stepper Driver .............................................................................. 15
with TMC2130 Stepper Driver ............................................................................ 15
with TMC5130A or TMC5160 ............................................................................. 15
3. SPI Interfacing ........................................................................................................ 16
SPI Datagram Structure ..................................................................................................... 16
SPI Timing Description ....................................................................................................... 19
4. Input Filtering .......................................................................................................... 20
Input Filtering Examples..................................................................................................... 22
Configuration of Step/Dir Input Filter .................................................................................. 23
5. Status Flags and Events ........................................................................................... 24
Status Event Description .................................................................................................... 25
SPI Status Bit Transfer ....................................................................................................... 26
Generation of Interrupts..................................................................................................... 26
Connection of Multiple INTR Pins ........................................................................................ 27
6. Ramp Configurations for different Motion Profiles .................................................. 28
Step/Dir Output Configuration ............................................................................................ 29
Step/Dir Output Configuration Steps ................................................................................... 29
STPOUT: Changing Polarity ............................................................................................... 29
Altering the Internal Motion Direction.................................................................................. 30
Configuration Details for Operation Modes and Motion Profiles ............................................. 31
Starting Point: Choose Operation Mode ............................................................................... 32
Stop during Motion ............................................................................................................ 32
Motion Profile Configuration ............................................................................................... 33
No Ramp Motion Profile...................................................................................................... 34
Trapezoidal 4-Point Ramp without Break Point..................................................................... 35
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
4/230
Trapezoidal Ramp with Break Point .................................................................................... 35
Position Mode combined with Trapezoidal Ramps ................................................................ 36
Configuration of S-Shaped Ramps ....................................................................................... 37
S-Ramps: Changing Ramp Parameters during Motion or Switching to Positiong Mode ............ 38
Configuration of S-shaped Ramp with ASTART and DFINAL .................................................. 38
S-shaped Mode and Positioning: Fast Motion ....................................................................... 39
Start Velocity VSTART and Stop Velocity VSTOP .................................................................. 40
S-shaped Ramps with Start and Stop Velocity ...................................................................... 44
Combined Use of VSTART and ASTART for S-shaped Ramps ............................................... 45
sixPoint Ramps .................................................................................................................. 46
U-Turn Behavior ................................................................................................................ 47
Continuous Velocity Motion Profile for S-shaped Ramps ...................................................... 48
Internal Ramp Generator Units ........................................................................................... 49
Clock Frequency ................................................................................................................ 49
Velocity Value Units ........................................................................................................... 49
Acceleration Value Units ..................................................................................................... 49
Bow Value Units ................................................................................................................ 50
Overview of Minimum and Maximum Values: ....................................................................... 50
7. External Step Control and Electronic Gearing .......................................................... 51
Description of Electronic Gearing ........................................................................................ 52
Indirect External Control .................................................................................................... 52
Switching from External to Internal Control ......................................................................... 53
8. Reference Switches ................................................................................................. 54
Hardware Switch Support ................................................................................................... 55
Stop Slope Configuration for Hard or Linear Stop Slopes ...................................................... 55
How Active Stops are indicated and reset to Free Motion ..................................................... 56
How to latch Internal Position on Switch Events .................................................................. 56
Virtual Stop Switches ......................................................................................................... 57
Enabling Virtual Stop Switches ............................................................................................ 57
Virtual Stop Slope Configuration ......................................................................................... 57
How Active Virtual Stops are indicated and reset to Free Motion ........................................... 58
Home Reference Configuration ........................................................................................... 59
Home Event Selection ........................................................................................................ 59
HOME_REF Monitoring ....................................................................................................... 60
Homing with STOPL or STOPR ............................................................................................ 61
Target Reached / Position Comparison ................................................................................ 62
Connecting several Target-reached Pins .............................................................................. 62
Use of TARGET_REACHED Output ...................................................................................... 63
Position Comparison of Internal Values ............................................................................... 64
Repetitive and Circular Motion ............................................................................................ 65
Repetitive Motion to XTARGET ............................................................................................ 65
Activating Circular Motion ................................................................................................... 65
Uneven or Noninteger Microsteps per Revolution ................................................................. 66
Release of the Revolution Counter ...................................................................................... 67
Blocking Zones .................................................................................................................. 67
Activating Blocking Zones during Circular Motion ................................................................. 67
Circular Motion with and without Blocking Zone ................................................................... 68
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
5/230
9. Ramp Timing and Synchronization .......................................................................... 69
Basic Synchronization Settings ............................................................................................ 70
Start Signal Trigger Selection ............................................................................................. 70
User-specified Impact Configuration of Timing Procedure ..................................................... 70
Delay Definition between Trigger and internally generated Start Signal ................................. 71
Active START Pin Output Configuration ............................................................................... 71
Ramp Timing Examples ...................................................................................................... 72
Shadow Register Settings ................................................................................................... 75
Shadow Register Configuration Options ............................................................................... 76
Delayed Shadow Transfer................................................................................................... 80
Pipelining Internal Parameters ............................................................................................ 81
Configuration and Activation of Target Pipeline .................................................................... 81
Using the Pipeline for different internal Registers ................................................................. 82
Pipeline Mapping Overview ................................................................................................. 83
Cyclic Pipelining ................................................................................................................. 84
Pipeline Examples .............................................................................................................. 84
Masterless Synchronization of Several Motion Controllers via START Pin ................................ 86
10. Serial Data Output ................................................................................................... 87
Getting Started with TMC Motor Drivers .............................................................................. 88
Sine Wave Lookup Tables................................................................................................... 89
Actual Current Values Output ............................................................................................. 90
How to Program the Internal MSLUT ................................................................................... 90
Setup of MSLUT Segments ................................................................................................. 91
Current Waves Start Values ................................................................................................ 92
Default MSLUT .................................................................................................................. 92
Explanatory Notes for Base Wave Inclinations ..................................................................... 93
SPI Output Interface Configuration Parameters ................................................................... 95
How to enable SPI Output Communication .......................................................................... 95
Setup of SPI Output Timing Configuration ........................................................................... 96
Current Diagrams .............................................................................................................. 97
Change of Microstep Resolution .......................................................................................... 97
Cover Datagrams Communication between µC and Driver .................................................... 97
Sending Cover Datagrams .................................................................................................. 98
Configuring Automatic Generation of Cover Datagrams ........................................................ 99
Overview: TMC Motor Driver Connections ...........................................................................100
TMC Stepper Motor Driver Settings ....................................................................................100
TMC Motor Driver Response Datagram and Status Bits ........................................................101
Events and Interrupts based on Motor Driver Status Bits .....................................................101
Stall Detection and Stop-on-Stall........................................................................................102
TMC23x, TMC24x Stepper Motor Driver ..............................................................................103
TMC23x Setup ..................................................................................................................103
TMC24x Setup ..................................................................................................................103
TMC23x/24x Status Bits ....................................................................................................104
Automatic Fullstep Switchover for TMC23x/24x...................................................................104
Mixed Decay Configuration for TMC23x/24x .......................................................................105
ChopSync Configuration for TMC23x/24x Stepper Drivers ....................................................105
Doubling ChopSync Frequency during Standstill ..................................................................105
Using TMC24x stallGuard Characteristics ............................................................................106
TMC26x Stepper Motor Driver ............................................................................................107
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
6/230
TMC26x Setup (SPI mode) ...............................................................................................107
TMC26x Setup (S/D mode) ................................................................................................107
Sending Cover Datagrams to TMC26x ................................................................................108
Automatic Continuous Streaming of Cover Datagrams for TMC26x .......................................108
TMC26x SPI Mode: Automatic Fullstep Switchover .............................................................109
TMC26x S/D Mode: Automatic Fullstep Switchover ..............................................................109
TMC 26x S/D Mode: Change of Current Scaling Parameter ..................................................110
TMC26x Status Bits ...........................................................................................................110
TMC26x Status Response ..................................................................................................110
TMC389 Stepper Motor Driver ...........................................................................................111
TMC2130 Stepper Motor Driver ..........................................................................................112
Set-up TMC2130 Support (SPI Mode) .................................................................................112
Set-up TMC2130 Support (S/D Mode) ................................................................................112
Sending Cover Datagrams to TMC2130 ..............................................................................113
Automatic Continuous Streaming of Cover Datagrams for TMC2130 .....................................113
TMC2130 SPI Mode: Automatic Fullstep Switchover ............................................................114
TMC2130 S/D Mode: Automatic Fullstep Switchover ............................................................114
TMC 2130 S/D Mode: Changing current Scaling Parameter ..................................................114
TMC2130 Status Response ................................................................................................115
Connecting Non-TMC Stepper Motor Driver or SPI-DAC at SPI output interface ....................116
Connecting a SPI-DAC .......................................................................................................117
DAC Data Transfer ............................................................................................................117
Changing SPI Output Protocol for SPI-DAC .........................................................................117
DAC Address Values ..........................................................................................................118
DAC Data Values ..............................................................................................................118
11. Current Scaling ...................................................................................................... 120
Hold Current Scaling .........................................................................................................121
Freewheeling ....................................................................................................................121
Current Scaling during Motion ...........................................................................................122
Drive Scaling ....................................................................................................................122
Alternative Drive Scaling ...................................................................................................122
Boost Current ...................................................................................................................123
Scale Mode Transition Process Control ...............................................................................124
Current Scaling Examples ..................................................................................................126
12. NFREEZE and Emergency Stop ............................................................................... 128
Configuration of FREEZE Function ......................................................................................128
Configuration of DFREEZE for automatic Ramp Stop ...........................................................129
13. Controlled PWM Output ......................................................................................... 130
PWM Output Generation and Scaling Possibilities ................................................................131
PWM Scale Example ..........................................................................................................132
PWM Output Generation for TMC23x/24x ...........................................................................133
Switching between SPI and Voltage PWM Modes ................................................................134
14. dcStep Support for TMC26x or TMC2130 ............................................................... 135
Enabling dcStep for TMC26x Stepper Motor Drivers ............................................................137
Setup: Minimum dcStep Velocity ........................................................................................138
Enabling dcStep for TMC2130 Stepper Motor Drivers ..........................................................140
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
7/230
15. Decoder Unit: Connecting ABN, SSI, or SPI Encoders correctly ............................. 141
Selecting the correct Encoder ............................................................................................142
Disabling digital differential Encoder Signals .......................................................................143
Inverting of Encoder Direction ...........................................................................................143
Encoder Misalignment Compensation .................................................................................144
Incremental ABN Encoder Settings .....................................................................................145
Automatic Constant Configuration of Incremental ABN Encoder ...........................................145
Manual Constant Configuration of Incremental ABN Encoder ...............................................145
Incremental Encoders: Index Signal: N resp. Z ...................................................................146
Setup of Active Polarity for Index Channel .........................................................................146
Configuration of N Event ...................................................................................................146
External Position Counter ENC_POS Clearing ......................................................................147
Latching External Position .................................................................................................148
Latching Internal Position ..................................................................................................148
Absolute Encoder Settings .................................................................................................149
Singleturn or Multiturn Data ..............................................................................................149
Automatic Constant Configuration of Absolute Encoder .......................................................150
Manual Constant Configuration of incremental ABN Encoder ................................................150
Absolute Encoder Data Setup ............................................................................................151
Emitting Encoder Data Variation ........................................................................................152
SSI Clock Generation ........................................................................................................153
Enabling Multicycle SSI request ........................................................................................154
Gray-encoded SSI Data Streams .......................................................................................154
SPI Encoder Data Evaluation .............................................................................................155
SPI Encoder Mode Selection ..............................................................................................156
SPI Encoder Configuration via TMC4361A ...........................................................................157
16. Possible Regulation Options with Encoder Feedback ............................................ 158
Feedback Monitoring .........................................................................................................158
Target-Reached during Regulation .....................................................................................158
PID-based Control of XACTUAL ..........................................................................................159
PID Readout Parameters ...................................................................................................159
PID Control Parameters and Clipping Values .......................................................................160
Enabling PID Regulation ....................................................................................................160
Closed-Loop Operation ......................................................................................................161
Basic Closed-Loop Parameters ...........................................................................................161
Enabling and calibrating Closed-Loop Operation .................................................................162
Limiting Closed-Loop Catch-Up Velocity ..............................................................................163
Enabling the Limitation of the Catch-Up Velocity .................................................................163
Enabling Closed-Loop Velocity Mode ..................................................................................164
Closed-loop Scaling ...........................................................................................................165
Closed-Loop Scaling Transition Process Control ..................................................................166
Back-EMF Compensation during Closed-loop Operation .......................................................167
Encoder Velocity Readout Parameters ................................................................................168
Encoder Velocity Filter Configuration ..................................................................................168
Encoder Velocity equals 0 Event ........................................................................................168
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
8/230
17. Reset and Clock Gating .......................................................................................... 169
Manual Hardware Reset ....................................................................................................169
Manual Software Reset .....................................................................................................169
Reset Indication ...............................................................................................................169
Activating Clock Gating manually .......................................................................................170
Clock Gating Wake-up .......................................................................................................170
Automatic Clock Gating Procedure .....................................................................................171
18. Serial Encoder Output ............................................................................................ 172
Configuration and Enabling of SSI Output Interface ............................................................173
Disabling differential Encoder Output Signals ......................................................................174
Gray-encoded SSI Output Data .........................................................................................174
TECHNICAL SPECIFICATIONS ...................................................................................... 175
19. Complete Register and Switches List ..................................................................... 175
General Configuration Register GENERAL_CONF 0x00 .........................................................175
Reference Switch Configuration Register REFERENCE_CONF 0x01 .......................................178
Start Switch Configuration Register START_CONF 0x02 .......................................................181
Input Filter Configuration Register INPUT_FILT_CONF 0x03 ................................................183
SPI Output Configuration Register SPI_OUT_CONF 0x04 .....................................................184
Current Scaling Configuration Register CURRENT_CONF 0x05 .............................................187
Current Scale Values Register SCALE_VALUES 0x06 ............................................................188
Various Scaling Configuration Registers ..............................................................................189
Encoder Signal Configuration (0x07) ..................................................................................190
Serial Encoder Data Input Configuration (0x08) ..................................................................194
Serial Encoder Data Output Configuration (0x09) ................................................................194
Motor Driver Settings Register STEP_CONF 0x0A ................................................................195
Event Selection Registers 0x0B..0X0D ................................................................................196
Status Event Register (0x0E) .............................................................................................197
Status Flag Register (0x0F) ...............................................................................................198
Various Configuration Registers: S/D, Synchronization, etc. .................................................199
PWM Configuration Registers .............................................................................................200
Ramp Generator Registers.................................................................................................201
External Clock Frequency Register .....................................................................................205
Target and Compare Registers ..........................................................................................205
Pipeline Registers .............................................................................................................206
Shadow Register ...............................................................................................................206
Freeze Register.................................................................................................................207
Reset and Clock Gating Register ........................................................................................207
Encoder Registers .............................................................................................................208
PID & Closed-Loop Registers .............................................................................................210
dcStep Registers ...............................................................................................................212
Transfer Registers ............................................................................................................213
SinLUT Registers ..............................................................................................................214
SPI-DAC Configuration Registers ........................................................................................215
TMC Version Register ........................................................................................................215
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
9/230
20. Absolute Maximum Ratings ................................................................................... 216
21. Electrical Characteristics........................................................................................ 217
Power Dissipation .............................................................................................................217
General IO Timing Parameters ...........................................................................................218
Layout Examples ..............................................................................................................219
Internal Cirucit Diagram for Layout Example.......................................................................219
Components Assembly for Application with Encoder ............................................................220
Top Layer: Assembly Side .................................................................................................220
Inner Layer (GND) ............................................................................................................221
Inner Layer (Supply VS) ....................................................................................................221
Package Dimensions .........................................................................................................222
Package Material Information ............................................................................................223
Marking Details provided on Single Chip .............................................................................223
APPENDICES ................................................................................................................ 224
22. Supplemental Directives ........................................................................................ 224
ESD-DEVICE INSTRUCTIONS ...........................................................................................................224
23. Tables Index .......................................................................................................... 226
24. Figures Index ......................................................................................................... 228
25. Revision History ..................................................................................................... 230
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
10/230
M AI N MA NU AL
1.
Pinning and Design-In Process Information
In this chapter you are provided with a list of all pin names and a functional description of each.
A_SCLK
NRST
CLK_EXT
VCC
GND
VDD1V8
TEST_MODE
INTR
STDBY_CLK
TARGET_REACHED
Pin Assignment: Top View
40
39
38
37
36
35
34
33
32 31
ANEG_NSCLK
1
30
NSCSDRV_SDO
NSCSIN
2
29
SCKDRV_NSDO
SCKIN
3
28
SDIDRV_NSCLK
SDIIN
4
27
SDODRV_SCLK
VCC
5
26
VCC
GND
6
25
GND
SDOIN
7
24
STPOUT_PWMA
MP1
8
23
DIROUT_PWMB
MP2
9
22
NNEG
B_SDI
10
21
N
16
17
18
19
20
DIRIN
NFREEZE
START
HOME_REF
15
STPIN
STOPL
14
VDD1V8
13
GND
12
STOPR
11
BNEG_NSDI
TMC4361
QFN 40
6mm x 6mm
0.5 pitch
Figure 6: Package Outline: Pin Assignments Top View
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
11/230
Pin Description
Pin Names and Descriptions
Pin
Number Type
Function
Supply Pins
GND
6, 15,
25, 36
GND
Digital ground pin for IOs and digital circuitry.
VCC
5, 26, 37
VCC
Digital power supply for IOs and digital circuitry (3.3V… 5V).
VDD1V8
16, 35
VDD
Connection of internal generated core voltage of 1.8V.
CLK_EXT
38
I
NRST
39
I (PU)
TEST_MODE
34
I
NFREEZE
19
I (PU)
Clock input to provide a clock with the frequency fCLK for all
internal operations.
Low active reset. If not connected, Power-on-Reset and internal
pull-up resistor is active.
Test mode input. Tie to low for normal operation.
Low active safety pin to immediately freeze output operations.
If not connected, internal pull-up resistor is active.
Interface Pins for µC
NSCSIN
2
I
Low active chip selects input of SPI interface to µC.
SCKIN
3
I
Serial clock for SPI interface to µC.
SDIIN
4
I
Serial data input of SPI interface to µC.
SDOIN
7
O
Serial data output of SPI interface to µC (Z if NSCSIN=1).
INTR
33
O
Interrupt output, programmable PD/PU for wired-and/or.
TARGET_REACHED
31
O
Target reached output, programmable PD/PU for wired-and/or.
Reference Pins
STOPL
12
I (PD)
Left stop switch. External signal to stop a ramp.
If not connected, internal pull-down resistor is active.
HOME_REF
13
I (PD)
Home reference signal input. External signal for reference search.
If not connected, internal pull-down resistor is active.
STOPR
14
I (PD)
Right stop switch. External signal to stop a ramp.
If not connected, internal pull-down resistor is active.
STPIN
17
I (PD)
Step input for external step control.
If not connected, internal pull-down resistor is active.
DIRIN
18
I (PD)
Direction input for external step control.
If not connected, internal pull-down resistor is active.
START
20
IO
Start signal input/output.
Default: Output
S/D Output Pins
STPOUT
PWMA
DACA
24
O
Step output.
First PWM signal (Sine).
First DAC output signal (Sine).
DIROUT
PWMB
DACB
23
O
Direction output.
Second PWM signal (Cosine).
Second DAC output signal (Cosine).
Continued on next page!
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
12/230
Pin Names and Descriptions
Pin
Number Type
Function
Interface Pins for Stepper Motor Drivers
NSCSDRV
PWMB
SDO
30
O
Low active chip selects output of SPI interface to motor driver.
Second PWM signal (Cosine) to connect with PHB (TMC23x/24x).
Serial data output of serial encoder output interface.
SCKDRV
MDBN
NSDO
29
O
Serial clock output of SPI interface to motor driver.
MDBN output signal for MDBN pin of TMC23x/24x.
Negated serial data output of serial encoder output interface.
SDODRV
PWMA
SCLK
27
IO
Serial data output of SPI interface to motor driver (default).
First PWM signal (Sine) to connect with PHA (TMC23x/24x).
Clock input of serial encoder output interface.
SDIDRV
ERR
NSCLK
28
I (PD)
Serial data input of SPI interface to motor driver.
Error input signal to ERR pin of TMC23x/24x.
Negated clock input of serial encoder output interface.
If not connected, internal pull-down resistor is active.
MP1
8
I (PD)
DC_IN as external dcStep input control signal.
If not connected, internal pull-down resistor is active.
MP2
9
IO
DCSTEP_ENABLE as dcStep output control signal (default).
SPE_OUT as output signal, connect to SPE pin of TMC23x/24x.
STDBY_CLK
32
O
StandBy signal or internal CLK output or ChopSync output.
Encoder Interface Pins
N
21
I (PD)
N signal input of incremental encoder input interface.
If not connected, internal pull-down resistor will be active.
NNEG
22
I (PD)
Negated N signal input of incremental encoder input interface.
If not connected, internal pull-down resistor will be active.
B
SDI
10
I (PD)
B signal input of incremental encoder input interface.
Serial data input signal of serial encoder interface (SSI/SPI).
If not connected, internal pull-down resistor is active.
BNEG
NSDI
SDO_ENC
11
IO
Negated B signal input of incremental encoder interface (default).
Negated serial data input signal of SSI encoder input interface.
Serial data output of SPI encoder input interface.
A
SCLK
40
IO
A signal input of incremental encoder interface (default).
Serial clock output signal of serial encoder interface (SSI/SPI).
ANEG
NSCLK
NSCS_ENC
1
IO
Negated A signal input of incremental encoder interface (default).
Negated serial clock output signal of serial encoder interface.
Low active chip select output of SPI encoder input interface.
Table 2: Pin Names and Descriptions
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
13/230
System Overview
GND(4x)
VDD1V8(2x)
VDD5(3x)
CLK_EXT
NRST
I
Host CPU
SPI Interface
I
POR
NSCSIN
I
SCKIN
I
SDIIN
I
SDOIN
O
R
E
S
E
T
Register Block
SPI
Status Flags /
Events
for
Interrupt
Control
Motion
Profile
ShadowReg
Target
Register(s)
O
TARGET_REACHED
O
INTR
ClkGating
Step/Dir Input
CLK_INT
Start / Stop /
Reference Switches
START
NFREEZE
Parameters
from/for all
Units
Timer Unit
IO
I
STOPL
I
HOME_REF
I
STOPR
I
GearRatio
immediate freeze
of operation
DDS
retain
Reference
processing
Ramp-Generator
Internal
Step
Ramp
Status
Encoder (differential)
SPI
or
SCLK
NSCS
SSI
or
SCLK
NSCLK
SDI
SDO
NSDI
ABN
A
IO
ANEG
IO
SDI
B
BNEG
SSI
External
PosCounter
External
Pos
Compare
Commutation
angle
ClosedLoop Unit
SPI
Decoder Unit
Closed
Loop
Scaling
I
IO
N
I
NNEG
I
CoverReg
ABN
MasterCLK
SSI
SPI Datagram Generator
or
Serial Encoder
O
DC_OUT
O
DIROUT
O
NSTDBY_OUT or
Clk_Out or
ChopSync Clk
FS
Actual
Co-/Sine
values
Internal
(Co)Sine LUT
StdBy
signal
chopSync™
PWM
Unit
PWM or DAC
encrypted co-/sine
voltage values
DAC
Unit
IO
dcStep Signals
DCSTEP_STALL
Pos
Counter
DataOut
SSI
I
SPI Output
Internal
Pos
Scaled
current
values
Drv type
Serial
Encoder
Unit
Scale
Unit
DIR_IN
I
Step/Dir Output or PWM Output or DAC Output
O
STPOUT
PWMA
DACA
(Sine)
(Sine)
PID
PID_E
STP_IN
I
O
PulseGen
v
S-Ramps with 4 Bows
Trapezoid Ramps
Rectangle Ramps
Circles
dcStep™
ChopperClk/
STEP_READY
I
Scan Test
I
TEST_MODE
O
SDIDRV
SCKDRV
NSCSDRV
SDODRV
or
or
or
or
SCLK NSCLK SDO NSDO
Figure 7: System Overview
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
PWMB
(Cosine)
DACB
(Cosine)
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
2.
14/230
Application Circuits
In this chapter application circuit examples are provided that show how external components
can be connected.
TMC4361A
Standard
Connection:
VCC=3.3V
Reference Switches
SD Input
HOME STOPL STOPR
STPIN DIRIN
NSCSIN
SPI Control Interface
to Microcontroller
NSCSDRV_SDO
SDIIN
SDODRV_SCLK
SCKIN
SCKDRV_NSDO
SPI Output Interface
to Motor Driver
SDIDRV_NSCLK
SDOIN
Step/Dir Interface
to Motor Driver
STPOUT_PWMA
Ext. Clock
DIRPOUT_PWMB
CLK_EXT
STDBY_CLK
A_SCLK
ANEG_NSCLK
B_SDI
BNEG_NSDI
N
NNEG
TMC4361
Start Signal
Input or Output
START
Interrupt Output
INTR
Target Reached Output
TARGET_REACHED
Optional Inv. Reset Input
Encoder Input Interface
for incremental ABN or
serial SSI/SPI
MP1
NRST
Emergency Stop Switch
Standby Clock Output
Multi-Purpose Pins
MP2
NFREEZE
VCC
GND
TEST_MODE VDD1V8
VDD1V8
100 nF
100 nF
100 nF
+3.3 V
Figure 8: TMC4361A Connection: VCC=3.3V
TMC4361A with
TMC26x Stepper
Connection
SS
µC
CLK
NSCSIN
MOSI
SDIIN
SCK
SCKIN
MISO
SDOIN
STPOUT_PWMA
STEP
DIRPOUT_PWMB
DIR
MP1
TMC4361
CLK_EXT
TMC26x
SG_TST
NSCSDRV_SDO
CSN
SDODRV_SCLK
SDI
SCKDRV_NSDO
SCK
SDO
SDIDRV_NSCLK
M
Figure 9: TMC4361A with TMC26x Stepper Driver in SPI Mode or S/D Mode
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
15/230
NSCSDRV_SDO
TMC4361A with
TMC248 Stepper
Driver
SS
µC
NSCSIN
SCKDRV_NSDO
MOSI
SDIIN
SDODRV_SCLK
SDI
SCK
SCKIN
SDIDRV_NSCLK
SDO
MISO
SDOIN
TMC4361
TMC248
OSC
STDBY_CLK
CLK
CSN
SCK
CLK_EXT
Output for chopSync
15K
680pF
M
Figure 10: TMC4361A with TMC248 Stepper Driver in SPI Mode
TMC4361A with
TMC2130
Stepper Driver
SS
µC
CLK
NSCSIN
MOSI
SDIIN
SCK
SCKIN
MISO
SDOIN
STPOUT_PWMA
STEP
DIRPOUT_PWMB
DIR
MP1
MP2
TMC4361
CLK_EXT
TMC2130
DCO
DCEN_CFG4
NSCSDRV_SDO
CSN_CFG3
SDODRV_SCLK
SDI_CFG1
SCKDRV_NSDO
SCK_CFG2
SDO_CFG0
SDIDRV_NSCLK
M
Figure 11: TMC4361A with TMC2130 Stepper Driver in SPI Mode or S/D Mode
TMC4361A with
TMC5130A or
TMC5160
TMC5130A and TMC5160 combine motion controller and bi-polar stepper driver in a
single device.
For some applications, it can be advisable to use TMC4361A in combination with
TMC5130A or TMC5160.
In case one of these combinations is required, all information and configuration
procedures that are stated for TMC2130 hold also true for TMC5130A resp. TMC5160,
because all three devices are software compatible from TMC4361A point of view.
i
For more information, please also refer to the manual of TMC5130A resp.
TMC5160.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
3.
16/230
SPI Interfacing
TMC4361A uses 40-bit SPI datagrams for communication with a microcontroller. The bit-serial
interface is synchronous to a bus clock. For every bit sent from the bus master to the bus slave,
another bit is sent simultaneously from the slave to the master. In the following chapter
information is provided about the SPI control interface, SPI datagram structure and SPI
transaction process.
SPI Input Control Interface Pins
Pin Name
Type
Remarks
NSCSIN
Input
Chip Select of SPI-µC interface (low active)
SCKIN
Input
Serial clock of SPI-µC interface
SDIIN
Input
Serial data input of SPI-µC interface
SDOIN
Output
Serial data output of SPI-µC interface
Table 3: SPI Input Control Interface Pins
SPI Datagram
Structure
i
Microcontrollers that are equipped with hardware SPI are typically able to
communicate using integer multiples of 8 bit.
The NSCSIN line of the TMC4361A has to stay active (low) for the complete
duration of the datagram transmission.
Each datagram that is sent to TMC4361A is composed of an address byte
followed by four data bytes. This allows direct 32-bit data word communication
with the register set of TMC4361A. Each register is accessed via 32 data bits;
even if it uses less than 32 data bits.
Each register is specified by a one-byte address:
For read access the most significant bit of the address byte is 0.
For write access the most significant bit of the address byte is 1.
NOTE:
Some registers are write only registers. Most registers can be read also; and there
are also some read only registers.
TMC4361A SPI Datagram Structure
MSB (transmitted first)
40 bits
39
...
8-bit address
8-bit SPI status
39 ... 32
to TMC4361:
RW + 7-bit address
from TMC4361:
8-bit SPI status
39 / 38 ... 32
W
LSB (transmitted last)
38...32
0
32-bit data
31 ... 0
8-bit data
31 ... 24
31...28
27...24
8-bit data
8-bit data
23 ... 16
23...20
19...16
15 ... 8
15...12
11...8
39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
Figure 12: TMC4361A SPI Datagram Structure
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
8-bit data
7 ... 0
7...4
8 7 6 5
3...0
4 3
2 1 0
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Read/Write
Selection
Principles and
Process
17/230
Read and write selection is controlled by the MSB of the address byte (bit 39 of the
SPI datagram). This bit is 0 for read access and 1 for write access. Consequently, the
bit named W is a WRITE_notREAD control bit.
The active high write bit is the MSB of the address byte.
Consequently, 0x80 must be added to the address for a write access.
The SPI interface always delivers data back to the master, independent of
the Write bit W.
Difference between Read and Write Access
If …
Then …
The previous access was a read access.
The data transferred back is the data read from the
address which was transmitted with the previous
datagram.
The previous access was a write access
The data read back mirrors the previously received write
data.
Figure 13: Difference between Read and Write Access
Conclusion:
Consequently, the difference between a read and a write access is that the read access
does not transfer data to the addressed register but it transfers the address only; and
its 32 data bits are dummies.
NOTE:
Please note that the following read delivers back data read from the address
AREAS OF
SPECIAL
CONCERN
!
Use of Dummy
Write Data
Read and Write
Access Examples
transmitted in the preceding read cycle. The data is latched immediately after the
read request.
A read access request datagram uses dummy write data.
Read data is transferred back to the master with the subsequent read or write access.
i
Reading multiple registers can be done in a pipelined fashion. Data that is
delivered is latched immediately after the initiated data transfer.
For read access to register XACTUAL with the address 0x21, the address byte must
be set to 0x21 in the access preceding the read access.
For write access to register VACTUAL, the address byte must be set to
0x80 + 0x22 = 0xA2. For read access, the data bit can have any value, e.g., 0.
Read and Write Access Examples
Action
Data sent to TMC
Data received from TMC
read XACTUAL
0x2100000000
0xSS1) & unused data
read XACTUAL
0x2100000000
0xSS & XACTUAL
0xA200ABCDEF
0xSS & XACTUAL
0xA200123456
0xSS00ABCDEF
write VACTUAL:=
0x00ABCDEF
write VACTUAL:=
0x00123456
Table 4: Read and Write Access Examples
1)
SS is a placeholder for the status bits SPI_STATUS.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
18/230
Data Alignment
All data is right-aligned. Some registers represent unsigned (positive) values; others
represent integer values (signed) as two’s complement numbers.
Some registers consist of switches that are represented as bits or bit vectors.
SPI Transaction
Process
The SPI transaction process is as follows:
i
AREAS OF
SPECIAL
CONCERN
!
System
Behavior
Specifics
The slave is enabled for SPI transaction by a transition to low level on the chip
select input NSCSIN.
Bit transfer is synchronous to the bus clock SCKIN, with the slave latching the
data from SDIIN on the rising edge of SCKIN and driving data to SDOIN
following the falling edge.
The most significant bit is sent first.
A minimum of 40 SCKIN clock cycles is required for a bus transaction with
TMC4361A.
Take the following aspects into consideration:
Whenever data is read from or written to the TMC4361A, the first eight
bits that are delivered back contain the SPI status SPI_STATUS that consists of
eight user-selected event bits. The selection of these bits are explained in
chapter 5.2. (Page 26).
If less than 40 clock cycles are transmitted, the transfer is not valid; even
for read access. However, sending only eight clock cycles can be useful to
obtain the SPI status because it sends the status information back first.
If more than 40 clocks cycles are transmitted, the additional bits shifted
into SDIIN are shifted out on SDOIN after a 40-clock delay through an internal
shift register. This can be used for daisy chaining multiple chips.
NSCSIN must be low during the whole bus transaction. When NSCSIN
goes high, the contents of the internal shift register are latched into the internal
control register and recognized as a command from the master to the slave. If
more than 40 bits are sent, only the last 40 bits received - before the rising
edge of NSCSIN - are recognized as the command.
NSCSIN
tCC
tCL
tCH
tCH
tCC
SCKIN
tDU
SDIIN
bit39
tDH
bit38
bit0
tDO
SDOIN
tZC
bit39
bit38
bit0
Figure 14: SPI Timing Datagram
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
19/230
SPI Timing Description
The SPI interface is synchronized to the internal system clock, which limits SPI bus clock SCKIN
to a quarter of the system clock frequency. The signal processing of SPI inputs is supported
with internal Schmitt Trigger, but not with RC elements.
NOTE:
In order to avoid glitches at the inputs of the SPI interface between µC and TMC4361A, external RC
elements have to be provided.
Figure 14 shows the timing parameters of an SPI bus transaction, and the table below specifies the parameter
values.
SPI Interface Timing
SPI Interface Timing
AC Characteristics:
External clock period: tCLK
Parameter
Symbol
Min
SCKIN valid before or after
change of NSCSIN
tCC
NSCSIN high time
tCSH
SCKIN low time
tCL
SCKIN high time
tCH
SCKIN frequency using
external clock
(Example: fCLK = 16 MHz)
SDIIN setup time before
rising edge of SCKIN
SDIIN hold time after rising
edge of SCKIN
Data out valid time after
falling SCKIN clock edge
fSCK
Conditions
Type
10
Min. time is for
synchronous CLK with
SCKIN high one tCH
before SCSIN high only.
Min. time is for
synchronous CLK only.
Min. time is for
synchronous CLK only.
Unit
ns
tCLK
>2·tCLK+10
ns
tCLK
>tCLK+10
ns
tCLK
>tCLK+10
ns
Assumes synchronous
CLK.
fCLK / 4
(4)
MHz
tDU
10
ns
tDH
10
ns
tDO
No capacitive load on
SDOIN.
Table 5: SPI Interface Timing
i
Max
tCLK = 1 / fCLK
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
tFILT+5
ns
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
4.
20/230
Input Filtering
Input signals can be noisy due to long cables and circuit paths. To prevent jamming, every input
pin provides a Schmitt trigger. Additionally, several signals are passed through a digital filter.
Particular input pins are separated into four filtering groups. Each group can be programmed
individually according to its filter characteristics. In this chapter informed on the digital filtering
feature of TMC4361A is provided; and how to separately set up the digital filter for input pins.
Input Filtering Groups
Pin Names
A_SCLK
B_SDI
N
ANEG_NSCLK
BNEG_NSDI
NNEG
STOPL
HOME_REF
STOPR
START
SDODRV_SCLK
SDIDRV_NSCLK
STPIN
DIRIN
Type
Remarks
Inputs
Encoder interface input pins.
Inputs
Reference input pins.
Input
START input pin.
Inputs
Master clock input interface pins for serial
encoder.
Inputs
Step/Dir interface inputs.
Table 6: Input Filtering Groups (Assigned Pins)
Register Names
Register Names
Register Address
INPUT_FILT_CONF
0x03
RW
Remarks
Filter configuration for all four input groups.
Table 7: Input Filtering (Assigned Register)
Input Filter
Assignment
Every filtering group can be configured separately with regard to input sample rate
and digital filter length.
The following groups exist:
Encoder interface input pins.
Reference input pins.
Start input pin.
Master clock input pins of encoder output interface.
Step/Dir input pins.
NOTE:
Differentiated handling for Step/Dir input pins is necessary, as explained on the
following pages.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Input Sample
Rate (SR)
21/230
Input sample rate = fCLK 1/2SR where:
SR
i
(extended with a particular name extension) is in [0… 7].
This means that the next input value is considered after 2SR clock cycles.
Sample Rate
Configuration
Sample Rate Configuration
SR Value
Sample Rate
0
fCLK
1
fCLK/2
2
fCLK/4
3
fCLK/8
4
fCLK/16
5
fCLK/32
6
fCLK/64
7
fCLK/128
Table 8: Sample Rate Configuration
Digital Filter
Length (FILT_L)
Digital Filter
Length
Configuration
Table
i
i
The filter length FILT_L can be set within the range [0… 7].
The filter length FILT_L specifies the number of sampled bits that must have the
same voltage level to set a new input bit voltage level.
Configuration of Digital Filter Length
FILT_L value
Filter Length
0
No filtering.
1
2 equal bits.
2
3 equal bits.
3
4 equal bits.
4
5 equal bits.
5
6 equal bits.
6
7 equal bits.
7
8 equal bits.
Table 9: Configuration of Digital Filter Length
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
22/230
Input Filtering Examples
The following three examples depict input pin filtering of three different input filtering groups.
i
After passing Schmitt trigger, voltage levels are compared to internal signals, which are processed by
the motion controller.
i
The sample points are depicted as green dashed lines.
Example 1:
Reference Input
Pins
In this example every second clock cycle is sampled. Two sampled input
bits must be equal to receive a valid input voltage.
CLK
HOME
internal
home signal
STOPL
internal left
stop signal
Figure 15: Reference Input Pins: SR_REF = 1, FILT_L_REF = 1
Example 2:
START Input Pin
This example shows the START input pattern at every fourth clock cycle:
CLK
START
internal Start
input signal
START
internal Start
input signal
Figure 16: START Input Pin: SR_S = 2, FILT_L_S = 0
Example 3:
Encoder
Interface Input
Pins
This example shows every clock cycle bit. Eight sampled input bits must be
equal to receive a valid input voltage.
CLK
B_SDI
internal B
input signal
N
internal N
input signal
Figure 17: Encoder Interface Input Pins: SR_ENC_IN = 0, FILT_L_ENC_IN = 7
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
23/230
Configuration of Step/Dir Input Filter
Step/Dir input filtering setup differs slightly from the other groups, because the other four
groups already complete the whole INPUT_FILT_CONF register 0x03.
This is why it is possible to assign the Step/Dir input group to one of the existing groups by
setting the appropriate bit in front of the setup parameters.
i
If no group is selected, Step/Dir input filtering is automatically assigned to the encoder input interface
filter group.
Step/Dir Pin
Filter
Assignment
The following example shows the filter settings for Step/Dir interface input
pins, which are taken from the reference input pin group.
Step/Dir input pin filter settings are derived from the Reference input filter
group:
SR_SDIN = 6, FILT_L_SDIN = 3
NOTE:
Other input filter groups are:
SR_ENC_IN = 5, FILT_L_ENC_IN = 6
SR_REF = 6, FILT_L_REF = 3
SR_S = 2, FILT_L_S = 4
SR_ENC_OUT = 0, FILT_L_ENC_OUT = 0
Step/Dir Input Filter Parameter
Bits of register 0x03:
Input filter group:
Filter parameter:
Example:
3
1
3
0
2
9
2
8
2
7
2
6
2
5
2
4
2
3
2
2
Serial clock inputs
FILT_L_EN
C_OUT
0
0
0
0
0
0
2
0
1
9
1
8
1
7
1
6
1
5
1
4
START input
SR_ENC_O
UT
0
2
1
0
FILT_L_S
0
1
0
0
0
1
1
2
1
1
1
0
9
8
6
0
1
0
1
1
0
1
1
0
Figure 18: Step/Dir Input Filter Parameter
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
5
4
3
2
1
0
Encoder inputs
SR_ENC_R
EF
FILT_L_REF
= possible selection bits to assign Step/Dir input filter parameter
MAIN MANUAL
7
Reference inputs
SR_S
0
1
3
FILT_L_ENC_I
N
0
1
1
0
SR_ENC_IN
0
1
0
1
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
5.
24/230
Status Flags and Events
TMC4361A provides 32 status flags and 32 status events to obtain short information on the
internal status or motor driver status. These flags and events can be read out from dedicated
registers. In the following chapter, you are informed about the generation of interrupts based
on status events. Status events can also be assigned to the first eight SPI status bits, which are
sent within each SPI datagram.
Pin Names: Status Events
Pin Names
Type
Remarks
INTR
Output
Interrupt output to indicate status events.
Table 10: Pins Names: Status Events
Register Names: Status Flags and Events
Register Name
Register Address
Remarks
GENERAL_CONF
0X00
RW
Bits: 15, 29, 30.
STATUS_FLAGS
0X0F
R
32 status flags of TMC4361A and the connected TMC
motor driver chip.
EVENTS
0X0E
R+C
W
32 events triggered by altered TMC4361A status bits.
SPI_STATUS_SELECTION
0X0B
RW
Selection of 8 out of 32 events for SPI status bits.
EVENT_CLEAR_CONF
0X0C
RW
Exceptions for cleared event bits.
INTR_CONF
0X0D
RW
Selection of 32 events for INTR output.
Table 11:Register Names: Status Flags and Events
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
25/230
Status Event Description
Status events are based on status bits. If the status bits change, related events are triggered
from inactive to active level. Resetting events back to inactive must be carried out manually.
Association of
Status Bits
Status bits and status events are associated in different ways:
Status flags reflect the as-is-condition, whereas status events indicate that the
dedicated information has changed since the last read request of the EVENTS
register. Several status events are associated with one status bit.
Some status events show the status transition of one or more status bits out of
a status bit group. The motor driver flags, e.g., trigger only one motor driver
event MOTOR_EV in case one of the selected motor driver status flags becomes
active.
In case a flag consists of more than one bit, the number of associated events
that can be triggered corresponds to the valid combinations. The VEL_STATE
flag, e.g., has two bit but three associated velocity state events (b’00/b’01/b’10).
Such an event is triggered if the associated combination switches from inactive
to active.
NOTE:
Some events have no equivalence in the STATUS_FLAGS register 0x0F
(e.g., COVER_DONE which indicates new data from the motor driver chip).
The EVENTS register 0x0E is automatically cleared after reading the register;
subsequent to an SPI datagram request. Events are important for interrupt generation
and SPI status monitoring.
Automatic
Clearance of
EVENTS
NOTE:
It is recommended to clear EVENTS register 0x0E by read request before regular
operation.
AREAS OF
SPECIAL
CONCERN
How to Avoid
Lack of
Information
!
Recognition of a status event can fail; in case it is triggered right before or
during EVENTS register 0x0E becomes cleared.
In order to prevent events from being cleared, assign EVENT_CLEAR_CONF register
0x0C according to the particular event in the EVENTS register:
Action:
Set related EVENT_CLEAR_CONF register bit position to 1.
Result:
The related event is not cleared when EVENTS register is read out.
In order to clear these events, do the following, if necessary:
Action:
Set related EVENTS register 0x0E bit position to 1.
Result:
The related event is cleared by writing to the EVENTS register.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
26/230
SPI Status Bit Transfer
Up to eight events can be selected for permanent SPI status report. Consequently, these events
are always
transferred at the most significant transfer
bits
within each
TMC4361A SPI response.
Assign an Event
to a Status Bit
In order to select an event for the SPI status bits, assign the
SPI_STATUS_SELECTION register 0x0B according to the particular event in
the EVENTS register:
Action:
Set the related SPI_STATUS_SELECTION register bit position to 1.
Result:
The related event is transferred with every SPI datagram response as SPI_STATUS.
NOTE:
The bit positions are sorted according to the event bit positions in the EVENTS
register 0x0E. In case more than eight events are selected, the first eight bits
(starting from index 0 = LSB) are forwarded as SPI_STATUS.
Generation of Interrupts
Similar to EVENT_CLEAR_CONF register and SPI_STATUS_SELECTION register, events can be
selected for forwarding via INTR output. The selected events are ORed to one signal which
means that INTR output switches active as soon as one of the selected events triggers.
Generate
Interrupts
In order to select an event for the INTR output pin, assign the INTR_CONF
register 0x0D according to the particular event in the EVENTS register:
Action:
Set the related INTR_CONF register bit position to 1.
Result:
The related event is forwarded at the INTR output. If more than one event is
requested, INTR becomes active as soon as one of the selected events is active.
INTR Output
Polarity
Per default, the INTR output is low active.
In order to change the INTR polarity to high active, do the following:
Action:
Set intr_pol =1 (GENERAL_CONF register 0x00).
Result:
INTR is high active.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
27/230
Connection of Multiple INTR Pins
INTR pin can be configured for a shared interrupt signal line of several TMC4361A interrupt
signals to the microcontroller.
Connecting
several
Interrupt Pins
In order to make use of a Wired-Or or Wired-And behavior, the below
described actions must be taken:
Action:
Step 1: Set intr_tr_pu_pd_en = 1 (GENERAL_CONF register 0x00).
OPTION 1: WIRED-OR
Action:
Step 2: Set intr_as_wired_and = 0 (GENERAL_CONF register 0x00).
Result:
The INTR pin works efficiently as Wired-Or (default configuration).
i
In case INTR pin is inactive, the pin drive has a weak inactive polarity output. If
one of the connected pins is activated, the whole line is set to active polarity.
OPTION 2: WIRED-AND
Action:
Step 2: Set intr_as_wired_and = 1 of the GENERAL_CONF register 0x00.
Result:
In case no interrupt is active, the INTR pin has a strong inactive polarity output. During
the active state, the pin drive has a weak active polarity output. Consequently, the
whole signal line is activated in case all pins are forwarding the active polarity.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
6.
28/230
Ramp Configurations for different Motion Profiles
Step generation is one of the main tasks of a stepper motor motion controller. The internal ramp
generator of TMC4361A provides several step generation configurations with different motion
profiles. They can be configured in combination with the velocity or positioning mode.
Pin Names: Ramp Generator
Pin Names
Type
Remarks
STPOUT_PWMA
Output
Step output signal.
DIROUT_PWMB
Output
Direction output signal.
Table 12: Pin Names: Ramp Generator
Register Names: Ramp Generator
Register Name
GENERAL_CONF
Register
Address
Remarks
0x00
RW
0x10
RW
Additional time in clock cycles when no steps will occur after a
direction change; 16 bits.
RAMPMODE
0x20
RW
Requested motion profile and operation mode; 3 bits.
XACTUAL
0x21
RW
Current internal microstep position; signed; 32 bits.
VACTUAL
0x22
R
Current step velocity; 24 bits; signed; no decimals.
AACTUAL
0x23
R
Current step acceleration; 24 bits; signed; no decimals.
VMAX
0x24
RW
Maximum permitted or target velocity; signed; 32 bits= 24+8 (24
bits integer part, 8 bits decimal places).
VSTART
0x25
RW
Velocity at ramp start; unsigned; 31 bits=23+8.
VSTOP
0x26
RW
Velocity at ramp end; unsigned; 31 bits=23+8.
VBREAK
0x27
RW
AMAX
0x28
RW
DMAX
0x29
RW
ASTART
0x2A
RW
DFINAL
0x2B
RW
BOW1
0x2D
RW
BOW2
0x2E
RW
BOW3
0x2F
RW
BOW4
0x30
RW
CLK_FREQ
0x31
RW
External clock frequency fCLK; unsigned; 25 bits.
XTARGET
0x37
RW
Target position; signed; 32 bits.
STP_LENGTH_ADD
DIR_SETUP_TIME
Ramp generator affecting bits 5:0.
Additional step length in clock cycles; 16 bits.
At this velocity value, the aceleration/deceleration will change during
trapezoidal ramps; unsigned; 31 bits=23+8.
Maximum permitted or target acceleration; unsigned; 24 bits=22+2
(22 bits integer part, 2 bits decimal places).
Maximum permitted or target deceleration; unsigned; 24 bits=22+2.
Acceleration at ramp start or below VBREAK; unsigned; 24
bits=22+2.
Deceleration at ramp end or below VBREAK; unsigned; 24
bits=22+2.
First bow value of a complete velocity ramp; unsigned; 24 bits=24+0
(24 bits integer part, no decimal places).
Second bow value of a complete velocity ramp; unsigned;
24bits=24+0.
Third bow value of a complete velocity ramp; unsigned; 24
bits=24+0.
Fourth bow value of a complete velocity ramp; unsigned; 24
bits=24+0.
Table 13: Register Names: Ramp Generator
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
29/230
Step/Dir Output Configuration
This section focuses on the description of the Step/Dir output configuration.
Step/Dir output signals can be configured for the driver circuit.
Step/Dir Output
Configuration
Steps
If step signals must be longer than one clock cycle, do as follows:
Action:
Set proper STP_LENGTH_ADD register 0x10 (bit 15:0).
Result:
The resulting step length is equal to STP_LENGTH_ADD+1 clock cycles. This is how
the step length is assigned within a range of up to 1-up-to-216 clock cycles.
Action:
Set proper DIR_SETUP_TIME register 0x10 (bit 31:16).
Result:
The delay period between DIROUT and STPOUT voltage level transitions last
DIR_SETUP_TIME clock cycles. No steps are sent via STPOUT for DIR_SETUP_TIME
clock cycles after a level change at DIROUT.
PRINCIPLE:
DIROUT does not change the level:
During active step pulse signal
For (STP_LENGTH_ADD+1) clock cycles after the step signal returns to inactive
level
STPOUT characteristics can be set differently, as follows:
STPOUT:
Changing
Polarity
Per default, the step output is high active because a rising edge at STPOUT indicates
a step.
In order to change the polarity, do as follows:
Action:
Set step_inactive_pol =1 (bit3 of GENERAL_CONF register 0x00).
Result:
Each falling edge indicates a step.
How to prompt
Level Change
with every Step
In order to prompt a step at every level change, do as follows:
Action:
Set toggle_step =1 (bit4 of GENERAL_CONF register 0x00).
Result:
Every level change indicates a step.
DIROUT:
Changing the
Polarity
Per default, voltage level 1 at DIROUT indicates a negative step direction.
DIROUT characteristics can be set differently, as shown below.
In order to change polarity, do as follows:
Action:
Set pol_dir_out =0 (bit5 of GENERAL_CONF register 0x00).
Result:
A high voltage level at DIROUT indicates a positive step direction.
NOTE:
DIROUT is based on the internal µStep position MSCNT and is therefore based on
the internal SinLUT, see section 10.2. , page 89 .
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
30/230
Altering the Internal Motion Direction
Per default, a positive internal velocity VACTUAL results in a forward motion through internal
SinLUT. Consequently, if VACTUAL < 0, the SinLUT values are developed backwards.
How to change
Motion Direction
In order to alter the default setting of the Internal Motion Direction, do as
follows:
Action:
Set reverse_motor_dir =1 (bit28 of GENERAL_CONF register 0x00).
Result:
A positive internal velocity for VACTUAL results in a backward motion through the
internal SinLUT.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
31/230
Configuration Details for Operation Modes and Motion Profiles
This section provides information on the two available operation modes (velocity mode and
positioning mode), and on the four possible motion profiles (no ramp, trapezoidal ramp
including sixPoint™ ramp, and S-shaped ramp). Different combinations are possible. Each one
of them has specific advantages. The choice of configuration depends on the user’s design
specification to best suit his design needs.
Description of
Internal Ramp
Generator
With proper configuration, the internal ramp generator of the TMC4361A is able to
generate various ramps with the related step outputs for STPOUT.
In order to configure the internal ramp generator successfully – i.e. to make it fit as
best as possible with your specific use case – information about the scope of each
possible combination is provided in the table below and on the following pages.
Ramp Generator Configuration Options
Operation
Motion Profile
Mode
Velocity
Mode
RAMPMODE(2:0) Description
No ramp
b’000
Trapezoidal ramp
b’001
sixPoint ramp
b’001
S-shaped ramp
b’010
No Ramp
b’100
Trapezoidal ramp
b’101
Positioning
sixPoint ramp
Mode
S-shaped ramp
b’101
b’110
Follows VMAX request only.
Follows VMAX request and considers acceleration
and deceleration values.
Follows VMAX request and considers acceleration /
deceleration values and start and stop velocity
values.
Follows VMAX request and considers maximum
acceleration / deceleration values and adapts these
values with 4 different bow values.
Follows XTARGET and VMAX requests only.
Follows XTARGET request and a maximum velocity
VMAX request and considers acceleration and
deceleration values.
Follows XTARGET request and a maximum velocity
VMAX request and considers acceleration /
deceleration values and start and stop velocity
values.
Follows XTARGET request and a maximum velocity
VMAX request and considers maximum acceleration /
deceleration values and adapts these values with 4
different bow values.
Table 14: Overview of General and Basic Ramp Configuration Options
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
32/230
Starting Point: Choose Operation Mode
Two operation modes are available: velocity mode and positioning mode.
BEFORE
YOU BEGIN
!
Before setting any parameters:
First select:
Operation mode and
Motion profile
It is not advisable to change operation mode nor motion profile during
motion.
Operation Mode:
Velocity Mode
The RAMPMODE register provides a choice of two operation modes. Either velocity
mode or positioning mode can be chosen.
In order to use the velocity mode, do as follows:
Action:
Set RAMPMODE(2) =0 (RAMPMODE register 0x20).
Result:
Velocity mode is selected. The target velocity VMAX is reached with the selected
motion profile.
Operation Mode:
Positioning
Mode
In order to make use of the positioning mode, do as follows:
Action:
Set RAMPMODE(2)=1 (RAMPMODE register 0x20).
Result:
Positioning mode is selected. VMAX is the maximum velocity value of this motion
profile that is based on the condition that the ramp stops at target position XTARGET.
NOTE:
The sign of VMAX is not relevant during positioning. The direction of the steps
depends on XACTUAL, XTARGET, and the current ramp motion profile status.
NOTE:
Do NOT exceed VMAX ≤ fCLK ¼ pulses for positioning mode.
Stop during
Motion
In order to stop the motion during positioning, do as follows:
Action:
Set VMAX = 0 (register 0x24).
Result:
The velocity ramp directs to VACTUAL = 0, using the actual ramp parameters.
i
Motion is proceeded with VMAX ≠ 0.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Motion Profile
Configuration
33/230
Three basic motion profiles are provided. Each one of them has a different velocity
value development during the drive. See table below.
For configuration of the motion profiles, do as follows:
Action:
Use the bits 1 and 0 of the RAMPMODE register 0x20.
Result:
As specified in the table below.
You can choose different configuration options from the list below:
No Ramp motion profile
Trapezoidal Ramp motion profile (including sixPoint Ramp)
S-shaped Ramp motion profiles
TMC4361A Motion Profile
RAMPMODE
(1:0)
Motion
Profile
Function
b’00
No Ramp
Follow VMAX only (rectangular velocity shape).
Trapezoidal
Ramp
Consideration of acceleration and deceleration
values without adaptation of these acceleration
values.
sixPoint
Ramp
Consideration of acceleration and deceleration
values without adaptation of these acceleration
values.
Usage of start and stop velocity values.
(see section 6.5. , Page 46)
b’01
b’10
S-shaped
Ramp
Use all ramp values (including bow values).
Table 15: Description of TMC4361A Motion Profiles
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
34/230
v(t)
No Ramp Motion
Profile
VMAX
t
Figure 19: No Ramp Motion Profile
In order to make use of the no ramp motion profile, which is rectangular,
do as follows:
Action:
Set RAMPMODE(1:0) =b’00 (register 0x20).
Set proper VMAX register 0x24.
Result:
The internal velocity VACTUAL is immediately set to VMAX.
Positioning
Mode combined
with No Ramp
Motion Profile
Combining positioning mode with the no ramp motion profile determines that the ramp
holds VMAX until XTARGET is reached. The motion direction depends on XTARGET.
In order to make use of the no ramp motion profile in combination with the
positioning mode, do as follows:
Action:
Set RAMPMODE(2:0) =b’100.
Set proper VMAX register 0x24.
Set proper XTARGET register 0x37.
Result:
VACTUAL is set instantly to 0 in case the target position is reached.
NOTE:
Do NOT exceed VMAX ≤ fCLK / 4 pulses for positioning mode.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
35/230
In order to make use of a trapezoidal 4-point ramp motion profile without
break velocity, do as follows:
Trapezoidal
4-Point Ramp
without Break
Point
Action:
Set RAMPMODE(1:0) =b’01 (register 0x20).
Set VBREAK =0 (register 0x27).
Set proper AMAX register 0x28 and DMAX register 0x29.
Set proper VMAX register 0x24.
Result:
The internal velocity VACTUAL is changed successively to VMAX with a linear ramp.
Only AMAX and DMAX define the acceleration/deceleration slopes.
NOTE:
AMAX determines the rising slope from absolute low to absolute high velocities,
whereas DMAX determines the falling slope from absolute high to absolute low
velocities.
Acceleration slope and deceleration slopes have only one acceleration and
deceleration value each.
v(t)
VMAX
v(t)
A1
A2
A3
VMAX
VBREAK
A1L A1 A2 A3 A3L
t
t
Figure 20: Trapezoidal Ramp without Break Point
Trapezoidal
Ramp with Break
Point
Figure 21: Trapezoidal Ramp with Break Point
In order to make use of a trapezoidal ramp motion profile with break
velocity, do as follows:
Action:
Set RAMPMODE(1:0)=b’01 (register 0x20).
Set proper VBREAK register 0x27.
Set proper AMAX register 0x28 and DMAX register 0x29.
Set proper ASTART register 0x2A and DFINAL register 0x2B.
Set proper VMAX register 0x24.
Result:
The internal velocity VACTUAL is changed successively to VMAX with a linear ramp. In
addition to AMAX and DMAX, ASTART and DFINAL define the acceleration or
deceleration slopes (see Figure above).
NOTES:
AMAX and ASTART determines the rising slope from absolute low to absolute high
velocities.
DMAX and DFINAL determines the falling slope from absolute high to absolute low
velocities.
The acceleration/deceleration factor alters at VBREAK. ASTART and DFINAL are
valid below VBREAK, whereas AMAX and DMAX are valid beyond VBREAK.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Position Mode
combined with
Trapezoidal
Ramps
36/230
Motion direction depends on XTARGET.
In order to use a 4-point or sixPoint ramps during positioning mode, do as
follows:
Action:
Set RAMPMODE(2:0) =b’101 (register 0x20).
Set Trapezoidal ramp type accordingly, as explained above.
Set proper XTARGET register 0x37.
Result:
The ramp finishes exactly at the
|VACTUAL| = VMAX as long as possible.
AACTUAL
Assignments for
Trapezoidal
Ramps
target
position
XTARGET by keeping
AACTUAL assignments apply both for 4-point and sixPoint ramps.
The acceleration/deceleration factor AACTUAL register depends on the current ramp
phase and the velocity that needs to be reached. The related sign assignment for
different ramp phases is given in the following table:
AACTUAL ASSIGNMENTS for Trapezoidal Ramps
Ramp phase:
A1L
A1
A2
A3
A3L
v>0: AACTUAL=
ASTART
AMAX
0
−DMAX
−DFINAL
v0
DFINAL>0
t
Figure 23: S-shaped Ramp with initial and final Acceleration/Deceleration Values
Description is continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Definitions for
S-shaped Ramps
AACTUAL
39/230
The acceleration/deceleration values are altered, based on the bow values.
The start phase and the end phase of an S-shaped ramp is
accelerated/decelerated by ASTART and DFINAL.
The ramp starts with ASTART and stops with DFINAL.
DFINAL becomes valid when AACTUAL reaches the chosen DFINAL value.
i
The parameter DFINAL is not considered during positioning mode.
AACTUAL assignments and current bow value selection for S-shaped ramps.
The acceleration/deceleration factor depends on the current ramp phase and alters
every 64 clock cycles during the bow phases B1, B2, B3, and B4.
Assignments for
S-shaped Ramps
Details are provided in the table below:
S-shaped Ramps: Assignments for AACTUAL and Internal Bow Value
Ramp phase:
B1
B12
B2
B23
B3
B34
B4
v>0: AACTUAL=
ASTARTAMAX
AMAX
AMAX0
0
0-DMAX
-DMAX
-DMAX-DFINAL
BOW1
0
-BOW2
0
-BOW3
0
BOW4
-ASTART-AMAX
-AMAX -AMAX0
0
0DMAX
DMAX
DMAXDFINAL
-BOW1
0
0
BOW3
0
-BOW4
BOWACTUAL=
v 0 (register 0x25).
Set VSTOP = 0 (register 0x26).
Result:
The trapezoidal ramp starts with initial velocity.
NOTE:
The initial acceleration value is AMAX if VBREAK < VSTART, otherwise the starting
acceleration value is ASTART.
v(t)
VMAX
VBREAK
A1L A1 A2 A3 A3L
VSTART
t
Figure 24: Trapezoidal Ramp with initial Velocity
If trapezoidal ramp with initial velocity VSTART is selected:
NOTICE
Avoid unintended system behavior during positioning mode!
Use VSTART without setting VSTOP > VSTART only in positioning mode if there
is enough distance between the current position XACTUAL and the target
position XTARGET.
This will ensure smooth operation during positioning mode.
Turn page for information on how to configure S-shaped ramps with initial start
velocity.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
S-shaped Ramps
with initial Start
Velocity
41/230
In order to use S-shaped ramps with initial start velocity, do as follows:
Action:
Set
Set
Set
Set
RAMPMODE(1:0)=b’10 (register 0x20).
S-shaped ramp type accordingly, as explained before.
proper VSTART > 0 (register 0x25).
VSTOP = 0 (register 0x26).
Result:
The S-shaped ramp starts with initial velocity.
PRINCIPLE:
The initial acceleration value is equal to AMAX. The parameter ASTART is not
considered. Consequently, ramp phase B1 is not performed.
v(t)
VMAX
B1 B12 B2 B23 B3 B34 B4
VSTART
t
Figure 25: S-shaped Ramp with initial Start Velocity
If S-shaped ramp with initial velocity VSTART is selected:
NOTICE
Avoid unintended system behavior during positioning mode!
Keep in mind that the S-shaped character of the curve is maintained. Because
AMAX is the start acceleration value, the ramp will always execute phase B2
which could result in positioning overshoots.
Use VSTART only in positioning mode if there is enough distance between the
current position XACTUAL and the target position XTARGET.
This will ensure smooth operation during positioning mode.
Turn page for information on how to configure finishing ramps with stop velocity.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Finishing Ramps
with Stop
Velocity
42/230
S-shaped and trapezoidal velocity ramps can be finished with a stop velocity value if
you set VSTOP value higher than zero (see figure below).
In order to configure trapezoidal ramps with stop velocity, do as follows:
Action:
Set RAMPMODE(1:0)=b’01 (register 0x20).
Set Trapezoidal ramp type accordingly, as explained before.
Set VSTART = 0 (register 0x25).
Set proper VSTOP > 0 (register 0x26).
Result:
The trapezoidal ramp stops with defined velocity.
v(t)
VMAX
VBREAK
A1L A1 A2 A3 A3L
VSTOP
t
Figure 20: Trapezoidal Ramp with Stop Velocity
If trapezoidal ramps are selected (VBREAK > 0):
NOTICE
Avoid unintended system behavior during positioning mode!
Set VBREAK > VSTOP.
Set VSTART < VSTOP.
This will ensure smooth operation during positioning mode.
Turn page for configuration information on S-shaped ramps with stop velocity.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
S-shaped Ramps
with Stop
Velocity
43/230
In order to use S-shaped ramps with stop velocity, do as follows:
Action:
Set RAMPMODE(1:0)=b’10 (register 0x20).
Set S-shaped ramp type accordingly, as explained before.
Set VSTART = 0 (register 0x25).
Set proper VSTOP > 0 (register 0x26).
Result:
The S-shaped ramp finishes with stop velocity.
NOTE:
The final deceleration value is equal to DMAX. The parameter DFINAL is not
considered. Consequently, ramp phase B4 is not performed.
v(t)
VMAX
B1 B12 B2 B23 B3 B34 B4
VSTOP
t
Figure 26: S-shaped Ramp with Stop Velocity
Interaction of VSTART, VSTOP, VACTUAL and VMAX:
VSTOP can be used in positioning mode, if the target position is reached. In
velocity mode, VSTOP is also used if VACTUAL ≠ 0 and the target velocity
VMAX is assigned to 0.
VSTART and VSTOP are not only used to start or end a velocity ramp. If the
velocity direction alters due to register assignments while a velocity ramp is in
progress, the velocity values develop according to the current velocity ramp
type, using VSTART or VSTOP.
The unsigned values VSTART and VSTOP are valid for both velocity directions.
Every register value change is assigned immediately.
Turn page for information on how to configure S-shaped ramps with start and stop
velocity.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
S-shaped Ramps
with Start and
Stop Velocity
44/230
S-shaped ramps can be configured with a combination of VSTART and VSTOP.
It is possible to include both processes in one S-Shaped ramp to decrease the time
between start and stop of the ramp.
In order to use S-Shaped ramps with a combination of start and stop
velocity, do as follows:
Action:
Set RAMPMODE(1:0)=b’10.
Set S-shaped ramp type accordingly, as explained before, but with BOW2 ≠ BOW4.
Set proper VSTART > 0 (register 0x25).
Set proper VSTOP > 0 (register 0x26).
Result:
The S-shaped ramp starts with initial velocity and stops with defined velocity.
v(t)
VMAX
B1 B12 B2 B23 B3 B34 B4
VSTOP
VSTART
t
Figure 27: S-shaped Ramp with Start and Stop Velocity
If S-shaped ramp with initial velocity VSTART and stop velocity VSTOP is selected:
NOTICE
Avoid unintended system behavior during positioning mode!
Keep in mind that the S-shaped character of the curve is maintained. Because
AMAX is the start acceleration value, the ramp will always execute phase B2,
which could result in positioning overshoots.
Use VSTART in positioning mode, if there is enough distance between the
current position XACTUAL and the target position XTARGET.
This will ensure smooth operation during positioning mode.
Turn page for information on how to use VSTART and ASTART for S-shaped ramps.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Combined Use of
VSTART and
ASTART for
S-shaped Ramps
45/230
For some S-shaped ramp applications it can be useful to start with a defined velocity
value (VSTART > 0);but not with the maximum acceleration value AMAX.
In order to start with a defined velocity value, do as follows:
Action:
Set RAMPMODE(1:0) =b’10 (register 0x20).
Set S-shaped ramp type accordingly, as explained before.
Set proper VSTART > 0 (register 0x25).
Set proper VSTOP > 0 (register 0x26).
Set use_astart_and_vstart =1 (bit0 of the GENERAL_CONF register 0x00).
Result:
The following special ramp types can be generated in this way, as shown below.
i
Section B1 is passed through although VSTART is used.
Using VSTART and starting acceleration of 0
for S-shaped ramps
Using VSTART and starting acceleration,
which is smaller than AMAX for S-shaped ramps
v(t)
v(t)
B1 B12 B2 B23 B3 B34 B4
VMAX
VSTART
VSTOP
VMAX
B1 B12 B2 B23 B3 B34 B4
VSTART
VSTOP
t
aSTART = 0
aSTART > 0
Figure 28: S-shaped Ramps with combined VSTART and ASTART Parameters
If S-shaped ramp with VSTART, ASTART, and VSTOP is selected:
NOTICE
Avoid unintended system behavior during positioning mode!
Keep in mind that the S-shaped character of the curve is maintained. Because
ASTART is the start acceleration value, the ramp will always execute phase B2,
which could result in positioning overshoots.
Use VSTART and ASTART > 0 without setting VSTOP > VSTART only in
positioning mode, if there is enough distance between the current position
XACTUAL and the target position XTARGET.
This will ensure smooth operation during positioning mode.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
46/230
sixPoint Ramps
sixPoint ramps are trapezoidal ramps with initial and stop velocity values that also make use of
two acceleration and two deceleration values.
Configuration of
sixPoint Ramps
sixPoint ramps are trapezoidal velocity ramps that can be configured with a
combination of VSTART and VSTOP.
In order to use trapezoidal ramps with a combination of start and stop
velocity, do as follows:
Action:
Set
Set
Set
Set
Set
RAMPMODE(1:0)=b’01 (register 0x20).
a Trapezoidal ramp type appropriately as explained in section 6.3.6, page 35.
proper VSTART > 0 (register 0x25).
proper VSTOP > 0 (register 0x26).
proper VBREAK > 0 (register 0x27).
Result:
The sixPoint ramp starts with an initial velocity and stops with a defined
velocity.
Diagram of
sixPoint Ramp
v(t)
VMAX
VBREAK
A1L A1 A2 A3 A3L
VSTOP
VSTART
t
Figure 29: sixPoint Ramp: Trapezoidal Ramp with Start and Stop Velocity
If a sixPoint ramp is used:
NOTICE
Avoid unintended system behavior during positioning mode!
Set VBREAK > VSTOP.
Set VSTART < VSTOP.
This will ensure smooth operation during positioning mode.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
47/230
U-Turn Behavior
The process that is triggered when motion direction changes during motion, is described below,
and applies to all ramp types.
U-Turn Behavior
In case the motion direction is changed during motion in velocity mode (by direct
assignment of VMAX) or in positioning mode (due to XTARGET reassignment), the
following process is triggered:
1.
Motion is directed to VACTUAL = 0.
i
2.
A standstill phase of TZEROWAIT clock cycles (register 0x7B) occurs.
i
3.
It is recommended to assign TZEROWAIT > 0, if VSTOP and/or a trapezoidal
ramp type are used, because motor oscillations can occur that must peter
out.
Motion continues to the actual XTARGET (positioning mode), or to the newly
assigned VMAX (velocity mode).
i
Example:
U-Turn for
sixPoint Ramps
If VSTOP is used (≠ 0), motion terminates at VSTOP.
If VSTART is used (≠ 0), motion begins with VSTART if TZEROWAIT > 0.
After reaching VSTOP, TZEROWAIT clock cycles are waited until motion continues to
peter out motor oscillations.
v(t)
TZEROWAIT
VMAX
VBREAK
VSTOP
VSTART
t
-VSTART
-VSTOP
-VBREAK
-VMAX
Figure 30: Example for U-Turn Behavior of sixPoint Ramp
Turn page for information on U-Turn for S-shaped ramps.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Example:
U-Turn for
S-shaped Ramps
48/230
When VACTUAL = 0 is reached, motion immediately continues. In most S-shaped
ramp applications that do not use VSTOP, a standstill phase is not required.
If ASTART > 0 and/or DFINAL > 0, these parameters are also used during U-Turn.
v(t)
TZEROWAIT
=0
-VMAX
t
-VMAX
Figure 31: Example for U-Turn Behavior of S-shaped Ramp
Continuous
Velocity Motion
Profile for
S-shaped Ramps
There is one exception to the above explained U-Turn process:
In case BOW2 equals BOW4, the S-shaped ramp is not stopped at VACTUAL = 0.
While passing VACTUAL = 0, motion acceleration does not equal 0. Thus, the fastest
possible U-Turn behavior for this ramp is created.
In the figure below, this velocity ramp behavior is depicted as bold black line, whereas
the velocity ramp behavior of the process explained above is depicted gray line:
v(t)
BOW2=BOW4!
-VMAX
t
-VMAX
Figure 32: Direct transition via VACTUAL=0 for S-shaped Ramps
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
49/230
Internal Ramp Generator Units
This section provides information about the arithmetical units of the ramp parameters.
Clock Frequency
Velocity Value
Units
All parameter units are real arithmetical units.
Therefore, it is necessary to set the CLK_FREQ register 0x31 to proper [Hz] value,
which is defined by the external clock frequency fCLK. Any value between
fCLK = 4.2 MHz and 32 MHz can be selected.
Default configuration is 16 MHz.
Velocity values are always defined as pulses per second [pps].
VACTUAL is given as a 32-bit signed value with no decimal places. The unsigned
velocity values VSTART, VSTOP, and VBREAK consist of 23 digits and 8 decimal places.
VMAX is a signed value with 24 digits and 8 decimal places.
The maximum velocity VMAX is restricted as follows:
Velocity mode:
|VMAX| ≤ ½ pulse · fCLK
Positioning mode: |VMAX| ≤ ¼ pulse · fCLK
NOTE:
In case VACTUAL exceeds this limit INCORRECT step pulses at STPOUT output
occur and/or positioning is not executed properly.
Furthermore, VMAX have to be the highest nominal value of all velocity values:
|VMAX| > max(VSTART;VSTOP;VBREAK)
Acceleration
Value Units
The unsigned values AMAX, DMAX, ASTART, DFINAL, and DSTOP consist of 22 digits
and 2 decimal places.
AACTUAL shows a 32-bit nondecimal signed value. Acceleration and deceleration units
are defined per default as pulses per second² [pps²].
If higher acceleration/deceleration values are required for short and steep
ramps, do as follows:
Action:
Set direct_acc_val_en =1 (GENERAL_CONF register 0x00).
Result:
The parameters are defined as velocity value change per clock cycle with 24-bit
unsigned decimal places (MSB =2-14). The values are calculated as follows:
AMAX [pps2] = AMAX / 237 · fCLK2
DMAX [pps2] = DMAX / 237 · fCLK2
ASTART [pps2] = ASTART / 237 · fCLK2
DFINAL [pps2] = DFINAL / 237 · fCLK2
DSTOP [pps2] = DSTOP / 237 · fCLK2
The maximum acceleration or deceleration values are as follows:
max(AMAX;DMAX;ASTART;DFINAL;DSTOP) [pps²] ≤ VMAX · fCLK / 1024
In case direct_acc_val_en = 1, the maximum value is also limited to:
max(AMAX;DMAX;ASTART;DFINAL;DSTOP) ≤ 220
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
50/230
Bow values BOW1…BOW4:
Bow values are unsigned 24-bit values without decimal places. They are defined per
default as pulses per second³ [pps³].
Bow Value Units
In case higher bow values are required for short and steep ramps, do as
follows:
Action:
Set direct_bow_val_en =1 (GENERAL_CONF register 0x00)
Result:
The parameters are defined as acceleration value change per clock cycle with 24-bit
unsigned decimal places with the MSB defined as 2-29.
The particular bow values BOW1, BOW2, BOW3, BOW4 are calculated as follows:
BOWx [pps3] = BOWx / 253 · fCLK3
The maximum bow are as follows:
max(BOW1…4) [pps²] ≤ max(AMAX;DMAX) [pps²] · fCLK / 1024
In case direct_bow_val_en = 1, the maximum value is also limited to:
max(BOW1…4) ≤ 220
Overview of Minimum and Maximum Values:
Minimum and Maximum Values (Frequency Mode and in general)
Value Classes
Affected Registers
Minimum Nominal
Value
Maximum Nominal
Value
Maximum Related
Value
Velocity
Acceleration
Bow
Clock
VMAX, VSTART, VSTOP,
VBREAK
AMAX, DMAX,
ASTART, DFINAL
BOW1, BOW2,
BOW3, BOW4
CLK_FREQ
3.906 mpps
0.25 mpps2
1 mpps3
4.194 MHz
8.388 Mpps
4.194 Mpps2
16.777 Mpps3
32 MHz
Velocity mode:
½ pulse · fCLK
Positioning mode:
¼ pulse · fCLK
|VMAX| >
max(VSTART;VSTOP;VBREAK)
VMAX · fCLK / 1024
max(AMAX;DMAX)
· fCLK / 1024
(fCLK)
Table 18: Minimum and Maximum Values if Real World Units are selected
Minimum and Maximum Values for Steep Slopes (Direct Mode, example with fCLK =16MHz)
Value Classes
Affected Registers
Calculation
Minimum Nominal
Value
Maximum Nominal
Value
Maximum Related
Value
Acceleration (direct_acc_val_en =1)
Bow (direct_bow_val_en =1)
AMAX, DMAX, ASTART, DFINAL, DSTOP
BOW1, BOW2, BOW3, BOW4
a[pps²] = (∆v/clk_cycle) / 237 · fCLK2
bow[pps³] = (∆a/clk_cycle) / 253 · fCLK3
~1.86 kpps²
~454.75 kpps³
~1.95 Gpps²
~476.837 Gpps3
VMAX · 15625 Hz
max(AMAX;DMAX) · 15625 Hz
Table 19: Minimum and Maximum Values for Steep Slopes for fCLK =16MHz
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
7.
51/230
External Step Control and Electronic Gearing
Steps can also be generated by external steps that are manipulated internally by an electronic
gearing process. In the following chapter, steps generation by external control and electronic
gearing is presented.
Pins for External Step Control
Pin Names
Type
Remarks
STPIN
Input
Step input signal.
DIRIN
Input
Direction input signal.
Table 20: Pins used for External Step Control
Registers used for external Step Control
Register Name
Register Address
Remarks
GENERAL_CONF
0x00
RW
Bits 9:6, 26.
GEAR_RATIO
0x12
RW
Electronic gearing factor; signed;
32 bits=8+24 (8-bit digits, 24-bit decimal places).
Table 21: Registers used for External Step Control
Enabling
External Step
Control
In order to synchronize with other motion controllers, TMC4361A offers a step
direction input interface at the STPIN and DIRIN input pins.
i
Three options are available. In case one of these options is selected, the internal
step generator is disabled.
OPTION 1: HIGH ACTIVE EXTERNAL STEPS
Action:
Set sdin_mode = b’01 (GENERAL_CONF register 0x00).
Result:
As soon as the STPIN input signal switches to high state the control unit recognizes
an external step.
OPTION 2: LOW ACTIVE EXTERNAL STEPS
Action:
Set sdin_mode = b’10 (GENERAL_CONF register 0x00).
Result:
As soon as the STPIN input signal switches to low state the control unit recognizes an
external step.
OPTION 3: TOGGLING EXTERNAL STEPS
Action:
Set sdin_mode = b’11 (GENERAL_CONF register 0x00).
Result:
As soon as the STPIN input signal switches to low or high state the control unit
recognizes an external step.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Selecting the
Input Direction
Polarity
52/230
DIRIN polarity can be assigned. Per default, the negative direction is indicated by
DIRIN = 0.
In order to change this polarity:
Action:
Set pol_dir_in = 1 (GENERAL_CONF register 0x00).
Result:
A negative input direction is assigned by DIRIN = 1.
Description of
Electronic
Gearing
If an external step is not congruent with an internal step, the GEAR_RATIO register
0x12 must be set accordingly. This signed parameter consists of eight bit digits and
24 bits decimal places.
With every external step the assigned GEAR_RATIO value is added to an internal
accumulation register. As soon as an overflow occurs, an internal step is generated
and the remainder will be kept for the next external step.
Any absolute gearing value between 2-24 and 127 is possible.
NOTE:
Gearing ratios beyond 1 are more reasonable for the SPI output. The internal
SinLUTable is used that generates multiple steps one after another without
interpolation, if the accumulation register value is above 1. In contrast to a burst
of steps at the STPOUT pin, the SPI output will only forward the new position in
the inner SinLUT where only some values have been skipped if |GEAR_RATIO|>1.
A negative gearing factor GEAR_RATIO < 0 inverts the interpretation of the input
direction which is determined by DIRIN and pol_dir_in.
Indirect
External Control
It is possible to use the internal ramp generator in combination with the external S/D
interface.
In this case, the external step impulses transferred via STPIN and DIRIN cannot
influence the internal XACTUAL counter directly. Instead, the XTARGET register is
altered by 1 or -1 with every GEAR_RATIO accumulation register overflow.
NOTE:
Whether XTARGET is increased or decreased is determined similarly to the direct
electronic gearing control. The accumulation register overflow direction indicates
the target alteration. Respectively, the accumulation direction is determined by
the GEAR_RATIO sign, by pol_dir_in, and by DIRIN.
Consecutive input steps must occur with a distance of minimum 64 clock cycles.
i
This feature allows a synchronized motion of different positioning ramps for
different TMC4361A chips with differently configured ramps.
In order to select indirect external control, do as follows:
Action:
Set sdin_mode ≠ b’00 according to the required external control option.
Set sd_indirect_control = 1 (GENERAL_CONF register 0x00).
Result:
As soon as an external step is generated, XTARGET is increased or decreased,
according to the accumulation direction.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Switching from
External to
Internal Control
53/230
In some cases, it is useful to switch from external to internal ramp generation during
motion.
TMC4361A supports a smooth transfer from direct external control to an internal ramp.
The only parameter you need to know and apply is the current velocity when the
switching occurs. In more detail, this means that when the external control is switched
off, VSTART takes over the definition of the actual velocity value. The ramp direction
is then selected automatically. The time step of the last internal step is also taken into
account in order to provide a smooth transition from external to internal ramp control.
In order to select automatic switching from external to internal control, do
as follows:
PRECONDITION (EXTERNAL DIRECT CONTROL IS ACTIVE):
Action:
Set sdin_mode ≠ b’00 (GENERAL_CONF register 0x00).
Set sd_indirect_control = 0 (GENERAL_CONF register 0x00).
Set ASTART = 0 (register 0x2A).
PROCEED WITH:
Action:
Set automatic_direct_sdin_switch_off = 1 (GENERAL_CONF register 0x00) once
before switching to internal control.
Continually adapt VSTART register 0x25 according to the actual velocity of the
TMC4361A that must be calculated in the µC.
If switching must be prompted, set sdin_mode = b’00.
Result:
The internal ramp velocity is started with the value of VSTART, and the direction is
set automatically on the basis of the external steps that have occurred before.
Smooth
Switching for
S-shaped Ramps
In order to also support a smooth S-shaped ramp transition - when the external step
control is switched off - the starting acceleration value can also be set separately at
ASTART register 0x2A.
i
In contrast to the automatic direction assignment, the sign of ASTART must be
set manually.
In order to select automatic switching from external to internal control with
a starting acceleration value, do as follows:
PRECONDITION (EXTERNAL DIRECT CONTROL IS ACTIVE):
Action:
Set sdin_mode ≠ b’00 (GENERAL_CONF register 0x00).
Set sd_indirect_control = 0 (GENERAL_CONF register 0x00).
PROCEED WITH:
Action:
Set automatic_direct_sdin_switch_off = 1 once before switching to internal control.
Continually adapt VSTART register 0x25 according to the actual velocity of the
TMC4361A — that must be calculated in the µC.
Continually adapt ASTART according to the actual acceleration (unsigned value) of
the TMC4361A — that must be calculated in the µC.
Continually set ASTART(31) = 0 or 1 according to the acceleration direction.
If switching must be prompted, set sdin_mode = b’00.
Result:
The internal ramp velocity is started with the value of VSTART, and the direction is
set automatically on the basis of the external steps that have occurred before. The
internal acceleration value is set to:
+ASTART
if ASTART(31) = 0
or
–ASTART
if ASTART(31) = 1.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
8.
54/230
Reference Switches
The reference input signals of the TMC4361A function partly as safety features. The TMC4361A
provides a range of reference switch settings that can be configured for many different
applications. The TMC4361A offers two hardware switches (STOPL, STOPR) and two additional
virtual stop switches (VIRT_STOP_LEFT, VIRT_STOP_RIGHT). A home reference switch
HOME_REF is also available.
Pins used for Reference Switches
Pin Names
Type
Remarks
STOPL
Input
Left reference switch.
STOPR
Input
Right reference switch.
HOME_REF
Input
Home switch.
TARGET_REACHED
Output
Reference switch to indicate XACTUAL=XTARGET.
Table 22: Pins used for Reference Switches
Dedicated Registers for Reference Switches
Register Name
Register Address
Remarks
REFERENCE_CONF
0x01
RW
Configuration of interaction with reference pins.
HOME_SAFETY_MARGIN
0x1E
RW
Region of uncertainty around X_HOME.
DSTOP
0x2C
RW
Deceleration value if stop switches STOPL / STOPR or
virtual stops are used with soft stop ramps. The
deceleration value allows for an automatic linear stop
ramp.
POS_COMP
0x32
RW
Free configurable compare position; signed; 32 bits.
VIRT_STOP_LEFT
0x33
RW
VIRT_STOP_RIGHT
0x34
RW
X_HOME
0x35
RW
Home reference position; signed; 32 bits.
X_LATCH
0x36
RW
Stores XACTUAL at different conditions; signed; 32 bits.
Virtual left stop that triggers a stop event at
XACTUAL ≤ VIRT_STOP_LEFT; signed; 32 bits.
Virtual left stop that triggers a stop event at
XACTUAL ≥ VIRT_STOP_RIGHT; signed; 32 bits.
Table 23: Dedicated Registers for Reference Switches
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
55/230
Hardware Switch Support
The TMC4361A offers two hardware switches that can be configured according to your design.
STOPL and
STOPR
The hardware provides a left and a right stop in order to stop the drive immediately
in case one of them is triggered. Therefore, pin 12 and pin 14 of the motion controller
must be used.
NOTE:
Both switches must be enabled before motion occurs.
In order to enable STOPL correctly, do as follows:
Action:
Determine the active polarity voltage of STOPL and set
(REFERENCE_CONF register 0x01) accordingly.
Set stop_left_en =1 (REFERENCE_CONF register 0x01).
pol_stop_left
Result:
The current velocity ramp stops in case the STOPL voltage level matches pol_stop_left
and VACTUAL < 0.
In order to enable STOPR correctly, do as follows:
Action:
Determine the active polarity voltage of STOPR and set pol_stop_right
(REFERENCE_CONF register 0x01) accordingly.
Set stop_right_en =1 (REFERENCE_CONF register 0x01).
Result:
The current velocity ramp stops in case STOPR voltage level matches pol_stop_right
and VACTUAL > 0.
Stop Slope
Configuration for
Hard or Linear
Stop Slopes
The stop slope can be configured for hard or linear stop slopes. Per default, hard stops
are selected.
If hard stops are required, do as follows:
OPTION 1: HARD STOP SLOPES
Action:
Set soft_stop_en =0 (REFERENCE_CONF register 0x01).
Result:
If one of the stop switches is active and enabled, the velocity ramp is set immediately
to VACTUAL = 0.
OPTION 2: LINEAR STOP SLOPES
If linear stop ramps are required:
Action:
Set proper DSTOP > max(DMAX; DFINAL) (register 0x2C).
Set soft_stop_en =1 (REFERENCE_CONF register 0x01).
Result:
If one of the stop switches is active and enabled, the velocity ramp is stopped with a
linear deceleration slope until VACTUAL = 0 is reached. In this case the deceleration
factor is determined by DSTOP. VSTOP is not considered during the stop deceleration
slope.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
How Active
Stops are
indicated and
reset to Free
Motion
56/230
When an enabled stop switch becomes active the related status flag is set in the
STATUS flags register 0x0F. The flag remains active as long as the stop switch remains
active.
The particular event is also released in the EVENTS register 0x0E, which remains active
until the event bit is reset manually. When VACTUAL = 0 is reached after the stop
event no motion toward this particular direction is possible.
In order to move into the locked direction, the following is required:
PRECONDITION 1:
The particular stop switch is NOT active anymore.
AND/OR
PRECONDITION 2:
The stop switch is disabled (stop_left/right_en = 0).
Action:
Set back the active event by reading out the EVENTS register 0x0E.
i
See information about clearing events provided in section 5.1. , page 25.
Result:
The active stop event is reset to free motion into the locked direction.
How to latch
Internal Position
on Switch Events
It is possible to select four different events to store the current internal position
XACTUAL in the register X_LATCH.
The table below show which transition of the reference signal leads to the X_LATCH
transfer. For each transition process the specified reference configurations in the
REFERENCE_CONF register 0x01 must be set accordingly.
Reference Configuration pol_stop_left=0
pol_stop_left=1 pol_stop_right=0 pol_stop_right=1
latch_x_on_inactive_l=1
STOPL=0 1
STOPL=1 0
---
---
latch_x_on_active_l=1
STOPL=1 0
STOPL=0 1
---
---
latch_x_on_inactive_r=1
---
---
STOPR=0 1
STOPR = 10
latch_x_on_active_r=1
---
---
STOPR=1 0
STOPR = 01
Table 24: Reference Configuration and Corresponding Transition of particular Reference Switch
Interchange the
Reference
Switches
without Physical
Reconnection
If you need to change the directions of the reference switches, do as
follows:
Action:
Set invert_stop_direction=1 (REFERENCE_CONF register 0x01).
Result:
STOPL is now the right reference switch and STOPR is now the left reference switch.
Consequently, all configuration parameters for STOPL become valid for STOPR and
vice versa.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
57/230
Virtual Stop Switches
TMC4361A provides additional virtual limits; which trigger stop slopes in case the specific
virtual stop switch microstep position is reached. Virtual stop positions are assigned using the
VIRTUAL_STOP_LEFT register 0x33 and VIRTUAL_STOP_RIGHT register 0x34. In this section,
configuration details for virtual stop switches are provided for various design-in purposes.
NOTE:
Virtual stop switches must be enabled in the same manner as nonvirtual reference switches. Hitting a
virtual limit switch - by receiving the assigned position - triggers the same process as hitting STOPL or
STOPR.
Enabling Virtual
Stop Switches
In order to enable left virtual stop correctly, do as follows:
Action:
Set VIRTUAL_STOP_LEFT register 0x33 according to left stop position.
Set virtual_left_limit_en =1 (REFERENCE_CONF register 0x01).
Result:
The actual velocity ramp stops in case XACTUAL ≤ VIRT_STOP_LEFT. The ramp is
stopped according to the selected ramp type.
In order to enable right virtual stop correctly, do as follows:
Action:
Set VIRTUAL_STOP_RIGHT register 0x34 according to right stop position.
Set virtual_right_limit_en =1 (REFERENCE_CONF register 0x01).
Result:
The actual velocity ramp stops in case XACTUAL ≥ VIRT_STOP_RIGHT. The ramp is
stopped according to the selected ramp type.
The virtual stop slope can also be configured for hard or linear stop slopes.
Virtual Stop
Slope
Configuration
If virtual hard stops are required, do as follows:
Action:
Set virt_stop_mode = b’01 (REFERENCE_CONF register 0x01).
Result:
If one of the virtual stop switches is active and enabled, the velocity ramp will be set
immediately to VACTUAL = 0.
If virtual linear stop ramps are required, do as follows:
Action:
Set proper DSTOP > max(DMAX; DFINAL) (register 0x2C).
Set virt_stop_mode = b’10 (REFERENCE_CONF register 0x01).
Result:
If one of the virtual stop switches is active and enabled, the velocity ramp is stopped
with a linear deceleration slope until VACTUAL = 0 is reached. In this case the
deceleration factor is determined by DSTOP. VSTOP is not considered during the stop
deceleration slope.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
How Active
Virtual Stops are
indicated and
reset to Free
Motion
58/230
At the same time when an enabled virtual stop switch becomes active the related
status flag is activated in the STATUS flags register 0x0F. The flag remains active as
long as the stop switch remains active.
The particular event is also released in the EVENTS register 0x0E, which remains active
until the event is reset manually. When VACTUAL = 0 is reached after the stop event
no motion in the particular direction is possible.
In order to move into the locked direction, the following is required:
PRECONDITION 1:
The particular stop switch is NOT active anymore because the actual position does not
exceed the specified limit.
AND/OR
PRECONDITION 2:
Virtual stop switch is disabled (virtual_left/right_limit_en = 0).
Action:
Set back active event by reading out EVENTS register 0x0E.
i
See information about clearing events provided in section 5.1. , page 25.
Result:
The active virtual stop event bit is reset to free motion into the direction that was
locked beforehand.
i
invert_stop_direction has
VIRTUAL_STOP_RIGHT.
no
influence
on
VIRTUAL_STOP_LEFT
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
and
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
59/230
Home Reference Configuration
In this section home reference switch handling is explained with information about home
tracking modes, possible home event configurations and home event monitoring. For
monitoring, the switch reference input HOME_REF is provided.
Switch
Reference Input
HOME_REF
Perform the following to initiate the homing process:
Action:
Assign a ramp according to your needs for the homing process.
Enable the home tracking mode with start_home_tracking = 1
(REFERENCE_CONF register 0x01).
Set the correct home_event (REFERENCE_CONF register 0x01) for the
HOME_REF input pin (see table below).
Start the ramp towards the home switch HOME_REF.
Result:
When the next home event is recognized, XACTUAL is latched to X_HOME.
At the same time, the start_home_tracking switch is disabled automatically in
case XLATCH_DONE event is cleared.
The XLATCH_DONE event is released in the events register 0x0E. This event
can be used for an interrupt routine for the homing process to avoid polling.
i
If an incremental encoder is used to monitor the motion, the N channel can be
used to fine-tune the homing position (home_event = b’0000). After performing
the homing process - as explained before - the N channel events can be used to
obtain a more precise home position.
i
X_HOME can be overwritten manually.
Nine different home events are possible.
Home Event
Selection
i
Except for the home_event = b’0000, which uses the index channel of an
incremental encoder, home events are related to the the HOME_REF input pin:
Home Event Selection Table
Description
X_HOME
(direction: negative / positive)
b’0011
HOME_REF = 0 indicates negative direction in
reference to X_HOME
HOME_REF
b’1100
HOME_REF = 0 indicates positive direction in
reference to X_HOME
HOME_REF
b’0110
X_HOME in center
HOME_REF
X_HOME on the left side
HOME_REF
b’0100
X_HOME on the right side
HOME_REF
b’1001
X_HOME in center
HOME_REF
X_HOME on the right side
HOME_REF
X_HOME on the left side
HOME_REF
home_event
b’0010
b’1011
b’1101
HOME_REF = 1
indicates home
position
HOME_REF = 0
indicates home
position
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
Table 25: Overview of different home_event Settings
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
60/230
HOME_REF
Monitoring
An error flag HOME_ERROR_F is permanently evaluated. This error flag indicates
whether the current voltage level of the HOME_REF reference input is valid in regard
to X_HOME and the selected home_event.
Defining a Home
Range around
HOME_REF
In order to avoid false error flags (HOME_ERROR_F) because of mechanical
inaccuracies, it is possible to setup an uncertainty home range around X_HOME. In
this range, the error flag is not evaluated.
If you want to define an uncertainty area around X_HOME, do as follows:
Action:
Set HOME_SAFETY_MARGIN register 0x1E according to the required range [ustep].
Result:
The homing uncertainties – related to the application environment – are considered
for the ongoing motion. The error flag is NOT evaluated in the following range:
X_HOME − HOME_SAFETY_MARGIN ≤ XACTUAL ≤ X_HOME + HOME_SAFETY_MARGIN
NOTE:
It is recommended to assign to a higher range value for HOME_SAFETY_MARGIN
in which the HOME_REF level is active for the home_events b’0110, b’0010,
b’0100, b’1001, b’1011, and b’1101. It avoids false positive HOME_ERROR_Flags.
After homing with the index channel (home_event = b’0000) for a precise
assignment of X_HOME the correct home_event has to be assigned in order to
activate the generation of HOME_ERROR_Flags. Note that home_event = b’0000
results in HOME_ERROR_Flag=0 permanently.
The following examples illustrate the points at which the error flag is
release – based on the selected home_event – here for home_event = b’0011 (*),
b’1100 (**), b’0110 (***), b’0010 (***), b’0100 (***), b’1001 (****), b’1011
(****), and b’1101 (****).
HOME_SAFETY_MARGIN
HOME_SAFETY_MARGIN
X_HOME
X_HOME
HOME_REF
HOME_REF
HOME_ERROR_Flag *
HOME_ERROR_Flag *
HOME_ERROR_Flag **
HOME_ERROR_Flag **
HOME_ERROR_Flag ***
HOME_ERROR_Flag ***
HOME_ERROR_Flag ****
HOME_ERROR_Flag ****
Figure 33: HOME_REF Monitoring and HOME_ERROR_FLAG
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
61/230
STOPL and STOPR inputs can also be used as HOME_REF inputs.
Homing with
STOPL or STOPR
OPTION 1: STOPL IS THE HOME SWITCH
Action:
Set stop_left_is_home = 1 (REFERENCE_CONF register 0x01).
Result:
The stop event at STOPL only occurs when the home range is crossed after STOPL
becomes active. The home range is given by X_HOME and HOME_SAFETY_MARGIN.
OPTION 2: STOPR IS HOME SWITCH
Action:
Set stop_right_is_home = 1 (REFERENCE_CONF register 0x01).
Result:
The stop event at STOPR only occurs when the home region is crossed after STOPR
becomes active. The home region is given by X_HOME and HOME_SAFETY_MARGIN.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
62/230
Target Reached / Position Comparison
In this section, TARGET_REACHED output pin configuration options are explained, as well as
different ways how to compare different values internally.
Target Reached
Output Pin
TARGET_REACHED output pin forwards the TARGET_REACHED_Flag. As soon as
XACTUAL equals XTARGET, TARGET_REACHED is active. Per default, the
TARGET_REACHED pin is high active.
To change the TARGET_REACHED output polarity, do the following:
Action:
Set invert_pol_target_reached = 1 (bit16 of the GENERAL_CONF register 0x00).
Result:
TARGET_REACHED pin is low active.
Connecting
several
Target-reached
Pins
TARGET_REACHED pins can also be configured for a shared signal line in the same
way as several INTR pins can configured for one interrupt signal transfer (see
section 5.4. (page 27).
To use a Wired-Or or Wired-And behavior, the below described order of
action must be executed:
Action:
Step 1: Set intr_tr_pu_pd_en = 1 (GENERAL_CONF register 0x00).
OPTION 1: WIRED-OR
Action:
Step 2: Set tr_as_wired_and = 0 (GENERAL_CONF register 0x00).
Result:
The TARGET_REACHED pin works efficiently as Wired-Or (default configuration).
i
In case TARGET_REACHED pin is inactive, the pin drive has a weak inactive
polarity output. During active state, the output is driven strongly. Consequently,
if one of the connected pins is activated, the whole line is set to active polarity.
OPTION 2: WIRED-AND
Action:
Step 2: Set tr_as_wired_and = 1 (GENERAL_CONF register 0x00).
Result:
As long as the target position is not reached, the TARGET_REACHED pin has a strong
inactive polarity output. During active state, the pin drive has a weak active polarity
output. Consequently, the whole signal line is activated if all connected pins are
forwarding the active polarity.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
63/230
Use of TARGET_REACHED Output
Per default, TARGET_REACHED pin forwards the TARGET_REACHED_Flag that signifies
XACTUAL = XTARGET. The pin can also be used to forward three other flags:
VELOCITY_REACHED_Flag, ENC_FAIL_Flag, POS_COMP_REACHED_Flag.
NOTE:
Only one option can be selected.
Four Options for
TARGET_REACHED
The
TARGET_REACHED
output
REFERENCE_CONF register 0x01.
pin
configuration
switch
is
available
The available optons are as follows:
TARGET_REACHED Output Pin Configuration
If pos_comp_output…
Then TARGET_REACHED forwards…
b’00
TARGET_REACHED_Flag
b’01
VELOCITY_REACHED_Flag
b’10
ENC_FAIL_Flag
b’11
POS_COMP_REACHED_Flag
Table 26: TARGET_REACHED Output Pin Configuration
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
at
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
64/230
Position Comparison of Internal Values
TMC4361A provides several ways of comparing internal values. The position comparison
process is permanently active and associated with one flag and one event. A positive
comparison result can be forwarded through the INTR pin using the POS_COMP_REACHED
event as interrupt source or by using the TARGET_REACHED pin as explained in section 8.4.2,
page 63.
Basic
Comparison
Settings
How to compare the internal position with an arbitrary value:
Action:
Select a comparison value in the POS_COMP register 0x32.
Select pos_comp_source = 0 (REFERENCE_CONF register 0x01).
Result:
XACTUAL is compared with POS_COMP. When POS_COMP equals XACTUAL the
POS_COMP_REACHED_Flag becomes set and the POS_COMP_REACHED event
becomes released.
Select External
Position as
Comparison
Base
How to compare the external position with an arbitrary value:
Action:
Select a comparison value in the POS_COMP register 0x32.
Select pos_comp_source = 1 (REFERENCE _CONF register 0x01).
Result:
ENC_POS is compared with POS_COMP. When POS_COMP equals ENC_POS the
POS_COMP_REACHED_Flag becomes set and the POS_COMP_REACHED event
becomes released.
NOTE:
Because ENC_POS represents microsteps and not encoder steps, POS_COMP
represents also microsteps for the comparison process with external positions.
In case ENC_POS moves past POS_COMP without assuming the same value as
POS_COMP, the POS_COMP_REACHED event is not flagged but is nonetheless
listed in the EVENTS register in order to indicate that it has traversed.
In addition to comparing XACTUAL / ENC_POS with POS_COMP, it is also possible to
conduct a comparison of one of both parameters with X_HOME or X_LATCH resp.
ENC_LATCH. TMC4361A also allows comparison of the revolution counter REV_CNT
against POS_COMP.
Comparison
selection grid
SETTINGS
ALERT
!
Only the selected combination generates the POS_COMP_REACHED_Flag
and the corresponding event. Therefore, select modified_pos_compare in
the REFERENCE_CONF register 0x01 as outlined in the table below:
Comparison Selection Grid
pos_comp_source
modified_pos_compare
‘0’
‘1’
‘00’
XACTUAL vs. POS_COMP
ENC_POS vs. POS_COMP
‘01’
XACTUAL vs. X_HOME
ENC_POS vs. X_HOME
‘10’
XACTUAL vs. X_LATCH
ENC_POS vs. ENC_LATCH
‘11’
REV_CNT vs. POS_COMP
Table 27: Comparison Selection Grid to generate POS_COMP_REACHED_Flag
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
65/230
Repetitive and Circular Motion
TMC4361A also provides options for auto-repetitive or auto-circular motion. In this section
configuration options are explained.
Repetitive
Motion to
XTARGET
Per default, reaching XTARGET in positioning mode finishes a positioning ramp.
In order to continuously repeat the specified ramp, do as follows:
PRECONDITION:
Set RAMPMODE(2) = 1 (positioning mode is active).
Configure a velocity ramp according to your requirements.
Action:
Set clr_pos_at_target =1 (REFERENCE_CONF register 0x01).
Result:
After XTARGET is reached (TARGET_REACHED_Flag is active), XACTUAL is set to 0.
As long as XTARGET is NOT 0, the ramp restarts in order to reach XTARGET again.
This leads to repetitious positioning ramps from 0 towards XTARGET.
NOTE:
It is possible to change XTARGET during repetitive motion. The reset of XACTUAL
to 0 is always executed when XACTUAL equals XTARGET.
Activating
Circular Motion
If circular motion profiles are necessary for your application, TMC4361A offers a
position limitation range of XACTUAL with an automatic overflow processing. As soon
as XACTUAL reaches one of the two position range limits (positive / negative), the
value of XACTUAL is set automatically to the value of the opposite range limit.
In order to activate circular motion, do as follows:
PRECONDITION:
If you want to activate circular motion, XACTUAL must be located within the defined
range.
PROCEED WITH:
Action:
Set X_RANGE ≠ 0 (register 0x36, only writing access!).
Set circular_motion = 1 (REFERENCE_CONF register 0x01).
Result:
The positioning range of XACTUAL is limited to: −X_RANGE ≤ XACTUAL < X_RANGE.
When XACTUAL reaches the most positive position ( X_RANGE – 1) and the motion
proceeds in positive direction; the next XACTUAL value is set to −X_RANGE. The same
applies to proceeding in negative direction; where (X_RANGE – 1) is the position after
−X_RANGE.
i
During positioning mode, the motion direction will be dependent on the shortest
path to the target position XTARGET. For example, if XACTUAL = 200,
X_RANGE = 300 and XTARGET = −200, the positioning ramp will find its way
across the overflow position (299 −300) (see Figure A) in Table 27 (page 68).
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Uneven or
Noninteger
Microsteps per
Revolution
Due to definition of the limitation range, one revolution only consists of an even
number of microsteps. TMC4361A provides an option to overcome this limitation.
Example 1:
Uneven Number
of Microsteps
per Revolution
66/230
Some applications demand different requirements because a revolution consists
of an uneven or noninteger number of microsteps.
TMC4361A allows a high adjustment range of microsteps by using:
CIRCULAR_DEC register 0x7C.
This value represents one digit and 31 decimal places as extension for the
number of microsteps per one revolution.
A revolution is completed at overflow position. With every completed revolution
the CIRCULAR_DEC value is added to an internal accumulation register. In case
this register has an overflow, XACTUAL remains at its overflow position for one
step.
On average, this leads to the following microsteps per revolution:
Microsteps/rev = (2 · X_RANGE) + CIRCULAR_DEC / 231.
One revolution consists of 601 microsteps.
A definition of X_RANGE = 300 will only provide:
600 microsteps per revolution (−300 ≤ XACTUAL ≤ 299).
Whereas X_RANGE = 301 will result in:
602 microsteps per revolution (−301 ≤ XACTUAL ≤ 300).
By setting:
CIRCULAR_DEC = 0x80000000 (= 231 / 231 = 1).
An overflow is generated at the decimals accumulation register with every revolution.
Therefore, XACTUAL prolongs the step at the overflow position for one step every
time position overflow is overstepped. This results in a microstep count of 601 per
revolution.
Example 2:
Noninteger
Number of
Microsteps per
Revolution
One revolution consists of 600.5 microsteps.
Example 3:
Noninteger and
uneven Number
of Microsteps
per Revolution
One revolution consists of 601.25 microsteps.
By setting:
CIRCULAR_DEC = 0x40000000 (= 230 / 231 = 0.5).
Every second revolution an overflow is produced at the decimals’ accumulation
register. This leads to a microstep count of 600 every second revolution and 601 for
the other half of the revolutions. On average, this leads to 600.5 microsteps per
revolution.
By setting:
CIRCULAR_DEC = 0xA0000000 (= (231 + 229) / 231 = 1.25).
With every revolution an overflow is produced at the decimals’ accumulation register.
Furthermore, at every fourth revolution an additional overflow occurs, which leads to
another prolonged step. This leads to a microstep count of 601 for three of four
revolutions and 602 for every fourth revolution. On average, this results in 601.25
microsteps per revolution.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Release of the
Revolution
Counter
67/230
By overstepping the position overflow, the internal REV_CNT register is increased by
one revolution as soon as XACTUAL oversteps from (X_RANGE – 1) to -X_RANGE or
is decreased by one revolution as soon as XACTUAL oversteps in the opposite
direction.
The information about the number of revolutions can be obtained by reading out
register 0x36, which by default is the X_LATCH register (read only).
In order to gain information on the number of revolutions:
Action:
Set circular_cnt_as_xlatch = 1 (GENERAL_CONF register 0x00).
Result:
Register 0x36 cease to display the X_LATCH value. Instead, the revolution counter
REV_CNT can be read out at this register address.
NOTE:
As soon as circular motion is inactive (circular_motion=0), REV_CNT is reset to 0.
Blocking Zones
Activating
Blocking Zones
during Circular
Motion
During circular motion, virtual stops can be used to set blocking zones. Positions inside
these blocking zones are NOT dedicated for motion.
In order to activate the blocking zone, do as follows:
PRECONDITION:
Circular motion
(X_RANGE ≠ 0).
is
activated
(circular_motion = 0)
and
properly
assigned
PROCEED WITH:
Action:
Set VIRTUAL_STOP_LEFT register 0x33 as left limit for the blocking zone.
Set VIRTUAL_STOP_RIGHT register 0x34 as right limit for the blocking zone.
Enable both virtual limits as explained in section 8.2.1 (page 57).
Result:
The blocking zone reaches from VIRTUAL_STOP_LEFT to VIRTUAL_STOP_RIGHT.
During positioning, the path from XACTUAL to XTARGET does not lead through the
blocking zone; which can result in a longer path compared to the direct path through
the blocking zone (see Figure B1 in Table 28, page 68).
However, the selected virtual stop deceleration ramp is initiated as soon as one of the
limits is reached. This can result from the velocity mode or if the target XTARGET is
located in the blocking zone.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Blocking Zone
Definition
68/230
The following positions are located within the blocking zone:
XACTUAL ≤ VIRT_STOP_LEFT
AND / OR
XACTUAL ≥ VIRT_STOP_RIGHT
NOTE:
In case VIRTUAL_STOP_LEFT < VIRTUAL_STOP_RIGHT, one of these conditions
must be met in order to be located inside the blocking zone.
In case VIRTUAL_STOP_LEFT > VIRTUAL_STOP_RIGHT, both conditions must be
met in order to be located inside the blocking zone.
Circular Motion
with and without
Blocking Zone
The table below shows circular motion (X_RANGE = 300). The green arrow depicts
the path which is chosen for positioning.
The shortest path selection is shown in Figure A and the consideration of blocking
zones are shown in Figures B1 and B2.
Circular Motion with (B1, B2) and Without (A) Blocking Zone
A
B1
0
0
PL=-2
90
VS TO
20
=2
PR
Short
path
-200
TO
VS
VSTOPL=140
TO
-300 299
Long path
(but free)
VS
200
Long path
(and blocked)
PR
=7
0
0
Long
path
-200
B2
-300 299
200
Short path
(but blocked)
200
-200
-300 299
Short
path
Table 28: Circular motion (X_RANGE = 300)
Moving out of
the Blocking
Zone
When XACTUAL is located inside the blocking zone, it is possible to move out without
redefining the blocking zone.
In order to get out of the blocking zone, do the following:
Action:
Activate positioning mode: RAMPMODE(2) = 1.
Configure velocity ramp according to your needs.
Clear virtual stop events by reading out EVENTS register 0x0E.
Set regular target position XTARGET outside of the blocking zone.
Result:
TMC4361A initiates a ramp with the shortest way to the target XTARGET.
i
In order to match an incremental encoder in the same manner, select
circular_enc_en =1 (REFERENCE_CONF register 0x01).
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
9.
69/230
Ramp Timing and Synchronization
TMC4361A provides various options to initiate a new ramp. By default, every external register
change is assigned immediately to the internal registers via an SPI input. With a proper start
configuration, ramp sequences can be programmed without any intervention in between.
Synchronization
Opportunities
Three levels of ramp start complexity are available. Predefined ramp starts are
available, which are independent of SPI data transfer that are explained in the
subsequent section 9.1. (page 70).
Two optional features can be configured that can either be used individually
or combined, which are as follows:
Shadow
Register Set
A complete shadow motion register set can be loaded into the actual motion registers
in order to start the next ramp with an altered motion profile.
Target Position
Pipeline
Different target positions can be predefined, which are then activated successively.
This pipeline can be configured as cyclic; and/or it can also be utilized to sequence
different parameters.
Masterless
Synchronization
Also, another start state “busy” can be assigned in order to synchronize several motion
controllers for one single start event without a master.
Dedicated Ramp Timing Pins
Pin Names
Type
Remarks
START
Input and Output
External start input to get a start signal or external start
output to indicate an internal start event.
Table 29: Dedicated Ramp Timing Pins
Dedicated Ramp Timing Registers
Register Name
Register Address
Remarks
START_CONF
0x02
RW
The configuration register of the synchronization unit.
START_OUT_ADD
0x11
RW
Additional active output length of external start signal.
START_DELAY
0x13
RW
Delay time between start triggers and start signal.
X_PIPE0… 7
0x38…0x3F
RW
Target positions pipeline and/or parameter pipeline.
SH_REG0…12
0x40…0x4C
RW
Shadow register set
Table 30: Dedicated Ramp Timing Registers
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
70/230
Basic Synchronization Settings
Usually, a ramp can be initiated internally or externally. Note that a start trigger is not the start
signal itself but the transition slope to the active start state. After a defined delay, the internal
start signal is generated.
Start Signal
Trigger Selection
For ramp start configuration, consider the following steps:
Action:
Choose internal or external start trigger(s).
Set the triggers according to the table below.
i All triggers can be used separately or in combination.
Start Trigger Configuration Table
trigger_events =
START_CONF(8:5)
Result
b’0000
No start signal will be generated or processed further.
b’xxx0
b’xxx1
Set trigger_events(0) = 0 for internal start triggers only. The internally generated
start signal is forwarded to the START pin that is assigned as output.
Set trigger_events(0) = 1 for an external start trigger. The START pin is
assigned as input.
For START input take filter settings into consideration. See chapter 4, page 20.
b’xx1x
TARGET_REACHED event is assigned as start signal trigger for the ramp timer.
b’x1xx
VELOCITY_REACHED event is assigned as start signal trigger for the ramp timer.
b’1xxx
POSCOMP_REACHED event is assigned as start signal trigger for the ramp timer.
Table 31: Start Trigger Configuration
User-specified
Impact
Configuration of
Timing
Procedure
Per default, every SPI datagram is processed immediately. By selecting one of the
following enable switches, the assignment of SPI requests to registers XTARGET,
VMAX, RAMP_MODE, and GEAR_RATIO is uncoupled from the SPI transfer. The value
assignment is only processed after an internally generated start signal.
In order to influence the impact of the start signal on internal parameter
assignments, do the following:
Action:
Choose between the following options as shown in the table below.
Start Enable Switch Configuration Table
(All switches can be used separately or in combination.)
start_en =
START_CONF(4:0)
Result
b’xxxx1
XTARGET is altered only after an internally generated start signal.
b’xxx1x
VMAX is altered only after an internally generated start signal.
b’xx1xx
RAMPMODE is altered only after an internally generated start signal.
b’x1xxx
GEAR_RATIO is altered only after an internally generated start signal.
b’1xxxx
Shadow register is assigned as active ramp parameters after an internally
generated start signal. This is explained in more detail in section 9.2. (page 75).
Table 32: Start Enable Switch Configuration
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
71/230
Per default, the trigger is closely followed by the internal start signal.
Delay Definition
between Trigger
and internally
generated Start
Signal
In order to delay the generation of the internal start signal, do the
following:
Action:
Set START_DELAY register 0x13 according to your specification.
Result:
When a start trigger is recognized, the internal start signal is generated after
START_DELAY clock cycles.
Prioritizing
External Input
Per default, an external trigger is also delayed for the internal start signal generation.
In order to immediately prompt an external start, trigger to an internally
generated start signal (regardless of a defined delay), do the following:
Action:
Set immediate_start_in = 1 (START_CONF register 0x02).
Result:
When an external start trigger is recognized, the internal start signal is generated
immediately, even if the internal start triggers have already initiated a timing process
with an active delay.
START Pin
Polarity
The START pin can be used either as input or as output pin. However, the active
voltage level polarity of the START pin can be selected with one configuration switch
in the START_CONF register 0x02.
Per default, the voltage level transition from high to low triggers a start signal (START
is an input), or START output indicates an active START event by switching from high
to low level.
In order to invert active START polarity, do as follows:
Action:
Set pol_start_signal = 1 (START_CONF register 0x02).
Result:
The START pin is high active. The voltage level transition from low to high triggers a
start signal (START is an input), or START output indicates an active START event by
switching from low to high level.
Per default, the active output voltage level of the START pin lasts one clock cycle.
Active START Pin
Output
Configuration
In order to extend this time span, do the following:
Condition:
START pin is assigned as output: trigger_events(0) = 1.
Action:
Set START_OUT_ADD register 0x11 according to your specification.
Result:
The active voltage level lasts (START_OUT_ADD + 1) clock cycles.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
72/230
The following three examples depict SPI datagrams, internal and external signal levels,
corresponding velocity ramps, and additional explanations. SPI data is transferred
internally at the end of each datagram.
Ramp Timing
Examples
Ramp Timing
Example 1
In this example, the velocity value change is executed immediately.
Process
Description
The new XTARGET value is assigned after TARGET_REACHED has been set and
START_DELAY has elapsed.
A new ramp does not start at the end of the second ramp because no new
XTARGET value is assigned.
START is an output.
Internal start signal forwards with a step length of (START_OUT_ADD + 1)
clock cycles.
This is how external devices can be synchronized:
Parameter Settings Timing Example 1
Parameter
Setting
RAMPMODE
b’101
start_en
b’00001
trigger_events
b’0010
START_DELAY
>0
START_OUT_ADD
>0
pol_start_signal
1
Table 33: Parameter Settings Timing Example 1
SPI
VMAX
=2000
XTARGET
=2000
v(t)
2000
XACTUAL=2000
XACTUAL=1800
1000
trigger event
t
trigger event
TARGET_REACHED
VMAX_REACHED
START_DELAY
internal start timer
START_DELAY
internal start signal
START
START_OUT_ADD
START_OUT_ADD
Figure 34: Ramp Timing Example 1
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Ramp Timing
Example 2
73/230
In this example, the velocity value and the ramp mode value change is executed after
the first start signal.
Process
Description
The new ramp mode becomes positioning mode with S-shaped ramps.
The ramp then stops at target position XTARGET because of the ramp mode
change.
A further XTARGET change starts the ramp again.
The ramp is initiated as soon as the start delay is completed, which was
triggered by the first TARGET_REACHED event.
The active START output signal lasts only one clock cycle.
Parameter Settings Timing Example 2
Parameter
Setting
RAMPMODE
b’001 b’110
start_en
b’00111
trigger_events
b’0110
START_DELAY
>0
START_OUT_ADD
0
pol_start_signal
0
Table 34: Parameter Settings Timing Example 2
SPI
XTARGET
=2000
VMAX
=1000
RAMPMODE
=110
VMAX
=2250
XTARGET
=2000
v(t)
2000
1000
XACTUAL=2000
t
trigger event
TARGET_REACHED
trigger event
trigger event
VMAX_REACHED
internal start timer
START_DELAY
START_DELAY
internal start signal
START
Figure 35: Ramp Timing Example 2
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Ramp Timing
Example 3
74/230
In this example external start signal triggers are prioritized by making use of
START_DELAY > 0 and simultaneously setting immediate_start_in to 1.
Process
Description
When XACTUAL equals POSCOMP the start timer is activated and the external
start signal in between is ignored.
The second start event is triggered by an external start signal. The
POSCOMP_REACHED event is ignored.
The third start timer process is disrupted by the external START signal, which is
forced to be executed immediately due to the setting of:
immediate_start_in = 1.
Parameter Settings Timing Example 3
Parameter
Setting
RAMPMODE
b’000
start_en
b’00010
trigger_events
b’1001
immediate_start_in
01
START_DELAY
>0
pol_start_signal
1
Table 35: Parameter Settings Timing Example 3
SPI
VMAX
= -1000
VMAX
=250
VMAX
=1000
immediate_start_in
=1
VMAX
= -250
START
v(t)
ignored trigger event due
to ongoing start timer
trigger event
trigger event
1000
t
XACTUAL=POSCOMP
XACTUAL=POSCOMP
-1000
ignored trigger event due
to ongoing start timer
trigger event
POSCOMP_REACHED
internal start timer
START_DELAY
START_DELAY
internal start signal
Figure 36: Ramp Timing Example 3
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
trigger event
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
75/230
Shadow Register Settings
Some applications require a complete new ramp parameter set for a specific ramp
situation / point in time. TMC4361A provides up to 14 shadow registers, which are loaded into
the corresponding ramp parameter registers after an internal start signal is generated.
Enabling
Shadow
Registers
In order to enable shadow registers, do as follows:
Action
Set start_en(4) = 1 and select one or more trigger_events (START_CONF register
0x02), see section 9.1.2 (page 70).
Result:
With every successive internal start signal the shadow registers are loaded into the
corresponding active ramp register.
Enabling Cyclic
Shadow
Registers
It is also possible to write back the current motion profile into the shadow motion
registers to swap ramp motion profiles continually.
In order to enable cyclic shadow registers, do as follows:
Action
Set start_en(4) = 1 and select one or more trigger_events (START_CONF register
0x02) , see section 9.1.2 (page 70).
Set cyclic_shadow_regs = 1 (START_CONF register 0x02).
Result:
With every successive internal start signal the shadow registers are loaded into the
corresponding active ramp register, whereas the active motion profile is loaded into
the shadow registers.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Shadow Register
Configuration
Options
Option 1:
Shadow Default
Configuration
76/230
Four different optional shadow register assignments are available to match the
shadow register set according to your selected ramp type. The available options are
described on the next pages.
Please note that the only difference between the configuration of shadow option
3 and 4 is that VSTART is exchanged by VSTOP for the transfer of the shadow
registers.
i
If the whole ramp register is needed to set in a single level stack, do as
follows:
Action:
Set shadow_option = b’00 (START_CONF register 0x02).
Set start_en(4) = 1 and select one or more trigger_events (START_CONF register
0x02)
Action:
Default configuration: Set cyclic_shadow_regs = 0 (START_CONF register
0x02)
Optional configuration: Set cyclic_shadow_regs = 1 (START_CONF register
0x02)
Result:
Every relevant motion parameter is altered at the next internal start signal by the
corresponding shadow register parameter. In case cyclic shadow registers are used,
the shadow register set is altered by the current motion profile set.
20
24
25
26
27
28
29
2A
2B
2D
2E
2F
30
RAMPMODE
VMAX
VSTART
VSTOP
VBREAK
AMAX
DMAX
ASTART
DFINAL
BOW1
BOW2
BOW3
BOW4
4C
40
46
47
45
41
42
43
44
48
49
4A
4B
SH_REG12
SH_REG0
SH_REG6
SH_REG7
SH_REG5
SH_REG1
SH_REG2
SH_REG3
SH_REG4
SH_REG8
SH_REG9
SH_REG10
SH_REG11
20
24
25
26
27
28
29
2A
2B
2D
2E
2F
30
RAMPMODE
VMAX
VSTART
VSTOP
VBREAK
AMAX
DMAX
ASTART
DFINAL
BOW1
BOW2
BOW3
BOW4
4C
40
46
47
45
41
42
43
44
48
49
4A
4B
SH_REG12
SH_REG0
SH_REG6
SH_REG7
SH_REG5
SH_REG1
SH_REG2
SH_REG3
SH_REG4
SH_REG8
SH_REG9
SH_REG10
SH_REG11
Caption
xx XXXX
Register address Register name
cyclic_shadow_reg=0
cyclic_shadow_reg=1
Figure 37: Single-level Shadow Register Option to replace complete Ramp Motion Profile.
i
i
AREAS OF
SPECIAL
CONCERN
!
Green arrows show default settings
Blue arrows show optional settings.
In case an S-shaped ramp type is selected and operation mode is switched
from velocity to positioning mode (triggered by shadow register transfer),
SH_REG10 must not be equal to BOW3; to ensure safe operation mode
switching.
On the following pages more options are explained. Pleae turn page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Option 2:
Double-stage
Shadow
Register Set for
S-shaped Ramps
77/230
In case S-shaped ramps are configured, a double-stage shadow register set can be
used. Seven relevant motion parameters for S-shaped ramps are affected when the
shadow registers become active.
In order to use a double-stage shadow register pipeline for S-shaped
ramps, do as follows:
Action:
Set shadow_option = b’01 (START_CONF register 0x02).
Set start_en(4) = 1 and select one or more trigger_events (START_CONF register
0x02).
Action:
Default configuration: Set cyclic_shadow_regs = 0 (START_CONF register
0x02).
Optional configuration: Set cyclic_shadow_regs =1 (START_CONF register
0x02)
Result:
Seven motion parameters (VMAX, AMAX, DMAX, BOW1...4) are altered at the next
internal start signal by the corresponding shadow register parameters (SH_REG0...6).
Simultaneously, these shadow registers are exchanged with the parameters of the
second shadow stage (SH_REG7…13).
In case cyclic shadow registers are used, the second shadow register set
(SH_REG7…13) is altered by the current motion profile set, e.g. 0x28 (AMAX) is written
back to 0x48 (SH_REG8).
The other ramp registers remain unaltered.
20
24
25
26
27
28
29
2A
2B
2D
2E
2F
30
RAMPMODE
VMAX
VSTART
VSTOP
VBREAK
AMAX
DMAX
ASTART
DFINAL
BOW1
BOW2
BOW3
BOW4
40 SH_REG0
47 SH_REG7
41 SH_REG1
42 SH_REG2
48 SH_REG8
49 SH_REG9
43
44
45
46
4A
4B
4C
4D
SH_REG3
SH_REG4
SH_REG5
SH_REG6
SH_REG10
SH_REG11
SH_REG12
SH_REG13
Caption
xx XXXX
Register address Register name
start_en(4)=1
cyclic_shadow_reg=1
Figure 38: Double-stage Shadow Register Option 1, suitable for S-shaped Ramps.
i
i
Green arrows show default settings
Blue arrows show optional settings.
Description is continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Option 3:
Double-stage
Shadow
Register Set for
Trapezoidal
Ramps
(VSTART)
78/230
In case trapezoidal ramps are configured, a double-stage shadow register set can be
used. Seven relevant motion parameters for trapezoidal ramps are affected when the
shadow registers become active.
In order to use a double-stage shadow register pipeline for trapezoidal
ramps, do as follows:
Action:
Set shadow_option = b’10 (START_CONF register 0x02).
Set start_en(4) = 1 and select one or more trigger_events (START_CONF register
0x02)
Action:
Default configuration: Set cyclic_shadow_regs = 0 (START_CONF register 0x02).
Optional configuration: Set cyclic_shadow_regs = 1 (START_CONF register
0x02).
Result:
Seven motion parameters (VMAX, AMAX, DMAX, ASTART, DFINAL, VBREAK, and
VSTART) are altered at the next internal start signal by the corresponding shadow
register parameters (SH_REG0...6). Simultaneously, these shadow registers are
exchanged with the parameters of the second shadow stage ( SH_REG7…13).
If cyclic shadow registers are used, the second shadow register set ( SH_REG7…13) is
altered by the current motion profile set, e.g. 0x27 (VBREAK) is written back to 0x4C
(SH_REG12). The other ramp registers remain unaltered.
20
24
25
26
27
28
29
2A
2B
2D
2E
2F
30
RAMPMODE
VMAX
VSTART
VSTOP
VBREAK
AMAX
DMAX
ASTART
DFINAL
BOW1
BOW2
BOW3
BOW4
40 SH_REG0
46 SH_REG6
47 SH_REG7
4D SH_REG13
45
41
42
43
44
4C
48
49
4A
4B
SH_REG5
SH_REG1
SH_REG2
SH_REG3
SH_REG4
SH_REG12
SH_REG8
SH_REG9
SH_REG10
SH_REG11
Caption
xx XXXX
Register address Register name
start_en(4)=1
cyclic_shadow_reg=1
Figure 39: Double-stage Shadow Register Option 2, suitable for Trapezoidal Ramps.
i
i
Green arrows show default settings.
Blue arrows show optional settings.
Description is continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Option 4:
Double-stage
Shadow
Register Set for
Trapezoidal
Ramps (VSTOP)
79/230
In case trapezoidal ramps are configured, a double-stage shadow register set can be
used. Seven relevant motion parameters for trapezoidal ramps are affected when the
shadow registers become active.
In order to use a double-stage shadow register pipeline for trapezoidal
ramps, do as follows:
Action:
Set shadow_option = b’10 (START_CONF register 0x02).
Set start_en(4) = 1 and select one or more trigger_events (START_CONF register
0x02)
Action:
Default configuration: Set cyclic_shadow_regs = 0 (START_CONF register
0x02).
Optional configuration: Set cyclic_shadow_regs = 1 (START_CONF register
0x02)
Result:
Seven motion parameters (VMAX, AMAX, DMAX, ASTART, DFINAL, VBREAK, and
VSTOP) are altered at the next internal start signal by the corresponding shadow
register parameters (SH_REG0...6). Simultaneously, these shadow registers are
exchanged with the parameters of the second shadow stage ( SH_REG7…13).
If cyclic shadow registers are used, the second shadow register set ( SH_REG7…13) is
altered by the current motion profile set, e.g. 0x26 ( VSTOP) is written back to 0x4D
(SH_REG13). The other ramp registers remain unaltered.
20
24
25
26
27
28
29
2A
2B
2D
2E
2F
30
RAMPMODE
VMAX
VSTART
VSTOP
VBREAK
AMAX
DMAX
ASTART
DFINAL
BOW1
BOW2
BOW3
BOW4
40 SH_REG0
47 SH_REG7
46
45
41
42
43
44
4D
4C
48
49
4A
4B
SH_REG6
SH_REG5
SH_REG1
SH_REG2
SH_REG3
SH_REG4
SH_REG13
SH_REG12
SH_REG8
SH_REG9
SH_REG10
SH_REG11
Caption
xx XXXX
Register address Register name
start_en(4)=1
cyclic_shadow_reg=1
Figure 40: Double-Stage Shadow Register Option 3, suitable for Trapezoidal Ramps
i
i
Green arrows show default settings.
Blue Arrows show optional settings.
Turn page to see Areas of Special Concern pertaining to this section.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
AREAS OF
SPECIAL
CONCERN
!
Delayed Shadow
Transfer
80/230
The values of ramp parameters, which are not selected by one of the four
shadow options stay as originally configured, until the register is changed
through an SPI write request.
Also, the last stage of the shadow register pipeline retains the values until
they are overwritten by an SPI write request if no cyclic shadow registers
are selected.
Up to 15 internal start signals can be skipped before the shadow register transfer is
executed.
In order to skip a defined number of internal start signals for the shadow
transfer, do as follows:
Action:
Set shadow_option according to your specification.
Set start_en(4) = 1 and select one or more trigger_events (START_CONF register
0x02)
OPTIONAL CONFIGURATION: Set cyclic_shadow_regs = 1.
Set SHADOW_MISS_CNT ≠ 0 (START_CONF register 0x02) according to the
number of consecutive internal start signals that you specify to be ignored.
Result:
The shadow register transfer is not executed with every internal start signal. Instead,
the specified number of start signals is ignored until the shadow transfer is executed
through the (SHADOW_MISS_CNT+1)th start signal.
The following figure shows an example of how to make use of SHADOW_MISS_CNT,
in which the shadow register transfer is illustrated by an internal signal
sh_reg_transfer. The signal miss counter CURRENT_MISS_CNT can be read out at
register address START_CONF (23:20):
SPI
shadow_miss_cnt
=0
shadow_miss_cnt
=5
shadow_miss_cnt
=2
internal start signal
sh_reg_transfer
current_miss_cnt
0
1
2
3
4
5
0
1 2 0
1
2
0
1
Figure 41: SHADOW_MISS_CNT Parameter for several internal Start Signals
AREAS OF
SPECIAL
CONCERN
!
Internal calculations to transfer the requested shadow BOW values into
internal structures require at most (320 / fCLK) [sec]. before any shadow
register transfer is prompted, it is necessary to wait for the completion of
all internal calculations for the shadow bow parameters.
In order to make this better understood the following example is provided
for a double-stage shadow pipeline for S-shaped ramps:
PRECONDITION:
Shadow register transfer is activated (start_en(1) = 1 and one or more trigger_events
are selected) for S-shaped ramps (shadow_option = b’01)
Action
Set SH_REG0, SH_REG1, SH_REG2 (shadow register for VMAX, AMAX, DMAX).
Set SH_REG3, SH_REG4, SH_REG5, SH_REG6 (shadow register for BOW1…4).
Ensure that no shadow register transfer occurs during the next 320 / fCLK [s].
Result:
Shadow register transfer can be initiated after this time span.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
81/230
Pipelining Internal Parameters
TMC4361A provides a target pipeline for sequencing subordinate targets in order to easily
arrange a complex target structure.
Configuration
and Activation of
Target Pipeline
The different target values must be assigned to the X_PIPE0…7 register. If the target
pipeline is enabled, a new assignment cycle is initiated as soon as an internal start
signal is generated; moving the values, as described, simultaneously:
PROCESS DESCRIPTION:
A new XTARGET value is assigned that takes over the value of X_PIPE0.
Every X_PIPEn register takes over the value of its successor:
X_PIPEn = X_PIPEn+1
In order to activate the target pipeline, do as follows:
Action:
Set pipeline_en = b’0001 (START_CONF register 0x02).
Result:
The above mentioned process description is executed with every new internal start
signal prompting.
Configuration of
a cyclic Target
Pipeline
It is also possible to reassign the value of XTARGET to one (or more) of the pipeline
registers X_PIPE0…7. Thereby, a cyclic target pipeline is created.
In order to enable a cyclic target pipeline, do as follows:
Action:
Set pipeline_en = b’0001 (START_CONF register 0x02).
Set XPIPE_REWRITE_REG in relation to the pipeline register where XTARGET have
to written back (e.g. XPIPE_REWRITE_REG = b’00010000).
Result:
The above mentioned process description is executed with every new internal start
signal prompting, and XTARGET is written back to the selected X_PIPEx register (e.g.
XPIPE_REWRITE_REG = 0x10 XTARGET is written back to X_PIPE4).
The processes and actions described on the previous page, are depicted in the
following figure. The assignment cycle that is initiated when an internal start signal
occurs is depicted.
37 XTARGET
XPIPE_REWRITE_REG(0) = '1'
38 X_PIPE0
XPIPE_REWRITE_REG(1) = '1'
39 X_PIPE1
XPIPE_REWRITE_REG(2) = '1'
3A X_PIPE2
XPIPE_REWRITE_REG(3) = '1'
3B X_PIPE3
Caption
XPIPE_REWRITE_REG(4) = '1'
3C X_PIPE4
XPIPE_REWRITE_REG(5) = '1'
3D X_PIPE5
XPIPE_REWRITE_REG(6) = '1'
3E X_PIPE6
XPIPE_REWRITE_REG(7) = '1'
3F X_PIPE7
XX XXXX
Register Register name
address
Figure 42: Target Pipeline with Configuration Options
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
pipeline_en = b’0001
pipeline_en = b’0001
X_PIPE_REWRITE_REG ≠ 0
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Using the
Pipeline for
different internal
Registers
82/230
The TMC4361A pipeline (registers 0x38…0x3F) can be configured so that it splits up
into maximal four segments. These segments can be used to feed the following
internal parameters:
XTARGET register 0x37
POS_COMP register 0x32
GEAR_RATIO register 0x12
GENERAL_CONF 0x00
Consequently, these definite parameter value changes can be of importance
concerning a continuous ramp motion and/or for reduced overhead synchronizing of
several motion controllers.
The POS_COMP value can be used to initiate a start signal generation during motion.
Therefore, it can be useful to pipeline this parameter in order to avoid dependence on
SPI transfer speed.
For instance, if the distance between two POS_COMP values is very close and the
current velocity is high enough that it misses the second value before the
SPI transfer is finished, it is advisable to change POS_COMP immediately after the
start signal.
The same is true for the GEAR_RATIO parameter, which defines the step response on
incoming step impulses. Some applications require very quick gear factor alteration of
the slave controller. Note that when the start signal is prompted directly, an immediate
change can be very useful instead of altering the parameter by an SPI transfer.
Likewise, it can (but must not) be essential to change general configuration
parameters at a defined point in time. A suitable application is a clearly defined
transfer from a direct external control (sd_in_mode = b’01) to an internal ramp
(sd_in_mode = b’00) or vice versa because in this case the master/slave relationship
is interchanged.
The following pipeline options are available, which can be adjusted accordingly:
Pipeline Activation Options
pipeline_en(3:0)
Description
b’xxx1
Pipeline for XTARGET is enabled.
b’xx1x
Pipeline for POS_COMP is enabled.
b’x1xx
Pipeline for GEAR_RATIO is enabled.
b’1xxx
Pipeline for GENERAL_CONF is enabled.
Table 36: Pipeline Activation Options
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Pipeline Mapping
Overview
83/230
The pipeline_en parameter offers an open configuration for 16 different combinations
of the pipeline segregation. As a result, the number of pipelines range from 0 to 4.
This also has an impact on the pipeline depth. The possible options are as follows:
eight stages, four stages, three stages and two stages.
In the “Pipeline Mapping” table below, the
allocated according to the pipeline setup.
registers are also depicted in order to
(X_PIPE0…7) the final target registers
GENERAL_CONF) are fed.
arrangement and depth of the pipeline is
The final register destination of pipeline
illustrate from which pipeline registers
(XTARGET, POS_COMP, GEAR_RATIO,
For example, if POS_COMP and GEAR_RATIO are chosen as parameters that are to
be fed by the pipeline, two 4-stage pipelines are created. When an internal start signal
is generated, POS_COMP assumes the value of X_PIPE0, whereas X_PIPE4 feeds the
GEAR_RATIO register.
But if POS_COMP, GEAR_RATIO and XTARGET are selected as parameter destinations,
two 3-stage pipelines and one double-stage pipeline are created. When an internal
start signal is generated, XTARGET assumes the value of X_PIPE0, POS_COMP
assumes the value of X_PIPE3, whereas X_PIPE6 feeds the GEAR_RATIO register.
Pipeline
Mapping Table
More examples are described in detail on the following pages - explaining some of the
possible configurations and referencing examples - listed in the Table below.
Pipeline Mapping
Ex.
pipeline_en
(3:0)
Arrangement
No Pipelining
Final transfer register for…
GENERAL_CONF
GEAR_RATIO
POS_COMP
XTARGET
pipeline_en(3)
pipeline_en(2)
pipeline_en(1)
pipeline_en(0)
-
-
-
-
-
-
-
X_PIPE0
-
-
X_PIPE0
-
-
X_PIPE0
-
-
-
b’0000
-
b’0001
A
b’0010
B
b’0100
-
b’1000
X_PIPE0
-
-
-
C
b’0011
-
-
X_PIPE4
X_PIPE0
-
b’0101
-
X_PIPE4
-
X_PIPE0
-
b’1001
X_PIPE4
-
-
X_PIPE0
-
b’0110
-
X_PIPE4
X_PIPE0
-
-
b’1010
X_PIPE4
-
X_PIPE0
-
D
b’1100
X_PIPE4
X_PIPE0
-
-
F
b’0111
-
X_PIPE6
X_PIPE3
X_PIPE0
-
b’1011
X_PIPE6
-
X_PIPE3
X_PIPE0
E
b’1101
X_PIPE6
X_PIPE3
-
X_PIPE0
-
b’1110
X_PIPE6
X_PIPE3
X_PIPE0
-
G/H
b’1111
X_PIPE6
X_PIPE4
X_PIPE2
X_PIPE0
One 8-stage
pipeline
Two 4-stage
pipelines
Two 3-stage
pipelines and
one
double-stage
pipeline
Four doublestage pipelines
Table 37: Pipeline Mapping for different Pipeline Configurations
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Cyclic Pipelining
84/230
For all of the above shown configuration examples, it is possible to write back the
current values of the selected registers (XTARGET, POS_COMP, GEAR_RATIO and/or
GENERAL_CONF) to any of the pipeline registers of their assigned pipeline in order to
generate cyclic pipelines.
By selecting proper XPIPE_REWRITE_REG, the value that is written back to the
pipeline register is selected automatically to fit the selected pipeline mapping.
Below, several pipeline mapping examples with the corresponding configuration are
shown.
Pipeline
Examples
Example A: Cyclic pipeline for POS_COMP, which has eight pipeline stages.
Examples A+B:
Using one
Pipeline
Example B: Cyclic pipeline for GEAR_RATIO, which has six pipeline stages.
A
B
12 GEAR_RATIO
32 POS_COMP
38 X_PIPE0
x_pipe_rewrite_reg(7) = b’00100000
38 X_PIPE0
39 X_PIPE1
3A X_PIPE2
3B X_PIPE3
3C X_PIPE4
39 X_PIPE1
3A X_PIPE2
3B X_PIPE3
3C X_PIPE4
3D X_PIPE5
3D X_PIPE5
3E X_PIPE6
3E X_PIPE6
3F X_PIPE7
3F X_PIPE7
pipline_en=b’0010
XPIPE_REWRITE_REG=b’10000000
pipline_en=b’0100
XPIPE_REWRITE_REG=b’00100000
Figure 43: Pipeline Example A
Examples C+D:
Using two
Pipelines
Figure 44: Pipeline Example B
Example C: Cyclic pipelines for XTARGET and POS_COMP, which have four pipeline
stages each.
Example D: Cyclic pipelines for GEAR_RATIO, which has three pipeline stages and
GENERAL_CONF, which has two pipeline stages.
C
D
37 XTARGET
12 GEAR_RATIO
38 X_PIPE0
38 X_PIPE0
39 X_PIPE1
39 X_PIPE1
3A X_PIPE2
3A X_PIPE2
3B X_PIPE3
3B X_PIPE3
32 POS_COMP
10 GENERAL_CONF
3C X_PIPE4
3C X_PIPE4
3D X_PIPE5
3D X_PIPE5
3E X_PIPE6
3E X_PIPE6
3F X_PIPE7
3F X_PIPE7
pipline_en=b’1100
XPIPE_REWRITE_REG=b’00100100
pipline_en=b’0011
XPIPE_REWRITE_REG=b’10001000
Figure 45: Pipeline Example C
Figure 46: Pipeline Example D
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
85/230
Example E: Cyclic pipelines for XTARGET and GEAR_RATIO, which have three
pipeline stages each and GENERAL_CONF, which has two pipeline stages.
Examples E+F:
Using three
Pipelines
Example F: Two cyclic pipelines for XTARGET and GEAR_RATIO, which have two
pipeline stages each and a noncyclic pipeline for GEAR_RATIO, which has three
pipeline stages.
E
F
37 XTARGET
37 XTARGET
38 X_PIPE0
38 X_PIPE0
39 X_PIPE1
39 X_PIPE1
3A X_PIPE2
3A X_PIPE2
32 POS_COMP
12 GEAR_RATIO
3B X_PIPE3
3B X_PIPE3
3C X_PIPE4
3C X_PIPE4
3D X_PIPE5
3D X_PIPE5
12 GEAR_RATIO
10 GENERAL_CONF
3E X_PIPE6
3E X_PIPE6
3F X_PIPE7
3F X_PIPE7
pipline_en=b’1101
XPIPE_REWRITE_REG=b’10100100
pipline_en=b’0111
XPIPE_REWRITE_REG=b’10000010
Figure 47: Pipeline Example E
Examples G+H:
Using four
Pipelines
Figure 48: Pipeline Example F
Example G: Cyclic pipelines for XTARGET, POS_COMP, GEAR_RATIO and
GENERAL_CONF, which have two pipeline stages each.
Example H: Four noncyclic pipelines for XTARGET, POS_COMP, GEAR_RATIO and
GENERAL_CONF, which have two pipeline stages each.
G
H
37 XTARGET
37 XTARGET
38 X_PIPE0
38 X_PIPE0
39 X_PIPE1
39 X_PIPE1
32 POS_COMP
32 POS_COMP
3A X_PIPE2
3A X_PIPE2
3B X_PIPE3
3B X_PIPE3
12 GEAR_RATIO
12 GEAR_RATIO
3C X_PIPE4
3C X_PIPE4
3D X_PIPE5
3D X_PIPE5
10 GENERAL_CONF
10 GENERAL_CONF
3E X_PIPE6
3E X_PIPE6
3F X_PIPE7
3F X_PIPE7
pipline_en=b’1111
XPIPE_REWRITE_REG=b’10101010
pipline_en=b’1111
XPIPE_REWRITE_REG=b’00000000
Figure 49: Pipeline Example G
Figure 50: Pipeline Example H
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
86/230
Masterless Synchronization of Several Motion Controllers via START Pin
START pin can also be assigned as tristate input in order to synchronize several microcontroller
masterless.
Activation of the
Tristate START
Pin
In this case START is assigned as tristate. A busy state is enabled. During this busy
state, START is set as output with a strongly driven inactive polarity. If the internal
start signal is generated – after the internal start timer is expired –START pin is
assigned as input. Additionally, a weak output signal is forwarded at START. During
this phase, the active start polarity is emitted.
In case the signal at START input is set to active polarity, because all members of the
signal line are ready, START output remains active (strong driving strength) for
START_OUT_ADD clock cycles.
Then, busy state is active again until the next start signal occurs.
In order to activate tristate START pin, do as follows:
Action:
Set busy_en = 1 (START_CONF register 0x02).
Result:
The above mentioned process description is executed.
START Pin
Connection
In case START pin is connected with START pins of other TMC4361A devices, it is
recommend that a series resistor (e.g. 220 Ω) is connected between the devices to
limit the short circuit current flowing that can flow during the configuration phase
when different voltage levels at the START pins of the different devices can occur.
NOTE:
Avoid that short circuits last too long.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
87/230
10. Serial Data Output
TMC4361A provides an SPI interface for initialization and configuration of the motor driver (in
addition to the Step/Dir output) before and during motor motion. It is possible to control TMC
stepper drivers during SPI motor drive.
SPI Interface
Configuration
The SPI interface is used for the following tasks:
TMC4361A integrates an adjustable cover register for configuration purposes in
order to adjust TMC motor driver chips and third parties chips easily.
The integrated microstep Sine Wave Lookup Table (MSLUT) generates two
current values that represent sine and cosine values.
These two current values can be transferred to a TMC motor driver chip at a time,
in order to energize the motor coils. This occurs within each SPI datagram. A
series of current values is transferred to move the motor. Values of the MSLUT
are adjusted using velocity ramp dependent scale values that align the maximum
amplitude current values to the requirements of certain velocity slopes.
Pin Names for SPI Motor Drive
Pin Names
Type
Remarks
NSCSDRV_SDO
Output
Chip select output to motor driver, low active.
SCKDRV_NSDO
Output
Serial clock output to motor driver.
SDODRV_SCLK
InOut as Output
Serial data output to motor driver.
SDIDRV_NSCLK
Input
Serial data input from motor driver.
STDBY_CLK
Output
Clock output, standby output, or ChopSync clock output.
Table 38: Pin Names for SPI Motor Drive
Register Names for SPI Output Registers
Register Name
Register Address
Remarks
GENERAL_CONF
0x00
RW
Affect switches: Bit14:13, bit19, bit20, bit28.
REFERENCE_CONF
0x01
RW
Affect switches: Bit26, bit27, bit30.
SPIOUT_CONF
0x04
RW
Configuration register for SPI output communication.
STEP_CONF
0x0A
RW
0x1D
RW
DAC_ADDR
SPI_SWITCH_VEL
Microsteps per fullstep, fullsteps per revolution, and
motor status bit event selection.
SPI addresses/commands which are put in front of the
DAC values: CoilA: DAC_ADDR(15:0),
CoilB: DAC_ADDR(31:16)
Velocity at which automatic cover datagrams are sent.
CHOPSYNC_DIV
0x1F
RW
FS_VEL
0x60
W
Velocity at which fullstep drive are enabled.
COVER_LOW
0x6C
W
Lower 32 bits of the cover register (µC to motor driver).
COVER_HIGH
0x6D
W
Upper 32 bits of the cover register (µC to motor driver).
COVER_DRV_LOW
0x6E
R
COVER_DRV_HIGH
0x6F
R
CURRENT_CONF
0x05
RW
Current scaling configuration.
SCALE_VALUES
0x06
RW
Current scaling values.
STDBY_DELAY
0x15
RW
Delay time after standby mode is valid.
Chopper clock divider (bit 11:0).
Lower 32 bits of the cover response register
(motor driver to µC).
Upper 32 bits of the cover response register
(motor driver to µC).
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
88/230
Register Names for SPI Output Registers
Register Name
Register Address
Remarks
FREEWHEEL_DELAY
0x16
RW
Delay time after freewheeling is valid.
VDRV_SCALE_LIMIT
0x17
RW
Velocity setting for changing the drive scale value.
UP_SCALE_DELAY
0x18
RW
Increment delay to a higher scaling value; 24 bits.
HOLD_SCALE_DELAY
0x19
RW
Decrement delay to the hold scaling value; 24 bits.
DRV_SCALE_DELAY
0x1A
RW
Decrement delay to the drive scaling value.
BOOST_TIME
0x1B
RW
Delay time after ramp start when boost scaling is valid.
SCALE_PARAM
CURRENTA
CURRENTB
CURRENTA_SPI
CURRENTB_SPI
MSLUT registers
0x7C
R
0x7A
R
0x7B
R
0x70…78
W
MSLUT values definitions.
0x79
R
Actual microstep position of the MSLUT.
0x7E
RW
MSCNT
START_SIN
START_SIN90_120
DAC_OFFSET
Actual current scaling parameter; 8 bits.
Actual current values of the MSLUT:
SIN (coil A) and SIN90_120 (coil B); 9 bit for each.
Actual scaled current values of the MSLUT:
SIN (coil A) and SIN90_120 (coil B); 9 bits for each.
Sine start value of the MSLUT
Cosine start value of the MSLUT
Offset value for DAC output values
(bit7:0).
(bit23:16).
(bit31:24).
Table 39: Dedicated SPI Output Registers
Getting Started with TMC Motor Drivers
In this chapter information is provided about how to easily start up a connected TMC motor
driver.
Setting up
SPIOUT_CONF
correctly
In order to start up a connected TMC motor stepper driver, proper setup of
SPIOUT_CONF register 0x04 is important. TMC4361A offers presets for current
transfer and automatic configuration routines if the correct TMC driver is selected.
Status bits of TMC motor drivers are also transmitted to the status register of the
motion controller.
TMC4361A provides a programmable lookup table for storing the current wave. Per
default, the tables are preprogrammed with a sine wave, which is a good starting
point for most stepper motors.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
89/230
Sine Wave Lookup Tables
TMC4361A provides a programmable lookup table (LUT) for storing the current wave.
Reprogramming the table from its predefined values to a motor-specific wave allows improved
motor-reliant microstepping, particularly when using low-cost motors.
SETTINGS
ALERT
!
TMC4361A-LA provides a default configuration of the internal microstep
table MSLUT. In case internal MSLUT is used, proceed with section 10.3.
(page 95) in order to setup a well-defined serial data connection to the
stepper motor driver. The following explanations that are provided in this
section only address engineers who use their own microstep table
definition.
Programming
Sine Wave
Lookup Tables
The internal microstep wave table maps the microstep wave from 0° to 90° for
256 microsteps. It becomes automatically and symmetrically extended to 360° that
consequently comprises 1024 microsteps. As a result, the microstep counter MSCNT
ranges from 0 to 1023. Only a quarter of the wave is stored because this minimizes
required memory and the amount of programmable data.
Therefore, only 256 bits (ofs00 to ofs255) are required to store the quarter wave.
These bits are mapped to eight 32-bit registers MSLUT[0] (register 0x70) to
MSLUT[7] (register 0x77).
When reading out the table the 10-bit microstep counter MSCNT addresses the fully
extended wave table.
Sine Wave Table
Structure
The MSLUT is an incremental table. This means that a certain order and succession is
predefined at every next step based on the value before, using up to four flexible
programmable segments within the quarter wave. The microstep limits of the four
segments are controlled by the position registers X1, X2, and X3.
Within these segments the next value of the MSLUT is calculated by adding the base
wave inclination Wx-1 (if ofs=0) or its successor Wx (if ofs=1). Because four segments
are programmable, four base wave inclinations are available as basic increment value:
0, 1, 2, or 3. Thereby, even a negative wave inclination can be realized. This is shown
in the next Figure where the values in last quarter segments are decreased or remain
constant with every step towards MSCNT= 255.
W3: -1/+0
W2: +0/+1
W1: +1/+2
W0: +2/+3
y
256
248
START_SIN90_120
0
X1 X2 X3
LUT stores
entries 0 to 255
255 256
512
768
START_SIN
-248
Figure 51: LUT Programming Example
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
0
MSCNT
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
90/230
Actual Current Values Output
Actual Current
Calculations
When the microstep sequencer advances within the microstep table (MSLUT), it
calculates the actual current values for the motor coils with each microstep, and stores
them to the register 0x7A , which comprises the values of both waves CURRENTA and
CURRENTB. However, the incremental coding requires an absolute initialization –
especially when the microstep table becomes modified. Therefore, CURRENTA and
CURRENTB become re-initialized with the start values whenever MSCNT passes zero.
Characteristics
of a 2-phase
Stepper Motor
Microstep Table
As mentioned above, the MSLUT can be adapted to the motor requirements. In order
to understand the nature of incremental coding of the microstep table, the
characteristics of the microstep wave must be understood, as described in the list
below:
Characteristics of a 2-phase motor microstep table:
In principle, it is a reverse characteristic of the motor pole behavior.
It is a polished wave to provide a smooth motor behavior. There are no jumps
within the wave.
The phase shift between both phases is exactly 90°, because this is the optimum
angle of the poles inside the motor.
The zero transition is at 0°. The curve is symmetrical within each quadrant (like
a sine wave).
The slope of the wave is normally positive, but due to torque variations it can
also be (slightly) negative.
But it must not be strictly monotonic as shown in the figure above.
Considering these facts, it becomes clear that the wave table can be compressed. The
incremental coding applied to the TMC4361A uses a format that reduces the required
information - per entry of the 8-bit by a 256-entry wave table - to slightly more than
a single bit.
How to Program the Internal MSLUT
Principle of
Incremental
Encoding
The principle of incremental encoding only stores the difference between the actual
and the next table entry. In order to attain an absolute start value, the first entry is
directly stored in START_SIN. Also, for ease-of-use, the first entry of the shifted table
for the second motor phase is stored in START_SIN_90_120.
Based on these start values, every next table entry is calculated by adding an
increment INC to the former value. This increment is the base wave inclination value
Wx whenever its corresponding ofs bit is 1 or Wx – 1 if ofs = 0:
INC = Wx + (ofs – 1).
The base wave inclination can be set to four different values (0, 1, 2, 3), because it
consists of two bits.
Because the wave inclination does not change dramatically, TMC4361A provides four
wave inclination segments with the base wave inclinations (W0, W1, W2, and W3)
and the segment borders (0, X1, X2, X3, and 255), as shown in the left quarter of the
MSLUT diagram in Figure 48, page 89.
Wave Inclination Characteristics
Wave Inclination
Segment
0
1
2
3
Base Wave
Inclination
W0
W1
W2
W3
Segment Ranges
0 … X1
X1… X2
X2 … X3
X3 … 255
Table 40: Wave Inclination Characteristics of Internal MSLUT
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
91/230
Setup of MSLUT Segments
Base Wave
Inclination and
Border Values
All base wave inclination values (each consists of two bits) as well as the border values
(each consists of eight bit) between the segments are adjustable. They are assigned
by MSLUTSEL register 0x78.
In order to change the base wave inclination values and the segment
borders, do as follows:
Action:
Define the segment borders X1, X2, and X3 and the base wave inclination values
W0…W3 according to the requirements
Set register MSLUTSEL(31:24)
= X3.
Set register MSLUTSEL(23:16)
= X2.
Set register MSLUTSEL(15:8)
= X1.
Set register MSLUTSEL(7:6)
= W3.
Set register MSLUTSEL(5:4)
= W2.
Set register MSLUTSEL(3:2)
= W1.
Set register MSLUTSEL(1:0)
= W0.
Result:
The segments and the base wave inclination values of the internal MSLUT are
changed.
NOTE:
It is not mandatory to define four segments. For instance, if only two segments
are required, set X2 and X3 to 255. Then, W0 is valid for segment 0 between
MSCNT = 0 and MSCNT = X1, and W1 is valid between MSCNT = X1 and
MSCNT = 255 (segment 1).
In order to change the ofs bits, do as follows:
Action:
Set MSLUT[0]
Set MSLUT[1]
Set MSLUT[2]
Set MSLUT[3]
Set MSLUT[4]
Set MSLUT[5]
Set MSLUT[6]
Set MSLUT[7]
register
register
register
register
register
register
register
register
0x70
0x71
0x72
0x73
0x74
0x75
0x76
0x77
=
=
=
=
=
=
=
=
ofs31…ofs00.
ofs63…ofs32.
ofs95…ofs64.
ofs127…ofs96.
ofs159…ofs128.
ofs191…ofs160.
ofs223…ofs192.
ofs255…ofs224.
Result:
The ofs bits of the internal MSLUT are changed.
AREAS OF
SPECIAL
CONCERN
Zero Crossing
!
When modifying the wave:
Special care has to be applied in order to ensure a smooth and symmetrical zero
transition whenever the quarter wave becomes expanded to a full wave.
When adjusting the range:
The maximum resulting swing of the wave should be adjusted to a range of
−248 to 248, in order to achieve the best possible resolution while at the same time
leaving headroom for a hysteresis based chopper to add an offset.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
92/230
Current Waves Start Values
Starting Current
Values of MSLUT
Configuration
As both waves are shifted by 90° for two-phase stepper motors, the sine wave starts
at 0° when MSCNT = 0. By comparison, the cosine wave begins at 90° when
MSCNT = 256. At this starting points the current values are CURRENTA = 0 for the
sine wave and CURRENTB = 247 for the cosine wave.
In contrast to the starting microstep positions that are fixed, these starting current
values can be redefined if the default start values do not fit for the actual MSLUT.
In order to change the starting current values of the MSLUT, do as follows:
Action:
Define the start values START_SIN and START_SIN90_120 according to the
requirements.
Set register 0x7E (7:0)
= START_SIN
Set register 0x7E (23:16)
= START_SIN90_120
Result:
The starting values for both waves are adapted to MSLUT.
Default MSLUT
Base Wave
Inclinations
The default sine wave table in TMC drivers uses one segment with a base inclination
of 2 and one segment with a base inclination of 1 (see default value of the MSLUTSEL
register 0x78 = 0xFFFF8056).
The segment border X1 is located at MSCNT = 128. The base wave inclinations are
W0 = b’10 (=2) and W1 = b’01 (=1).
As a result, between MSCNT = 0 and 128, the increment value INC is either
1 (if ofs = 0) or 2 (if ofs = 1).
And between MSCNT = 128 and 255, the increment value INC is either
0 (if ofs = 0) or 1 (if ofs = 1).
This reflects the stronger rise in the first segment of the MSLUT in contrast to the
second segment. The maximum value is
START_SIN90_120 = 247.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
93/230
Explanatory Notes for Base Wave Inclinations
Definition of
Segments
0,1,2,3
In the following example four segments are defined.
Each segment has a different base wave inclination to illustrate each
possible entry:
Segment
Segment
Segment
Segment
0:
1:
2:
3:
W0
W0
W0
W0
=
=
=
=
3
2
1
0
which
which
which
which
means
means
means
means
that
that
that
that
the
the
the
the
increment
increment
increment
increment
value
value
value
value
is
is
is
is
+2 or +3.
+1 or +2.
0 or +1.
−1 or 0.
i
In addition to the MSLUT curve (black line), which is defined by the given ofs
bits, all four segments show upper limits (red line); in case all ofs bits in the
particular segments are set to 1.
i
The green line shows the lower limit in case all ofs bits in the particular segments
are set to 0.
y
256
Segment upper limits
Segment lower limits
0
X1 X2
X3
255
-1/+0
+0/+1
+1/+2
+2/+3
Segment
inclination W
0
Figure 52: MSLUT Curve with all possible Base Wave Inclinations (highest Inclination first)
Standard Sine
Wave Setup
Considerations
prior to SETUP
of MSLUT
In order to set up a standard sine wave table for the MSLUT, the following
considerations have to be taken into account:
PRECONSIDERATIONS:
The microstep table for the standard sine wave begins with eight entries
(0
to 7) {0, 1, 3, 4, 6, 7, 9, 10 …} etc.
The maximum difference between two values in this section is +2, whereas the
minimum difference is +1.
While advancing according to the table, the very first time the difference between
two MSLUT values is lower than +1 is between position 153 and position 154.
Both entries are identical.
The start value is 0 for the sine wave.
The calculated value for position 256 (i.e. start of cosine wave) is 247.
Description is continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Standard Sine
Wave Setup
94/230
In order to set up the standard sine wave table, proceed as follows:
Action:
Set a starting value START_SIN = 0 matching sine wave entry 0.
Set a base wave inclination range of W0 = b’10 = 2 to skip between +1 / +2, valid
from 0 to X1.
Calculate the differences between every entry: {+1, +2, +1, +2, +1, +2, +1,…}.
Set the microstep table entries ofsXX to 0 for the lower value (+1); 1 for the higher
value (+2). Thus, the first seven microstep table entries ofs00 to ofs06 are: {0, 1,
0, 1, 0, 1, 0 …}
The base wave inclination must be lowered at position 153, at very latest. Use the
next base wave inclination range 1 with W1 = b’01 = 1 to skip between +0 and
+1.
Set X1 = 153 in order to switch to the next inclination range. From here on, an
offset ofsXX of 0 means add nothing; 1 means add +1.
Set START_SIN90_120 = 247, which is equal to the value at position 256.
Only two of four wave segments with different base wave inclinations are used.
The remaining wave inclination ranges W2 and W3 should be set to the same value
as W1; and X2 and X3 can be set to 255. Thereby, only two wave inclination
segments are effective.
Result:
A standard sine wave is defined as MSLUT. The following table shows an extract of
this curve.
Overview of the Microstep Behavior Example
Microstep
number
Desired table
entry
Difference to
next entry
Required
segment
inclination
Ofs bit entry
0
1
2
3
4
5
6
7
…
153
154
…
255
0
1
3
4
6
7
9
10
…
200
200
…
247
1
2
1
2
1
2
1
…
…
0
…
…
0
+2
+2
+2
+2
+2
+2
+2
…
…
+1
…
…
+1
0
1
0
1
0
1
0
…
…
0
…
…
0
Table 41: Overview of the Microstep Behavior Example
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
95/230
SPI Output Interface Configuration Parameters
TMC4361A provides an SPI output interface. In the next section, the configuration of the
interface parameters is explained in detail.
How to enable
SPI Output
Communication
In order to enable SPI output communication, do as follows:
Action:
Set serial_enc_out_enable = 0 (bit24 of GENERAL_CONF register 0x00).
Result:
SPI output is enabled.
i
Pins dedicated
to SPI Output
Communication
SPI out is the default preconfigured setting.
The table below lists the pins that are dedicated to SPI output communication:
SPI Output Communication Pins
Pin
Description
NSCSDRV_SDO
Low active chip select signal.
SCKDRV_NSDO
SPI output clock.
SDODRV_SCLK
SDIDRV_NSCLK
MOSI – Output pin to transfer the datagram to the
motor driver.
MISO – Input pin which receives the response from the
motor driver. The response is sampled during the data
transfer to the motor driver.
Table 42: SPI Output Communication Pins
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Setup of SPI
Output Timing
Configuration
96/230
Because TMC4361A represents the master of SPI communication to the motor driver
– which is the slave – it is mandatory to set up the timing configuration for the SPI
output. TMC4361A provides an SPI clock, which is generated at the SCKDRV_NSDO
output pin.
In order to configure the timing of the SPI clock, set up SPIOUT_CONF
register 0x04 as follows:
Action:
Set the number of internal clock cycles the serial clock should stay low at
SPI_OUT_LOW_TIME = SPIOUT_CONF (23:20).
Set the number of internal clock cycles the serial clock should stay high at
SPI_OUT_HIGH_TIME = SPIOUT_CONF (27:24).
Also, an SPI_OUT_BLOCK_TIME = SPIOUT_CONF(31:28) can be set for a
minimum time period during which no new datagram is sent after the last SPI
output datagram.
Result:
SPI output communication scheme is set. During the inactive phase between to SPI
datagrams - which is at least SPI_OUT_BLOCK_TIME clock cycles long - the
SCKDRV_NSDO and NSCSDRV_SDO pins remain at high output voltage level. The
timing of the SPI output communication is illustrated in the following figure.
spi_out_block_time / fCLK
spi_out_high_time / fCLK
spi_out_low_time / fCLK
NSCSDRV_SCLK
SCKDRV_NSDO
SDODRV_SCLK
bitCDL-1
SDIDRV_NSCLK
bitCDL-2
bit39
bit38
bit0
bit0
sample points
Figure 53: SPI Output Datagram Timing
Minimum and
Maximum Time
Period
The minimum time period for all three parameters is 2/fCLK. If an SPI output parameter
is set to 0, it is altered to 2 clock cycles internally. A maximum time period of 15/fCLK
can be set for all three parameters.
Thus, SPI clock frequency fSPI_CLK covers the following range:
fCLK / 30 ≤ fSPI_CLK ≤ fCLK / 2.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Current
Diagrams
Process
Description
Basically, SPI output communication serves as automatic current datagram transfer
to the connected motor driver. TMC4361A uses the internal microstep lookup table
(MSLUT) in order to provide actual current motor driver data.
Change of
Microstep
Resolution
Cover Datagrams
Communication
between µC and
Driver
97/230
With every step that is initialized by the ramp generator the MSCNT value is
increased or decreased, dependent on ramp direction.
The MSCNT register 0x79 (readable value) contains the current microstep
position of the sine value.
Accordingly, the current values CURRENTA (0x7A) and CURRENTB (0x7B) are
altered.
In case the output configuration of TMC4361A allows for automatic current
transfer an updated current value leads to a new datagram transfer.
Thereby, the motor driver always receives the latest data. The length for current
datagrams can be set automatically and TMC4361A converts new values into the
selected datagram format, usually divided in amplitude and polarity bit for TMC
motor drivers.
By altering the microstep resolution from 256 ( MSTEP_PER_FS = b’0000) to a lower
value, an internal step results in more than one MSLUT step.
For instance, if the microstep resolution is set to 64 ( MSTEP_PER_FS = b‘0010),
MSCNT is either increased or decreased by 4 per each internal step. Accordingly, the
passage through the MSLUT skips three current values per each internal step to match
the new microstep resolution.
In addition to automatic current datagram transfer, the microcontroller can
communicate directly with the motor driver through TMC4361A by using cover
datagrams. This communication channel can be useful for configuration purposes
because no additional SPI communication channel between microcontroller and motor
driver is necessary.
Up to 64 bits can be assigned for one cover datagram. This 64-bit SPI cover register
is separated into two 32-bit registers - COVER_HIGH register 0x6D and COVER_LOW
register 0x6C. The COVER_HIGH register is only required if more than 32 bits must
be sent once.
How to Define
Cover Datagram
Length
How many bits are sent within one cover datagram is defined by the cover datagram
length COVER_DATA_LENGTH .
In order to define the cover datagram length, do as follows:
Action:
Set the number of cover datagram bits at
COVER_DATA_LENGTH = SPIOUT_CONF (19:13).
Result:
The cover datagram length is set to COVER_DATA_LENGTH bits. If this parameter is
set higher than 64, the cover register data length is still maximum 64 bits.
i
For TMC motor drivers it is possible to set COVER_DATA_LENGTH = 0. In this
case, the cover data length is selected automatically, dependent on the chosen
motor driver. More details are provided on the subsequent pages.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Sending Cover
Datagrams
98/230
The LSB (last significant bit) of the whole cover datagram register is located at
COVER_LOW(0). As long as COVER_DATA_LENGTH < 33, only COVER_LOW or parts
of this register are required for cover data transfer.
If more than 32 bits are necessary, the complete COVER_LOW and (parts of) the
COVER_HIGH register are required for SPI cover data transfer.
NOTE:
Every SPI communication starts with the most significant bit (MSB).
OPTION 1: COVER_DATA_LENGTH < 33 BITS
In order to send a cover datagram - that is smaller than 33 bits - do as
follows:
Action:
Set COVER_LOW (COVER_DATA_LENGTH-1:0) register 0x6C = cover_data.
Result:
After a
register request to COVER_LOW,
COVER_DATA_LENGTH bits of COVER_LOW register.
Cover
Datagrams with
32 Bits
valid
SPI
output
is
sent
out
OPTION 2: COVER_DATA_LENGTH > 32 BITS
In order to send a cover datagram - that consists of more than 32 bits - do
as follows:
Action:
Split cover data into two segments:
cover_data_low
= cover_data(31:0).
cover_data_high
= cover_data >> 32.
cover_data_high
= cover_data(31:0).
Set COVER_HIGH(COVER_DATA_LENGTH−32:0) register 0x6D=cover_data_high.
Set COVER_LOW register 0x6C = cover_data_low.
Result:
After a
valid register request to COVER_LOW, SPI output is sent out
COVER_DATA_LENGTH bits that comprises register values of COVER_HIGH and
COVER_LOW.
The cover register and the datagram structure are illustrated in the figure below:
Cover register
bit63
bit62
...
bit33
bit32
COVER_HIGH
bit31
bit30
...
bit1
bit0
COVER_LOW
bit31
bit30
...
bit1
bit0
bit31
bit30
...
bit1
bit0
MSB if CDL=63
MSB if CDL=30
(COVER_HIGH not
required)
Figure 54: Cover Data Register Composition (CDL – COVER_DATA_LENGTH)
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
99/230
Receiving
Responses to
Cover
Datagrams
Because the transfer of a cover datagram is usually accompanied by a data transfer
from the motor driver, the response is stored in registers; and is thus available for the
microcontroller. COVER_DRV_HIGH register 0x6F and COVER_DRV_LOW register
0x6E form this cover response register that can also comprise up to 64 bits.
Similar to COVER_LOW and COVER_HIGH, the motor driver response is divided in the
registers COVER_DRV_LOW and COVER_DRV_HIGH. The composition of the response
cover register and also the positioning of the MSB follow the same structure.
COVER_DONE
Event
At the end of a successful data transmission, the event COVER_DONE becomes set.
This indicates that the cover register data is sent to the motor driver and that the
received response is stored in the COVER_DRV_HIGH register 0x6F and
COVER_DRV_LOW register 0x6E.
Configuring
Automatic
Generation of
Cover Datagrams
In certain setups, it can be useful to automatically send ramp velocity-dependent cover
datagrams, e.g. to change chopper settings during motion.
NOTE:
This feature is only available if the cover datagram length does not exceed
32 bits.
In order to activate ramp velocity-dependent automatic cover data
transfer, do as follows:
Action:
Define the trigger velocity whenever an automatic cover datagram transfer is
initiated.
Set SPI_SWITCH_VEL register 0x1D to this absolute velocity [pps].
Set COVER_LOW register 0x6C to the cover_data, which is valid for lower velocity
values.
Set COVER_HIGH register 0x6D to the cover_data, which is valid for higher
velocity values.
Set automatic_cover = 1 (REFERENCE_CONF register 0x01).
Result:
Whenever
the absolute internal ramp velocity |VACTUAL| passes the
SPI_SWITCH_VEL value, the particular cover data is sent to the motor driver,
COVER_LOW is sent in case |VACTUAL| < SPI_SWITCH_VEL,
COVER_HIGH is sent in case |VACTUAL| ≥ SPI_SWITCH_VEL.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
100/230
Overview: TMC Motor Driver Connections
As mentioned before, TMC4361A is able to set the cover register length automatically in case a
TMC motor driver is connected. Also, several additional automatic features for the SPI
communication are available by selecting TMC motor drivers.
TMC Stepper Motor Driver Settings
Available SPI
and Step/Dir™
Communication
Schemes for
TMC Motors
The SPI and Step/Dir communication schemes are available for the following product
lines that are explained in greater detail further below:
How to enable
SPI Output
Settings for TMC
Stepper Motor
Drivers
In order to enable an operating SPI output setting for a connected TMC
stepper motor driver, proceed as follows:
TMC236, TMC239
TMC246, TMC248, TMC249
TMC260, TMC261, TMC262, TMC2660
TMC389
TMC2130
Action:
Set SPI_OUT_LOW_TIME, SPI_OUT_HIGH_TIME, and SPI_OUT_BLOCK_TIME
according to the TMC motor driver specification, as explained before.
Set COVER_DATA_LENGTH = 0 (bit19:13 of SPIOUT_CONF register 0x04).
Set spi_output_format = SPI_OUT_CONF (3:0) according to the connected SPI
motor driver as seen below in the table below.
Result:
The communication scheme is now prepared for the connected TMC motor driver with
all available features.
TMC Stepper Motor Driver Options
COVER_DATA_LENTGH=0
Automatic
Current Datagram
Transfer
Cover Register
Datagram
Transfer
b’0000
0
--
--
TMC23x
b’1000
12
TMC24x
b’1001
12
b’1010
b’1011
b’1101
b’1100
20
20
40
40
S/D output
S/D output
TMC Motor
Driver
spi_output_format
SPI output off
TMC26x/389
TMC2130
=SPI_OUT_CONF (3:0)
Cover Register
Datagram Length
Table 43: TMC Stepper Motor Driver Options
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
TMC Motor
Driver Response
Datagram and
Status Bits
101/230
When a TMC motor driver receives a current datagram or a cover datagram that is
transmitted via SPI output of TMC4361A, status data is sent back to the TMC4361A
controller immediately. The response is stored in the COVER_DRV_LOW 0x6E and
COVER_DRV_HIGH 0x6F registers, just like all other cover requests.
The type and sequence of the status bits that are sent back are dependent on the
selected motor driver. A detailed list for every motor driver is presented in the next
sections, in which the motor driver communication specifics for every driver family are
explained separately.
The mapping of the available status bits to the TMC4361A STATUS register is similar
for each and every TMC stepper motor driver. The last eight bits – STATUS (31:24) –
are equal to the transferred motor status bits. A detailed overview is given in the
register chapter 19.15. (page 198).
Events and
Interrupts based
on Motor Driver
Status Bits
TMC4361A also provides one event at EVENTS (30) that is connected with the motor
driver status bits. Here, any of the motor driver status bits can function as the base
for this event.
In order to activate a motor driver status bit for the motor event
EVENTS (30), do as follows:
Action:
Selected one or more of the motor driver status for the motor event by assigning
MSTATUS_SELECTION = STEP_CONF (23:16) register 0x0A accordingly.
Result:
In case one of the selected motor status bits is activated (Wired-Or), the motor event
switch EVENTS (30) generates an event.
In order to generate an interrupt for this motor event, configure the INTR output
accordingly, as explained in section 5.3. (page 26).
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
102/230
Stall Detection and Stop-on-Stall
stallGuard and
stallGuard2
Functionality
TMC stepper motor driver chips with stallGuard and stallGuard2 can detect stall and
overload conditions based on the motor’s back-EMF without the need of a position
sensor. The stall detection status is returned via SPI.
For more information, refer to the AppNote “Parameterization of stallGuard2 &
coolStep” that is available online at www.trinamic.com .
Representation
of the Motor
Stall Status
Except for TMC23x and TMC24x, which forward three load detection bits, the motor
stall status is represented by one status bit. TMC4361A is able to stop the internal
ramp as soon as a stall is recognized. Because stall bit activation can occur unwanted
during motion with a low velocity, it is also possible to set up a velocity threshold for
the Stop-on-Stall behavior.
Internal Velocity
Ramp
Stop-on-Stall
Activation
In order to activate a Stop-on-Stall for the internal velocity ramp, do as
follows:
Action:
Set VSTALL_LIMIT register 0x67 [pps] according to minimum absolute velocity
value for a correct stall recognition.
Set stop_on_stall = 1 (bit26 of REFERENCE_CONF register 0x01).
Set drive_after_stall = 0 (bit27 of REFERENCE_CONF register 0x01).
Result:
The internal ramp velocity is set immediately to 0 whenever a stall is detected and the
following is true: |VACTUAL| > VSTALL_LIMIT.
Then, the STOP_ON_STALL event is also generated.
Internal Velocity
Ramp Activation
after Stop-onStall
i
The status bit stallGuard that is directly mapped from the motor stepper driver,
which is listed in STATUS (24). This flag is always activated as soon as the motor
driver generates the stall guard status bit.
i
The ACTIVE_STALL status bit = STATUS (11) is activated as soon as a stall is
detected and |VACTUAL| > VSTALL_LIMIT.
In order to activate the internal velocity ramp AFTER a Stop-on-Stall, do as
follows:
Action:
Read out the EVENTS register 0x0E to unlock the event STOP_ON_STALL.
Set drive_after_stall = 1 (bit27 of REFERENCE_CONF register 0x01).
Result:
The internal ramp velocity is no longer blocked by the Stop-on-Stall event.
i
In order to activate the Stop-on-Stall behavior again, reset drive_after_stall again
manually to 0.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
103/230
TMC23x, TMC24x Stepper Motor Driver
In this chapter specific information pertaining to the setup of TMC23x and TMC24x is provided.
TMC23x/24x
Support
TMC4361A provides the following features in order to support the TMC23x motor stepper
driver family well:
Automatic Mixed Decay chopper mode
ChopSync
Automatic switchover between microstep and fullstep operation
Controlled PWM signal generation and automatic switchover between SPI and
PWM mode; see section 13.2. (page 133).
In the following section, the features are explained in greater detail.
i
TMC23x Setup
For further information, please refer to the manual of the particular stepper driver
motor.
In order to activate the SPI data transfer and SPI feature set for a
connected TMC23x stepper motor driver, do as follows:
Action:
Set spi_output_format = b’1000 (SPI_OUT_CONF register 0x04).
Set COVER_DATA_LENGTH = 0 (SPI_OUT_CONF register 0x04).
Result:
TMC23x is selected as connected stepper motor driver.
TMC24x Setup
In order to activate the SPI data transfer and feature set for a connected
TMC24x stepper motor driver, do as follows:
Action:
Set spi_output_format = b’1001 (SPI_OUT_CONF register 0x04).
Set COVER_DATA_LENGTH = 0 (SPI_OUT_CONF register 0x04).
Result:
TMC24x is selected as connected stepper motor driver.
i
In addition to the TMC23x features mentioned above, the TMC24x stepper driver
family provides three stallGuard bits as load measurement indicator. Therefore,
the TMC24x stepper family is supported by the TMC4361A for the following:
Stall detection and
Stop-on-Stall behavior
Turn to next page for more information.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
TMC23x/24x
Status Bits
TMC23x/24x
Microsteps
104/230
TMC4361A maps the following status bits of TMC23x/24x stepper drivers – which are
transferred with each SPI datagram – to the STATUS register 0x0F:
Status Register Mapping for TMC23x/24x
STATUS bit
Status flag
Description
@TMC4361A @TMC23x/24x
STATUS (24)
UV
Undervoltage flag.
STATUS (25)
OT
Over temperature flag.
STATUS (26)
OTPW
Temperature prewarning flag.
STATUS (27)
OCA
Overcurrent flag for bridge A.
STATUS (28)
OCB
Overcurrent flag for bridge B.
STATUS (29)
OLA
Open load flag for bridge A.
STATUS (30)
OLB
Open load flag for bridge B.
STATUS (31)
OCHS
Overcurrent high side flag.
Table 44: Mapping of TMC23x/24x Status Flags
TMC4361A only forward new current data (CURRENTA_SPI and CURRENTB_SPI at
register 0x7B) for TMC23x/TMC24x in case the upper five bits of one of the two 9-bit
current values changes; because TMC23x and TMC24x current data consist of four bit
current values and one polarity bit for each coil.
Consequently, alterations of the internal microstep resolution only apply in case the
new microstep resolution is lower than 16 bits.
Automatic
Fullstep
Switchover for
TMC23x/24x
Because SPI current data is transmitted, automatic switchover from microsteps to
fullsteps and vice versa is only dependent on the internal ramp velocity.
In order to activate automatic switchover between microstep and fullstep
operation, do as follows:
Action:
Set FS_VEL register 0x60 according to the velocity [pps] at which the switchover
must happen.
Set fs_en = 1 (bit19 of GENERAL_CONF register 0x00).
Result:
Now, current values are switched to fullstep values in case
|VACTUAL|≥FS_VEL.
A switchback from fullsteps to µsteps is executed in case
|VACTUAL| DC_VEL,
dcStep
is
activated,
dcStep active
VMAX
AX
AM
overload
DM
AX
L
INA
DF
DC_VEL
AST
ART
VBREAK
0
t
Nominal ramp profile
Ramp profile with torque overload and same target position
Figure 60: Velocity Profile with Impact through Overload Situation
Turn Page for important information about the chopper settings for microstep and fullstep/dcStep mode.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
AREAS OF
SPECIAL
CONCERN
!
139/230
Different chopper settings for microstep and fullstep/dcStep mode of
TMC26x stepper driver can be transferred automatically during motion.
Switching between dcStep mode and microstep mode often requires different chopper
settings for TMC26x stepper motor drivers.
It is possible to automatically transfer cover datagrams to TMC26x (see section 10.3.7,
page 99). Thereby, it is possible to switch the chopper settings of TMC26x rapidly,
shortly before reaching the dcStep velocity.
NOTE:
It is recommended to use this feature because dcStep requires constant off-time
chopper settings; whereas driving with µSteps and a spreadCycle chopper
provides better driving characteristics.
In order to set up a TMC26x dcStep configuration, do as follows:
Action:
Set the SPI_SWITCH_VEL register 0x1D value a little bit smaller than the DC_VEL
register 0x60 value.
Fill in the COVER_LOW 0x6C register the chopper settings for spreadCycle chopper
below the DC_VEL.
Fill in the COVER_HIGH 0x6D register the chopper settings for a constant off-time
chopper during dcStep operation (fullstep mode).
Set automatic_cover = 1 (REFERENCE_CONF register 0x01).
Result:
In case dcStep mode is not activated – because |VACTUAL| < DC_VEL – the
spreadCycle chopper mode is activated, which is best suited for microstep operation.
In case dcStep is activated, the more suited constant off-time chopper mode for
fullstep operation is activated.
Turn Page for more information on enabling dcStep for TMC2130 stepper motor
driver.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Enabling dcStep
for TMC2130
Stepper Motor
Drivers
140/230
dcStep operation with TMC2130 is similar to a handshake procedure:
The MP1 input must be connected to the DCO output pin of TMC2130, whereas MP2
must be connected to the DCEN input pin of TMC2130.
In order to set up a TMC2130 dcStep configuration, do as follows:
The mandatory TMC2130 configuration MUST be executed with cover
datagrams, as follows:
i
Please refer to the TMC2130 manual for correct settings pertaining to the
TMC2130 CHOPCONF and DCCTRL registers.
Action:
Set spi_output_format = b’1101 or b’1100 (automatic TMC2130 setting)
Set dcstep_mode = b’01 (GENERAL_CONF register 0x00).
Result:
In case VACTUAL ≥ DC_VEL, MP2 output is set to high voltage level to indicate that
dcStep can be activated.
TMC2130 will wait for the next fullstep position to switch to dcStep operation. The
dcStep signal is provided by the TMC2130 at DCO output pin.
TMC4361A is continually providing microsteps even though dcStep is enabled and
activated. TMC2130 auto-generates the dcStep behavior internally.
Set up minimum
dcStep/Fullstep
Frequency
Because dcStep operates the motor in fullstep mode, a minimum fullstep frequency
fFS can be assigned. Therefore, a dcStep low speed timer must be assigned to achieve
the following minimum fullstep frequency:
fFS = fCLK / DC_LSPTM.
In order to set up a minimum dcStep fullstep frequency, do as follows:
Action:
Set DC_LSPTM register 0x62.
Result:
After DC_LSPTM clock cycles expires – without lifting the internal dcStep signal – a
step is enforced when dcStep is enabled.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
141/230
15. Decoder Unit: Connecting ABN, SSI, or SPI Encoders correctly
TMC4361A is equipped with an encoder input interface for incremental ABN encoders, absolute
SSI or SPI encoders. This chapter provides basic setup information for correct analysis of
connected encoder signals.
Decoder Pins
Pin Names
Type
Remarks
A_SCLK
Input or Output
ANEG_NSCLK
Input or Output
B_SDI
Input
BNEG_NSDI
Input or Output
N
Input
N signal of ABN encoder.
NNEG
Input
Negated N signal of ABN encoder.
A signal of ABN encoder or
Serial Clock output for absolute SSI, or SPI encoders.
Negated A signal of ABN encoder or
Negated Serial Clock output for SSI encoder or
Low active Chip Select signal for SPI encoders.
B signal of ABN encoder or
Serial Data Input of SSI, or SPI encoders.
Negated B signal of ABN encoder or
Negated Serial Data Input of SSI encoders or
Serial Data Output of SPI encoder.
Table 55: Dedicated Decoder Unit Pins
Decoder Unit Registers
Register Name
Register address
Remarks
GENERAL_CONF
0x00
RW
Bit11:10: serial_enc_in_mode, Bit12: diff_enc_in_disable
INPUT_FILT_CONF
0x03
RW
Input filter configuration (SR_ENC_IN, FILT_L_ENC_IN).
ENC_IN_CONF
0x07
RW
Encoder configuration register.
ENC_IN_DATA
0x08
RW
Serial encoder input data structure.
STEP_CONF
0x0A
RW
Motor configurations.
ENC_POS
0x50
RW
Current absolute encoder position in microsteps.
ENC_LATCH
0x51
R
Latched absolute encoder position.
ENC_POS_DEV
0x52
R
Deviation between XACTUAL and ENC_POS.
ENC_CONST
0x54
R
Internally calculated encoder constant.
W
Encoder configuration parameter.
R
Current encoder velocity (signed).
Current filtered encoder velocity (signed).
W
Serial encoder request data.
R
Serial encoder request data response.
W
Encoder compensation register set.
Encoder Register Set
Encoder velocity
ADDR_TO_ENC
DATA_TO_ENC
ADDR_FROM_ENC
DATA_FROM_ENC
Encoder compensation
0x51…58
0x62…63
0x65
0x66
0x68
0x69
0x6A
0x6B
0x7D
Table 56: Dedicated Decoder Unit Registers
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Selecting the
correct Encoder
142/230
The encoder interface consists of six pins that can be connected with different encoder
types. Depending on the encoder type, the pins serve as inputs or as outputs. If inputs
are assigned, the incoming signals can be filtered, as explained in chapter 4, page 20.
Consequently, SR_ENC_IN and FILT_L_ENC_IN must be set accordingly. In the
following, three options are presented to select a connected encoder properly.
OPTION 1: INCREMENTAL ABN ENCODERS
In order to set up a connected incremental ABN encoder, do as follows:
Action:
Set serial_enc_in_mode = b’00 (GENERAL_CONF register 0x00).
Result:
An incremental ABN encoder is selected.
OPTION 2: ABSOLUTE SSI ENCODERS
In order to set up a connected absolute SSI encoder, do as follows:
Action:
Set serial_enc_in_mode = b’01 (GENERAL_CONF register 0x00).
Result:
An absolute SSI encoder is selected.
i
In order to avoid an erroneous status of the connected absolute SSI encoder, a
proper configuration is necessary prior to enabling; as described further down
below on the subsequent pages: see section 15.4. on page 149.
OPTION 3: ABSOLUTE SPI ENCODERS
In order to set up a connected absolute SPI encoder:
Action:
Set serial_enc_in_mode = b’11 (GENERAL_CONF register 0x00).
Result:
An absolute SPI encoder is selected.
i
In order to avoid an erroneous status of the connected absolute SPI encoder, a
proper configuration is necessary prior to enabling; as described further down
below on the subsequent pages: see section 15.4. on page 149.
Turn page for encoder pin assignment overview.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Disabling digital
differential
Encoder Signals
143/230
If incremental ABN or absolute SSI encoders are selected, the dedicated encoder
signals are treated as digital differential signals per default. For internally displaying a
valid input level, the levels of a dedicated pair must be digitally inversed.
i
No analog differential circuit is available.
In order to disable the digital differential input signals, do as follows:
Action:
Set diff_enc_in_disable = 1 (GENERAL_CONF register 0x00).
Result:
Dedicated encoder signals are treated as single signals and every negated pin is
ignored.
i
Concerning absolute SPI encoders, this is done automatically.
Pin Assignment based on selected Encoder Setup
Pin
Pin Name
No.
40
1
10
11
21
22
A_SCLK
ANEG_NSCLK
B_SDI
BNEG_NSDI
N
NNEG
Incremental ABN
Absolute SSI
Absolute SPI
Differential
Single-ended
Differential
Single-ended
Single-ended
A
¬A
B
¬B
N
¬N
A
B
N
-
SCLK
¬SCLK
SDI
¬SDI
-
SCLK
SDI
-
SCLK
CS
SDI
SDO
-
Table 57: Pin Assignment based on selected Encoder Setup
Inverting of
Encoder
Direction
In order to easily align the encoder direction with the motor direction it is possible to
invert the encoder direction by setting one switch.
In order to invert the encoder direction, do as follows:
Action:
Set invert_direction = 1 (ENC_CONF register 0x07).
Result:
The calculation of the in external position ENC_POS is inverted, turning increment to
decrement and vice versa.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
144/230
If the encoder is installed correctly, the encoder values form a circle for one motor
revolution. Thus, the deviation ENC_POS_DEV between real position ENC_POS und
internal position XACTUAL forms a constant function over the whole motor revolution.
Consequently, the resulting form of a deficiently installed encoder is oval-shaped. This
system failure results in a new function of ENC_POS_DEV that is similar to a sine
function. In the figure A below, the position deviation is shown as function of one
motor revolution, which comprises 51200 microsteps.
TMC4361A provides an option to compensate this kind of misalignment by adding a
triangular shape function that counteracts the system error. This can improve the
encoder value evaluation significantly. Per default, this function is constant at 0.
Encoder
Misalignment
Compensation
In order to setup the triangular compensation function, do as follows:
Action:
Set proper ENC_COMP_XOFFSET register 0x7D (15:0).
Set proper ENC_COMP_YOFFSET register 0x7D (23:16).
Set proper ENC_COMP_AMPL register 0x7D (31:24).
Result:
ENC_COMP_XOFFSET is 16-bit register which represents a numeral figure between 0
and 1. The resulting offset on the abscissa is calculated by:
XOFF_LOW = ENC_COMP_XOFFSET · microsteps/rev / 65536.
A triangular function is generated, which has its lowest point at
(XOFF_LOW; ENC_COMP_YOFFSET).
The peak is shifted at a distance of half a revolution. The peak coordinate
(XOFF_PEAK;YOFF_PEAK) is calculated as follows:
XOFF_PEAK = ENC_COMP_XOFFSET · microsteps/rev / 65536 + microsteps/rev / 2.
YOFF_PEAK = ENC_COMP_YOFFSET + ENC_COMP_AMPL.
In the figure A below, the red line illustrates this compensation function.
Internally, the triangular function is added to the ENC_POS value. As a result, the
position deviation is harmonized as a function of the motor revolution; which can be
seen in the figure B below.
A)
8
B)
6
6
AMPL
4
2
XOFF
0
0
µsteps
10000
20000
30000
40000
50000
-2
YOFF
position deviation
position deviation
4
-4
-6
8
2
µsteps
0
0
10000
20000
30000
40000
50000
-2
-4
-6
position deviation
compensation function
position deviation
-8
-8
Figure 61: Triangular Function that compensates Encoder Misalignments
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
145/230
Incremental ABN Encoder Settings
Incremental ABN encoders increment or decrement the external position counter register
ENC_POS 0x50. This is based on A- and B-signal level transitions.
Automatic
Constant
Configuration of
Incremental ABN
Encoder
The external position register ENC_POS 0x50 is based on internal microsteps. Thus,
every AB transition is transferred to microsteps by a fixed constant value. TMC4361A
is able to calculated this constant automatically.
In order to configure the incremental ABN encoder constant automatically,
do as follows:
Action:
Set fullstep resolution of the motor in FS_PER_REV (STEP_CONF register 0x0A).
Set microstep resolution MSTEP_PER_FS (STEP_CONF register 0x0A).
Set encoder resolution – the number of AB transitions during one revolution - in
register ENC_IN_RES 0x54 (write access).
Result:
The encoder constant value ENC_CONST (readable at register 0x54) is calculated as
follows:
ENC_CONST = MSTEP_PER_FS · FS_PER_REV / ENC_IN_RES
This constant is the number of microsteps through which ENC_POS is incremented or
decremented by one AB transition.
Manual Constant
Configuration of
Incremental ABN
Encoder
i
i
ENC_CONST consists of 15 digits and 16 decimal places.
i
In case the decimal representation also does not fit completely, the type of the
decimal places of ENC_CONST can be selected manually with ENC_IN_CONF (0).
Set ENC_IN_CONF (0) to 0 for binary representation; or set it to 1 for the decimal
one. Keep in mind that with this approach ENC_POS can slightly differ from the
real position; especially the further away the position moves from 0.
In case 16 bits are not sufficient for a binary representation of the decimal places,
TMC4361A tries to match them to a multiple of 10000 within these 16 decimal
places. Thereby, a perfect match can be achieved in case decimal representation
is preferred to a binary one.
For some applications it can be useful to define the encoder constant value, which in
this case does not correspond to the number of microsteps per revolution; e.g. if the
encoder is not mounted directly on the motor.
In order to configure the incremental ABN encoder constant manually, do
as follows:
Action:
Set ENC_IN_RES(31) =1.
Set ENC_IN_CONF(0) to 0 for a binary or to 1 for a decimal representation as
explained in the previous section.
Set required encoder resolution in ENC_IN_RES (30:0) register 0x54.
Result:
ENC_CONST consists of 15 digits and 16 decimal places. The constant is the number
of microsteps by which ENC_POS is incremented or decremented by one
AB transition.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
146/230
Incremental Encoders: Index Signal: N resp. Z
The index signal (N or Z channel) represents a recurrence of the same position in one motor
encoder revolution. TMC4361A makes use of this signal to clear the external position counter,
or to take a snapshot of the external or internal position, which then can be used to refine the
home position more precisely.
Position
-4 -3 -2 -1
0
1
2
3
4
5
6
7
A
B
N
t
Figure 62: Outline of ABN Signals of an incremental Encoder
Per default, the index channel is configured low active.
Setup of Active
Polarity for
Index Channel
In order to set up high active polarity for the index channel, do as follows:
Action:
Set pol_n =1 (register ENC_CONF 0x07).
Result:
The index channel is high active.
Configuration of
N Event
Index Channel
Sensitivity
The active polarity of the index channel can be used to clear the external position
counter or to take a snapshot of the external or internal position. Therefore,
N event is created internally. N event is based on the active polarity of the index
channel. As addition, they can also be based on the polarities of the
A and B channels.
Four active polarity configuration options for the index channel are available, which
are presented below. Configuration choice depends on customer-specific design
wishes.
In order to set up the index channel sensitivity based on active polarity, do
as follows:
Action:
Set n_chan_sensitivity (register ENC_CONF 0x07) to:
Index Channel Sensitivity
n_chan_sensitivity
Result
b’00
N event is active in case index voltage level fits pol_n.
b’01
b’10
b’11
N event is triggered when the index channel switches to
active polarity.
N event is triggered when the index channel switches to
inactive polarity.
N event is triggered at both edges when the index channel
switches to either active or inactive polarity.
Table 58: Index Channel Sensitivity
Description continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
A and B Channel
Signal Polarities
for N Event
147/230
It can be useful to specify A and B channel signal polarities for N event. Per default,
the polarities of both signal lines are set to 0 (low active).
In order to set up A channel polarity to high active for N event, do as
follows:
Action:
Set pol_a_for_n = 1 (ENC_CONF register 0x07).
Result:
Now, A channel signal polarity for N event is high active.
In order to set up B channel polarity to high active for N event, do as
follows:
Action:
Set pol_b_for_n = 1 (ENC_CONF register 0x07).
Result:
Now, B channel signal polarity for N event is high active.
In case A and B channel polarities do not have an influence on N event, both A and B
channel polarity signals can be ignored.
In order to ignore A and B channel polarities, do as follows:
Action:
Set ignore_ab = 1 (ENC_CONF register 0x07).
Result:
Now, the A and B channel signal polarities have no influence on N event.
External Position
Counter
N event can be used to clear the external position register ENC_POS 0x50. Two choices
are available: continous clearing and single clearing.
Common practice is to clear to 0. However, TMC4361A offers the possibility to
clear to any single microstep count.
ENC_POS
i
ENC_POS
Continous
Clearing
In order to set ENC_POS on N event to continuous clearing, do as follows:
Clearing
Action:
Set ENC_RESET_VAL register 0x51 to the requested microstep position.
Set clr_latch_cont_on_n = 1 (ENC_CONF register 0x07).
Set clear_on_n = 1 (ENC_CONF register 0x07).
Result:
On every N event ENC_POS is set to ENC_RESET_VAL.
ENC_POS Single
Clearing
In order to only clear ENC_POS for the next N event, do as follows:
Action:
Set ENC_RESET_VAL register 0x51 to the requested microstep position.
Set clr_latch_cont_on_n = 0 (ENC_CONF register 0x07).
Set clr_latch_once_on_n = 1 (ENC_CONF register 0x07).
Set clear_on_n = 1 (ENC_CONF register 0x07).
Result:
When the next N event occurs, ENC_POS is set to ENC_RESET_VAL. After the
particular N event, clr_latch_once_on_n is automatically reset to 0.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Latching
External Position
Continous
Encoder
Latching
148/230
N event can be used to latch external position register ENC_POS 0x50 to storage
register ENC_LATCH 0x51 (read access). Two choices are available: Continous latching
and single latching.
In order to continuously latch ENC_POS to ENC_LATCH on N event, do as
follows:
Action:
Set clr_latch_cont_on_n = 1 (ENC_CONF register 0x07).
Set latch_enc_on_n = 1 (ENC_CONF register 0x07).
Result:
On every N event ENC_POS register 0x50 is latched to ENC_LATCH register 0x51.
Single Encoder
Latching
In order to only latch ENC_POS to ENC_LATCH for the next N event, do as
follows:
Action:
Set clr_latch_cont_on_n = 0 (ENC_CONF register 0x07).
Set clr_latch_once_on_n = 1 (ENC_CONF register 0x07).
Set latch_enc_on_n = 1 (ENC_CONF register 0x07).
Result:
When the next N event occurs, ENC_POS register 0x50 is latched to ENC_LATCH
register 0x51. After the particular N event, clr_latch_once_on_n is automatically reset
to 0.
Latching
Internal Position
N event can be used to latch internal position register X_ACTUAL 0x21 to storage
register X_LATCH 0x36 (read access). Two choices are available: Continous latching
and single latching.
Continous
Latching
In order to continuously latch X_ACTUAL to X_LATCH on N event, do as
follows:
Action:
Set clr_latch_cont_on_n = 1 (ENC_CONF register 0x07).
Set latch_enc_on_n = 1 (ENC_CONF register 0x07).
Set latch_x_on_n = 1 (ENC_CONF register 0x07).
Result:
On every N event X_ACTUAL register 0x21 is latched to X_LATCH register 0x36.
Single Latching
In order to only latch X_ACTUAL to X_LATCH for the next N event, do as
follows:
Action:
Set clr_latch_cont_on_n = 0 (ENC_CONF register 0x07).
Set clr_latch_once_on_n = 1 (ENC_CONF register 0x07).
Set latch_enc_on_n = 1 (ENC_CONF register 0x07).
Set latch_x_on_n = 1 (ENC_CONF register 0x07).
Result:
When the next N event occurs, X_ACTUAL register 0x21 is latched to X_LATCH register
0x36. After the particular N event, clr_latch_once_on_n is automatically reset to 0.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
149/230
Absolute Encoder Settings
Serial encoders provide absolute encoder angle data in contrast to step transitions, which are
delivered from incremental encoders.
TMC4361A provides an external clock for the encoder in order to trigger serial data input,
Singleturn or
Multiturn Data
TMC4361A offers singleturn and multiturn options for the serial data stream
interpretation. Per default, multiturn data is not enabled. In case multiturn data is
enabled, it is interpreted as unsigned count of revolutions.
In case multiturn encoder data is transmitted, do as follows:
Action:
Set multi_turn_in_en = 1 (ENC_CONF register 0x07).
OPTIONAL CONFIGURATION: Set multi_turn_in_signed = 1.
In case multiturn data is provided as signed count of encoder revolutions.
Result:
Data from connected encoders are interpreted as multiturn data.
In case only singleturn data is transmitted TMC4361A is able to permanently calculate
internally the number of encoder revolutions as if it where externally transferred
multiturn data.
In case singleturn encoder data is transmitted but internally multiturn data
is required, do as follows:
Action:
Set multi_turn_in_en = 0 (ENC_CONF register 0x07).
Set calc_multi_turn_behav = 1 (ENC_CONF register 0x07).
Result:
Data from connected singleturn encoders is internally transferred to multiturn data.
NOTE:
Multiturn calculations are only correct in case two consecutive singleturn data
values differ only by one step less than a half turn difference, or even less.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Automatic
Constant
Configuration of
Absolute
Encoder
150/230
The external position register ENC_POS 0x50 is based on internal microsteps. Thus,
every input data angle is transferred to microsteps by a fixed constant value.
TMC4361A is able to automatically calculate this constant.
In order to configure the absolute encoder constant automatically, do as
follows:
Action:
Set fullstep resolution of the motor in FS_PER_REV (STEP_CONF register 0x0A).
Set microstep resolution MSTEP_PER_FS (STEP_CONF register 0x0A).
Set encoder resolution in register ENC_IN_RES 0x54 (write access).
Result:
The encoder constant value ENC_CONST (readable at register 0x54) is calculated as
follows:
ENC_CONST = MSTEP_PER_FS · FS_PER_REV / ENC_IN_RES
The external position ENC_POS 0x50 is calculated by multiplying the constant with the
transmitted input angle.
i
i
ENC_CONST consists of 15 digits and 16 decimal places.
In contrast to incremental ABN encoders, ENC_CONST is always represented as
binary constant.
Manual Constant
Configuration of
incremental ABN
Encoder
For some applications it can be useful to define the encoder constant value, which in
this case does not correspond to the number of microsteps per revolution;
e.g. if the encoder is not mounted directly on the motor.
In order to configure the absolute encoder constant manually, do as
follows:
Action:
Set ENC_IN_RES (31) =1.
Set required encoder resolution in ENC_IN_RES (30:0) register 0x54.
Result:
ENC_CONST consists of 15 digits and 16 decimal places. The external position
ENC_POS 0x50 is calculated by multiplying the constant with the transmitted input
angle.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Absolute
Encoder Data
Setup
151/230
Encoder Data must be maintained correctly. Consequently, certain settings must be
configured so that TMC4361A displays them as specified.
In order to configure absolute encoder data, do as follows:
Action:
Set SINGLE_TURN_RES (ENC_IN_DATA register 0x08) to the number of
singleturn data bits -1.
OPTION A1: IF MULTITURN DATA IS TRANSMITTED
Set MULTI_TURN_RES (ENC_IN_DATA register 0x08) to the number of
multiturn data bits -1.
OR OPTION A2: IF MULTITURN DATA IS NOT TRANSMITTED
Set MULTI_TURN_RES = 0 (ENC_IN_DATA register 0x08).
Set STATUS_BIT_CNT (also register 0x08) to the number of status bits.
OPTION B1: IF STATUS FLAGS ARE ORDERED IN FRONT
Set left_aligned_data = 0 (ENC_IN_CONF register 0x07).
OR OPTION B2: IF STATUS FLAGS ARE ORDERED IN FRONT
Set left_aligned_data = 1 (ENC_IN_CONF register 0x07).
Result:
SINGLE_TURN_RES defines the most significant bit (MSB) of the angle data bits,
whereas MULTI_TURN_RES defines the MSB of the revolution counter bits. Up to three
status bits can be received. The number of transferred clock bits that are sent to the
encoder is calculated as follows:
#SCLK Cycles= (SINGLE_TURN_RES+1) + (MULTI_TURN_RES+1) + STATUS_BIT_CNT
Also, the order in which the status bits occur in one encoder data stream can be
configured. In Figure 63, example setups are depicted.
NOTE:
In case more than three status bits or additional fill bits are sent from the encoder,
clock errors can occur because the number of transferred clock bits does not fit.
In order to prevent clock failures, MULTI_TURN_RES can be set to a higher value
than otherwise required; even if the encoder does not provide multiturn data. This
can result in erroneous multiturn data, which can be corrected by setting
multi_turn_in_en=0 in order to skip multiturn data automatically.
In order to compensate unavailable multiturn data make use of
calc_multi_turn_behav, as explained in section 15.4.1 on page 149.
Serial data
out
Serial data
b) A2+B1:
out
Serial data
c) A1+B1:
out
Serial data
d) A1+B2:
out
a) A1+B1:
MSBM
SB1
SB0
LSBM
MSBS
LSBS
SB0
MSBS
LSBS
MSBM
MSBM
LSBM
LSBM
MSBS
MSBS
LSBS
LSBS
SB2
Figure 63:Serial Data Output: Four Examples
Key:
a) SINGLE_TURN_RES=6; MULTI_TURN_RES=4; STATUS_BIT_CNT=0; left_aligned_data=0
b) SINGLE_TURN_RES=6; MULTI_TURN_RES=0; STATUS_BIT_CNT=2; left_aligned_data=0
c) SINGLE_TURN_RES=5; MULTI_TURN_RES=4; STATUS_BIT_CNT=1; left_aligned_data=0
d) SINGLE_TURN_RES=4; MULTI_TURN_RES=2; STATUS_BIT_CNT=3; left_aligned_data=1
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
SB1
SB0
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Emitting Encoder
Data Variation
152/230
For some applications it can be useful to limit the difference between two consecutive
encoder data values; for instance, if encoder data lines are subject to too much noise.
Per default, encoder data values can show a difference of 1/8th per encoder revolution,
only if the limitation is enabled. The difference can be configured to a smaller value,
if necessary.
In order to enable and configure encoder data variation limitation, do as
follows:
Action:
OPTIONAL: Set proper SER_ENC_VARIATION register 0x63 (7:0).
Set serial_enc_variation_limit =1 (ENC_IN_CONF register 0x07).
Result:
The encoder data value that is received subsequently must not exceed the previous
data more than:
Maximum tolerated deviation = SER_ENC_VARIATION / 256 · 1/8 · ENC_IN_RES.
In case the variation exceeds the above mentioned limit, the new data value is
rejected internally and the status flag SER_ENC_DATA_FAIL is raised.
i
In case SER_ENC_VARIATION = 0, the limit is defined by 1/8 · ENC_IN_RES.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
153/230
SSI Clock Generation
In order to receive encoder data from the absolute encoder, TMC4361A generates clock
patterns according to SSI standard. Data transfer is initiated by switching the clock line SCLK
from high to low level. The transfer starts with the next rising edge of SCLK. The number of
emitted clock cycles depends on the expected data width, as explained in section 15.4.4.
Configuration
Details
One clock cycle has a high and a low phase, which can be defined separately according
to internal clock cycles. Per default, sample points of serial data are set at the falling
edges of SCLK. Some encoders need more clock cycles – than are available during the
low clock phase – in order to prepare data for transfer. Also, due to long wires, data
transfer can take more time. To counteract the above mentioned issues, the delay
time SSI_IN_CLK_DELAY (default value equals 0) for compensation can be specified
in order to prolong the sampling start. Therefore, this delay configuration can
automatically generate more clock cycles.
After a data request – when all clock cycles have been emitted – the serial clock must
remain idle for a certain interval before the next request is automatically initiated. This
interval SER_PTIME can also be configured in internal clock cycles.
i
According to SSI standard, select an interval that is longer than 21 µs.
In order to configure the SSI clock generation, do as follows:
Action:
Set SINGLE_TURN_RES (ENC_IN_DATA register 0x08) to the number of
singleturn data bits -1.
Set MULTI_TURN_RES (ENC_IN_DATA register 0x08) to the number of multiturn
data bits -1 in case multiturn data is enabled and used.
Set STATUS_BIT_CNT (ENC_IN_DATA reg. 0x08) to the number of status bits.
Set proper left_aligned_data (ENC_IN_CONF register 0x07).
Set proper SER_CLK_IN_LOW (register 0x56) in internal clock cycles.
Set proper SER_CLK_IN_HIGH (register 0x56) in internal clock cycles.
OPTIONAL CONFIG: Set proper SSI_IN_CLK_DELAY (register 0x57) in internal
clock cycles.
OPTIONAL CONFIG: Set proper SER_PTIME (reg. 0x58) in internal clk cycles.
Finally, set serial_enc_in_mode = b’01.
Result:
TMC4361A emits serial clock streams at SCLK in order to receive absolute encoder
data at SDI. If SSI_IN_CLK_DELAY > 0, the SDI sample points are delayed (see figures
below). SER_PTIME defines the interval between two consecutive data requests.
i
SER_CLK_IN_HIGH
If differential encoder is selected, the negated clock emits at ¬SCLK; and ¬SDI
is also evaluated.
SER_CLK_IN_LOW
SSI_IN_CLK_DELAY
Serial clock
out
Serial clock
out
Serial data in
MSB
LSB
Sample points
Figure 64: SSI: SSI_IN_CLK_DELAY=0
Serial data in
---
MSB
LSB
Sample points
Figure 65: SSI: SSI_IN_CLK_DELAY>SER_CLK_IN_HIGH
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Enabling
Multicycle
SSI request
154/230
If safe transmission must be determined, it is possible to send a second request so
that the encoder repeats the same encoder data. Therefore, a second interval
SSI_WTIME must be defined.
i
According to SSI standard, select an interval that is shorter than 19 µs.
In order to enable multicycle requests, do as follows:
Action:
Set ssi_multi_cycle_data =1 (ENC_IN_CONF register 0x07).
Set proper SSI_WTIME (register 0x57) in internal clk cycles.
Result:
After a data request – when all clock cycles have been emitted – the serial clock
remains idle for SSI_WTIME clock cycles. Afterwards, the second request is
automatically initiated to receive the same encoder data. If the second encoder data
differs from the first one, error flag MULTI_CYCLE_FAIL (register 0x0F) and error
event SER_ENC_DATA_FAIL (register 0x0E) is generated.
After the second data request, the next interval lasts SER_PTIME clock cycles to
request new encoder data.
Gray-encoded
SSI Data
Streams
Several but not all SSI encoders emit angle data, which is gray-encoded. TMC4361A
is able to decode this data automatically.
In order to enable gray-encoded angle data, do as follows:
Action:
Set ssi_gray_code_en =1 (ENC_IN_CONF register 0x07).
Result:
Encoder data is recognized as gray-encoded and thus also decoded accordingly.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
155/230
SPI Encoder Data Evaluation
SPI encoder interfaces typically consist of four signal lines. In addition to SSI encoder signal
lines (SCLK, MISO), a chip select line (CS) and a data input (MOSI) to the master is provided.
SPI Encoder
Communication
Process
The number of bits per transfer is calculated automatically; based on proper
multi_turn_in_en, SINGLE_TURN_RES, MULTI_TURN_RES, and STATUS_BIT_CNT, as
explained in sections 15.4.1 (page 149) and 15.4.4 (page 151).
A typical SPI communication process responds to any SPI data transfer request when
the next transmission occurs. When TMC4361A receives an answer from the encoder,
it calculates ENC_POS immediately. The encoder slave does not send any data without
receiving a request first.
Therefore, TMC4361A always sends ADDR_TO_ENC value to request encoder data
from the SPI encoder slave device. The LSB of the serial data output is
ADDR_TO_ENC (0).
Received encoder data is stored in ADDR_FROM_ENC. Thus, encoder values can be
verified and compared to microcontroller data later on.
i
The clock generation works similarly to SSI clock generation, as described in
section 15.4.5 on page 153; based on proper SER_CLK_IN_HIGH, SER_PTIME,
and SER_CLK_IN_LOW.
In order to configure a basic SPI communication procedure, do as follows:
Action:
Set SINGLE_TURN_RES (ENC_IN_DATA register 0x08) to the number of
singleturn data bits -1.
Set MULTI_TURN_RES (ENC_IN_DATA register 0x08) to the number of multiturn
data bits -1 in case multiturn data is enabled and used.
Set STATUS_BIT_CNT (ENC_IN_DATA register 0x08) to the number of status
bits.
Set proper left_aligned_data (ENC_IN_CONF register 0x07).
Set correct SPI transfer mode that is described in the next section.
Set ADDR_TO_ENC register 0x68 to the specified SPI encoder address that
contains angle data.
Set proper SER_CLK_IN_LOW (register 0x56) in internal clock cycles.
Set proper SER_CLK_IN_HIGH (register 0x56) in internal clock cycles.
OPTIONAL CONFIG: Set proper SER_PTIME (register 0x58) in internal clk
cycles.
Finally, set serial_enc_in_mode = b’11.
Result:
TMC4361A emits serial clock streams at SCLK in order to receive absolute encoder
data at SDI pin. The number of generated clock cycles depends on
SINGLE_TURN_RES, MULTI_TURN_RES, and STATUS_BIT_CNT.
Pin ANEG_NSCLK functions as negated chip select line for the SPI encoder that is
generated according to the serial clock and the selected SPI mode; which is described
in the next section.
Pin BNEG_NSDI is the MOSI line that transfers SPI datagrams to the SPI encoder.
Datagrams, which are transferred permanently to receive angle data, consists of
ADDR_TO_ENC data.
SER_PTIME defines the interval between two consecutive data requests.
Turn page for information on SPI mode selection.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
SPI Encoder
Mode Selection
156/230
Per default, SPI encoder data transfer is managed in the same way as the
communication between microcontroller and TMC4361A. TMC4361A supports all four
SPI modes with proper setting of switches spi_low_before_cs and spi_data_on_cs.
THE PROCESS IS AS FOLLOWS:
By setting spi_low_before_cs = 0, negated chip select line at ANEG_NSCLK is
switched to active low before the serial clock line SCLK switches.
By setting spi_low_before_cs = 1, negated chip select line at ANEG_NSCLK is
switched to active low after the serial clock line SCLK switches.
By setting spi_data_on_cs = 0, the first data bit at BNEG_NSDI is changed at the
same time as the first slope of the serial clock SCLK.
By setting spi_data_on_cs = 1, the first data bit at BNEG_NSDI is changed at the
same time as the negated chip select signal at BNEG_NSDI switches to active level.
In the table below, all four SPI modes are presented.
Per default, the delay between serial clock line and negated chip select line has a time
frame of either SER_CLK_IN_HIGH or SER_CLK_IN_LOW clock cycles, which depends
on the actual voltage level of the serial clock.
This particular interval does not always match the encoder behavior perfectly.
Therefore, both the first and last intervals between the serial clock line and the
negated chip select line can be specified separately in clock cycles at
SSI_IN_CLK_DELAY register 0x57.
Below, the SSI_IN_CLK_DELAY interval is highlighted in red in all four diagrams.
Supported SPI Encoder Data Transfer Modes
spi_low_before_cs:
0
1
spi_data_on_cs
0
1
Serial clock out
(A_SCLK)
Serial clock out
(A_SCLK)
Chip Select
(ANEG_NSCLK)
Chip Select
(ANEG_NSCLK)
Serial data out
(BNEG_NSDI)
MSB
LSB
Serial data out
(BNEG_NSDI)
Sample points
(B_SDI)
Sample points
(B_SDI)
Serial clock out
(A_SCLK)
Serial clock out
(A_SCLK)
Chip Select
(ANEG_NSCLK)
Chip Select
(ANEG_NSCLK)
Serial data out
(BNEG_NSDI)
MSB
LSB
Sample points
(B_SDI)
Serial data out
(BNEG_NSDI)
MSB
MSB
Sample points
(B_SDI)
Table 59: Supported SPI Encoder Data Transfer Modes
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
LSB
LSB
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
157/230
SPI Encoder Configuration via TMC4361A
Connected SPI encoder can be configured via TMC4361A., which renders a connection between
microcontroller and encoder unnecessary.
SPI Encoder
Configuration
Communication
Process
A configuration request is sent using the settings of SERIAL_ADDR_BITS and
SERIAL_DATA_BITS, which define the transferring bit numbers.
In order to prepare SPI encoder configuration procedures, do as follows:
Action:
Set SERIAL_ADDR_BITS (ENC_IN_DATA register 0x08) to the number of address
bits of any SPI encoder configuration datagram.
Set SERIAL_DATA_BITS (ENC_IN_DATA register 0x08) to the number of data bits
of any SPI encoder configuration datagram.
Result:
In case configuration data is transferred to the SPI encoder, SERIAL_ADDR_BITS bits
and SERIAL_DATA_BITS bits are sent in two SPI configuration datagrams; exactly in
this order.
Because encoder data requests occur as an endless stream, it is necessary to interrupt
data requests when a configuration request occurs. Consequently, a handshake
behavior is implemented.
In order to transfer configuration data to the SPI encoder, do as follows:
Action:
Set DATA_TO_ENC register 0x69 to any value.
Set ADDR_TO_ENC register 0x68 to the configuration address of the SPI encoder.
Set DATA_TO_ENC register 0x69 to the configuration data of the SPI encoder.
Result:
The first DATA_TO_ENC access stops the repetitive encoder data request.
After the second DATA_TO_ENC access, three datagrams are sent to SPI encoder:
1. One address datagram is transmitted, which contains the ADDR_TO_ENC value.
Data that is received simultaneously with the request is not stored.
2. One data datagram is transmitted that contains the DATA_TO_ENC value. Data
that is received simultaneously with the request is stored in ADDR_FROM_ENC
register 0x6A because this is the response of the ADDR_TO_ENC request.
3. One no-operation datagram (NOP) is transmitted. Data that is received
simultaneously with the request is stored in DATA_FROM_ENC register 0x6B
because this is the response of the DATA_TO_ENC request.
In order to finalize the configuration procedure and continue with the
encoder data requests, do as follows:
Read out ADDR_FROM_ENC register 0x6A first.
Set ADDR_TO_ENC register 0x68 to the specified SPI encoder address that
contains angle data.
Obligatory at finalization: Read out DATA_FROM_ENC register 0x6B.
Result:
The configuration request data is read out. After DATA_FROM_ENC register readout,
the encoder data request stream of angle data continues.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
158/230
16. Possible Regulation Options with Encoder Feedback
Beyond simple feedback monitoring, encoder feedback can be used for controlling motion
controller outputs in such a way that the internal actual position matches or follows the real
position ENC_POS. Two options are provided: PID control and closed-loop operation.
Closed-loop operation is preferable if the encoder is mounted directly on the back of the motor
and position data is evaluated precisely. PID control is preferable if the encoder is located on
the drive side with no fixed connection between motor and drive side; e.g. belt drives.
Closed-Loop and PID Registers
Register Name
Register address
Remarks
Encoder configuration register: Closed-Loop configuration
switches.
Absolute tolerated deviation to trigger TARGET_REACHED
during regulation.
ENC_IN_CONF
0x07
RW
CL_TR_TOLERANCE
0x51
R
ENC_POS_DEV
0x52
R
Deviation between XACTUAL and ENC_POS.
0x59…5F
0x60…61
W
Closed-Loop and PID configuration parameters.
0x63
W
Encoder velocity filter configuration parameters.
0x65
0x66
R
Current encoder velocity (signed).
Current filtered encoder velocity (signed).
Closed-Loop and PID
Register Set
Encoder velocity
configuration
Encoder velocity
Table 60: Dedicated Closed-Loop and PID Registers
Feedback
Monitoring
Based on the difference ENC_POS_DEV (readout at register 0x52) between internal
position XACTUAL and external position ENC_POS, a status flag ENC_FAIL_F and a
corresponding error event ENC_FAIL is generated automatically.
In order to set a tolerated position mismatch, do as follows:
Action:
Set ENC_POS_DEV_TOL register 0x53 to the maximum microstep value that
represents no mismatch failure.
Result:
In case |ENC_POS_DEV| ≤ ENC_POS_DEV_TOL, no encoder failure flag is set.
In case |ENC_POS_DEV| > ENC_POS_DEV_TOL, ENC_FAIL_Flag is set.
i At this point, the corresponding encoder event ENC_FAIL is also triggered.
Target-Reached
during
Regulation
In case one of the regulation modes is selected, TARGET_REACHED event and status
flag is only released when:
XACTUAL = XTARGET
and
|ENC_POS_DEV| ≤ CL_TR_TOLERANCE.
Consequently, CL_TR_TOLERANCE register 0x52 (only write access) is the maximal
tolerated position mismatch for target reached status.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
PID-based
Control of
XACTUAL
159/230
Based on a position difference error PID_E = XACTUAL – ENC_POS the
PID (proportional integral differential) controller calculates a signed velocity value
(vPID), which is used for minimizing the position error. During this process, TMC4361A
moves with vPID until |PID_E| – PID_TOLERANCE ≤ 0 is reached and the position error
is removed.
vPID is calculated by:
𝑣𝑃𝐼𝐷 =
𝑡
𝑃𝐼𝐷_𝑃
1
𝑃𝐼𝐷_𝐼
𝑑
∙ 𝑃𝐼𝐷_𝐸 ∙ [ ] +
∙ ∫ 𝑃𝐼𝐷_𝐸 ∙ 𝑑𝑡 + 𝑃𝐼𝐷_𝐷 ∙ 𝑃𝐼𝐷_𝐸 ∙
256
𝑠
256
𝑑𝑡
0
𝑣𝑃𝐼𝐷 =
𝑣𝑃𝐼𝐷 =
𝑃𝐼𝐷_𝑃
1
𝑃𝐼𝐷_𝐼
𝑑
∙ 𝑃𝐼𝐷_𝐸 ∙ [ ] +
∙ 𝑃𝐼𝐷_𝐼𝑆𝑈𝑀 + 𝑃𝐼𝐷_𝐷 ∙ 𝑃𝐼𝐷_𝐸 ∙
256
𝑠
256
𝑑𝑡
𝑃𝐼𝐷_𝑃
1
𝑃𝐼𝐷_𝐼
𝑓𝐶𝐿𝐾
𝑑
∙ 𝑃𝐼𝐷_𝐸 ∙ [ ] +
∙ 𝑃𝐼𝐷_𝐸 ∙
+ 𝑃𝐼𝐷_𝐷 ∙ 𝑃𝐼𝐷_𝐸 ∙
256
𝑠
256
128
𝑑𝑡
Key:
PID_P = proportional term; PID_I = integral term; PID_D = derivate term
The following parameters can be read out during PID operation.
PID Readout
Parameters
PID_VEL 0x5A
Actual PID output velocity.
PID_E 0x5D
Actual PID position deviation between XACTUAL and ENC_POS.
PID_ISUM 0x5B
Actual PID integrator sum (update frequency: fCLK/128), which is calculated by:
PID_ISUM=PID_E · fCLK /128
Turn page for information on configuration of PID regulation.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
PID Control
Parameters and
Clipping Values
160/230
In order to set parameters and clipping values for PID regulation correctly, consider
the following details:
PID_DV_CLIP
0x5E
Large velocity variations are avoided by limiting vPID value with PID_DV_CLIP (register
0x5E). This clipping parameter limits both vPID and PID_VEL.
PID_I_CLIP
0x5D (14:0)
The error sum PID_ISUM (read out at 0x5B) is generated by the integral term.
PID_ISUM is limited by setting PID_I_CLIP register 0x5D.
i
i
PID_D_CLKDIV
0x5D (23:16)
maximum value of PID_I_CLIP must meet the condition
PID_I_CLIP ≤ PID_DV_CLIP / PID_I.
If the error sum PID_ISUM is not clipped, it is increased with each time step by
PID_I · PID_E. This continues as long as the motor does not follow.
The
Time scaling for deviation (with respect to error correction periods) is controlled by
PID_D_CLKDIV register.
i
During error correction, fixed clock frequency fPID_INTEGRAL is valid:
fPID_INTEGRAL[Hz] = fCLK[Hz] / 128
VEL_ACT_PID
The internal velocity VEL_ACT_PID alters actual ramp velocity VACTUAL. Two settings
are provided:
In case regulation_modus = b’11, VACTUAL is assigned as pulse generator base value
and VEL_ACT_PID is calculated by VEL_ACT_PID = VACTUAL + vPID.
In case regulation_modus = b’10, zero is assigned as pulse generator base value.
Now, VEL_ACT_PID = vPID is valid.
PID_TOLERANC
E 0x5F
TMC4361A provides the programmable hysteresis PID_TOLERANCE for target position
stabilization; which avoids oscillations through error correction in case XACTUAL is
close to the real mechanical position.
The PID controller of TMC4361A is programmable up to approximate 100 kHz update
rate (at fCLK = 16 MHz). This high speed update rate qualifies PID regulation for motion
stabilization.
Enabling PID
Regulation
Now that PID control parameters and clipping values are configured, as explained
above, PID regulation can be enabled. Two options can be selected.
In order to enable PID control, do as follows:
Action:
OPTION 1: BASE PULSE GENERATOR VELOCITY = 0
Set regulation_modus = b’10 (ENC_IN_CONF register 0x07).
OPTION 2: BASE PULSE GENERATOR VELOCITY = VACTUAL
Set regulation_modus = b’11 (ENC_IN_CONF register 0x07).
Result:
PID regulation is enabled.
NOTE
Detailed knowledge of a particular application (including dynamics of mechanics)
is necessary for PID controller parameterization.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
161/230
Closed-Loop Operation
The closed-loop unit of TMC4361A directly modifies output currents and Step/Dir outputs of
the internal step generator; which is dependent on the feedback data. The 2-phase closed-loop
control of TMC4361 follows a different approach than Field-Oriented Control (FOC); which is
similar to PID control cascades. The ramp generator, which assigns target and velocity, is
independent of position control (commutation angle control); which is also independent of
current control. Closed-loop operation can only be used in combination with 256 microsteps per
fullstep.
Basic ClosedLoop Parameters
Closed-loop does not control current values via the internal step generator. The
currents values at the SPI output and the Step/Dir outputs are verified using the
evaluated difference between internal position XACTUAL and external position
ENC_POS; considering the calibrated offset parameter CL_OFFSET.
In order to set parameters and clipping values for closed-loop regulation correctly,
consider the following details:
CL_OFFSET
0x59
This register contains the basic offset value between internal and external position
during calibration process, which is necessary for closed-loop operation, and offers
read-write access. The write access can be used if a defined fixed offset value is
preferred, which is verified beforehand.
ENC_POS_DEV
0x52
The continuously updated parameter ENC_POS_DEV displays the deviation between
XACTUAL and ENC_POS; considering CL_OFFSET.
CL_BETA
0x1C (8:0)
CL_BETA is the maximum commutation angle that is used to compensate an evaluated
deviation ENC_POS_DEV. In case the deviation reaches CL_BETA value, the
commutation angle remains stable at this value to follow the overload. Also, CL_MAX
event is triggered at this point.
CL_TOLERANCE
0x5F (7:0)
This parameter is set to select the tolerance range for position deviation. In case
|ENC_POS_DEV| ≤ CL_TOLERANCE, CL_FIT_F lag becomes set.
In case a mismatch between internal and external position occurs, CL_FIT event is
triggered to signify when the mismatch is removed.
CL_DELTA_P
0x5C
CL_DELTA_P is a proportional controller that compensates a detected position
deviation between internal and external position. See also Figure 66, page 162.
In case |ENC_POS_DEV| ≤ CL_TOLERANCE, CL_DELTA_P is automatically set to 1.0.
In case |ENC_POS_DEV| > CL_TOLERANCE, the closed-loop unit of TMC4361A
multiplies ENC_POS_DEV with CL_DELTA_P and adds the resulting value to the
current ENC_POS. Thus, a current commutation angle for higher stiffness position
maintenance, which is clipped at CL_BETA, is calculated.
i
CL_DELTA_P consists of 24 bits. The last 16 bits represent decimal places. The
final proportional term is thus calculated by:
pPID = CL_DELTA_P / 65536.
i
Therefore, the higher pPID the faster the reaction on position deviations.
NOTE:
A high pPID term can lead to oscillations that must be avoided.
CL_CYCLE 0x63
(31:16)
In case, one absolute encoder is connected, this value represents the delay time in
numbers of clock cycles between two consecutive regulation cycles. It is
recommended to adjust this value to the regulation cycle; which is either equal or
slower than the encoder request rate. In case incremental ABN encoder is selected,
this value is automatically set to fetch the fastest possible regulation rate; which in
most cases are five clock cycles.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
New output angle
162/230
ENC_POS+90°
(+256 µSteps)
–CL_TOLERANCE
CL_BETA
p PID
ENC_POS+45°
(+128 µSteps)
=4
ID
pP
=
2
pPID = 1
0°
-128
(-45°)
=
128
(45°)
256
(90°)
384
(135°)
2
p PID
ID
-256
(-90°)
pP
-384
(-135°)
ENC_POS_DEV
[µSteps]
pPID = 1
=4
ENC_POS-45°
(-128 µSteps)
CL_TOLERANCE
–CL_BETA
ENC_POS-90°
(-256 µSteps)
Figure 66: Calculation of the Output Angle with appropriate CL_DELTA_P
Enabling and
calibrating
Closed-Loop
Operation
Now that basic closed-loop control parameters are configured, as explained above,
closed-loop regulation can be enabled.
i
The presented calibration process is very basic. Refer to the closed-loop
Application Note for detailed calibration process information.
In order to enable and calibrate closed-loop control, do as follows:
PRECONDITION: SET TO BEST POSSIBLE MAXIMUM CURRENT SCALING
PROCEED WITH: OPTION 1: CL_OFFSET IS GENERATED DURING
CALIBRATION
Action:
Set MSTEPS_PER_FS = 0 (STEP_CONF register 0x0A) [256 microsteps per
fullstep].
Move to any fullstep position (MSCNT mod 128 = 0).
Set regulation_modus = b’01 (ENC_IN_CONF register 0x07).
Set cl_caclibration_en =1 (ENC_IN_CONF register 0x07).
Wait for a defined time span (system settle down).
Set cl_caclibration_en =0 (ENC_IN_CONF register 0x07).
Result:
Closed-loop operation is enabled with basic calibration. CL_OFFSET is set to position
mismatch during calibration process.
OR PROCEED WITH OPTION 2: CL_OFFSET IS USED FOR CALIBRATION
In case CL_OFFSET was saved and no position loss has occurred while closed-loop
operation was disabled, it can be used to replace the calibration process.
Action:
Set MSTEPS_PER_FS = 0 (STEP_CONF register 0x0A) 256 microsteps per
fullstep.
Set regulation_modus = b’01 (ENC_IN_CONF register 0x07).
Set CL_OFFSET to any preferred microstep value.
Result:
Closed-loop operation is enabled.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
163/230
In order to limit catch-up velocities in case a disturbance of regular motor motion must
be compensated, the following parameters can be configured accordingly:
Limiting
Closed-Loop
Catch-Up
Velocity
i
Refer to section 16.2. on page 159 for more information about PI regulation of
the maximum velocity because it uses the same PI regulator like the position PID
regulator. The base velocity is the actual ramp velocity VACTUAL.
CL_VMAX_CALC_P
0x5A
CL_VMAX_CALC_I
0x5B
PID_DV_CLIP
0x5E
P parameter of the PI regulator, which controls the maximum velocity.
PID_I_CLIP
0x5D
This parameter is used together with PID_DV_CLIP in order to limit the velocity for
error compensation. The error sum PID_ISUM is generated by the integral term. In
case this error sum must be limited, set PID_I_CLIP.
It is advisable to set the maximum value of PID_I_CLIP to:
I parameter of the PI regulator, which controls the maximum velocity.
PID_DV_CLIP can be set in order to avoid large velocity variations; and also to limit
the maximum velocity deviation above the maximum velocity VMAX.
PID_I_CLIP ≤ PID_DV_CLIP / PID_I.
i
Enabling the
Limitation of the
Catch-Up
Velocity
In case the error sum PID_ISUM is not clipped, it is increased with each time step
by PID_I · PID_E. This continues as long as the motor does not follow.
Now that PI control parameters and clipping values are configured, as explained
above, limiting catch-up velocities can be enabled.
In order to enable limitation of closed-loop catch-up velocity, do as follows:
Action:
Set cl_vlimit_en = 1 (ENC_IN_CONF register 0x07).
Result:
Closed-loop catch-up velocity is limited according to the configured parameters.
NOTE:
A higher motor velocity than specified VMAX ( for negative velocity: -VMAX) is
possible if the following conditions are met:
Closed-loop operation is enabled.
Closed-loop catch-up velocity is not enabled, or is enabled with
PID_DV_CLIP > 0; and CL_VMAX_CALC_P and CL_VMAX_CALC_I are
higher than 0.
ENC_POS_DEV > CL_TOLERANCE resp. ENC_POS_DEV < CL_TOLERANCE.
AREAS OF
SPECIAL
CONCERN
!
In case the internal ramp has stopped, and the position mismatch still needs
to be corrected, the base velocity for catch-up velocity limitation is zero.
The mismatch correction ramp is a linear deceleration ramp, independent of the
specified ramp profile. This occurs because the catch-up velocity is regulated via PI
regulation, as explained above.
Thus, this final ramp for error compensation is a function of both ENC_POS_DEV and
the PI control parameters.
Turn page for information on closed-loop velocity mode.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Enabling ClosedLoop Velocity
Mode
164/230
Some applications only require maintaining a specified velocity value during closedloop behavior, regardless of position mismatches. TMC4361A also provides this option.
NOTE:
The closed-loop velocity mode is set independent of the internal ramp operation
mode (velocity or positioning mode).
In order to enable and calibrate closed-loop control, do as follows:
Action:
Set the catch-up velocity parameters, as explained in detail in section 16.3.3, page
163.
Set cl_vlimit_en = 1 (ENC_IN_CONF register 0x07).
Set cl_velocity_mode_en = 1 (ENC_IN_CONF register 0x07).
Result:
Closed-loop operation velocity mode is enabled.
In case position mismatch |ENC_POS_DEV| exceeds 768 microsteps, internal position
counter XACTUAL is set automatically to ENC_POS ± 768 to limit the position
mismatch.
Thus, closed-loop operation maintains the specified velocity value VMAX.
i
A higher motor velocity than specified VMAX (for negative velocity: -VMAX ) is
possible if PID_DV_CLIP > 0.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
165/230
Closed-loop Scaling
In order to save energy, current scaling can be adjusted according to actual load during closedloop operation.
Closed-Loop
Scaling
Configuration
and Enabling
Closed-loop scaling slightly alters the use of the scaling register while remaining
consistent in its use of internal scaling and the transmission to the stepper drivers:
1. Closed-loop scaling uses the same scaling register that is also used for
open-loop configuration, as explained in chapter 11, page 120. However, the
specified values that are used – and thus are also named – differently.
2. Internal scaling of MSLUT current values and transfer of these values to the
motor stepper drivers function exactly in the same way as explained in
chapter 10, page 87.
In order to configure and enable closed-loop scaling, do as follows:
Action:
Set proper CL_IMIN (SCALE_VALUES register 0x06).
Set proper CL_IMAX (SCALE_VALUES register 0x06).
Set proper CL_START_UP (SCALE_VALUES register 0x06).
Set SCALE_VALUES (31:24) to 0.
Set closed_loop_scale_en = 1 (CURRENT_CONF register 0x05).
Result:
As soon as closed-loop scaling is enabled, all other open-loop scaling options are
automatically disabled. The following scaling situations are possible:
1. In case |ENC_POS_DEV| ≤ CL_START_UP, current values are scaled with
CL_IMIN.
2. In case |ENC_POS_DEV| > CL_START_UP and |ENC_POS_DEV| ≤ CL_BETA,
current values are scaled with a factor that increases linearly from CL_IMIN to
CL_IMAX.
3. In case |ENC_POS_DEV| > CL_BETA, current values are scaled with CL_IMAX.
The chart below identifies the actual scaling parameter SCALE_PARAM, which is
dependent on the above described situations:
XACTUAL
SCALE_PARAM
CL_IMAX
CL_IMIN
ENC_POS_DEV
[µSteps]
-384
(-135°)
-256
(-90°)
-128
(-45°)
0°
128
(45°)
256
(90°)
384
(135°)
–CL_START_UP CL_START_UP
–CL_BETA
CL_BETA
Figure 67: Closed-Loop Current Scaling
Turn page for information about adaptations on the scaling transformation process
during closed-loop operation.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Closed-Loop
Scaling
Transition
Process Control
166/230
Transition from one scale value to the next active value can be configured as slight
conversion. Two different parameters can be set in order to convert to higher or lower
closed-loop current scale values, as depicted in the chart below.
In order to configure a smooth transition from a lower motion current
scaling value to a higher motion current scaling value, do as follows:
Action:
Set CL_UPSCALE_DELAY register 0x18 according to the delay period after which
the actual scale parameter is increased by one step towards the higher current
scale value.
Result:
Whenever a higher current scale value is assigned internally, the actual scale
parameter is increased by one step per CL_UPSCALE_DELAY clock cycles until the
assigned scale parameter is reached.
i
If CL_UPSCALE_DELAY = 0, the higher current scaling value is immediately
assigned whenever the corresponding current scaling phase is activated.
In order to configure a smooth transition from a higher motion current
scaling value to a lower motion current scaling value, do as follows:
Action:
Set CL_DNSCALE_DELAY register 0x19 according to the delay period after which
the actual scale parameter is decreased by one step towards the lower current
scale value.
Result:
Whenever a lower current scale value is assigned internally, the actual scale parameter
is decreased by one step per CL_DNSCALE_DELAY clock cycles until the assigned scale
parameter is reached.
i
If CL_DNSCALE_DELAY = 0, the lower current scaling value is immediately
assigned whenever the corresponding current scaling phase is activated.
SCALE_PARAM
AL
E_
_U
PS
C
CL
0
Y>
A
EL
_D
E
AL
Actual Current Scale Target Value
Actual Current Scale Value
CL_IMIN
CL
_D
NS
=0
LAY
_DE
ALE
C
PS
U
_
CL
C
DNS
CL _
DE
LA
Y=
0
CL_IMAX
0
CA
LE
_D
EL
A
Y>
0
t
Figure 68: Closed-Loop Current Scaling Timing Behavior
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
167/230
Back-EMF Compensation during Closed-loop Operation
When higher velocities are reached, a phase shift between current and voltage occurs at the
motor coils. Consequently, current control is transformed into voltage control.
This motor- and setup-dependent effect must be compensated because currents are still
continuously assigned for motor control. TMC4361A attributes γ-correction to the
compensation process, which adds a velocity-dependent angle - in motion direction - to the
current commutation angle.
Load Angle
Calculation
Gamma correction constantly adds one compensation angle, GAMMA, to the actual
commutation angle; because the velocity-dependent amount of the influence of BackEMF, GAMMA is also velocity-dependent. Thus, velocity limits are assigned. These
limits are based on REAL motor velocity V_ENC (register 0x65). The value of the motor
velocity is internally calculated and can be filtered (V_ENC_MEAN register 0x66) to
smoothen the γ-correction, which is explained in the next section.
In order to configure and enable Back-EMF compensation during closedloop operation, do as follows:
Action:
Set proper CL_GAMMA register 0x1C.
Set proper CL_VMIN_EMF register 0x60.
Set proper CL_VMAX_EMF register 0x61.
Set cl_emf_en = 1 (ENC_IN_CONF register 0x07).
Result:
Back-EMF compensation during closed-loop operation is enabled. CL_GAMMA
represents the maximum value of GAMMA. Per default, CL_GAMMA is set to its
maximal possible value of 255, which represents a 90° angle.
The following compensation situations are possible:
1. In case |V_ENC_MEAN| ≤ CL_VMIN_EMF, GAMMA is set to 0.
2. In case |V_ENC_MEAN| > CL_VMIN_EMF and
|V_ENC_MEAN| ≤ (CL_VMIN_EMF + CL_VADD_EMF), GAMMA is scaled linearly
between 0 and its maximum value.
3. In case |V_ENC_MEAN| > (CL_VMIN_EMF + CL_VADD_EMF),
GAMMA = CL_GAMMA.
The chart below identifies the actual parameter GAMMA, which is dependent on the
above described situations:
Areas of
Special
Concern
!
If γ-correction is turned on, the maximum possible commutation is
(CL_BETA + CL_GAMMA ).
This value must not exceed 180° (511 microsteps at 256 microsteps per fullstep)
because angles of 180° or more will result in unwanted motion direction changes.
GAMMA
CL_VADD_EMF
Usually 255 (=90°)
CL_GAMMA
CL_VMIN_EMF
V_ENC_MEAN
Figure 69: Calculation of the actual Load Angle GAMMA
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
168/230
Encoder Velocity
Readout
Parameters
In case an encoder is connected, REAL motor velocity can be read out. The actual
encoder velocity flickers. This is system-immanent. TMC4361A provides filter options
that back-EMF compensation is based on. The following velocity parameters can be
read out.
V_ENC 0x65
Actual encoder velocity in pulses (microsteps) per second [pps].
V_ENC_MEAN
0x66
Actual filtered encoder velocity in pulses (microsteps) per second [pps].
In order to set filter parameters correctly, consider the following details:
Encoder Velocity
Filter
Configuration
ENC_VMEAN_WAIT
0x63 (7:0)
ENC_VMEAN_WAIT represents the delay period in number of clock cycles between
two consecutive V_ENC values that are used for the encoder filter velocity calculation.
The lower this value, the faster the adaptation process of V_ENC_MEAN is.
Accordingly: The higher the gradient of V_ENC_MEAN is.
In case incremental ABN encoders are connected, ENC_VMEAN_WAIT must be set
above 32.
In case absolute encoders are connected, ENC_VMEAN_WAIT is automatically set to
SER_PTIME.
ENC_VMEAN_FILTER
0x63 (11:8)
This filter exponent is used for filter calculations. The lower this value, the faster the
adaptation process of V_ENC_MEAN is. Accordingly: The higher the gradient of
V_ENC_MEAN is. Every ENC_VMEAN_WAIT clock cycles, the following calculation
applies:
𝑉𝐸𝑁𝐶𝑀𝐸𝐴𝑁 = VENCMEAN −
ENC_VMEAN_INT
0x63 (31:16)
Encoder Velocity
equals 0 Event
VENCMEAN
𝐸𝑁𝐶_𝑉𝑀𝐸𝐴𝑁_𝐹𝐼𝐿𝑇𝐸𝑅
2
+
V𝐸𝑁𝐶
2𝐸𝑁𝐶_𝑉𝑀𝐸𝐴𝑁_𝐹𝐼𝐿𝑇𝐸𝑅
The refresh frequency of high encoder velocity values V_ENC is determined by this
encoder velocity update period.
In case incremental ABN encoders are connected, the minimum value of
ENC_VMEAN_INT is automatically set to 256.
In case absolute encoders are connected, ENC_VMEAN_INT is automatically adapted
to encoder value request rate.
Because internal calculation of low V_ENC values is triggered by AB signal changes
and not by the refresh frequency defined by ENC_VMEAN_INT, any occurring idle
state of the encoder is not recognized.
In order to determine that V_ENC = 0, it is possible to limit the number of clock cycles
while no AB signal changes occur; which then signifies encoder idle state.
In order to evoke encoder idle state, do as follows:
Action:
Set proper ENC_VEL_ZERO register 0x62.
Result:
In case no AB signal changes occur during ENC_VEL_ZERO clock cycles, ENC_VEL0
event is triggered, which indicates encoder idle state.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
169/230
17. Reset and Clock Gating
In addition to the hardware reset pin NRST and the automatic Power-on-Reset procedure,
TMC4361A provides a software reset option. If not in operation, clock gating can be used to
reduce power consumption.
Reset and Clock Pins
Pin Names
Types
Remarks
NRST
Input
Low active hardware reset.
STPIN
Input
High active wake-up signal.
CLK_EXT
Input
Connected external clock signal.
Table 61: Dedicated Reset and Clock Pins
Reset and Clock Gating Registers
Register Name
Register address
Remarks
GENERAL_CONF
0x00
RW
Bit18:17
CLK_GATING_DELAY
0x14
RW
Dela time before clock gating is enabled.
CLK_GATING_REG
0x4F (2:0)
RW
Trigger for clock gating.
RESET_REG
0x4F (31:8)
RW
Trigger for SW-Reset.
Table 62: Dedicated Reset and Clock Gating Registers
A hardware reset is provided by the NRST input pin.
Manual
Hardware Reset
In order to reset TMC4361A, do as follows:
Action:
Set NRST input to low voltage level.
Result:
TMC4361A registers are reset to default values.
NOTE:
During power-up of TMC4361A, Power-on-Reset is executed automatically.
Manual
Software Reset
In order to reset TMC4361A without use of NRST pin, do as follows:
Action:
Set RESET_REG = 0x525354 (Bits31:8 of register 0x4F).
Result:
TMC4361A registers are reset to default values.
NOTE:
A software reset can be activated in all cases, except for one:
Due to safety reasons, only hardware resets are available during the FROZEN
event to overcome this freeze condition (see chapter 12, page 128).
Reset Indication
RST_EV = EVENTS(31) is set as indicator signifying that one of the possible
reset conditions was triggered.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Activating Clock
Gating manually
170/230
Clock gating must be enabled before activation. In addition, the delay between
activation and the active clock gating phase can be configured.
In order to activate clock gating manually, do as follows:
PRECONDITION: VEL_STATE_F = “00” INDICATING THAT VACTUAL = 0.
Action:
Set clk_gating_en = 1 (bit17 of GENERAL_CONF register 0x00).
Set proper CLK_GATING_DELAY register 0x14.
Set CLK_GATING_REG = 0x7 (bit2:0 of register 0x4F).
Result:
When writing to CLK_GATING_REG, this activates the CLK_GATING_DELAY counter,
which specifies the delay between clock gating trigger and activation in
[number of cycles]. When the counter reaches 0, clock gating is activated. See figure
below.
NOTE :
In case CLK_GATING_REG = 0, clock gating is executed immediately after
activating the CLK_GATING_REG register. See figure below.
In order to conduct clock gating wake-up, do as follows:
Clock Gating
Wake-up
Action:
Set STPIN input pin to high voltage level.
Result:
Clock-gating is terminated. See figure below.
If SPI datagram transfers from microcontroller to TMC4361A prompt wakeup, do as follows:
Action:
Set CLK_GATING_DELAY = 0xFFFFFFFF (register 0x14).
Set CLK_GATING_REG = 0x0 (bit2:0 of register 0x4F).
Set CLK_GATING_REG = 0x7 (bit2:0 of register 0x4F).
Set clk_gating_en = 0 (bit17 of GENERAL_CONF register 0x00).
Result:
Clock-gating is terminated.
External
clk signal
SPI
Inputs
CLK_GATING_REG
=111
CLK_GATING_DELAY
=5
CLK_GATING_REG
=111
Clock gating
delay timer
STPIN input signal
Internal clk
signal
Figure 70: Manual Clock Gating Activation and Wake-Up
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
171/230
It is possible to use TMC4361A standby phase to automatically activate clock gating.
Automatic Clock
Gating
Procedure
i
For further information about standby timer, see section 11.1. , page 121.
In order to activate automatic clock gating, do as follows:
Action:
Set the time frame for STDBY_DEALY register 0x15 after ramp stop, and before
standby phase starts.
Set hold_current_scale_en = 1 (CURRENT_CONF register 0x05).
Set closed_loop_scale_en = 0 (CURRENT_CONF register 0x05).
Set clk_gating_en = 1 (bit17 of GENERAL_CONF register 0x00).
Set proper CLK_GATING_DELAY register 0x14.
Set clk_gating_stdby_en = 1 (bit17 of GENERAL_CONF register 0x00).
Result:
After standby phase activation, activation of clock gating counter follows. When the
counter reaches 0, clock gating is activated.
In addition, the start signal generation, presented in chapter 9, page 69, can be used
for an automated wake-up. An example is given in the figure below.
The chart below shows the TARGET_REACHED (=TR) signal, which signifies ramp stop
at which VACTUAL reaches 0.
When VACTUAL = 0, the following process occurs:
1. The start delay timer signifies the time frame between ramp stop and next ramp
start.
2. When the standby delay timer expires, the standby phase is activated.
3. When the standby phase is activated, the clock gating delay timer is started.
4. After the clock gating delay timer expires, clock gating is activated.
5. Shortly before the start delay timer expires, clock gating is disabled, which occurs
so that the next ramp is started with proper assigned registers.
External
clk signal
TR
START_DELAY
START
delay timer
Stdby delay
timer
Clock gating
delay timer
STDBY_DELAY
CLK_GATING_DELAY
Internal clk
signal
Figure 71: Automatic Clock Gating Activation and Wake-Up
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
172/230
18. Serial Encoder Output
TMC4361A provides an option to render internal encoder data into absolute SSI encoder data.
This encoder data is streamed via the SPI output interface.
Pin Names for SPI Motor Drive
Pin Names
Type
Remarks
NSCSDRV_SDO
Output
Serial data output.
SCKDRV_NSDO
Output
Negated serial data output.
SDODRV_SCLK
InOut as Input
Serial clock input.
SDIDRV_NSCLK
Input
Negated serial clock input.
Table 63: Pin Names for Encoder Output Interface
Register Names for SPI Output Registers
Register Name
Register Address
Remarks
GENERAL_CONF
0x00
RW
Affect switches: Bit25:24.
SSI_OUT_MTIME
0x04
RW
Bit24:4: Monoflop time.
ENC_IN_CONF
0x07
RW
Affect switches: Bit14, Bit30.
ENC_OUT_DATA
0x09
RW
Encoder output data structure.
ENC_OUT_RES
0x55
W
Resolution of singleturn data.
Table 64: Dedicated SPI Output Registers
This topic is continued on the following page. Please turn page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
173/230
The internal [microstep] value of the external position ENC_POS 0x50 can be
transferred to a serial data stream using the SPI output interface. SSI output format
and structure can be configured freely.
Configuration
and Enabling of
SSI Output
Interface
In order to provide SSI output data at the SPI output interface, do as
follows:
Action:
Set encoder resolution in register ENC_OUT_RES 0x55 (write access).
Set SINGLE_TURN_RES_OUT (Bit4:0 of ENC_OUT_DATA register 0x09) to the
number of singleturn data bits – 1.
OPTIONAL: IF MULTITURN DATA MUST BE TRANSMITTED
Set MULTI_TURN_RES_OUT (Bit9:5 of ENC_OUT_DATA register 0x09) to the
number of multiturn data bits – 1.
Set multi_turn_out_en = 1 (Bit14 of ENC_IN_CONF register 0x07).
Set proper SSI_MTIME register 0x04(23:4).
Set serial_enc_out_enable = 1 (Bit24 of GENERAL_CONF register 0x00).
Result:
Differential SSI output data is streamed via SPI output interface:
Master clock input pin is SDODRV_SCLK
Negated clock input pin is SDIDRV_NSCLK.
NSCSDRV_SDO acts as serial data output
Negated data output is SCKDRV_NSDO.
Output data remains unchanged until SSI_OUT_MTIME clock cycles expires
after the last master request to support multicycle data requests.
The angle of the singleturn data is calculated considering the external position
ENC_POS and the requested encoder resolution ENC_OUT_RES. The number of
singleturn bits is equal to SINGLE_TURN_RES_OUT + 1.
If multiturn data must be transferred, the number of revolutions is also calculated and
transmitted as signed number before singleturn data bits follow. The number of
multiturn bits is equal to MULTI_TURN_RES_OUT + 1.
An example is provided below: SSI output stream consists of five multiturn bits
(MULTI_TURN_RES_OUT = 4)
and
seven
singleturn
bits
(SINGLE_TURN_RES_OUT = 6) that follow each other successively in one data
stream.
SDODRV_SCLK
SDIDRV_NSCLK
NSCSDRV_SDO
SCKDRV_NSDO
MSBM
LSBM
MSBS
LSBS
MSBM
LSBM
MSBS
LSBS
Figure 72: Example for SSI Output Configuration: M - Multiturn; S - Singleturn
Turn page for information on additional configuration options.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Disabling
differential
Encoder Output
Signals
174/230
Regular SSI operation makes use differential signals. Thus, TMC4361A expects digital
differential serial clock input signals.
In order to disable the digital differential output signals, do as follows:
Action:
Set serial_enc_out_diff_disable = 1 (Bit25 of GENERAL_CONF register 0x00).
Result:
Dedicated encoder signals are treated as single signals and every negated pin is
ignored.
TMC4361A is able to gray-encode SSI data automatically.
Gray-encoded
SSI Output Data
In order to enable gray-encoded SSI output data, do as follows:
Action:
Set enc_out_gray =1 (Bit30 of ENC_IN_CONF register 0x07).
Result:
Encoder data output is gray-encoded.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
175/230
T E C H NI C A L S P E C I F I C AT I O NS
19. Complete Register and Switches List
General Configuration Register GENERAL_CONF 0x00
GENERAL_CONF 0x00 (Default value: 0x00006020)
R/W
Bit
Val
Remarks
use_astart_and_vstart
0
(only valid for S-shaped ramps)
0
Sets AACTUAL = AMAX or –AMAX at ramp start and in the case of VSTART ≠ 0.
1
Sets AACTUAL = ASTART or –ASTART at ramp start and in the case of VSTART ≠ 0.
direct_acc_val_en
1
0
Acceleration values are divided by CLK_FREQ.
1
Acceleration values are set directly as steps per clock cycle.
direct_bow_val_en
2
0
Bow values are calculated due to division by CLK_FREQ.
1
Bow values are set directly as steps per clock cycle.
step_inactive_pol
3
0
STPOUT = 1 indicates an active step.
1
STPOUT = 0 indicates an active step.
toggle_step
4
0
Only STPOUT transitions from inactive to active polarity indicate steps.
1
Every level change of STPOUT indicates a step.
pol_dir_out
RW
5
0
DIROUT = 0 indicates negative direction.
1
DIROUT = 1 indicates negative direction.
sdin_mode
7:6
0
Internal step control (internal ramp generator will be used)
1
External step control via STPIN / DIRIN interface with high active steps at STPIN
2
External step control via STPIN / DIRIN interface with low active steps at STPIN
3
External step control via STPIN / DIRIN interface with toggling steps at STPIN
pol_dir_in
8
0
DIRIN = 0 indicates negative direction.
1
DIRIN = 1 indicates negative direction.
sd_indirect_control
9
0
STPIN/DIRIN input signals will manipulate internal steps at XACTUAL directly.
1
STPIN/DIRIN input signals will manipulate XTARGET register value, the internal
ramp generator is used.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
176/230
GENERAL_CONF 0x00 (Default value: 0x00006020)
R/W
Bit
Val
Remarks
serial_enc_in_mode
11:10
0
An incremental encoder is connected to encoder interface.
1
An absolute SSI encoder is connected to encoder interface.
2
Reserved
3
An absolute SPI encoder is connected to encoder interface.
diff_enc_in_disable
12
0
Differential encoder interface inputs enabled.
1
Differential encoder interface inputs is disabled (automatically set for SPI encoder).
stdby_clk_pin_assignment
14:13
0
Standby signal becomes forwarded with an active low level at STDBY_CLK output.
1
Standby signal becomes forwarded with an active high level at STDBY_CLK output.
2
STDBY_CLK passes ChopSync clock
(TMC23x, TMC24x stepper motor drivers only).
3
Internal clock is forwarded to STDBY_CLK output pin.
intr_pol
15
RW
0
INTR=0 indicates an active interrupt.
1
INTR=1 indicates an active interrupt.
invert_pol_target_reached
16
0
TARGET_REACHED signal is set to 1 to indicate a target reached event.
1
TARGET_REACHED signal is set to 0 to indicate a target reached event.
clk_gating_en
17
0
Clock gating is disabled.
1
Internal clock gating is enabled.
clk_gating_stdby_en
18
0
No clock gating during standby phase.
1
Intenal clock gating during standby phase is enabled.
fs_en
19
0
Fullstep switchover is disabled.
1
SPI output forwards fullsteps, if |VACTUAL| > FS_VEL.
fs_sdout
20
0
No fullstep switchover for Step/Dir output is enabled.
1
Fullsteps are forwarded via Step/Dir output also if fullstep operation is active.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
177/230
GENERAL_CONF 0x00 (Default value: 0x00006020)
R/W
Bit
Val
Remarks
dcstep_mode
22:21
0
dcStep is disabled.
1
dcStep signal generation will be selected automatically
2
dcStep with external STEP_READY signal generation (TMC2130).
3
dcStep with internal STEP_READY signal generation (TMC26x).
i TMC26x config: use const_toff-Chopper (CHM = 1);
slow decay only (HSTRRT = 0);
TST = 1 and SGT0=SGT1=1 (on_state_xy).
pwm_out_en
23
0
PWM output is disabled. Step/Dir output is enabled at STPOUT/DIROUT.
1
STPOUT/DIROUT output pins are used as PWM output (PWMA/PWMB).
serial_enc_out_enable
24
0
No encoder is connected to SPI output.
1
SPI output is used as SSI encoder interface to forward absolute SSI encoder data.
serial_enc_out_diff_disable
25
0
Differential serial encoder output is enabled.
1
Differential serial encoder output is disabled.
automatic_direct_sdin_switch_off
RW
26
0
1
VACTUAL=0 & AACTUAL=0 after switching off direct external step control.
VACTUAL = VSTART and AACTUAL = ASTART after switching off direct external step
control.
circular_cnt_as_xlatch
27
0
The register value of X_LATCH is forwarded at register 0x36.
1
The register value of REV_CNT (#internal revolutions) is forwarded at register 0x36.
reverse_motor_dir
28
0
The direction of the internal SinLUT is regularly used.
1
The direction of internal SinLUT is reversed
intr_tr_pu_pd_en
29
0
INTR and TARGET_REACHED are outputs with strongly driven output values..
1
INTR and TARGET_REACHED are used as outputs with gated pull-up and/or
pull-down functionality.
intr_as_wired_and
30
0
INTR output function is used as Wired-Or in the case of intr_tr_pu_pd_en = 1.
1
INTR output function is used as Wired-And. in the case of intr_tr_pu_pd_en = 1.
tr_as_wired_and
31
0
1
TARGET_REACHED output function is used as Wired-Or in the case of
intr_tr_pu_pd_en = 1.
TARGET_REACHED output function is used as Wired-And in the case of
intr_tr_pu_pd_en = 1.
Table 65: General Configuration 0x00
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
178/230
Reference Switch Configuration Register REFERENCE_CONF 0x01
REFERENCE_CONF 0x01 (Default value: 0x00000000)
R/W
Bit
Val
Remarks
stop_left_en
0
0
STOPL signal processing disabled.
1
STOPL signal processing enabled.
stop_right_en
1
0
STOPR signal processing disabled.
1
STOPR signal processing enabled.
pol_stop_left
2
0
STOPL input signal is low active.
1
STOPL input signal is high active.
pol_stop_right
3
0
STOPR input signal is low active.
1
STOPR input signal is high active.
invert_stop_direction
4
0
STOPL/STOPR stops motor in negative/positive direction.
1
STOPL/STOPR stops motor in positive/negative direction.
soft_stop_en
5
RW
0
Hard stop enabled. VACTUAL is immediately set to 0 on any external stop event.
1
Soft stop enabled. A linear velocity ramp is used for decreasing VACTUAL to v = 0.
virtual_left_limit_en
6
0
Position limit VIRT_STOP_LEFT disabled.
1
Position limit VIRT_STOP_LEFT enabled.
virtual_right_limit_en
7
0
Position limit VIRT_STOP_RIGHT disabled.
1
Position limit VIRT_STOP_RIGHT enabled.
virt_stop_mode
9:8
0
Reserved.
1
Hard stop: VACTUAL is set to 0 on a virtual stop event.
2
Soft stop is enabled with linear velocity ramp (from VACTUAL to v = 0).
3
Reserved.
latch_x_on_inactive_l
10
0
No latch of XACTUAL if STOPL becomes inactive.
1
X_LATCH = XACTUAL is stored in the case STOPL becomes inactive.
latch_x_on_active_l
11
0
No latch of XACTUAL if STOPL becomes active.
1
X_LATCH = XACTUAL is stored in the case STOPL becomes active.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
179/230
REFERENCE_CONF 0x01 (Default value: 0x00000000)
R/W
Bit
Val
Remarks
latch_x_on_inactive_r
12
0
No latch of XACTUAL if STOPR becomes inactive.
1
X_LATCH = XACTUAL is stored in the case STOPL becomes inactive.
latch_x_on_active_r
13
0
No latch of XACTUAL if STOPR becomes active.
1
X_LATCH = XACTUAL is stored in the case STOPL becomes active.
stop_left_is_home
14
0
STOPL input signal is not also the HOME position.
1
STOPL input signal is also the HOME position.
stop_right_is_home
15
0
STOPR input signal is not lso the HOME position.
1
STOPR input signal is also the HOME position.
home_event
0
Next active N event of connected ABN encoder signal indicates HOME position.
2
HOME_REF = 1 indicates an active home event
X_HOME is located at the rising edge of the active range.
3
HOME_REF = 0 indicates negative region/position from the home position.
4
RW
19:16
6
9
11
HOME_REF = 1 indicates an active home event
X_HOME is located at the falling edge of the active range.
HOME_REF = 1 indicates an active home event
X_HOME is located in the middle of the active range.
HOME_REF = 0 indicates an active home event
X_HOME is located in the middle of the active range.
HOME_REF = 0 indicates an active home event
X_HOME is located at the rising edge of the active range.
12
HOME_REF = 1 indicates negative region/position from the home position.
13
HOME_REF = 0 indicates an active home event
X_HOME is located at the falling edge of the active range.
start_home_tracking
20
0
No storage to X_HOME by passing home position.
1
Storage of XACTUAL as X_HOME at next regular home event.
An XLATCH_DONE event is released.
In case the event is cleared, start_home_tracking is reset automatically.
clr_pos_at_target
21
0
Ramp stops at XTARGET if positioning mode is active.
1
Set XACTUAL = 0 after XTARGET has been reached.
The next ramp starts immediately.
circular_movement_en
22
0
Range of XACTUAL is not limited: -231 ≤ XACTUAL ≤ 231-1
1
Range of XACTUAL is limited by X_RANGE: -X_RANGE ≤ XACTUAL ≤ X_RANGE - 1
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
180/230
REFERENCE_CONF 0x01 (Default value: 0x00000000)
R/W
Bit
Val
Remarks
pos_comp_output
24:23
0
TARGET_REACHED is set active on TARGET_REACHED_Flag.
1
TARGET_REACHED is set active on VELOCITY_REACHED_Flag.
2
TARGET_REACHED is set active on ENC_FAIL flag.
3
TARGET_REACHED triggers on POSCOMP_REACHED_Flag.
pos_comp_source
25
0
POS_COMP is compared to internal position XACTUAL.
1
POS_COMP is compared with external position ENC_POS.
stop_on_stall
26
0
SPI and S/D output interface remain active in case of an stall event.
1
SPI and S/D output interface stops motion in case of an stall event (hard stop).
drv_after_stall
27
RW
29:28
0
No further motion in case of an active stop-on-stall event.
1
Motion is possible in case of an active stop-on-stall event and after the stop-on-stall
event is reset.
modified_pos_compare:
POS_COMP_REACHED_F / event is based on comparison
between XACTUAL resp. ENC_POS and
0
POS_COMP
1
X_HOME
2
X_LATCH resp. ENC_LATCH
3
REV_CNT
automatic_cover
30
0
SPI output interface will not transfer automatically any cover datagram.
1
SPI output interface sends automatically cover datagrams when VACTUAL crosses
SPI_SWITCH_VEL.
circular_enc_en
31
0
Range of ENC_POS is not limited: -231 ≤ ENC_POS ≤ 231-1
1
Range of ENC_POS is limited by X_RANGE: -X_RANGE ≤ ENC_POS ≤ X_RANGE –1
Table 66: Reference Switch Configuration 0x01
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
181/230
Start Switch Configuration Register START_CONF 0x02
START_CONF 0x02 (Default value: 0x00000000)
R/W
Bit
Val
Remarks
start_en
xxxx1 Alteration of XTARGET value requires distinct start signal.
4:0
xxx1x Alteration of VMAX value requires distinct start signal.
xx1xx Alteration of RAMPMODE value requires distinct start signal.
x1xxx Alteration of GEAR_RATIO value requires distinct start signal.
1xxxx Shadow Register Feature Set is enabled.
trigger_events
8:5
0000
Timing feature set is disabled because start signal generation is disabled.
xxx0
START pin is assigned as output.
xxx1
External start signal is enabled as timer trigger. START pin is assigned as input.
xx1x
TARGET_REACHED event is assigned as start signal trigger.
x1xx
VELOCITY_REACHED event is assigned as start signal trigger.
1xxx
POSCOMP_REACHED event is assigned as start signal trigger.
pol_start_signal
9
0
START pin is low active (input resp. output).
1
START pin is high active (input resp. output).
immediate_start_in
RW
10
0
Active START input signal starts internal start timer.
1
Active START input signal is executed immediately.
busy_state_en
11
0
START pin is only assigned as input or output.
1
Busy start state is enabled. START pin is assigned as input with a weakly driven
active start polarity or as output with a strongly driven inactive start polarity.
pipeline_en
15:12
0000
No pipelining is active.
xxx1
X_TARGET is considered for pipelining.
xx1x
POS_COMP is considered for pipelining.
x1xx
GEAR_RATIO is considered for pipelining.
1xxx
GENERAL_CONF is considered for pipelining.
shadow_option
17:16
0
Single-level shadow registers for 13 relevant ramp parameters.
1
Double-stage shadow registers for S-shaped ramps.
2
Double-stage shadow registers for trapezoidal ramps (excl. VSTOP).
3
Double-stage shadow registers for trapezoidal ramps (excl. VSTART).
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
182/230
START_CONF 0x02 (Default value: 0x00000000)
R/W
Bit
Val
Remarks
cyclic_shadow_regs
18
19
0
Current ramp parameters are not written back to the shadow register.
1
Current ramp parameters are written back to the appropriate shadow register.
Reserved. Set to 0.
SHADOW_MISS_CNT
23:20
U
Number of unused start internal start signals between two consecutive shadow
register transfers.
XPIPE_REWRITE_REG
Current assigned pipeline registers – START_CONF(15:12) – are written back to
X_PIPEx in the case of an internal start signal generation and if assigned in this
register with a ‘1’:
RW
31:24
XPIPE_REWRITE_REG(0)
XPIPE_REWRITE_REG(1)
XPIPE_REWRITE_REG(2)
XPIPE_REWRITE_REG(3)
XPIPE_REWRITE_REG(4)
XPIPE_REWRITE_REG(5)
XPIPE_REWRITE_REG(6)
XPIPE_REWRITE_REG(7)
X_PIPE0
X_PIPE1
X_PIPE2
X_PIPE3
X_PIPE4
X_PIPE5
X_PIPE6
X_PIPE7
Ex.:
START_CONF(15:12) = b’0011.
START_CONF(31:24) = b’01000010.
If an internal start signal is generated, the value of X_TARGET is written back to
X_PIPE1, whereas the value of POS_COMP is written back to X_PIPE6.
Table 67: Start Switch Configuration START_CONF 0x02
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
183/230
Input Filter Configuration Register INPUT_FILT_CONF 0x03
INPUT_FILT_CONF 0x03 (Default value: 0x00000000)
R/W
Bit
Val
Remarks
SR_ENC_IN
2:0
3
U
Input sample rate = fclk / 2SR_ENC_IN for the following pins:
A_SCLK, ANEG_NSCLK, B_SDI, BNEG_NSDI, N, NNEG
Reserved. Set to 0.
FILT_L_ENC_IN
6:4
U
Filter length for these pins: A_SCLK, ANEG_NSCLK, B_SDI, BNEG_NSDI, N, NNEG.
Number of sample input bits that must have equal voltage levels to provide a valid
input bit.
SD_FILT0
7
10:8
11
0
S/D input pins (STPIN/DIRIN) are not assigned to the ENC_IN input filter group.
1
S/D input pins (STPIN/DIRIN) are also assigned to the ENC_IN input filter group.
SR_REF
U
Input sample rate = fclk / 2REF for the following pins: STOPL, HOME_REF, STOPL
Reserved. Set to 0.
FILT_L_REF
14:12
U
Filter length for the following pins: STOPL, HOME_REF, STOPL. Number of sample
input bits that must have equal voltage levels to provide a valid input bit.
SD_FILT1
15
RW
18:16
19
0
S/D input pins (STPIN/DIRIN) are not assigned to the REF input filter group.
1
S/D input pins (STPIN/DIRIN) are also assigned to the REF input filter group.
SR_S
U
Input sample rate = fclk / 2S for the START pin.
Reserved. Set to 0.
FILT_L_S
22:20
U
Filter length for the START pin. Number of sample input bits that must have equal
voltage levels to provide a valid input bit.
SD_FILT2
23
26:24
27
0
S/D input pins (STPIN/DIRIN) are not assigned to the S input filter group.
1
S/D input pins (STPIN/DIRIN) are also assigned to the S input filter group.
SR_ENC_OUT
U
Input sample rate = fclk / 2SR_ENC_OUT for these pins: SDODRV_SCLK, SDIDRV_NSCLK
Reserved. Set to 0.
FILT_L_ENC_OUT
30:28
U
Filter length for the following pins: SDODRV_SCLK, SDIDRV_NSCLK. Number of
sample input bits that must have equal voltage levels to provide a valid input bit.
SD_FILT3
31
0
S/D input pins (STPIN/DIRIN) are not assigned to the ENC_OUT input filter group.
1
S/D input pins (STPIN/DIRIN) are assigned to the ENC_OUT input filter group.
Table 68: Input Filter Configuration Register INPUT_FILT_CONF 0x03
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
184/230
SPI Output Configuration Register SPI_OUT_CONF 0x04
SPI_OUT_CONF 0x04 (Default value: 0x00000000)
R/W
Bit
Val
Remarks
spi_output_format
0
1
2
3
4
3:0
5
6
SPI output interface is connected with a SPI-DAC. SPI output values are mapped
to full amplitude:
Current=0
VCC/2
Current=-max 0
Current=max VCC
SPI output interface is connected with a SPI-DAC. SPI output values are absolute
values. Phase of coilA is forwarded via STPOUT, whereas phase of coilB is
forwarded via DIROUT. Phase bit = 0:positive value.
SPI output interface is connected with a SPI-DAC. SPI output values are absolute
values. Phase of coilA is forwarded via STPOUT, whereas phase of coilB is
forwarded via DIROUT. Phase bit = 0: negative value.
The actual unsigned scaling factor is forwarded via SPI output interface.
Both actual signed current values CURRENTA and CURRENTB are forwarded in
one datagram via SPI output interface.
SPI output interface is connected with a SPI-DAC. The actual unsigned scaling
factor is merged with DAC_ADDR_A value to an output datagram.
8
SPI output interface is connected with a TMC23x stepper motor driver.
9
SPI output interface is connected with a TMC24x stepper motor driver.
10
11
RW
SPI output interface is off.
12
13
15
SPI output interface is connected with a TMC26x/389 stepper motor driver.
Configuration and current data are transferred to the stepper motor driver.
SPI output interface is connected with a TMC26x stepper motor driver. Only
configuration data is transferred to the stepper motor driver. S/D output interface
provides steps.
SPI output interface is connected with a TMC2130 stepper motor driver. Only
configuration data is transferred to the stepper motor driver. S/D output interface
provides steps.
SPI output interface is connected with a TMC2130 stepper motor driver.
Configuration and current data are transferred to the stepper motor driver.
Only cover datagrams are transferred via SPI output interface.
COVER_DATA_LENGTH
19:13
23:20
27:24
U
Number of bits for the complete datagram length. Maximum value = 64
Set to 0 in case a TMC stepper motor driver is selected. The datagram length is then
selected automatically.
SPI_OUT_LOW_TIME
U
Number of clock cycles the SPI output clock remains at low level.
SPI_OUT_HIGH_TIME
U
Number of clock cycles the SPI output clock remains at high level.
SPI_OUT_BLOCK_TIME
31:28
U
Number of clock cycles the NSCSDRV output remains high (inactive) after a SPI
output transmission.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
185/230
SPI_OUT_CONF 0x04 (Default value: 0x00000000)
R/W
Bit
Val
Remarks
mixed_decay
5:4
(TMC23x/24x only)
0
Both mixed decay bits are always off.
1
Mixed decay bits are on during falling ramps until reaching a current value of 0.
2
Mixed decay bits are always on, except during standstill.
3
Mixed decay bits are always on.
stdby_on_stall_for_24x
6
(TMC24x only)
0
No standby datagram is sent.
1
In case of a Stop-on-Stall event, a standby datagram is sent to the TMC24x.
stall_flag_instead_of_uv_en
7
(TMC24x only)
0
Undervoltage flag of TMC24x is mapped at STATUS(24).
1
Calculated stall status of TMC24x is forwarded at STATUS(24).
STALL_LOAD_LIMIT
10:8
U
(TMC24x only)
A stall is detected if the stall limit value STALL_LOAD_LIMIT is higher than the
combination of the load bits (LD2&LD1&LD0).
pwm_phase_shft_en
11
(TMC24x only)
0
No phase shift during PWM mode.
1
During PWM mode, the internal SinLUT microstep position MSCNT is shifted to
MS_OFFSET microsteps. Consequently, the sine/cosine values have a phase shift of
(MS_OFFSET / 1024 ∙ 360°)
double_freq_at_stdby
RW
12
(TMC23x/24x only)
0
ChopSync frequency remains stable during standby.
1
CHOP_SYNC_DIV is halfed during standby.
three_phase_stepper_en
4
(TMC389 only)
0
A 2-phase stepper motor driver is connected to the SPI output (TMC26x).
1
A 3-phase stepper motor driver is connected to the SPI output (TMC389).
scale_val_transfer_en
5
(TMC26x/2130 in SD mode only)
0
No transfer of scale values.
1
Transmission of current scale values to the appropriate driver registers.
disable_polling
6
(TMC26x/2130 in SD mode only)
0
Permanent transfer of polling datagrams to check driver status.
1
No transfer of polling datagrams.
autorepeat_cover_en
7
(TMC26x/2130 only)
0
No automatic continuous streaming of cover datagrams.
1
Enabling of automatic continuous streaming of cover datagrams.
POLL_BLOCK_EXP
11:8
U
(TMC26x in SD mode only, TMC2130 only)
Multiplier for calculating the time interval between two consecutive polling
datagrams: tPOLL = 2^POLL_BLOCK_EXP ∙ SPI_OUT_BLOCK_TIME / fCLK
cover_done_only_for_cover
12
(TMC26x/2130 only)
0
COVER_DONE event is set for every datagram that is sent to the motor driver.
1
COVER_DONE event is only set for cover datagrams sent to the motor driver.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
186/230
SPI_OUT_CONF 0x04 (Default value: 0x00000000)
R/W
Bit
Val
Remarks
sck_low_before_csn
4
(No TMC driver)
0
NSCSDRV_SDO is tied low before SCKDRV_NSDO to initiate a new data transfer.
1
SCKDRV_NSDO is tied low before NSCSDRV_SDO to initiate a new data transfer.
new_out_bit_at_rise
5
RW
11:7
12
(No TMC driver)
0
New value bit at SDODRV_SCLK is assigned at falling edge of SCKDRV_NSDO.
1
New value bit at SDODRV_SCLK is assigned at rising edge of SCKDRV_NSDO.
DAC_CMD_LENGTH
U
(SPI-DAC only)
Number of bits for command address.
Reserved. Set to 0.
SSI_OUT_MTIME
23:4
U
(Serial encoder output only)
Monoflop time for SSI output interface: Delay time [clock cycles] during which the
absolute encoder data remain stable after the last master request.
Table 69: SPI Output Configuration Register SPI_OUT_CONF 0x04
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Current Scaling Configuration Register CURRENT_CONF 0x05
CURRENT_CONF 0x05 (Default: 0x00000000)
R/W
Bit
Val
Remarks
hold_current_scale_en
0
0
No hold current scaling during standstill phase.
1
Hold current scaling during standstill phase.
drive_current_scale_en
1
0
No drive current scaling during motion.
1
Drive current scaling during motion.
boost_current_on_acc_en
2
0
No boost current scaling for deceleration ramps.
1
Boost current scaling if RAMP_STATE = b’01 (acceleration slopes).
boost_current_on_dec_en
3
0
No boost current scaling for deceleration ramps.
1
Boost current scaling if RAMP_STATE = b’10 (deceleration slopes).
boost_current_after_start_en
4
0
No boost current at ramp start.
1
Temporary boost current if VACTUAL = 0 and new ramp starts.
sec_drive_current_scale_en
RW
5
0
One drive current value for the whole motion ramp.
1
Second drive current scaling for VACTUAL > VDRV_SCALE_LIMIT.
freewheeling_en
6
0
No freewheeling.
1
Freewheeling after standby phase.
closed_loop_scale_en
7
0
No closed-loop current scaling.
1
Closed-loop current scaling – CURRENT_CONF(6:0) = 0 is set automatically
Turn off for closed-loop calibration with maximum current!
pwm_scale_en
8
15:9
0
PWM scaling is disabled.
1
PWM scaling is enabled.
Reserved. Set to 0x00.
PWM_AMPL
31:16
U
PWM amplitude during Voltage PWM mode at VACTUAL = 0.
i Maximum duty cycle = (0.5 + (PWM_AMPL + 1) / 217)
Minimum duty cycle = (0.5 – (PWM_AMPL + 1) / 217)
PWM_AMPL = 216 – 1 at VACTUAL = PWM_VMAX.
Table 70: Current Scale Configuration (0x05)
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
187/230
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
188/230
Current Scale Values Register SCALE_VALUES 0x06
SCALE_VALUES 0x06 (Default: 0xFFFFFFFF)
R/W
RW
Bit
Val
7:0
U
15:8
U
23:16
U
Scaling Value
Name
BOOST_SCALE_VAL
Open-loop boost scaling value.
CL_IMIN
Closed-loop minimum scaling value.
DRV1_SCALE_VAL
Open-loop first drive scaling value.
CL_IMAX
Closed-loop maximum scaling value.
DRV2_SCALE_VAL
Open-loop second drive scaling value.
CL_START_UP
HOLD_SCALE_VAL
31:24
U
Remarks
CL_START_DOWN
|ENC_POS_DEV| value at which closed-loop scaling
increases the current scaling value above CL_IMIN.
Open-loop standby scaling value.
|ENC_POS_DEV| value at which closed-loop scaling
decreases the current scaling value below CL_IMAX.
i Recommended: Set to 0 to automatically assign
to CL_BETA.
Table 71: Current Scale Values (0x06)
NOTE:
BOOST_SCALE_VAL, DRV1/DRV2_SCALE_VAL, HOLD_SCALE_VAL, CL_IMIN,
CL_IMAX.
Real scaling value = (x+1) / 32 if spi_output_format = b’1011 or b’1100.
= (x+1) / 256 any other spi_output_format setting.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
189/230
Various Scaling Configuration Registers
Various Scaling Configuration Registers
R/W Addr Bit
0x15 31:0
Val Description
STDBY_DELAY (Default:0x00000000)
U
Delay time [# clock cycles] between ramp stop and activating standby phase.
FREEWHEEL_DELAY (Default:0x00000000)
0x16 31:0
U
Delay time [# clock cycles] between initialization of active standby phase and
freewheeling initialization.
VDRV_SCALE_LIMIT (Default:0x000000)
0x17 23:0
U
(Voltage PWM mode is not active)
Drive scaling separator:
DRV2_SCALE_VAL is active in case VACTUAL > VDRV_SCALE_LIMIT
DRV1_SCALE_VAL is active in case VACTUAL ≤ VDRV_SCALE_LIMIT
2nd assignment: Also used as PWM_VMAX if Voltage PWM is enabled (see 19.17. )
UP_SCALE_DELAY (Default:0x000000)
U
RW
0x18 23:0
Increment delay [# clock cycles]. The value defines the clock cycles, which are
used to increase the current scale value for one step towards higher values.
CL_UPSCALE_DELAY (Default:0x000000)
U
0x19 23:0
(Open-loop operation)
Decrement delay [# clock cycles] to decrease the actual scale value by one step
towards hold current.
CL_DNSCALE_DELAY(Default: 0x000000)
U
(Closed-loop operation)
Increment delay [# clock cycles]. The value defines the clock cycles, which are
used to increase the current scale value for one step towards higher current values
during closed-loop operation.
HOLD_SCALE_DELAY (Default:0x000000)
U
(Open-loop operation)
(Closed-loop operation)
Decrement delay [# clock cycles] to decrease the current scale value by one step
towards lower current values during closed-loop operation.
DRV_SCALE_DELAY (Default:0x000000)
0x1A 23:0
0x1B 31:0
R
W
0x7C
8:0
U
Decrement delay [# clock cycles], which signifies current scale value decrease by
one step towards lower value.
BOOST_TIME (Default:0x00000000)
U
Time [# clk cycles] after a ramp start when boost scaling is active.
SCALE_PARAM (Default:0x000)
U
Actual used scale parameter.
2nd assignment: Also used as CIRCULAR_DEC for write access (see section 19.16. )
Table 72: Various Scaling Configuration Registers (0x15…0x1B)
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Encoder Signal Configuration (0x07)
ENC_IN_CONF 0x07 (Default 0x00000400)
R/W
Bit
Val Description
enc_sel_decimal
0
0
Encoder constant represents a binary number.
1
Encoder constant represents a decimal number (for ABN only).
clear_on_n
0
1
ENC_POS is not set to ENC_RESET_VAL.
ENC_POS is set to ENC_RESET_VAL
on every N event
in case clr_latch_cont_on_n=1, or
on the next N event
in case clr_latch_once_on_n=1.
Do NOT use during closed-loop operation.
1
clr_latch_cont_on_n
2
0
Value of ENC_POS is not cleared and/or latched on every N event.
1
Value of ENC_POS is cleared and/or latched on every N event.
clr_latch_once_on_n
3
0
Value of ENC_POS is not cleared and/or latched on the next N event.
1
Value of ENC_POS is cleared and/or latched on the next N event.
i This bit is set to 0 after latching/clearing once.
pol_n
RW
4
0
Active polarity for N event is low active.
1
Active polarity for N event is high active.
n_chan_sensitivity
6:5
0
N event is active as long as N equals active N event polarity.
1
N event triggers when N switches to active N event polarity.
2
N event triggers when N switches to inactive N event polarity.
3
N event triggers when N switches to in-/active N event polarity (both slopes).
pol_a_for_n
7
0
A polarity has to be low for a valid N event.
1
A polarity has to be high for a valid N event.
pol_b_for_n
8
0
1
B polarity has to be low for valid N event
B polarity has to be high for valid N event
ignore_ab
9
0
TMC4361A considers A and B polarities for valid N event.
1
Polarities of A and B signals for a valid N event are ignored.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
190/230
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
191/230
ENC_IN_CONF 0x07 (Default 0x00000400)
R/W
Bit
Val Description
latch_enc_on_n
10
0
1
ENC_POS is not latched.
ENC_POS is latched to ENC_LATCH
on every N event
on the next N event
in case clr_latch_cont_on_n=1, or
in case clr_latch_once_on_n=1.
latch_x_on_n
11
0
1
XACTUAL is not latched.
XACTUAL is latched to X_LATCH
on every N event
on the next N event
in case clr_latch_cont_on_n=1, or
in case clr_latch_once_on_n=1.
multi_turn_in_en
12
(Absolute encoder only)
0
Connected serial encoder transmits singleturn values.
1
Connected serial encoder input transmits singleturn and multiturn values.
multi_turn_in_signed
13
(Absolute encoder only)
0
Multiturn values from serial encoder input are unsigned numbers.
1
Multiturn values from serial encoder input are signed numbers.
multi_turn_out_en
14
RW
(Serial encoder output only)
0
Serial encoder output transmits singleturn values.
1
Serial encoder output transmits singleturn and multiturn values.
use_usteps_instead_of_xrange
15
0
X_RANGE is valid in case circular motion is also enabled for encoders.
1
USTEPS_PER_REV is valid in case circular motion is also enabled for encoders.
calc_multi_turn_behav
16
(Absolute encoder only)
0
No multiturn calculation.
1
TMC4361A calculates internally multiturn data for singleturn encoder data.
ssi_multi_cycle_data
17
(Absolute encoder only)
0
Every SSI value request is executed once.
1
Every SSI value request is executed twice.
ssi_gray_code_en
18
(Absolute encoder only)
0
SSI input data is binary-coded.
1
SSI input data is gray-coded.
left_aligned_data
19
(Absolute encoder only)
0
Serial input data is aligned right (first flags, then data).
1
Serial input data is aligned left (first data, then flags).
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
192/230
ENC_IN_CONF 0x07 (Default 0x00000400)
R/W
Bit
Val Description
spi_data_on_cs
20
(SPI encoder only)
0
BNEG_NSDI provides serial output data at next serial clock line (A_SCLK) transition.
1
BNEG_NSDI provides serial output data immediately in case negated chip select line
ANEG_NSCLK switches to low level.
spi_low_before_cs
21
0
1
(SPI encoder only)
Serial clock line A_SCLK switches to low level after negated chip select line
ANEG_NSCLK switches to low level.
Serial clock line A_SCLK switches to low level before negated chip select line
ANEG_NSCLK switches to low level.
regulation_modus
0
23:22 1
2
3
No internal regulation on encoder feedback data.
Closed-loop operation is enabled.
Use full microstep resolution only! (256 µSteps/FS
MSTEPS_PER_FS=0).
PID regulation is enabled. Pulse generator base velocity equals 0.
PID regulation is enabled. Pulse generator base velocity equals VACTUAL.
cl_calibration_en
(Closed-loop operation only)
0
Closed-loop calibration is deactivated.
1
Closed-loop calibration is active.
Use maximum current without scaling during calibration.
It is recommend to keep the motor driver at fullstep position with no
motion occurrence during the calibration process.
24
cl_emf_en
RW
25
(Closed-loop operation only)
0
Back-EMF compensation deactivated during closed-loop operation.
1
Back-EMF compensation is enabled during closed-loop operation. Closed-loop operation
compensates Back-EMF in case |VACTUAL| > CL_VMIN.
cl_clr_xact
26
0
1
(Closed-loop operation only)
XACTUAL is not reset to ENC_POS during closed-loop operation.
XACTUAL is set to ENC_POS in case |ENC_POS_DEV| > ENC_POS_DEV_TOL during
closed-loop operation.
This feature must only be used if understood completely.
cl_vlimit_en
27
(Closed-loop operation only)
0
No catch-up velocity limit during closed-loop regulation.
1
Catch-up velocity during closed-loop operation is limited by internal PI regulator.
cl_velocity_mode_en
28
(Closed-loop operation only)
0
Closed-loop velocity mode is deactivated.
1
Closed-loop velocity mode is deactivated.
In case |ENC_POS_DEV| > 768, XACTUAL is adjusted accordingly.
invert_enc_dir
29
0
Encoder direction is NOT inverted internally.
1
Encoder direction is inverted internally.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
193/230
ENC_IN_CONF 0x07 (Default 0x00000400)
R/W
Bit
Val Description
enc_out_gray
30
(Serial encoder output only)
0
SSI output data is binary-encoded.
1
SSI output data is gray-encoded.
no_enc_vel_preproc
RW
31
(Incremental ABN encoder)
0
AB signal is preprocessed for internal encoder velocity calculation.
1
No AB signal preprocessing.
It is recommend to maintain AB preprocessing in order to filter encoder
resonances.
serial_enc_variation_limit
(Absolute encoder)
0
No variation limit on absolute encoder data.
1
Two consecutive serial encoder values must no deviate from specified limit to be valid.
In case |ENC_POSX – ENC_POSX-1| > 1/8 · SER_ENC_VARIATION · ENC_IN_RES,
ENC_POSX is not valid and is not assigned to ENC_POS.
Table 73: Encoder Signal Configuration ENC_IN_CONF (0x07)
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
194/230
Serial Encoder Data Input Configuration (0x08)
ENC_IN_DATA 0x08 (Default: 0x00000000)
R/W
Bit
Val
Remarks
SINGLE_TURN_RES (Default: 0x00)
4:0
9:5
RW
11:10
Number of angle data bits within one revolution = SINGLE_TURN_RES + 1.
Set SINGLE_TURN_RES < 31.
U
MULTI_TURN_RES (Default: 0x00)
Number of data bits for revolution count = MULTI_TURN_RES + 1
U
STATUS_BIT_CNT (Default: 0x0)
U
Number of status data bits
15:12 Reserved. Set to 0x0.
23:16
31:24
SERIAL_ADDR_BITS (Default: 0x00)
U
(SPI encoder only)
Number of address bits within one SPI datagram for SPI encoder configuration
SERIAL_DATA_BITS (Default: 0x00)
U
(SPI encoder only)
Number of data bits within one SPI datagram for SPI encoder configuration
Table 74: Serial Encoder Data Input Configuration ENC_IN_DATA (0x08)
Serial Encoder Data Output Configuration (0x09)
ENC_OUT_DATA 0x09 (Default: 0x00000000)
R/W
Bit
4:0
RW
9:5
Val
Remarks
SINGLE_TURN_RES_OUT (Default: 0x00)
U
Number of angle data bits within one revolution = SINGLE_TURN_RES_OUT + 1
MULTI_TURN_RES_OUT (Default: 0x00)
U
Number of data bits for revolution count = MULTI_TURN_RES_OUT + 1
31:12 Reserved. Set to 0x00000.
Table 75: Serial Encoder Data Output Configuration ENC_OUT_DATA (0x09)
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
195/230
Motor Driver Settings Register STEP_CONF 0x0A
STEP_CONF 0x0A (Default: 0x00FB0C80)
R/W
Bit
Val
Remarks
MSTEP_PER_FS (Default: 0x0)
3:0
RW
15:4
0
Highest microsteps resolution: 256 microsteps per fullstep.
i Set to 256 for closed-loop operation.
i When using a Step/Dir driver, it must be capable of a 256 resolution
via Step/Dir input for best performance (but lower resolution
Step/Dir drivers can be used as well).
1
128 microsteps per fullstep.
2
64 microsteps per fullstep.
3
32 microsteps per fullstep.
4
16 microsteps per fullstep.
5
8 microsteps per fullstep.
6
4 microsteps per fullstep.
7
Halfsteps: 2 microsteps per fullstep.
8
Full steps (maximum possible setting)
FS_PER_REV (Default: 0x0C8)
U
Fullsteps per motor axis revolution
MSTATUS_SELECTION (Default: 0xFB)
23:16
31:24
Selection of motor driver status bits for SPI response datagrams:
ORed with Motor Driver Status Register Set (7:0):
if set here and a particular flag is set from the motor stepper driver, an event will be
generated at EVENTS(30)
Reserved. Set to 0x00.
Table 76: Motor Driver Settings (0x0A)
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
196/230
Event Selection Registers 0x0B..0X0D
Event Selection Registers
R/W
Addr
Bit
Remarks
SPI_STATUS_SELECTION (Default: 0x82029805)
0x0B
Events selection for SPI datagrams:
Event bits of EVENTS register 0x0E that are selected (=1) in this register are
31:0
forwarded to the eight status bits that are transferred with every SPI datagram (first
eight bits from LSB are significant!).
EVENT_CLEAR_CONF (Default: 0x00000000)
RW
0x0C
Event protection configuration:
31:0 Event bits of EVENTS register 0x0E that are selected in this register (=1) are not
cleared during the readout process of EVENTS register 0x0E.
INTR_CONF (Default: 0x00000000)
0x0D
Event selection for INTR output:
All Event bits of EVENTS register 0x0E that are selected here (=1) are ORed with
31:0
interrupt event register set:
if any of the selected events is active, an interrupt at INTR is generated.
Table 77: Event Selection Regsiters 0x0B…0x0D
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
197/230
Status Event Register (0x0E)
Status Event Register EVENTS 0x0E
R/W Bit Description
0
TARGET_REACHED has been triggered.
1
POS_COMP_REACHED has been triggered.
2
VEL_REACHED has been triggered.
3
VEL_STATE = b’00 has been triggered (VACTUAL = 0).
4
VEL_STATE = b’01 has been triggered (VACTUAL > 0).
5
VEL_STATE = b’10 has been triggered (VACTUAL < 0).
6
RAMP_STATE = b’00 has been triggered (AACTUAL = 0, VACTUAL is constant).
7
RAMP_STATE = b’01 has been triggered (|VACTUAL| increases).
8
RAMP_STATE = b’10 has been triggered (|VACTUAL| increases).
9
10
MAX_PHASE_TRAP: Trapezoidal ramp has reached its limit speed using maximum values for
AMAX or DMAX (|VACTUAL| > VBREAK; VBREAK≠0).
FROZEN: NFREEZE has switched to low level.
i
Reset TMC4361A for further motion.
STOPL has been triggered. Motion in negative direction is not executed until this event is
cleared and (STOPL is not active any more or stop_left_en is set to 0).
STOPR has been triggered. Motion in positive direction is not executed until this event is cleared
12
and (STOPR is not active any more or stop_right_en is set to 0).
VSTOPL_ACTIVE: VSTOPL has been activated. No further motion in negative direction until this
13
event is cleared and (a new value is chosen for VSTOPL or virtual_left_limit_en is set to 0).
VSTOPR_ACTIVE: VSTOPR has been activated. No further motion in positive direction until this
14
event is cleared and (a new value is chosen for VSTOPR or virtual_right_limit_en is set to 0).
11
R+C
W
15 HOME_ERROR: Unmatched HOME_REF polarity and HOME is outside of safety margin.
16 XLATCH_DONE indicates if X_LATCH was rewritten or homing process has been completed.
17 FS_ACTIVE: Fullstep motion has been activated.
18 ENC_FAIL: Mismatch between XACTUAL and ENC_POS has exceeded specified limit.
19 N_ACTIVE: N event has been activated.
20 ENC_DONE indicates if ENC_LATCH was rewritten.
21
SER_ENC_DATA_FAIL: Failure during multi-cycle data evaluation or between two consecutive
data requests has occured.
22 Reserved.
23 SER_DATA_DONE: Configuration data was received from serial SPI encoder.
24 One of the SERIAL_ENC_Flags was set.
25 COVER_DONE: SPI datagram was sent to the motor driver.
26 ENC_VEL0: Encoder velocity has reached 0.
27 CL_MAX: Closed-loop commutation angle has reached maximum value.
28 CL_FIT: Closed-loop deviation has reached inner limit.
29 STOP_ON_STALL: Motor stall detected. Motor ramp has stopped.
30 MOTOR_EV: One of the selected TMC motor driver flags was triggered.
31 RST_EV: Reset was triggered.
Table 78: Status Event Register EVENTS (0x0E)
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
198/230
Status Flag Register (0x0F)
Status Flag Register STATUS 0x0F
R/W
Bit
0
TARGET_REACHED_F is set high if XACTUAL = XTARGET
1
POS_COMP_REACHED_F is set high if XACTUAL = POS_COMP
2
7
VEL_REACHED_F is set high if VACTUAL = |VMAX|
VEL_STATE_F: Current velocity state: 0 VACTUAL = 0;
1 VACTUAL > 0;
2 VACTUAL < 0
RAMP_STATE_F: Current ramp state: 0 AACTUAL = 0;
1 AACTUAL increases (acceleration);
2 AACTUAL decreases (deceleration)
STOPL_ACTIVE_F: Left stop switch is active.
8
STOPR_ACTIVE_F: Right stop switch is active.
9
VSTOPL_ACTIVE_F: Left virtual stop switch is active.
10
VSTOPR_ACTIVE_F: Right virtual stop switch is active.
11
ACTIVE_STALL_F: Motor stall is detected and VACTUAL > VSTALL_LIMIT.
12
HOME_ERROR_F: HOME_REF input signal level is not equal to expected home level.
13
FS_ACTIVE_F: Fullstep operation is active.
14
ENC_FAIL_F: Mismatch between XACTUAL and ENC_POS is out of tolerated range.
15
N_ACTIVE_F: N event is active.
16
ENC_LATCH_F: ENC_LATCH is rewritten.
4:3
6:5
R
Description
17
18
19
23:20
24
Applies to absolute encoders only:
MULTI_CYCLE_FAIL_F indicates a failure during last multi cycle data evaluation.
Applies to absolute encoders only:
SER_ENC_VAR_F indicates a failure during last serial data evaluation due to a substantial
deviation between two consecutive serial data values.
Reserved.
CL_FIT_F: Active if ENC_POS_DEV < CL_TOLERANCE. The current mismatch between
XACTUAL and ENC_POS is within tolerated range.
Applies to absolute encoders only: SERIAL_ENC_FLAGS received from encoder. These
flags are reset with a new encoder transfer request.
TMC26x / TMC2130 only: SG:
StallGuard2 status
Optional for TMC24x only:
Calculated stallGuard status.
TMC23x / TMC24x only: UV_SF: Undervoltage flag.
OT:
25
All TMC motor drivers:
26
All TMC motor drivers:
OTPW:
TMC26x / TMC2130 only: S2GA:
Overtemperature shutdown.
TMC23x / TMC24x only:
OCB:
Overtemperature warning.
Short to ground detection bit for high side MOSFE
of coil A.
Overcurrent bridge A.
Short to ground detection bit for high side
MOSFET of coil B.
Overcurrent bridge B.
29
All TMC motor drivers:
OLA:
Open load indicator of coil A.
30
All TMC motor drivers:
OLB:
Open load indicator of coil B.
27
TMC23x / TMC24x only: OCA:
TMC26x / TMC2130 only: S2GB:
28
31
TMC26x / TMC2130 only: STST:
TMC23x / TMC24x only:
OCHS:
Standstill indicator.
Overcurrent high side.
Table 79: Status Flag Register STATUS (0x0F)
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
199/230
Various Configuration Registers: S/D, Synchronization, etc.
Various Configuration Registers: Closed-loop, Switches…
R/W Addr Bit
15:0
0x10
31:16
Val Description
STP_LENGTH_ADD (Default: 0x0000)
U
Additional length [# clock cycles] for active step polarity of a step at STPOUT.
DIR_SETUP_TIME (Default: 0x0000)
U
Delay [# clock cycles] between DIROUT and STPOUT voltage level changes.
START_OUT_ADD (Default:0x00000000)
0x11 31:0
U
Additional length [# clock cycles] for active start signal.
Active start signal length = 1+START_OUT_ADD
GEAR_RATIO (Default:0x01000000)
0x12 31:0
0x13 31:0
RW
0x14 31:0
0x1D
23:0
S
Constant value that is added to the internal position counter by an active step at
STPIN. Value representation: 8 digits and 24 decimal places.
START_DELAY (Default:0x00000000)
U
Delay time [# clock cycles] between start trigger and internal start signal release.
CLK_GATING_DELAY (Default:0x00000000)
U
Delay time [# clock cycles] between clock gating trigger and clock gating start.
SPI_SWITCH_VEL
U
Absolute velocity value [pps] at which automatic cover datagrams are sent
31:0 2nd assignment: Also used as DAC_ADDR_A/B if SPI-DAC mode is enabled (see 19.30. )
HOME_SAFETY_MARGIN (Default: 0x0000)
0x1E 15:0
U
HOME_REF polarity can be invalid within X_HOME ± HOME_SAFETY_MARGIN,
which is not flagged as error.
CHOPSYNC_DIV (Default: 0x0280)
0x1F
11:0
U
(ChopSync for TMC23x/24x is enabled)
Chopper clock divider that defines the chopper frequency fOSC:
fOSC = fCLK/CHOPSYNC_DIV
with 96 ≤ CHOPSYNC_DIV ≤ 818
15:0 2nd assignment: Also used as PWM_FREQ if Voltage PWM is enabled (see 19.17. )
FS_VEL(Default:0x000000)
0x60 31:0
W
(Closed-loop and dcStep operation are disabled)
Minimum fullstep velocity [pps].
In case |VACTUAL| > FS_VEL fullstep operation is active, if enabled.
2nd assignment: Also used as DC_VEL if dcStep is enabled (see section 19.27. )
3rd assignment: Also used as CL_VMIN_EMF if closed-loop is enabled (see 19.26. )
U
0x64 31:0 Reserved. Set to 0x00000000.
VSTALL_LIMIT (Default:0x00000000)
0x67 23:0
U
Stop on stall velocity limit [pps]:
Only above this limit an active stall leads to a stop on stall, if enabled.
TZEROWAIT (Default:0x00000000)
0x7B 31:0
U
Standstill phase after reaching VACTUAL = 0.
2nd assignment: Also used as CURRENTA/B_SPI for read out (see section 19.29. )
R
CIRCULAR_DEC (Default:0x00000000)
W
R
0x7C
31:0
8:0
U
Decimal places for circular motion if one revolution is not exactly mapped to an
even number of µSteps per revolution. Value representation: 1 digit, 31 decimals.
2nd assignment: Also used as SCALE_PARAM for read out (see section 19.8. )
Table 80: Various Configuration Registers: S/D, Synchronization, etc.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
200/230
PWM Configuration Registers
PWM Configuration Registers
R/W Addr Bit
Val Description
PWM_VMAX (Default:0x00000000)
0x17 23:0
U
(Voltage PWM is enabled)
PWM velocity value at which maximal scale parameter value 1.0 is reached.
2nd assignment: Also used as VDRV_SCALE_LIMIT if Voltage PWM is disabled (19.29. )
RW
0x1F
15:0
PWM_FREQ (Default: 0x0280)
U
(Voltage PWM is enabled)
Number of clock cycles for one PWM period.
11:0 2nd assignment: Also used as CHOPSYNC_DIV if Voltage PWM is disabled (see 19.16. )
MSOFFSET (Default:0x000)
W
0x79
9:0
U
(TMC23x/24x only)
Microstep offset for PWM mode.
2nd assignment: Also used as MSCNT for read out (see section 19.29. )
Table 81: PWM Configuration Registers.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
201/230
Ramp Generator Registers
Ramp Generator Registers
R/W Addr Bit Val Description
RAMPMODE (Default:0x0)
Operation Mode:
2
1 Positioning mode: XTARGET is superior target of velocity ramp.
0 Velocitiy mode: VMAX is superior target of velocity ramp.
RW
Motion Profile:
0x20
0
1:0
1
2
RW
0x21 31:0
R
0x22 31:0
R
0x23 31:0
No ramp: VACTUAL follows only VMAX (rectangle velocity shape).
Trapezoidal ramp (incl. sixPoint ramp): Consideration of acceleration and
deceleration values for generating VACTUAL without adapting the acceleration
values.
S-shaped ramp: Consideration of all ramp values (incl. bow values) for
generating VACTUAL.
XACTUAL (Default: 0x00000000)
S
Actual internal motor position [pulses]: –231 ≤ XACTUAL ≤ 231 – 1
VACTUAL (Default: 0x00000000)
S
Actual ramp generator velocity [pulses per second]:
1 pps ≤ |VACTUAL| ≤ CLK_FREQ · ½ pulses (fCLK = 16 MHz 8 Mpps)
AACTUAL (Default: 0x00000000)
S
Actual acceleration/deceleration value [pulses per sec 2]:
-231 pps² ≤ AACTUAL ≤ 231 – 1
1 pps² ≤ |AACTUAL|
VMAX (Default: 0x00000000)
Maximum ramp generator velocity in positioning mode or
RW
0x24 31:0
S
Target ramp generator velocity in velocity mode and no ramp motion profile.
Value representation: 23 digits and 8 decimal places
Consider maximum values, represented in section 6.7.5, page 50
VSTART (Default: 0x00000000)
RW
0x25 30:0
U
Absolute start velocity in positioning mode and velocity mode
In case VSTART is used:
no first bow phase B1 for S-shaped ramps
VSTART in positioning mode:
In case VACTUAL = 0 and XTARGET ≠ XACTUAL:
no acceleration phase for VACTUAL = 0 VSTART.
VSTART in velocity mode:
In case VACTUAL = 0 and VACTUAL ≠ VMAX:
no acceleration phase for VACTUAL = 0 VSTART.
Value representation: 23 digits and 8 decimal places.
Consider maximum values, represented in section 6.7.5, page 50
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
202/230
Ramp Generator Registers
R/W Addr Bit Val Description
VSTOP (Default:0x00000000)
0x26 30:0
U
Absolute stop velocity in positioning mode and velocity mode.
In case VSTOP is used:
no last bow phase B4 for S-shaped ramps.
In case VSTOP is very small and positioning mode is used, it is possible that the
ramp is finished with a constant VACTUAL = VSTOP until XTARGET is reached.
VSTOP in positioning mode:
In case VACTUAL≤VSTOP and XTARGET=XACTUAL: VACTUAL is immediately set
to 0.
VSTOP in velocity mode:
In case VACTUAL ≤ VSTOP and VMAX = 0: VACTUAL is immediately set to 0.
Value representation: 23 digits and 8 decimal places.
Consider maximum values, represented in section 6.7.5, page 50
VBREAK (Default:0x00000000)
0x27 30:0
U
Absolute break velocity in positioning mode and in velocity mode,
This only applies for trapezoidal ramp motion profiles.
In case VBREAK = 0: pure linear ramps are generated with AMAX / DMAX only.
In case |VACTUAL| < VBREAK: |AACTUAL| = ASTART or DFINAL
In case |VACTUAL| ≥ VBREAK: |AACTUAL| = AMAX or DMAX
Always set VBREAK > VSTOP! If VBREAK ≠ 0.
Value representation: 23 digits and 8 decimal places.
Consider maximum values, represented in section 6.7.5, page 50
RW
AMAX (Default: 0x000000)
S-shaped ramp motion profile: Maximum acceleration value.
0x28 23:0
U
Trapezoidal ramp motion profile:
Acceleration value in case |VACTUAL| ≥ VBREAK or in case VBREAK = 0.
Value representation:
Frequency mode: [pulses per sec2]
22 digits and 2 decimal places: 250 mpps2 ≤ AMAX ≤ 4 Mpps2
Direct mode: [∆v per clk cycle]
a[∆v per clk_cycle]= AMAX / 237
AMAX [pps2] = AMAX / 237 • fCLK2
Consider maximum values, represented in section 6.7.5, page 50
DMAX (Default: 0x000000)
0x29 23:0
U
S-shaped ramp motion profile: Maximum deceleration value.
Trapezoidal ramp motion profile:
Deceleration value if |VACTUAL| ≥ VBREAK or if VBREAK = 0.
Value representation:
Frequency mode: [pulses per sec2]
22 digits and 2 decimal places: 250 mpps2 ≤ DMAX ≤ 4 Mpps2
Direct mode: [∆v per clk cycle]
d[∆v per clk_cycle]= DMAX / 237
DMAX [pps2] = DMAX / 237 • fCLK2
Consider maximum values, represented in section 6.7.5, page 50
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
203/230
Ramp Generator Registers
R/W Addr Bit Val Description
ASTART (Default: 0x000000)
S-shaped ramp motion profile: start acceleration value.
Trapezoidal ramp motion profile:
Acceleration value in case |VACTUAL| < VBREAK.
0x2A
23:0
Acceleration value after switching from external to internal step control.
U
Value representation:
Frequency mode: [pulses per sec2]
22 digits and 2 decimal places: 250 mpps2 ≤ ASTART ≤ 4 Mpps2
Direct mode: [∆v per clk cycle]
a[∆v per clk_cycle]= ASTART / 237
ASTART [pps2] = ASTART / 237 • fCLK2
Consider maximum values, represented in section 6.7.5, page 50
Sign of AACTUAL after switching from external to internal step control.
31
DFINAL (Default: 0x000000)
RW
0x2B 23:0
U
S-shaped ramp motion profile: Stop deceleration value, which is not used during
positioning mode.
Trapezoidal ramp motion profile:
Deceleration value in case |VACTUAL| < VBREAK.
Value representation:
Frequency mode: [pulses per sec2]
22 digits and 2 decimal places: 250 mpps2 ≤ DFINAL ≤ 4 Mpps2
Direct mode: [∆v per clk cycle]
d[∆v per clk_cycle]= DFINAL / 237
DFINAL [pps2] = DFINAL / 237 • fCLK2
Consider maximum values, represented in section 6.7.5, page 50
DSTOP (Default: 0x000000)
0x2C
23
U
Deceleration value for an automatic linear stop ramp to VACTUAL = 0.
DSTOP is used with activated external stop switches (STOPL or STOPR) if
soft_stop_enable is set to 1; or with activated virtual stop switches and
virt_stop_mode is set to 2.
Value representation:
Frequency mode: [pulses per sec2]
22 digits and 2 decimal places: 250 mpps2 ≤ DSTOP ≤ 4 Mpps2
Direct mode: [∆v per clk cycle]
d[∆v per clk_cycle]= DSTOP / 237
DSTOP [pps2] = DSTOP / 237 • fCLK2
Consider maximum values, represented in section 6.7.5, page 50
Continued on next page!
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
204/230
Ramp Generator Registers
R/W Addr Bit Val Description
BOW1 (Default: 0x000000)
Bow value 1 (first bow B1 of the acceleration ramp).
0x2D 23:0
U
Value representation:
Frequency mode: [pulses per sec3]
24 digits and 0 decimal places: 1 pps3 ≤ BOW1 ≤ 16 Mpps3
Direct mode: [∆a per clk cycle]
bow[av per clk_cycle]= BOW1 / 253
BOW1 [pps3] = BOW1 / 253 • fCLK3
Consider maximum values, represented in section 6.7.5, page 50
BOW2 (Default: 0x000000)
Bow value 2 (second bow B2 of the acceleration ramp).
0x2E 23:0
U
RW
Value representation:
Frequency mode: [pulses per sec3]
24 digits and 0 decimal places: 1 pps3 ≤ BOW2 ≤ 16 Mpps3
Direct mode: [∆a per clk cycle]
bow[av per clk_cycle]= BOW2 / 253
BOW2 [pps3] = BOW2 / 253 • fCLK3
Consider maximum values, represented in section 6.7.5, page 50
BOW3 (Default: 0x000000)
Bow value 3 (first bow B3 of the deceleration ramp).
0x2F 23:0
U
Value representation:
Frequency mode: [pulses per sec3]
24 digits and 0 decimal places: 1 pps3 ≤ BOW3 ≤ 16 Mpps3
Direct mode: [∆a per clk cycle]
bow[av per clk_cycle]= BOW3 / 253
BOW3 [pps3] = BOW3 / 253 • fCLK3
Consider maximum values, represented in section 6.7.5, page 50
BOW 4 (Default: 0x000000)
Bow value 4 (second bow B4 of the deceleration ramp).
0x30 23:0
U
Value representation:
Frequency mode: [pulses per sec3]
24 digits and 0 decimal places: 1 pps3 ≤ BOW4 ≤ 16 Mpps3
Direct mode: [∆a per clk cycle]
bow[av per clk_cycle]= BOW4 / 253
BOW4 [pps3] = BOW4 / 253 • fCLK3
Consider maximum values, represented in section 6.7.5, page 50
Table 82: Ramp Generator Registers
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
205/230
External Clock Frequency Register
External Clock Frequency Register
R/W Addr Bit
RW
0x31 24:0
Val
Description
CLK_FREQ (Default: 0x0F42400)
U
External clock frequency value fCLK [Hz] with 4.2 MHz ≤ fCLK ≤ 30 MHz
Table 83: External Clock Frequency Register
Target and Compare Registers
Target and Compare Registers
R/W Addr Bit
RW
0x32 31:0
RW
0x33 31:0
RW
0x34 31:0
RW
0x35 31:0
Val
Description
POS_COMP (Default: 0x00000000)
S
Compare position.
VIRT_STOP_LEFT (Default: 0x00000000)
S
Virtual left stop position.
VIRT_STOP_RIGHT (Default: 0x00000000)
S
Virtual right stop position.
X_HOME (Default: 0x00000000)
S
Actual home position.
X_LATCH (Default: 0x00000000)
R
31:0
0x36
S
Storage position for certain triggers.
REV_CNT (Default: 0x00000000)
S
(if circular_cnt_as_xlatch = 0)
(if circular_cnt_as_xlatch = 1)
Number of revolutions during circular motion.
X_RANGE (Default: 0x00000000)
30:0
Limitation for X_ACTUAL during circular motion:
U
-X_RANGE ≤ X_ACTUAL ≤ X_RANGE - 1
X_TARGET (Default: 0x00000000)
W
RW
0x37 31:0
U
Target motor position in positioning mode.
Set all other motion profile parameters before!
Table 84: Target and Compare Registers
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
206/230
Pipeline Registers
Pipeline Register
R/W Addr
Bit
Val
0x38
31:0
S
X_PIPE0 (Default: 0x00000000): 1st pipeline register.
0x39
31:0
S
X_PIPE1 (Default: 0x00000000): 2nd pipeline register.
0x3A
31:0
S
X_PIPE2 (Default: 0x00000000): 3rd pipeline register.
0x3B
31:0
S
X_PIPE3 (Default: 0x00000000): 4th pipeline register.
0x3C
31:0
S
X_PIPE4 (Default: 0x00000000): 5th pipeline register.
0x3D
31:0
S
X_PIPE5 (Default: 0x00000000): 6th pipeline register.
0x3E
31:0
S
X_PIPE6 (Default: 0x00000000): 7th pipeline register.
0x3F
31:0
S
X_PIPE7 (Default: 0x00000000): 8th pipeline register.
RW
Description
Table 85: Pipeline Register
Shadow Register
Shadow Register
R/W Addr
Bit
Val
0x40
31:0
S
SH_REG0 (Default: 0x00000000) : 1st shadow register.
0x41
31:0
U
SH_REG1 (Default: 0x00000000) : 2nd shadow register.
0x42
31:0
U
SH_REG2 (Default: 0x00000000) : 3rd shadow register.
0x43
31:0
U
SH_REG3 (Default: 0x00000000) : 4th shadow register.
0x44
31:0
U
SH_REG4 (Default: 0x00000000) : 5th shadow register.
0x45
31:0
U
SH_REG5 (Default: 0x00000000) : 6th shadow register.
0x46
31:0
U
SH_REG6 (Default: 0x00000000) : 7th shadow register.
0x47
31:0
S/U
SH_REG7 (Default: 0x00000000) : 8th shadow register.
0x48
31:0
U
SH_REG8 (Default: 0x00000000) : 9th shadow register.
0x49
31:0
U
SH_REG9 (Default: 0x00000000) : 10th shadow register.
0x4A
31:0
U
SH_REG10 (Default: 0x00000000) :
11th shadow register.
0x4B
31:0
U
SH_REG11 (Default: 0x00000000) :
12th shadow register.
0x4C
31:0
U
SH_REG12 (Default: 0x00000000) :
13th shadow register.
0x4D
31:0
U
SH_REG13 (Default: 0x00000000) :
14th shadow register.
RW
Description
Table 86: Shadow Register
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
207/230
Freeze Register
The freeze register can only be written once after an active reset and before motion starts. It
is always readable.
FREEZE Register
R/W Addr
Bit
Val Description
DFREEZE (Default: 0x000000)
23:0
RW
Freeze event deceleration value.
In case NFREEZE switches to low level, this parameter is used for an automatic
linear ramp stop.
Setting DFREEZE to 0 leads to an hard stop.
Value representation:
Frequency mode: not available
Direct mode: [∆v per clk cycle]
a[∆v per clk_cycle]= DFREEZE / 237
DFREEZE [pps2] = DFREEZE / 237 • fCLK2
Set DFREEZE ≤ 220.
U
0x4E
IFREEZE (Default: 0x00)
31:24
Scaling value in case NFREEZE is tied low.
In case IFREEZE=0, actual active scaling value is valid at FROZEN event.
U
Table 87: Freeze Register
Reset and Clock Gating Register
Reset and Clock Gating Register
R/W Addr
Bit
Val
Description
CLK_GATING_REG (Default: 0x0)
2:0
RW
0x4F
0
Clock gating is not activated.
7
Clock gating is activated.
RESET_REG (Default: 0x000000)
31:8
0
No reset is activated.
0x525354 Internal reset is activated.
Table 88: Reset and Clock Gating Register
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
208/230
Encoder Registers
Encoder Registers
R/W Addr Bit Val Description
RW
0x50 31:0
S
Actual encoder position [µsteps].
ENC_LATCH (Default: 0x00000000)
R
S
0x51 31:0
W
Latched encoder position.
ENC_RESET_VAL(Default: 0x00000000)
S
Defined reset value for ENC_POS in case the encoder position must be cleared to
another value than 0.
ENC_POS_DEV (Default: 0x00000000)
R
S
0x52 31:0
W
W
ENC_POS (Default: 0x00000000)
CL_TR_TOLERANCE (Default: 0x00000000)
S
0x53 31:0
Deviation between XACTUAL and ENC_POS.
(Closed-loop operation)
Tolerated absolute tolerance between XACTUAL and ENC_POS to trigger
TARGET_REACHED (incl. TARGET_REACHED_Flag and event).
ENC_POS_DEV_TOL (Default: 0xFFFFFFFF)
U
Maximum tolerated value of ENC_POS_DEV, which is not flagged as error.
ENC_IN_RES (Default: 0x00000000)
W
U
30:0
R
0x54
Resolution [encoder steps per revolution] of the encoder connected to the encoder
inputs.
ENC_CONST (Default: 0x00000000)
U
Encoder constant.
i Value representation: 15 digits and 16 decimal places
manual_enc_const (Default: 0)
W
W
31
0x55 31:0
0
1
ENC_CONST will be calculated automatically.
Manual definition of ENC_CONST = ENC_IN_RES
ENC_OUT_RES (Default: 0x00000000)
U
Resolution [encoder steps per revolution] of the serial encoder output interface.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
209/230
Encoder Registers
R/W Addr Bit Val Description
15:0
0x56
31:16
SER_CLK_IN_HIGH (Default: 0x00A0)
U
High voltage level time of serial clock output [# clock cycles].
SER_CLK_IN_LOW (Default: 0x00A0)
U
Low voltage level time of serial clock output [# clock cycles].
SSI_IN_CLK_DELAY (Default: 0x0000)
15:0
U
SSI encoder:
Delay time [# clock cycles] between next data transfer after a rising edge of serial
clock output.
i In case SSI_IN_CLK_DELAY = 0:
SSI_IN_CLK_DELAY = SER_CLK_IN_HIGH
SPI encoder: Delay [# clock cycles] at start and end of data transfer between
serial clock output and negated chip select.
i In case SSI_IN_CLK_DELAY = 0:
SSI_IN_CLK_DELAY = SER_CLK_IN_HIGH
0x57
SSI_IN_WTIME (Default: 0x0F0)
W
31:16
U
Delay parameter tw [# clock cycles] between two clock sequences for a multiple
data transfer (of the same data).
i SSI recommendation: tw < 19 µs.
SER_PTIME (Default: 0x00190)
0x58 19:0
U
SSI and SPI encoder: Delay time period tp [# clock cycles] between two
consecutive clock sequences for new data request.
i SSI recommendation: tp > 21 µs.
ENC_COMP_XOFFSET (Default:0x0000)
15:0
0x7D 23:16
31:24
U
Start offset for triangular compensation in horizontal direction.
0 ≤ ENC_COMP_XOFFSET < 216
ENC_COMP_YOFFSET (Default:0x00)
S
Start offset for triangular compensation in vertical direction.
−128 ≤ ENC_COMP_YOFFSET ≤ 127
ENC_COMP_AMPL (Default:0x00)
U
Maximum amplitude for encoder compensation.
Table 89: Encoder Registers
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
210/230
PID & Closed-Loop Registers
PID and Closed-Loop Registers
R/W Addr Bit
Val Description
CL_BETA (0x0FF)
8:0
U
RW 0x1C
Maximum commutation angle for closed-loop regulation.
i
i
Set CL_BETA > 255 carefully (esp. if cl_vlimit_en = 1).
Exactly 255 is recommended for best performance.
CL_GAMMA (Default:0xFF)
23:16
U
Maximum balancing angle to compensate back-EMF at higher velocities during
closed-loop regulation.
CL_OFFSET (Default: 0x00000000)
RW
0x59 31:0
23:0
0x5A
R
31:0
(PID regulation)
Parameter P of PID regulator. Proportional term = PID_E · PID_P / 256
CL_VMAX_CALC_P (Default: 0x000000)
(Closed-loop operation)
Parameter P of PI regulator controls maximum catch-up velocity limitation.
PID_VEL (Default: 0x00000000)
S
(PID regulation)
Actual PID output velocity.
PID_I ( Default: 0x000000)
23:0
R
U
U
W
W
Offset between ENC_POS and XACTUAL after closed-loop calibration. It is set
during closed-loop calibration process. It can be written manually.
PID_P (Default: 0x000000)
W
W
S
(Closed-loop operation)
0x5B
U
Parameter I of PID regulator. Integral term = PID_ISUM / 256 · PID_I / 256
CL_VMAX_CALC_I (Default: 0x000000)
U
31:0
(PID regulation)
(Closed-loop operation)
Parameter I of PI regulator controls maximum catch-up velocity limitation.
PID_ISUM_RD ( Default: 0x00000000)
S
(PID regulation)
Actual PID integrator sum. Update frequency = fCLK/128
PID_D (Default: 0x000000)
W
U
0x5C 23:0
W
14:0
W
0x5D 23:16
R
31:0
W
0x5E 30:0
Parameter D of PID regulator. PID_E is sampled with fCLK / 128 / PID_D_CLKDIV.
Derivative term = (PID_ELAST – PID_EACTUAL) · PID_D
CL_DELTA_P (Default: 0x000000)
U
W
(PID regulation)
Gain parameter that is multiplied with the actual position difference in order to
calculate the actual commutation angle for position maintenance stiffness. Clipped
at CL_BETA. Real value =CL_DELTA_P / 216 ;Ex: 65536 1.0 (gain=1)
Value representation: 8 digits and 16 decimal places.
PID_I_CLIP (Default: 0x0000)
U
(Closed-loop operation)
(PID regulation) (Closed-loop operation)
Clipping parameter for PID_ISUM. Real value = PID_ISUM • 216 • PID_ICLIP
PID_D_CLKDIV (Default:0x00)
U
(PID regulation)
Clock divider for D part calculation.
PID_E (Default:0x00000000)
S
Actual position deviation.
PID_DV_CLIP (Default:0x00000000)
U
(PID regulation)
(PID regulation) (Closed-loop operation)
Clipping parameter for PID_VEL.
Continued on next page.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
W
19:0
0x5F
W
211/230
PID_TOLERANCE (Default:0x00000)
U
(PID regulation)
Tolerated position deviation: PID_E = 0 in case |PID_E| < PID_TOLERANCE
CL_TOLERANCE (Default:0x00)
7:0
U
(Closed-loop operation)
Tolerated position deviation:
CL_DELTA_P = 65536 (gain=1) in case |ENC_POS_DEV| < CL_TOLERANCE
CL_VMIN_EMF (Default:0x000000)
W
0x60 23:0
U
(Closed-loop operation)
Encoder velocity at which back-EMF compensation starts.
2 assignment: Also used as DC_VEL if dcStep is enabled (see section 19.27. )
3rd assignment: Also used as FS_VEL if no dcStep or closed-loop is enabled (see 19.16. )
nd
CL_VADD_EMF (Default:0x000000)
W
0x61
23:0
U
Additional velocity value to calculate the encoder velocity at which back-EMF
compensation reaches the maximum angle CL_GAMMA.
31:0 2nd assignment: Also used as a dcStep configuration register (see section 19.27. )
ENC_VEL_ZERO (Default:0xFFFFFF)
W
0x62 31:0
U
Delay time [# clock cycles] after the last incremental encoder change to set
V_ENC_MEAN = 0.
ENC_VMEAN_WAIT (Default:0x00)
7:0
U
(incremental encoders only)
Delay period [# clock cycles] between two consecutive actual encoder velocity
values that account for calculaton of mean encoder velocity.
Set ENC_VMEAN_WAIT > 32.
i Is set automatically to SER_PTIME for absolute SSI/SPI encoder.
SER_ENC_VARIATION (Default:0x00)
7:0
W
U
0x63
11:8
ENC_IN_RES.
If ENC_VARIATION = 0: Maximum permitted value = 1/8 •
ENC_IN_RES.
ENC_VMEAN_FILTER (Default:0x0)
U
Filter exponent to calculate mean encoder velocity.
ENC_VMEAN_INT (Default:0x0000)
31:16
U
0x65 31:0
R
0x66 31:0
U
(incremental encoders only)
Encoder velocity update time [# clock cycles].
i Minimum value is set automatically to 256.
CL_CYCLE (Default:0x0000)
31:16
(absolute encoders only)
Multiplier for maximum permitted serial encoder variation between consecutive
absolute encoder requests.
Maximum permitted value = ENC_VARIATION / 256 • 1/8 •
(absolute encoders only)
Closed-loop control cycle [# clock cycles].
i Is set automatically to fastest possible cycle for ABN encoders.
V_ENC (Default:0x00000000)
S
Actual encoder velocity [pps].
V_ENC_MEAN (Default:0x00000000)
S
Filtered encoder velocity [pps].
Table 90: PID and Closed-Loop Registers
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
212/230
dcStep Registers
Micellaneous Registers
R/W Addr Bit
Val Description
DC_VEL (Default:0x000000)
0x60 23:0
Minimum dcStep velocity [pps].
In case|VACTUAL| > DC_VEL dcStep is active, if enabled.
2nd assignment: Also used as CL_VMIN_EMF if closed-loop is enabled (section 19.26. )
3rd assignment: Also used as FS_VEL if no dcStep or closed-loop is enabled (see 19.16. )
U
DC_TIME (Default:0x00)
7:0
U
(TMC26x only and dcStep only)
Upper PWM on-time limit for commutation.
i Set slightly above effective blank time TBL of the driver.
DC_SG (Default:0x0000)
W
0x61
15:8
U
(TMC26x and dcStep only)
Maximum PWM on-time [# clock cycles ∙ 16] for step loss detection. If a loss is
detected (step length of first regular step after blank time of the dcStep input
signal is below DC_SG), a stall event will be released.
DC_BLKTIME (Default:0x0000)
31:16
(dcStep only)
U
(TMC26x and dcStep only)
Blank time [# clock cycles] after fullstep release when no signal comparison should
happen.
23:0 2nd assignment: Also used as CL_VADD_EMF if closed-loop is enabled (see 19.26. )
0x62
31:0
DC_LSPTM (Default:0x00FFFFFF)
U
(dcStep only)
dcStep low speed timer [# clock cycles]
23:0 2nd assignment: Also used as ENC_VEL_ZERO if dcStep is disabled (see 19.26. )
Table 91: Miscellaneous Registers
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
213/230
Transfer Registers
Transfer Registers
R/
Addr Bit Val Description
W
ADDR_TO_ENC (Default:0x00000000)
W
0x68 31:0
W
0x69 31:0
-
(SPI encoders only)
Address data permanently sent to get encoder angle data from the SPI encoder slave
device.
Address data sent from TMC4361A to SPI encoder for one-time data transfer.
DATA_TO_ENC (Default:0x00000000)
-
(SPI encoders only)
Configuration data sent from TMC4361A to SPI encoder for one-time data transfer.
ADDR_FROM_ENC (Default:0x00000000)
R
R
0x6A 31:0
0x6B 31:0
-
(SPI encoders only)
Repeated request data is stored here.
Address data received from SPI encoder as response of the one-time data transfer.
DATA_FROM_ENC (Default:0x00000000)
-
(SPI encoders only)
Data received from SPI encoder as response of the one-time data transfer.
COVER_LOW (Default:0x00000000)
W
0x6C 31:0
-
Lower configuration bits of SPI orders that can be sent from TMC4361A to the motor
drivers via SPI output.
Automatic cover data transfer (automatic_cover = 1): Value in COVER_LOW are sent
in case |VACTUAL| crosses SPI_SWITCH_VEL downwards.
Set COVER_DATA_LENGTH ≤ 32.
In case COVER_DATA_LENGTH = 0, no TMC2130 must be selected.
POLLING_STATUS (Default:0x00000000)
R
-
(TMC26x / TMC2130 only)
DRV_STATUS response of TMC26x / TMC2130
COVER_HIGH (Default:0x00000000)
W
31:0
-
0x6D
Upper configuration bits of SPI orders that can be sent from TMC4361A to the motor
drivers via SPI output.
Automatic cover data transfer (automatic_cover = 1): Value in COVER_LOW are sent
if |VACTUAL| crosses SPI_SWITCH_VEL upwards.
Set COVER_DATA_LENGTH ≤ 32.
In case COVER_DATA_LENGTH = 0, no TMC2130 must be selected.
POLLING_REG (Default:0x00000000)
R
19:0
-
LOST_STEPS response of TMC2130
27:20 -
PWM_SCALE response of TMC2130
31:28 -
GSTAT response of TMC2130
(TMC2130 only)
COVER_DRV_LOW (Default:0x00000000)
R
0x6E 31:0
R
0x6F 31:0
-
Lower configuration bits of SPI response received from the motor driver connected to
the SPI output.
COVER_DRV_HIGH (Default:0x00000000)
-
Upper configuration bits of SPI response received from the motor driver connected to
the SPI output.
Table 92: Transfer Registers
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
214/230
SinLUT Registers
SinLUT Registers
R/W Addr
Val Description
0x70
MSLUT[0]
(Default:0xAAAAB554)
0x71
MSLUT[1]
(Default:0x4A9554AA)
0x72
MSLUT[2]
(Default:0x24492929)
MSLUT[3]
(Default:0x10104222)
MSLUT[4]
(Default:0xFBFFFFFF)
0x75
MSLUT[5]
(Default:0xB5BB777D)
0x76
MSLUT[6]
(Default:0x49295556)
0x 77
MSLUT[7]
(Default:0x00404222)
0x73
W
Bit
0x74
31:0
W
R
0x78
31:0
0x79
9:0
0x7A
24:16
8:0
0x7B
U
Definition of the four segments within each quarter MSLUT wave.
Actual µStep position of the sine value.
24:16
CURRENTA (Default:0x000)
S
S
0x7E
23:16
Actual current value of coilB (sine90_120 values).
CURRENTA_SPI (Default:0x000)
S
Actual scaled current value of coilA (sine values) that are sent to the driver.
CURRENTB_SPI (Default:0x0F7)
S
31:0 2
7:0
Actual current value of coilA (sine values).
CURRENTB (Default:0x0F7)
nd
W
W
-
(Default:0xFFFF8056)
2nd assignment: Also used as MS_OFFSET if Voltage PWM is enabled (see 19.17. )
8:0
R
MSLUTSEL
MSCNT (Default:0x000)
W
R
Each bit defines the difference between consecutive values in the
microstep look-up table MSLUT (in combination with MSLUTSEL).
Actual scaled current value of coilB (sine90_120 values); sent to motor driver.
assignment: Also used as TZERO_WAIT for write access (see section 19.16. )
START_SIN (Default:0x00)
U
Start value for sine waveform.
START_SIN90_120 (Default:0xF7)
U
31:24 2
nd
Start value for cosine waveform.
assignment: Also used as DAC_OFFSET for write access (see section 19.30. )
Table 93: SinLUT Registers
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
215/230
SPI-DAC Configuration Registers
SPI-DAC Configuration Registers
R/W Addr Bit
Val Description
DAC_ADDR_A (Default:0x0000)
15:0
U
Fixed command/address, which is sent via SPI output before sending
CURRENTA_SPI values.
DAC_ADDR_B (Default: 0x0000)
RW 0x1D
31:16
U
Fixed command/address, which is sent via SPI output before sending current
CURRENTB_SPI values.
23:0 2nd assignment: Also used as SPI_SWITCH_VEL if SPI-DAC mode is disabled (19.16. )
DAC_OFFSET (Default:0x00)
W
0x7E
31:24 U
S
Offset (absolute sine and cosine DAC values).
Offset (mapped DAC values).
23:0 2nd assignment: Also used as START_SIN/90_120 for read out (see section 19.29. )
Table 94: SPI-DAC Configuration Registers.
TMC Version Register
Version Register
R/W Addr Bit
R
0x7F 15:0
Val
Description
Version No (Default:0x0002)
U
TMC4361 version number.
Table 95: Version Register
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
216/230
20. Absolute Maximum Ratings
The maximum ratings may not be exceeded under any circumstances. Operating the circuit at or near more
than one maximum rating at a time for extended periods shall be avoided by application design.
Maximum Ratings: 3.3V supply
Parameter (VCC = 3.3V nominal TEST_MODE = 0V)
Supply voltage
Input voltage IO
Symbol
Min
Max
Unit
VCC
VIN
3.0
−0.3
3.6
3.6
V
V
Symbol
Min
Max
Unit
VCC
VIN
4.8
−0.3
5.2
5.2
V
V
Table 96: Maximum Ratings: 3.3V supply
Maximum Ratings: 5.0V supply
Parameter (VCC = 5V nominal TEST_MODE = 0V)
Supply voltage
Input voltage IO
Table 97: Maximum Ratings: 5.0V supply
Maximum Ratings: Temperature
Parameter
Symbol
Min
Max
Unit
Temperature
T
−40
125
°C
Table 98: Maximum Ratings: Temperature
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
217/230
21. Electrical Characteristics
DC characteristics contain the spread of values guaranteed within the specified supply voltage
range unless otherwise specified. Typical values represent the average value of all parts
measured at +25°C. Temperature variation also causes stray to some values. A device with
typical values will not leave Min/Max range within the full temperature range.
DC Characteristics
Parameter
Symbol
Conditions
Min
Typ
−40°C
Max
Unit
125
°C
Extended temperature range
TCOM
Nominal core voltage
VDD
1.8
V
Nominal IO voltage
VDD
3.3 / 5.0
V
Nominal input voltage
VIN
Input voltage low level
VINL
Input voltage high level
VINH
0.0
3.3 / 5.0
V
VDD = 3.3V / 5V
−0.3
0.8 / 1.2
V
VDD = 3.3V / 5V
2.3 / 3.5
3.6 / 5.2
V
Input with pull-down
VIN = VDD
5
30
110
µA
Input with pull-up
VIN = 0V
−110
−30
−5
µA
Input low current
VIN = 0V
−10
10
µA
Input high current
VIN = VDD
−10
10
µA
0.4
V
Output voltage low level
VOUTL
VDD = 3.3V / 5V
Output voltage high level
VOUTH
VDD = 3.3V / 5V
IOUT_DRV
VDD = 3.3V / 5V
Output driver strength
2.64 / 4.0
V
4.0
mA
Table 99: DC Characteristics
Power Dissipation
Power Dissipation
Parameter
Symbol
Static power dissipation
PDSTAT
Dynamic power dissipation
PDDYN
Total power dissipation
PD
Conditions
All inputs at VDD or GND
VDD = 3.3V / 5V
All inputs at VDD or GND
fCLK variable
VDD = 3.3V / 5V
fCLK = 16 MHz
VDD = 3.3V / 5V
Min Typ
Max
Unit
1.1 / 1.7
mW
2.7 / 4.0
mW / MHz
44.3 / 65.7
mW
Table 100: Power Dissipation
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
218/230
General IO Timing Parameters
General IO Timing Parameters
Parameter
Symbol
Conditions
Min
Typ
Max
30
Operation frequency
fCLK
fCLK = 1 / tCLK
4.21)
16
Clock Period
tCLK
Rising edge to
rising edge
33.5
62.5
Unit
MHz
ns
Clock time low
16.5
ns
Clock time high
16.5
ns
CLK input signal rise time
tRISE_IN
20 % to 80 %
20
ns
CLK input signal fall time
tFALL_IN
80 % to 20 %
20
ns
Output signal rise time
tRISE_OUT
Output signal fall time
tFALL_OUT
Setup time for SPI input
signals in synchronous design
tSU
Hold time
tHD
20 % to 80 %
load 32 pF
80 % to 20 %
load 32 pF
Relative to
rising clk edge
Relative to
rising clk edge
3.5
ns
3.5
ns
5
ns
5
ns
Table 101: General IO Timing Parameters
The lower limit for fCLK refers to the limits of the internal unit conversion to physical units. The chip will also operate at
lower frequencies.
1)
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Layout Examples
Internal Cirucit Diagram for Layout Example
Figure 73: Internal Circuit Diagram for Layout Example
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
219/230
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Components
Assembly for
Application with
Encoder
Figure 74: Components Assembly for Application with Encoder
Top Layer:
Assembly Side
Figure 75: Top Layer: Assembly Side
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
220/230
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Inner Layer
(GND)
Figure 76: Inner Layer (GND)
Inner Layer
(Supply VS)
Figure 77: Inner Layer (Supply VS)
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
221/230
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
222/230
Package Dimensions
Package Dimensions
Parameter
Ref
Min Nom Max
Total thickness
A
0.8
0.85 0.9
0.03
0.05
5
0.65 0.67
Stand off
A1
0
Mold thickness
A2
-
Lead frame thickness
A3
Lead width
b
Body size X
D
6 BSC
Body size Y
E
6 BSC
Lead pitch
e
0.5 BSC
Exposed die pad size X
J
4.52 4.62 4.72
Exposed die pad size Y
K
4.52 4.62 4.72
Lead length
L
0.35
0.203 REF
0.2
0.25
0.4
Package edge tolerance
aaa
0.1
Mold flatness
bbb
0.1
Coplanarity
ccc
0.08
Lead offset
ddd
0.1
Exposed pad offset
eee
0.1
Table 102: Package Dimensions
Figure 78: Package Dimensional Drawings
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
0.3
0.45
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
223/230
Package Material Information
Please refer to the associated document “TMC43xx Package Material Information, V1.00” for
information about available package dimensions and the various tray and reel package options.
This document informs you about outside dimensions per tray and/reel and the number of ICs
per tray/reel. It also provides information about available packaging units and their weight, as
well as box dimension and weight details for outer packaging.
The document is available for download on the TMC4361A product page at www.trinamic.com.
Should you require a custom-made component packaging solution or a different outer packaging
solution, or have questions pertaining to the component packaging choice, please contact our customer
service.
i
NOTE:
Our trays and reels are JEDEC-compliant.
Marking Details provided on Single Chip
The marking on each single chip shows:
❶ Trinamic emblem.
❷ Product code.
❶
❸ Date code.
❷
❹ Location of the copyright holder,
which is TRINAMIC in Hamburg, Germany.
❸
❹
❺ Lot number.
Figure 79: Marking Details on Chip1
1 The
image provided is not an accurate rendition of the original product but only serves as illustration.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
❺
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
224/230
A P P E ND I C E S
22. Supplemental Directives
ESD-DEVICE INSTRUCTIONS
This product is an ESD-sensitive CMOS device. It is sensitive to
electrostatic discharge.
Provide effective grounding to protect personnel and machines.
Ensure work is performed in a nonstatic environment.
Use personal ESD control footwear and ESD wrist straps, if necessary.
Failure to do so can result in defects, damages and decreased reliability.
Producer
Information
The producer of the product TMC4361A is TRINAMIC GmbH & Co. KG in Hamburg,
Germany; hereafter referred to as TRINAMIC. TRINAMIC is the supplier; and in this
function provides the product and the production documentation to its customers.
Copyright
TRINAMIC owns the content of this user manual in its entirety, including but not
limited to pictures, logos, trademarks, and resources.
© Copyright 2015 TRINAMIC®. All rights reserved. Electronically published by
TRINAMIC®, Germany. All trademarks used are property of their respective owners.
Redistributions of source or derived format (for example, Portable Document Format
or Hypertext Markup Language) must retain the above copyright notice, and the
complete Datasheet User Manual documentation of this product including associated
Application Notes; and a reference to other available product-related documentation.
Trademark
Designations
and Symbols
Trademark designations and symbols used in this documentation indicate that a
product or feature is owned and registered as trademark and,'or patent either by
TRINAMIC or by ather manufacturers, whose products are used or referred to in
combination With TRINAMlC's products and TRINAMlC's product documentation. This
documentation is a noncommercial publication that seeks to provide concise scientific
and technical user information to the target user. Thus, we only enter trademark
designations and symbols in the Short Spec of the documentation that introduces the
product at a quick glance. We also enter the trademark designation 'symbol when the
product or feature name occurs for the first time in the document. All trademarks used
are property of their respective owners.
Target User
The documentation provided here, is for programmers and engineers only, who are
equipped with the necessary skills and have been trained to work with this type of
product.
The Target User knows how to responsibly make use of this product without causing
harm to himself or others, and without causing damage to systems or devices, in
which the user incorporates the product.
Disclaimer: Life
Support Systems
TRINAMIC Motion Control GmbH & Co. KG does not authorize or warrant any of its
products for use in life support systems, without the specific written consent of
TRINAMIC Motion Control GmbH & Co. KG.
Life support systems are equipment intended to support or sustain life, and whose
failure to perform, when properly used in accordance with instructions provided, can
be reasonably expected to result in personal injury or death.
Information given in this document is believed to be accurate and reliable. However,
no responsibility is assumed for the consequences of its use nor for any infringement
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
225/230
of patents or other rights of third parties which may result from its use. Specifications
are subject to change without notice.
Disclaimer:
Intended Use
The data specified in this user manual is intended solely for the purpose of product
description. No representations or warranties, either express or implied, of
merchantability, fitness for a particular purpose or of any other nature are made
hereunder with respect to information/specification or the products to which
information refers and no guarantee with respect to compliance to the intended use
is given.
In particular, this also applies to the stated possible applications or areas of
applications of the product. TRINAMIC products are not designed for and must not be
used in connection with any applications where the failure of such products would
reasonably be expected to result in significant personal injury or death (Safety-Critical
Applications) without TRINAMIC’s specific written consent.
TRINAMIC products are not designed nor intended for use in military or aerospace
applications or environments or in automotive applications unless specifically
designated for such use by TRINAMIC. TRINAMIC conveys no patent, copyright, mask
work right or other trade mark right to this product. TRINAMIC assumes no liability
for any patent and/or other trade mark rights of a third party resulting from processing
or handling of the product and/or any other use of the product.
Product
Documentation
Details
This document Datasheet User Manual contains the User Information for the
Target User.
Collateral
Documents &
Tools
This product documentation is related and/or associated with additional tool kits,
firmware and other items, as provided on the product page at: www.trinamic.com .
The Short Spec forms the preface of the document and is aimed at providing a
general product overview. The Main Manual contains detailed product information
pertaining to functions, and configuration settings. It contains all other pages of this
document.
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
226/230
23. Tables Index
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
Table
1: TMC4361A Order Codes ............................................................................................................. 2
2: Pin Names and Descriptions ...................................................................................................... 12
3: SPI Input Control Interface Pins ................................................................................................ 16
4: Read and Write Access Examples .............................................................................................. 17
5: SPI Interface Timing ................................................................................................................ 19
6: Input Filtering Groups (Assigned Pins) ....................................................................................... 20
7: Input Filtering (Assigned Register) ............................................................................................ 20
8: Sample Rate Configuration ....................................................................................................... 21
9: Configuration of Digital Filter Length ......................................................................................... 21
10: Pins Names: Status Events...................................................................................................... 24
11:Register Names: Status Flags and Events ................................................................................. 24
12: Pin Names: Ramp Generator ................................................................................................... 28
13: Register Names: Ramp Generator ........................................................................................... 28
14: Overview of General and Basic Ramp Configuration Options ..................................................... 31
15: Description of TMC4361A Motion Profiles ................................................................................. 33
16: Trapezoidal Ramps: AACTUAL Assignments during Motion ........................................................ 36
17: Parameter Assignments for S-shaped Ramps ........................................................................... 39
18: Minimum and Maximum Values if Real World Units are selected ................................................ 50
19: Minimum and Maximum Values for Steep Slopes for fCLK =16MHz .............................................. 50
20: Pins used for External Step Control ......................................................................................... 51
21: Registers used for External Step Control .................................................................................. 51
22: Pins used for Reference Switches ............................................................................................ 54
23: Dedicated Registers for Reference Switches ............................................................................. 54
24: Reference Configuration and Corresponding Transition of particular Reference Switch ................ 56
25: Overview of different home_event Settings .............................................................................. 59
26: TARGET_REACHED Output Pin Configuration ........................................................................... 63
27: Comparison Selection Grid to generate POS_COMP_REACHED_Flag .......................................... 64
28: Circular motion (X_RANGE = 300) ........................................................................................... 68
29: Dedicated Ramp Timing Pins ................................................................................................... 69
30: Dedicated Ramp Timing Registers ........................................................................................... 69
31: Start Trigger Configuration ..................................................................................................... 70
32: Start Enable Switch Configuration ........................................................................................... 70
33: Parameter Settings Timing Example 1 ..................................................................................... 72
34: Parameter Settings Timing Example 2 ..................................................................................... 73
35: Parameter Settings Timing Example 3 ..................................................................................... 74
36: Pipeline Activation Options ...................................................................................................... 82
37: Pipeline Mapping for different Pipeline Configurations ............................................................... 83
38: Pin Names for SPI Motor Drive ................................................................................................ 87
39: Dedicated SPI Output Registers .............................................................................................. 88
40: Wave Inclination Characteristics of Internal MSLUT .................................................................. 90
41: Overview of the Microstep Behavior Example ........................................................................... 94
42: SPI Output Communication Pins .............................................................................................. 95
43: TMC Stepper Motor Driver Options ........................................................................................ 100
44: Mapping of TMC23x/24x Status Flags .................................................................................... 104
45: Mapping of TMC26x Status Flags ........................................................................................... 110
46: Mapping of TMC2130 Status Flags ......................................................................................... 115
47: Non-TMC Data Transfer Options ............................................................................................ 116
48: Available SPI-DAC Options .................................................................................................... 119
49: Pin Description: NFREEZE ..................................................................................................... 128
50: Pin Descriptions DFREEZE and IFREEZE ................................................................................. 128
51: Dedicated PWM Output Pins ................................................................................................. 130
52: Dedicated PWM Output Registers .......................................................................................... 130
53: Dedicated dcStep Pins .......................................................................................................... 135
54: Dedicated dcStep Registers ................................................................................................... 135
Table 55: Dedicated Decoder Unit Pins ................................................................................................. 141
Table 56: Dedicated Decoder Unit Registers ......................................................................................... 141
Table 57: Pin Assignment based on selected Encoder Setup .................................................................. 143
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
227/230
Table 58: Index Channel Sensitivity ...................................................................................................... 146
Table 59: Supported SPI Encoder Data Transfer Modes ......................................................................... 156
Table 60: Dedicated Closed-Loop and PID Registers .............................................................................. 158
Table 61: Dedicated Reset and Clock Pins ............................................................................................. 169
Table 62: Dedicated Reset and Clock Gating Registers .......................................................................... 169
Table 63: Pin Names for Encoder Output Interface ................................................................................ 172
Table 64: Dedicated SPI Output Registers ............................................................................................ 172
Table 65: General Configuration 0x00 .................................................................................................. 177
Table 66: Reference Switch Configuration 0x01 .................................................................................... 180
Table 67: Start Switch Configuration START_CONF 0x02 ....................................................................... 182
Table 68: Input Filter Configuration Register INPUT_FILT_CONF 0x03 ................................................... 183
Table 69: SPI Output Configuration Register SPI_OUT_CONF 0x04 ........................................................ 186
Table 70: Current Scale Configuration (0x05)........................................................................................ 187
Table 71: Current Scale Values (0x06) .................................................................................................. 188
Table 72: Various Scaling Configuration Registers (0x15…0x1B) ............................................................ 189
Table 73: Encoder Signal Configuration ENC_IN_CONF (0x07) ............................................................... 193
Table 74: Serial Encoder Data Input Configuration ENC_IN_DATA (0x08) ............................................... 194
Table 75: Serial Encoder Data Output Configuration ENC_OUT_DATA (0x09) .......................................... 194
Table 76: Motor Driver Settings (0x0A) ................................................................................................. 195
Table 77: Event Selection Regsiters 0x0B…0x0D ................................................................................... 196
Table 78: Status Event Register EVENTS (0x0E) .................................................................................... 197
Table 79: Status Flag Register STATUS (0x0F) ...................................................................................... 198
Table 80: Various Configuration Registers: S/D, Synchronization, etc. .................................................... 199
Table 81: PWM Configuration Registers. ............................................................................................... 200
Table 82: Ramp Generator Registers .................................................................................................... 204
Table 83: External Clock Frequency Register ......................................................................................... 205
Table 84: Target and Compare Registers .............................................................................................. 205
Table 85: Pipeline Register .................................................................................................................. 206
Table 86: Shadow Register .................................................................................................................. 206
Table 87: Freeze Register .................................................................................................................... 207
Table 88: Reset and Clock Gating Register ............................................................................................ 207
Table 89: Encoder Registers ................................................................................................................ 209
Table 90: PID and Closed-Loop Registers ............................................................................................. 211
Table 91: Miscellaneous Registers ........................................................................................................ 212
Table 92: Transfer Registers ................................................................................................................ 213
Table 93: SinLUT Registers .................................................................................................................. 214
Table 94: SPI-DAC Configuration Registers. .......................................................................................... 215
Table 95: Version Register ................................................................................................................... 215
Table 96: Maximum Ratings: 3.3V supply ............................................................................................. 216
Table 97: Maximum Ratings: 5.0V supply ............................................................................................. 216
Table 98: Maximum Ratings: Temperature ........................................................................................... 216
Table 99: DC Characteristics ................................................................................................................ 217
Table 100: Power Dissipation ............................................................................................................... 217
Table 101: General IO Timing Parameters ............................................................................................ 218
Table 102: Package Dimensions ........................................................................................................... 222
Table 100: Document Revision History ................................................................................................. 230
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
228/230
24. Figures Index
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
1: Sample Image TMC4361A Closed-Loop Drive............................................................................ 1
2: Block Diagram .......................................................................................................................... 1
3: S-shaped Velocity Profile ........................................................................................................... 2
4: Hardware Set-up for Closed-loop Operation with TMC262 ........................................................... 2
5: Hardware Set-up for Open-loop Operation with TMC2130............................................................ 2
6: Package Outline: Pin Assignments Top View ............................................................................. 10
7: System Overview .................................................................................................................... 13
8: TMC4361A Connection: VCC=3.3V ........................................................................................... 14
9: TMC4361A with TMC26x Stepper Driver in SPI Mode or S/D Mode ............................................. 14
10: TMC4361A with TMC248 Stepper Driver in SPI Mode ............................................................... 15
11: TMC4361A with TMC2130 Stepper Driver in SPI Mode or S/D Mode ......................................... 15
12: TMC4361A SPI Datagram Structure ........................................................................................ 16
13: Difference between Read and Write Access ............................................................................ 17
14: SPI Timing Datagram ............................................................................................................ 18
15: Reference Input Pins: SR_REF = 1, FILT_L_REF = 1 ............................................................... 22
16: START Input Pin: SR_S = 2, FILT_L_S = 0 ............................................................................. 22
17: Encoder Interface Input Pins: SR_ENC_IN = 0, FILT_L_ENC_IN = 7 ........................................ 22
18: Step/Dir Input Filter Parameter .............................................................................................. 23
19: No Ramp Motion Profile ......................................................................................................... 34
20: Trapezoidal Ramp without Break Point ................................................................................... 35
21: Trapezoidal Ramp with Break Point ........................................................................................ 35
22: S-shaped Ramp without initial and final Acceleration/Deceleration Values ................................. 37
23: S-shaped Ramp with initial and final Acceleration/Deceleration Values ...................................... 38
24: Trapezoidal Ramp with initial Velocity ..................................................................................... 40
25: S-shaped Ramp with initial Start Velocity ................................................................................ 41
26: S-shaped Ramp with Stop Velocity ......................................................................................... 43
27: S-shaped Ramp with Start and Stop Velocity ........................................................................... 44
28: S-shaped Ramps with combined VSTART and ASTART Parameters ........................................... 45
29: sixPoint Ramp: Trapezoidal Ramp with Start and Stop Velocity ................................................ 46
30: Example for U-Turn Behavior of sixPoint Ramp ....................................................................... 47
31: Example for U-Turn Behavior of S-shaped Ramp ..................................................................... 48
32: Direct transition via VACTUAL=0 for S-shaped Ramps ............................................................. 48
33: HOME_REF Monitoring and HOME_ERROR_FLAG .................................................................... 60
34: Ramp Timing Example 1 ........................................................................................................ 72
35: Ramp Timing Example 2 ........................................................................................................ 73
36: Ramp Timing Example 3 ........................................................................................................ 74
37: Single-level Shadow Register Option to replace complete Ramp Motion Profile. ......................... 76
38: Double-stage Shadow Register Option 1, suitable for S-shaped Ramps. ................................... 77
39: Double-stage Shadow Register Option 2, suitable for Trapezoidal Ramps. ................................ 78
40: Double-Stage Shadow Register Option 3, suitable for Trapezoidal Ramps ................................. 79
41: SHADOW_MISS_CNT Parameter for several internal Start Signals ............................................ 80
42: Target Pipeline with Configuration Options ............................................................................. 81
43: Pipeline Example A ................................................................................................................ 84
44: Pipeline Example B ................................................................................................................ 84
45: Pipeline Example C ................................................................................................................ 84
46: Pipeline Example D ............................................................................................................... 84
47: Pipeline Example E ................................................................................................................ 85
48: Pipeline Example F ................................................................................................................ 85
49: Pipeline Example G ............................................................................................................... 85
50: Pipeline Example H ............................................................................................................... 85
51: LUT Programming Example .................................................................................................... 89
52: MSLUT Curve with all possible Base Wave Inclinations (highest Inclination first) ....................... 93
53: SPI Output Datagram Timing ................................................................................................. 96
54: Cover Data Register Composition (CDL – COVER_DATA_LENGTH) ........................................... 98
55: Scaling Example 1 ............................................................................................................... 126
56: Scaling Example 2 ............................................................................................................... 127
57: Calculation of PWM Duty Cycles (PWM_AMPL) ...................................................................... 132
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
Figure
229/230
58: TMC4361A connected with TMC23x/24x operating in SPI Mode or PWM Mode ........................ 133
59: dcStep extended Application Operation Area ......................................................................... 136
60: Velocity Profile with Impact through Overload Situation ......................................................... 138
61: Triangular Function that compensates Encoder Misalignments ............................................... 144
62: Outline of ABN Signals of an incremental Encoder ................................................................. 146
63:Serial Data Output: Four Examples ........................................................................................ 151
64: SSI: SSI_IN_CLK_DELAY=0 ................................................................................................. 153
65: SSI: SSI_IN_CLK_DELAY>SER_CLK_IN_HIGH ...................................................................... 153
66: Calculation of the Output Angle with appropriate CL_DELTA_P .............................................. 162
67: Closed-Loop Current Scaling ................................................................................................ 165
68: Closed-Loop Current Scaling Timing Behavior ....................................................................... 166
69: Calculation of the actual Load Angle GAMMA ........................................................................ 167
70: Manual Clock Gating Activation and Wake-Up ....................................................................... 170
71: Automatic Clock Gating Activation and Wake-Up ................................................................... 171
72: Example for SSI Output Configuration: M - Multiturn; S - Singleturn ....................................... 173
73: Internal Circuit Diagram for Layout Example ......................................................................... 219
74: Components Assembly for Application with Encoder .............................................................. 220
75: Top Layer: Assembly Side .................................................................................................... 220
76: Inner Layer (GND) .............................................................................................................. 221
77: Inner Layer (Supply VS) ...................................................................................................... 221
78: Package Dimensional Drawings ............................................................................................ 222
79: Marking Details on Chip1 ...................................................................................................... 223
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
TMC4361A Datasheet | Document Revision 1.22 • 2017-JAN-12
230/230
25. Revision History
Document Revision History
Version
Date
Author
Description
1.00
2014-APR-11
HS, SD
First complete version. New release variant, which is a product
upgrade of TMC4361.
New chapter organization with additional information.
Specifically for:
1.10
2016-JUL-20
HS, SV
Chapter 17: Reset and Clock Gating, page 169.
Chapter 18: Serial Encoder Output, page 172 .
New Layout, ANSI-compliant safety notices.
1.20
2016-NOV-10
HS
Repair of references
Maximum velocity, acceleration and bow values
changed! Section 6.7.5, page 50
1.21
2016-NOV-25
HS
Adaption of register overview that is now more arranged
according to features.
1.22
2017-JAN-12
HS
1) Section 2.5 added: TMC5130A and TMC5160 are software
compatible from TMC4361A point of view.
2) Default settings for IO ports added.
Table 103: Document Revision History
© 2015 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany — Terms of delivery and rights
to technical change reserved. Download newest version at: www.trinamic.com .
Read entire documentation; especially the “Supplemental Directives” on page 224.
MAIN MANUAL
