INTEGRATED CIRCUITS
Dedicated Motion Controller for 2-/3-Phase PMSM
TMC4671 Datasheet
IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
The TMC4671 is a fully integrated servo controller, providing Field Oriented Control for BLDC/PMSM
and 2-phase Stepper Motors as well as DC motors and voice coils. All control functions are implemented in hardware. Integrated ADCs, position sensor interfaces, position interpolators, enable
a fully functional servo controller for a wide range of servo applications.
Features
• Servo Controller
w/ Field Oriented Control (FOC)
• Torque Control (FOC),
Velocity Control, Position Control
• Integrated ADCs, ∆Σ-ADC Frontend
• Encoder Engine: Hall analog/digital,
Encoder analog/digital
• Supports 3-Phase PMSM/BLDC,
2-Phase Stepper Motors,
and 1-Phase DC Motors
• Fast PWM Engine (25kHz . . . 100kHz)
• Application SPI + Debug (UART, SPI)
• Step-Direction Interface (S/D)
Applications
• Robotics
• Pick and Place Machines
• Factory Automation
• E-Mobility
• Laboratory Automation
• Blowers
Simplified Block Diagram
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at: www.trinamic.com
Read entire documentation.
• Pumps
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
2 / 151
Contents
1
Order Codes
6
2
Functional Summary
7
3
4
FOC Basics
3.1
3.2
3.3
3.4
3.5
Why FOC? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What is FOC? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Why FOC as pure Hardware Solution? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How does FOC work? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What is Required for FOC? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.1 Coordinate Transformations - Clarke, Park, iClarke, iPark . . . . . . . . . . . . . . . . .
3.5.2 Measurement of Stator Coil Currents . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.3 Stator Coil Currents I_U, I_V, I_W and Association to Terminal Voltages U_U, U_V, U_W
3.5.4 IgainADC[A/LSB] - ADC Integer Current Value to Real World Unit . . . . . . . . . . . . .
3.5.5 UgainADC[V/LSB] - ADC Integer Voltage Value to Real World Unit . . . . . . . . . . . .
3.5.6 Measurement of Rotor Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.7 Measured Rotor Angle vs. Magnetic Axis of Rotor vs. Magnetic Axis of Stator . . . . .
3.5.8 Knowledge of Relevant Motor Parameters and Position Sensor (Encoder) Parameters
3.5.9 Proportional Integral (PI) Controllers for Closed Loop Current Control . . . . . . . . .
3.5.10 Pulse Width Modulation (PWM) and Space Vector Pulse Width Modulation (SVPWM) .
3.5.11 Orientations, Models of Motors, and Coordinate Transformations . . . . . . . . . . .
Functional Description
4.1
4.2
Functional Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communication Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.1 SPI Slave User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.2 TRINAMIC Real-Time Monitoring Interface (SPI Master) . . . . . . . . . . . . . . . . . .
4.2.3 UART Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.4 Step/Direction Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.5 Single Pin Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.6 GPIO Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3 Numerical Representation, Electrical Angle, Mechanical Angle, and Pole Pairs . . . . . . . . .
4.3.1 Numerical Representation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3.2 N_POLE_PAIRS, PHI_E, PHI_M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3.3 Numerical Representation of Angles PHI . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4 ADC Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.1 ADC current sensing channels ADC_I1 and ADC_I0 . . . . . . . . . . . . . . . . . . . . .
4.4.2 ADC for analog Hall signals or analog sin-cos-encoders AENC_UX, AENC_VN, AENC_WY
4.4.3 ADC supply voltage measurement ADC_VM . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.4 ADC_VM for Brake Choppper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.5 ADC EXT register option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.6 ADC general purpose analog inputs AGPI_A and AGPI_B . . . . . . . . . . . . . . . . .
4.4.7 ADC RAW values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.8 ADC_SCALE and ADC_OFFSET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.9 ADC Gain Factors for Real World Values . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.10 Internal Delta Sigma ADCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.11 Internal Delta Sigma ADC Input Stage Configuration . . . . . . . . . . . . . . . . . . . .
4.4.12 External Delta Sigma ADCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.13 ADC Group A and ADC Group B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.14 Delta Sigma Configuration and Timing Configuration . . . . . . . . . . . . . . . . . . .
4.4.15 Internal Delta Sigma Modulators - Mapping of V_RAW to ADC_RAW . . . . . . . . . . .
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
9
9
9
9
10
10
11
11
11
12
12
12
12
13
14
14
15
16
16
17
17
20
21
22
22
23
24
24
25
26
28
28
28
28
29
29
29
29
29
29
30
30
32
32
32
36
3 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.5
4.6
4.7
4.8
4.9
5
6
4.4.16 External Delta Sigma Modulator Interface . . . . . . . . . . . . . . . . . . . . . . .
Analog Signal Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.5.1 FOC3 - Stator Coil Currents I_U, I_V, I_W and associated Voltages U_U, U_V, U_W
4.5.2 FOC2 - Stepper Coil Currents I_X, I_Y and associated Voltages U_X, U_Y . . . . . .
4.5.3 FOC1 - DC Motor Coil Current I_X1, I_X2, and associated Voltage U_X1, U_X2 . . .
4.5.4 ADC Selector & ADC Scaler w/ Offset Correction . . . . . . . . . . . . . . . . . . .
Encoder Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.6.1 Open-Loop Encoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.6.2 Incremental ABN Encoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.6.3 Secondary Incremental ABN Encoder . . . . . . . . . . . . . . . . . . . . . . . . . .
4.6.4 Digital Hall Sensor Interface with optional Interim Position Interpolation . . . . .
4.6.5 Digital Hall Sensor - Interim Position Interpolation . . . . . . . . . . . . . . . . . .
4.6.6 Digital Hall Sensors - Masking, Filtering, and PWM center sampling . . . . . . . .
4.6.7 Digital Hall Sensors together with Incremental Encoder . . . . . . . . . . . . . . .
4.6.8 Analog Hall and Analog Encoder Interface (SinCos of 0° 90° or 0° 120° 240°) . .
4.6.9 Analog Position Decoder (SinCos of 0°90° or 0°120°240°) . . . . . . . . . . . . . .
4.6.10 Encoder Initialization Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.6.11 Velocity Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.6.12 Reference Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FOC23 Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7.1 ENI and ENO pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7.2 PI Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7.3 PI Controller Calculations - Classic Structure . . . . . . . . . . . . . . . . . . . . .
4.7.4 PI Controller Calculations - Advanced Structure . . . . . . . . . . . . . . . . . . . .
4.7.5 PI Controller - Clipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7.6 PI Flux & PI Torque Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7.7 PI Velocity Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7.8 P Position Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7.9 Inner FOC Control Loop - Flux & Torque . . . . . . . . . . . . . . . . . . . . . . . .
4.7.10 FOC Transformations and PI(D) for control of Flux & Torque . . . . . . . . . . . .
4.7.11 Motion Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7.12 Brake Chopper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filtering and Feed-Forward Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.8.1 Biquad Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.8.2 Standard Velocity Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.8.3 Feed-Forward Control Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PWM Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.9.1 PWM Polarities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.9.2 PWM Engine and associated Motor Connectors . . . . . . . . . . . . . . . . . . . .
4.9.3 PWM Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.9.4 PWM Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.9.5 PWM Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.9.6 Break-Before-Make (BBM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.9.7 Space Vector PWM (SVPWM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.9.8 Real- and Integer-Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Safety Functions
FOC Setup - How to Turn a Motor
6.1
Select Motor Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1.1 FOC1 Setup - How to Turn a Single Phase DC Motor . . . . . . . .
6.1.2 FOC2 Setup - How to Turn a Two Phase Motor (Stepper) . . . . .
6.1.3 FOC3 Setup - How to Turn a Three Phase Motor (PMSM or BLDC)
6.2 Set Number of Pole Pairs (NPP) . . . . . . . . . . . . . . . . . . . . . . . .
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
37
39
39
40
40
41
42
42
43
45
45
46
46
48
48
49
50
50
51
52
52
52
52
54
55
56
56
57
57
57
58
59
60
60
61
61
62
62
63
64
64
64
64
65
65
66
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
69
69
69
69
69
69
4 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
6.3
Run Motor Open Loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.1 Determination of Association between Phase Voltage and Phase Currents
6.3.2 Determination of Direction of Rotation and Phase Shift of Angles . . . . . .
6.4 Selection of Position Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.4.1 Selection of FOC sensor for PHI_E . . . . . . . . . . . . . . . . . . . . . . . . .
6.4.2 Selection of sensor for VELOCITY . . . . . . . . . . . . . . . . . . . . . . . . .
6.4.3 Selection of sensor for POSITION . . . . . . . . . . . . . . . . . . . . . . . . .
6.5 Modes of Operation - (Open Loop), Torque, Velocity, Positioning . . . . . . . . . .
6.6 Controller Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Register Map
7.1
7.2
7.3
70
70
70
70
70
70
70
71
71
71
Register Map - Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Register Map - Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Register Map - Defaults, Data Fields (Bit Masks), min, max . . . . . . . . . . . . . . . . . . . . 110
8
Pinning
128
9
TMC4671 Pin Table
130
10 Electrical Characteristics
10.1 Absolute Maximum Ratings
10.2 Electrical Characteristics . .
10.2.1 Operational Range . .
10.2.2 DC Characteristics . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Supply Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock and Reset Circuitry . . . . . . . . . . . . . . . . . . . . . .
Digital Encoder, Hall Sensor Interface and Reference Switches
Analog Frontend . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phase Current Measurement . . . . . . . . . . . . . . . . . . . .
Power Stage Interface . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
11 Sample Circuits
11.1
11.2
11.3
11.4
11.5
11.6
134
134
134
134
135
136
136
136
136
137
137
139
12 Setup Guidelines
140
13 Package Dimensions
141
14 Supplemental Directives
14.1
14.2
14.3
14.4
14.5
14.6
14.7
Producer Information . . . . . . . . . .
Copyright . . . . . . . . . . . . . . . . .
Trademark Designations and Symbols
Target User . . . . . . . . . . . . . . . .
Disclaimer: Life Support Systems . . .
Disclaimer: Intended Use . . . . . . . .
Collateral Documents & Tools . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
144
144
144
144
144
144
144
145
15 Fixes of TMC4671-LA/-ES2 vs. Errata of TMC4671-ES
146
16 Figures Index
148
17 Tables Index
149
15.1 Errata of TMC4671-ES Engineering Samples as Reference . . . . . . . . . . . . . . . . . . . . . 146
15.2 Actions to Avoid Trouble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
15.3 Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
18 Revision History
5 / 151
150
18.1 IC Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
18.2 Document Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
6 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
1
Order Codes
Order Code
Description
Size

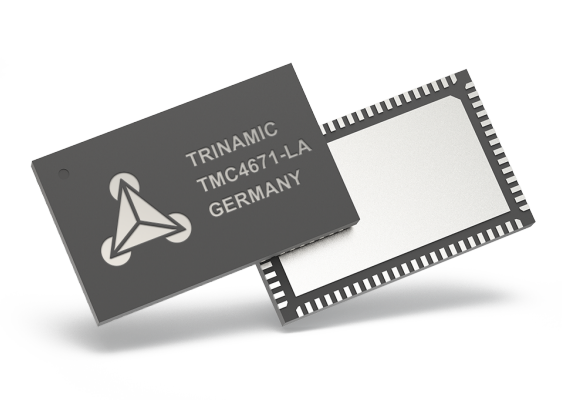

TMC4671-LA
TMC4671 FOC Servo Controller IC
10.5mm x 6.5mm
TMC4671-ES2
TMC4671-LA 1936 35735
10.5mm x 6.5mm
(Engineering Sample)
TMC4671-EVAL
TMC4671 Evaluation Board
55mm x 85mm
TMC4671-BOB
TMC4671 Breakout Board
38mm x 40mm
Landungsbruecke
MCU Board
85mm x 55mm
TMC-UPS-2A24V-A-EVAL
Power Stage Board
85mm x 55mm
TMC-UPS-10A70V-A-EVAL
Power Stage Board
85mm x 55mm
TMC4671+TMC-UPS-2A24V-EVAL-KIT
Evaluation Kit
—
TMC4671+TMC-UPS-10A70V-EVAL-KIT
Evaluation Kit
—
USB-2-RTMI
Interface Adapter to use RTMI
40mm x 20mm
Table 1: Order codes
Note
TMC4671-ES2 labeled TMC4671-LA 1936 35735 are pre-series production engineering samples for evaluation of final silicone functionality of the TMC4671-LA.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
2
7 / 151
Functional Summary
• Servo Controller with Field Oriented Control (FOC)
– Torque (and flux) control mode
– Velocity control mode
– Position control mode
• Control Functions/PI Controllers
– Programmable clipping of inputs and outputs of interim results
– Integrator windup protection for all controllers
– Status output with programmable mask for internal status signal selection
• Supported Motor Types
– FOC3 : 3-phase permanent magnet synchronous motors (PMSM) / brushless DC motor (BLDC)
– FOC2 : 2-phase stepper motors
– FOC1 : 1-phase brushed DC motors, or linear voice coil motors
• ADC Engine with Offset Correction and Scaling
– Integrated Delta Sigma ADCs for current sense voltage, supply voltage, analog encoder, AGPIs
– Interface for isolated external current sensing Delta Sigma modulators
• Position Feedback
– Open loop position generator (programmable [rpm], [rpm/s]) for initial setup
– Digital incremental encoder (ABN resp. ABZ, up to 2 MHz)
– Secondary digital incremental encoder
– Digital Hall sensor interface (H1, H2, H3 resp. H_U, H_V, H_W) with interim position interpolation
– Analog encoder/analog Hall sensor interface (SinCos (0°, 90°) or 0°, 120°, 240°)
– Position target, velocity and target torque filters (Biquad)
– multi-turn position counter (32-bit)
• PWM Engine Including SVPWM
– Programmable PWM frequency within the range of 25 kHz . . . 100 kHz
– PWM auto scaling for transparent change of PWM frequency during motion
– Programmable Brake-Before-Make (BBM) times (0 ns . . . 2.5 µs) for digital gate control signals
– Single bit SVPWM control (on/off) for Space Vector Modulation (switchable during operation)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
8 / 151
• SPI Application Communication Interface
– 40 bit datagram length (1 ReadWrite bit + 7 address bits + 32 data bits)
– Immediate SPI read response (register read access by single datagram)
– SPI clock frequency fSCK up to 2 MHz (8 MHz write, 8 MHz read w/ 500 ns pause after address)
• TRINAMIC Real Time Monitoring Interface
– High frequency sampling of real-time data via TRINAMIC’s real-time monitoring system
– Only single 10 pin high density connector on PCB needed
– Enables frequency response identification and auto tuning options with TRINAMIC’s IDE
• UART Debug Interface
– Three pin (GND, RxD, TxD) 3.3 V UART interface (1N8; 9600 (default), 115200, 921600, 3M bps)
– Available as port for external position sensors (e.g. absolute encoder together with processor)
– Transparent register access parallel to embedded user application interface (SPI)
• Supply Voltages
– 5V and 3.3V; VCC_CORE is internally generated
• IO Voltage
– 3.3V for all digital IOs (choosable by VCCIO Supply)
– 5V common mode analog input voltage range (1.25V ... 2.5V differential operating range)
• Clock Frequency
– 25 MHz (from external oscillator)
• Packages
– QFN76
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
3
9 / 151
FOC Basics
This section gives a short introduction into some basics of Field Oriented Control (FOC) of electric motors.
3.1
Why FOC?
The Field Oriented Control (FOC), alternatively named Vector Control (VC), is a method for the most energyefficient way of turning an electric motor.
3.2
What is FOC?
The Field Oriented Control was independently developed by K. Hasse, TU Darmstadt, 1968, and by Felix
Blaschke, TU Braunschweig, 1973. The FOC is a current regulation scheme for electro motors that takes
the orientation of the magnetic field and the position of the rotor of the motor into account, regulating
the strength in such way that the motor gives that amount of torque that is requested as target torque.
The FOC maximizes active power and minimizes idle power - that finally results in power dissipation - by
intelligent closed-loop control illustrated by figure 1.
Figure 1: Illustration of the FOC basic principle by cartoon: Maximize active power and minimize idle power
and power dissipation by intelligent closed-loop control.
3.3
Why FOC as pure Hardware Solution?
The initial setup of the FOC is usually very time consuming and complex, although source code is freely
available for various processors. This is because the FOC has many degrees of freedom that all need to
fit together in a chain in order to work.
The hardware FOC as an existing standard building block drastically reduces the effort in system setup.
With that off the shelf building block, the starting point of FOC is the setup of the parameters for the FOC.
Setting up and implement the FOC itself and building and programming required interface blocks is no
longer necessary. The real parallel processing of hardware blocks de-couples the higher lever application
software from high speed real-time tasks and simplifies the development of application software. With
the TMC4671, the user is free to use its qualified CPU together with its qualified tool chain, freeing the
user from fighting with processer-specific challenges concerning interrupt handling and direct memory
access. There is no need for a dedicated tool chain to access the TMC4671 registers and to operate it just SPI (or UART) communication needs to be enabled for any given CPU.
The hardware integration of the FOC drastically reduces the number of required components and reduces
the required PCB space. This is in contrast to classical FOC servos formed by motor block and separate
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
10 / 151
controller box wired with motor cable and encoder cable. The high integration of FOC, together with
velocity controller and position controller, enables the FOC as a standard peripheral component that
transforms digital information into physical motion. Compact size together with high performance and
energy efficiency especially for battery powered mobile systems are enabling factors when embedded
goes autonomous.
3.4
How does FOC work?
Two force components act on the rotor of an electric motor. One component is just pulling in radial
direction (ID) where the other component is applying torque by pulling tangentially (IQ). The ideal FOC
performs a closed loop current control that results in a pure torque generating current IQ – without direct
current ID.
Figure 2: FOC optimizes torque by closed loop control while maximizing IQ and minimizing ID to 0
From top point of view, the FOC for 3-phase motors uses three phase currents of the stator interpreted
as a current vector (Iu; Iv; Iw) and calculates three voltages interpreted as a voltage vector (Uu; Uv; Uw)
taking the orientation of the rotor into account in a way that only a torque generating current IQ results.
From top point of view, the FOC for 2-phase motors uses two phase currents of the stator interpreted
as a current vector (Ix; Iy) and calculates two voltages interpreted as a voltage vector (Ux; Uy) taking the
orientation of the rotor into account in a way that only a torque generating current IQ results.
To do so, the knowledge of some static parameters (number of pole pairs of the motor, number of pulses
per revolution of an used encoder, orientation of encoder relative to magnetic axis of the rotor, count
direction of the encoder) is required together with some dynamic parameters (phase currents, orientation
of the rotor).
The adjustment of P parameter P and I parameters of two PI controllers for closed loop control of the
phase currents depends on electrical parameters of the motor (resistance, inductance, back EMF constant
of the motor that is also the torque constant of the motor, supply voltage).
3.5
What is Required for FOC?
The FOC needs to know the direction of the magnetic axis of the rotor of the motor in reference to the
magnetic axis of the stator of the motor. The magnetic flux of the stator is calculated from the currents
through the phases of the motor. The magnetic flux of the rotor is fixed to the rotor and thereby determined by an encoder device.
For the FOC, the user needs to measure the currents through the coils of the stator and the angle of the
rotor. The measured angle of the rotor needs to be adjusted to the magnetic axes.
The challenge of the FOC is the high number of degrees of freedom in all parameters.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
11 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
3.5.1
Coordinate Transformations - Clarke, Park, iClarke, iPark
The FOC requires different coordinate transformations formulated as a set of matrix multiplications. These
are the Clarke Transformation (Clarke), the Park Transformation (Park), the inverse Park Transformation
(iPark) and the inverse Clarke Transformation (iClarke). The Park transformation is also known as DQ
transformation, whereas the Clarke transformation is known as αβ transformation.
The TMC4671 takes care of the required transformations so the user no longer has to fight with implementation details of these transformations.
3.5.2
Measurement of Stator Coil Currents
The measurement of the stator coil currents is required for the FOC to calculate a magnetic axis out of
the stator field caused by the currents flowing through the stator coils.
Coil current stands for motor torque in context of FOC. This is because motor torque is proportional
to motor current, defined by the torque constant of a motor. In addition, the torque depends on the
orientation of the rotor of the motor relative to the magnetic field produced by the current through the
coils of the stator of the motor.
3.5.3
Stator Coil Currents I_U, I_V, I_W and Association to Terminal Voltages U_U, U_V, U_W
The correct association between stator terminal voltages U_U, U_V, U_W and stator coil currents I_U, I_V,
I_W is essential for the FOC. In addition to the association, the signs of each current channel need to
fit. Signs of the current can be adapted numerically by the ADC scaler. The mapping of ADC channels is
programmable via configuration registers for the ADC selector. Initial setup is supported by the integrated
open loop encoder block, that can support the user to turn a motor open loop.
3.5.3.1 Chain of Gains for ADC Raw Values
An ADC raw value is a result of a chain of gains that determine it. A coil current I_SENSE flowing through a
sense resistor causes a voltage difference according to Ohm’s law. The resulting ADC raw value is a result
of the analog signal path according to
ADC_RAW = (I_SENSE ∗ ADC_GAIN) + ADC_OFFSET.
(1)
The ADC_GAIN is a result of a chain of gains with individual signs. The sign of the ADC_GAIN is positive
or negative, depending on the association of connections between sense amplifier inputs and the sense
resistor terminals. The ADC_OFFSET is the result of electrical offsets of the phase current measurement
signal path. For the TMC4671, the maximum ADC_RAW value ADC_RAW_MAX = (216 − 1) and the minimum
ADC raw value is ADC_RAW_MIN = 0.
ADC_GAIN
=
(
∗
∗
I_SENSE_MAX ∗ R_SENSE
)
(2)
SENSE_AMPLIFIER_GAIN
( ADC_RAW_MAX/ADC_U_MAX
)
For the FOC, the ADC_RAW is scaled by the ADC scaler of the TMC4671 together with subtraction of offset
to compensate it. Internally, the TMC4671 FOC engine calculates with s16 values. Thus, the ADC scaling
needs to be chosen so that the measured currents fit into the s16 range. With the ADC scaler, the user
can choose a scaling with physical units like [mA].
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
3.5.4
12 / 151
IgainADC[A/LSB] - ADC Integer Current Value to Real World Unit
Together with ADC_I0_SCALE and ADC_I0_OFFSET and ADC_I1_SCALE and ADC_I1_OFFSET, measured ADC
currents represented as 16 bit signed interger numbers (s16) represent real world currents. Multiplication
of integer current value with gain scaling factor in unit Ampere per LSB (Low Significant Bit) gives the real
world value of current in unit Ampere.
I0 [A]
=
IgainADC[A/LSB] ∗ ADC_I0
I1 [A]
=
IgainADC[A/LSB] ∗ ADC_I1
(3)
Different scalings between two associated current ADC channels can be trimmed by programing ADC_I0_SCALE
and ADC_I1_SCALE. The IgainADC[A/LSB] needs to be determined from ADC gain factors, ADC reference
voltage selection, and actual ADC scaling factor settings.
3.5.5
UgainADC[V/LSB] - ADC Integer Voltage Value to Real World Unit
Measured ADC voltages represented as 16 bit signed interger numbers (s16) represent real world voltages.
Multiplication of integer voltage value with gain scaling factor in unit Volt per LSB (Low Significant Bit) gives
the real world value of voltage in unit Volt.
U [V ]
= UgainADC[V /LSB] ∗ ADC_U
(4)
The UgainADC[V/LSB] needs to be determined from ADC gain factors, actual ADC gains, and ADC reference
voltage settings.
3.5.6
Measurement of Rotor Angle
Determination of the rotor angle is either done by sensors (digital encoder, analog encoder, digital Hall
sensors, analog Hall sensors) or sensorless by a reconstruction of the rotor angle. Currently, there are no
sensorless methods available for FOC that work in a general purpose way as a sensor down to velocity
zero.
The TMC4671 does not support sensorless FOC.
3.5.7
Measured Rotor Angle vs. Magnetic Axis of Rotor vs. Magnetic Axis of Stator
The rotor angle, measured by an encoder, needs to be adjusted to the magnetic axis of the rotor. This
is because an incremental encoder has an arbitrary orientation relative to the magnetic axis of the rotor,
and the rotor has an arbitrary orientation to magnetic axis of the stator.
The direction of counting depends on the encoder, its mounting, and wiring and polarities of encoder
signals and motor type. So, the direction of encoder counting is programmable for comfortable definition
for a given combination of motor and encoder.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
3.5.7.1
13 / 151
Direction of Motion - Magnetic Field vs. Position Sensor
For FOC it is essential, that the direction of revolution of the magnetic field is compatible with the direction of motion of the rotor position reconstructed from encoder signals: For revolution of magnetic field
with positive direction, the decoder position needs to turn into the same positive direction. For revolution of magnetic field with negative direction, the decoder position needs to turn into the same negative
direction.
With an absolute encoder, once adjusted to the relative orientation of the rotor and to the relative orientation of the stator, one could start the FOC without initialization of the relative orientations.
3.5.7.2
Bang-Bang Initialization of the Encoder
A Bang-Bang initialization is an initialization where the motor is forced with high current into a specific
position. For Bang-Bang initialization, the user sets a current into direction D that is strong enough to
move the rotor into the desired direction. Other initialization methods ramp up the current smoothly
and adjust the current vector to rotor movement detected by the encoder.
3.5.7.3
Encoder Initialization using Hall Sensors
The encoder can be initialized using digital Hall sensor signals. Digital Hall sensor signals give absolute
positions within each electrical period with a resolution of sixty degrees. If the Hall sensor signals are
used to initialize the encoder position on the first change of a Hall sensor signal, an absolute reference
within the electrical period for commutation is given.
3.5.7.4
Minimum Movement Initialization of the Encoder
For minimal movement initialization of the encoder, the user slowly increases a current into direction D
and adjusts an offset of the measured angle in a way that the rotor of the motor does not move during
initialization while the offset of the measured angle is determined.
3.5.8
3.5.8.1
Knowledge of Relevant Motor Parameters and Position Sensor (Encoder) Parameters
Number of Pole Pairs of a Motor
The number of pole pairs is an essential motor parameter. It defines the ratio between electrical revolutions and mechanical revolutions. For a motor with one pole pair, one mechanical revolution is equivalent
to one electrical revolution. For a motor with npp pole pairs, one mechanical revolution is equivalent to
npp electrical revolutions, with n = 1, 2, 3, 4, . . . .
Some define the number of poles NP instead of number of pole pairs NPP for a motor, which results in a
factor of two that might cause confusion. For the TMC4671, we use NPP number of pole pairs.
3.5.8.2
Number of Encoder Positions per Revolution
For the encoder, the number of positions per revolution (PPR) is an essential parameter. The number of
positions per revolution is essential for the FOC.
Some encoder vendors give the number of lines per revolution (LPR) or just named line count (LC) as
encoder parameter. Line count and positions per revolution might differ by a factor of four. This is because of the quadrature encoding - A signal and B signal with phase shift - that give four positions per
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
14 / 151
line, enabling the determination of the direction of revolution. Some encoder vendors associate counts
per revolution (CPR) or pulses per revolution associated to PPR acronym.
The TMC4671 uses Positions Per Revolution (PPR) as encoder parameter.
3.5.9
Proportional Integral (PI) Controllers for Closed Loop Current Control
Last but not least, two PI controllers are required for the FOC. The TMC4671 is equipped with two PI
controllers - one for control of torque generating current I_Q and one to control current I_D to zero.
3.5.10
Pulse Width Modulation (PWM) and Space Vector Pulse Width Modulation (SVPWM)
The PWM power stage is a must-have for energy efficient motor control. The PWM engine of the TMC4671
just needs a couple of parameters to set PWM frequency fPWM and switching pauses for both high side
switches tBBM_H and low side switches tBBM_L. Some control bits are for the programming of power
switch polarities for maximum flexibility in the selection in gate drivers for the power MOS-FETs. An additional control bit selects SVPWM on or off. The TMC4671 allows for change of PWM frequency by a single
parameter during operation.
With this, the TMC4671 is advanced compared to software solutions where PWM and SVPM configuration
of CPU internal peripherals normally needs settings of many parameters.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
3.5.11
15 / 151
Orientations, Models of Motors, and Coordinate Transformations
The orientation of magnetic axes (U, V, W for FOC3 resp. X, Y for FOC2) is essential for the FOC together
with the relative orientation of the rotor. Here, the rotor is modeled by a bar magnet with one pole pair
(n_pole_pairs = 1) with magnetic axis in north-south direction.
The actual magnetic axis of the stator - formed by the motor coils - is determined by measurement of the
coil currents.
The actual magnetic axis of the rotor is determined by incremental encoder or by Hall sensors. Incremental encoders need an initialization of orientation, where Hall sensors give an absolute orientation, but with
low resolution. A combination of Hall sensor and incremental encoder is useful for start-up initialization.
Figure 3: Orientations UVW (FOC3) and XY (FOC2)
Figure 4: Compass Motor Model w/ 3 Phases UVW (FOC3) and Compass Motor Model w/ 2 Phases (FOC2)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4
16 / 151
Functional Description
The TMC4671 is a fully integrated controller for field-oriented control (FOC) of either one 3-phase brushless motor (FOC3) or one 2-phase stepper motor (FOC2) or, as well as 1-phase DC motor or voice coil
actuator (FOC1). Containing the complete control loop core architecture (position, velocity, torque), the
TMC4671 also has the required peripheral interfaces for communication with an application controller,
for feedback (digital encoder, analog interpolator encoder, digital Hall with interpolator, analog inputs for
current and voltage measurement), and helpful additional IOs. The TMC4671 supports highest control
loop speed and PWM frequencies.
The TMC4671 is the building block which takes care of all real-time critical tasks of field-oriented motor
control. It decouples the real-time field-oriented motor control and its real-time sub-tasks such as current
measurement, real-time sensor signal processing, and real-time PWM signal generation from the user
application layer as outlined by figure 5.
Figure 5: Hardware FOC Application Diagram
4.1
Functional Blocks
The Application interface, register bank, ADC engine, encoder engine, FOC torque PI controller, velocity PI
controller, position P controller, and PWM engine make up the TMC4671.
Figure 6: Hardware FOC Block Diagram
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
17 / 151
The ADC engine interfaces the integrated ADC channels and maps raw ADC values to signed 16 bit (s16)
values for the inner FOC current control loop based on programmable offset and scaling factors. The FOC
torque PI controller forms the inner base component including required transformations (Clark, Park,
inverse Park, inverse Clark). All functional blocks are pure hardware.
4.2
Communication Interfaces
The TMC4671 is equipped with an SPI slave user interface for access to all registers of the TMC4671. The
SPI slave user interface is the main application interface.
An additional UART interface is intended for system setup. With that interface, the user can access all
registers of the TMC4671 in parallel to the application accessing them via the SPI communication interface
- via the user’s firmware or via evaluation boards and the TMCL-IDE. The data format of the UART interface
is similar to the SPI communication interface - SPI 40 bit datagrams sent to the TMC4671 and SPI 40 bit
datagrams received by the MCU vs. five bytes sent via UART and five bytes received via UART. Sending
a burst of different real-time data for visualization and analysis via the TMCL-IDE can be triggered using
special datagrams. With that, the user can set up an embedded application together with the TMCL-IDE,
without having to write a complex set of visualization and analysis functions. The user can focus on its
application.
The TMC4671 is also equipped with an additional SPI master interface (TRINAMIC Real-time Monitoring
Interface, DBGSPI) for high-speed visualization of real-time data together with the TMCL-IDE.
4.2.1
SPI Slave User Interface
The SPI of the TMC4671 for the user application has an easy command and control structure. The TMC4671
user SPI acts as a slave. The SPI datagram length is 40 bit with a clock rate up to 8 MHz (1 MHz for the
TMC4671-ES).
• The MSB (bit#39) is sent first. The LSB (bit#0) is sent last.
• The MSB (bit#39) is the WRITE_notREAD (WRnRD) bit.
• The bits (bit#39 to bit#32) are the address bits (ADDR).
• Bits (bit#31) to (bit#0) are 32 data bits.
The SPI of the TMC4671 immediately responses within the actual SPI datagram on read and write for
ease-of-use communication and uses SPI mode 3 with CPOL = 1 and CPHA = 1.
Figure 7: SPI Datagram Structure
A simple SPI datagram example:
0x8100000000 // 1st write 0x00000000 into address 0x01 (CHIPINFO_ADDR)
0x0000000000 // 2nd read register 0x00 (CHIPINFO_DATA), returns 0x34363731 ACSII "4671"
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
18 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Figure 8: SPI Timing
SPI Interface Timing
Characteristics, fCLK = 25MHz
Parameter
Symbol
Min
tCC
62.5
ns
nSCS high time
tCSH
62.5
ns
nSCS low time
tCSL
62.5
ns
SCK high time
tCH
62.5
ns
SCK low time
tCL
62.5
ns
SCK low time
tCL
62.5
ns
tSCKpause
500
ns
SCK valid before or after change of nSCS
tSCKpause time after read address byte
SCK frequency with tSCKpause after write address
Typ
Max
Unit
fSCKpauseW R
8
MHz
fSCKwr
8
MHz
SCK frequency with tSCKpause after read address
fSCKpauseRD
8
MHz
SCK frequency for read access without tSCKpause
fSCKrd
2
MHz
SCK frequency for write access without pause
MOSI setup time before rising edge of SCK
tDU
62.5
ns
MOSI hold time after falling edge of SCK
tDH
62.5
ns
MISO data valid time after falling edge of SCK
tDO
Table 2: SPI Timing Parameter
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
10
ns
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Info
19 / 151
SPI write access can be performed up to 8 MHz SPI clock frequency. SPI read
access can be performed up to 8 MHz SPI clock frequency if a pause of at least
500 ns is inserted after transfer of the address byte of the SPI datagram. Without
a pause of 500 ns after address byte, SPI read access can be performed up to 2
MHz SPI clock frequency.
Figure 9: SPI Timing of Write Access without pause with fSCK up to 8MHz
Figure 10: SPI Timing of Read Access with pause (tPAUSE) of 500 ns with fSCK up to 8MHz.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.2.2
20 / 151
TRINAMIC Real-Time Monitoring Interface (SPI Master)
The TRINAMIC Real-Time Monitoring Interface (RTMI, SPI Master) is an additional fast interface enabling
real-time identification of motor and system parameters. The user can check configuration and access
registers in the TMC4671 via the TMCL-IDE with its build-in configuration wizards for FOC setup in parallel
to the user firmware. TRINAMIC provides a Monitoring Adapter to access the interface, which connects
easily to a single 10 pin high density connector (Type: Hirose DF20F-10DP-1V) on the user’s PCB or on the
evaluation board. If the interface is not needed, pins can be left open or can be used as GPIOs according
to the specification. The connector needs to be placed near the TMC4671. Its assignment is pictured in
figure 11.
Figure 11: Connector for Real-Time Monitoring Interface (Connector Type: Hirose DF20F-10DP-1V)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
21 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.2.3
UART Interface
The UART interface is a simple three pin (GND, RxD, TxD) 3.3V UART interface with up to 3 Mbit/s transfer
speed with one start bit, eight data bits, one stop bit, and no parity bits (1N8). The default speed is 9600
bps. Other supported speeds are 115200 bps, 921600 bps, and 3000000 bps. The speed must be changed
manually in register 0x79 UART_BPS.
Info
The baudrates must be entered as hexadecimal numbers. Table 3 lists the register value and its corresponding baudrate.
Value of register 0x79
selected baudrate
0x00009600
9600 bps
0x00115200
115200 bps
0x00921600
921600 bps
0x03000000
3000000 bps
Table 3: Possible baudrates and corresponding values for register 0x79
With an 3.3V-UART-to-USB adapter cable (e.g. FTDI TTL-232R-RPi), the user can use the full maximum data
rate. The UART port enables In-System-Setup-Support by multiple-ported register access.
An UART datagram consists of five bytes - similar to the datagrams of the SPI. In contrast to SPI, the UART
interface has a time out feature. So, the five bytes of a UART datagram need to be send within one second.
A pause of sending more than one second causes a time out and sets the UART protocol handler back
into IDLE state. In other words, waiting for more than one second in sending via UART ensures that the
UART protocol handler is in IDLE state.
A simple UART example (similar to the simple SPI example):
0x81 0x00 0x00 0x00 0x00 // 1st write 0x00000000 into address 0x01 (CHIPINFO_ADDR)
0x00 0x00 0x00 0x00 0x00 // 2nd read register 0x00 (CHIPINFO_DATA), returns 0x34363731
Why UART Interface? It might become necessary during the system setup phase to simply access some internal registers without disturbing the application, without changing the actual user application software,
and without adding additional debugging code that might disturb the application software itself. The
UART enables this supporting function. In addition, it also enables easy access for monitoring purposes
with its very simple and direct five byte protocol. The UART interface is available to write periodically positions into the TMC4671 via an external CPU used as a protocol translator to enable absolute encoders
for the TMC4671.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
22 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Figure 12: UART Read Datagram (TMC4671 register read via UART)
Figure 13: UART Write Datagram (TMC4671 register write via UART)
4.2.4
Step/Direction Interface
The user can manipulate the target position via the step direction interface. It can be enabled by setting
the STEP_WIDTH (s32) register to a proper step width. The power-on default value of STEP_WIDTH is 0
that causes position target update with 0 step width that is no stepping. With STEP_WIDTH =
6 0 each step
pulse on STEP input causes incrementing or decrementing of target position depending on polarity of DIR
input. For positive STEP_WIDTH, DIR = 0 causes incrementing and the DIR = 1 causes decrementing of the
target position. For negative STEP_WIDTH, DIR = 0 causes decrementing and DIR = 1 causes incrementing
of the target position. This is because the STEP_WIDTH is represented as a signed number.
4.2.5
Single Pin Interface
The TMC4671 can be operated in Motion Modes in which the main target value is calculated from either
a PWM input signal on PIN PWM_I or by analog input to AGPI_A.
Number
Motion Mode
Using PWM_I or AGPI_A
0
Stopped Mode
no
1
Torque Mode
no
2
Velocity Mode
no
3
Position Mode
no
4
PRBS Flux Mode
no
5
PRBS Torque Mode
no
6
PRBS Velocity Mode
no
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
23 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Number
Motion Mode
Using PWM_I or AGPI_A
7
PRBS Position Mode
no
8
UQ UD Ext Mode
no
9
(reserved)
no
10
AGPI_A Torque Mode
AGPI_A
11
AGPI_A Velocity Mode
AGPI_A
12
AGPI_A Position Mode
AGPI_A
13
PWM_I Torque Mode
PWM_I
14
PWM_I Velocity Mode
PWM_I
15
PWM_I Position Mode
PWM_I
Table 4: Single Pin Interface Motion Modes
Registers SINGLE_PIN_IF_OFFSET and SINGLE_PIN_IF_SCALE can be used to scale the value to desired
range. In case of the PWM input, a permanent low input signal or permanent high signal is treated as
input error and chosen target value is set to zero.
Register SINGLE_PIN_IF_CFG configures the length of a digital filter for the PWM_I signal. Spikes on the
signal can be thereby suppressed. Bit 0 in register SINGLE_PIN_IF_STATUS is set high when PWM_I is
constant low, Bit 1 is set high when the PWM_I is constant high. Writing to this register resets these flags.
Maximum PWM period of the PWM signal must be 65000 x 40 ns. The calculation of the normalized duty
cycle is started on the rising edge of PWM_I. The PWM frequency needs to be constant as big variations
(tolerance of 4 us in PWM period) in the PWM frequency are treated as error.
A duty cycle of 50% equals an input value of 32768. With the offset and scaling factors it can be mapped
to desired range.
4.2.6
GPIO Interface
The TMC4671 has eight GPIO-pins that are arranged in group A (GPIO 0 to 3) and group B (GPIO 4 to 7).
These pins can be configured using bits 0 to 6 of the register GPIO_dsADCI_CONFIG (0x7B). The configurations include RTMI, GPI or GPO as well as clock signals, in and out, for external delta sigma modulators.
Groups A and B can individually be configured as in or outputs. Single pins within these groups can not be
individually configured. Bits 16 to 19 set the GPO values for group A and bits 20 to 23 set the GPO values
for group B. If configured as GPIs bits 24 to 27 display the input on group A whereas bits 28 to 31 display
the input on the group B GPIs.
GPIO_dsADCI_CONFIG (bits 6 to 0)
Configured as
group A
group B
xxxxxx0b
RTMI
0: Z
4: SCK
1: Z
5: MOSI
2: Z
6: MISO
3: /CS
7: TRG
xx11001b
GPIO
GPO
GPO
xx00001b
GPIO
GPI
GPI
xx01001b
GPIO
GPO
GPI
xx10001b
GPIO
GPI
GPO
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
24 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
GPIO_dsADCI_CONFIG (bits 6 to 0)
Configured as
group A
group B
11xx111b
Delta Sigma ADC
MCLK_out
MCLK_out
0: ADCI0
4: ADCAGPI_B
1: ADCI1
5: AENC_UX
2: ADCVM
6: AENC_VN
3: ADCAGPI_A
7: AENC_WY
MCLK_in
MCLK_in
0: ADCI0
4: ADCAGPI_B
1: ADCI1
5: AENC_UX
2: ADCVM
6: AENC_VN
3: ADCAGPI_A
7: AENC_WY
Delta Sigma ADC
00xx111b
Table 5: GPIO Configuration Overview with ’x’ as don’t care
When the RTMI-option is selected it is not possible to use the GPIOs and the other
way around. On default the RTMI-Mode is chosen and the unused GPIOs 0,1 and
2 are configured as inputs on high impedance Z.
Info
4.3
Numerical Representation, Electrical Angle, Mechanical Angle, and Pole Pairs
The TMC4671 uses different numerical representations for different parameters, measured values, and
interim results. The terms electrical angle PHI_E, mechanical angle PHI_M, and number of pole pairs
(N_POLE_PAIRS) of the motor are important for setup of FOC. This section describes the different numerical representations of parameters and terms.
4.3.1
Numerical Representation
The TMC4671 uses signed and unsigned values of different lengths and fixed point representations for
parameters that require a non-integer granularity.
Symbol
Description
u16
unsigned 16 bit value
s16
signed 16 bit values, 2’th complement
u32
unsigned 32 bit value
s32
signed 32 bit values, 2’th complement
Min
Max
0
65535
-32767
32767
0
232 = 4294967296
-2147483647
231 - 1 = 2147483647
q8.8
signed fix point value with 8 bit integer part
and 8 bit fractional part
-32767/256
32767/256
q4.12
signed fix point value with 4 bit integer part
and 12 bit fractional part
-32767/4096
32767/4096
Table 6: Numerical Representations
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
25 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Info
Two’s complement of n bit is −2(n−1) . . . −2(n−1) − 1. To avoid unwanted overflow,
the range is clipped to −2(n−1) + 1 . . . −2(n−1) − 1.
Because the zero is interpreted as a positive number for 2’th complement representation of integer n bit
number, the smallest negative number is −2(n−1) where the largest positive number is 2(n−1) − 1. Using
the smallest negative number −2(n−1) might cause critical underflow or overflow. Internal clipping takes
this into account by mapping −2(n−1) to −2(n−1) + 1.
Hexadecimal Value
u16
s16
q8.8
q4.12
0x0000h
0
0
0.0
0.0
0x0001h
1
1
1 / 256
1 / 4096
0x0002h
2
2
2 / 256
2 / 4096
0x0080h
128
128
0.5
0.03125
0x0100h
256
256
1.0
0.0625
0x0200h
512
512
2.0
0.125
0x3FFFh
16383
16383
16383 / 256
16383 / 4096
0x5A81h
23169
23169
23169 / 256
23169 / 4096
0x7FFFh
32767
32767
32767 / 256
32767 / 4096
0x8000h
32768
-32768
-32768 / 256
-32768 / 4096
0x8001h
32769
-32767
-32767 / 256
-32767 / 4096
0x8002h
32770
-32766
-32766 / 256
-32766 / 4096
0xC001h
49153
-16383
-16383 / 256
-16383 / 4096
0xFFFEh
65534
-2
-2 / 256
-2 / 4096
0xFFFFh
65535
-1
-1 / 256
-1 / 4096
Table 7: Examples of u16, s16, q8.8, q4.12
The q8.8 and q4.12 are used for P and I parameters which are positive numbers. Note that q8.8 and q4.12
are used as signed numbers. This is because theses values are multiplied with signed error values resp.
error integral values.
4.3.2
N_POLE_PAIRS, PHI_E, PHI_M
The parameter N_POLE_PAIRS defines the factor between electrical angle PHI_E and mechanical angle
PHI_M of a motor (pls. refer figure 14).
A motor with one (1) pole pair turns once for each electrical period. A motor with two (2) pole pairs turns
once for every two electrical periods. A motor with three (3) pole pairs turns once for every three electrical
periods. A motor with four pole (4) pairs turns once for every four electrical periods.
The electrical angle PHI_E is relevant for the commutation of the motor. It is relevant for the torque control
of the inner FOC loop.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
PHI_E = PHI_M · N_POLE_PAIRS
26 / 151
(5)
The mechanical angle PHI_M is primarily relevant for velocity control and for positioning. This is because
one wants to control the motor speed in terms of mechanical turns and not in terms of electrical turns.
PHI_M = PHI_E/N_POLE_PAIRS
(6)
Different encoders give different kinds of position angles. Digital Hall sensors normally give the electrical
position PHI_E that can be used for commutation. Analog encoders give - depending on their resolution angles that have to be scaled first to mechanical angles PHI_M and to electrical angles PHI_E for commutation.
Figure 14: N_POLE_PAIRS - Number of Pole Pairs (Number of Poles)
4.3.3
Numerical Representation of Angles PHI
Electrical angles and mechanical angles are represented as 16 bit integer values. One full revolution of
360 deg is equivalent to 216 = 65536 steps. Any position coming from a sensor is mapped to this integer
range. Adding an offset of PHI_OFFSET causes a rotation of an angle PHI_OFFSET/216 . Subtraction of an
offset causes a rotation of an angle PHI_OFFSET in opposite direction.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
27 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Figure 15: Integer Representation of Angles as 16 Bit signed (s16) resp. 16 Bit unsigned (u16)
Hexadecimal Value
u16
s16
PHI[°]u16
PHI[°]s16
0x0000h
0
0
0.0
0.0
0x1555h
5461
5461
30.0
30.0
0x2AAAh
10922
10922
60.0
60.0
0x4000h
16384
16384
90.0
90.0
0x5555h
21845
21845
120.0
120.0
0x6AAAh
27306
27768
150.0
150.0
0x8000h
32768
-32768
180.0
-180.0
0x9555h
38229
-27307
210.0
-150.0
0xAAAAh
43690
-21846
240.0
-120.0
0xC000h
49152
-16384
270.0
-90.0
0xD555h
54613
-10923
300.0
-60.0
0xEAAAh
60074
-5462
330.0
-30.0
Table 8: Examples of u16, s16, q8.8
The option of adding an offset is for adjustment of angle shift between the motor and stator and the rotor
and encoder. Finally, the relative orientations between the motor and stator and the rotor and encoder
can be adjusted by just one offset. Alternatively, one can set the counter position of an incremental
encoder to zero on initial position. For absolute encoders, one needs to use the offset to set an initial
position.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.4
28 / 151
ADC Engine
The ADC engine controls the sampling, selection, scaling and offset correction of different available ADC
channels. Two ADC channels are for phase current measurement, three ADC channles are for analog Hall
signals or for analog sin-cos-encoder, one ADC channel is for optional measurement of the motor spupply
voltage, two additional ADC channals are general purpose where one general purpose analog input can
be used as analog target value by the single pin interface.
4.4.1
ADC current sensing channels ADC_I1 and ADC_I0
The ADC channels (ADC_I0_POS, ADC_I0_NEG, ADC_I1_POS, ADC_I1_NEG) are for current sensing in differential input configuration. In differential configuration, the ADC_I0_POS and ADC_I0_POS are the inputs
for the sense amplifier output signals where ADC_I1_NEG and ADC_I0_NEG) are for the zero current sensing reference of the sense amplifiers. In single ended configuration, the ADC_I0_POS and ADC_I0_POS
are the inputs for the sense amplifier output signals where ADC_I1_NEG and ADC_I0_NEG) are internally
connected to ground. The third current channel ADC_I2 as required for three phase FOC is calculated
using Kirchhoff’s law ADC_I2 = - (ADC_I1 + ADC_I0).
Info
4.4.2
ADC_I0_POS, ADC_I0_NEG, ADC_I1_POS, ADC_I1_NEG are low voltage analog inputs and must not directly connected to in-line sense resistors. The TMC4671
requires external dfferential motor supply common mode range current sensing amplifiers for in-line current sensing.
ADC for analog Hall signals or analog sin-cos-encoders AENC_UX, AENC_VN, AENC_WY
For analog Hall and for analog encoder, the ADC engine has three disserential input channles (AENC_UX_POS,
AENC_UX_NEG), (AENC_VN_POS, AENC_VN_NEG), and AENC_WY_POS, AENC_WY_NEG). The analog encoder
ADC inputs can be configured single ended (AENC_UX_POS, AENC_VN_POS, AENC_WY_POS) with negative
inputs (AENC_UX_NEG, AENC_VN_NEG, AENC_WY_NEG) internally connected to ground.
The three channels AENC_UX, AENC_VN, AENC_WY are for three phase analog sine (with +/-120° phase
shift) wave Hall signals. The Signals AENC_UX and AENC_WY are for two phase analog sine wave and cosin
wave Hall signals. The Signals AENC_UX and AENC_WY are for analog sin-cos-encoder. The AENC_VN is
for an optional zero pulse channel of sin-cos-encoders. The AENC_VN is available for read out by the
application software but it is not hardware handled by the TMC4671 for position zerroing.
For long analog signal lines, it might be necessary to use external differential receivers with twisted pair
line termination resistors to drive the single ended analog encoder inputs of the TMC4671.
4.4.3
ADC supply voltage measurement ADC_VM
The ADC channel for measurement of supply voltage (ADC_VM) and is associated with the brake chopper.
The ADC_VM is available as raw value only without digital scaling. This is because it is not directly processed
by the FOC engine.
Info
ADC_VM must be scaled down electrically by voltage divider to the allowed voltage range, and might require additional supply voltage spike protection.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.4.4
29 / 151
ADC_VM for Brake Choppper
The ADC_VM is available as input for optional brake chopper as raw value u16. The brake chopper thresholds have to be set as absolute u16 values to activate and deactivate the brake chopper output depending
on the ADC_VM value.
4.4.5
ADC EXT register option
The user can write ADC values into the ADC_EXT registers of the register bank from external sources or
for evaluation purposes. These values can be selected as raw current ADC values by selection. ADC_EXT
registers are primarily intended for test purposes as optional inputs for external current measurement
sources.
4.4.6
ADC general purpose analog inputs AGPI_A and AGPI_B
Two general purpose ADC channels are single-ended analog inputs (AGPI_A, AGPI_B). The general purpose analog ADC inputs AGPI_A and AGPI_B are available as raw values only without digital scaling. This is
because these values are not directly processed by the FOC engine. These general purpose analog inputs
(AGPI) are intended to monitor analog voltage signals representing MOSFET temperature or motor temperature. They are two additional ADC channels for the user. Optional, the AGPI_A is availabe as analog
target value signal.
4.4.7
ADC RAW values
The sampled raw ADC values are available for read out by the user. This is important during the system
setup phase to determine offset and scaling factors.
4.4.8
ADC_SCALE and ADC_OFFSET
The FOC engine expects offset corrected ADC current values scaled to the used 16 bit (s16) fixed point
representation. The integrated scaler and offset compensator maps raw ADC samples of current measurement channels to 16 bit two’s complement values (s16). While the offset is compensated by subtraction,
the offset is represented as an unsigned value. The scaling value is signed to compensate wrong measurement direction. The s16 scaled ADC values are available for read out from the register (ADC_I1, ADC_I0)
resp. (AENC_UX, AENC_VN, AENC_WY) by the user.
Info
4.4.9
Wrong scaling factors (ADC_SCALE) or wrong offsets (ADC_OFFSET) might cause
damages when the FOC is active. Integrated hardware limiters allow protection especially in the setup phase when using careful limits.
ADC Gain Factors for Real World Values
Each ADC channel of the TMC4671 has an individual gain factor determined by its associated chain of gain
factors and by digital scaling factors if available for an ADC channel. ADC register values are either 16 bit
unsigned vaulues (u16) or 16 bit signed vaules (s16). With gain factors one can calculate ADC values as
real world values if required.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
30 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Gain factors IgainADC for ADC current values are typical in units [A/LSB] or [mA/LSB]. Gain factors UgainADC
for ADC voltage values are typical in units [V/LSB] or [mV/LSB].
4.4.10
ADCmeasuredCurrent[A] =
IgainADC[A/LSB] *
ADC_CURRENT_S16
(7)
ADCmeasuredVoltage[V] =
UgainADC[V/LSB] *
ADC_VOLTAGE_S16
(8)
ADCmeasuredVoltage[V] =
UgainADC[V/LSB] *
ADC_VOLTAGE_U16
(9)
Internal Delta Sigma ADCs
The TMC4671 is equipped with internal delta sigma ADCs for current measurement, supply voltage measurement, analog GPIs and analog encoder signal measurement. Delta sigma ADCs, as integrated within
the TMC4671, together with programmable digital filters are flexible in parameterizing concerning resolution vs. speed. The advantage of delta sigma ADCs is that the user can adjust measurement from lower
speed with higher resolution to higher speed with lower resolution. This fits with motor control application. Higher resolution is required for low speed signals, while lower resolution satisfies the needs for
high speed signals.
Due to high oversampling, the analog input front-end is easier to implement than for successive approximation register ADCs as anti aliasing filters can be chosen to a much higher cutoff frequency. The ADC
Engine processes all ADC channels in parallel hardware - avoiding phase shifts between the channels
compared to ADC channels integrated in MCUs.
4.4.11
Internal Delta Sigma ADC Input Stage Configuration
ADC channels can be configured either as differential ended analog inputs (ADC_I0, ADC_I1, AENC_UX,
AENC_VN, AENC_WY) or as single ended analog inputs (ADC_VM, AGPI_A, AGPI_B). Additionally, the ADC
all channels can be set to fixed voltages (0V, VREF/4, VREF/2, 3*VREF/4) for calibrations purposes.
STAGE_CFG(n+2:n)
CONFIGURATION
DESCRIPTION
COMMENT
0
INP vs. INN
differential mode
default configuration
1
GND vs. INN
single ended negative INN vs. GND
(for test purposes only)
2
VDD/4
25% ADC reference voltage
calibration aid
3
3*VDD/4
75% ADC reference voltage
calibration aid
4
INP vs. GND
single ended mode INP vs. GND
(half voltage range, offset)
5
VDD/2
50% ADC reference voltage
calibration aid
6
VDD/4
25% ADC reference voltage
(redundant configuration)
7
3*VDD/4
75% ADC reference voltage
(redundant configuration)
Table 9: Delta Sigma (∆Σ) ADC Input Stage Configurations
The three bit vector ADC_STAGES_CFG(n+2:n) is part of the DS_ANALOG_INPUT_STAGE_CFG(31:0) with
n = 0, 4, 8, 12, 16, 20, 24, 28 for the eigth delta sigma ADC channels. DS_ANALOG_INPUT_STAGE_CFG
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
31 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
configures the associated delta sigma ADC input stages according to table 17. For association of the bit
position (bit n+2 to bit n) refere register bank section 7.2.
STAGE_CFG(n+2:n)
ADC channel
function
STAGE_CFG(2:0)
ADC_I0
sense voltage of current I0
STAGE_CFG(6:4)
ADC_I1
sense voltage of current I1
STAGE_CFG(9:8)
ADC_VM
STAGE_CFG(10)
’1’
STAGE_CFG(13:12)
STAGE_CFG(14)
STAGE_CFG(17:16)
STAGE_CFG(18)
ADC_AGPI_A
’1’
ADC_AGPI_B
’1’
down divided supply voltage
fixed for ADC_VM (STAGE_CFG=4,5,6,7)
general purpose analog input A
fixed for ADC_AGPI_A (STAGE_CFG=4,5,6,7)
general purpose analog input B
fixed for ADC_AGPI_B (STAGE_CFG=4,5,6,7)
STAGE_CFG(22:20)
ADC_AENC_UX
analog Hall UX / analog encoder COS
STAGE_CFG(26:24)
ADC_AENC_VN
analog Hall V / analog encoder N
STAGE_CFG(30:28)
ADC_AENC_WY
analog Hall WY / analog encoder SIN
Table 10: Delta Sigma (∆Σ) ADC Input Stage Configurations
Figure 16: Input Voltage Ranges of internal Delta Sigma ADC Channels)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
32 / 151
Figure 16 illustrates typical relation between input voltage and corresponding raw ADC output. For differential operation the input range between 25% and 75% corresponds to voltage values between 1.25V to
3.75V. This is the recommended operation area of the ADC. Below 25% and above 75% the ADC shows
significant non-linearity due to the Delta Sigma measurement principle.
In single ended operation the recommended input range starts at 0V and ends at 1.25V. Measurement
below GND might be distorted and is not recommended.
Info
4.4.12
Due to manufacturing tolerances calibration of offset and amplitude is always
recommended. Please also consider stability of the reference voltage.
External Delta Sigma ADCs
The delta sigma front-end of the ADC engine supports external delta sigma modulators to enable isolated delta sigma modulators for the TMC4671. Additionally, the delta sigma front-end supports low-cost
comparators together with two resistors and one capacitor (R-C-R-CMP) forming first order delta sigma
modulators, as generic analog front-end for pure digital variants of the TMC4671 core.
4.4.13
ADC Group A and ADC Group B
ADC channels of the TMC4671 are grouped into two groups, to enable different sample rates for two
groups of analog signals if needed. Running both ADC groups with same sampling frequency is recommended for almost all applications. It might be necessary to run its ADC channels of analog encoder
with a much higher frequency than the ADC channels for current measurement in case of using a high
resolution analog encoder.
4.4.14
Delta Sigma Configuration and Timing Configuration
The delta sigma configuration is programmed via MCFG register that selects the mode (internal/external
delta sigma modulator with programmable MCLK; delta sigma modulator clock mode (MCLK output, MCLK
input, MCLK used as MDAC output with external R-C-R-CMP configuration); delta sigma modulator clock
and its polarity; and the polarity of the delta sigma modulator data signal MDAT).
Info
The power-on delta sigma configuration should fit with most applications when
using the intergated delta sigma ADCs of the TMC4671. Primarily, the default
delta sigma configuration needs to be adapted when using external delta sigma
modulators or to select differential ADC input configurations, or in case of enhanced sampling requirenment for high resolution analog encoders.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
33 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Figure 17: Delta Sigma ADC Configurations dsADC_CONFIG (internal: ANALOG vs. external: MCLKO, MCLKI,
MDAC)
dsADC_CONFIG
Description
NC_MCLKO_MCLKI_MDAC
VIN_MDAT
ANALOG
integrated internal ADC mode,
VIN_MDAT is analog input VIN
MCLK not connected (NC)
VIN (analog)
MCLKO
external dsModulator (e.g.
AD7403) with MCLK input
driven by MCLKO
MCLK output
MDAT input
MCLKI
external dsModulator (e.g.
AD7400) with MCLK output
that drives MCLKI
MCLK input
MDAT input
MDAC
external dsModulator (e.g.
LM339) realized by external
comparator CMP with two R
and one C
MDAC output (= MCLK out)
MDAT input for CMP
Table 11: Delta Sigma ADC Configurations (figure 17), selected with dsADC_MCFG_A and dsADC_MCFG_B.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
register
34 / 151
function
dsADC_MCFG_B
delta sigma modulator configuration MCFG (ANALOG, MCLKI, MCLKO, MDAC), group B
dsADC_MCFG_A
delta sigma modulator configuration MCFG (ANALOG, MCLKI, MCLKO, MDAC), group A
dsADC_MCLK_B
delta sigma modulator clock MCLK, group B
dsADC_MCLK_A
delta sigma modulator clock MCLK, group A
dsADC_MDEC_B
delta sigma decimation parameter MDEC, group B
dsADC_MDEC_A
delta sigma decimation parameter MDEC, group A
Table 12: Registers for Delta Sigma Configuration
4.4.14.1
Timing Configuration MCLK
When the programmable MCLK is selected, the MCLK_A and MCLK_B parameter registers define the programmable clock frequency fMCLK of the delta sigma modulator clock signal MCLK for delta sigma modulator group A and group B. For a given target delta sigma modulator frequency fMCLK, together with the
internal clock frequency fCLK = 100MHz, the MCLK frequency parameter is calculated by
MCLK = 231 · fMCLK[Hz]/fCLK[Hz]
(10)
Due to the 32 bit’s length of the MCLK frequency parameter, the resulting frequency fMCLK might differ
from the desired frequency fMCLK. The back calculation of the resulting frequency fMCLK for a calculated
MCLK parameter with 32 bit length is defined by
fMCLK[Hz] = fCLK[Hz] · MCLK/231
(11)
The precise programming of the MCLK frequency is primarily intended for external delta sigma modulators to meet given EMI requirements. With that, the user can programm frequencies fMCLK with a resolution better than 0.1 Hz. This advantage concerning EMI might cause trouble when using external delta
sigma modulators if they are sensitive to slight frequency alternating. This is not an issue when using external first-order delta sigma modulators based on R-C-R-CMP (e.g. LM339). But for external second-order
delta sigma modulators, it is recommended to configure the MCLK parameter for frequencies fMCLK with
kHz quantization (e.g. 10,001,000 Hz instead of 10,000,001 Hz).
fMCLK_target
MCLK
fMCLK_resulting
comment
25 MHz
0x20000000
25 MHz
w/o fMCLK frequency jitter, recommended
20 MHz
0x19000000
20 MHz -468750 Hz
recommended for ext. ∆Σ modulator
20 MHz
0x19999999
20 MHz -0.03 Hz
might be critical for ext. ∆Σ modulator
12.5 MHz
0x10000000
12.5 MHz
w/o fMCLK frequency jitter, recommended
10 MHz
0x0CCCCCCC
10 MHz -0.04 Hz
might be critical for ext. ∆Σ modulator
10 MHz
0x0CC00000
10 MHz -39062.5 Hz
recommended for ext. ∆Σ modulator
Table 13: Delta Sigma MCLK Configurations
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
35 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.4.14.2
Decimation Parameter MDEC
The high oversampled single bit delta sigma data stream (MDAT) is digitally filtered by Sinc3 filters. To get
raw ADC data, the actual digitally filtered values need to be sampled periodically with a lower rate called
decimation ratio. The decimation is controlled by parameter MDEC_A for ADC group A and MDEC_B for
ADC group B. A new ADC_RAW value is available after MDEC delta sigma pulses of MCLK. As such, the
parameters MCLK and MDEC together define the sampling rate of the 16 bit ADC_RAW values.
The delta sigma modulator with Sinc3 filter works with best noise reduction performance when the length
of the step response time tSINC3 of the Sinc3 filter is equal to the length of the PWM period tPWM =
(PWM_MAXCNT+1) / fPWMCLK = ((PWM_MAXCNT+1) * 10 ns) of the period. The length of the step function
response of a Sinc3 filter is
tSINC3 = (3 · (MDEC − 1) + 1) · tMCLK
(12)
tPWM
−2
3 · tMCLK
(13)
MDECrecommended =
fMCLK
tMCLK
MDEC25 (25 kHz, 40µs)
MDEC50 (50 kHz, 20µs)
MDEC100 (100 kHz, 10µs)
50 MHz
20 ns
665
331
165
25 MHz
40 ns
331
165
81
20 MHz
50 ns
265
131
65
12.5 MHz
80 ns
165
81
40
10 MHz
100 ns
131
65
31
Table 14: Optimal Decimation Parameter MDEC (according to equation (13) for different PWM frequencies
fPWM (MDEC25 for fPWM=25kHz w/ PWM_MAXCNT=3999, MDEC50 for fPWM=50kHz w/
PWM_MAXCNT=1999, MDEC100 for fPWM=100kHz w/ PWM_MAXCNT=999).
Info
MDEC parameter can be changed during operation. This enables adaptive
adjustment of performance with respect to resolution versus speed on demand.
For most applications, the power-on decimation setting of MDEC should
be sufficient.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
36 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.4.15
Internal Delta Sigma Modulators - Mapping of V_RAW to ADC_RAW
Generally, delta sigma modulators work best for a typical input voltage range of 25% V_MAX . . . 75% V_MAX
(unsigned 0% ... 100%) resp. -75% V_MAX . . . +75% V_MAX (signed -100% ... +100%). For the integrated
delta sigma modulators, this input voltage operation range is recommended with V_MAX = 5V where
V_MAX = 3.3V is possible. The table 15 defines the recommended voltage ranges for both 5V and 3.3V
analog supply voltages.
V_SUPPLY[V]
(V_MIN[V])
V_MIN25%[V]
V_MAX50%[V]
V_MAX75%[V]
(V_MAX[V])
(3.3)
(0.0)
(0.825)
(1.65)
(2.75)
(3.3)
5.0
(0.0)
1.250
2.50
3.75
(5.0)
Table 15: Recommended input voltage range from V_MIN25%[V] to V_MAX75%[V] for internal Delta Sigma
Modulators; V_SUPPLY[V] = 5V is recommended for the analog part of the TMC4671.
V_RAW
=
V_MAX
for
(V_IN − V_REF) for
V_MIN
V_IN
V_MIN
for
> V_MAX
< (V_IN − V_REF) < V_MAX
V_IN
(14)
< V_MIN
The resulting raw ADC value is
V_RAW
ADC_RAW = (216 − 1) ·
V_MAX
for
V_MIN25%[V] < V_RAW < V_MAX75%[V].
(15)
The idealized expression (equation 14) is valid for recommended voltage ranges (table 15) neglecting deviations in linearities. These deviations primarily depend on different impedance on the analog signal
path, but also on digital parameterization. Finally, the deviation is quantified in terms of resulting ADC
resolution. So, the Delta Sigma ADC engine maps the analog input voltages V_RAW = V_IN - V_REF of voltage range V_MIN < V_RAW < V_MAX to ADC_RAW values of range {0 . . . (216 ) − 1} {0 . . . 65535}
0x0000 . . . 0xFFFF.
Vmin[V]
Vref[V]
Vmax[V]
VIN[V]
DUTY[%]
ADC_RAW
0.0
2.5
5.0
(0.0)
(0%)
(0x0000)
0.0
2.5
5.0
1.0
25%
0x4000
0.0
2.5
5.0
2.5
50%
0x7fff
0.0
2.5
5.0
3.75
75%
0xC000
0.0
2.5
5.0
(5.0)
(100%)
(0xffff)
Table 16: Delta Sigma input voltage mapping of internal Delta Sigma Modulators
Info
For calibrating purposes, the input voltage of the delta sigma ADC inputs can be
programmed to fixed voltages (25%, 50%, 75% of analog supply voltage) via the
associated configuration register DS_ANALOG_INPUT_STAGE_CFG.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
37 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.4.16
External Delta Sigma Modulator Interface
The TMC4671 is equipped with integrated digital filters for extraction of ADC raw values from delta sigma
data stream for both internal and external delta sigma modulators. The interface for external delta sigma
modulators is intended for external isolated sigma delta modulators, such as AD7401 (with MCLK input
driven by TMC4671), or AD7402 (with MCLK output to drive TMC4671). In addition, the external delta
sigma interface supports the use of simple comparator with a R-C-R network as external low cost delta
sigma modulators (R-C-R-CMP, e.g. LM339).
When selecting the external delta sigma ADC Interface, the high-performance
Debug SPI Interface (RTMI) it not available in parallel due to pin sharing. The
UART is always available, but with less performance than the RTMI.
Info
Each external delta sigma modulator channel (dsMOD) has two signals (pls. refer figure 17), one dedicated
input, and one programmable input/output. The configuration of the external delta sigma modulator
interface is defined by programming associated registers. When selecting external delta sigma ADC, the
associated analog ADC inputs are configured as digital inputs for the delta sigma signal data stream MDAT.
4.4.16.1
External Delta Sigma Modulator Interface - MDAC Configuration
Figure 18: ∆Σ ADC Configuration - MDAC (Comparator-R-C-R as ∆Σ-Modulator)
In the MDAC delta sigma modulator, the delay of the comparator CMP determines the MCLK of the comparator modulator. A capacitor CM CCM P within a range of 100 pF . . . 1nF fits in most cases. The time
constant τ RC should be in a range of 0.1 tCMP . . . tCMP of the comparator. The resistors should be in the
range of 1K to 10K. The fMAXtyp depends also on the choice of the decimation ratio.
CMP
tCMPtyp [ns]
RMCMP [kΩ]
CMCMP [pF ]
fMCLKmaxTYP
100
1 MHz
LM339
1000
1
RMDAC [kΩ]
1
LM339
1000
10
10
100
100 kHz
LM339
1000
100
100
100
10 kHz
Table 17: Delta Sigma R-C-R-CMP Configurations (pls. refer 17)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
38 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
For external Delta Sigma R-C-R-CMP modulators, one gets the Delta Sigma input voltage mapping according to table 18. The support of low-cost external comparators used as first order delta sigmal modulators
is intended as an generic analog interface option for compatibility of the TMC4671 core in case it would
be embedded within a pure digital technology environment.
Vmin[V]
Vref[V]
Vmax[V]
VIN[V]
DUTY[%]
0.0
1.65
3.3
0.0
0%
0x0000
0.0
1.65
3.3
0.825
25%
0x4000
0.0
1.65
3.3
1.65
50%
0x7fff
0.0
1.65
3.3
2.475
75%
0xC000
0.0
1.65
3.3
3.3
100%
0xffff
Vmin[V]
Vref[V]
Vmax[V]
VIN[V]
0.0
2.5
5.0
0.0
0%
0x0000
0.0
2.5
5.0
1.0
25%
0x4000
0.0
2.5
5.0
2.5
50%
0x7fff
0.0
2.5
5.0
3.75
75%
0xC000
0.0
2.5
5.0
5.0
100%
0xffff
DUTY[%]
ADC_RAW
ADC_RAW
Table 18: Delta Sigma input voltage mapping of external comparator (CMP)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
39 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.5
Analog Signal Conditioning
The range of measured coil currents, resp. the measured voltages of sense resistors, needs to be mapped
to the valid input voltage range of the delta sigma ADC inputs. This analog preprocessing is the task of
the analog signal conditioning.
4.5.0.1
Chain of Gains for ADC Raw Values
An ADC raw value is a result of a chain of gains that determine it. A coil current I_SENSE flowing through a
sense resistor causes a voltage difference according to Ohm’s law. Finally, a current is mapped to an ADC
raw value
ADC_RAW = (I_SENSE · ADC_GAIN) + ADC_OFFSET.
(16)
The ADC_GAIN is a result of a chain of gains with individual signs. The sign of the ADC_GAIN is positive
or negative, depending on the association of connections between sense amplifier inputs and the sense
resistor terminals. The ADC_OFFSET is the result of electrical offsets of the phase current measurement
signal path. For the TMC4671, the maximum ADC_RAW value is ADC_RAW_MAX = (216 − 1) and the minimum ADC raw value is ADC_RAW_MIN = 0.
ADC_GAIN
=
(
·
I_SENSE_MAX · R_SENSE
)
(17)
SENSE_AMPLIFIER_GAIN
· ( ADC_RAW_MAX/ADC_U_MAX
)
Rsense [mΩ]
Isense [A]
Usense [mV ]
GAIN[V /V ]
ADC_GAIN[A/V ]
Sense Amplifier
5
10
50
20
10
AD8418
10
5
50
20
5
AD8418
Table 19: Example Parameters for ADC_GAIN
For the FOC, the ADC_RAW is scaled by the ADC scaler of the TMC4671 together with subtraction of offset
to compensate it. Internally, the TMC4671 FOC engine calculates with s16 values. So, the ADC scaling
needs to be chosen so that the measured currents fit into the s16 range. With the ADC scaler, the user can
choose a scaling with physical units like [mA]. A scaling to [mA] covers a current range of −32A . . .+32A with
m[A] resolution. For higher currents, the user can choose unusual units like centi Ampere [cA] covering
−327A . . . + 327A or deci Ampere −3276A . . . + 3276A.
ADC scaler and offset compensators are for mapping raw ADC values to s16 scaled and offset cleaned
current measurement values that are adequate for the FOC.
4.5.1
FOC3 - Stator Coil Currents I_U, I_V, I_W and associated Voltages U_U, U_V, U_W
The correct association between stator terminal voltages U_U, U_V, U_W and stator coil currents I_U, I_V,
I_W is essential for the FOC.
For three-phase motors with three terminals U, V, W, the voltage U_U is in phase with the current I_U, U_V
is in phase with I_V, and U_W is in phase with I_W according to equations (18) and (19) for FOC3.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
40 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
U (φ ) = UD
U e
U_UVW_FOC3(U_D, PHI_E) =
UV (φe ) = UD
U (φ ) = U
W
D
I (φ ) = ID
U e
IV (φe ) = ID
I (φ ) = I
I_UVW_FOC3(I_D, PHI_E) =
W
4.5.2
e
e
D
· sin(φe )
· sin(φe + 120o )
(18)
· sin(φe − 120o )
· sin(φe )
· sin(φe + 120o )
(19)
· sin(φe − 120o )
FOC2 - Stepper Coil Currents I_X, I_Y and associated Voltages U_X, U_Y
For two-phase motors (stepper) with four terminals UX1, VX2, and WY1, Y2, voltage U_Ux = U_X1 - U_X2
is in phase with the measured current I_X and U_Wy = U_Y1 - U_Y2 is in phase with the measured current
I_Y according to equations (20) and (21) for FOC2.
U_XY_FOC2
=
U (φ ) = U
X
e
X
U (φ ) = U
Y
I_XY_FOC2
Y
I (φ ) = I
X
e
D
=
I (φ ) = I
Y
4.5.3
e
e
D
· sin(φe )
· sin(φe + 90o )
· sin(φe )
· sin(φe + 90o )
(20)
(21)
FOC1 - DC Motor Coil Current I_X1, I_X2, and associated Voltage U_X1, U_X2
For DC motor with with two terminals UX1, VX2, voltage U_X = U_X1 - U_X2 is in phase (same sign) with the
measured current I_X. U_X is in phase (same sign) with the measured current I_X according to equations
(22) and (23) for FOC1.
U_XY_FOC1
= UX1 − VX2
I_XY_FOC1
=
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
IX1
(22)
(23)
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.5.4
41 / 151
ADC Selector & ADC Scaler w/ Offset Correction
The ADC selector selects ADC channels for FOC. The 3-phase FOC uses two ADC channels for measurement
and calculates the third channel via Kirchhoff’s Law using the scaled and offset-corrected ADC values.
The 2-phase FOC just uses two ADC channels because for a 2-phase stepper motor, the two phases are
independent from each other.
Note
The open-loop encoder is useful for setting up ADC channel selection, scaling,
and offset by running a motor open-loop.
The FOC23 Engine processes currents as 16 bit signed (s16) values. Raw ADC values are expanded to 16
bit width, regardless of their resolution. With this, each ADC is available for read out as a 16 bit number.
The ADC scaler w/ offset correction is for the preprocessing of measured raw current values. It might be
used to map to user’s own units (e.g. A or mA). For scaling, gains of current amplifiers, reference voltages,
and offsets have to be taken into account.
Info
Raw ADC values generally are of 16 bit width, regardless of their real resolution.
Info
The ADC scaler maps raw ADC values to the 16 bit signed (s16) range and centers
the values to zero by removing offsets.
Figure 19: ADC Selector & Scaler w/ Offset Correction
ADC offsets and ADC scalers for the analog current measurement input channels need to be programmed
into the associated registers. Each ADC_I_U, ADC_I_V, ADC_I0_EXT, and ADC_I1_EXT are mapped either to
ADC_I0_RAW or to ADC_I1_RAW by ADC_I0_SELECT and ADC_I1_SELECT.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
42 / 151
In addition, the ADC_OFFSET is for conversion of unsigned ADC values into signed ADC values as required
for the FOC. For FOC3, the third current ADC_I2 is calculated via Kirchhoff’s Law. This requires the correct
scaling and offset correction beforehand. For FOC2, there is no calculation of a third current. The scaling
factors ADC_I0_SCALE and ADC_I1_SCALE are displayed in a Q8.8 format which results in the following
equations:
ADC_I0 = (ADC_I0_RAW − ADC_I0_OFFSET) · ADC_I0_SCALE / 256
(24)
ADC_I1 = (ADC_I1_RAW − ADC_I1_OFFSET) · ADC_I1_SCALE / 256
(25)
The ADC_UX_SELECT selects one of the three ADC channels ADC_I0, ADC_I1, or ADC_I2 for ADC_UX.
The ADC_V_SELECT selects one of the three ADC channels ADC_I0, ADC_I1, or ADC_I2 for ADC_V.
The ADC_WY_SELECT selects one of the three ADC channels ADC_I0, ADC_I1, or ADC_I2 for ADC_WY.
The ADC_UX, ADC_V, and ADC_WY are for the FOC3 (U, V, W).
The ADC_UX and ADC_WY (X, Y) are for the FOC2 (UX, WY).
Note
4.6
The open-loop encoder is useful to run a motor open loop for setting up the ADC
channel selection with correct association between phase currents I_U, I_V, I_W
and phase voltages U_U, U_V, U_W.
Encoder Engine
The encoder engine is an unified position sensor interface. It maps the selected encoder position information to electrical position (phi_e) and to mechanical position (phi_m). Both are 16 bit values. The encoder
engine maps single turn positions from position sensors to multi-turn positions. The user can overwrite
the multi-turn position for initialization.
The different position sensors are the position sources for torque and flux control via FOC, for velocity
control, and for position control. The PHI_E_SELECTION selects the source of the electrical angle phi_e
for the inner FOC control loop. VELOCITY_SELECTION selects the source for velocity measurement. With
phi_e selected as source for velocity measurement, one gets the electrical velocity. With the mechanical
angle phi_m selected as source for velocity measurement, one gets the mechanical velocity taking the
set number of pole pairs (N_POLE_PAIRS) of the motor into account. Nevertheless, for a highly precise
positioning, it might be useful to do positioning based on the electrical angle phi_e.
4.6.1
Open-Loop Encoder
For initial system setup, the encoder engine is equipped with an open-loop position generator. This allows
for turning the motor open-loop by specifying speed in rpm and acceleration in rpm/s, together with a
voltage UD_EXT in D direction. As such, the open-loop encoder is not a real encoder. It simply gives
positions as an encoder does. The open-loop decoder has a direction bit to define direction of motion for
the application.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Note
43 / 151
The open-loop encoder is useful for initial ADC setup, encoder setup, Hall signal
validation, and for validation of the number of pole pairs of a motor. The openloop encoder turns a motor open with programmable velocity in unit [RPM] with
programmable acceleration in unit [RPM/s].
With the open-loop encoder, the user can turn a motor without any position sensor and without any
current measurement as a first step of doing the system setup. With the turning motor, the user can
adjust the ADC scales and offsets and set up positions sensors (Hall, incremental encoder, . . . ) according
to resolution, orientation, and direction of rotation.
4.6.2
Incremental ABN Encoder
The incremental encoders give two phase shifted incremental pulse signals A and B. Some incremental
encoders have an additional null position signal N or zero pulse signal Z. An incremental encoder (called
ABN encoder or ABZ encoder) has an individual number of incremental pulses per revolution. The number
of incremental pulses define the number of positions per revolution (PPR). The PPR might mean pulses
per revolution or periods per revolution. Instead of positions per revolution, some incremental encoder
vendors call these CPR counts per revolution.
The PPR parameter is the most important parameter of the incremental encoder interface. With that, it
forms a modulo (PPR) counter, counting from 0 to (PPR-1). Depending on the direction, it counts up or
down. The modulo PPR counter is mapped into the register bank as a dual ported register. The user can
overwrite it with an initial position. The ABN encoder interface provides both the electrical position and
the multi-turn position, which are accessible through dual-ported read-write registers.
Note
The PPR parameter must be set exactly according to the used encoder.
Figure 20: Number of Pole Pairs NPP vs. mechanical angle phi_m and electrical angle phi_e
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
44 / 151
The goal of the initialization of an incremental encoder is to set it up so that the magnetic axis of the rotor
fits with the electrical angle phi_e with the angle zero on D axis. For this, one needs to know the number of
pole pairs NPP, the resolution of the incremental encoder in pulses per revolution PPR, and the orientation
between measured encoder angle of the rotor and the electrical angle of the field orientation. An encoder
measures mechanical angle phi_m were the FOC needs the electrical angle phi_e for commutation. The
number of pole pairs NPP determines the ratio between mechanical angle phi_m and electrical angle
phi_e. The parameters phi_m_offset and phi_e_offset are for compensation of differences in orientation
angle by adjustments.
Figure 21: ABN Incremental Encoder N Pulse
The N pulse from an encoder triggers either sampling of the actual encoder count to fetch the position
at the N pulse or it re-writes the fetched n position on an N pulse. The N pulse can either be used as
stand alone pulse or and-ed with NAB = N and A and B. It depends on the decoder what kind of N pulse
has to be used - either N or NAB. For those encoders with precise N pulse within one AB quadrant, the N
pulse must be used. For those encoders with N pulse over four AB quadrants the user can enhance the
precision of the N pulse position detection by using NAB instead of N.
Note
Incremental encoders are available with N pulse and without N pulse.
The polarity of N pulse, A pulse and B pulse are programmable. The N pulse is for re-initialization with
each turn of the motor. Once fetched, the ABN decoder can be configured to write back the fetched N
pulse position with each N pulse.
Note
The ABN encoder interface has a direction bit to set to match wiring of motor to
direction of encoder.
Logical ABN = A and B and N might be useful for incremental encoders with low resolution N pulse to
enhance the resolution. On the other hand, for incremental encoders with high resolution N pulse a
logical ABN = A and B and N might totally suppress the resulting N pulse.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
45 / 151
Figure 22: Encoder ABN Timing - high precise N pulse and less precise N pulse
4.6.3
Secondary Incremental ABN Encoder
For commutating a motor with FOC, the user selects a position sensor source (digital incremental encoder,
digital Hall, analog Hall, analog incremental encoder, . . . ) that is mounted close to the motor. The inner
FOC loop controls torque and flux of the motor based on the measured phase currents and the electrical
angle of the rotor.
The TMC4671 is equipped with a secondary incremental encoder interface. This secondary encoder interface is available as source for velocity control or position control. This is for applications where a motor
with a gearing positions an object.
Info
4.6.4
The secondary incremental encoder is not available for commutation (phi_e) for
the inner FOC. In others words, there is no electrical angle phi_e selectable from
the secondary encoder.
Digital Hall Sensor Interface with optional Interim Position Interpolation
The digital Hall interface is the position sensor interface for digital Hall signals. The digital Hall signal
interface first maps the digital Hall signals to an electrical position PHI_E_RAW. An offset PHI_E_OFFSET
can be used to rotate the orientation of the Hall signal angle. The electrical angle PHI_E is for commutation.
Optionally, the default electrical positions of the Hall sensors can be adjusted by writes into the associated
registers.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
46 / 151
Figure 23: Hall Sensor Angles
Hall sensors give absolute positions within an electrical period with a resolution of 60° as 16 bit positions
(s16 resp. u16) PHI. With activated interim Hall position interpolation, the user gets high resolution interim
positions when the motor is running at a speed above 60 rpm.
4.6.5
Digital Hall Sensor - Interim Position Interpolation
For lower torque ripple the user can switch on the position interpolation of interim Hall positions. This
function is useful for motors that are compatible with sine wave commutation, but equipped with digital
Hall sensors. When the position interpolation is switched on, it becomes active on speeds above 60 rpm.
For lower speeds it automatically disables itself. This is especially important when the motor has to be at
rest. Hall sensor position interpolation might fail when Hall sensors are not properly placed in the motor.
Please adjust Hall sensor positions for this case.
4.6.6
Digital Hall Sensors - Masking, Filtering, and PWM center sampling
Sometimes digital Hall sensor signals get disturbed by switching events in the power stage. The TMC4671
can automatically mask switching distortions by correct setting of the HALL_MASKING register. When a
switching event occurs, the Hall sensor signals are held for HALL_MASKING value times 10 ns. This way,
Hall sensor distortions are eliminated.
Uncorrelated distortions can be filtered via a digital filter of configurable length. If the input signal to the
filter does not change for HALL_DIG_FILTER_LENGTH times 5 us, the signal can pass the filter. This filter
eliminates issues with bouncing Hall signals. naming with Elliot: Masking is better then Blanking
Spikes on Hall signals (Hx that stands for H1, H2, H3) disturb the FOC loop when Hall signals are used for
commutation or for initialization of incremental encoders. Spikes on hall signal lines might occur when
Hall signals are feed on singled ended signal lines in parallel to motor power lines due to electromagnetic
cross talk in a single cable. Long Hall signal lines might cause digital Hall signal cross talk even in separate
fed cables. Cables that provide Hall signals without spikes should be preferred. A good ground for digital
Hall signals is important for clean Hall signals. A good ground shield of the motor might help for clean Hall
signals. In best case, Hall signals are fed within separate shielded signal lines together with differential
line drivers.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
47 / 151
Figure 24: Outline of noisy Hall signals (left) due to electromagnetic interference with PWM switching and noise
cleaned Hall signals (right) by PWM center synced sampling of Hall signal vector (H1 H2 H3)
The best is avoiding spikes on digital Hall signals. Nevertheless, to enable lower cost motors with lower
performance Hall signal shielding, the TMC4671 is equipped with Hall Signal spike suppression and PWM
centered Hall signal vector sampling.
To reduce possible current ripple that might be caused by noisy Hall signals, the sampling of the Hall signal
vector can be programmed for sampling once per PWM period at its center for the desired noise reduction. The PWM centered Hall signal sampling is programmable by HALL_MODE(4) control bit. Continuous
sampling is default. This function is not available for TMC4671-ES engineering samples.
Figure 25: Hall Signal PWM Center Sampling on PWM_CENTER
The PWM center synchronization needs to be qualified for high speed applications due to reduction of
Hall signals for PWM frequency. The PWM center might have an influence on Hall signal interpolation and
needs to be qualified if Hall signal interpolation is enabled.
For additional spike suppression, the TMC4671 is equipped with a digital hall signal blanking, to support lower performance cabling environments. The blank time for the Hall signals is programmable
(HALL_BLANK) in steps of 10 ns from 0 ns up to 4095 ns. The Hall signal blanking time should be programmed as long as necessary for safe suppression of spikes of maximum duration. On the other side,
the Hall signal blanking should be programmed as short as possible to avoid disturbance by too strong
filtering that might also disturbe the FOC.
Figure 26: Hall Signal Blanking
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
48 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.6.7
Digital Hall Sensors together with Incremental Encoder
If a motor is equipped with both Hall sensors and incremental encoder, the Hall sensors can be used for
the initialization as a low resolution absolute position sensor. Later on, the incremental encoder can be
used as a high resolution sensor for commutation.
4.6.8
Analog Hall and Analog Encoder Interface (SinCos of 0° 90° or 0° 120° 240°)
An analog encoder interface is part of the decoder engine. It is able to handle analog position signals of 0°
and 90° and of 0° 120° 240°. The analog decoder engine adds offsets and scales the raw analog encoder
signals, while also calculating the electrical angle PHI_E from these analog position signals by an ATAN2
algorithm.
SIN/COS Hall
Track SIN
Track COS
SIN/COS with 10 PPR
Track SIN
Track COS
3-phase Analog Hall
Track 0°
Track 120°
Track 240°
Figure 27: Analog Encoder (AENC) signal waveforms
An individual signed offset is added to each associated raw ADC channel and scaled by its associated
scaling factors according to
AENC_VALUE = (AENC_RAW + AENC_OFFSET) · AENC_SCALE
(26)
In addition, the AENC_OFFSET is for conversion of unsigned ADC values into signed ADC values as required
for the FOC.
Info
The control bit 0 in register AENC_DECODER_MODE (0x3B) selects either processing of analog position signals of 0° and 90° (0b0) or analog signals of 0° 120° 240°
on (0b1).
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
49 / 151
Figure 28: Analog Encoder (AENC) Selector & Scaler w/ Offset Correction
In Fig. 27 possible waveforms are shown. The graphs show usual SIN/COS track signals with one and multiple periods per revolution as well as typical waveforms of three phase analog Hall signals for one electrical revolution. The number of periods per revolution can be configured by register AENC_DECODER_PPR.
The position in one period (AENC_DECODER_PHI_A) is calculated by an ATAN2 algorithm. The periods
are counted with respect to the number of periods per revolution to calculate AENC_DECODER_PHI_E
and AENC_DECODER_PHI_M. If PPR is the same as the number of pole pairs, AENC_DECODER_PHI_E and
AENC_DECODER_PHI_A are identical. This is usually the case for analog hall signals.
Info
4.6.9
The analog N pulse is just a raw ADC value. Handling of analog N pulse similar
to N pulse handling of digital encoder N pulse is not implemented for analog
encoder.
Analog Position Decoder (SinCos of 0°90° or 0°120°240°)
The extracted positions from the analog decoder are available for read out from registers.
4.6.9.1
Multi-Turn Counter
Electrical angles are mapped to a multi-turn position counter. The user can overwrite this multi-turn
position for initialization purposes.
4.6.9.2
Encoder Engine Phi Selector
The angle selector selects the source for the commutation angle PHI_E. That electrical angle is available
for commutation.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.6.9.3
50 / 151
External Position Register
A register value written into the register bank via the application interface is available for commutation
as well. With this, the user can interface to any encoder by just writing positions extracted from external
encoder into this regulator. From the decoder engine point of view this is just one more selectable encoder
source.
4.6.10
Encoder Initialization Support
The TMC4671 needs proper feedback for correct and stable operation. One main parameter is the commutation angle offset PHI_E_OFFSET. This offset must not be calculated when an absolute sensor system
like analog or digital Hall sensors is used. All other supported feedback systems need to be initialized their PHI_E_OFFSETs need to be identified. The user has several options to determine PHI_E_OFFSET with
support of the TMC4671.
4.6.10.1
Encoder Initialization in Open-Loop Mode
In the case of a free driving motor, the motor can be switched to Open-Loop Mode. In this mode, the
used commutation angle (PHI_OPEN_LOOP) can be used to match the measured PHI_E. This method is
supported by the TMCL-IDE.
4.6.10.2
Encoder Initialization by Hall sensors
The TMC4671 can calculate PHI_E_OFFSET very precisely at a Hall state change for a second encoder system, when Hall sensors are correctly aligned. Therefore, the function needs to be enabled and calculate a
new offset at the next Hall state change. After disabling of the module, the process can be started again.
This function can also be used as a rough plausibility check during longer operation.
4.6.10.3
Encoder Initialization by N Pulse Detection
After determination of a correct offset, the value can be used again after power cycle. The encoder’s N
pulse can be used as reference for this. For starters the user can drive the motor in open-loop mode or
by using digital Hall sensor signals. After passing the encoder’s N pulse, the ABN encoder is initialized and
can be used for operation.
4.6.11
Velocity Measurement
Servo control comprises position, velocity and current control. The position and the current are measured
by separate sensors. The actual velocity has to be calculated by time discrete differentiation from the
position signal. the user can choose a calculated position from the various encoder interfaces for velocity
measurement by parameter VELOCITY_SELECTION.
The user can switch between two different velocity calculation algorithms with the parameter VELOCITY_METER_SELECTION. Default setting (VELOCITY_METER_SELECTION = 0) is the standard velocity meter,
which calculates the velocity at a sampling rate of about 4369.067 Hz by differentiation. Output value is
displayed in rpm (revolutions per minute). This option is recommended for usage with the standard PI
controller structure.
By choosing the second option (VELOCITY_METER_SELECTION = 1), the sampling frequency is synchronized to the PWM frequency. This option is recommended for usage with the advanced PI controller
structure. Otherwise, the controller structure might tend to be unstable due to non-matched sampling.
Velocity filters can be applied to reduce noise on velocity signals. Section 4.8 describes filtering opportunities in detail.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.6.12
51 / 151
Reference Switches
The TMC4671 is equipped with three input pins for reference switches (REF_SW_L, REF_SW_H and REF_SW_R).
These pins can be used to determine three reference positions. The TMC4671 displays the status of the
reference switches in the register TMC_INPUTS_RAW and is able to store the actual position at rising edge
of the corresponding signal. The signal polarities are programmable and the module reacts only on toggling the ENABLE register. The signals can be filtered with a configurable digital filter, which suppresses
spike errors.
With the STATUS_FLAGS and STATUS_MASK register the STATUS output can be configured as an IRQ for
passing a reference switch.
The actual position can be latched when passing a reference switch. The latched positions are displayed in
registers HOME_POSITION, LEFT_POSITION, and RIGHT_POSITION. The position latching can be enabled
with REF_SWITCH_ENABLE. The polarity of each Reference switch can be changed with corresponding polarity registers HOME_SWITCH_POLARITY, LEFT_SWITCH_POLARITY, and RIGHT_SWITCH_POLARITY. If a reference switched is passed the corresponding status bit (HOME_SWITCH_PASSED, LEFT_SWITCH_PASSED,
and RIGHT_SWITCH_PASSED) is enabled. With disabling of the latching function the status bits are cleared.
Info
The polarity registers do not affect the status registers. The status flag only represents the current logical state of the switch.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.7
52 / 151
FOC23 Engine
The FOC23 engine performs the inner current control loop for the torque current IQ and the flux current
ID including the required transformations. Programmable limiters take carep
of clipping of interim results.
p
Per default, the programmable circular limiter clips U_D and U_Q to U_D_R = (2)· U_Q and U_R_R = (2)·
U_D. PI controllers perform the regulation tasks. Please make sure to enable controllers by pulling ENI
pin to high level.
4.7.1
ENI and ENO pins
The ENI (Enable input) can be used to start and stop control action. During reset ENO (Enable out) is low
and afterwards it forwards ENI signal. Thereby it can be used to enable the power stage. When ENI is low,
all controllers are deactivated and PWM operates at 50% duty cycle. ENI input value can be read through
TMC4671_INPUTS_RAW register.
4.7.2
PI Controllers
PI controllers are used for current control and velocity control. A P controller is used for position control.
The derivative part is not yet supported but might be added in the future. The user can choose between
two PI controller structures: The classic PI controller structure, which is also used in the TMC4670, and
the advanced PI controller structure. The advanced PI controller structure shows better performance in
dynamics and is recommended for high performance applications. User can switch between controllers
by setting register MODE_PID_TYPE. Controller type can not be switched individually for each cascade
level.
4.7.3
PI Controller Calculations - Classic Structure
The PI controllers in the classic structure perform the following calculation
Z t
Y=P·e+I·
e(t) dt
(27)
0
with
e = X_TARGET − X
(28)
where X_TARGET stands for target flux (s16), target torque (s16), target velocity (s32), or target position
(s32) with error e, which is the difference between target value and actual values. The Y stands for the
output of the PI controller feed as target input to the successive PI controller of the FOC servo controller
cascade (position → PI → velocity → PI → current → PI → voltage).
Y_PID_FLUX
=
PID_FLUX_P
*
ERROR_FLUX / 256
Y_PID_FLUX_RATE
=
PID_FLUX_I
*
ERROR_FLUX / 65536 / (32 µs)
Y_PID_TORQUE
=
PID_FLUX_P
*
ERROR_TORQUE / 256
Y_PID_TORQUE_RATE
=
PID_TORQUE_I
*
ERROR_TORQUE / 65536 / (32 µs)
Y_PID_VELOCITY
=
PID_VELOCITY_P
*
ERROR_VELOCITY / 256
Y_PID_VELOCITY_RATE
=
PID_VELOCITY_I
*
ERROR_VELOCITY / 65536 / (256 µs)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
53 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Y_PID_POSITION
=
PID_POSITION_P
*
ERROR_POSITION / 65536
Y_PID_POSITION_RATE
=
PID_POSITION_I
*
ERROR_POSITION / 65536 / (256 µs)
Table 20: Scalings and Change Rate Timings of PID controllers (classic structure) for currents, velocity, and
position for clock frequency fCLK = 25MHz
Number
Motion Mode
Description
0
Stopped Mode
Disabling all controllers
1
Torque Mode
Standard Torque Control Mode
2
Velocity Mode
Standard Velocity Control Mode
3
Position Mode
Standard Position Control Mode
4
PRBS Flux Mode
PRBS Value is used as Target Flux Value for Ident.
5
PRBS Torque Mode
PRBS Value is used as Target Torque Value for Ident.
6
PRBS Velocity Mode
PRBS Value is used as Target Velocity Value for Ident.
7
PRBS Position Mode
PRBS Value is used as Target Position Value for Ident.
8
UQ UD Ext Mode
Voltage control mode (Software Mode)
9
reserved
reserved
10
AGPI_A Torque Mode
AGPI_A used as Target Torque value
11
AGPI_A Velocity Mode
AGPI_A used as Target Velocity value
12
AGPI_A Position Mode
AGPI_A used as Target Position value
13
PWM_I Torque Mode
PWM_I used as Target Torque value
14
PWM_I Velocity Mode
PWM_I used as Target Velocity value
15
PWM_I Position Mode
PWM_I used as Target Position value
Table 21: Motion Modes
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
54 / 151
Figure 29: Classic PI Controller
Info
Changing the I-parameter of the classic PI controller during operation causes
the controller output to jump, as the control error is first integrated and then
gained by the I parameter. Jumps can be avoided by incremental changes of
I-parameter.
Info
Support for the TMC4671 is integrated into the TMCL-IDE including wizards for
set up and configuration. With the TMCL-IDE, configuration and operation can be
done in a few steps and the user gets direct access to all registers of the TMC4671.
4.7.4
PI Controller Calculations - Advanced Structure
The PI controllers in the advanced controller structure perform the calculation
Z t
dXdT = P · e +
P · I · e(t) dt
(29)
0
with
e = X_TARGET − X
(30)
where X_TARGET represents target flux, target torque, target velocity, or target position with control error
e, which is the difference between target value and actual values. The time constant dt is set according
to the PWM period but can be downsampled for the position controller by register MODE_PID_SMPL.
Position controller evaluation can be downsampled by a constant factor when needed.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
55 / 151
Figure 30: Advanced PI Controller
Info
The P Factor normalization as Q8.8 of the advanced PI controller of the TMC4671ES is selectable for the TMC4671-LA as either Q8.8 or Q4.12. This can be configured in register 0x4D CONFIG_DATA when register 0x4E CONFIG_ADDR is set to
0x3E. For more information refer to section 7.2. Using Q4.12 needs changes in
the user’s application controller software when using the Advanced PI position
controller.
The transfer function of the advanced PI controller can be described by the following pseudo code:
dXdT = e · P + integrator
integrator = integrator + P · I · e
(31)
P and I are either displayed as Q8.8 (P = P_FAK/256) or Q4.12 (P = P_FAK/4096). This is individually configurable for each controller parameter in the controller cascade.
Downsampling of the advanced position controller can be configured by register MODE_PID_SMPL. When
the register is 0 the controllers will sample on the PWM-frequency fPWM . The new samplerate will be derived from fPWM and the downsampling-value assigned to register MODE_PID_SMPL (range: 0 to 127). The
derived sampling frequency is calculated as follows:
fPWM
Sampleratenew =
downsampling + 1
4.7.5
(32)
PI Controller - Clipping
The limiting of target values for PI controllers and output values of PI controllers is programmable. Per
power on default these limits are set to maximum values. During initialization, these limits should be set
properly for correct operation and clipping.
The target input is clipped to X_TARGET_LIMIT. The output of a PI controller is named dXdT because it gives
the desired derivative d/dt as a target value to the following stage: The position (x) controller gives velocity
(dx/dt). The output of the PI Controller is clipped to dXdT_LIMIT. The error integral of (27) is clipped to
dXdT_LIMIT / I in the classic controller structure, and the integrator output is clipped to dXdT_output_limit
in the advanced controller structure.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Figure 31: PI Controllers for position, velocity and current
4.7.6
PI Flux & PI Torque Controller
The P part is represented as q8.8 and I is the I part represented as q0.15.
4.7.7
PI Velocity Controller
The P part is represented as q8.8 and I is the I part represented as q0.15.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
56 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.7.8
57 / 151
P Position Controller
For the position regulator, the P part is represented as q4.12 to be compatible with the high resolution
positions - one single rotation is handled as an s16. For the advanced controller structure the P part is
represented by q8.8.
4.7.9
Inner FOC Control Loop - Flux & Torque
The inner FOC loop (figure 32) controls the flux current to the flux target value and the torque current
to the desired torque target. The inner FOC loop performs the desired transformations according to
figure 33 for 3-phase motors (FOC3). For 2-phase motors (FOC2) both Clarke (CLARKE) transformation
and inverse Clarke (iCLARKE) are bypassed. For control of DC motors, transformations are bypassed and
only the first full bridge (connected to X1 and X2) is used.
The inner FOC control loop gets a target torque value (I_Q_TARGET) which represents acceleration, the rotor position, and the measured currents as input data. Together with the programmed P and I parameters,
the inner FOC loop calculates the target voltage values as input for the PWM engine.
Figure 32: Inner FOC Control Loop
4.7.10
FOC Transformations and PI(D) for control of Flux & Torque
The Clarke transformation (CLARKE) maps three motor phase currents (IU , IV , IW ) to a two-dimensional
coordinate system with two currents (Iα , Iβ ). Based on the actual rotor angle determined by an encoder
or via sensorless techniques, the Park transformation (PARK) maps these two currents to a quasi-static
coordinate system with two currents (ID , IQ ). The current ID represents flux and the current IQ represents
torque. The flux just pulls on the rotor but does not affect torque. The torque is affected by IQ . Two PI
controllers determine two voltages (UD , UQ ) to drive desired currents for a target torque and a target
flux. The determined voltages (UD , UQ ) are re-transformed into the stator system by the inverse Park
transformation (iPARK). The inverse Clarke Transformation (iCLARKE) transforms these two currents into
three voltages (UU , UV , UW ). Theses three voltage are the input of the PWM engine to drive the power
stage.
In case of the FOC2, Clarke transformation CLARKE and inverse Clarke Transformation iCLARKE are skipped.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
58 / 151
Figure 33: FOC3 Transformations (FOC2 just skips CLARKE and iCLARKE)
4.7.11
Motion Modes
The user can operate the TMC4671 in several motion modes. Standard motion modes are position control,
velocity control and torque control, where target values are fed into the controllers via register access. The
motion mode UD_UQ_EXTERN allows the user to set voltages for open-loop operation and for tests during
setup.
Figure 34: Standard Motion Modes
In position control mode, the user can feed the step and direction interface to generate a position target
value for the controller cascade. In additional motion modes target values are fed into the TMC4671 via
PWM interface (Pin: PWM_IN) or analog input via pin AGPI_A.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
59 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
There are additional motion modes, which are using input from the PWM_I input or the AGPI_A input.
Input signals can be scaled via a standard scaler providing offset and gain correction. The interface can
be configured via the registers SINGLE_PIN_IF_OFFSET_SCALE and SINGLE_PIN_IF_STATUS_CFG, where the
status of the interface can be monitored as well. PWM input signals which are out of frequency range can
be neglected. In case of wrong input data, last correct position is used or velocity and torque are set to
zero.
Number
Motion Mode
Description
0
Stopped Mode
Disabling all controllers
1
Torque Mode
Standard Torque Control Mode
2
Velocity Mode
Standard Velocity Control Mode
3
Position Mode
Standard Position Control Mode
4
PRBS Flux Mode
PRBS Value is used as Target Flux Value for Ident.
5
PRBS Torque Mode
PRBS Value is used as Target Torque Value for Ident.
6
PRBS Velocity Mode
PRBS Value is used as Target Velocity Value for Ident.
7
PRBS Position Mode
PRBS Value is used as Target Position Value for Ident.
8
UQ UD Ext Mode
Voltage control mode (Software Mode)
9
reserved
reserved
10
AGPI_A Torque Mode
AGPI_A used as Target Torque value
11
AGPI_A Velocity Mode
AGPI_A used as Target Velocity value
12
AGPI_A Position Mode
AGPI_A used as Target Position value
13
PWM_I Torque Mode
PWM_I used as Target Torque value
14
PWM_I Velocity Mode
PWM_I used as Target Velocity value
15
PWM_I Position Mode
PWM_I used as Target Position value
Table 22: Motion Modes
4.7.12
Brake Chopper
During regenerative braking of the motor, current is driven into the DC link. If the power frontend is not
actively controlled, the DC link voltage will rise. The brake chopper output pin (BRAKE) can be used for
control of an external brake chopper, which burns energy over a brake resistor. The BRAKE pin is set to
high for a complete PWM cycle if measured voltage is higher then ADC_VM_LIMIT_HIGH. Once active it will
be deactivated when voltage drops below ADC_VM_LIMIT_LOW. This acts like a hysteresis. BRAKE can be
deactivated by setting both registers to Zero. By setting proper values in the registers it is automatically
enabled.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.8
60 / 151
Filtering and Feed-Forward Control
The TMC4671 uses different filters for certain target and actual values. When using standard velocity
meter, a standard velocity filter is used which is optimized for velocity signals from Hall sensors. Additional
Biquad filters can be used to suppress measurement noise or damp resonances.
4.8.1
Biquad Filters
The TMC4671 uses standard biquad filters (standard IIR filter of second order, Wikipedia Article) in the
following structure.
Y(n) = X(n) · b_0 + X(n-1) · b_1 + X(n-2) · b_2 + Y(n-1) · a_1 + Y(n-2) · a_2
(33)
In this equation X(n) is the actual input sample, while Y(n-1) is the filter output of the last cycle. All coefficients are S32 values and are normalized to a Q3.29 format. Users must take care of correct parametrization of the filter. There is no built-in plausibility or stability check. All filters can be disabled or enabled
via register access. Biquad state variables are reset when parameters are changed. The TRINAMIC IDE
supports parametrization with wizards.
A standard biquad filter has the following transfer function in the Laplace-Domain:
G(s) =
b_2_cont · s2 + b_1_cont · s + b_0_cont
a_2_cont · s2 + a_1_cont · s + a_0_cont
(34)
The transfer function needs to be transformed to time discrete domain by Z-Transformation and coefficients need to be normalized. This is done by the following equations.
b_2_z = (b_0_cont · T 2 + 2 · b_1_cont · T + 4 · b_2_cont)/(T 2 − 2 · a_1_cont · T + 4 · a_2_cont)
2
2
b_1_z = (2 · b_0_cont · T − 8 · b_2_cont)/(T − 2 · a_1_cont · T + 4 · a_2_cont)
2
2
b_0_z = (b_0_cont · T − 2 · b_1_cont · T + 4 · b_2_cont)/(T − 2 · a_1_cont · T + 4 · a_2_cont)
2
2
a_2_z = (T + 2 · a_1_cont · T + 4 · a_2_cont)/(T − 2 · a_1_cont · T + 4 · a_2_cont)
2
2
a_1_z = (2 · T − 8 · a_2_cont)/(T − 2 · a_1_cont · T + 4 · a_2_cont)
(35)
(36)
(37)
(38)
(39)
29
(40)
29
(41)
b_0 = round(b_0_z · 2 )
b_1 = round(b_1_z · 2 )
(42)
29
b_2 = round(b_2_z · 2 )
29
(43)
29
(44)
a_1 = round(−a_1_z · 2 )
a_2 = round(−a_2_z · 2 )
while T is the sampling time according to PWM_MAX_COUNT · 10 ns and variables with index z are auxiliary
variables.
A standard second order lowpass filter with given cutoff frequency ωc and damping factor D has the following transfer function in the Laplace-Domain:
GLP (s) =
1
1
ωc2
· s2 +
2D
ωc
·s+1
(45)
Users can determine filter coefficients with the upper equations by comparing coefficients of both transfer
functions. The TMCL-IDE also provides a dimensioning tool.
There are four biquad filters in the control structure. Figure 35 illustrates their placement in the control
structure.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
61 / 151
Figure 35: Biquad Filters
The biquad filter for the position target value is intended to be used as a low-pass filter for smoothening
position input to the control structure. It is evaluated in every PWM cycle, or down-sampled according to
the down-sampling factor for the position controller. After powering on it is disabled.
The biquad filter for the flux target value is also intended to be used as a low-pass filter for input values
from the user’s microcontroller. Sampling frequency is fixed to the PWM frequency.
The biquad filter for the torque target value can be used as a low-pass filter for bandwidth limitation
and noise suppression. Moreover, it can be designed to suppress a resonance or anti-resonance. Same
statements are correct for the velocity biquad filter. Both filters’ sampling times are fixed to the PWM
period.
The velocity target value biquad is configured as a second order low-pass with a cutoff frequency at 200 Hz
- by default at a sampling frequency of 25 kHz. Biquad filters can be activated separately.
4.8.2
Standard Velocity Filter
By using the standard velocity measurement algorithm, the default velocity filter is enabled and can not
be switched off. The standard velocity filter is a low-pass filter with a cutoff frequency of 20 Hz (slope of
-20 dB/Decade). In this configuration, a new velocity is calculated at a sample rate of approx. 4369.067 Hz.
This configuration is intended to be used in low-performance applications with a simple position feedback
system like digital Hall sensors.
4.8.3
Note
Feed-Forward Control Structure
Software feed forward control via offset registers is recommended, due to missing amplification possibility. Utilize feedforward to actively increase the target value of a controller besides the normal target input. For Torque/Flux use
register 0x65 PID_TORQUE_FLUX_OFFSET and for the velocity use register 0x67
PID_VELOCITY_OFFSET.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
62 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.9
PWM Engine
The PWM engine takes care of converting voltage vectors to pulse width modulated (PWM) control signals.
These digital PWM signals control the gate drivers of the power stage. For a detailed description of the
PWM control registers and PWM register control bits pls. refer section 7 page 71.
The ease-of-use PWM engine requires just a couple of parameter settings. Primarily, the polarities for the
gate control signal of high-side and low-side must be set. The power on default PWM mode is 0, meaning
PWM = OFF. For operation, the centered PWM mode must be switched on by setting the PWM mode to 7.
A single bit switches the space vector PWM (SVPWM) on. For 3-phase PMSM, the SVPWM = ON gives more
effective voltage. Nevertheless, for some applications it makes sense to switch the SVPWM = OFF to keep
the star point voltage of a motor almost at rest.
4.9.1
PWM Polarities
The PWM polarities register (PWM_POLARITIES) controls the polarities of the logic level gate control signals. The polarities of the gate control signals are individually programmable for low-side gate control
and for high-side gate control. The PWM polarities register controls the polarity of other control signals as well. PWM_POLARITIES[1] controls the polarity of the logic level high side gate control signal.
PWM_POLARITIES[0] controls the polarity of the logic level low side gate control signal.
Figure 36: PWM Gate Driver Control Polarities
PWM_POLARITIES[1. . . 0]
PWM_HIGH_SIDE
PWM_LOW_SIDE
00
PWM_H
PWM_L
01
PWM_H
not PWM_L
10
not PWM_H
PWM_L
11
not PWM_H
not PWM_L
Table 23: Status Flags Register
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
63 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.9.2
PWM Engine and associated Motor Connectors
The PWM engine of the TMC4671 has eight gate control outputs to control up to four power MOS half
bridges. For three-phase motors three half bridges are used (U, V, W). For two-phase stepper motors four
half bridges are used for (U, V, W, Y). For DC motor control, the first two half bridges (U, V) are used.
Gate Control Signals
PWM_UX1_H
PWM_UX1_L
PWM_VX2_H
PWM_VX2_L
PWM_WY1_H
PWM_WY1_L
PWM_Y2_H
PWM_Y2_L
FOC3: 3 Phase Motor
FOC2: 2 Phase Stepper
FOC1: Single Phase DC Motor
U
X1
X1
V
X2
X2
W
Y1
-
-
Y2
-
Table 24: FOC321 Gate Control Signal Configurations
For the DC motor current control (here named FOC1), the number of pole pairs is not relevant - in contrast
to closed loop current control of two-phase stepper motors (FOC2) and three-phase permanent magnet
motors (FOC3). For DC motor control, the number of pole pairs should be set to 1 to equal mechanical
angle and electrical angle for velocity control and for position control.
Figure 37: FOC3 (three phase motor), FOC2 (two phase stepper motor), FOC1 (single phase DC motor)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
4.9.3
64 / 151
PWM Frequency
The PWM counter maximum length register PWM_MAXCNT controls the PWM frequency. For a clock
frequency fCLK = 25 MHz, the PWM frequency fPWM[Hz] = (4.0 · fCLK [Hz]) / (PWM_MAXCNT + 1). With
fCLK = 25 MHz and power-on reset (POR) default of PWM_MAXCNT=3999, the PWM frequency fPWM =
25 kHz.
The PWM frequency is the fundamental frequency of the control system. It can
be changed at any time, also during motion for the classic PI controller structure.
The advanced PI controller structure is tied to the PWM frequency and integrator gains have to be changed. Please make sure to set current measurement
decimation rates to fit PWM period in high performance applications.
Note
4.9.4
PWM Resolution
The base resolution of the PWM is 12 bit internally mapped to 16 bit range. The minimal PWM increment
is 20ns due to the symmetrical PWM with 100 MHz counter frequency. MAX_PWMCNT = 4095 gives the
full resolution of 12 bit with ≈ 25 kHz w/ fCLK=25 MHz. MAX_PWMCNT=2047 results in 11 bit resolution,
but with ≈ 50kHz w/ fCLK=25 MHz. So the PWM_MAXCNT defines the PWM frequency, but also affects the
resolution of the PWM.
4.9.5
PWM Modes
The power-on reset (POR) default of the PWM is OFF. The standard PWM scheme is the centered PWM.
Passive braking and freewheeling modes are available on demand. Please refer to section 7 concerning
the settings.
4.9.6
Break-Before-Make (BBM)
One register controls BBM time for the high side, another register controls BBM time for the low side. The
BBM times are programmable in 10 ns steps. The BBM time can be set to zero for gate drivers that have
their own integrated BBM timers.
Figure 38: BBM Timing
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
65 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Info
Note
4.9.7
Measured BBM times at MOS-FET gates differ from programmed BBM times due
to driver delays and possible additional gate driver BBM times. The programmed
BBM times are for the digital control signals.
Too short BBM times cause electrical shortcuts of the MOS-FET bridges - so called
shoot through - that short the power supply and might damage the power stage
and the power supply.
Space Vector PWM (SVPWM)
A single bit enables the Space Vector PWM (SVPWM). No further settings are required for the space vector
PWM - just ON or OFF. The power on default for the SVPWM is OFF. Space Vector PWM can be enabled
to maximize voltage utilization in the case of an isolated star point of the motor. If the star point is not
isolated, SVPWM might cause unintended current flows through the star point. Space Vector PWM is only
used for three-phase motors. For other motors the SVPWM must be switched off.
Note
4.9.8
For engineering samples TMC4671-ES, the Space Vector PWM does not allow
higher voltage utilization. This is fixed for the release version TMC4671-LA.
Real- and Integer-Conversions
The TMC4671 displays voltages and currents as integer values. The following tables show how one can
convert integer values to real values, see table 25, and the other way round, see table 26. Equation 2
in section 4.5.0.1 describes the chain of gains and introduces ADC_GAIN. This variable depends on resistance of the shuntresistor as well as the properties of the senseamplifier. It is needed for the current
conversions. The voltage conversion depends on the supply voltage VM .
Senseamps and their respective shunt resistors can deviate in their properties due to part tolerances or
aging. However, their values must still be comparable. This is done by using a scaling factor for both ADCs
in order to harmonize their signals.
ADC_GAINscaled = (ADC_GAIN ·
ADC_SCALE
)
256
integer to real
Iuvw,real
Iαβ,real
Idq,real
Iuvw,s16
ADC_GAINscaled
Iαβ,s16
ADC_GAINscaled
Idq,s16
ADC_GAINscaled
Udq,real
Udq,s16 ·
VM
215
Uαβ,real
Uαβ,s16 ·
VM
215
FOCuvw,real
FOCuvw,s16 ·
PWMuvw,real
PWMuvw,s16 ·
VM
215
VM
215
Table 25: Factors for integer to real conversion
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
(46)
66 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
real to integer
Iuvw,s16
Iuvw,real · ADC_GAINscaled
Iαβ,s16
Iαβ,real · ADC_GAINscaled
Idq,s16
Idq,real · ADC_GAINscaled
Udq,s16
Udq,real ·
215
VM
Uαβ,s16
Uαβ,real ·
215
VM
FOCuvw,s16
FOCuvw,real ·
215
VM
PWMuvw,s16
PWMdq,real ·
215
VM
Table 26: Factors for real to integer conversion
The PWM value defines the outputvoltage. It is calculated using the content of register INTERIM_DATA
while INTERIM_ADDR is 0x11 or 0x12. The s16 PWM value is converted to an u16 value by adding 0x8000.
Equation 47 applies for the highside PWM when connected to a DC- or Stepper-motor as well as the three
phases of a BLDC-motor when spacevector pwm is inactive:
Uclamp = (PWMuvw,s16 + 0x8000) ·
VM
216
(47)
Equation 48 describes the outputvoltage on the clamps for the lowside PWM when connected to a DC- or
Stepper-motor:
VM
Uclamp = (−PWMuxwy,s16 + 0x8000) · 16
(48)
2
The following equation describes the integer to real transformation for three-phase spacevector-PWM:
FOCMIN = min(FOCu , FOCv , FOCw )
FOCMAX = max(FOCu , FOCv , FOCw )
FOCMAX + FOCMIN
VM
2
) + 0x8000) · 16
Uclamp,uvw = ( √ · (PWMuvw,s16 −
2
2
3
5
(49)
Safety Functions
Different safety functions are integrated and mapped to status bits. A programmable mask register selects bits for activation of the STATUS output.
Internal hardware limiters for real time clipping and monitoring of interim values are available. LIMIT or
LIMITS is part of register names of registers associated to internal limiters. Please refer to table 27.
Bit
Source
0
pid_x_target_limit
1
pid_x_target_ddt_limit
2
pid_x_errsum_limit
3
pid_x_output_limit
4
pid_v_target_limit
5
pid_v_target_ddt_limit
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
6
pid_v_errsum_limit
7
pid_v_output_limit
8
pid_id_target_limit
9
pid_id_target_ddt_limit
10
pid_id_errsum_limit
11
pid_id_output_limit
12
pid_iq_target_limit
13
pid_iq_target_ddt_limit
14
pid_iq_errsum_limit
15
pid_iq_output_limit
16
ipark_cirlim_limit_u_d
17
ipark_cirlim_limit_u_q
18
ipark_cirlim_limit_u_r
19
not_PLL_locked
20
ref_sw_r
21
ref_sw_h
22
ref_sw_l
23
——-
24
pwm_min
25
pwm_max
26
adc_i_clipped
27
adc_aenc_clipped
28
ENC_N
29
ENC2_N
30
AENC_N
31
reserved
67 / 151
Table 27: Status Flags Register
All controllers have input limiters as offsets can be added to target values and they can be limited to
remain in certain ranges. Also all controller outputs can be limited and the integrating parts (error sum)
of the PI controllers are also limited to controller outputs. If d/dt-limiters are enabled they are also capable
of limiting target values.
If one of these limiters gets active, the flag will go to high state. This is usually a normal operation, when
controllers are working on the borders of their working area. With STATUS_MASK register corresponding
flags can be activated.
Other status flags go to high state whether the voltage limitation is reached (circular limiter in iPark transformation) or PWM is saturated (pwm_min and pwm_max). This is also usual operation as the current
controller has to deal with voltage limitation at high velocity operation.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
68 / 151
The user can also use the status output to generate an IRQ on reference switch or N-channel of encoder.
Also ADC clipping can be monitored which is a good indicator of wrong or faulty behavior.
Remaining wd_error status flag indicates an error on the clock input of the TMC4671 (see following section).
Status flags register can be written directly. It is not possible to clear individual bits.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
6
69 / 151
FOC Setup - How to Turn a Motor
This section summarizes the basic steps that are required to turn a motor with TMC4671. The wizard of the
TMCL-IDE guides the user through theses basic steps. Schematics and Layout of the TMC4671 evaluation
kit are open source and available for download from www.trinamic.com
Note
TRINAMIC recommends to use a TMC4671 evaluation kit together with the TMCLIDE with its integrated wizards for initial evaluation and setup.
In order to create own application software please check TRINAMIC’s API to reduce software development
efforts.
6.1
Select Motor Type
The TMC4671 supports closed loop control of single phase DC motors, stepper motors, and three phase
motors. The selection of the motor type defines the configuration of the gate control channels for the
power stage and either the usage or bypass of FOC transformations (Clarke, Park, iPark, iClark).
6.1.1
FOC1 Setup - How to Turn a Single Phase DC Motor
In case of DC motor, the mechanical commutator of the DC motor realizes something like mechanical field
oriented control where the TMC4671 just realizes closed loop current control of the DC motor. From FOC
point of view, the FOC converts a brushless motor (BLDC) resp. Permanent Magnet Synchronous Motor
(PMSM) into a closed loop current controlled DC motor.
From closed loop velocity control point of view and from closed loop position control point of view there
is no difference between electronically FOC controlled BLDC motor or PMSM motor and a mechanical
commutated DC motor with electronic closed loop current control.
6.1.2
FOC2 Setup - How to Turn a Two Phase Motor (Stepper)
The TMC4671 is able to turn a two-phase stepper motor with FOC by internal skip of Clarke transformation
and iClarke transformation. A special feature of stepper motors is the high number of pole pairs (NPP)
that are typical 50. For stepper motors it is usual to give the number of full steps (FS) per revolution, with
NPP = (FS/revolution) / 4. A stepper with 200 full steps per revolution has 50 pole pairs.
6.1.3
FOC3 Setup - How to Turn a Three Phase Motor (PMSM or BLDC)
A three phase motor is the classical FOC controlled brushless motor. Users have to take care concerning
number of pole pairs (NPP) and the number of poles (NP) with NPP = NP/2.
6.2
Set Number of Pole Pairs (NPP)
The number of (magnetic) pole pairs (NPP) is characteristic for each motor and it is essential for commutation of two phase motors and three phase motors with FOC. For DC motor the NPP is not important for
commutation itself, but is should be set to one to have same scaling for electrical angle and mechanical
angle.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
6.3
70 / 151
Run Motor Open Loop
Initial turning a motor open loop is useful for determination of the association between phase voltage,
phase currents and for position sensor setup. Position sensors that are mounted on a motor might have
an opposite direction of rotation compared to the motor. The same direction of rotation is essential for
the FOC. In addition, the phase shift between rotor angle and angle that is measured by a position sensor
needs to be zero in best case. Otherwise the motor is operated at lower efficiency or turns in wrong
direction which causes instability.
6.3.1
Determination of Association between Phase Voltage and Phase Currents
For starters, the motor should be turned open loop to measure ADC offsets and set ADC scaler offset.
Additionally, the open loop turn is useful to validate (or to determine) the association between motor
phase currents and motor phase terminal voltages. This association is essential for the FOC. With proper
ADC channel selection setup, voltage U_UX1 is in phase with current I_UX1, voltage U_VX2 is in phase
with current I_VX2, and voltage U_WY1 is in phase with I_WY1. For two phase stepper motor, the voltage
U_Y2 is in phase with current I_Y2. Only two currents are measured and the other current is calculated by
TMC4671. For DC motor only one current is measured.
6.3.2
Determination of Direction of Rotation and Phase Shift of Angles
For absolute position sensors like Hall sensors, the phase shift an the direction of rotation only need to
be determined once initially. For relative position sensors, like incremental encoders, the direction of
turning needs to be determined everytime after power cycle. The relative orientation between measured
incremental encoder angle and rotor angle needs to be determined on each power-up.
6.4
Selection of Position Sensors
For closed loop operation, the type of encoder (digital hall, ABN encoder, analog Hall, SinCos) needs to
be set. For analog Hall signals or analog incremental encoders the user needs to adjust the analog ADC
channels for the analog encoders - similar to ADC offset and ADC scaling as for current measuring ADC
channels. The TMC4671 allows the selection of different types of position sensors for different tasks. One
position sensor is for the inner FOC closed loop current control loop.
6.4.1
Selection of FOC sensor for PHI_E
One sensor needs to be selected for the FOC to measure the electrical angle PHI_E. This sensor is used
for the inner closed loop control loop for closed loop current control.
6.4.2
Selection of sensor for VELOCITY
One sensor needs to be selected for measurement of velocity. This can be the sensor selected for measurement of PHI_E but it is more common to use the mechanical angle PHI_M for measurement of velocity.
Using electrical angles can give advantages for applications with slow motion for NPP more than one because the minimum velocity in RPM [revolutions per minute] is one and the electrical angles have higher
speed than mechanical angles.
6.4.3
Selection of sensor for POSITION
One sensor needs to be selected for measurement of position of the rotor, the angle of the rotor. This can
be the sensor selected for measurement PHI_E but it is more usual to use the mechanical angle PHI_M for
measurement of position. For stepper motors it might make sense to select the electrical angle PHI_E for
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
71 / 151
positioning to have a benefit from higher resolution using electrical angles. This is because each period electrical or mechanical - is normalized to 216 = 65536 positions.
6.5
Modes of Operation - (Open Loop), Torque, Velocity, Positioning
The TMC4671 can operate in torque mode, velocity mode, or position mode. The control loops (current,
velocity, position) are cascaded, thus the outer loops depend on the tuning of the inner loops. So, the
current loop must be adjusted first. The velocity loop must be adjusted after the current control loop is
adjusted. The position control loop must be adjusted last.
6.6
Controller Tuning
PI controller tuning is described throughout the control theory literature. In general there are two main
strategies to tune the controllers. First strategy is to observe controller step response for different parameter sets and tune parameters to fit dynamics and settling time. With this approach sampling target and
actual value as well as controller output (check for saturation) at fixed frequency is recommended. The
USB-2-RTMI adapter in combination with the TMCL-IDE provide tuning tools to support this strategy.
Another approach is to identify controller plant parameters and calculate controller parameters from
these parameters. This is also supported by the TMCL-IDE for the current control loop. For the other
control loops the first strategy is recommended.
7
Register Map
The TMC4671 has an register address range of 128 addresses with registers up to 32 bit data width. Some
registers hold 32 bit data fields, some hold 2 x 16 bit data fileds and other hold combinations of different
data fields with individual data types. Data fields need to extracted by masking and shifting after read from
a TMC4671 register within the application. Data fields need to be composed by masking and shifting by
the application before writing into a TMC4671 register. Please check TRINAMIC’s API to reduce software
development efforts. This section describes the register bank of the TMC4671.
Section 7.1 gives an overview over all registers. It is is intended to give an initial over view of all registers.
Section 7.2 is the detailed reference of all registers and the register fields.
Section 7.3 gives the description of power-on-reset default values of all registers.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
72 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
7.1
Register Map - Overview
Registers in TMC4671 have different purposes. Some registers are used for test only, other can be used
to monitor internal states (e.g. ADC values). Most registers are only accessed during initialisation (e.g.
calibration or control parameters). Control registers are used for input of target values to controllers and
should be updated regularly according to chosen motion modes (e.g PID_VELOCITY_TARGET should be
updated in velocity mode). If users don’t use a certain functional block they don’t need to parametrize it.
The TMC4671 has an address space of 128 addresses. In order to display more then 128 registers, so called
stacked registers were added. These are CHIPINFO_DATA, ADC_RAW_DATA, PID_ERROR_DATA, CONFIG_DATA
and INTERIM_DATA. These data registers display or give access to different subregisters according to their
corresponding address registers (CHIPINFO_ADDR, ADC_RAW_ADDR, PID_ERROR_ADDR, CONFIG_ADDR
and INTERIM_ADDR). Read access to a subregister requires a write access to address register and a read
access to the data register.
Address
Registername
Access
Usage
0x00h
CHIPINFO_DATA
R
Test
0x01h
CHIPINFO_ADDR
RW
Test
0x02h
ADC_RAW_DATA
R
Monitor
0x03h
ADC_RAW_ADDR
RW
Monitor
0x04h
dsADC_MCFG_B_MCFG_A
RW
Init
0x05h
dsADC_MCLK_A
RW
Init
0x06h
dsADC_MCLK_B
RW
Init
0x07h
dsADC_MDEC_B_MDEC_A
RW
Init
0x08h
ADC_I1_SCALE_OFFSET
RW
Init
0x09h
ADC_I0_SCALE_OFFSET
RW
Init
0x0Ah
ADC_I_SELECT
RW
Init
0x0Bh
ADC_I1_I0_EXT
RW
Test
0x0Ch
DS_ANALOG_INPUT_STAGE_CFG
RW
Test
0x0Dh
AENC_0_SCALE_OFFSET
RW
Init
0x0Eh
AENC_1_SCALE_OFFSET
RW
Init
0x0Fh
AENC_2_SCALE_OFFSET
RW
Init
0x11h
AENC_SELECT
RW
Init
0x12h
ADC_IWY_IUX
R
Monitor
0x13h
ADC_IV
R
Monitor
0x15h
AENC_WY_UX
R
Monitor
0x16h
AENC_VN
R
Monitor
0x17h
PWM_POLARITIES
RW
Init
0x18h
PWM_MAXCNT
RW
Init
0x19h
PWM_BBM_H_BBM_L
RW
Init
0x1Ah
PWM_SV_CHOP
RW
Init
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
73 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Address
Registername
Access
Usage
0x1Bh
MOTOR_TYPE_N_POLE_PAIRS
RW
Init
0x1Ch
PHI_E_EXT
RW
Test
0x1Fh
OPENLOOP_MODE
RW
Init
0x20h
OPENLOOP_ACCELERATION
RW
Init
0x21h
OPENLOOP_VELOCITY_TARGET
RW
Init
0x22h
OPENLOOP_VELOCITY_ACTUAL
RW
Monitor
0x23h
OPENLOOP_PHI
RW
Monitor/Test
0x24h
UQ_UD_EXT
RW
Init/Test
0x25h
ABN_DECODER_MODE
RW
Init
0x26h
ABN_DECODER_PPR
RW
Init
0x27h
ABN_DECODER_COUNT
RW
Init/Test/Monitor
0x28h
ABN_DECODER_COUNT_N
RW
Init/Test/Monitor
0x29h
ABN_DECODER_PHI_E_PHI_M_OFFSET
RW
Init
0x2Ah
ABN_DECODER_PHI_E_PHI_M
R
Monitor
0x2Ch
ABN_2_DECODER_MODE
RW
Init
0x2Dh
ABN_2_DECODER_PPR
RW
Init
0x2Eh
ABN_2_DECODER_COUNT
RW
Init/Test/Monitor
0x2Fh
ABN_2_DECODER_COUNT_N
RW
Init/Test/Monitor
0x30h
ABN_2_DECODER_PHI_M_OFFSET
RW
Init
0x31h
ABN_2_DECODER_PHI_M
R
Monitor
0x33h
HALL_MODE
RW
Init
0x34h
HALL_POSITION_060_000
RW
Init
0x35h
HALL_POSITION_180_120
RW
Init
0x36h
HALL_POSITION_300_240
RW
Init
0x37h
HALL_PHI_E_PHI_M_OFFSET
RW
Init
0x38h
HALL_DPHI_MAX
RW
Init
0x39h
HALL_PHI_E_INTERPOLATED_PHI_E
R
Monitor
0x3Ah
HALL_PHI_M
R
Monitor
0x3Bh
AENC_DECODER_MODE
RW
Init
0x3Ch
AENC_DECODER_N_THRESHOLD
RW
Init
0x3Dh
AENC_DECODER_PHI_A_RAW
R
Monitor
0x3Eh
AENC_DECODER_PHI_A_OFFSET
RW
Init
0x3Fh
AENC_DECODER_PHI_A
R
Monitor
0x40h
AENC_DECODER_PPR
RW
Init
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
74 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Address
Registername
Access
Usage
0x41h
AENC_DECODER_COUNT
R
Monitor
0x42h
AENC_DECODER_COUNT_N
RW
Monitor/Init
0x45h
AENC_DECODER_PHI_E_PHI_M_OFFSET
RW
Init
0x46h
AENC_DECODER_PHI_E_PHI_M
R
Monitor
0x4Bh
PIDIN_VELOCITY_TARGET
R
Monitor
0x4Ch
PIDIN_POSITION_TARGET
R
Monitor
0x4Dh
CONFIG_DATA
RW
Init
0x4Eh
CONFIG_ADDR
RW
Init
0x50h
VELOCITY_SELECTION
RW
Init
0x51h
POSITION_SELECTION
RW
Init
0x52h
PHI_E_SELECTION
RW
Init
0x53h
PHI_E
R
Monitor
0x54h
PID_FLUX_P_FLUX_I
RW
Init
0x56h
PID_TORQUE_P_TORQUE_I
RW
Init
0x58h
PID_VELOCITY_P_VELOCITY_I
RW
Init
0x5Ah
PID_POSITION_P_POSITION_I
RW
Init
0x5Dh
PIDOUT_UQ_UD_LIMITS
RW
Init
0x5Eh
PID_TORQUE_FLUX_LIMITS
RW
Init
0x60h
PID_VELOCITY_LIMIT
RW
Init
0x61h
PID_POSITION_LIMIT_LOW
RW
Init
0x62h
PID_POSITION_LIMIT_HIGH
RW
Init
0x63h
MODE_RAMP_MODE_MOTION
RW
Init
0x64h
PID_TORQUE_FLUX_TARGET
RW
Control
0x65h
PID_TORQUE_FLUX_OFFSET
RW
Control
0x66h
PID_VELOCITY_TARGET
RW
Control
0x67h
PID_VELOCITY_OFFSET
RW
Control
0x68h
PID_POSITION_TARGET
RW
Control
0x69h
PID_TORQUE_FLUX_ACTUAL
R
Monitor
0x6Ah
PID_VELOCITY_ACTUAL
R
Monitor
0x6Bh
PID_POSITION_ACTUAL
RW
Monitor/Init
0x6Ch
PID_ERROR_DATA
R
Test
0x6Dh
PID_ERROR_ADDR
RW
Test
0x6Eh
INTERIM_DATA
RW
Monitor
0x6Fh
INTERIM_ADDR
RW
Monitor
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
75 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Address
Registername
Access
Usage
0x75h
ADC_VM_LIMITS
RW
Init
0x76h
TMC4671_INPUTS_RAW
R
Test/Monitor
0x77h
TMC4671_OUTPUTS_RAW
R
Test/Monitor
0x78h
STEP_WIDTH
RW
Init
0x79h
UART_BPS
RW
Init
0x7Bh
GPIO_dsADCI_CONFIG
RW
Init
0x7Ch
STATUS_FLAGS
RW
Monitor
0x7Dh
STATUS_MASK
RW
Monitor
Table 28: TMC4671 Registers
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
76 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
7.2
Register Map - Functional Description
DATA TYPE
ADDR
NAME
0x00h
CHIPINFO_DATA
0x01h
(BIT MASK)
FUNCTION
This register displays name and
version information of the accessed IC. It can be used for test
of communication.
SI_TYPE
u32(31:0)
0: Hardware type (ASCII).
SI_VERSION
u32(31:0)
0: Hardware version (u16.u16).
SI_DATE
u32(31:0)
0: Hardware date (nibble wise
date stamp yyyymmdd).
SI_TIME
u32(31:0)
0: Hardware time (nibble wise
time stamp –hhmmss)
SI_VARIANT
u32(31:0)
SI_BUILD
u32(31:0)
CHIPINFO_ADDR
CHIP_INFO_ADDRESS
This register is used to change
displayed information in register
CHIPINFO_DATA.
u8(7:0)
0: SI_TYPE
1: SI_VERSION
2: SI_DATE
3: SI_TIME
4: SI_VARIANT
5: SI_BUILD
0x02h
0x03h
ADC_RAW_DATA
This registers displays ADC values. Th displayed registers can be
switched by register ADC_RAW_
ADDR.
ADC_I0_RAW
u16(15:0)
Raw phase current I0
ADC_I1_RAW
u16(31:16)
Raw phase current I1
ADC_VM_RAW
u16(15:0)
Raw supply voltage value.
ADC_AGPI_A_RAW
u16(31:16)
Raw analog gpi A value.
ADC_AGPI_B_RAW
u16(15:0)
Raw analog gpi B value.
ADC_AENC_UX_RAW
u16(31:16)
Raw analog encoder signal.
ADC_AENC_VN_RAW
u16(15:0)
Raw analog encoder signal.
ADC_AENC_WY_RAW
u16(31:16)
Raw analog encoder signal.
ADC_RAW_ADDR
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
This register is used to change
displayed information in register
ADC_RAW_DATA.
77 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
ADC_RAW_ADDR
u8(7:0)
0: ADC_I1_RAW & ADC_I0_RAW
1: ADC_AGPI_A_RAW & ADC_VM_
RAW
2: ADC_AENC_UX_RAW & ADC_
AGPI_B_RAW
3: ADC_AENC_WY_RAW & ADC_
AENC_VN_RAW
0x04h
dsADC_MCFG_B_MCFG_A
cfg_dsmodulator_a
This register is used to configure
internal ADCs (delta sigma modulators). Don’t modify if you want
to use internal Delta Sigma modulators (Standard use case).
u2(1:0)
0: int. dsMOD
1: ext. MCLK input
2: ext. MCLK output
3: ext. CMP
mclk_polarity_a
bit(2)
0: off
1: on
mdat_polarity_a
bit(3)
0: off
1: on
sel_nclk_mclk_i_a
bit(4)
0: off
1: on
blanking_a
u8(15:8)
cfg_dsmodulator_b
u2(17:16)
0: int. dsMOD
1: ext. MCLK input
2: ext. MCLK output
3: ext. CMP
mclk_polarity_b
bit(18)
0: off
1: on
mdat_polarity_b
bit(19)
0: off
1: on
sel_nclk_mclk_i_b
bit(20)
0: off
1: on
blanking_b
0x05h
u8(31:24)
dsADC_MCLK_A
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
This register is used to modify
Delta Sigma modulator clock. Do
not modify if you use internal
delta sigma modulators (Standard
use case).
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
dsADC_MCLK_A
0x06h
dsADC_MCLK_B
dsADC_MCLK_B
0x07h
0x08h
0x09h
0x0Ah
u32(31:0)
78 / 151
fMCLK_A = 2^31 / (fCLK * (dsADC_
MCLK_A+1)), dsADC_MCLK_A =
(2^31 / (fMCLK * fCLK)) - 1
This register is used to modify
Delta Sigma modulator clock. Do
not modify if you use internal
delta sigma modulators (Standard
use case).
u32(31:0)
dsADC_MDEC_B_MDEC_A
fMCLK_B = 2^31 / (fCLK * (dsADC_
MCLK_B+1)), dsADC_MCLK_B =
(2^31 / (fMCLK * fCLK)) - 1
This register is used to change decimation rates of SINC3 filters for
Delta Sigma modulators. Set values according to actual PWM frequency. See functional description of ADC engine.
dsADC_MDEC_A
u16(15:0)
0: PWM synchronous, others according to register content
dsADC_MDEC_B
u16(31:16)
0: PWM synchronous, others according to register content
ADC_I1_SCALE_OFFSET
This register is used to set calibration data for ADC channel I1 (Offset and amplitude correction).
ADC_I1_OFFSET
u16(15:0)
Offset for current ADC channel 1.
ADC_I1_SCALE
s16(31:16)
Scaling factor for current ADC
channel 1.
ADC_I0_SCALE_OFFSET
This register is used to set calibration data for ADC channel I0 (Offset and amplitude correction).
ADC_I0_OFFSET
u16(15:0)
Offset for current ADC channel 0.
ADC_I0_SCALE
s16(31:16)
Scaling factor for current ADC
channel 0.
ADC_I_SELECT
ADC_I0_SELECT
This register is used to assign correct ADC channel to PWM output
channel. For each FOC input current either an ADC value or the
calculated sum of the currents (I2)
can be assigned to match internal
data processing to power stage
design.
u8(7:0)
Select input for raw current ADC_
I0_RAW.
0: ADCSD_I0_RAW (sigma delta
ADC)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
79 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
1: ADCSD_I1_RAW (sigma delta
ADC)
2: ADC_I0_EXT (from register)
3: ADC_I1_EXT (from register)
ADC_I1_SELECT
u8(15:8)
Select input for raw current ADC_
I1_RAW.
0: ADCSD_I0_RAW (sigma delta
ADC)
1: ADCSD_I1_RAW (sigma delta
ADC)
2: ADC_I0_EXT (from register)
3: ADC_I1_EXT (from register)
ADC_I_UX_SELECT
u2(25:24)
0: UX = ADC_I0 (default)
1: UX = ADC_I1
2: UX = ADC_I2
ADC_I_V_SELECT
u2(27:26)
0: V = ADC_I0
1: V = ADC_I1 (default)
2: V = ADC_I2
ADC_I_WY_SELECT
u2(29:28)
0: WY = ADC_I0
1: WY = ADC_I1
2: WY = ADC_I2 (default)
0x0Bh
0x0Ch
ADC_I1_I0_EXT
This register can be used to write
ADC values via SPI in case external ADCs are used or controller
cascade function shall be tested.
using external ADCs will probably
effect control performance is not
recommended.
ADC_I0_EXT
u16(15:0)
Register for write of ADC_I0 value
from external source (eg. CPU).
ADC_I1_EXT
u16(31:16)
Register for write of ADC_I1 value
from external source (eg. CPU).
DS_ANALOG_INPUT_STAGE_CFG
ADC_I0
This register is used to configure
ADC channels for different input
configurations and test modes.
u4(3:0)
0: INP vs. INN
1: GND vs. INN
2: VDD/4
3: 3*VDD/4
4: INP vs. GND
5: VDD/2
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
80 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
6: VDD/4
7: 3*VDD/4
ADC_I1
u4(7:4)
0: INP vs. INN
1: GND vs. INN
2: VDD/4
3: 3*VDD/4
4: INP vs. GND
5: VDD/2
6: VDD/4
7: 3*VDD/4
ADC_VM
u4(11:8)
0: INP vs. INN
1: GND vs. INN
2: VDD/4
3: 3*VDD/4
4: INP vs. GND
5: VDD/2
6: VDD/4
7: 3*VDD/4
ADC_AGPI_A
u4(15:12)
0: INP vs. INN
1: GND vs. INN
2: VDD/4
3: 3*VDD/4
4: INP vs. GND
5: VDD/2
6: VDD/4
7: 3*VDD/4
ADC_AGPI_B
u4(19:16)
0: INP vs. INN
1: GND vs. INN
2: VDD/4
3: 3*VDD/4
4: INP vs. GND
5: VDD/2
6: VDD/4
7: 3*VDD/4
ADC_AENC_UX
u4(23:20)
0: INP vs. INN
1: GND vs. INN
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
81 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
2: VDD/4
3: 3*VDD/4
4: INP vs. GND
5: VDD/2
6: VDD/4
7: 3*VDD/4
ADC_AENC_VN
u4(27:24)
0: INP vs. INN
1: GND vs. INN
2: VDD/4
3: 3*VDD/4
4: INP vs. GND
5: VDD/2
6: VDD/4
7: 3*VDD/4
ADC_AENC_WY
u4(31:28)
0: INP vs. INN
1: GND vs. INN
2: VDD/4
3: 3*VDD/4
4: INP vs. GND
5: VDD/2
6: VDD/4
7: 3*VDD/4
0x0Dh
0x0Eh
0x0Fh
AENC_0_SCALE_OFFSET
This register is used to set calibration data for ADC channel AENC 0
(Offset and amplitude correction).
AENC_0_OFFSET
u16(15:0)
Offset for Analog Encoder ADC
channel 0.
AENC_0_SCALE
s16(31:16)
Scaling factor for Analog Encoder
ADC channel 0.
AENC_1_SCALE_OFFSET
This register is used to set calibration data for ADC channel AENC 1
(Offset and amplitude correction).
AENC_1_OFFSET
u16(15:0)
Offset for Analog Encoder ADC
channel 1.
AENC_1_SCALE
s16(31:16)
Scaling factor for Analog Encoder
ADC channel 1.
AENC_2_SCALE_OFFSET
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
This register is used to set calibration data for ADC channel AENC 2
(Offset and amplitude correction).
82 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x11h
AENC_2_OFFSET
u16(15:0)
Offset for Analog Encoder ADC
channel 2.
AENC_2_SCALE
s16(31:16)
Scaling factor for Analog Encoder
ADC channel 2.
AENC_SELECT
AENC_0_SELECT
This register is used to select correct ADC to compensate wiring
twists.
u8(7:0)
Select analog encoder ADC channel for raw analog encoder signal
AENC_0_RAW.
0:
1: AENC_VN_RAW
2: AENC_WY_RAW
AENC_1_SELECT
u8(15:8)
Select analog encoder ADC channel for raw analog encoder signal
AENC_1_RAW.
0: AENC_UX_RAW
1:
2: AENC_WY_RAW
AENC_2_SELECT
u8(23:16)
Select analog encoder ADC channel for raw analog encoder signal
AENC_2_RAW.
0: AENC_UX_RAW
1: AENC_VN_RAW
2:
0x12h
0x13h
ADC_IWY_IUX
This register can be used to
monitor phase current values
(offset-compensated, scaled and
correctly assigned).
ADC_IUX
s16(15:0)
Register of scaled current ADC
value including signed added offset as input for the FOC.
ADC_IWY
s16(31:16)
Register of scaled current ADC
value including signed added offset as input for the FOC.
ADC_IV
ADC_IV
This register can be used to
monitor phase current ADC_IV
(offset-compensated, scaled and
correctly assigned).
s16(15:0)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
Register of scaled current ADC
value including signed added offset as input for the FOC.
83 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x15h
0x16h
AENC_WY_UX
AENC_UX
s16(15:0)
Register of scaled analog encoder
value including signed added offset as input for the interpolator.
AENC_WY
s16(31:16)
Register of scaled analog encoder
value including signed added offset as input for the interpolator.
AENC_VN
AENC_VN
0x17h
This register displays AENC input signals (offset-compensated,
scaled and correctly assigned).
This register displays AENC
input signal AENC_VN (offsetcompensated, scaled and correctly assigned).
s16(15:0)
PWM_POLARITIES
PWM_POLARITIES[0]
Register of scaled analog encoder
value including signed added offset as input for the interpolator.
This register sets the polarity of
PWM output signal to match gate
driver.
bit(0)
Low Side gate control
0: off
1: on
PWM_POLARITIES[1]
bit(1)
High Side gate control
0: off
1: on
0x18h
PWM_MAXCNT
PWM_MAXCNT
0x19h
This register is used to configure
PWM output frequency.
u12(11:0)
PWM_BBM_H_BBM_L
PWM
maximum
(count-1),
PWM frequency is fPWM[Hz]
= 100MHz/(PWM_MAXCNT+1)
This register sets the BBM times
for PWM output signals. BBM time
must be matched power stage
needs to avoid cross conduction
in half bridge.
PWM_BBM_L
u8(7:0)
Break Before Make time tBBM_
L[10ns] for low side MOS-FET gate
control
PWM_BBM_H
u8(15:8)
Break Before Make time tBBM_
H[10ns] for high side MOS-FET
gate control
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
84 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x1Ah
PWM_SV_CHOP
PWM_CHOP
This register is used to enable
PWM, set different PWM test
modes and switch on the SVPWM
feature for higher voltage utilization (BLDC/PMSM only).
u8(7:0)
PWM chopper mode, defining
how to chopper
0: off, free running
1: off, low side permanent = ON
2: off, high side permanent = ON
3: off, free running
4: off, free running
5: low side chopper, high side off
6: high side chopper, low side off
7: centered PWM for FOC
PWM_SV
bit(8)
use Space Vector PWM
0: Space Vector PWM disabled
1: Space Vector PWM enabled
0x1Bh
MOTOR_TYPE_N_POLE_PAIRS
This register is used to set motor
type and number of pole pairs.
N_POLE_PAIRS
u16(15:0)
Number n of pole pairs of the motor for calcualtion phi_e = phi_m /
N_POLE_PAIRS.
MOTOR_TYPE
u8(23:16)
0: No motor
1: Single phase DC
2: Two phase Stepper
3: Three phase BLDC
0x1Ch
PHI_E_EXT
PHI_E_EXT
0x1Fh
This register is used to set an electrical angle for SW mode when encoder is connected to MCU and
not to TMC4671.
s16(15:0)
OPENLOOP_MODE
OPENLOOP_PHI_DIRECTION
Electrical angle phi_e_ext for external writing into this register.
This register is used to change direction of openloop angle.
bit(12)
Open loop phi direction.
0: positive
1: negative
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
85 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x20h
OPENLOOP_ACCELERATION
OPENLOOP_ACCELERATION
0x21h
0x24h
0x25h
s32(31:0)
Target velocity of open loop phi.
This register displays actual openloop angle velocity in RPM.
s32(31:0)
OPENLOOP_PHI
OPENLOOP_PHI
Acceleration of open loop phi.
This register is used to set a target
velocity for openloop angle generator. The velocity is ramped
up and down according to OPENLOOP_ACCELERATION and PID_
VELOCITY_LIMIT.
OPENLOOP_VELOCITY_ACTUAL
OPENLOOP_VELOCITY_ACTUAL
0x23h
u32(31:0)
OPENLOOP_VELOCITY_TARGET
OPENLOOP_VELOCITY_TARGET
0x22h
This register is used to change acceleration when openloop angle
velocity should change.
Actual velocity of open loop generator.
This register displays actual output of openloop angle generator
s16(15:0)
UQ_UD_EXT
Angle phi open loop (either
mapped to electrical angel phi_e
or mechanical angle phi_m).
This register is used to set voltage
values for openllop current control mode (UQ_UD_EXT_MODE).
UD_EXT
s16(15:0)
External writable parameter for
open loop voltage control mode,
usefull during system setup, U_D
component.
UQ_EXT
s16(31:16)
External writable parameter for
open loop voltage control mode,
usefull during system setup, U_Q
component.
ABN_DECODER_MODE
apol
This register is used to configure
decoder input signals and N pulse
action as well as count direction.
bit(0)
Polarity of A pulse.
0: off
1: on
bpol
bit(1)
Polarity of B pulse.
0: off
1: on
npol
bit(2)
Polarity of N pulse.
0: off
1: on
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
86 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
use_abn_as_n
bit(3)
N and A and B
0: Ignore A and B polarity with
Npulse = N
1: Npulse = N and A and B
cln
bit(8)
Write direction at Npulse event
between ABN_DECODER_COUNT_
N and ABN_DECODER_COUNT.
0: COUNT => COUNT_N
1: COUNT_N => COUNT
direction
bit(12)
Decoder count direction.
0: positive
1: negative
0x26h
ABN_DECODER_PPR
ABN_DECODER_PPR
0x27h
0x2Ah
Decoder pulses per mechanical
revolution.
This register displays the actual
count of encoder steps. It can be
overwritten for initialization.
u24(23:0)
ABN_DECODER_COUNT_N
ABN_DECODER_COUNT_N
0x29h
u24(23:0)
ABN_DECODER_COUNT
ABN_DECODER_COUNT
0x28h
This register is used to set PPR
number of encoder.
Raw decoder count; the digital decoder engine counts modulo (decoder_ppr).
This register displays the count
value at last N pulse event. It can
also be used to overwrite Decoder
count at N pulse evenet accroding
to decoder mode register setting.
u24(23:0)
ABN_DECODER_PHI_E_PHI_M_OFFSET
Decoder count latched on N pulse,
when N pulse clears decoder_
count also decoder_count_n is 0.
This register can be used to set offsets for electrical and mechanical
angle calculated from decoder.
ABN_DECODER_PHI_M_OFFSET
s16(15:0)
ABN_DECODER_PHI_M_OFFSET to
shift (rotate) angle DECODER_PHI_
M.
ABN_DECODER_PHI_E_OFFSET
s16(31:16)
ABN_DECODER_PHI_E_OFFSET to
shift (rotate) angle DECODER_PHI_
E.
ABN_DECODER_PHI_E_PHI_M
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
This register displays actual angle
values for ABN encoder.
87 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x2Ch
ABN_DECODER_PHI_M
s16(15:0)
ABN_DECODER_PHI_M = ABN_
DECODER_COUNT * 2^16 / ABN_
DECODER_PPR + ABN_DECODER_
PHI_M_OFFSET;
ABN_DECODER_PHI_E
s16(31:16)
ABN_DECODER_PHI_E = (ABN_
DECODER_PHI_M
*
N_POLE_
PAIRS_) + ABN_DECODER_PHI_E_
OFFSET
ABN_2_DECODER_MODE
apol
This register is used to configure
decoder input signals and N pulse
action as well as count direction.
bit(0)
Polarity of A pulse.
0: off
1: on
bpol
bit(1)
Polarity of B pulse.
0: off
1: on
npol
bit(2)
Polarity of N pulse.
0: off
1: on
use_abn_as_n
bit(3)
0: Ignore A and B polarity with
Npulse = N, 1 : Npulse = N and A
and B
0: Ignore A and B polarity with
Npulse = N
1: Npulse = N and A and B
cln
bit(8)
Write direction at Npulse event between ABN_2_DECODER_COUNT_
N and ABN_2_DECODER_COUNT.
0: COUNT => COUNT_N
1: COUNT_N => COUNT
direction
bit(12)
Decoder count direction.
0: positive
1: negative
0x2Dh
ABN_2_DECODER_PPR
ABN_2_DECODER_PPR
This register is used to set PPR
number of encoder.
u24(23:0)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
Decoder_2 pules per mechanical
revolution. This 2nd ABN encoder
interface is for positioning or velocity control but NOT for motor
commutation.
88 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x2Eh
ABN_2_DECODER_COUNT
ABN_2_DECODER_COUNT
0x2Fh
0x33h
u24(23:0)
s16(15:0)
ABN_2_DECODER_PHI_M_OFFSET
to shift (rotate) angle DECODER_
2_PHI_M.
This register displays actual angle
values for ABN encoder.
s16(15:0)
HALL_MODE
polarity
Decoder_2 count latched on N
pulse, when N pulse clears decoder_2_count also decoder_2_
count_n is 0.
This register can be used to set offsets for electrical and mechanical
angle calculated from decoder.
ABN_2_DECODER_PHI_M
ABN_2_DECODER_PHI_M
Raw decoder_2 count; the digital decoder engine counts modulo
(decoder_2_ppr).
This register displays the count
value at last N pulse event. It can
also be used to overwrite decoder
count at N pulse event according
to decoder mode register setting.
ABN_2_DECODER_PHI_M_OFFSET
ABN_2_DECODER_PHI_M_OFFSET
0x31h
u24(23:0)
ABN_2_DECODER_COUNT_N
ABN_2_DECODER_COUNT_N
0x30h
This register displays the actual
count of encoder steps. It can be
overwritten for initialization.
ABN_2_DECODER_PHI_M = ABN_
2_DECODER_COUNT * 2^16 /
ABN_2_DECODER_PPR + ABN_2_
DECODER_PHI_M_OFFSET;
This register is used to set basic
settings for the digital Hall interface.
bit(0)
polarity
0: off
1: on
synchronous PWM sampling
bit(4)
enable sampling synchronous to
PWM
0: off
1: on
interpolation
bit(8)
interpolation
0: off
1: on
direction
bit(12)
direction
0: off
1: on
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
89 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
HALL_BLANK
0x34h
0x35h
0x36h
0x37h
0x38h
HALL_POSITION_060_000
0x3Ah
tBLANK = 10ns * HALL_BLANK
This register is used to calibrate
hall sensor offset.
HALL_POSITION_000
s16(15:0)
s16 hall sensor position at 0°
HALL_POSITION_060
s16(31:16)
s16 hall sensor position at 60°.
HALL_POSITION_180_120
This register is used to calibrate
hall sensor offset.
HALL_POSITION_120
s16(15:0)
s16 hall sensor position at 120°.
HALL_POSITION_180
s16(31:16)
s16 hall sensor position at 180°.
HALL_POSITION_300_240
This register is used to calibrate
hall sensor offset.
HALL_POSITION_240
s16(15:0)
s16 hall sensor position at 240°.
HALL_POSITION_300
s16(31:16)
s16 hall sensor position at 300°.
HALL_PHI_E_PHI_M_OFFSET
This register is used to set offsets
for calculated angles from hall interface.
HALL_PHI_M_OFFSET
s16(15:0)
Offset of mechanical angle hall_
phi_m of hall decoder.
HALL_PHI_E_OFFSET
s16(31:16)
Offset for electrical angle hall_phi_
e of hall decoder.
HALL_DPHI_MAX
HALL_DPHI_MAX
0x39h
u12(27:16)
This register is used to set a
maxim difference of two hall sensor transitions for Hall position extrapolation.
u16(15:0)
HALL_PHI_E_INTERPOLATED_PHI_E
Maximum dx for interpolation (default for digital hall: u16/6).
This register displays interpolated
and raw angle of Hall interface.
HALL_PHI_E
s16(15:0)
Raw electrical angle hall_phi_e
of hall decoder, selection programmed via HALL_MODE control
bit.
HALL_PHI_E_INTERPOLATED
s16(31:16)
Interpolated electrical angle hall_
phi_e_interpolated, selection programmed via HALL_MODE control
bit.
HALL_PHI_M
HALL_PHI_M
This register displays the mechanical angle calculated in Hall sensor
interface.
s16(15:0)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
Mechanical angle hall_phi_m of
hall decoder.
90 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x3Bh
AENC_DECODER_MODE
AENC_DECODER_MODE[0]
This register sets basic information for the analog encoder interface.
bit(0)
120deg_n90deg
0: 90 degree
1: 120 degree
AENC_DECODER_MODE[12]
bit(12)
decoder count direction
0: positive
1: negative
0x3Ch
0x3Dh
AENC_DECODER_N_THRESHOLD
AENC_DECODER_N_THRESHOLD
u16(15:0)
Threshold for generating of N
pulse from analog AENC_N signal
(only needed for analog SinCos encoders with analog N signal).
AENC_DECODER_N_MASK
s16(31:16)
Optional position mask (position)
for the analog N pulse within phi_
a period to be and-ed with the digital N pulse generated via aenc_
decoder_n_threshold.
AENC_DECODER_PHI_A_RAW
AENC_DECODER_PHI_A_RAW
0x3Eh
s16(15:0)
Raw analog angle phi calculated
from analog AENC inputs (analog
hall, analog SinCos, ...).
This register sets the offset of PHI_
A for phase alignment.
s16(15:0)
AENC_DECODER_PHI_A
AENC_DECODER_PHI_A
0x40h
Displays raw angle after ATAN2
calculation.
AENC_DECODER_PHI_A_OFFSET
AENC_DECODER_PHI_A_OFFSET
0x3Fh
This registers sets analog encoder
N pulse processing function.
Offset for angle phi from analog
decoder (analog hall, analog SinCos, ...).
This register displays offset compensated PHI_A angle.
s16(15:0)
AENC_DECODER_PPR
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
Resulting phi available for the FOC
(phi_e might need to be calculated
from this angle via aenc_decoder_
ppr, for analog hall sensors phi_a
might be used directly as phi_e depends on analog hall signal type).
This register sets the number of
periods per revolution for analog
encoder.
91 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
AENC_DECODER_PPR
0x41h
AENC_DECODER_COUNT
AENC_DECODER_COUNT
0x42h
0x46h
0x4Bh
Decoder position, raw unscaled.
Displays the count value at last N
pulse event. Can also be used to
auto-overwrite decoder count at
N pulse event.
s32(31:0)
Latched decoder position on analog N pulse event.
This register sets offsets for electrical and mechanical angle calculated from AENC interface.
AENC_DECODER_PHI_M_OFFSET
s16(15:0)
Offset for mechanical angle phi_
m.
AENC_DECODER_PHI_E_OFFSET
s16(31:16)
Offset for electrical angle phi_e.
AENC_DECODER_PHI_E_PHI_M
Displays actual angle values of
analog encoder interface.
AENC_DECODER_PHI_M
s16(15:0)
Resulting angle phi_m.
AENC_DECODER_PHI_E
s16(31:16)
Resulting angle phi_e.
PIDIN_VELOCITY_TARGET
Displays actual target velocity at
input of velocity controller.
s32(31:0)
PIDIN_POSITION_TARGET
PIDIN_POSITION_TARGET
0x4Dh
s32(31:0)
AENC_DECODER_PHI_E_PHI_M_OFFSET
PIDIN_VELOCITY_TARGET
0x4Ch
Number of periods per revolution
also called lines per revolution (different nomenclatur compared to
digital ABN encoders).
Displays the count value of Analog
encoder periods.
AENC_DECODER_COUNT_N
AENC_DECODER_COUNT_N
0x45h
s16(15:0)
Target velocity at PI controller input.
Displays actual target position at
input of position controller.
s32(31:0)
CONFIG_DATA
Target position at PI controller input.
This multi-purpose register is
used to set configuration parameters of controller cascade and
input signal conditioning.
biquad_x_a_1
s32(31:0)
biquad_x_a_2
s32(31:0)
biquad_x_b_0
s32(31:0)
biquad_x_b_1
s32(31:0)
biquad_x_b_2
s32(31:0)
biquad_x_enable
bit(31)
0: off
1: on
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
92 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
biquad_v_a_1
s32(31:0)
biquad_v_a_2
s32(31:0)
biquad_v_b_0
s32(31:0)
biquad_v_b_1
s32(31:0)
biquad_v_b_2
s32(31:0)
biquad_v_enable
bit(31)
0: off
1: on
biquad_t_a_1
s32(31:0)
biquad_t_a_2
s32(31:0)
biquad_t_b_0
s32(31:0)
biquad_t_b_1
s32(31:0)
biquad_t_b_2
s32(31:0)
biquad_t_enable
bit(31)
0: off
1: on
biquad_f_a_1
s32(31:0)
biquad_f_a_2
s32(31:0)
biquad_f_b_0
s32(31:0)
biquad_f_b_1
s32(31:0)
biquad_f_b_2
s32(31:0)
biquad_f_enable
bit(31)
0: off
1: on
prbs_amplitude
s32(31:0)
prbs_down_sampling_ratio
s32(31:0)
ref_switch_config
u16(15:0)
Encoder_Init_hall_Enable
bit(0)
0: off
1: on
SINGLE_PIN_IF_CFG
u8(7:0)
SINGLE_PIN_IF_STATUS
u16(31:16)
SINGLE_PIN_IF_OFFSET
u16(15:0)
Offset for scaling of Single pin Interface input
SINGLE_PIN_IF_SCALE
s16(31:16)
Gain factor of Single pin Interface
input
CURRENT_I_nQ8.8_Q4.12
bit(0)
If this bit is set Q4.12 representation of I parameter for torque/flux
control is used. If bit is not set
Q8.8 representation is used
0: Q8.8 representation is used
1: Q4.12 representation is used
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
93 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
CURRENT_P_nQ8.8_Q4.12
bit(1)
If this bit is set Q4.12 representation of P for parameter for
torque/flux control is used. If bit
is not set Q8.8 representation is
used
0: Q8.8 representation is used
1: Q4.12 representation is used
VELOCITY_I_nQ8.8_Q4.12
bit(2)
If this bit is set Q4.12 representation of I parameter for velocity
control is used. If bit is not set
Q8.8 representation is used
0: Q8.8 representation is used
1: Q4.12 representation is used
VELOCITY_P_nQ8.8_Q4.12
bit(3)
If this bit is set Q4.12 representation of P for parameter for velocity control is used. If bit is not set
Q8.8 representation is used
0: Q8.8 representation is used
1: Q4.12 representation is used
POSITION_I_nQ8.8_Q4.12
bit(4)
If this bit is set Q4.12 representation of I parameter for position
control is used. If bit is not set
Q8.8 representation is used
0: Q8.8 representation is used
1: Q4.12 representation is used
POSITION_P_nQ8.8_Q4.12
bit(5)
If this bit is set Q4.12 representation of P for parameter for position control is used. If bit is not set
Q8.8 representation is used
0: Q8.8 representation is used
1: Q4.12 representation is used
0x4Eh
CONFIG_ADDR
CONFIG_ADDR
This register is used to select function of CONFIG_DATA register.
u32(31:0)
1: biquad_x_a_1
2: biquad_x_a_2
4: biquad_x_b_0
5: biquad_x_b_1
6: biquad_x_b_2
7: biquad_x_enable
9: biquad_v_a_1
10: biquad_v_a_2
12: biquad_v_b_0
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
94 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
13: biquad_v_b_1
14: biquad_v_b_2
15: biquad_v_enable
17: biquad_t_a_1
18: biquad_t_a_2
20: biquad_t_b_0
21: biquad_t_b_1
22: biquad_t_b_2
23: biquad_t_enable
25: biquad_f_a_1
26: biquad_f_a_2
28: biquad_f_b_0
29: biquad_f_b_1
30: biquad_f_b_2
31: biquad_f_enable
32: prbs_amplitude
33: prbs_down_sampling_ratio
51: ref_switch_config
52: Encoder_Init_hall_Enable
60: SINGLE_PIN_IF_STATUS_CFG
61: SINGLE_PIN_IF_SCALE_OFFSET
62: ADVANCED_PI_REPRESENT.
0x50h
VELOCITY_SELECTION
VELOCITY_SELECTION
This register is used to select an
angle signal for the velocity control loop and velocity calculation.
u8(7:0)
Selects the source of the velocity
source for velocity measurement.
0: PHI_E_SELECTION
1: phi_e_ext
2: phi_e_openloop
3: phi_e_abn
4: reserved
5: phi_e_hal
6: phi_e_aenc
7: phi_a_aenc
8: reserved
9: phi_m_abn
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
95 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
10: phi_m_abn_2
11: phi_m_aenc
12: phi_m_hal
VELOCITY_METER_SELECTION
u8(15:8)
0: default
1: advanced
0x51h
POSITION_SELECTION
POSITION_SELECTION
This register is used to select an
angle signal for the position calculation and control loop.
u8(7:0)
0:
phi_e selected via PHI_E_
SELECTION
1: phi_e_ext
2: phi_e_openloop
3: phi_e_abn
4: reserved
5: phi_e_hal
6: phi_e_aenc
7: phi_a_aenc
8: reserved
9: phi_m_abn
10: phi_m_abn_2
11: phi_m_aenc
12: phi_m_hal
0x52h
PHI_E_SELECTION
PHI_E_SELECTION
This register is used to select an
angle signal for FOC transformation as electrical angle of the motor.
u8(7:0)
0: reserved
1: phi_e_ext
2: phi_e_openloop
3: phi_e_abn
4: reserved
5: phi_e_hal
6: phi_e_aenc
7: phi_a_aenc
0x53h
PHI_E
PHI_E
This register displays the actual
chosen electrical angle value.
s16(15:0)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
Angle used for the inner FOC loop.
96 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x54h
0x56h
0x58h
0x5Ah
0x5Dh
PID_FLUX_P_FLUX_I
PID_FLUX_I
s16(15:0)
PID_FLUX_P
s16(31:16)
PID_TORQUE_P_TORQUE_I
s16(15:0)
PID_TORQUE_P
s16(31:16)
PID_VELOCITY_P_VELOCITY_I
s16(15:0)
PID_VELOCITY_P
s16(31:16)
PID_POSITION_P_POSITION_I
s16(15:0)
PID_POSITION_P
s16(31:16)
PIDOUT_UQ_UD_LIMITS
This register sets the output voltage/duty cycle limit for the current
controllers. iPARK CIRLIM block
limits voltage output vector length
to this value.
s16(15:0)
PID_TORQUE_FLUX_LIMITS
u16(15:0)
PID torque limt and PID flux limit,
limits the target values coming
from the target registers.
This register is used to set an absolute velocity limit for velocity controller input.
u32(31:0)
PID_POSITION_LIMIT_LOW
Velocity limit.
This register is used to set a lower
limit for position controller input.
s32(31:0)
PID_POSITION_LIMIT_HIGH
PID_POSITION_LIMIT_HIGH
Two dimensional circular limiter
for inputs of iPark. HINT: The absolute value of the register is used
(possible values: 0 ... 32767).
This register is used to set target
current limit for both controllers.
PID_VELOCITY_LIMIT
PID_POSITION_LIMIT_LOW
0x62h
This registers sets control parameters for position controller.
PID_POSITION_I
PID_VELOCITY_LIMIT
0x61h
This registers sets control parameters for velocity controller.
PID_VELOCITY_I
PID_TORQUE_FLUX_LIMITS
0x60h
This registers sets control parameters for torque controller.
PID_TORQUE_I
PIDOUT_UQ_UD_LIMITS
0x5Eh
This registers sets control parameters for flux controller.
Position limit low, programmable
position barrier.
This register is used to set a higher
limit for position controller input.
s32(31:0)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
Position limit high, programmable
position barrier.
97 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x63h
MODE_RAMP_MODE_MOTION
MODE_MOTION
This register is used to set a motion mode, a downsampling factor
for velocity and position control
loop, and the PI controller structure type.
u8(7:0)
0: stopped_mode
1: torque_mode
2: velocity_mode
3: position_mode
4: prbs_flux_mode
5: prbs_torque_mode
6: prbs_velocity_mode
7: prbs_position_mode
8: uq_ud_ext
9: reserved
10: AGPI_A torque_mode
11: AGPI_A velocity_mode
12: AGPI_A position_mode
13: PWM_I torque_mode
14: PWM_I velocity_mode
15: PWM_I position_mode
MODE_PID_SMPL
u7(30:24)
MODE_PID_TYPE
bit(31)
0: parallel/classic PI
1: sequential/advanced PI
0x64h
0x65h
0x66h
PID_TORQUE_FLUX_TARGET
Target values for torque and flux
controllers in torque mode.
PID_FLUX_TARGET
s16(15:0)
PID_TORQUE_TARGET
s16(31:16)
PID_TORQUE_FLUX_OFFSET
Offsets for software torque and
flux control loop inputs for feedforward control.
PID_FLUX_OFFSET
s16(15:0)
Flux offset for feed forward control.
PID_TORQUE_OFFSET
s16(31:16)
Torque offset for feed forward
control.
PID_VELOCITY_TARGET
PID_VELOCITY_TARGET
Target velocity value for velocity
controller in velocity mode.
s32(31:0)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
Target velocity register (for velocity mode).
98 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x67h
PID_VELOCITY_OFFSET
PID_VELOCITY_OFFSET
0x68h
0x6Ah
0x6Ch
0x6Dh
s32(31:0)
Target position register (for position mode).
Target position offset value for position controller in position mode.
PID_FLUX_ACTUAL
s16(15:0)
PID_TORQUE_ACTUAL
s16(31:16)
PID_VELOCITY_ACTUAL
Filtered actual velocity derived
from chosen angle signal.
s32(31:0)
PID_POSITION_ACTUAL
PID_POSITION_ACTUAL
Velocity offset for feed forward
control.
Target position value for position
controller in position mode.
PID_TORQUE_FLUX_ACTUAL
PID_VELOCITY_ACTUAL
0x6Bh
s32(31:0)
PID_POSITION_TARGET
PID_POSITION_TARGET
0x69h
Offset velocity value for velocity
controller in velocity and position
mode.
Actual velocity.
Actual position derived from chosen position signal.
s32(31:0)
PID_ERROR_DATA
Actual multi turn position for positioning. Input position differences
are accumulated. Lower 16 bits
display one revolution of input angle. Upper 16 bits display revolutions. WRITE on PID_POSITION_
ACTUAL writes same value into
PID_POSITION_TARGET to avoid
unwanted move.
Register displays control errors of
controllers for testing according
to selection PID_ERROR_ADDR .
PID_TORQUE_ERROR
s32(31:0)
PID torque error.
PID_FLUX_ERROR
s32(31:0)
PID flux error.
PID_VELOCITY_ERROR
s32(31:0)
PID velocity error.
PID_POSITION_ERROR
s32(31:0)
PID position error.
PID_TORQUE_ERROR_SUM
s32(31:0)
PID torque error.
PID_FLUX_ERROR_SUM
s32(31:0)
PID flux error sum.
PID_VELOCITY_ERROR_SUM
s32(31:0)
PID velocity error sum.
PID_POSITION_ERROR_SUM
s32(31:0)
PID position error sum.
PID_ERROR_ADDR
PID_ERROR_ADDR
Register is used to set function of
PID_ERROR_DATA register.
u8(7:0)
0: PID_TORQUE_ERROR
1: PID_FLUX_ERROR
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
99 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
2: PID_VELOCITY_ERROR
3: PID_POSITION_ERROR
4: PID_TORQUE_ERROR_SUM
5: PID_FLUX_ERROR_SUM
6: PID_VELOCITY_ERROR_SUM
7: PID_POSITION_ERROR_SUM
0x6Eh
INTERIM_DATA
This register is used to display internal signals from controller cascade for monitoring.
PIDIN_TARGET_TORQUE
s32(31:0)
PIDIN target torque.
PIDIN_TARGET_FLUX
s32(31:0)
PIDIN target flux.
PIDIN_TARGET_VELOCITY
s32(31:0)
PIDIN target velocity.
PIDIN_TARGET_POSITION
s32(31:0)
PIDIN target position.
PIDOUT_TARGET_TORQUE
s32(31:0)
PIDOUT target torque.
PIDOUT_TARGET_FLUX
s32(31:0)
PIDOUT target flux.
PIDOUT_TARGET_VELOCITY
s32(31:0)
PIDOUT target velocity.
PIDOUT_TARGET_POSITION
s32(31:0)
PIDOUT target position.
FOC_IUX
s16(15:0)
FOC_IWY
s16(31:16)
FOC_IV
s16(15:0)
FOC_IA
s16(15:0)
FOC_IB
s16(31:16)
FOC_ID
s16(15:0)
FOC_IQ
s16(31:16)
FOC_UD
s16(15:0)
FOC_UQ
s16(31:16)
FOC_UD_LIMITED
s16(15:0)
FOC_UQ_LIMITED
s16(31:16)
FOC_UA
s16(15:0)
FOC_UB
s16(31:16)
FOC_UUX
s16(15:0)
FOC_UWY
s16(31:16)
FOC_UV
s16(15:0)
PWM_UX
s16(15:0)
PWM_WY
s16(31:16)
PWM_V
s16(15:0)
ADC_I_0
s16(15:0)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
100 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x6Fh
ADC_I_1
s16(31:16)
PID_FLUX_ACTUAL_DIV256
s8(7:0)
PID_TORQUE_ACTUAL_DIV256
s8(15:8)
PID_FLUX_TARGET_DIV256
s8(23:16)
PID_TORQUE_TARGET_DIV256
s8(31:24)
PID_TORQUE_ACTUAL
s16(15:0)
PID_TORQUE_TARGET
s16(31:16)
PID_FLUX_ACTUAL
s16(15:0)
PID_FLUX_TARGET
s16(31:16)
PID_VELOCITY_ACTUAL_DIV256
s16(15:0)
PID_VELOCITY_TARGET_DIV256
s16(31:16)
PID_VELOCITY_ACTUAL_LSB
s16(15:0)
PID_VELOCITY_TARGET_LSB
s16(31:16)
PID_POSITION_ACTUAL_DIV256
s16(15:0)
PID_POSITION_TARGET_DIV256
s16(31:16)
PID_POSITION_ACTUAL_LSB
s16(15:0)
PID_POSITION_TARGET_LSB
s16(31:16)
FF_VELOCITY
s32(31:0)
FF_TORQUE
s16(15:0)
ACTUAL_VELOCITY_PPTM
s32(31:0)
REF_SWITCH_STATUS
u16(15:0)
HOME_POSITION
s32(31:0)
LEFT_POSITION
s32(31:0)
RIGHT_POSITION
s32(31:0)
ENC_INIT_HALL_STATUS
u16(15:0)
ENC_INIT_HALL_PHI_E_ABN_OFFSET
u16(15:0)
ENC_INIT_HALL_PHI_E_AENC_OFFSET
u16(15:0)
ENC_INIT_HALL_PHI_A_AENC_OFFSET
u16(15:0)
SINGLE_PIN_IF_TARGET_TORQUE
s16(15:0)
SINGLE_PIN_IF_PWM_DUTY_CYCLE
s16(31:16)
SINGLE_PIN_IF_TARGET_VELOCITY
s32(31:0)
SINGLE_PIN_IF_TARGET_POSITION
s32(31:0)
INTERIM_ADDR
INTERIM_ADDR
Sets function of register INTERIM_
DATA.
u8(7:0)
0: PIDIN_TARGET_TORQUE
1: PIDIN_TARGET_FLUX
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
101 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
2: PIDIN_TARGET_VELOCITY
3: PIDIN_TARGET_POSITION
4: PIDOUT_TARGET_TORQUE
5: PIDOUT_TARGET_FLUX
6: PIDOUT_TARGET_VELOCITY
7: PIDOUT_TARGET_POSITION
8: FOC_IWY_IUX
9: FOC_IV
10: FOC_IB_IA
11: FOC_IQ_ID
12: FOC_UQ_UD
13: FOC_UQ_UD_LIMITED
14: FOC_UB_UA
15: FOC_UWY_UUX
16: FOC_UV
17: PWM_WY_UX
18: PWM_UV
19: ADC_I1_I0
20: PID_TORQUE_TARGET_FLUX_
TARGET_TORQUE_ACTUAL_FLUX_
ACTUAL_DIV256
21:
PID_TORQUE_TARGET_
TORQUE_ACTUAL
22:
PID_FLUX_TARGET_FLUX_
ACTUAL
23:
PID_VELOCITY_TARGET_
VELOCITY_ACTUAL_DIV256
24:
PID_VELOCITY_TARGET_
VELOCITY_ACTUAL
25:
PID_POSITION_TARGET_
POSITION_ACTUAL_DIV256
26:
PID_POSITION_TARGET_
POSITION_ACTUAL
27: FF_VELOCITY
28: FF_TORQUE
29: ACTUAL_VELOCITY_PPTM
30: REF_SWITCH_STATUS
31: HOME_POSITION
32: LEFT_POSITION
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
102 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
33: RIGHT_POSITION
34: ENC_INIT_HALL_STATUS
35: ENC_INIT_HALL_PHI_E_ABN_
OFFSET
36: ENC_INIT_HALL_PHI_E_AENC_
OFFSET
37: ENC_INIT_HALL_PHI_A_AENC_
OFFSET
42: SINGLE_PIN_IF_PWM_DUTY_
CYCLE_TORQUE_TARGET
43:
SINGLE_PIN_IF_VELOCITY_
TARGET
44:
SINGLE_PIN_IF_POSITION_
TARGET
0x75h
0x76h
ADC_VM_LIMITS
Sets supply voltage limits for
brake chopper output action.
ADC_VM_LIMIT_LOW
u16(15:0)
Low limit for brake chopper output BRAKE_OUT.
ADC_VM_LIMIT_HIGH
u16(31:16)
High limit for brake chopper output BRAKE_OUT.
TMC4671_INPUTS_RAW
A of ABN_RAW
Displays actual input signals of
IC for monitoring and connection
testing.
bit(0)
A of ABN_RAW
0: off
1: on
B of ABN_RAW
bit(1)
B of ABN_RAW
0: off
1: on
N of ABN_RAW
bit(2)
N of ABN_RAW
0: off
1: on
-
bit(3)
—
0: off
1: on
A of ABN_2_RAW
bit(4)
A of ABN_2_RAW
0: off
1: on
B of ABN_2_RAW
bit(5)
B of ABN_2_RAW
0: off
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
103 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
1: on
N of ABN_2_RAW
bit(6)
N of ABN_2_RAW
0: off
1: on
-
bit(7)
—
0: off
1: on
HALL_UX of HALL_RAW
bit(8)
HALL_UX of HALL_RAW
0: off
1: on
HALL_V of HALL_RAW
bit(9)
HALL_V of HALL_RAW
0: off
1: on
HALL_WY of HALL_RAW
bit(10)
HALL_WY of HALL_RAW
0: off
1: on
-
bit(11)
—
0: off
1: on
REF_SW_R_RAW
bit(12)
REF_SW_R_RAW
0: off
1: on
REF_SW_H_RAW
bit(13)
REF_SW_H_RAW
0: off
1: on
REF_SW_L_RAW
bit(14)
REF_SW_L_RAW
0: off
1: on
ENABLE_IN_RAW
bit(15)
ENABLE_IN_RAW
0: off
1: on
STP of DIRSTP_RAW
bit(16)
STP of DIRSTP_RAW
0: off
1: on
DIR of DIRSTP_RAW
bit(17)
DIR of DIRSTP_RAW
0: off
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
104 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
1: on
PWM_IN_RAW
bit(18)
PWM_IN_RAW
0: off
1: on
-
bit(19)
—
0: off
1: on
HALL_UX_FILT
bit(20)
ESI_0 of ESI_RAW
0: off
1: on
HALL_V_FILT
bit(21)
ESI_1 of ESI_RAW
0: off
1: on
HALL_WY_FILT
bit(22)
ESI_2 of ESI_RAW
0: off
1: on
-
bit(23)
—
0: off
1: on
-
bit(24)
CFG_0 of CFG
0: off
1: on
-
bit(25)
CFG_1 of CFG
0: off
1: on
-
bit(26)
CFG_2 of CFG
0: off
1: on
-
bit(27)
CFG_3 of CFG
0: off
1: on
PWM_IDLE_L_RAW
bit(28)
PWM_IDLE_L_RAW
0: off
1: on
PWM_IDLE_H_RAW
bit(29)
PWM_IDLE_H_RAW
0: off
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
105 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
1: on
-
bit(30)
DRV_ERR_IN_RAW
0: off
1: on
-
bit(31)
—
0: off
1: on
0x77h
TMC4671_OUTPUTS_RAW
TMC4671_OUTPUTS_RAW[0]
Displays actual output signals of
IC for monitoring and connection
testing.
bit(0)
PWM_UX1_L
0: off
1: on
TMC4671_OUTPUTS_RAW[1]
bit(1)
PWM_UX1_H
0: off
1: on
TMC4671_OUTPUTS_RAW[2]
bit(2)
PWM_VX2_L
0: off
1: on
TMC4671_OUTPUTS_RAW[3]
bit(3)
PWM_VX2_H
0: off
1: on
TMC4671_OUTPUTS_RAW[4]
bit(4)
PWM_WY1_L
0: off
1: on
TMC4671_OUTPUTS_RAW[5]
bit(5)
PWM_WY1_H
0: off
1: on
TMC4671_OUTPUTS_RAW[6]
bit(6)
PWM_Y2_L
0: off
1: on
TMC4671_OUTPUTS_RAW[7]
bit(7)
PWM_Y2_H
0: off
1: on
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
106 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0x78h
STEP_WIDTH
STEP_WIDTH
0x79h
s32(31:0)
UART_BPS
UART_BPS
0x7Bh
Sets a Step width of an acutal input step signal on STEP/DIR interface. Target position is decreased/increased by this value
according to Dir signal.
Sets the desired UART baudrate.
Must be entered as hexadecimal
number (e.g baudrate 9600 is set
by entering 0x00009600h )
u24(23:0)
GPIO_dsADCI_CONFIG
GPIO_dsADCI_CONFIG[0]
STEP WIDTH = 0 => STP pulses
ignored, resulting direction = DIR
XOR sign(STEP_WIDTH), effects
PID_POSITION_TARGET
0x00009600h ,
0x00115200h ,
0x00921600h ,
0x03000000h
(default=0x00009600)
Sets the function and controls the
GPIOs if RTMI is not used. Check
functional description for detailed
explanation of options.
bit(0)
SEL_nDBGSPIM_GPIO
0: off
1: on
GPIO_dsADCI_CONFIG[1]
bit(1)
SEL_nGPIO_dsADCS_A
0: off
1: on
GPIO_dsADCI_CONFIG[2]
bit(2)
SEL_nGPIO_dsADCS_B
0: off
1: on
GPIO_dsADCI_CONFIG[3]
bit(3)
SEL_GPIO_GROUP_A_nIN_OUT
0: off
1: on
GPIO_dsADCI_CONFIG[4]
bit(4)
SEL_GPIO_GROUP_B_nIN_OUT
0: off
1: on
GPIO_dsADCI_CONFIG[5]
bit(5)
SEL_GROUP_A_DSADCS_nCLKIN_
CLKOUT
0: off
1: on
GPIO_dsADCI_CONFIG[6]
bit(6)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
SEL_GROUP_B_DSADCS_nCLKIN_
CLKOUT
107 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
0: off
1: on
0x7Ch
GPO
u8(23:16)
GPI
u8(31:24)
STATUS_FLAGS
STATUS_FLAGS[0]
Displays actual status flags to set
status output. The register is also
used to reset status flags.
bit(0)
pid_x_target_limit
0: off
1: on
STATUS_FLAGS[1]
bit(1)
pid_x_target_ddt_limit
0: off
1: on
STATUS_FLAGS[2]
bit(2)
pid_x_errsum_limit
0: off
1: on
STATUS_FLAGS[3]
bit(3)
pid_x_output_limit
0: off
1: on
STATUS_FLAGS[4]
bit(4)
pid_v_target_limit
0: off
1: on
STATUS_FLAGS[5]
bit(5)
pid_v_target_ddt_limit
0: off
1: on
STATUS_FLAGS[6]
bit(6)
pid_v_errsum_limit
0: off
1: on
STATUS_FLAGS[7]
bit(7)
pid_v_output_limit
0: off
1: on
STATUS_FLAGS[8]
bit(8)
pid_id_target_limit
0: off
1: on
STATUS_FLAGS[9]
bit(9)
pid_id_target_ddt_limit
0: off
1: on
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
108 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
STATUS_FLAGS[10]
bit(10)
pid_id_errsum_limit
0: off
1: on
STATUS_FLAGS[11]
bit(11)
pid_id_output_limit
0: off
1: on
STATUS_FLAGS[12]
bit(12)
pid_iq_target_limit
0: off
1: on
STATUS_FLAGS[13]
bit(13)
pid_iq_target_ddt_limit
0: off
1: on
STATUS_FLAGS[14]
bit(14)
pid_iq_errsum_limit
0: off
1: on
STATUS_FLAGS[15]
bit(15)
pid_iq_output_limit
0: off
1: on
STATUS_FLAGS[16]
bit(16)
ipark_cirlim_limit_u_d
0: off
1: on
STATUS_FLAGS[17]
bit(17)
ipark_cirlim_limit_u_q
0: off
1: on
STATUS_FLAGS[18]
bit(18)
ipark_cirlim_limit_u_r
0: off
1: on
STATUS_FLAGS[19]
bit(19)
not_PLL_locked
0: off
1: on
STATUS_FLAGS[20]
bit(20)
ref_sw_r
0: off
1: on
STATUS_FLAGS[21]
bit(21)
ref_sw_h
0: off
1: on
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
109 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
STATUS_FLAGS[22]
bit(22)
ref_sw_l
0: off
1: on
STATUS_FLAGS[23]
bit(23)
—
0: off
1: on
STATUS_FLAGS[24]
bit(24)
pwm_min
0: off
1: on
STATUS_FLAGS[25]
bit(25)
pwm_max
0: off
1: on
STATUS_FLAGS[26]
bit(26)
adc_i_clipped
0: off
1: on
STATUS_FLAGS[27]
bit(27)
aenc_clipped
0: off
1: on
STATUS_FLAGS[28]
bit(28)
enc_n
0: off
1: on
STATUS_FLAGS[29]
bit(29)
enc_2_n
0: off
1: on
STATUS_FLAGS[30]
bit(30)
aenc_n
0: off
1: on
STATUS_FLAGS[31]
bit(31)
reserved
0: off
1: on
0x7Dh
STATUS_MASK
STATUS_MASK
Register is used to set a mask for
STATUS_FLAGS register to set STATUS output pin.
u32(31:0)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
110 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
7.3
Register Map - Defaults, Data Fields (Bit Masks), min, max
RD/WR
ADDR
NAME
R
0x00h
CHIPINFO_DATA
RW
0x01h
DEFAULT
MIN
MAX
SI_TYPE
0x0h
0x0h
0xFFFFFFFFh
SI_VERSION
0x0h
0x0h
0xFFFFFFFFh
SI_DATE
0x0h
0x0h
0xFFFFFFFFh
SI_TIME
0x0h
0x0h
0xFFFFFFh
SI_VARIANT
0x0h
0x0h
0xFFFFFFFFh
SI_BUILD
0x0h
0x0h
0xFFFFFFFFh
0x0h
0x0h
0x5h
ADC_I0_RAW
0x0h
0x0h
0xFFFFh
ADC_I1_RAW
0x0h
0x0h
0xFFFFh
ADC_VM_RAW
0x0h
0x0h
0xFFFFh
ADC_AGPI_A_RAW
0x0h
0x0h
0xFFFFh
ADC_AGPI_B_RAW
0x0h
0x0h
0xFFFFh
ADC_AENC_UX_RAW
0x0h
0x0h
0xFFFFh
ADC_AENC_VN_RAW
0x0h
0x0h
0xFFFFh
ADC_AENC_WY_RAW
0x0h
0x0h
0xFFFFh
0x0h
0x0h
0x3h
cfg_dsmodulator_a
0x0h
0x0h
0x3h
mclk_polarity_a
0x0h
0x0h
0x1h
mdat_polarity_a
0x0h
0x0h
0x1h
sel_nclk_mclk_i_a
0x0h
0x0h
0x1h
blanking_a
0x0h
0x0h
0xFFh
cfg_dsmodulator_b
0x0h
0x0h
0x3h
mclk_polarity_b
0x0h
0x0h
0x1h
mdat_polarity_b
0x0h
0x0h
0x1h
sel_nclk_mclk_i_b
0x0h
0x0h
0x1h
blanking_b
0x0h
0x0h
0xFFh
CHIPINFO_ADDR
CHIP_INFO_ADDRESS
R
RW
0x02h
0x03h
ADC_RAW_DATA
ADC_RAW_ADDR
ADC_RAW_ADDR
RW
RW
0x04h
0x05h
dsADC_MCFG_B_
MCFG_A
dsADC_MCLK_A
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
COMMENT
111 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
dsADC_MCLK_A
RW
0x06h
0xCCCCCCDh
0x0h
0xFFFFFFFFh
0xCCCCCCDh
0x0h
0xFFFFFFFFh
dsADC_MDEC_A
0x100h
0x0h
0xFFFFh
dsADC_MDEC_B
0x100h
0x0h
0xFFFFh
0x0h
0x0h
0xFFFFh
-0x8000h
0x7FFFh
0x0h
0xFFFFh
-0x8000h
0x7FFFh
dsADC_MCLK_B
dsADC_MCLK_B
RW
RW
0x07h
0x08h
dsADC_MDEC_B_
MDEC_A
ADC_I1_SCALE_
OFFSET
ADC_I1_OFFSET
ADC_I1_SCALE
RW
0x09h
ADC_I0_SCALE_
OFFSET
ADC_I0_OFFSET
ADC_I0_SCALE
RW
RW
RW
RW
0x0Ah
0x0Bh
0x0Ch
0x0Dh
0x100h
0x0h
0x100h
ADC_I_SELECT
ADC_I0_SELECT
0x0h
0x0h
0x3h
ADC_I1_SELECT
0x1h
0x0h
0x3h
ADC_I_UX_SELECT
0x0h
0x0h
0x2h
ADC_I_V_SELECT
0x1h
0x0h
0x2h
ADC_I_WY_SELECT
0x2h
0x0h
0x2h
ADC_I0_EXT
0x0h
0x0h
0xFFFFh
ADC_I1_EXT
0x0h
0x0h
0xFFFFh
ADC_I0
0x0h
0x0h
0x7h
ADC_I1
0x0h
0x0h
0x7h
ADC_VM
0x0h
0x0h
0x7h
ADC_AGPI_A
0x0h
0x0h
0x7h
ADC_AGPI_B
0x0h
0x0h
0x7h
ADC_AENC_UX
0x0h
0x0h
0x7h
ADC_AENC_VN
0x0h
0x0h
0x7h
ADC_AENC_WY
0x0h
0x0h
0x7h
0x0h
0x0h
0xFFFFh
ADC_I1_I0_EXT
DS_ANALOG_INPUT_
STAGE_CFG
AENC_0_SCALE_
OFFSET
AENC_0_OFFSET
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
112 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
AENC_0_SCALE
RW
0x0Eh
AENC_1_SCALE
0x0Fh
AENC_2_SCALE
R
R
0x11h
0x12h
0x13h
R
0x15h
0x16h
RW
0x17h
0x18h
RW
RW
0x19h
0x1Ah
0x1Bh
0xFFFFh
0x100h
-0x8000h
0x7FFFh
0x0h
0x0h
0xFFFFh
0x100h
-0x8000h
0x7FFFh
0x0h
0x0h
0x2h
AENC_1_SELECT
0x1h
0x0h
0x2h
AENC_2_SELECT
0x2h
0x0h
0x2h
ADC_IUX
0x0h
-0x8000h
0x7FFFh
ADC_IWY
0x0h
-0x8000h
0x7FFFh
0x0h
-0x8000h
0x7FFFh
AENC_UX
0x0h
-0x8000h
0x7FFFh
AENC_WY
0x0h
-0x8000h
0x7FFFh
0x0h
-0x8000h
0x7FFFh
PWM_POLARITIES[0]
0x0h
0x0h
0x1h
PWM_POLARITIES[1]
0x0h
0x0h
0x1h
0xF9Fh
0x0h
0xFFFFh
PWM_BBM_L
0x14h
0x0h
0xFFh
PWM_BBM_H
0x14h
0x0h
0xFFh
PWM_CHOP
0x0h
0x0h
0x7h
PWM_SV
0x0h
0x0h
0x1h
ADC_IWY_IUX
ADC_IV
AENC_WY_UX
AENC_VN
PWM_POLARITIES
PWM_MAXCNT
PWM_MAXCNT
RW
0x0h
AENC_0_SELECT
AENC_VN
RW
0x0h
AENC_SELECT
ADC_IV
R
0x7FFFh
AENC_2_SCALE_
OFFSET
AENC_2_OFFSET
RW
-0x8000h
AENC_1_SCALE_
OFFSET
AENC_1_OFFSET
RW
0x100h
PWM_BBM_H_BBM_L
PWM_SV_CHOP
MOTOR_TYPE_N_
POLE_PAIRS
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
113 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
RW
0x1Ch
N_POLE_PAIRS
0x1h
0x1h
0xFFFFh
MOTOR_TYPE
0x0h
0x0h
0x3h
0x0h
-0x8000h
0x7FFFh
0x0h
0x0h
0x1h
0x0h
0x0h
0xFFFFFh
0x0h
-0x80000000h
0x7FFFFFFFh
0x0h
-0x80000000h
0x7FFFFFFFh
0x0h
-0x8000h
0x7FFFh
UD_EXT
0x0h
-0x8000h
0x7FFFh
UQ_EXT
0x0h
-0x8000h
0x7FFFh
apol
0x0h
0x0h
0x1h
bpol
0x0h
0x0h
0x1h
npol
0x0h
0x0h
0x1h
use_abn_as_n
0x0h
0x0h
0x1h
cln
0x0h
0x0h
0x1h
direction
0x0h
0x0h
0x1h
0x10000h
0x0h
0xFFFFFFh
PHI_E_EXT
PHI_E_EXT
RW
0x1Fh
OPENLOOP_MODE
OPENLOOP_PHI_
DIRECTION
RW
0x20h
OPENLOOP_
ACCELERATION
OPENLOOP_
ACCELERATION
RW
0x21h
OPENLOOP_
VELOCITY_TARGET
OPENLOOP_
VELOCITY_TARGET
RW
0x22h
OPENLOOP_
VELOCITY_ACTUAL
OPENLOOP_
VELOCITY_ACTUAL
RWI
0x23h
OPENLOOP_PHI
OPENLOOP_PHI
RW
RW
RW
0x24h
0x25h
0x26h
UQ_UD_EXT
ABN_DECODER_
MODE
ABN_DECODER_PPR
ABN_DECODER_PPR
RW
0x27h
ABN_DECODER_
COUNT
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
114 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
ABN_DECODER_
COUNT
RW
0x28h
0x0h
0x0h
0xFFFFFFh
0x0h
0x0h
0xFFFFFFh
ABN_DECODER_PHI_
M_OFFSET
0x0h
-0x8000h
0x7FFFh
ABN_DECODER_PHI_
E_OFFSET
0x0h
-0x8000h
0x7FFFh
ABN_DECODER_PHI_
M
0x0h
-0x8000h
0x7FFFh
ABN_DECODER_PHI_
E
0x0h
-0x8000h
0x7FFFh
apol
0x0h
0x0h
0x1h
bpol
0x0h
0x0h
0x1h
npol
0x0h
0x0h
0x1h
use_abn_as_n
0x0h
0x0h
0x1h
cln
0x0h
0x0h
0x1h
direction
0x0h
0x0h
0x1h
0x10000h
0x1h
0xFFFFFFh
0x0h
0x0h
0xFFFFFFh
0x0h
0x0h
0xFFFFFFh
ABN_DECODER_
COUNT_N
ABN_DECODER_
COUNT_N
RW
R
RW
RW
0x29h
0x2Ah
0x2Ch
0x2Dh
ABN_DECODER_PHI_
E_PHI_M_OFFSET
ABN_DECODER_PHI_
E_PHI_M
ABN_2_DECODER_
MODE
ABN_2_DECODER_
PPR
ABN_2_DECODER_
PPR
RW
0x2Eh
ABN_2_DECODER_
COUNT
ABN_2_DECODER_
COUNT
RW
0x2Fh
ABN_2_DECODER_
COUNT_N
ABN_2_DECODER_
COUNT_N
RW
0x30h
ABN_2_DECODER_
PHI_M_OFFSET
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
115 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
ABN_2_DECODER_
PHI_M_OFFSET
R
0x31h
0x0h
-0x8000h
0x7FFFh
0x0h
-0x8000h
0x7FFFh
0x0h
0x0h
0x1h
0x0h
0x0h
0x1h
interpolation
0x0h
0x0h
0x1h
direction
0x0h
0x0h
0x1h
HALL_BLANK
0x0h
0x0h
0xFFFh
HALL_POSITION_000
0x0h
-0x8000h
0x7FFFh
HALL_POSITION_060
0x2AAAh
-0x8000h
0x7FFFh
HALL_POSITION_120
0x5555h
-0x8000h
0x7FFFh
HALL_POSITION_180
-0x8000h
-0x8000h
0x7FFFh
HALL_POSITION_240
-0x5556h
-0x8000h
0x7FFFh
HALL_POSITION_300
-0x2AABh
-0x8000h
0x7FFFh
HALL_PHI_M_OFFSET
0x0h
-0x8000h
0x7FFFh
HALL_PHI_E_OFFSET
0x0h
-0x8000h
0x7FFFh
0x0h
0xFFFFh
ABN_2_DECODER_
PHI_M
ABN_2_DECODER_
PHI_M
RW
0x33h
HALL_MODE
polarity
synchronous
sampling
RW
RW
RW
RW
RW
0x34h
0x35h
0x36h
0x37h
0x38h
PWM
HALL_POSITION_
060_000
HALL_POSITION_
180_120
HALL_POSITION_
300_240
HALL_PHI_E_PHI_M_
OFFSET
HALL_DPHI_MAX
HALL_DPHI_MAX
R
R
0x39h
0x3Ah
0x2AAAh
HALL_PHI_E_
INTERPOLATED_
PHI_E
HALL_PHI_E
0x0h
-0x8000h
0x7FFFh
HALL_PHI_E_
INTERPOLATED
0x0h
-0x8000h
0x7FFFh
HALL_PHI_M
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
116 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
HALL_PHI_M
RW
RW
R
0x3Bh
0x3Ch
0x3Dh
0x0h
-0x8000h
0x7FFFh
AENC_DECODER_
MODE[0]
0x0h
0x0h
0x1h
AENC_DECODER_
MODE[12]
0x0h
0x0h
0x1h
AENC_DECODER_N_
THRESHOLD
0x0h
0x0h
0xFFFFh
AENC_DECODER_N_
MASK
0x0h
-0x8000h
0x7FFFh
0x0h
-0x8000h
0x7FFFh
0x0h
-0x8000h
0x7FFFh
0x0h
-0x80000000h
0x7FFFFFFFh
0x1h
-0x8000h
0x7FFFh
0x0h
-0x80000000h
0x7FFFFFFFh
0x0h
-0x80000000h
0x7FFFFFFFh
0x0h
-0x8000h
0x7FFFh
AENC_DECODER_
MODE
AENC_DECODER_N_
THRESHOLD
AENC_DECODER_
PHI_A_RAW
AENC_DECODER_
PHI_A_RAW
RW
0x3Eh
AENC_DECODER_
PHI_A_OFFSET
AENC_DECODER_
PHI_A_OFFSET
R
0x3Fh
AENC_DECODER_
PHI_A
AENC_DECODER_
PHI_A
RW
0x40h
AENC_DECODER_PPR
AENC_DECODER_PPR
R
0x41h
AENC_DECODER_
COUNT
AENC_DECODER_
COUNT
RW
0x42h
AENC_DECODER_
COUNT_N
AENC_DECODER_
COUNT_N
RW
0x45h
AENC_DECODER_
PHI_E_PHI_M_OFFSET
AENC_DECODER_
PHI_M_OFFSET
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
117 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
AENC_DECODER_
PHI_E_OFFSET
R
R
0x46h
0x4Bh
0x0h
-0x8000h
0x7FFFh
AENC_DECODER_
PHI_M
0x0h
-0x8000h
0x7FFFh
AENC_DECODER_
PHI_E
0x0h
-0x8000h
0x7FFFh
0x0h
-0x80000000h
0x7FFFFFFFh
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_x_a_1
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_x_a_2
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_x_b_0
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_x_b_1
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_x_b_2
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_x_enable
0x0h
0x0h
0x1h
biquad_v_a_1
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_v_a_2
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_v_b_0
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_v_b_1
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_v_b_2
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_v_enable
0x0h
0x0h
0x1h
biquad_t_a_1
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_t_a_2
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_t_b_0
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_t_b_1
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_t_b_2
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_t_enable
0x0h
0x0h
0x1h
biquad_f_a_1
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_f_a_2
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_f_b_0
0x0h
-0x80000000h
0x7FFFFFFFh
AENC_DECODER_
PHI_E_PHI_M
PIDIN_VELOCITY_
TARGET
PIDIN_VELOCITY_
TARGET
R
0x4Ch
PIDIN_POSITION_
TARGET
PIDIN_POSITION_
TARGET
RW
0x4Dh
CONFIG_DATA
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
118 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
RW
0x4Eh
biquad_f_b_1
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_f_b_2
0x0h
-0x80000000h
0x7FFFFFFFh
biquad_f_enable
0x0h
0x0h
0x1h
prbs_amplitude
0x0h
-0x80000000h
0x7FFFFFFFh
prbs_down_
sampling_ratio
0x0h
-0x80000000h
0x7FFFFFFFh
feed_forward_
velocity_gain
0x0h
-0x80000000h
0x7FFFFFFFh
feed_forward_
velocity_filter_
constant
0x0h
-0x80000000h
0x7FFFFFFFh
feed_forward_
torque_gain
0x0h
-0x80000000h
0x7FFFFFFFh
feed_forward_
torgue_filter_
constant
0x0h
-0x80000000h
0x7FFFFFFFh
VELOCITY_METER_
PPTM_MIN_POS_DEV
0x0h
0x0h
0xFFFFh
ref_switch_config
0x0h
0x0h
0xFFFFh
Encoder_Init_hall_
Enable
0x0h
0x0h
0x1h
SINGLE_PIN_IF_CFG
0x0h
0x0h
0xFFh
SINGLE_PIN_IF_
STATUS
0x0h
0x0h
0xFFFFh
SINGLE_PIN_IF_
OFFSET
0x0h
0x0h
0xFFFFh
SINGLE_PIN_IF_
SCALE
0x0h
-0x7FFFh
0x7FFFh
CURRENT_P_nQ8.8_
Q4.12
0x0h
0x0h
0x1h
CURRENT_I_nQ8.8_
Q4.12
0x0h
0x0h
0x1h
VELOCITY_P_nQ8.8_
Q4.12
0x0h
0x0h
0x1h
VELOCITY_I_nQ8.8_
Q4.12
0x0h
0x0h
0x1h
POSITION_P_nQ8.8_
Q4.12
0x0h
0x0h
0x1h
POSITION_I_nQ8.8_
Q4.12
0x0h
0x0h
0x1h
CONFIG_ADDR
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
119 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
CONFIG_ADDR
RW
RW
0x50h
0x51h
0x0h
0x1h
0x3Eh
VELOCITY_
SELECTION
0x0h
0x0h
0xCh
VELOCITY_METER_
SELECTION
0x0h
0x0h
0x1h
0x0h
0x0h
0xCh
0x0h
0x0h
0x7h
0x0h
-0x8000h
0x7FFFh
PID_FLUX_I
0x0h
0x0h
0x7FFFh
PID_FLUX_P
0x0h
0x0h
0x7FFFh
PID_TORQUE_I
0x0h
0x0h
0x7FFFh
PID_TORQUE_P
0x0h
0x0h
0x7FFFh
PID_VELOCITY_I
0x0h
0x0h
0x7FFFh
PID_VELOCITY_P
0x0h
0x0h
0x7FFFh
PID_POSITION_I
0x0h
0x0h
0x7FFFh
PID_POSITION_P
0x0h
0x0h
0x7FFFh
0x5A81h
0x0h
0x7FFFh
0x7FFFh
0x0h
0x7FFFh
VELOCITY_
SELECTION
POSITION_
SELECTION
POSITION_
SELECTION
RW
0x52h
PHI_E_SELECTION
PHI_E_SELECTION
R
0x53h
PHI_E
PHI_E
RW
RW
RW
RW
RW
0x54h
0x56h
0x58h
0x5Ah
0x5Dh
PID_FLUX_P_FLUX_I
PID_TORQUE_P_
TORQUE_I
PID_VELOCITY_P_
VELOCITY_I
PID_POSITION_P_
POSITION_I
PIDOUT_UQ_UD_
LIMITS
PIDOUT_UQ_UD_
LIMITS
RW
0x5Eh
PID_TORQUE_FLUX_
LIMITS
PID_TORQUE_FLUX_
LIMITS
RW
0x5Fh
PID_ACCELERATION_
LIMIT
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
120 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
PID_ACCELERATION_
LIMIT
RW
0x60h
0x61h
0x62h
RW
RW
RW
0x63h
0x64h
0x65h
0x66h
0x67h
0x68h
0xFFFFFFFFh
-0x7FFFFFFFh
-0x80000000h
0x7FFFFFFFh
0x7FFFFFFFh
-0x80000000h
0x7FFFFFFFh
MODE_MOTION
0x0h
0x0h
0xFh
MODE_RAMP
0x0h
0x0h
0x7h
MODE_FF
0x0h
0x0h
0x2h
MODE_PID_SMPL
0x0h
0x0h
0x7Fh
MODE_PID_TYPE
0x0h
0x0h
0x1h
PID_FLUX_TARGET
0x0h
-0x8000h
0x7FFFh
PID_TORQUE_
TARGET
0x0h
-0x8000h
0x7FFFh
PID_FLUX_OFFSET
0x0h
-0x8000h
0x7FFFh
PID_TORQUE_
OFFSET
0x0h
-0x8000h
0x7FFFh
0x0h
-0x80000000h
0x7FFFFFFFh
0x0h
-0x80000000h
0x7FFFFFFFh
PID_TORQUE_FLUX_
TARGET
PID_TORQUE_FLUX_
OFFSET
PID_VELOCITY_
TARGET
PID_VELOCITY_
OFFSET
PID_VELOCITY_
OFFSET
RW
0x0h
MODE_RAMP_
MODE_MOTION
PID_VELOCITY_
TARGET
RW
0x7FFFFFFFh
PID_POSITION_
LIMIT_HIGH
PID_POSITION_
LIMIT_HIGH
RW
0xFFFFFFFFh
PID_POSITION_
LIMIT_LOW
PID_POSITION_
LIMIT_LOW
RW
0x0h
PID_VELOCITY_LIMIT
PID_VELOCITY_LIMIT
RW
0x7FFFFFFFh
PID_POSITION_
TARGET
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
121 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
PID_POSITION_
TARGET
R
R
0x69h
0x6Ah
0x0h
-0x80000000h
0x7FFFFFFFh
PID_FLUX_ACTUAL
0x0h
-0x8000h
0x7FFFh
PID_TORQUE_
ACTUAL
0x0h
-0x8000h
0x7FFFh
0x0h
-0x80000000h
0x7FFFFFFFh
0x0h
-0x80000000h
0x7FFFFFFFh
PID_TORQUE_ERROR
0x0h
-0x80000000h
0x7FFFFFFFh
PID_FLUX_ERROR
0x0h
-0x80000000h
0x7FFFFFFFh
PID_VELOCITY_
ERROR
0x0h
-0x80000000h
0x7FFFFFFFh
PID_POSITION_
ERROR
0x0h
-0x80000000h
0x7FFFFFFFh
PID_TORQUE_
ERROR_SUM
0x0h
-0x80000000h
0x7FFFFFFFh
PID_FLUX_ERROR_
SUM
0x0h
-0x80000000h
0x7FFFFFFFh
PID_VELOCITY_
ERROR_SUM
0x0h
-0x80000000h
0x7FFFFFFFh
PID_POSITION_
ERROR_SUM
0x0h
-0x80000000h
0x7FFFFFFFh
0x0h
0x0h
0x7h
PIDIN_TARGET_
TORQUE
0x0h
-0x80000000h
0x7FFFFFFFh
PIDIN_TARGET_FLUX
0x0h
-0x80000000h
0x7FFFFFFFh
PIDIN_TARGET_
VELOCITY
0x0h
-0x80000000h
0x7FFFFFFFh
PIDIN_TARGET_
POSITION
0x0h
-0x80000000h
0x7FFFFFFFh
PID_TORQUE_FLUX_
ACTUAL
PID_VELOCITY_
ACTUAL
PID_VELOCITY_
ACTUAL
RW
0x6Bh
PID_POSITION_
ACTUAL
PID_POSITION_
ACTUAL
R
RW
0x6Ch
0x6Dh
PID_ERROR_DATA
PID_ERROR_ADDR
PID_ERROR_ADDR
RW
0x6Eh
INTERIM_DATA
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
122 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
PIDOUT_TARGET_
TORQUE
0x0h
-0x80000000h
0x7FFFFFFFh
PIDOUT_TARGET_
FLUX
0x0h
-0x80000000h
0x7FFFFFFFh
PIDOUT_TARGET_
VELOCITY
0x0h
-0x80000000h
0x7FFFFFFFh
PIDOUT_TARGET_
POSITION
0x0h
-0x80000000h
0x7FFFFFFFh
FOC_IUX
0x0h
-0x8000h
0x7FFFh
FOC_IWY
0x0h
-0x8000h
0x7FFFh
FOC_IV
0x0h
-0x8000h
0x7FFFh
FOC_IA
0x0h
-0x8000h
0x7FFFh
FOC_IB
0x0h
-0x8000h
0x7FFFh
FOC_ID
0x0h
-0x8000h
0x7FFFh
FOC_IQ
0x0h
-0x8000h
0x7FFFh
FOC_UD
0x0h
-0x8000h
0x7FFFh
FOC_UQ
0x0h
-0x8000h
0x7FFFh
FOC_UD_LIMITED
0x0h
-0x8000h
0x7FFFh
FOC_UQ_LIMITED
0x0h
-0x8000h
0x7FFFh
FOC_UA
0x0h
-0x8000h
0x7FFFh
FOC_UB
0x0h
-0x8000h
0x7FFFh
FOC_UUX
0x0h
-0x8000h
0x7FFFh
FOC_UWY
0x0h
-0x8000h
0x7FFFh
FOC_UV
0x0h
-0x8000h
0x7FFFh
PWM_UX
0x0h
-0x8000h
0x7FFFh
PWM_WY
0x0h
-0x8000h
0x7FFFh
PWM_V
0x0h
-0x8000h
0x7FFFh
ADC_I_0
0x0h
-0x8000h
0x7FFFh
ADC_I_1
0x0h
-0x8000h
0x7FFFh
PID_FLUX_ACTUAL_
DIV256
0x0h
-0x80h
0x7Fh
PID_TORQUE_
ACTUAL_DIV256
0x0h
-0x80h
0x7Fh
PID_FLUX_TARGET_
DIV256
0x0h
-0x80h
0x7Fh
PID_TORQUE_
TARGET_DIV256
0x0h
-0x80h
0x7Fh
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
123 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
PID_TORQUE_
ACTUAL
0x0h
-0x8000h
0x7FFFh
PID_TORQUE_
TARGET
0x0h
-0x8000h
0x7FFFh
PID_FLUX_ACTUAL
0x0h
-0x8000h
0x7FFFh
PID_FLUX_TARGET
0x0h
-0x8000h
0x7FFFh
PID_VELOCITY_
ACTUAL_DIV256
0x0h
-0x8000h
0x7FFFh
PID_VELOCITY_
TARGET_DIV256
0x0h
-0x8000h
0x7FFFh
PID_VELOCITY_
ACTUAL_LSB
0x0h
-0x8000h
0x7FFFh
PID_VELOCITY_
TARGET_LSB
0x0h
-0x8000h
0x7FFFh
PID_POSITION_
ACTUAL_DIV256
0x0h
-0x8000h
0x7FFFh
PID_POSITION_
TARGET_DIV256
0x0h
-0x8000h
0x7FFFh
PID_POSITION_
ACTUAL_LSB
0x0h
-0x8000h
0x7FFFh
PID_POSITION_
TARGET_LSB
0x0h
-0x8000h
0x7FFFh
FF_VELOCITY
0x0h
-0x80000000h
0x7FFFFFFFh
FF_TORQUE
0x0h
-0x8000h
0x7FFFh
ACTUAL_VELOCITY_
PPTM
0x0h
-0x80000000h
0x7FFFFFFFh
REF_SWITCH_STATUS
0x0h
0x0h
0xFFFFh
HOME_POSITION
0x0h
-0x80000000h
0x7FFFFFFFh
LEFT_POSITION
0x0h
-0x80000000h
0x7FFFFFFFh
RIGHT_POSITION
0x0h
-0x80000000h
0x7FFFFFFFh
ENC_INIT_HALL_
STATUS
0x0h
0x0h
0xFFFFh
ENC_INIT_HALL_PHI_
E_ABN_OFFSET
0x0h
0x0h
0xFFFFh
ENC_INIT_HALL_PHI_
E_AENC_OFFSET
0x0h
0x0h
0xFFFFh
ENC_INIT_HALL_PHI_
A_AENC_OFFSET
0x0h
0x0h
0xFFFFh
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
124 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
RW
0x6Fh
SINGLE_PIN_IF_
TARGET_TORQUE
0x0h
-0x8000h
0x8000h
SINGLE_PIN_IF_
PWM_DUTY_CYCLE
0x0h
-0x8000h
0x8000h
SINGLE_PIN_IF_
TARGET_VELOCITY
0x0h
-0x80000000h
0x7FFFFFFFh
SINGLE_PIN_IF_
TARGET_POSITION
0x0h
-0x80000000h
0x7FFFFFFFh
0x0h
0x0h
0xD7h
ADC_VM_LIMIT_LOW
0xFFFFh
0x0h
0xFFFFh
ADC_VM_LIMIT_HIGH
0xFFFFh
0x0h
0xFFFFh
A of ABN_RAW
0x0h
0x0h
0x1h
B of ABN_RAW
0x0h
0x0h
0x1h
N of ABN_RAW
0x0h
0x0h
0x1h
-
0x0h
0x0h
0x1h
A of ABN_2_RAW
0x0h
0x0h
0x1h
B of ABN_2_RAW
0x0h
0x0h
0x1h
N of ABN_2_RAW
0x0h
0x0h
0x1h
-
0x0h
0x0h
0x1h
HALL_
0x0h
0x0h
0x1h
HALL_V of HALL_RAW
0x0h
0x0h
0x1h
HALL_WY of HALL_
RAW
0x0h
0x0h
0x1h
-
0x0h
0x0h
0x1h
REF_SW_R_RAW
0x0h
0x0h
0x1h
REF_SW_H_RAW
0x0h
0x0h
0x1h
REF_SW_L_RAW
0x0h
0x0h
0x1h
ENABLE_IN_RAW
0x0h
0x0h
0x1h
STP of DIRSTP_RAW
0x0h
0x0h
0x1h
DIR of DIRSTP_RAW
0x0h
0x0h
0x1h
PWM_IN_RAW
0x0h
0x0h
0x1h
-
0x0h
0x0h
0x1h
INTERIM_ADDR
INTERIM_ADDR
RW
R
0x75h
0x76h
ADC_VM_LIMITS
TMC4671_INPUTS_
RAW
HALL_UX
RAW
of
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
125 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
R
RW
0x77h
0x78h
HALL_UX_FILT
0x0h
0x0h
0x1h
HALL_V_FILT
0x0h
0x0h
0x1h
HALL_WY_FILT
0x0h
0x0h
0x1h
-
0x0h
0x0h
0x1h
-
0x0h
0x0h
0x1h
-
0x0h
0x0h
0x1h
-
0x0h
0x0h
0x1h
-
0x0h
0x0h
0x1h
PWM_IDLE_L_RAW
0x0h
0x0h
0x1h
PWM_IDLE_H_RAW
0x0h
0x0h
0x1h
-
0x0h
0x0h
0x1h
-
0x0h
0x0h
0x1h
TMC4671_OUTPUTS_
RAW[0]
0x0h
0x0h
0x1h
TMC4671_OUTPUTS_
RAW[1]
0x0h
0x0h
0x1h
TMC4671_OUTPUTS_
RAW[2]
0x0h
0x0h
0x1h
TMC4671_OUTPUTS_
RAW[3]
0x0h
0x0h
0x1h
TMC4671_OUTPUTS_
RAW[4]
0x0h
0x0h
0x1h
TMC4671_OUTPUTS_
RAW[5]
0x0h
0x0h
0x1h
TMC4671_OUTPUTS_
RAW[6]
0x0h
0x0h
0x1h
TMC4671_OUTPUTS_
RAW[7]
0x0h
0x0h
0x1h
0x0h
-0x80000000h
0x7FFFFFFFh
0x00009600h
0x0h
0xFFFFFFh
GPIO_dsADCI_
CONFIG[0]
0x0h
0x0h
0x1h
GPIO_dsADCI_
CONFIG[1]
0x0h
0x0h
0x1h
TMC4671_OUTPUTS_
RAW
STEP_WIDTH
STEP_WIDTH
RW
0x79h
UART_BPS
UART_BPS
RW
0x7Bh
GPIO_dsADCI_
CONFIG
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
126 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
RW
0x7Ch
GPIO_dsADCI_
CONFIG[2]
0x0h
0x0h
0x1h
GPIO_dsADCI_
CONFIG[3]
0x0h
0x0h
0x1h
GPIO_dsADCI_
CONFIG[4]
0x0h
0x0h
0x1h
GPIO_dsADCI_
CONFIG[5]
0x0h
0x0h
0x1h
GPIO_dsADCI_
CONFIG[6]
0x0h
0x0h
0x1h
GPO
0x0h
0x0h
0xFFh
GPI
0x0h
0x0h
0xFFh
STATUS_FLAGS[0]
0x0h
0x0h
0x1h
STATUS_FLAGS[1]
0x0h
0x0h
0x1h
STATUS_FLAGS[2]
0x0h
0x0h
0x1h
STATUS_FLAGS[3]
0x0h
0x0h
0x1h
STATUS_FLAGS[4]
0x0h
0x0h
0x1h
STATUS_FLAGS[5]
0x0h
0x0h
0x1h
STATUS_FLAGS[6]
0x0h
0x0h
0x1h
STATUS_FLAGS[7]
0x0h
0x0h
0x1h
STATUS_FLAGS[8]
0x0h
0x0h
0x1h
STATUS_FLAGS[9]
0x0h
0x0h
0x1h
STATUS_FLAGS[10]
0x0h
0x0h
0x1h
STATUS_FLAGS[11]
0x0h
0x0h
0x1h
STATUS_FLAGS[12]
0x0h
0x0h
0x1h
STATUS_FLAGS[13]
0x0h
0x0h
0x1h
STATUS_FLAGS[14]
0x0h
0x0h
0x1h
STATUS_FLAGS[15]
0x0h
0x0h
0x1h
STATUS_FLAGS[16]
0x0h
0x0h
0x1h
STATUS_FLAGS[17]
0x0h
0x0h
0x1h
STATUS_FLAGS[18]
0x0h
0x0h
0x1h
STATUS_FLAGS[19]
0x0h
0x0h
0x1h
STATUS_FLAGS[20]
0x0h
0x0h
0x1h
STATUS_FLAGS[21]
0x0h
0x0h
0x1h
STATUS_FLAGS[22]
0x0h
0x0h
0x1h
STATUS_FLAGS[23]
0x0h
0x0h
0x1h
STATUS_FLAGS[24]
0x0h
0x0h
0x1h
STATUS_FLAGS
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
127 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
RW
0x7Dh
STATUS_FLAGS[25]
0x0h
0x0h
0x1h
STATUS_FLAGS[26]
0x0h
0x0h
0x1h
STATUS_FLAGS[27]
0x0h
0x0h
0x1h
STATUS_FLAGS[28]
0x0h
0x0h
0x1h
STATUS_FLAGS[29]
0x0h
0x0h
0x1h
STATUS_FLAGS[30]
0x0h
0x0h
0x1h
STATUS_FLAGS[31]
0x0h
0x0h
0x1h
0x0h
0x0h
0xFFFFFFFFh
STATUS_MASK
WARNING_MASK
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
8
Pinning
Figure 39: TMC4671 Pinout with 3 phase Power stage and BLDC Motor
Figure 40: TMC4671 Pinout with Stepper Motor
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
128 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
129 / 151
Figure 41: TMC4671 Pinout with DC Motor or Voice Coil
All power supply pins (VCC, VCC_CORE) must be connected.
Info
All ground pins (GND, GNDA, . . . ) must be connected.
Analog inputs (AI) are 5V single ended or differential inputs (Input range: GNDA
to V5). Use voltage dividers or operational amplifiers to scale down higher input
voltages.
Digital inputs (I) resp. (IO) are 3.3V single ended inputs.
IO
Description
AI
analog input, 3.3V
I
digital input, 3.3V
IO
digital input or digital output, direction programmable, 3.3V
O
digital output, 3.3V
Table 31: Pin Type Definition
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
9
130 / 151
TMC4671 Pin Table
Name
Pin
IO
Description
nRST
50
I
active low reset input
CLK
51
I
clock input; needs to be 25 MHz for correct timing
TEST
54
I
TEST input, must be connected to GND
ENI
55
I
enable input; If high, controllers and PWM are enabled
ENO
32
O
enable output; feeds through ENI when CLK is applied and IC is not in reset condition
STATUS
12
O
output for interrupt of CPU (Warning & Status
Change)
SPI_nSCS
6
I
SPI active low chip select input
SPI_SCK
7
I
SPI clock input
SPI_MOSI
8
I
SPI master out slave input
SPI_MISO
9
O
SPI master in slave output, high impedance, when
SPI_nSCS = ’1’
UART_RXD
10
I
UART receive data RxD for in-system-user communication channel
UART_TXD
11
O
UART transmit data TXD for in-system-user communication channel
PWM_I
58
I
PWM input for target value generation
DIR
56
I
direction input of step-direction interface
STP
57
I
step pulse input for step-direction interface
HALL_UX
38
I
digital hall input H1 for 3-phase (U) or 2-phase (X)
HALL_V
37
I
digital hall input H2 for 3-phase (V)
HALL_WY
36
I
digital hall input H3 for 3-phase (W) or 2-phase (Y)
ENC_A
35
I
A input of incremental encoder
ENC_B
34
I
B input of incremental encoder
ENC_N
33
I
N input of incremental encoder
ENC2_A
64
I
A input of incremental encoder
ENC2_B
65
I
B input of incremental encoder
ENC2_N
66
I
N input of incremental encoder
REF_L
67
I
Left (L) reference switch
REF_H
68
I
Home (H) reference switch
REF_R
69
I
Right (R) reference switch
ADC_I0_POS
16
AI
pos. input for phase current signal measurement
I0 (I_U, I_X)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
131 / 151
Name
Pin
IO
Description
ADC_I0_NEG
17
AI
neg. input for phase current signal measurement
I0 (I_U, I_X)
ADC_I1_POS
18
AI
pos. input for phase current signal measurement
I1 (I_V, I_W, I_Y)
ADC_I1_NEG
19
AI
neg. input for phase current signal measurement
I1 (I_V, I_W, I_Y)
ADC_VM
20
AI
analog input for motor supply voltage divider (VM)
measurement
AGPI_A
21
AI
analog general purpose input A (analog GPI)
AGPI_B
22
AI
analog general purpose input B (analog GPI)
AENC_UX_POS
25
AI
pos. analog input for Hall or analog encoder signal, 3-phase (U) or 2-phase (X (cos))
AENC_UX_NEG
26
AI
neg. analog input for Hall or analog encoder signal, 3-phase (U) or 2-phase (X (cos))
AENC_VN_POS
27
AI
pos. analog input for Hall or analog encoder signal, 3-phase (V) or 2-phase (N)
AENC_VN_NEG
28
AI
neg. analog input for Hall or analog encoder signal, 3-phase (V) or 2-phase (N)
AENC_WY_POS
29
AI
pos. analog input for Hall or analog encoder signal, 3-phase (W) or 2-phase (Y (sin))
AENC_WY_NEG
30
AI
neg. analog input for Hall or analog encoder signal, 3-phase (W) or 2-phase (Y (sin))
GPIO0 / ADC_I0_MCD
70
IO
GPIO or ∆Σ-Demodulator clock input MCLKI,
clock output MCLKO, or single bit DAC output
MDAC for ADC_I_0
GPIO1 / ADC_I1_MCD
71
IO
GPIO or ∆Σ-Demodulator clock input MCLKI,
clock output MCLKO, or single bit DAC output
MDAC for ADC_I_1
GPIO2 / ADC_VM_MCD
74
IO
GPIO or ∆Σ-Demodulator clock input MCLKI,
clock output MCLKO, or single bit DAC output
MDAC for ADC_VM_MCD
GPIO3 / AGPI_A_MCD / DBGSPI_nSCS
75
IO
GPIO or ∆Σ-Demodulator clock input MCLKI,
clock output MCLKO, or single bit DAC output
MDAC for AENC_UX_MCD, SPI debug port pin
DBGSPI_nSCS
GPIO4 / AGPI_B_MCD / DBGSPI_SCK
76
IO
GPIO or ∆Σ-Demodulator clock input MCLKI,
clock output MCLKO, or single bit DAC output
MDAC for AENC_VN_MCD, SPI debug port pin
DBGSPI_SCK
GPIO5 / AENC_UX_MCD / DBGSPI_MOSI
1
IO
GPIO or ∆Σ-Demodulator clock input MCLKI,
clock output MCLKO, or single bit DAC output
MDAC for AENC_WY_MCD, SPI debug port pin
DBGSPI_MOSI
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Name
132 / 151
Pin
IO
Description
GPIO6 / AENC_VN_MCD / DBGSPI_MISO
4
IO
GPIO or ∆Σ-Demodulator clock input MCLKI,
clock output MCLKO, or single bit DAC output MDAC for AGPI_A_MCD, SPI debug port pin
DBGSPI_MISO
GPIO7 / AENC_WY_MCD / DBGSPI_TRG
5
IO
GPIO or ∆Σ-Demodulator clock input MCLKI,
clock output MCLKO, or single bit DAC output MDAC for AGPI_B_MCD, SPI debug port pin
DBGSPI_TRG
PWM_IDLE_H
59
I
idle level of high side gate control signals (not
used)
PWM_IDLE_L
60
I
idle level of low side gate control signals (not
used)
PWM_UX1_H
39
O
high side gate control output U (3-phase) resp. X1
(2-phase)
PWM_UX1_L
40
O
low side gate control output U (3-phase) resp. X1
(2-phase)
PWM_VX2_H
41
O
high side gate control output V (3-phase) resp. X2
(2-phase)
PWM_VX2_L
42
O
low side gate control output V (3-phase) resp. X2
(2-phase)
PWM_WY1_H
46
O
high side gate control output W (3-phase) resp. Y1
(2-phase)
PWM_WY1_L
47
O
low side gate control output W (3-phase) resp. Y1
(2-phase)
PWM_Y2_H
48
O
high side gate control output Y2 (2-phase only)
PWM_Y2_L
49
O
low side gate control output Y2 (2-phase only)
BRAKE
31
O
brake chopper control output signal
Table 32: Functional Pin Description
Feedback input pins that are not needed in target application can be left open or tied to GND.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Name
Pin
IO
VCCIO1
2
3.3V
digital IO supply voltage; use 100 nF decoupling capacitor
VCCIO2
13
3.3V
digital IO supply voltage; use 100 nF decoupling capacitor
VCCIO3
43
3.3V
digital IO supply voltage; use 100 nF decoupling capacitor
VCCIO4
52
3.3V
digital IO supply voltage; use 100 nF decoupling capacitor
VCCIO5
61
3.3V
digital IO supply voltage; use 100 nF decoupling capacitor
VCCIO6
72
3.3V
digital IO supply voltage; use 100 nF decoupling capacitor
GNDIO1
3
0V
digital IO ground
GNDIO2
14
0V
digital IO ground
GNDIO3
44
0V
digital IO ground
GNDIO4
53
0V
digital IO ground
GNDIO5
62
0V
digital IO ground
GNDIO6
73
0V
digital IO ground
VCCCORE1
15
1.8V
digital core supply voltage output; use 100 nF decoupling capacitor
VCCCORE2
45
1.8V
digital core supply voltage output; use 100 nF decoupling capacitor
VCCCORE3
63
1.8V
digital core supply voltage output; use 100 nF decoupling capacitor
V5
23
5V
analog reference voltage
GNDA
24
0V
analog reference ground
–
0V
bottom ground pad
GNDPAD
Description
Table 33: Supply Voltage Pins and Ground Pins
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
133 / 151
134 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
10
Electrical Characteristics
10.1
Absolute Maximum Ratings
The maximum ratings may not be exceeded under any circumstances. Operating the circuit at or
near more than one maximum rating at a time for extended periods shall be avoided by application
design.
Parameter
Symbol
Digital I/O supply voltage
Min
Max
Unit
VCCIO
3.6
V
Logic input voltage
VI
3.6
V
Maximum current drawn on VCCIO with no load on pins
I_IO
70
mA
Maximum current drawn on VCCIO with no load on pins and
clock off
I_IO_0Hz
3
mA
Maximum current drawn on V5 at fCLK = 25MHz
I_V5
25
mA
Maximum current to / from digital pins and analog low voltage
I/Os
IIO
10
mA
Junction temperature
TJ
-40
125
°C
Storage temperature
TSTG
-55
150
°C
ESD-Protection for interface pins (Human body model, HBM)
VESDAP
2
kV
ESD-Protection for handling (Human body model, HBM)
VESD1
2
kV
ADC input voltage
VAI
5
V
0
Table 34: Absolute Maximum Ratings
VCCCORE is generated internally from VCCIO and shall not be overpowered by external supply.
10.2
Electrical Characteristics
10.2.1
Operational Range
Parameter
Symbol
Min
Max
Unit
Junction temperature
TJ
-40
125
°C
Digital I/O 3.3V supply voltage
VIO3V
3.15
3.45
V
Core supply voltage
VCC_CORE
1.65
1.95
V
Table 35: Operational Range
The ∆Σ ADCs can operate in differential or single ended mode. In differential mode the differential input
voltage range must be in between -2.5V and +2.5V. However, it is recommended to use the input voltage
range from -1.25V to 1.25V, due to non-linearity of ∆Σ ADCs. In Single ended mode the operational input range of the positive input channel should be between 0V and 2.5V. Recommended maximum input
voltage is 1.25V. ADCs have
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
135 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
10.2.2
DC Characteristics
DC characteristics contain the spread of values guaranteed within the specified supply voltage range unless otherwise specified. Typical values represent the average value of all parts measured at +25 °C. Temperature variation also causes stray to some values. A device with typical values will not leave Min/Max
range within the full temperature range.
Parameter
Symbol
Condition
Min
Input voltage low level
VINL
VCCIO = 3.3V
Input voltage high level
VINH
VCCIO = 3.3V
Input with pull-down
VIN = 3.3V
Input with pull-up
Typ
Max
Unit
-0.3
0.8
V
2.3
3.6
V
5
30
110
µA
VIN = 0V
-110
-30
-5
µA
Input low current
VIN = 0V
-10
10
µA
Input high current
VIN = VCCIO
-10
10
µA
Output voltage low level
VOUTL
VCCIO = 3.3V
0.4
V
Output voltage high level
VOUTH
VCCIO = 3.3V
2.64
V
Output driver strength standard
IOUT_DRV
4
mA
Input impedance of Analog Input
R_ADC
TJ = 25°C
Table 36: DC Characteristics
All I/O lines include Schmitt-Trigger inputs to enhance noise margin.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
85
100
115
kΩ
136 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
11
Sample Circuits
Please consider electrical characteristics while designing electrical circuitry. Most Sample Circuits in this
chapter were taken from the evalutation board for the TMC4671 (TMC4671-EVAL).
11.1
Supply Pins
Please provide VCCIO and V5 to the TMC4671. VCC_CORE is internally generated and needs just an external decoupling capacitor. Place one 100nF decoupling capacitor at every supply pin. Table 37 lists
additional needed decoupling capacitors.
Pin Name
Supply Voltage
Additional Cap.
5V
4.7uF
VCCIO
3.3V
4.7uF & 470nF
VCCCORE
1.8V
none
V5
Table 37: Additional decoupling capacitors for supply voltages
11.2
Clock and Reset Circuitry
The TMC4671 needs an external oscillator for correct operation at 25 MHz. Lower frequency results in
respective scaling of timings. Higher frequency is not supported. The internally generated active low
reset can be externally overwritten. If users want to toggle the reset, a pulse length of at least 500 ns is
recommended. When not used, please apply a 10k Pull up resistor and make sure all supply voltages are
stable.
11.3
Digital Encoder, Hall Sensor Interface and Reference Switches
Digital encoders, Hall sensors and reference switches usually operate on a supply voltage of 5V. As the
TMC4671 is usually operated at a VCCIO Voltage of 3.3V, a protection circuit for the TMC4671 input pin is
needed. In fig. 42 a sample circuit for the ENC_A signal is shown, which can be reused for all encoder and
Hall signals as well as for reference switch signals. Parametrization of the components is given in table
38 for different operations.
Figure 42: Sample Circuit for Interfacing of an Encoder Signal
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
137 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Application
RP U
RP D
RLN
CP
5 V Encoder signal
4K7
n.c.
100R
100pF
Table 38: Reference Values for circuitry components
The raw signal (ENC_A_RAW) is divided by a voltage divider and filtered by a low-pass filter. A pull up
resistor is applied for open collector encoder output signals. Diodes protect the input pin (ENC_A) against
over- and undervoltage. The cutoff-frequency of the low-pass is:
fc =
11.4
1
2 π RP D CP
(50)
Analog Frontend
Analog Encoders are encoding the motor position into sinusoidal signals. These signals need to be digitalized by the TMC4671 in order to determine the rotor position. The input voltage range depends on V5
input, which is usually 5V and GNDA (usually 0V). Due to nonlinearity issues of the ADC near input limits,
an ADC input value from 1V to 4V is recommended. For a single ended application, the sample circuit
from fig. 43 can be used. All single ended analog input pins (AGPI_A, AGPI_B and ADC_VM) have their
negative input value tied to GNDA internally, so this sample circuit can also be used for them.
Figure 43: Sample Circuit for Interfacing of a single ended analog signal
If the power stage and the TMC4671 share a common ground, the ADC_VM input signal can be generated
by a voltage divider to scale the voltage down to the needed range.
If the analog encoder has differential output signals, these can be used without signal conditioning (no OP
AMPs), when voltage range matches. Differential analog inputs can be used to digitize differential analog
input signals with high common mode voltage error suppression.
11.5
Phase Current Measurement
The TMC4671 requires two phase currents of a 2 or 3 phase motor to be measured. For a DC Motor only
one current in the phase needs to be measured (see Fig. 45). In the ADC engine mapping of current signals
to motor phases can be changed. Default setting is I0 to be the current running into the motor in phase
U for a 3 phase motor. Respectively the current running into the motor from half-bridge X1 of a 2 phase
motor. Figs. 44 and 45 illustrates the currents to be measured and their positive direction.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
138 / 151
Figure 44: Phase current measurement: Current directions for 2 and 3 phase motors
Figure 45: Phase current measurement: Current direction for DC or Voice Coil Motor
There are two main options for measuring the phase currents as described above. First option is to use
a shunt resistor and a shunt amplifier like the LT1999 or the AD8418A. The other option is to use a real
current sensor, which uses the Hall effect or other magnetic effects to implement an isolated current
measurement. Shunt measurement might be the more cost-effective solution for low voltage applications
up to 100V, while current sensors are more useful at higher voltage levels.
In general the sample circuit in fig. 46 can be used for shunt measurement circuitry. Please consider
design guidelines of shunt amplifier supplier additionally. TRINAMIC also supplies power stage boards
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
139 / 151
with current shunt measurement circuitry (TMC-UPS10A/70V-EVAL). For current measurement also current sensors with voltage output can be used. These could use the Hall effect or other magnetic effects.
Main concerns to take about is bandwidth, accuracy and measurement range.
Figure 46: Current Shunt Amplifier Sample Circuit
11.6
Power Stage Interface
The TMC4671 is equipped with a configurable PWM engine for control of various gate drivers. Gate driver
switch signals can be matched to power stage needs. This includes signal polarities, frequency, BBMtimes for low and high side switches, and an enable signal. Please consider gate driver circuitry, when
connecting to the TMC4671.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
12
140 / 151
Setup Guidelines
For easy setup of the TMC4671 on a given hardware platform like the TMC4671 Evaluation-Kit, the user
should follow these general guidelines in order to safely set up the system for various modes of operation.
Info
These guidelines fit to hardware platforms which are comparable to the
TMC4671-Evaluation Kit. If system structure differs, configuration has to be adjusted.
Please also make use of the RTMI Adapter and the TMCL IDE to setup the system
as it reduces commissioning time significantly.
Step 0: Setup of SPI communication
As a first step of the configuration of the TMC4671 the SPI communication should be tested by reading
and writing for example to the first registers for identification of the silicon. If communication fails, please
check CLK and nRST signals. For easy software setup the TMC API provided on the TRINAMIC website can
be used.
Step 1: Check connections
Register TMC_INPUTS_RAW can be accessed to see if all connected digital inputs are working correctly e.g.
sensor signals can be checked by turning the motor manually.
Step 2: Setup of PWM and Gatedriver configuration
The user should choose the connected motor and the number of polepairs by setting register MOTOR_
TYPE_N_POLE_PAIRS. For a DC motor the number of pole pairs should be set to one. The PWM can be configured with the corresponding registers PWM_POLARITIES (Gate Driver Polarities), PWM_MAXCNT (PWM
Frequency), PWM_BBM_H_BBM_L (BBM times), and PWM_SV_CHOP (PWM mode). After setting the register PWM_SV_CHOP to 7 the PWM is on and ready to use.
Please check PWM outputs after turning on the PWM, if you are using a new hardware design.
Step 3: Open Loop Mode
In the Open Loop Mode the motor is turned by applying voltage to the motor. This mode is useful for test
and setup of ADCs and position sensors. It is activated by setting the corresponding registers for PHI_
E_SELECTION, and MODE_MOTION. With UD_EXT the applied voltage can be regulated upwards until the
motor starts to turn. Acceleration and target velocity can be changed by their respective registers.
Step 4: Setup of ADC for current measurement
Please setup the current measurement by choosing your applications ADC configuration. Make sure to
match decimation rate of the Delta Sigma ADCs to your choosen PWM frequency.
When the motor turns in Open Loop Mode the current measurement can be easily calibrated. Please
match offset and gain of phase current signals by setting the corresponding registers. Please also make
sure for a new hardware setup, that current measurements and PWM channels are matched. This can
be done by matching phase voltages and phase currents. Register ADC_I_SELECT can be used to switch
relations.
Step 5: Setup of Feedback Systems
In Open Loop Mode also the feedback systems can be checked for correct operation. Please configure
registers related to used position sensor(s) and compare against Open Loop angles. Use encoder initialization routines to set angle offsets for relative position encoders according to application needs.
Step 6: Setup of FOC Controllers
Please configure your application’s feedback system and configure position and velocity signal switches
accordingly inside the FOC. Configure controller output limits according to you needs.
Setup PI controller parameters for used FOC controllers. Start with the current controller, followed by the
velocity controller, followed by the position controller. Stop configuration at your desired cascade level.
TRINAMIC recommends to set the PI controller parameters by support of the RTMI, as it supports realtime access to registers and the TMCL IDE offers tools for automated controller tuning. Controller tuning
without realtime access might lead to poor performance.
Please choose afterwards your desired Motion Mode and feed in reference values.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
141 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Step 7: Advanced Functions
For performance improvements Biquad filters and feed forward control can be applied.
13
Package Dimensions
Package: QFN76, 0.4 mm pitch, size 11.5 mm x 6.5 mm.
Figure 47: QFN76 Package Outline
QFN76 Package Dimensions in mm
Description
Dimension[mm]
min.
typ.
max.
Total Thickness
A
0.80
0.85
0.90
Stand Off
A1
0.00
0.035
0.05
Mold Thickness
A2
—
0.65
—
L/F Thickness
A3
Lead Width
b
Body Width
D
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
0.203 REF
0.15
0.2
10.5 BSC
0.25
142 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
QFN76 Package Dimensions in mm
Body Length
E
6.5 BSC
Lead Pitch
e
0.4 BSC
EP Size
J
8.9
9
9.1
EP Size
K
4.9
5
5.1
Lead Length
L
0.35
0.40
0.45
Lead Length
L1
0.30
0.35
0.40
Package Edge Tolerance
aaa
0.1
Mold Flatness
bbb
0.1
Coplanarity
ccc
0.08
Lead Offset
ddd
0.1
Exposed Pad Offset
eee
0.1
Table 39: Package Outline Dimensions
Figure 48 shows the package from top view. Decals for some CAD programs are available on the product’s
website.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
Figure 48: Pinout of TMC4671 (Top View)
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
143 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
14
144 / 151
Supplemental Directives
14.1
Producer Information
14.2
Copyright
TRINAMIC owns the content of this user manual in its entirety, including but not limited to pictures, logos,
trademarks, and resources. © Copyright 2020 TRINAMIC. All rights reserved. Electronically published by
TRINAMIC, Germany.
Redistributions of source or derived format (for example, Portable Document Format or Hypertext Markup
Language) must retain the above copyright notice, and the complete Datasheet User Manual documentation of this product including associated Application Notes; and a reference to other available productrelated documentation.
14.3
Trademark Designations and Symbols
Trademark designations and symbols used in this documentation indicate that a product or feature is
owned and registered as trademark and/or patent either by TRINAMIC or by other manufacturers, whose
products are used or referred to in combination with TRINAMIC’s products and TRINAMIC’s product documentation.
This Datasheet is a non-commercial publication that seeks to provide concise scientific and technical user
information to the target user. Thus, trademark designations and symbols are only entered in the Short
Spec of this document that introduces the product at a quick glance. The trademark designation /symbol
is also entered when the product or feature name occurs for the first time in the document. All trademarks
and brand names used are property of their respective owners.
14.4
Target User
The documentation provided here, is for programmers and engineers only, who are equipped with the
necessary skills and have been trained to work with this type of product.
The Target User knows how to responsibly make use of this product without causing harm to himself or
others, and without causing damage to systems or devices, in which the user incorporates the product.
14.5
Disclaimer: Life Support Systems
TRINAMIC Motion Control GmbH & Co. KG does not authorize or warrant any of its products for use in
life support systems, without the specific written consent of TRINAMIC Motion Control GmbH & Co. KG.
Life support systems are equipment intended to support or sustain life, and whose failure to perform,
when properly used in accordance with instructions provided, can be reasonably expected to result in
personal injury or death.
Information given in this document is believed to be accurate and reliable. However, no responsibility
is assumed for the consequences of its use nor for any infringement of patents or other rights of third
parties which may result from its use. Specifications are subject to change without notice.
14.6
Disclaimer: Intended Use
The data specified in this user manual is intended solely for the purpose of product description. No representations or warranties, either express or implied, of merchantability, fitness for a particular purpose
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
145 / 151
or of any other nature are made hereunder with respect to information/specification or the products to
which information refers and no guarantee with respect to compliance to the intended use is given.
In particular, this also applies to the stated possible applications or areas of applications of the product.
TRINAMIC products are not designed for and must not be used in connection with any applications where
the failure of such products would reasonably be expected to result in significant personal injury or death
(safety-Critical Applications) without TRINAMIC’s specific written consent.
TRINAMIC products are not designed nor intended for use in military or aerospace applications or environments or in automotive applications unless specifically designated for such use by TRINAMIC. TRINAMIC
conveys no patent, copyright, mask work right or other trade mark right to this product. TRINAMIC assumes no liability for any patent and/or other trade mark rights of a third party resulting from processing
or handling of the product and/or any other use of the product.
14.7
Collateral Documents & Tools
This product documentation is related and/or associated with additional tool kits, firmware and other
items, as provided on the product page at: www.trinamic.com.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
146 / 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
15
Fixes of TMC4671-LA/-ES2 vs. Errata of TMC4671-ES
#
TMC4671-ES Erratum
TMC4671-LA Fix
Description
1
SPI slave MSB read error
SPI slave correction
read via SPI slave now works correct
2
RTMI critical timing
RTMI enhanced
RTMI works with isolated RTMI-USB
IF
3
PI advanced controller
PI scaling updated
scaling selectable available
4
ADC group clock cross talk
ADC clocks corrected
crosstalk eliminated
5
PWM_IDLE_L/_H un-used
PWM outputs are at high
impedance until ENI is
high
User can configure PWM signal polarity and afterwards enable PWM signals. Idle state can be set with PD or
PU resistor on PWM outputs
6
Space Vector PWM
SVPWM
rected
SVPWM gives +12% effective voltage.
With Space Vector PWM enabled voltage scaling is modified.
7
step direction target position
processing corrected
step direction as target position
8
ABN encoder register access
access corrected
ABN counter over-writeable
9
ENI and ENO
function updated
ENI and ENO act as enable signals
10
-
Hall sync PWM sample
optional Hall sampling at PWM center
11
-
PWM_POLARITIES register initialized to 0x0
Active high PWM signal polarity is preferred
12
-
Registers
PHI_M_EXT
and
POSITION_EXT
removed
Registers were not used
13
Watchdog not properly working
Watchdog removed
Watchdog was intended to monitor
CLK. Watchdog flag can not be reset.
scaling
cor-
Table 40: TMC4671-ES Errata vs. TMC4671-ES2/-LA Fixes
15.1
Errata of TMC4671-ES Engineering Samples as Reference
1. SPI Slave Interface
The SPI Slave Interface in the TMC4671-ES might show corrupted MSB of read data.
2. Realtime Monitoring Interface
The RTMI of TMC4671-ES could not be used with galvanic isolation due to timing issue.
3. PI Controllers
The P Factor of the TMC4671-ES in the advanced position controller was not properly scaled and the
integrator in the advanced PI controller was not reset when P or I parameters are set to zero.
4. Integrated ADCs
The Delta Sigma ADCs of TMC4671-ES showed signal cross talk caused by ADC clock cross talk.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
147 / 151
5. Pins PWM_IDLE_H and PWM_IDLE_L without function
Pins PWM_IDLE_H and PWM_IDLE_L of TMC4671-ES were proposed to set gate driver control polarity.
6. Space Vector PWM does not allow higher voltage utilization
The Space vector PWM of the TMC4671-ES does not allow higher voltage utilization.
7. Step Direction Counter not used as Target Position
The step direction counter of the TMC4671-ES correctly counts but is not available as target position.
8. Register write access to ABN encoder count register and N pulse status bits
Write access to count registers of TMC4671-ES cleared theses to zero and encoder N pulse input
signals were not available within the status register.
9. ENO and ENI
ENI (ENable Input) and ENO (ENable Output) of TMC4671-ES did partially work as intended (incomplete reset assignment, missing error sum clear on disable).
15.2
Actions to Avoid Trouble
What should be taken into account when moving from TMC4671-ES to TMC4671-LA?
• update P and I parameter for the advanced PI controller in case of switching numerical representation from Q8.8 to Q4.12 (classical PI controller is un-changed)
• mount pull-up resistors if required for gate driver control signals during power-on reset
• check setting of SVPWM control bit to avoid un-wanted speed-up by SVPWM in torque mode (poweron default is disable without speed-up)
• check setting of additional hall_sync_pwm_enable bit for high speed application with usage of Hall
signals (power-on default is disable)
15.3
Recommendations
• TMC4671-LA (TMC4671-ES2) is drop-in compatible to the TMC4671-ES. Nevertheless, the TMC4671LA needs to be functional qualified as replacement to avoid un-wanted behavior caused by corrections of errata of TMC4671-ES.
For example: The space vector PWM /SVPWM) control bit does not have an effect for the TMC4671-ES
in torque mode. The space vector PWM is corrected for the TMC4671-LA. So, if the SVPWM control bit
is un-wanted enabled for the TMC4671-ES, the TMC4671-LA would run approximately +12% faster
in torque mode with the same settings.
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
148 / 151
Figures Index
FOC Basic Principle . . . . . . . . . . . .
PID Architectures and Motion Modes .
Orientations UVW (FOC3) and XY (FOC2)
Compass Motor Model w/ 3 Phases
UVW (FOC3) and Compass Motor
Model w/ 2 Phases (FOC2) . . . . . . . .
Hardware FOC Application Diagram . .
Hardware FOC Block Diagram . . . . .
SPI Datagram Structure . . . . . . . . .
SPI Timing . . . . . . . . . . . . . . . . .
SPI Timing of Write Access without
pause with fSCK up to 8MHz . . . . . .
SPI Timing of Read Access with pause
(tPAUSE) of 500 ns with fSCK up to 8MHz.
Connector for Real-Time Monitoring
Interface (Connector Type: Hirose
DF20F-10DP-1V) . . . . . . . . . . . . . .
UART Read Datagram (TMC4671
register read via UART) . . . . . . . . . .
UART Write Datagram (TMC4671
register write via UART) . . . . . . . . .
N_POLE_PAIRS - Number of Pole Pairs
(Number of Poles) . . . . . . . . . . . .
Integer Representation of Angles as 16
bit signed (s16) resp. 16 bit unsigned
(u16) . . . . . . . . . . . . . . . . . . . .
Input Voltage Ranges of internaql
Delta Sigma ADC Channels . . . . . . .
Delta Sigma ADC Configurations
dsADC_CONFIG (ANALOG (internal),
MCLKO, MCLKI, MDAC) . . . . . . . . . .
∆Σ ADC Configurations - MDAC
(Comparator-R-C-R as ∆Σ-Modulator) .
ADC Selector and Scaler with Offset
Correction . . . . . . . . . . . . . . . . .
Number of Pole Pairs npp vs.
mechanical angle phi_m and electrical
angle phi_e . . . . . . . . . . . . . . . . .
ABN Incremental Encoder N Pulse . . .
Encoder ABN Timing . . . . . . . . . . .
Hall Sensor Angles . . . . . . . . . . . .
9
10
15
15
16
16
17
18
19
19
20
22
22
26
27
31
33
37
41
43
44
45
46
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
24 Outline of noisy Hall signals (left) due
to electromagnetic interference with
PWM switching and noise cleaned Hall
signals (right) by PWM center synced
sampling of Hall signal vector (H1 H2 H3) 47
25 Hall Signal PWM Center Sampling on
PWM_CENTER . . . . . . . . . . . . . . . 47
26 Hall Signal Blanking . . . . . . . . . . . . 47
27 Analog Encoder (AENC) signal waveforms 48
28 Analog Encoder (AENC) Selector &
Scaler w/ Offset Correction . . . . . . . 49
29 Classic PI Controller Structure . . . . . 54
30 Advanced PI Controller Structure . . . 55
31 PI Controllers for position, velocity and
current . . . . . . . . . . . . . . . . . . . 56
32 Inner FOC Control Loop . . . . . . . . . 57
33 FOC Transformations . . . . . . . . . . 58
34 Motion Modes . . . . . . . . . . . . . . . 58
35 Biquad Filters in Control Structure . . . 61
36 PWM Gate Driver Control Polarities . . 62
37 FOC3 (three phase motor), FOC2 (two
phase stepper motor), FOC1 (single
phase DC motor) . . . . . . . . . . . . . 63
38 BBM Timing . . . . . . . . . . . . . . . . 64
39 TMC4671 Pinout with 3 phase Power
stage and BLDC Motor . . . . . . . . . . 128
40 TMC4671 Pinout with Stepper Motor . 128
41 TMC4671 Pinout with DC Motor or
Voice Coil . . . . . . . . . . . . . . . . . . 129
42 Sample Circuit for Interfacing of an
Encoder Signal . . . . . . . . . . . . . . 136
43 Sample Circuit for Interfacing of a
single ended analog signal . . . . . . . 137
44 Phase current measurement: Current
directions for 2 and 3 phase motors . . 138
45 Phase current measurement: Current
direction for DC or Voice Coil Motor . . 138
46 Current Shunt Amplifier Sample Circuit 139
47 QFN76 Package Outline . . . . . . . . . 141
48 Pinout of TMC4671 (Top View) . . . . . 143
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
149 / 151
Tables Index
Order codes . . . . . . . . . . . . . . . .
SPI Timing Parameter . . . . . . . . . .
Possible baudrates and corresponding
values for register 0x79 . . . . . . . . .
Single Pin Interface Motion Modes . . .
GPIO Configuration Overview with ’x’
as don’t care . . . . . . . . . . . . . . . .
Numerical Representations . . . . . . .
Examples of u16, s16, q8.8, q4.12 . . .
Examples of u16, s16, q8.8 . . . . . . .
Delta Sigma ∆Σ ADC Input Stage
Configurations . . . . . . . . . . . . . .
Delta Sigma ∆Σ ADC Input Stage
Configurations . . . . . . . . . . . . . .
∆Σ ADC Configurations . . . . . . . . .
Registers for Delta Sigma Configuration
Delta Sigma MCLK Configurations . . .
Recommended Decimation Parameter
MDEC . . . . . . . . . . . . . . . . . . . .
Recommended input voltage range
from V_MIN25%[V] to V_MAX75%[V]
for internal Delta Sigma Modulators;
V_SUPPLY[V] = 5V is recommended for
the analog part of the TMC4671. . . . .
Delta Sigma input voltage mapping of
internal Delta Sigma Modulators . . . .
Delta Sigma R-C-R-CMP Configurations
Delta Sigma input voltage mapping of
external comparator (CMP) . . . . . . .
6
18
21
23
24
24
25
27
30
31
33
34
34
35
36
36
37
38
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
19 Example Parameters for ADC_GAIN .
20 Scalings and Change Rate Timings of
classical PID controllers for currents,
velocity, and position . . . . . . . . . .
21 Motion Modes . . . . . . . . . . . . . .
22 Motion Modes . . . . . . . . . . . . . .
23 TABSTatusFlags . . . . . . . . . . . . .
24 FOC321 Gate Control Signal
Configurations . . . . . . . . . . . . .
25 Factors for integer to real conversion
26 Factors for real to integer conversion
27 TABSTatusFlags . . . . . . . . . . . . .
28 TMC4671 Registers . . . . . . . . . .
31 Pin Type Definition . . . . . . . . . . .
32 Functional Pin Description . . . . . .
33 Supply Voltage Pins and Ground Pins
34 Absolute Maximum Ratings . . . . . .
35 Operational Range . . . . . . . . . . .
36 DC Characteristics . . . . . . . . . . .
37 Additional decoupling capacitors for
supply voltages . . . . . . . . . . . . .
38 Reference Values for circuitry
components . . . . . . . . . . . . . . .
39 Package Outline Dimensions . . . . .
40 TMC4671-ES Errata vs.
TMC4671-ES2/-LS Fixes . . . . . . . .
41 IC Revision . . . . . . . . . . . . . . . .
42 Document Revision . . . . . . . . . . .
.
39
.
.
.
.
53
53
59
62
.
.
.
.
.
.
.
.
.
.
.
63
65
66
67
75
129
132
133
134
134
135
. 136
. 137
. 142
. 146
. 150
. 151
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
18
150 / 151
Revision History
18.1
IC Revision
Version
Date
Author
Description
V1.0
2017-JUL-03
LL, OM
Engineering samples TMC4671-ES (1v0 2017-07-03-19:43)
V1.3
2019-APR-30
LL, OM
Release version TMC4671-LA (1v3 2019-04-30-12:55)
Table 41: IC Revision
18.2
Document Revision
Version
Date
Author
Description
V0.9
2017-SEP-29
LL, OM
Pre-liminary TMC4671-ES datasheet.
V0.91
2018-JAN-30
OM
Changed some typos and added some notes.
V0.92
2018-FEB-28
OM
Changed register descriptions.
V0.93
2018-MAR-07
OM
Changed some typos and bugs in graphics.
V0.94
2018-MAR-14
OM
Added Errata Section.
V0.95
2018-MAY-08
OM
Preparations for launch.
V1.00
2018-JUN-28
LL
Errata Section updated concerning Step/Dir.
V1.01
2018-JUL-19
OM
Added Description for Status Flags
V1.02
2018-JUL-31
OM
Added Description for Feed Forward Control Structure
V1.03
2018-SEP-06
OM
Description of single pin interface and motion modes added
V1.04
2018-DEC-11
OM
Register map and pictures of PI controllers corrected
V1.05
2019-JAN-02
OM
Figure 9 corrected, order codes for eval kits added.
V1.06
2019-FEB-06
OM
Reference switch processing explained.
V1.07
2019-MAR-22
LL
errata updated concerning encoder N pulse, ENI and ENO; figure illustrating PPR, NPP, phi_m, phi_e added; PWM polarities and Hall
signal blanking expained in more detail together with drawings.
V1.99
2019-SEP-12
LL
register map structure with enhanced readability, minimal move
PI controller section of TMC4671-ES removed for TMC4671-LA; SPI
timing with tPAUSE added; figure of Hall signal PWM synced sampling option added; section ADC Gain Factors added; section ADC
engine updated; sense amplifier type corrected to AD8418; LM319
removed as dsMOD example; ADC engine section updated; PWM
Engine FOC321 with associated motor connectors added; PID T_N
(Nachstellzeit = Reset Time) dsADC input stage configuration, ADC
real world scaling (IgainADC[A/LSB], UgainADC[V/LSB]) added, errata
section updated;
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMC4671 Datasheet • IC Version V1.3 | Document Revision V2.02 • 2020-Oct-08
151 / 151
Version
Date
Author
Description
V1.99
2019-DEC-06
LL
functional summary updated for TMC4671-LA, FOC basics updated,
functional description updated, SPI read write access timing updated
for TMC4671-LA, ADC Engine section updated w/ voltage scalings,
step direction interface correction updated, order codes updated,
section ’Calculative PI Controller Setup - Classic Structure’ added;
TMC4671-ES Erratum vs. TMC4671-LA fixes added, PWM center Hall
vector sampling added; section watchdog updated; section fixes vs.
errata updated concerning actions to avoid trouble with recommendations; section How to Turn a Motor updated; entry (signal of max.
of q4.12) in table (6) corrected,
V1.99
2019-DEC-20
LL
watchdog section updated, order codes updated, 1st page block diagram updated, DS_ANALOG_INPUT_STAGE_CFG updated
V1.99
2020-FEB-10
LL
Encoder Engine section: mechanical position (phi_m) corrected, section Safety Functions: hint according to status bit write added,
V2.00
2020-APR-16
OM
feedforward control and PI control section updated; ENO/ENI pin
functionality added; Register map updated
V2.01
2020-JUL-13
KK
Register map updated (added missing registers, removed unused
registers), added section for controller sampling rates, added table for real2int and int2real conversions, added section for GPIOusage, updated controller q8.8 and q4.12 representation, fixed
num_representation for angles
V2.02
2020-SEP-22
OM
Register map updated (removed feed forward control registers),
added descriptions for register usage and register function, fixed
exponents in tables for real/integer pwm conversion, updated feedfoward, updated AENC_DECODER_MODE register info and infobox
in Analog Hall and Analog Encoder Interface
V2.03
2020-OCT-08
KK
Fixed several typos, added missing information about UART baudrate in 4.2.3, fixed default values for UART_BPS register and added
hint in registermap about baudrate settings.
Table 42: Document Revision
©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
工商网监
湘ICP备2023018690号
