MODULE
Module for Stepper Motors
TMCM-1270 Hardware Manual
Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
TMCM-1270 is an easy to use smart stepper motor driver module. The module is controlled via a
CAN bus interface and comes with two firmware options – TMCL and CANopen. TMCM-1270 features stealthChop™ for absolute silent motor control, spreadCycle™ for high speed stepper motor
commutation, a fully integrated hardware motion controller with sixPoint™ motion ramps, as well
as stallGuard2™ and coolStep™.
Features
•
•
•
•
•
•
•
•
Supply Voltag +6 to +24V DC
CAN bus interface
TMCL or CANopen protocol
Integrated sixPoint™ ramp motion
controller
stealthChop™ silent PWM mode
spreadCycle™ smart mixed decay
stallGuard2™ load detection
coolStep™ autom. current scaling
Applications
• Lab-Automation
• Manufacturing
• Robotics
• Factory Automation
• CNC
• Laboratory Automation
Simplified Block Diagram
Input
4
REFL/REFR
ENC_A/ENC_B
/ENABLE
TMCL™
Memory
I2C
CAN
ARM
Cortex-M0+TM
microcontroller
SPI
Stepper
Energy Efficient
motor
Driver +
controller
TMC262
driver
+6V..+28V DC
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at: www.trinamic.com
Read entire documentation.
Step
Motor
TMCM-1270
PD42-x-1270
2 / 21
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
Contents
1 Features
1.1 General Features . . . . . . . . . .
1.2 TRINAMIC’s Unique Features . . .
1.2.1 stealthChop™ . . . . . . . .
1.2.2 spreadCycle™ . . . . . . . .
1.2.3 stallGuard2 . . . . . . . . .
1.2.4 coolStep . . . . . . . . . . .
1.2.5 sixPoint Motion Controller
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
3
3
4
4
4
4
5
5
2 Order Codes
7
3 Mechanical and Electrical Interfacing
3.1 TMCM-1270 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 TMCM-1270 Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
8
8
4 Connectors and LEDs
4.1 Power supply and I/O Connector
4.2 CAN Connection . . . . . . . . . .
4.3 Motor Connector . . . . . . . . .
4.4 LEDs . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
10
10
11
12
13
5 Functional Description
14
5.1 Typical Application Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.2 Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Operational Ratings and Characteristics
6.1 Absolute Maximum Ratings . . . . . . . . . . . . . . . .
6.2 Electrical Characteristics (Ambient Temperature 25° C)
6.3 I/O Ratings (Ambient Temperature 25° C) . . . . . . . .
6.4 Functional Characteristics . . . . . . . . . . . . . . . . .
6.5 Other Requirements . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
15
15
15
15
16
16
7 Abbreviations used in this Manual
16
8 Figures Index
17
9 Tables Index
18
10 Supplemental Directives
10.1 Producer Information . . . . . . . . .
10.2 Copyright . . . . . . . . . . . . . . . . .
10.3 Trademark Designations and Symbols
10.4 Target User . . . . . . . . . . . . . . . .
10.5 Disclaimer: Life Support Systems . . .
10.6 Disclaimer: Intended Use . . . . . . .
10.7 Collateral Documents & Tools . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
19
19
19
19
19
19
19
20
11 Revision History
21
11.1 Hardware Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
11.2 Document Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
1
3 / 21
Features
The TMCM-1270 is a complete stepper driver and controller solution with state of the art feature set. It is
highly integrated and offers convenient handling via CAN interface. The TMCM-1270 includes driver electronics and a fully featured hardware motion controller. It can be used in many decentralized applications
and has been designed for up to 1A RMS (1.2A RMS maximum with appropriate cooling) phase current
and 24V DC nominal supply voltage. With stealthChop™, the TMCM-1270 offers absolutely silent and
smooth motor operation for lower and medium velocities. spreadCycle™ is a high performance current
controlled chopper mode for highest velocities with perfect zero crossing performance. With stallGuard2™,
a sensorless load detection feature is available for automatic end step detection and load monitoring.
stallGuard2 is also used for the automatic current scaling feature coolStep™. The TMCM-1270 comes with
a CAN bus interface and four (4) digital IOs.
1.1
General Features
Main Characteristics
• Supply Voltage +24V nom. (+6V to +28V DC)
• 1.2A RMS phase current (ca. 1.7A peak phase current)
• Highest micro step resolution, up to 256 micro steps per full step
• Available with enclosure
• Permanent onboard parameter storage
• Advanced sixPoint™ ramp hardware motion controller
• Noiseless stealthChop™ chopper mode for slow to medium velocities
• High performance spreadCycle™ chopper mode
• High-precision sensorless load measurement with stallGuard2™
• Automatic current scaling algorithm coolStep™ to save energy and keep your drive cool
I/Os
• Home and reference switch inputs
• Enable input to power-on/-off driver H-bridges
• Optionally configurable analog input
• Optionally configurable incremental encoder inputs (quadrature channels A and B only, no N channel)
CAN Bus Interface
• Standard CAN Bus Interface for control and configuration
• CAN bit rate of 20. . . 1000kBit/s
• TMCL-based protocol with TMCL firmware option
• CANopen protocol with DS402 device profile with CANopen firmware option
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
1.2
1.2.1
4 / 21
TRINAMIC’s Unique Features
stealthChop™
stealthChop is an extremely quiet mode of operation for low and medium velocities. It is based on a voltage
mode PWM. During standstill and at low velocities, the motor is absolutely noiseless. Thus, stealthChop
operated stepper motor applications are very suitable for indoor or home use. The motor operates
absolutely free of vibration at low velocities. With stealthChop, the motor current is applied by driving
a certain effective voltage into the coil, using a voltage mode PWM. There are no more configurations
required except for the regulation of the PWM voltage to yield the motor target current.
Figure 1: Motor coil sine wave current using stealthChop (measured with current probe)
1.2.2
spreadCycle™
The spreadCycle chopper is a high-precision, hysteresis-based, and simple to use chopper mode, which
automatically determines the optimum length for the fast-decay phase. Several parameters are available to
optimize the chopper to the application. spreadCycle offers optimal zero crossing performance compared
to other current controlled chopper algorithms and thereby allows for highest smoothness. The true target
current is powered into the motor coils.
Figure 2: spreadCycle principle
1.2.3
stallGuard2
stallGuard2 is a high-precision sensorless load measurement using the back EMF of the motor coils. It
can be used for stall detection as well as other uses at loads below those which stall the motor. The
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
5 / 21
stallGuard2 measurement value changes linearly over a wide range of load, velocity, and current settings.
At maximum motor load, the value reaches zero or is near zero. This is the most energy-efficient point of
operation for the motor.
stallGuard2
Load [Nm]
Initial stallGuard2 (SG) value: 100%
Max. load
stallGuard2 (SG) value: 0
Maximum load reached.
Motor close to stall.
Motor stalls
Figure 3: stallGuard2 Load Measurement as a Function of Load
1.2.4
coolStep
coolStep is a load-adaptive automatic current scaling based on the load measurement via stallGuard2.
coolStep adapts the required current to the load. Energy consumption can be reduced by as much as 75%.
coolStep allows substantial energy savings, especially for motors which see varying loads or operate at a
high duty cycle. Because a stepper motor application needs to work with a torque reserve of 30% to 50%,
even a constant-load application allows significant energy savings because coolStep automatically enables
torque reserve when required. Reducing power consumption keeps the system cooler, increases motor
life, and allows for cost reduction.
0,9
Efficiency with coolStep
0,8
Efficiency with 50v torque reserve
0,7
0,6
0,5
Efficiency
0,4
0,3
0,2
0,1
0
0
50
100
150
200
250
300
350
Velocity [RPM]
Figure 4: Energy Efficiency Example with coolStep
1.2.5
sixPoint Motion Controller
TRINAMIC’s sixPoint motion controller is a new type of ramp generator, which offers faster machine
operation compared to the classical linear acceleration ramps. The sixPoint ramp generator allows adapting
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
6 / 21
the acceleration ramps to the torque curves of a stepper motor and uses two different acceleration settings
each for the acceleration phase and for the deceleration phase
Figure 5: Typical motion profile with TRINAMIC’s sixPoint motion controller
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
7 / 21
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
2
Order Codes
Order Code
Description
Size (LxWxH)
TMCM-1270-TMCL
Controller/Driver Module without motor, +24V DC,
CAN Bus interface, TMCL firmware
42mm x 42mm x
12mm
TMCM-1270-CANOpen
Controller/Driver Module without motor, +24V DC,
CAN Bus interface, CANopen firmware
42mm x 42mm x
12mm
Table 1: Order codes
Order Code
Description

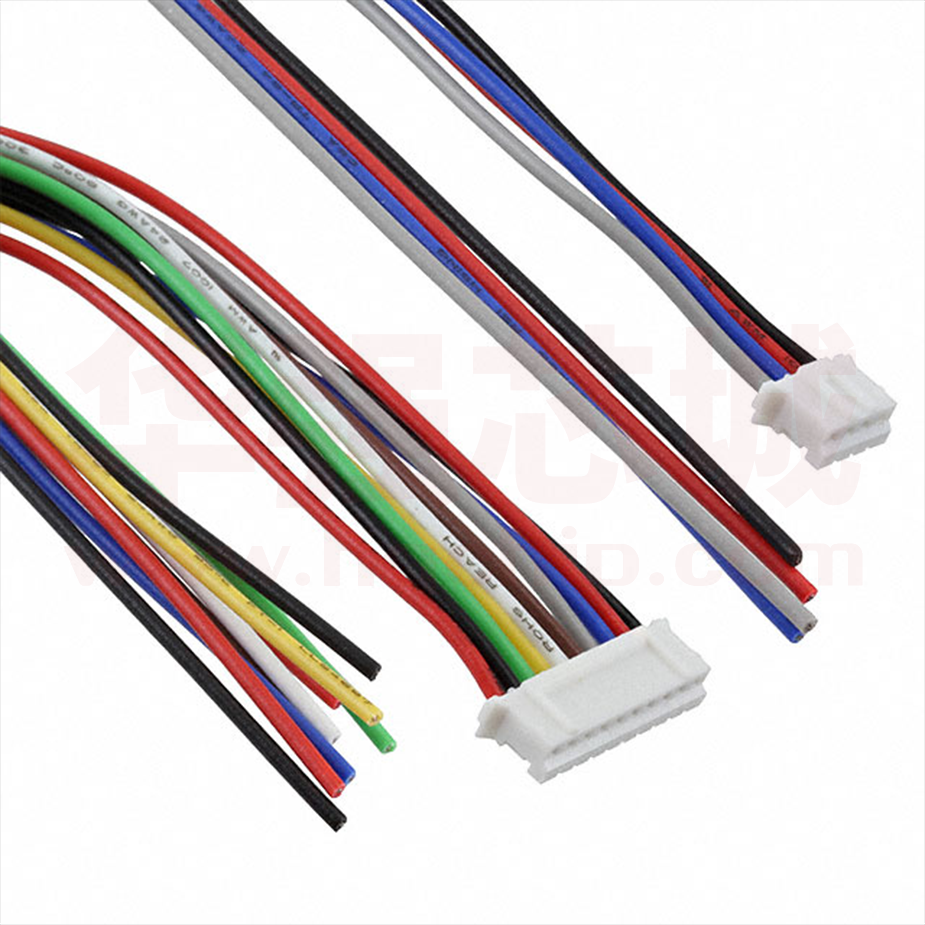

TMCM-1270-CABLE
Cable loom for TMCM-1270:
• 1x cable loom for motor connector with 4-pin JST PH series connector
• 1x cable loom for Power supply and I/O connector with 10-pin JST PH
series connector
Table 2: Order codes cable loom
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
3
3.1
8 / 21
Mechanical and Electrical Interfacing
TMCM-1270 Dimensions
The dimensions of the TMCM-1270 are approx. 42mm x 42mm x 12mm. There are two mounting holes for
M3 screws for mounting the TMCM-1270 on the back bell of a NEMA17 / 42mm flange size stepper motor
(screw/thread length depends on motor size).
Figure 6: TMCM-1270 top view mechanical dimensions
3.2
TMCM-1270 Dimensions and Weight
When mounted to a NEMA17 stepper motor the overall size is housing height plus motor body size.
Order Code
L in mm
Weight in g
TMCM-1270
12 ±0,2
≈ 32
Table 3: Length and weight
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
Figure 7: TMCM-1270 mechanical dimensions with a NEMA17 stepper motor
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
9 / 21
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
4
10 / 21
Connectors and LEDs
The TMCM-1270 offers two connectors - one 10-pin connector for power supply, communication (CAN)
and four Inputs and one four pin connector for connecting the motor.
Power Supply and I/O
connector
10
1
4
1
Motor connector
Figure 8: TMCM-1270 connectors
Overview of connector and mating connector types:
Label
Connector type
Mating connector type
Power supply and I/O
connector
JST B10B-PH-K-S (JST PH series,
10pins, 2mm pitch)
Connector housing: JST PHR-10
Contacts: JST SPH-002T-P0.5S Wire:
0.22mm2 , AWG 24
Motor connector
JST B4B-PH-K-S (JST PH series,
4pins, 2mm pitch)
Connector housing: JST PHR-4 Contacts:
JST SPH-002T-P0.5S Wire:
0.22mm2 , AWG 24
Table 4: Connector and mating connectors
4.1
Power supply and I/O Connector
Pin no.
Pin name
Description
1
GND
Supply and signal ground connection
2
+24V
Supply voltage input (+6V to +28V DC)
3
CAN_H
Differential CAN bus signal (non-inverting)
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
Pin no.
Pin name
Description
4
CAN_L
Differential CAN bus signal (inverting)
5
GND
Signal ground connection
6
+5V
5V output, 100mA maximum load, e.g. for end / home switch
circuit or external encoder supply
7
HOME (GPI0)
General purpose input 0, can be used as HOME switch input,
also. Configurable as analog input AIN0 via software (+5V
compatible, internal 10k pull-up to +5V)
8
REFL (GPI1)
General purpose input 1, can be used as left reference / stop
switch input REFL / STOP_L, also. Configurable as incremental
encoder input channel A via software (+5V TTL compatible,
internal 10k pull-up to +5V)
9
REFR (GPI2)
General purpose input 2, can be used as right reference / stop
switch input REFR / STOP_R, also. Configurable as incremental
encoder input channel B via software (+5V TTL compatible,
internal 10k pull-up to +5V)
10
ENN (GPI3)
ENABLE NOT input (active low) for driver stage, 0 = enabled, 1
= disabled (+5V TTL compatible, internal 10k pull-up to +5V)
11 / 21
Table 5: TMCM-1270 Power supply and I/O connector pin assignment
4.2
NOTICE
Always keep the power supply voltage below the upper limit of 28V! Otherwise the driver electronics will be seriously damaged. Especially, when the
selected operating voltage is near the upper limit a regulated power supply is
highly recommended.
NOTICE
Add external power supply capacitors! It is recommended to connect an electrolytic capacitor of significant size (e.g. 470µF/35V) to the power supply lines next
to the TMCM-1270!
× ISU P P LY
Rule of thumb for size of electrolytic capacitor: C = 1000µF
A
In addition to power stabilization (buffer) and filtering this added capacitor will
also reduce any voltage spikes which might otherwise occur from a combination
of high inductance power supply wires and the ceramic capacitors. In addition
it will limit slew-rate of power supply voltage at the module. The low ESR of
ceramic-only filter capacitors may cause stability problems with some switching
power supplies.
NOTICE
Tie ENN to GND in order to enable driver stage! Please note that pin 10 of the
Power supply and I/O connector is a hardware driver stage enable input (active
low) with an internal pull-up resistor. In order to enable motor driver stage and
be able to move the motor using appropriate software commands it is necessary
to tie this input to GND.
CAN Connection
For remote control and communication with a host system the TMCM-1270 provides a CAN bus interface.
For proper operation the following items should be taken into account when setting up a CAN network:
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
12 / 21
Bus Structure The network topology should follow a bus structure as closely as possible. That is, the
connection between each node and the bus itself should be as short as possible. Basically, it should be
short compared to the length of the bus.
Figure 9: CAN bus strcuture
Bus Termination Especially for longer busses and/or multiple nodes connected to the bus and/or high
communication speeds, the bus should be properly terminated at both ends. The TMCM-1270 does not
integrate any termination resistor. Therefore, 120 Ohm termination resistors at both ends of the bus have
to be added externally.
Number of Nodes The bus transceiver used on the TMCM-1270 (TJA1051) supports at least 100 nodes
under optimum conditions. Practically achievable number of nodes per CAN bus highly depend on bus
length (longer bus → less nodes) and communication speed (higher speed → less nodes).
CAN Bus Adapters To quickly connect to the TMCM-1270 a PC based intergated development environment TMCL-IDE is available. Latest release can be downloaded for free from our web site: www.trinamic.com
A number of common CAN interface adapters from different manufactures is supported from within this
software. Please make sure to check our web site from time to time for the latest version of the software!
4.3
Motor Connector
Pin no.
Pin name
Description
1
A1
Motor phase A pin 1
2
A2
Motor phase A pin 2
3
B1
Motor phase B pin 1
4
B2
Motor phase B pin 2
Table 6: Motor connector pinning
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
NOTICE
4.4
13 / 21
Do not connect or disconnect motor during operation! Motor cable and motor inductivity might lead to voltage spikes when the motor is connected / disconnected while energized. These voltage spikes might exceed voltage limits of the
driver MOSFETs and might permanently damage them. Therefore, always switch
off or disconnect power supply before connecting or disconnecting the motor.
LEDs
The TMCM-1270 includes two LEDs: one green status LED and one red error LED. See figure 10 for LED
location.
Green LED
Red LED
Figure 10: TMCM-1270 LED colors and loacation
Depending on the firmware option (TMCL or CANopen), these LEDs have different functionality. Main
states for TMCL:
State green LED
State red LED
Description TMCL Firmware
Flashing
off
Firmware running (normal operation mode)
Permanent on
Permanent on
Bootloader mode, firmware update supported
Table 7: LED functionality description
For CANopen firmware LED functionality has been implemented based on CANopen standard.
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
14 / 21
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
5
Functional Description
5.1
Typical Application Wiring
The TMCM-1270 driver/controller’s wiring is straightforward as shown in the following figure.
• Power supply must be connected to V+ and GND.
• CAN - use appropriate CAN interface adapter
• ENN - connect ENN signal to GND in order to enable driver stage
Host
c:>
USB-CAN
Power supply
Figure 11: Typical application scenario for remote control of TMCM-1270
5.2 Inputs
The four inputs of the TMCM-1270 are +5V TTL compatible with internal pull-ups (10k) to +5V and not
optically isolated.
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
15 / 21
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
6
Operational Ratings and Characteristics
6.1
Absolute Maximum Ratings
Parameter
Min
Max
Unit
Supply voltage
+6
+28
V
Working temperature
-30
+40
°C
Motor coil current / sine wave peak
1.7
A
Continuous motor current (RMS)
1.2
A
NOTICE
6.2
Stresses above those listed under "‘Absolute Maximum Ratings"’ may cause permanent damage to the device. This is a stress rating only and functional operation
of the device at those or any other conditions above those indicated in the operation listings of this specification is not implied. Exposure to maximum rating
conditions for extended periods may affect device reliability.
Electrical Characteristics (Ambient Temperature 25° C)
Parameter
Symbol
Min
Typ
Max
Unit
Supply voltage
V DD
6
24
28
V
Motor coil current / sine wave peak (chopper regulated, adjustable in software)
ICOILpeak
0
0. . . 1.4
1.7
A
Continuous motor current (RMS)
ICOILRM S
0
0. . . 1.0
1.2
A
Power supply current
IDD
ICOIL
1.7∗ICOIL
A
Table 9: Electrical Characteristics
Please note: maximum motor current settings may require appropriate cooling of the unit
6.3 I/O Ratings (Ambient Temperature 25° C)
Parameter
Symbol
Input voltage
VIN
Low level voltage
VL
High level voltage
VH
Table 10: I/O ratings
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
Min
Typ
Max
Unit
5
5.5
V
0
1.75
V
3.25
5
V
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
6.4
16 / 21
Functional Characteristics
Parameter
Description / Value
Control
CAN bus interface and four digital inputs for referencing, incremental encoder, and NOT_ENABLE
Communication
CAN bus interface for control and configuration, 20. . . 1000kBit/s
Driving Mode
spreadCycle, stealthChop, and constant Tof f chopper, adaptive current
control via stallGuard2 and coolstep
Stepping Resolution
Full, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256 step
Table 11: Functional Characteristics
6.5
Other Requirements
Specifications
Description or Value
Cooling
Free air
Working environment
Avoid dust, water, oil mist and corrosive gases, no condensation, no frosting
Working temperature
-30° C to +40° C
Table 12: Other Requirements and Characteristics
7
Abbreviations used in this Manual
Abbreviation
Description
CAN
Controller Area Network
IDE
Integrated Development Environment
LED
Light Emmitting Diode
RMS
Root Mean Square value
TMCL
TRINAMIC Motion Control Language
TTL
Transistor Transistor Logic
UART
Universal Asynchronous Receiver Transmitter
USB
Universal Serial Bus
Table 13: Abbreviations used in this Manual
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
8
17 / 21
Figures Index
1
2
3
4
5
Motor coil sine wave current using
stealthChop (measured with current
probe) . . . . . . . . . . . . . . . . . . .
4
spreadCycle principle . . . . . . . . . .
4
stallGuard2 Load Measurement as a
Function of Load . . . . . . . . . . . .
5
Energy Efficiency Example with coolStep 5
Typical motion profile with TRINAMIC’s
sixPoint motion controller . . . . . . .
6
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
6
7
8
9
10
11
TMCM-1270 top view mechanical dimensions . . . . . . . . . . . . . . . . .
TMCM-1270 mechanical dimensions
with a NEMA17 stepper motor . . . .
TMCM-1270 connectors . . . . . . . .
CAN bus strcuture . . . . . . . . . . .
TMCM-1270 LED colors and loacation
Typical application scenario for remote control of TMCM-1270 . . . . . .
8
9
10
12
13
14
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
9
18 / 21
Tables Index
1
2
3
4
5
6
7
Order codes . . . . . . . . . . . . . . .
Order codes cable loom . . . . . . . .
Length and weight . . . . . . . . . . .
Connector and mating connectors . .
TMCM-1270 Power supply and I/O connector pin assignment . . . . . . . . .
Motor connector pinning . . . . . . .
LED functionality description . . . . .
7
7
8
10
11
12
13
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
9
10
11
12
13
14
15
Electrical Characteristics . . . . . . . .
I/O ratings . . . . . . . . . . . . . . . .
Functional Characteristics . . . . . . .
Other Requirements and Characteristics
Abbreviations used in this Manual . .
Hardware Revision . . . . . . . . . . .
Document Revision . . . . . . . . . . .
15
15
16
16
16
21
21
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
10
19 / 21
Supplemental Directives
10.1
Producer Information
10.2
Copyright
TRINAMIC owns the content of this user manual in its entirety, including but not limited to pictures, logos,
trademarks, and resources. © Copyright 2017 TRINAMIC. All rights reserved. Electronically published by
TRINAMIC, Germany.
Redistributions of source or derived format (for example, Portable Document Format or Hypertext Markup
Language) must retain the above copyright notice, and the complete Datasheet User Manual documentation of this product including associated Application Notes; and a reference to other available
product-related documentation.
10.3
Trademark Designations and Symbols
Trademark designations and symbols used in this documentation indicate that a product or feature is
owned and registered as trademark and/or patent either by TRINAMIC or by other manufacturers, whose
products are used or referred to in combination with TRINAMIC’s products and TRINAMIC’s product documentation.
This Hardware Manual is a non-commercial publication that seeks to provide concise scientific and technical
user information to the target user. Thus, trademark designations and symbols are only entered in the
Short Spec of this document that introduces the product at a quick glance. The trademark designation
/symbol is also entered when the product or feature name occurs for the first time in the document. All
trademarks and brand names used are property of their respective owners.
10.4
Target User
The documentation provided here, is for programmers and engineers only, who are equipped with the
necessary skills and have been trained to work with this type of product.
The Target User knows how to responsibly make use of this product without causing harm to himself or
others, and without causing damage to systems or devices, in which the user incorporates the product.
10.5
Disclaimer: Life Support Systems
TRINAMIC Motion Control GmbH & Co. KG does not authorize or warrant any of its products for use in life
support systems, without the specific written consent of TRINAMIC Motion Control GmbH & Co. KG.
Life support systems are equipment intended to support or sustain life, and whose failure to perform,
when properly used in accordance with instructions provided, can be reasonably expected to result in
personal injury or death.
Information given in this document is believed to be accurate and reliable. However, no responsibility
is assumed for the consequences of its use nor for any infringement of patents or other rights of third
parties which may result from its use. Specifications are subject to change without notice.
10.6
Disclaimer: Intended Use
The data specified in this user manual is intended solely for the purpose of product description. No representations or warranties, either express or implied, of merchantability, fitness for a particular purpose
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
20 / 21
or of any other nature are made hereunder with respect to information/specification or the products to
which information refers and no guarantee with respect to compliance to the intended use is given.
In particular, this also applies to the stated possible applications or areas of applications of the product.
TRINAMIC products are not designed for and must not be used in connection with any applications where
the failure of such products would reasonably be expected to result in significant personal injury or death
(safety-Critical Applications) without TRINAMIC’s specific written consent.
TRINAMIC products are not designed nor intended for use in military or aerospace applications or environments or in automotive applications unless specifically designated for such use by TRINAMIC. TRINAMIC
conveys no patent, copyright, mask work right or other trade mark right to this product. TRINAMIC assumes
no liability for any patent and/or other trade mark rights of a third party resulting from processing or
handling of the product and/or any other use of the product.
10.7
Collateral Documents & Tools
This product documentation is related and/or associated with additional tool kits, firmware and other
items, as provided on the product page at: www.trinamic.com.
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1270 Hardware Manual • Hardware Version V1.00 | Document Revision V1.20 • 2017-SEP-27
11
11.1
Revision History
Hardware Revision
Version
Date
Author
Description
1.00
2016-09-27
TMC
Series version.
Table 14: Hardware Revision
11.2
Document Revision
Version
Date
Author
Description
1.00
2016-06-26
BS
Initial release.
1.10
2017-03-05
SK
Update for series version V1.0
1.20
2017-09-27
GE
Product picture and max. current rating updated
Table 15: Document Revision
©2017 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
21 / 21
工商网监
湘ICP备2023018690号
