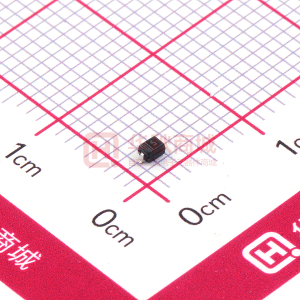

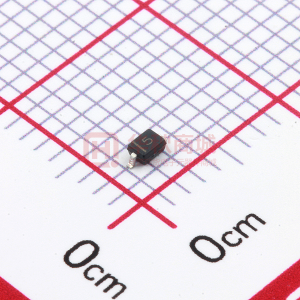

RB751V-40

RB751V-40 0.03AMP Surface Mount Schottky Barrier Diode SOD-323F 0.094(2.40) 0.102(2.60) Small surface mounting type High reliability Low reverse current and low forward voltage 0.073(1.85) 0.069(1.75) Features Mechanical Data 0.016(0.4) 0.008(0.2) 0.051(1.3) 0.047(1.2) 0.006(0.15) 0.002(0.05) 0.035(0.9) 0.031(0.8) Case: SOD-323F, Molded plastic Terminals: Pure tin plated, lead free. Solderable per MIL-STD-202, Method 208 Polarity: Cathode band Marking : Date Code and Type Code Type Code: SA Dimensions in inches and (millimeters) Weight: 0.01 gram Maximum Ratings TA=25 oC unless otherwise specified Type Number Symbol VRM VR Peak Reverse Voltage DC Reverse Voltage Mean Rectified Current Peak Forward Surge Current * Junction Temperature Storage Temperature Value 40 Units V V mA mA o C o C IO IFSM TJ TSTG 30 30 200 125 -40 to + 125 * 60 Hz for 1 Electrical Characteristics Type Number Reverse Leakage Current VR=30V Forward Voltage IF=1.0mA Capacitance between terminals VR=1V, f =1.0MHz * ESD sensitive product handling required. Symbol IR VF CT Min - Typ Max 0.5 0.37 2.0 Units mA V pF Version: A06 RATINGS AND CHARACTERISTIC CURVES (RB751V-40) FIG.1- MAXIMUM FORWARD CURRENT DERATING CURVE AVERAGE FORWARD CURRENT (mA) 40 FIG.2- MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT PER LEG PEAK FORWARD SURGE CURRENT. (mA) 8.3ms Single Half Sine Wave Per Leg (JEDEC Method) Tj=Tj max 30 200 20 100 10 0 0 50 100 150 TERMINAL TEMPERATURE ( C) 0 1 2 5 10 20 NUMBER OF CYCLES AT 60Hz 50 100 FIG.3- FORWARD CHARACTERISTICS 100 FIG.4- REVERSE CHARACTERISTICS 1000 INSTANTANEOUS REVERSE CURRENT. (mA) 100 O INSTANTANEOUS FORWARD CURRENT.(mA) 10 TJ = 125 C 10 TJ = 75 C O 1 1 0.1 TJ = 25 C 0.1 O 0.01 0 0.1 0.2 FORWARD VOLTAGE. (V) 0.3 0.4 0.01 0 5 10 15 20 25 30 35 PERCENT OF RATED REVERSE VOLTAGE. (%) 10 F I G . 5 T Y P I C A L J U N C T I O N C A PA C I TA N C E TRANSIENT THERMAL IMPEDANCE. (OC/W) 100 TJ = 25 C f = 1 MHz O FIG.6- TYPICAL TRANSIENT THERMAL CHARACTERISTICS 100 J U N C T I O N C A PA C I TA N C E . ( p F ) 5 10 2 1 1 0.1 0.1 1 10 0.01 0.1 REVERSE VOLTAGE. (V) 1 10 T, PULSE DURATION. (sec) 100 Version: A06
