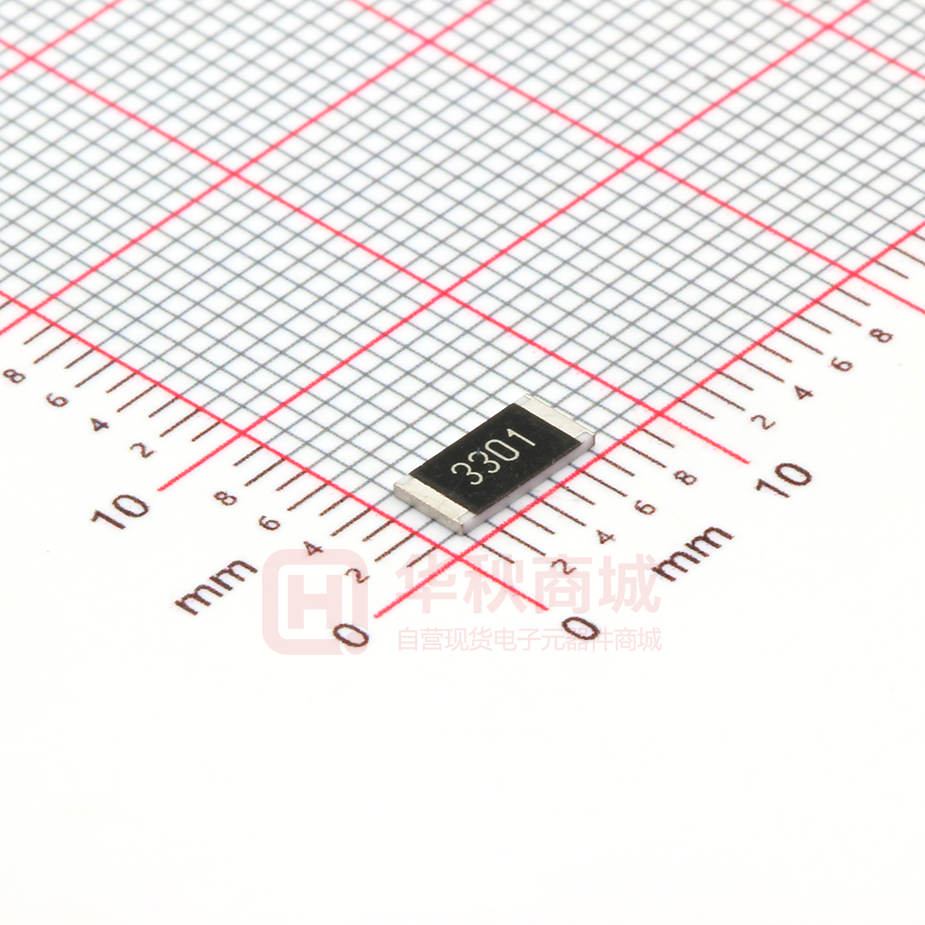

25121WF3301T4E

Uniroyal Electronics Industry Co., Ltd. 厚 声 电 子 工 业 有 限 公 司 2 0 1 5 - 2 0 1 6 UniOhm Uniroyal Electronics Industry Co., Ltd. 厚声电子工业有限公司 88 LongTeng Road, Economic & Technical Development Zone, Kunshan City, Jiangsu, China 中国江苏省昆山市经济技术开发区龙腾路 88 号 邮编: 215301 Tel: +86 512 5763 1400 / 1411 /1422 /1433 Fax: +86 512 5763 4599 localsales@uniohm.com globalsales@uniohm.com www.uniohm.com Contents UniOhm 目录 Surface Mount Category - CHIP, CHIP ARRAY & CHIP NETWORK Resistors ( 表面贴装式 - 晶片电阻，晶片排列电阻及晶片网络电阻器 ) New Thick Film Chip Resistors 厚膜晶片电阻器 3 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 High Resistance Thick Film Chip Resistors 高阻厚膜晶片电阻器 6 0603, 0805, 1206, 1210 Anti-Surge Thick Film Chip Resistors 抗浪涌厚膜晶片电阻器 7 AS03, AS05, AS06, AS07, AS10, AS12 High-Precision Anti-Surge Thick Film Chip Resistors 高精度抗浪涌厚膜晶片电阻器 9 PS02, PS03, PS05, PS06, PS07, PS10, PS12 High-Power Thick Film Chip Resistors 高功率厚膜晶片电阻器 11 HP02, HP03, HP05, HP06, HP07, HP10, HP11, HP12 Low Resistance High-Power Thick F.C.R. 高功率低阻值厚膜晶片电阻器 13 HP03, HP05, HP06, HP07, HP10, HP11, HP12 High-Voltage Thick Film Chip Resistors 高压厚膜晶片电阻器 14 HV03, HV05, HV06, HV07, HV10, HV12 Wide-Terminal Thick Film Chip Resistors 宽电极厚膜晶片电阻器 16 0508, 0612, 1020, 1218, 1225 Trimmable Thick Film Chip Resistors 可调厚膜晶片电阻器 18 TR03, TR05, TR06 Current Sensing Chip Resistors 晶片电流检测电阻器 20 CS02, CS03, CS05, CS06, CS07, CS10, CS11, CS12 New Metal Strip Current Sensing Chip Resistors - MS 金属带电流检测片式电阻器 22 MS06, MS07, MS10, MS11, MS12, MS17, MS20, MS27 New Anti-Electro Static Discharge Thick Film Chip Resistors - ES 抗静电膜晶片电阻器 24 ES01, ES02, ES03, ES05, ES06, ES07 New New New New New Low T.C.R Thick Film Chip Resistors - LT 低温度系数厚膜晶片电阻器 26 LT02, LT03, LT05, LT06 AEC-Q200 Version Chip Resistors - HQ 汽车用晶片电阻器 28 HQ02, HQ03, HQ05, HQ06, HQ07, HQ10 , HQ12 Non-magnetic Thick Film Chip Resistors - NM 无磁厚膜晶片电阻器 30 NM02, NM03, NM05 Anti-Sulfurized Thick Film Chip Resistors - NS 抗硫化厚膜晶片电阻器 32 NS01, NS02, NS03, NS05, NS06, NS07, NS10, NS12 Common Quality Anti-Sulfurized Chip Resistor- 普通品质抗硫化晶片电阻器 34 CQ02, CQ03, CQ05, CQ06, CQ07, CQ10, CQ12 Flex LED Strip use Thick Film Chip Resistors - LE 软灯条专用电阻器 36 LE03, LE05, LE06 New High-Precision Thin Film Chip Resistors 高精度薄膜晶片电阻器 38 TC02, TC03, TC05, TC06, TC07, TC10, TC12 High Power Thin Film Chip Resistors 高功率薄膜晶片电阻器 40 TP03, TP05, TP06, TP07, TP10, TP12 Thin Film Chip Resistors 薄膜晶片电阻器 41 TC02, TC03, TC05, TC06 New Chip Resistors Array - Convex Terminal 晶片排列电阻器 - 凸式电极 42 2D02, 2D03, 4D02, 4D03, 4DP3, 16P8 Anti-Sulfurized Thick Film Chip Resistor Array-Convex Terminal43 2S02, 4S02, 4S03 抗硫化厚膜晶片排列电阻器 Chip Resistors Array - Concave Terminal 晶片排列电阻器 - 凹式电极 45 2C02, 4C02, 4C03 Thick Film Chip Resistors Network 厚膜晶片网络电阻器 46 10P8, 10S8, 10T8, 10E9 Packing of Surface Mount Resistors 表面贴装式电阻器包装 47 Packing of Surface Mount Resistors Through Hole Category - Network Resistors & Traditional Coated Resistors ( 插件式 - 排列电阻 & 涂装型电阻 ) Resistor Network - SIP Series 网络电阻器 - SIP 系列 48 RNL-A, RNL-B, RNL-C, RNL-D, RNL-E, RNL-L, RNL-R, RNL-G, RNL-P High Power Resistor Network - SIP RPL Series 高功率网络电阻器 - SIP RPL 系列 50 RPL-A, RPL-B, RPL-R High Power Resistors Network Medium Profile–SIP RNM Series 高功率中宽度网络电阻器 - SIP RNM 系列 52 RNM-A, RNM-B, RNM-R High Power Resistors Network High Profile–SIP RPH Series 高功率高宽度网络电阻器 - SIP RPH 系列 54 RPH-A, RPH-B, RPH-R Special Network –SIP Series 特殊网络电阻器 - SIP 系列 56 SN0001, SN0002, SN0003, SN0004 Resistor/Capacitor Network-SIP Series 网络阻容器电阻器 - SIP 系列 57 RCN-A, RCN-B Capacitor Network-SIP Series 网络电容器 - SIP 系列 58 CNM-1 High Voltage Flat Resistors 高压扁平式电阻器 59 HFR Carbon Film Fixed Resistors 碳膜电阻器 60 CFR Precision Metal Film Fixed Resistors 精密金属膜电阻器 62 MFR Carbon Film Power Resistors 高功率碳膜电阻器 64 CPR Metal Film Power Resistors 高功率金属膜电阻器 65 MPR Metal Oxide Film Fixed Resistors 金属氧化膜固定电阻器 66 MOR Wire-wound Fixed Resistors 绕线型固定电阻器 68 KNP, KNH, KNS Wire-Wound Anti Surge Fixed Resistors 绕线耐脉冲电阻器 70 KSR New Wire-wound Power Resistors 高功率绕线型固定电阻器 71 WPR Fusible Resistors 保险丝电阻器 72 FRN Wire-wound Fusible Resistors 绕线保险丝型电阻器 74 KFR Thermal Fusing Wire-wound Fixed Resistors 绕线型温度保险丝电阻器 76 TFR Current Sense Resistors 电流检测线电阻器 77 CSR Current Sense Spring Resistors 弹簧式电流检测电阻器 78 CSSA, CSSB, CSSC 1 Contents UniOhm 目录 Metal Glaze Film Fixed Resistors 金属玻璃釉膜固定电阻器 79 MGR High-Value Metal Glaze Film Fixed Resistors 超高阻玻璃釉膜固定电阻器 81 HMGR High-Voltage Metal Glaze Film Fixed Resistors 耐高压型玻璃釉膜固定电阻器 82 HVR Terminal Type Metal Oxide Film Resistors 端片型金属氧化膜电阻器 83 TMOR, TMOV, TMOL Jumper Wires & Zero-Ohm Resistors 跳线及零欧姆电阻器 84 ZW, ZO, ZF Copper Plated Steel Lead Wire Type & Cutting Type 铜包钢导线型及切割半成品型 Panasert Type (Panasert 型 ) Avisert Type (Avisert 型 ) M & F Forming Type (M 型 & F 型 < 成型 > ) Standard Packing of Coated Type Resistors 涂装型电阻器包装标准 85 CP, CO 86 87 AVI-1, AVI-2, AVI-3 89 MF, MK, ML, F, F1, F2, F3 91 Tape/Box, Tape/Reel, Bulk/Box Through Hole Category - Traditional Cement Resistors ( 插件式 - 水泥型电阻 ) Axial Leaded Terminal Type-PRW Series 轴式导线型 - PRW 系列 97 PRW, PRWA, PRWC Radial Leaded Type-PRM & PRS Series 立式导线型 - PRM & PRS 系列 98 PRM, PRMA, PRMB, PRMT, PRS Radial Terminal Type - PRV Series 立式端片型 - PRV 系列 99 PRVA, PRVB Radial Terminal Type - PRZ Series 立式端片型 - PRZ 系列 100 PRZA, PRZA-1, PRZC, PRZC-1, PRZD Radial Terminal Type - PRT & PRU Series 立式端片型 - PRT & PRU 系列 101 PRT, PRU, PRU-1 New New Radial Terminal Type - PRTM Series 立式端片型 - PRTM 系列 103 PRTM Radial Terminal Type - PRTC, PRTD 水泥型固定电阻器 104 PRTC, PRTD Leaded Type Cement Thermal Fusing Resistors 导线型水泥保险丝电阻器 106 FTR, PHF, PHF1, PHF2 Ultra-Low Value Cement Resistors 超低阻水泥固定电阻器 108 PRWU Power Flat Alloy Resistors 功率型合金箔电阻器 109 PFAS, PFAT Columnar Type Cement Fixed Resistors 圆柱状水泥电阻器 111 QHO Standard Packing of Cement Type Resistors 水泥型电阻器包装标准 112 Bulk/Box Power Type Resistors ( 功率型 ) Power Dissipation Mount Resistors 铝外壳电阻器 115 PDM High-Power Wire-wound Resistors 高功率绕线型固定电阻器 116 BTR High-Power Flat Wire-wound Fixed Resistors 高功率扁平型绕线固定电阻器 117 KNHB Multi-Leaded Wire-wound Resistors 多引线型绕线固定电阻器 118 KNHW New New New New High-Power Wire-wound Resistors 高功率绕线型固定电阻器 119 High Power Wire Wound Flat aluminum shell Fixed Resistors 高功率绕线扁平铝壳电阻器 120 High Power Wire Wound Trapezoid aluminum shell Fixed Resistors 高功率绕线梯形铝壳电阻器 121 High Power Wire Wound Iron shell Fixed Resistors 高功率绕线铁壳固定电阻器 122 HAWR HPWR HPAR HPWR High-Temperature Wire-wound Resistors 高温绕线固定电阻器 123 HAWF High Power Wire-wound Iron-Case Resistors HAWF30W, HAWF40W 高功率绕线型铁壳固定电阻器 124 Bilaeteral Cement Resistors 双体水泥固定电阻 126 BCR Vitreous Enameled Wire-wound Resistors 珐琅釉绕线固定电阻器 127 URX Power Type Thermal Fusing Resistors 功率型温度保险丝电阻 128 TFO, TFRC Power (Ribbon) Wire-wound Resistors 功率（合金带）绕线型电阻器 129 QH, QL, QR, QRZG RELATIVE INFORMATION ( 相关资料 ) Test Method of JIS-C-5201 & JIS-C-5202 JIS-C-5201 和 JIS-C-5202 检测方法 131 Standard Nominal Resistance Value 标准电阻值 133 Explnation of Part No. System 料号系统注释 135 Standard Color Code System 标准色码系统 137 2 Thick Film Chip Resistors RoHS Compliant UniOhm 厚膜晶片电阻器 Feature (特性) • Small size & light weight 短小轻薄 • Reduction of assembly costs and matching with placement machine. 可降低装置成本及配合机器组装 • Suitable for both wave & re-flow soldering. 适合波峰焊与回流焊 • Applications: Navigator (GPS), Mobile Phone,Telecom, PDA, Setbox, Meter. 应用于GPS， 移动电话，PDA，机顶盒，仪表 Figures (型状) Derating Curve & Specification 1. High purity Alumina substrate (高纯度氧化铝基板) 2. Protective coating (保护层) 3. Resistance element (阻抗元素) 4. Termination (Inner) Ni / Cr [端面(内)镍/铬层] 5. Termination (Between) Ni Barrier [端面(中)镍层] 6. Termination (Outer) Sn [端面(外)锡层(无铅)] 负载比率(%) Percent rated load (%) 降功率曲线及性能 Ambient termperature 环境温度 (°C) Type 类型 01005 New 0201 0402 0603 0805 1206 1210 1812 2010 2512 15V 25V 50V 75V 150V 200V 200V 200V 200V 200V 30V 50V 100V 150V 300V 400V 500V 500V 500V 500V - - 100V 300V 500V 500V 500V 500V 500V 500V Max. Working Voltage 最大工作电压 Max. Overload Voltage 最大过负荷电压 Dielectric withstanding Voltage 绝缘耐压 Operating Temperature 工作温度范围 -55~+155°C -55~+155°C -55~+155°C -55~+155°C -55~+155°C -55~+155°C -55~+155°C -55~+155°C -55~+155°C -55~+155°C 01005 New Type 类型 Power Rating at 70°C 功 率 L (mm) Dimension 尺 寸 0201 0402 0603 0805 1206 1210 1812 2010 2512 1/4W 1/16W 1/10W 1/8W 1/2W 1/2W 1/32W 1/20W 1/16W (1/3W-S 1W (1/10W-S) (1/8W-S) (1/4W-S) (3/4W-S) (3/4W-S) 1/2W-SS) 0.40 ± 0.02 0.60 ± 0.03 1.00 ± 0.10 1.60 ± 0.10 2.00 ± 0.15 3.10 ± 0.15 3.10 ± 0.10 4.50 ± 0.20 5.00 ± 0.10 6.35 ± 0.10 +0.15 -0.10 +0.15 -0.10 W (mm) 0.20 ± 0.02 0.30 ± 0.03 0.50 ± 0.05 0.80± 0.10 1.25 H (mm) 0.13 ± 0.02 0.23 ± 0.03 0.35 ± 0.05 0.45 ± 0.10 0.55 ± 0.10 0.55 ± 0.10 0.55 ± 0.10 0.55 ± 0.20 0.55 ± 0.10 0.55 ± 0.10 A (mm) 0.10 ± 0.05 0.10 ± 0.05 0.20 ± 0.10 0.30 ± 0.20 0.40 ± 0.20 0.45 ± 0.20 0.50 ± 0.25 0.50 ± 0.20 0.60 ± 0.25 0.60 ± 0.25 B (mm) 0.10 ± 0.03 0.15 ± 0.05 0.25 ± 0.10 0.30 ± 0.20 0.40 ± 0.20 0.45 ± 0.20 0.50 ± 0.20 0.50 ± 0.20 0.50 ± 0.20 0.50 ± 0.20 Resistance Value of Jumper 1.55 2.60± 0.20 3.20 ± 0.20 2.50± 0.20 3.20± 0.20 -
