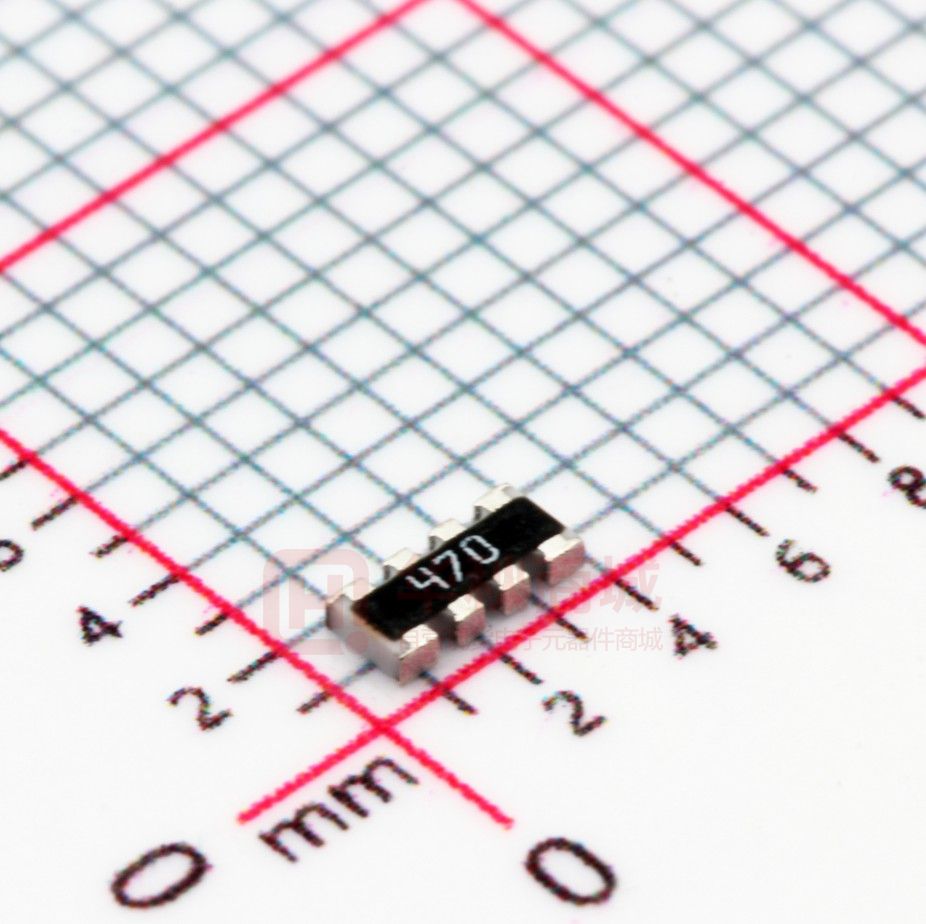

4D03WGJ0470T5E

厚聲國際貿易（昆山）有限公司深圳分公司 Uniroyal Electronics Global Co.,Ltd Shenzhen Branch Specification for Approval Customer : 深圳市立創電子商務有限公司 Product Name : Chip Resistor Array Part Name : Resistor Array Series ±1%，±5% & 0Ω Part No. : ****WG*****T*E，4DP3WA*****T*E 2F01WM*****T*E，4F01WM*****T*E Building 8, Jiuwei Industrial Zone, Xixiang Town, Bao'An District ,Shenzhen, Guangdong, China Guangdong Province, China TEL: 0755-27484508 FAX: 0755-27484308 Approved Checked Prepared File NO. Edition Date Page William Zhao Ted Hsu Chengxia Tang JLC-01-015 1 2017/06/12 1/14 厚聲國際貿易（昆山）有限公司深圳分公司 Uniroyal Electronics Global Co.,Ltd Shenzhen Branch Contents Introduction ………………………………………………………………………………………Page 1.0 Scope ………………………………………………………………………………………….4 2.0 Type Designation……………………………………………………………………………..4 3.0 Ratings & Dimension ………………………………………………………………………..4~6 4.0 Structure………………………………………………………………………………………..6 5.0 Marking ………………………………………… … ………………………………………7~8 6.0 Power rating…………………………...……………… ………………………………………9 7.0 Performance Specification ………………………………………………………………….. 9~10 8.0 Explanation of Part No. System ……………………………………………………………..11 9.0 Ordering Procedure …………………………………………………………………………...12 10.0 Standard Packing …………………………………………………………………………12~13 11.0 Precaution for storage/Transportation………………………..……………......................14 Approved Checked Prepared File NO. Edition Date Page William Zhao Ted Hsu Chengxia Tang JLC-01-015 1 2017/06/12 2/14 厚聲國際貿易（昆山）有限公司深圳分公司 Uniroyal Electronics Global Co.,Ltd Shenzhen Branch File Name: Date Resistor Array Series 2017/06/12 Edition No. 1 ±1%、±5% & 0Ω Amendment Record Edition Prescription of amendment Amend Page Signature Amend Date Amended by Checked by Approved Checked Prepared File NO. Edition Date Page William Zhao Ted Hsu Chengxia Tang JLC-01-015 1 2017/06/12 3/14 厚聲國際貿易（昆山）有限公司深圳分公司 Uniroyal Electronics Global Co.,Ltd Shenzhen Branch 1.0 Scope: This sheet is the statement of the Chip Resistor Array- Concave Terminal specification that UNIOHM’S productions can meet. 2.0 Type Designation: The type designation shall be in the following from: Example: Type Power rating 4C02 1/16W Resistance tolerance Nominal resistance J 100Ω 3.0 Ratings & Dimension: 3.1 Equivalent Circuit Diagram： 2D02/2D03 /2C02/2F01 4D02/4D03 /4C02/4C03/4F01 16P8 R1=R2 R1=R2=R3=R4 R1=R2=R3=R4=R5=R6=R7=R8 3.2 Dimensions in mm： Convex Terminal type 2D02/2D03 4D02/4D03 16P8 Approved Checked Prepared File NO. Edition Date Page William Zhao Ted Hsu Chengxia Tang JLC-01-015 1 2017/06/12 4/14 厚聲國際貿易（昆山）有限公司深圳分公司 Uniroyal Electronics Global Co.,Ltd Shenzhen Branch Concave Terminal 2C02 4C02/4C03 Flat Terminal 2F01 4F01 Dimensions （mm） Type L W T A1 A2 B P G 2D02 1.00±0.10 1.00±0.10 0.35±0.10 0.33±0.10 / 0.15±0.05 0.65±0.05 0.25±0.10 4D02 2.00±0.10 1.00±0.10 0.45±0.10 0.40±0.05 0.30±0.05 0.20±0.15 0.50±0.05 0.30±0.15 2D03 1.60±0.15 1.60±0.15 0.50±0.10 0.60±0.15 / 0.30±0.10 0.80±0.05 0.25±0.10 4D03 3.20±0.20 1.60±0.20 0.50±0.10 0.65±0.15 0.50±0.15 0.30±0.15 0.80±0.10 0.30±0.15 16P8 4.00±0.20 1.60±0.15 0.45±0.10 0.45±0.05 0.30±0.05 0.30±0.15 0.50±0.05 0.40±0.15 2C02 1.00±0.10 1.00±0.10 0.35±0.10 / / 0.15±0. 10 / 0.30±0.10 4C02 2.00±0.10 1.00±0.10 0.45±0.10 / / 0.15±0.10 / 0.30±0.10 4C03 3.20±0.20 1.60±0.20 0.60±0.10 / / 0.30±0.20 / 0.40±0.10 2F01 0.80±0.10 0.60±0.10 0.35±0.10 0.30±0.10 / 0.15±0.10 0.50±0.05 0.15±0.10 4F01 1.40±0.10 0.60±0.10 0.35±0.10 0.20±0.10 / 0.15±0.10 0.40±0.05 0.15±0.10 Approved Checked Prepared File NO. Edition Date Page William Zhao Ted Hsu Chengxia Tang JLC-01-015 1 2017/06/12 5/14 厚聲國際貿易（昆山）有限公司深圳分公司 Uniroyal Electronics Global Co.,Ltd Shenzhen Branch 3.3 Ratings： Type Rated power 70℃ Max Working Voltage Max Overload Voltage Dielectric Withstanding Voltage Resistance Range ±5%±1% Temperature Coefficient PPM/℃ 2D02 1/16W 50V 100V 100V 10Ω~1MΩ ±200 4D02 1/16W 50V 100V 100V 10Ω~1MΩ ±200 2D03 1/16W 50V 100V 100V 10Ω~1MΩ ±200 4D03 1/16W 50V 100V 300V 1Ω~1MΩ Operating Temperature Resistance Value of Jumper Rated Current of Jumper -55℃~+155℃
