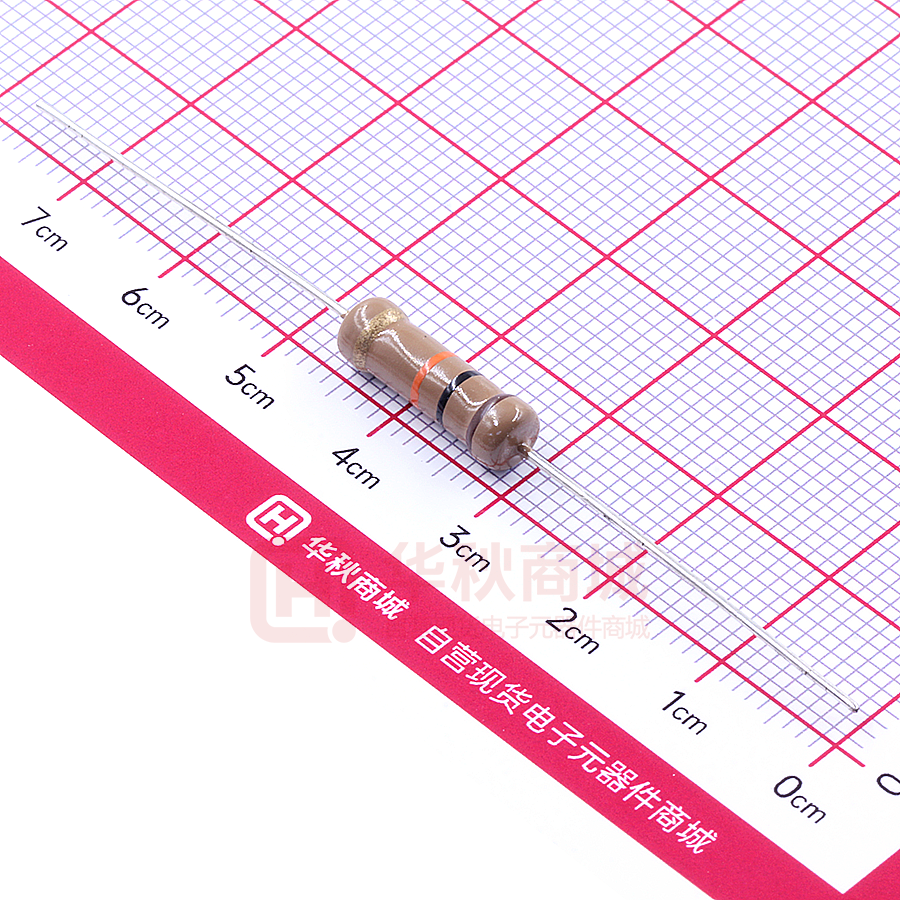

CFR02SJ0103A10

昆 山 厚 聲 電 子 科 技 有 限 公 司 UNIROYAL ELECTRONICS INDUSTRY (KUNSHAN) CO., LTD. Specification for Approval Customer : Part Name : CFR SERIES ±2%、±5%、±10% Product Name : Part No. : LEAD-FREE CARBON FILM FIXED RESISTORS CFR0**G*****0; CFR0**K*****0 CFR0**J*****0; 65 Dengta Road, Yushan Town, Kun Shan City, Jiang Su Province, China TEL: 86 512 57631411 / 22 / 33 FAX: 86 512 57631431 E-mail: globalsales@uniohm.com localsales@uniohm.com Approved Checked Prepared File NO. Edition Date Page William Zhao Apple Liu Wu Yiyun JL-01-004 1 2015.09.16 1/13 昆 山 厚 聲 電 子 科 技 有 限 公 司 UNIROYAL ELECTRONICS INDUSTRY (KUNSHAN) CO., LTD. Contents Introduction.. ………………………………………………………………….………………. Page 1.0 Scope.. …..………………………………………………………………………….………4 2.0 Ratings & Dimension..…...………………………………………………………………..4 3.0 Construction...…...…………………………………………………………………………5 4.0 Resistor marked..………………………………………………………………………….5 5.0 Derating Curve....………………………………………………………………………….6 6.0 Voltage rating…………………………………………………………………………………..6 7.0 Performance Specification..……………………………………………………………….6 8.0 Explanation of Part No. System..…………………………………………………………8 9.0 Ordering Procedure..………………………………………………………………………9 10.0 Standard Packing….….……………………………. …………….………………………10 11. 0 P re ca ut i on fo r s t ora ge / T ra n sp ort a t i on ………………… ……………… …………… … 13 Approved Checked Prepared File NO. Edition Date Page William Zhao Apple Liu Wu Yiyun JL-01-004 1 2015.09.16 2/13 昆 山 厚 聲 電 子 科 技 有 限 公 司 UNIROYAL ELECTRONICS INDUSTRY (KUNSHAN) CO., LTD. File Name: CFR SERIES ±2%、5%、±10% Edition Date Amendment Record Prescription of amendment Amend Page 2015.09.16 Amend Date Edition No. 1 Signature Amended by Checked by Approved Checked Prepared File NO. Edition Date Page William Zhao Apple Liu Wu Yiyun JL-01-004 1 2015.09.16 3/13 昆 山 厚 聲 電 子 科 技 有 限 公 司 UNIROYAL ELECTRONICS INDUSTRY (KUNSHAN) CO., LTD. 1.0 Scope: UNIOHM. This specification for approve relates to Lead-Free Carbon Film Fixed Resistors manufactured by 2.0 Ratings & Dimension: 2.1 Normal size Type D CR 1/8W 1.9±0.3 CR 1/2W 3.0±0.6 CR 1/4W CR 1W CR 2W 2.2±0.3 5.0±0.6 6.0±0.6 Dimension(mm) d L ±0.05 3.3±0.3 0.45 9.5±1.0 0.54 6.5±1.0 15.5±1.0 17.5±1.0 0.54 0.70 0.75 2.2 Small Size & Extra Small Size Type D Dimension(mm) 500V 500V 28 28 28 350V 400V 700V 500V 1000V 500V ±2%、±5%、±10% 1Ω~10MΩ 700V ±2%、±5%、±10% 1Ω~10MΩ ±2%、±5%、±10% ±2%、±5%、±10% 1000V 1000V ±2%、±5%、±10% 1000V 6.5±1.0 0.54 28 250V 500V 250V 4.0±0.6 11.5±1.0 6.0±0.6 17.5±1.0 15.5±1.0 0.45 0.54 0.65 0.70 0.75 28 28 28 28 28 200V 350V 400V 700V 1Ω~10MΩ 1Ω~10MΩ Resistance Range ±2%、±5%、±10% 1Ω~10MΩ 700V ±2%、±5%、±10% 1Ω~10MΩ 1000V 1000V 500V 1000V 1000V 1000V Tolerance 1Ω~10MΩ 400V 500V 500V Resistance Range 400V L 9.0±1.0 CR 3WS 250V 200V Dielectric Withstanding Voltage 3.0±0.5 5.0±0.6 28 28 Tolerance Max Overload Voltage CR 1/2WS CR 2WS Dielectric Withstanding Voltage Max Working Voltage 3.3±0.3 CR 1WS Max Overload Voltage H ±3 1.9±0.3 2.2±0.5 Max Working Voltage d ±0.05 CR 1/4WS CR 1/2WSS H ±3 ±2%、±5%、±10% ±2%、±5%、±10% ±2%、±5%、±10% 1000V ±2%、±5%、±10% 1Ω~10MΩ 1Ω~10MΩ 1Ω~10MΩ 1Ω~10MΩ Approved Checked Prepared File NO. Edition Date Page William Zhao Apple Liu Wu Yiyun JL-01-004 1 2015.09.16 4/13 昆 山 厚 聲 電 子 科 技 有 限 公 司 UNIROYAL ELECTRONICS INDUSTRY (KUNSHAN) CO., LTD. 3.0 Construction: No. 1 Basic Body 3 End Cap 2 4 5 6 7 Name Resistor Lead Wire Joint Coating Color Code 4.0 Resistor Marked: Material Rod Type Ceramics Carbon Film Cold steel plated with copper/tin Tin solder coated copper wire By welding (1). Celluloid paint (2).Insulated Resin Color: Beige(1/8W,1/4WS,1/2WS,1/4W,1/2W,1W,2W) Light Brown(1WS,2WS,3WS) Gray Green(1/2WSS) Epoxy resin Resistors shall be marked with color coding Colors shall be in accordance with JIS C 0802 Example: 4.1 Label: Label shall be marked with following items: (1) Type and style (2) Nominal resistance (3) Resistance tolerance CARBON FILM FIXED RESISTORS WATT: 1/2WS VAL: 100Ω LOT: 1021548 PPM: Q’TY: 2,000 TOL: 5% Approved Checked Prepared File NO. Edition Date Page William Zhao Apple Liu Wu Yiyun JL-01-004 1 2015.09.16 5/13 昆 山 厚 聲 電 子 科 技 有 限 公 司 UNIROYAL ELECTRONICS INDUSTRY (KUNSHAN) CO., LTD. (4) Quantity (5) Lot number (6) PPM 5.0 Derating Curve: Resistors shall have a power rating based on continuous load operation at an ambient temperature from -55℃ to 70℃. For temperature in excess of 70℃, the load shall be derate as shown in figure 1 Figure1 6.0 Voltage rating: Resistors should have a direct-current (DC) continuous voltage rating and an alternating-current (AC) continuous voltage rating relates to Power Rating, formula shown as below: RCWV: Rated dc or RMS ac continuous working voltage at commercial-line frequency and waveform (Volt.) P: Power Rating (Watt.) R: Nominal Resistance (Ohm) Resistors will be burned out if it overload, such as higher than the maximum value of series’ RCWV. And we named 2.5 times RCWV is OVERLOAD Voltage. 7.0 Performance Specification: Characteristic Temperature Coefficient Short-time overload Range Limits ≤10Ω 10Ω
