CS05W8F100MT5E

厂商：
UNIOHM(台湾厚声)
封装：
0805
描述：

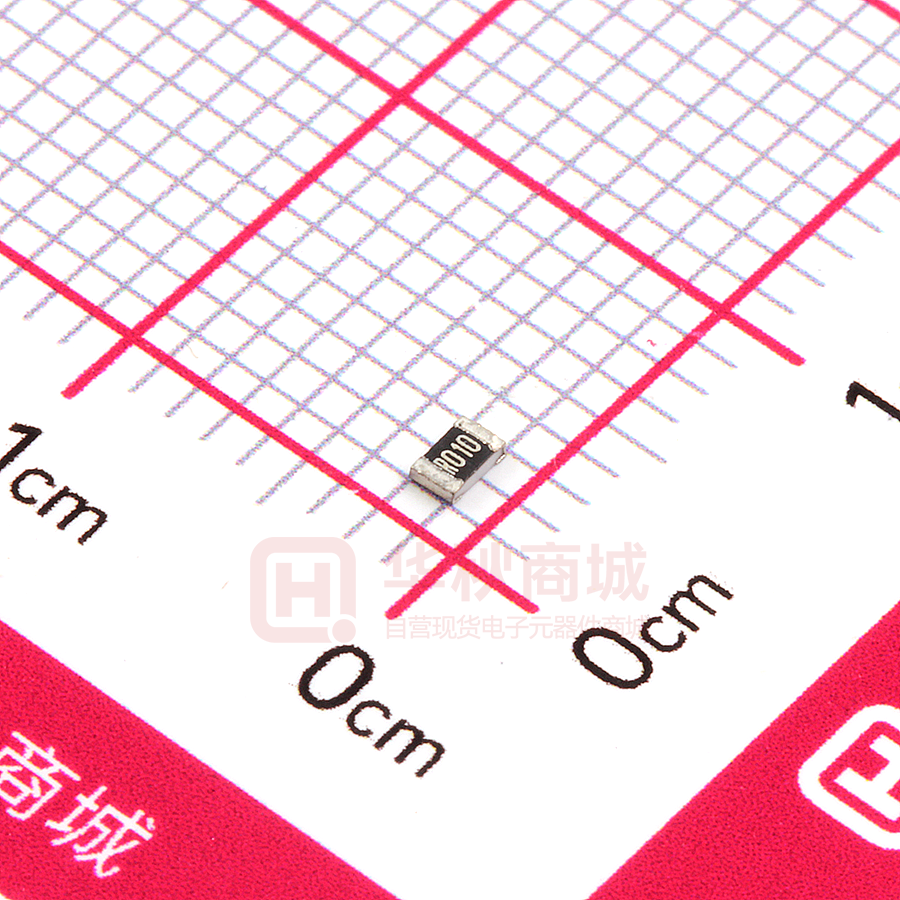

电流采样电阻 0805 10mΩ ±1% ±800ppm/℃ 1/8W

数据手册：

下载CS05W8F100MT5E.pdf

立即购买

详情介绍
数据手册
价格&库存

CS05W8F100MT5E 数据手册

Contents Introduction ……………………………………………………………………………………….Page 1.0 Scope………………………………………………………………………………………….4 2.0 Ratings & Dimension ……………………………………………………….……………….4 3.0 Power Rating……………………………………………………………………………….…5 4.0 Structure……………………………………………………………………………………..…5 5.0 Marking…………………………………………..……………………………………..…….. 5~6 6.0 Performance Specification ………………………………………………….………………6~7 7.0 Explanation of Part No. System…………………………………………………..…………7 8.0 Ordering Procedure ……………………………………………………...………………..…8 9.0 Packing………………………………………………………………………….…...…..…….8~9 10.0 Precaution for storage/Transportation……………………………………………….……10 Page 2 2017/07/27--Version: 1 File Name CS Series Dale :t1% & :t5% 2日 17 日 7.27 AmendmenlRecord Edilion Prescriplion 01amendmenl Edilion No Signalure Amend Page Page 3 Amend Dale Amended by Checked by 2017/07/27--Version: 1 1.0 Scope: This sheet is the statement of the Current Sensing Chip Resistor specification that ROYALOHM’s productions can meet. 2.0 Ratings & Dimension: Dimension (mm) Type CS02 CS03 CS05 CS06 CS07 CS10 CS11 CS12 1/8W 1/5W 1/4W 1/3W 1/2W 3/4W 3/4W 1W L 1.00±0.10 1.60±0.10 2.00±0.15 3.10±0.15 3.10±0.10 5.00±0.10 4.50±0.20 6.35±0.10 W 0.50±0.05 0.80±0.10 1.25 2.60±0.20 2.50±0.20 3.20±0.20 3.20±0.20 Power Rating at 70℃ +0.15 Dimension(mm) +0.15 1.55 -0.10 -0.10 H 0.35±0.05 0.45±0.10 0.55±0.10 0.55±0.10 0.55±0.10 0.55±0.10 0.55±0.20 0.55±0.10 A 0.20±0.10 0.30±0.20 0.40±0.20 0.45±0.20 0.50±0.25 0.60±0.25 0.50±0.20 0.60±0.25 B 0.25±0.10 0.30±0.20 0.40±0.20 0.45±0.20 0.50±0.20 0.50±0.20 0.80±0.30 0.80±0.30 ±1% 50mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω ±5% 50mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 100V 300V 500V 500V 500V 500V 500V 500V Resistance range Dielectric Withstanding Voltage Operating Temperature -55 ~ +155℃ 2.1 Recommend the size of welding plate by ROYALOHM. Type A±0.1(mm) B±0.1(mm) C±0.1(mm) CS02 0.50 0.50 0.60 CS03 0.80 1.00 0.90 CS05 1.00 1.00 1.40 CS06 2.00 1.20 2.00 CS07 2.00 1.20 2.70 CS10 3.60 1.40 3.00 CS11 3.50 1.20 3.20 CS12 3.80 2.10 3.60 Page 4 2017/07/27--Version: 1 3.0 Power Rating: Resistors shall have a power rating based on continuous load operation at an ambient temperature from -55℃ to 70℃. For temperature in excess of 70℃, the load shall be derate as shown in figure 1. 3.1 Voltage rating: Resistors shall have a rated direct-current (DC) continuous working voltage or an approximate sine-wave root-mean-square (RMS) alternating-current (AC) continuous working voltage at commercial-line frequency and waveform corresponding to the power rating, as determined from the following formula: Where: RCWV= Rated dc or RMS ac continuous working voltage at commercial-line frequency and waveform (VOLT.) P=Power Rating (WATT.) R=Nominal Resistance (OHM) In no case shall the rated dc or RMS ac continuous working voltage be greater than the applicable maximum value. The overload voltage is 2.5 times RCWV. 4.0 Structure: 1. High purity alumina substrate 2. Protective covering 3. Resistive covering 4. Termination (inner) Ni/Cr 5. Termination (between ) Cu 6. Termination (between) Ni 7. Termination (outer) Sn 5.0 Marking: (1) For CS02 size: Due to the very small size of the resistor’s body, there is no marking on the body. CS02 (2) For CS03 size: Below 100mΩ（do not contain）, show as following： 056 → 0.056Ω (3) For CS03 size: Above (contain) 100mΩ product: 3 digits, the first digit is “R”, which as decimal point, the 2 nd digits are significant. R10 → 100mΩ Page 5 rd &3 2017/07/27--Version: 1 (4) ±1%, ±5% Tolerance: product below 1Ω show as following, the first digit is “R”, which as decimal point. R050 → 50mΩ R100 → 100mΩ (5) ±1%, ±5% Tolerance: product of 1Ω show as following, the first digit is “1”, read alphabet “R” as decimal point. 1R00→ 1Ω 6.0 Performance Specification: Characteristic CS02 CS03 CS05 CS06 Temperature Coefficient CS07 CS10 CS11 CS12 Short-time overload Terminal bending Test Method (JIS-C-5201 & JIS-C-5202) Limits 50mΩ≤R

下载 PDF

CS05W8F100MT5E

1. 物料型号：文档列出了不同型号的电流检测芯片电阻器，包括CS02、CS03、CS05、CS06、CS07、CS10、CS11和CS12。

2. 器件简介：文档声明了ROYALOHM生产的电流检测芯片电阻器的规格。

3. 引脚分配：文档中没有明确提到引脚分配，但提到了焊接板的推荐尺寸。

4. 参数特性： - 电阻器的功率等级基于在-55℃至70℃环境温度下的连续负载操作。 - 电阻器具有额定直流（DC）或交流（AC）连续工作电压，根据功率等级和标称电阻计算得出。

5. 功能详解： - 文档详细描述了电阻器的结构，包括高纯度氧化铝基板、保护层、电阻层、端接（内、中、外）等。 - 标记方法：对于不同尺寸的电阻器，标记方法不同，例如CS02尺寸由于体积小，没有在本体上标记。

6. 应用信息：文档提供了焊接板推荐尺寸，以及不同型号的电阻器的尺寸和功率等级。

7. 封装信息： - 封装类型包括散装（Chip Product）和卷带（Tape/Reel）。 - 包装尺寸和剥落强度测试条件也有详细说明。

8. 存储和运输注意事项： - 产品符合欧盟RoHS指令、PAHs指令、PFOS指令，并且无卤素。 - 存储条件应为5℃~35℃和相对湿度25%~75%RH，避免在腐蚀性气体或直射阳光下存储。
