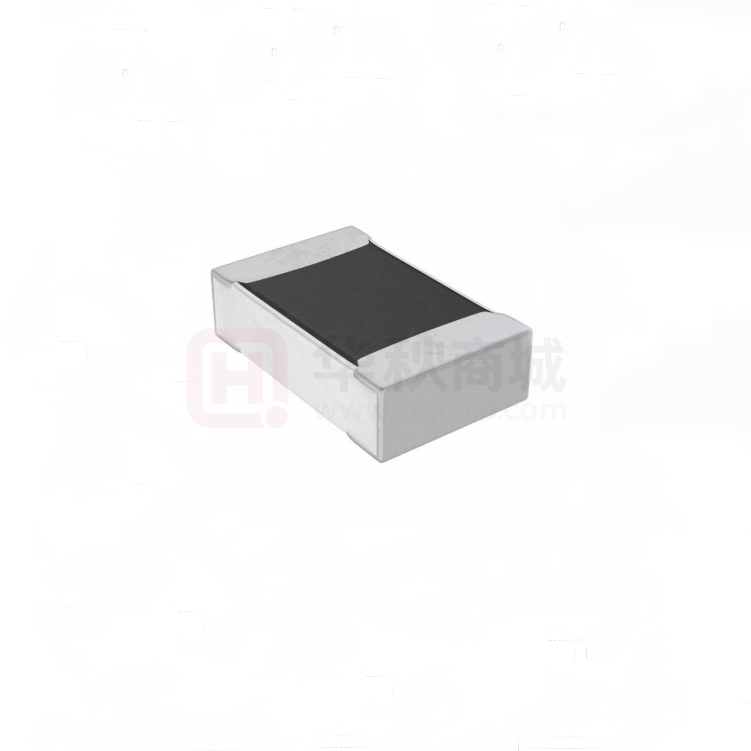

CS05W8F200MT5E

Contents Introduction ……………………………………………………………………………………….Page 1.0 Scope………………………………………………………………………………………….4 2.0 Ratings & Dimension ……………………………………………………….……………….4 3.0 Power Rating……………………………………………………………………………….…5 4.0 Structure……………………………………………………………………………………..…5 5.0 Marking…………………………………………..……………………………………..…….. 5~6 6.0 Performance Specification ………………………………………………….………………6~7 7.0 Explanation of Part No. System…………………………………………………..…………7 8.0 Ordering Procedure ……………………………………………………...………………..…8 9.0 Packing………………………………………………………………………….…...…..…….8~9 10.0 Precaution for storage/Transportation……………………………………………….……10 Page 2 2017/07/27--Version: 1 File Name CS Series Dale :t1% & :t5% 2日 17 日 7.27 AmendmenlRecord Edilion Prescriplion 01amendmenl Edilion No Signalure Amend Page Page 3 Amend Dale Amended by Checked by 2017/07/27--Version: 1 1.0 Scope: This sheet is the statement of the Current Sensing Chip Resistor specification that ROYALOHM’s productions can meet. 2.0 Ratings & Dimension: Dimension (mm) Type CS02 CS03 CS05 CS06 CS07 CS10 CS11 CS12 1/8W 1/5W 1/4W 1/3W 1/2W 3/4W 3/4W 1W L 1.00±0.10 1.60±0.10 2.00±0.15 3.10±0.15 3.10±0.10 5.00±0.10 4.50±0.20 6.35±0.10 W 0.50±0.05 0.80±0.10 1.25 2.60±0.20 2.50±0.20 3.20±0.20 3.20±0.20 Power Rating at 70℃ +0.15 Dimension(mm) +0.15 1.55 -0.10 -0.10 H 0.35±0.05 0.45±0.10 0.55±0.10 0.55±0.10 0.55±0.10 0.55±0.10 0.55±0.20 0.55±0.10 A 0.20±0.10 0.30±0.20 0.40±0.20 0.45±0.20 0.50±0.25 0.60±0.25 0.50±0.20 0.60±0.25 B 0.25±0.10 0.30±0.20 0.40±0.20 0.45±0.20 0.50±0.20 0.50±0.20 0.80±0.30 0.80±0.30 ±1% 50mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω ±5% 50mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 10mΩ~1Ω 100V 300V 500V 500V 500V 500V 500V 500V Resistance range Dielectric Withstanding Voltage Operating Temperature -55 ~ +155℃ 2.1 Recommend the size of welding plate by ROYALOHM. Type A±0.1(mm) B±0.1(mm) C±0.1(mm) CS02 0.50 0.50 0.60 CS03 0.80 1.00 0.90 CS05 1.00 1.00 1.40 CS06 2.00 1.20 2.00 CS07 2.00 1.20 2.70 CS10 3.60 1.40 3.00 CS11 3.50 1.20 3.20 CS12 3.80 2.10 3.60 Page 4 2017/07/27--Version: 1 3.0 Power Rating: Resistors shall have a power rating based on continuous load operation at an ambient temperature from -55℃ to 70℃. For temperature in excess of 70℃, the load shall be derate as shown in figure 1. 3.1 Voltage rating: Resistors shall have a rated direct-current (DC) continuous working voltage or an approximate sine-wave root-mean-square (RMS) alternating-current (AC) continuous working voltage at commercial-line frequency and waveform corresponding to the power rating, as determined from the following formula: Where: RCWV= Rated dc or RMS ac continuous working voltage at commercial-line frequency and waveform (VOLT.) P=Power Rating (WATT.) R=Nominal Resistance (OHM) In no case shall the rated dc or RMS ac continuous working voltage be greater than the applicable maximum value. The overload voltage is 2.5 times RCWV. 4.0 Structure: 1. High purity alumina substrate 2. Protective covering 3. Resistive covering 4. Termination (inner) Ni/Cr 5. Termination (between ) Cu 6. Termination (between) Ni 7. Termination (outer) Sn 5.0 Marking: (1) For CS02 size: Due to the very small size of the resistor’s body, there is no marking on the body. CS02 (2) For CS03 size: Below 100mΩ（do not contain）, show as following： 056 → 0.056Ω (3) For CS03 size: Above (contain) 100mΩ product: 3 digits, the first digit is “R”, which as decimal point, the 2 nd digits are significant. R10 → 100mΩ Page 5 rd &3 2017/07/27--Version: 1 (4) ±1%, ±5% Tolerance: product below 1Ω show as following, the first digit is “R”, which as decimal point. R050 → 50mΩ R100 → 100mΩ (5) ±1%, ±5% Tolerance: product of 1Ω show as following, the first digit is “1”, read alphabet “R” as decimal point. 1R00→ 1Ω 6.0 Performance Specification: Characteristic CS02 CS03 CS05 CS06 Temperature Coefficient CS07 CS10 CS11 CS12 Short-time overload Terminal bending Test Method (JIS-C-5201 & JIS-C-5202) Limits 50mΩ≤R
