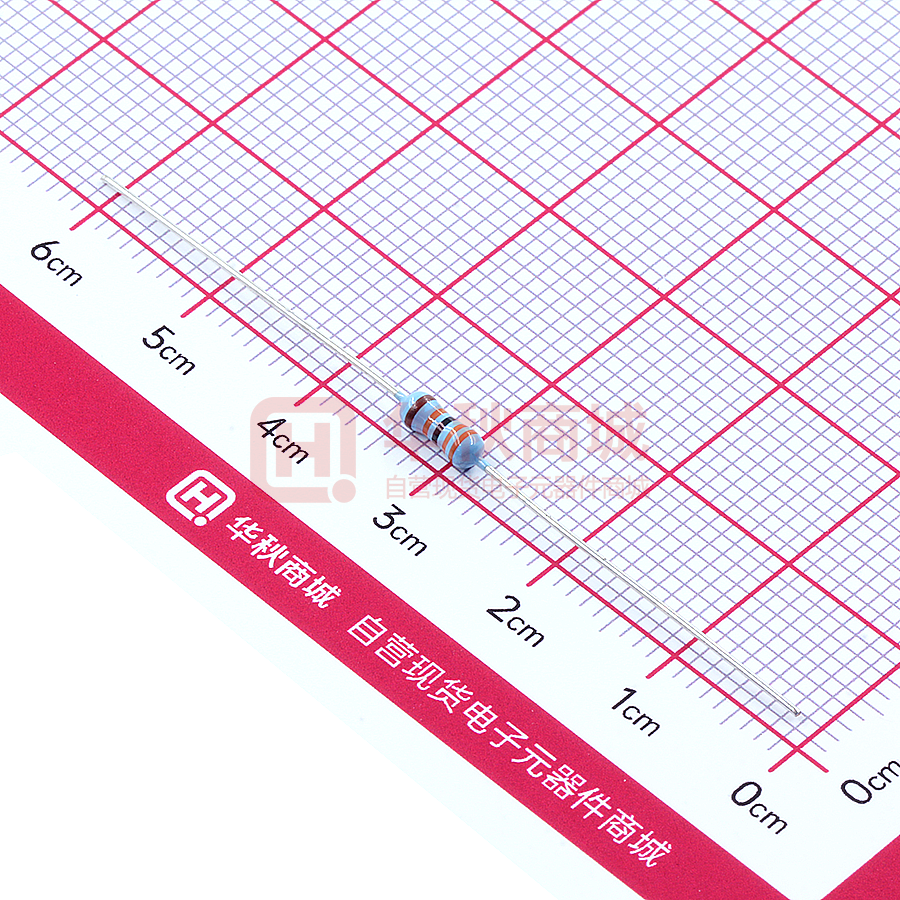

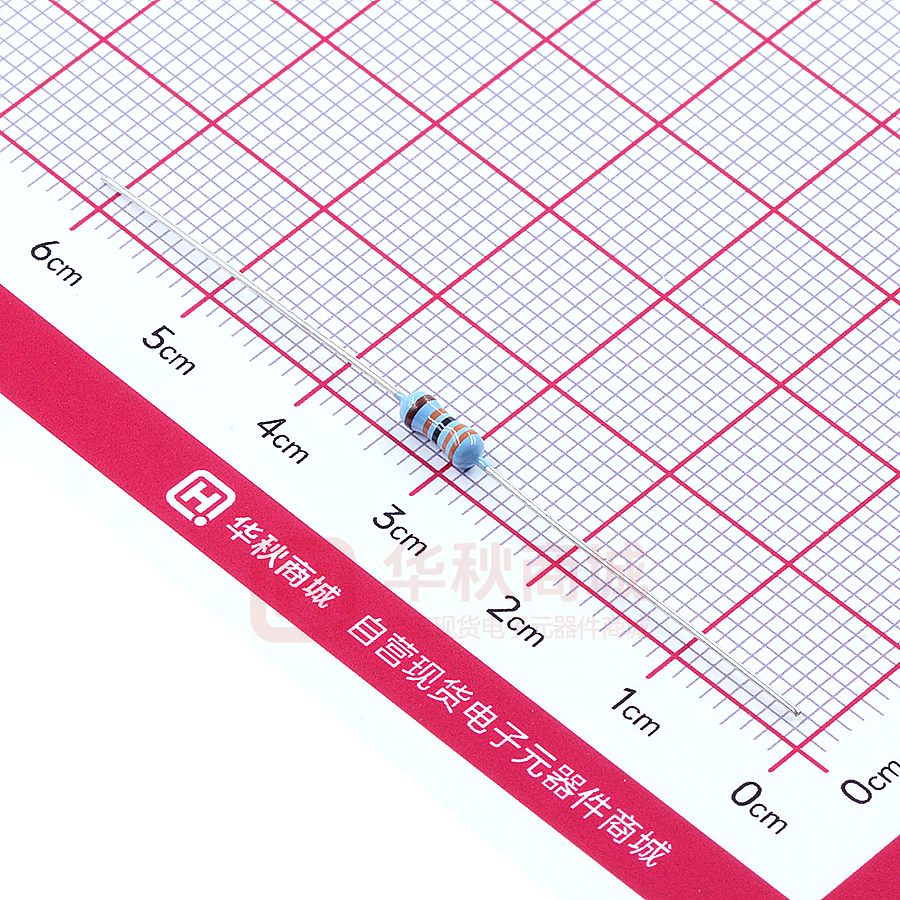

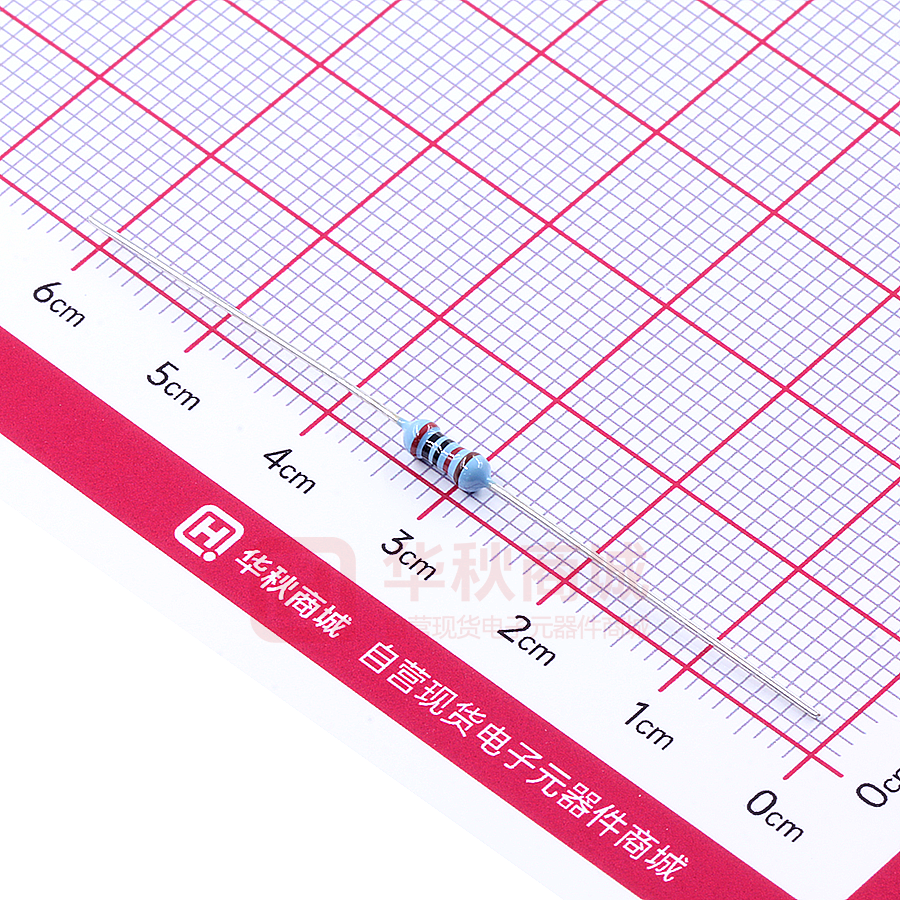

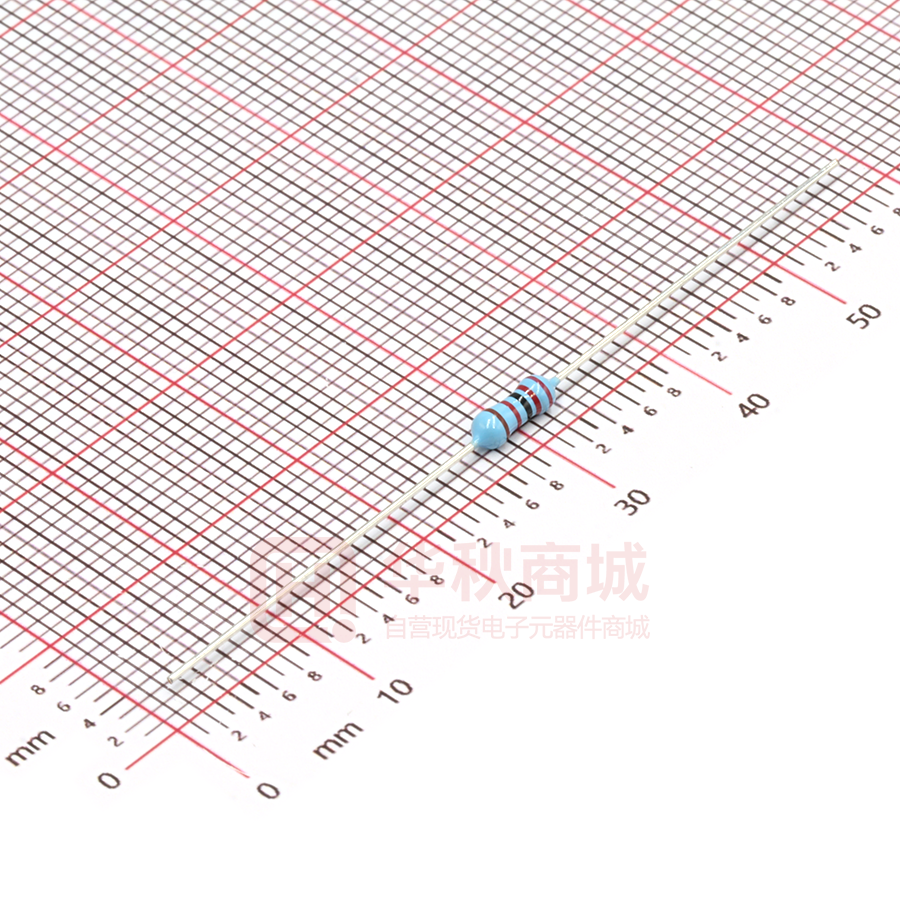

MF0W4FF3303A50

DATA SHEET Product Name Precision Metal Film Fixed Resistors Part Name MF Series Uniroyal Electronics Global Co., Ltd. 88#, Longteng Road, Economic & Technical Development Zone, Kunshan, Jiangsu, China Tel Email Manufacture Plant +86 512 5763 1411 / 22 /33 marketing@uni-royal.cn Uniroyal Electronics Industry Co., Ltd. Aeon Technology Corporation Royal Electronic Factory (Thailand) Co., Ltd. Royal Technology (Thailand) Co., Ltd. Precision Metal Film Fixed Resistors 1. Scope 1.1 This datasheet is the characteristics of Precision Metal Film Fixed Resistors manufactured by UNI-ROYAL. 1.2 Flame Retardant type available 1.3 Low noise & voltage coefficient 1.4 Low temperature coefficient range 1.5 Multiple epoxy coating on vacuum-deposited metal flim provideds superior moiseure protection 1.6 Nichrome resistive element provides stable performance in various environments 2. Part No. System The standard Part No. includes 14 digits with the following explanation: 2.1 Coated type, the 1st to 2rd digits are to indicate the product type . Example: MF= Metal Film Fixed Resistors 2.2 The 3th digit is the special feature. Example: 0= Standard product ; F= Flame Retardant ; I= Non-inductive 2.3 4th~6th digits: 2.3.1 This is to indicate the wattage or power rating. To dieting the size and the numbers, The following codes are used; and please refer to the following chart for detail: W=Normal Size; S=Small Size; U=Extra Small Size; “1”~“G”to denotes“1”~“16”as Hexadecimal: 1/16W~1/2W (＜1W ) Wattage Normal Size Small Size Extra Small Size 1/2 W2 S2 U2 1/3 W3 S3 U3 1/4 W4 S4 U4 3 3W 3S 3U 5 5W 5S 5U 1/5 W5 S5 U5 1/6 W6 S6 U6 1/8 W8 S8 U8 0.6 / 06 / 0.4 / / 04 1W~16W (≧1W ) Wattage Normal Size Small Size Extra Small Size 1 1W 1S 1U 2 2W 2S 2U 7 7W 7S 7U 8 8W 8S 8U 9 9W 9S 9U 10 AW AS AU 15 FW FS FU 2.3.2 For power rating less than 1 watt, the 4th digit will be the letters W, S or U to represent the size required & the 5th digit will be a number or aletter code. Example: WA=1/10W; U2=1/2W-SS. 2.3.3 For power of 1 watt to 16 watt, the 4th digit will be a number or a letter code and the 5th digit will be the letters of W, S or U. Example: AW=10W; 3S=3W-S 2.4 The 6th digits will be used to indicated the requested Temperature Coefficient. (1) B=15PPM (2) B=25PPM (3) F=50PPM (4) G=100PPM (5) J=200PPM 2.5 The 7th digit is to denote the Resistance Tolerance. The following letter code is to be used for indicating the standard Resistance Tolerance. F=±1% G=±2% J=±5% 2.6 The 8th to 11th digits is to denote the Resistance Value. 2.6. 1 For the standard resistance values of E-24 series, the 8th digit is “0”,the 9th & 10th digits are to denote the significant figures of the resistance and the 11th digit is the number of zeros following; For the standard resistance values of E-96 series, the 8th digit to the 10th digits is to denote the significant figures of the resistance and the 11th digit is the 11th digit is the zeros following. 2.6.2 The following number s and the letter codes are to be used to indicate the number of zeros in the 11th digit: 0=100 1=101 2=102 3=103 4=104 5=105 6=106 J=10-1 K=10-2 L=10-3 M=10-4 2.7 The 12th, 13th & 14th digits. The 12th digit is to denote the Packaging Type with the following codes: A=Tape/Box (Ammo pack) B=Bulk/Box T=Tape/Reel P=Tape/Box of PT-26 products 2.8 The 13th digit is normally to indicate the Packing Quantity of Tape/Box & Tape/Reel packaging types. The following letter code and number is to be used for some packing quantities: A=500pcs B=2500pcs 1=1000pcs 2=2000pcs 2.9 For some items, the 14th digit alone can use to denote special features of additional information with the following codes: 0=NIL P=Panasert type 1=Avisert type 1 2=Avisert type 2 3=Avisert type 3 8=PT-58mm 9=PT-64mm 7=Lead wire(H)38mm A=PT-83mm C=PT-73mm D=PT-71mm Feb.18,2019 V.3 www. uni-royal.cn Page 2/8 Precision Metal Film Fixed Resistors 3. Ordering Procedure (Example: MF 1/4W ±1% 100Ω T/B-5000 ) M F 0 W 4 F Product Type: MF=Precision metal film fixed resistors Special Features: 0= Standard product F= Flame Retardant I= Non-inductive Wattage: Normal size: W8=1/8W W4=1/4W W2=1/2W 1W=1W 2W=2W 3W=3W Small size: S4=1/4W-S S2=1/2W-S 06=0.6W-S 1S=1WS 2S=2WS 3S=3WS Extra small size: 04=0.4WSS Tolerance B=±0.1% C=±0.25% D=±0.5% F=±1% G=±2% J=±5% F 1 0 0 0 Resistance Value: ±2%、±5%、10% series: The 1st digit will be ”0”; the 2nd & 3rd digits are for the significant figures of the resistance and the 4th digit denotes number of zeros following Example:20KΩ:0203 ≤±1%series: The 1st to 3rd digits are for the significant figures of the resistance and 4th digit denotes number of zeros following. Example:20KΩ:2002 J=10-1; K=10-2; L=10-3 PPM requirement: B=±15PPM C=±25PPM F=±50PPM G=±100PPM J=±200PPM A 5 0 Packing quantity: 1=1,000pcs 2=2,000pcs 3=3,000pcs 4=4,000pcs 5=5,000pcs A=500pcs B=2,500pcs Additional Information: 0=NIL P=Panasert type 1=Avisert type 1 2=Avisert type 2 3=Avisert type 3 8=PT-58mm 9=PT-64mm 7=Lead wire(H)38mm A=PT-83mm C=PT-73mm D=PT-71mm Packing Type: A=Tape/Box T=Tape/Reel B=Bulk/Box P=Tape/Box of PT-26 product 4. Marking Resistors shall be marked with color coding Colors shall be in accordance with JIS C 0802 For 1/8W, ,1/4WS,0.4WSS (±1%) The other For 1/8W,1/6W,1/4WS,0.4WSS (±2%,±5%) The other 4.1 Label: Label shall be marked with following items: (1) Type and style (2) Nominal resistance (3) Resistance tolerance (4) Quantity (5) Lot number (6) PPM Feb.18,2019 V.3 Example: METAL FILM FIXED RESISTORS WATT: 1/4W Q’TY: 5,000 LOT: 5021548 www. uni-royal.cn VAL:100 TOL: 1% PPM: 50 Page 3/8 Precision Metal Film Fixed Resistors 5. Dimension For 1/8W, 1/4WS, 0.4WSS Other Dimension(mm) Type MF 1/8W MF 1/4WS MF 0.4WSS MF 1/4W MF 1/2WS MF 1/2W MF 0.6WS MF 1WS MF 1W MF 2WS MF 2W MF 3WS MF 3W D 1.9±0.3 1.9±0.3 1.9±0.5 2.2±0.3 2.2±0.5 3.0±0.6 2.2±0.5 3.0±0.6 4.5±0.6 4.5±0.6 5.0±0.6 5.0±0.6 6.0±0.6 L 3.3±0.3 3.3±0.3 3.3±0.3 6.5±1.0 6.5±1.0 9.5±1.0 6.5±1.0 9.5±1.0 11.5±1.0 11.5±1.0 15.5±1.0 15.5±1.0 17.5±1.0 d±0.05 0.45 0.45 0.45 0.54 0.54 0.54 0.54 0.54 0.70 0.70 0.70 0.70 0.75 H±3 28 28 28 28 28 28 28 28 25 25 28 28 28 PT 52 52 52 52 52 52 52 52 52 52 64 64 64 Max Working Voltage 200V 200V 200V 250V 250V 350V 250V 350V 500V 500V 500V 500V 500V Max Overload Voltage 400V 400V 400V 500V 500V 700V 500V 700V 1000V 1000V 1000V 1000V 1000V Dielectric Withstanding Voltage 400V 400V 400V 500V 250V 700V 500V 700V 1000V 1000V 1000V 1000V 1000V 6. Resistance Range Standard Type MF 1/8W MF 1/4WS MF 0.4WSS MF 1/4W MF 1/2WS MF 0.6WS MF 1/2W MF 1WS MF 1W MF 2WS MF 2W MF 3WS MF 3W Feb.18,2019 V.3 Special Order Tolerance Resistance Range TCR PPM/℃ Tolerance Resistance Range TCR PPM/℃ ±1% 10Ω~1MΩ 50 ±0.25% 51.1Ω~200KΩ 15 ±2% 10Ω~1MΩ 100 ±0.5% 51.1Ω~511KΩ 25 ±5% 1Ω~1MΩ 200 ±0.5% 51.1Ω~511KΩ 50 ±1% 10Ω~1MΩ 50 ±0.1% 10Ω~1MΩ 15 ±2% 1Ω~1MΩ 100 ±0.25% 10Ω~1MΩ 25 ±5% 1Ω~1MΩ 200 ±0.5% 10Ω~1MΩ 50 ±1% 10Ω~1MΩ 50 ±0.1% 100Ω~330KΩ 15 ±2% 10Ω~1MΩ 100 ±0.25% 51.1Ω~511KΩ 25 ±5% 1Ω~1MΩ 200 ±0.5% 10Ω~1MΩ 50 ±1% 51.1Ω~1MΩ 50 ±0.1% 100Ω~330KΩ 15 ±2% 51.1Ω~1MΩ 100 ±0.25% 51.1Ω~511KΩ 25 ±5% 1Ω~1MΩ 200 ±0.5% 51.1Ω~ 1MΩ 50 www. uni-royal.cn Page 4/8 Precision Metal Film Fixed Resistors 7. Derating Curve Power rating will change based on continuous load at ambient temperature from -55 to 155℃. It is constant between -55 to 70℃, and derate to zero when temperature rise from 70 to 155℃. Voltage rating: Resistors shall have a rated direct-current (DC) continuous working voltage or an approximate sine-wave root-mean-square (RMS) alternating-current (AC) continuous working voltage at commercial-line frequency and waveform corresponding to the power rating, as determined from the following formula: Remark: RCWV: Rating Continuous Working Voltage (Volt.) P: power rating (Watt) R: nominal resistance (Ω) In no case, the rated DC or RMS AC continuous working voltage must be greater than the applicable maximum value. The overload voltage is 2.5 times RCWV or Max. Overload voltage whichever is lower. 8. Structure No. Name Material 1 Basic Body Rod type ceramics 2 Resistor Metal Film 3 End Cap Cold steel plated with copper/tin 4 Lead Wire Tin solder coated copper wire 5 Joint By Welding (1). Celluloid paint 6 Coating 7 Color Code (2) Insulated Resin Color ：Blue 1/2WS：Deep Green 0.6WS：Apple Green Epoxy resin 9. Performance Specification Characteristic Test Method (GB/T5729&JIS-C-5201&IEC60115-1) Limits Reference 6.0 4.8 Natural resistance changes per temp. Degree centigrade R2-R1 × 106 (PPM/℃) R1(t2-t1) R1: Resistance Value at room temperature （t1）; R2: Resistance at test temperature (Upper limit temperature or Lower limit temperature) t1: +25°C or specified room temperature t2: Upper limit temperature or Lower limit temperature test temperature Short-time overload ΔR/R ≤ ±(0.5%+0.05 Ω),with no evidence of mechanical damage 4.13 Permanent resistance change after the application of a potential of 2.5 times RCWV for 5 seconds. Dielectric withstanding voltage No evidence of flashover mechanical damage, arcing or insulation break down. 4.7 Resistors shall be clamped in the trough of a 90metallic v-block and shall be tested at ac potential respectively specified in the above list for 60-70 seconds. ΔR/R ≤ ±（1%+0.05),with no evidence of mechanical damage 4.28 Resistance change after 10,000 cycles (1 second “ON ”, 25 seconds “OFF ”) at 4 times RCWV. Temperature Coefficient Pulse overload Feb.18,2019 V.3 www. uni-royal.cn Page 5/8 Precision Metal Film Fixed Resistors Resistance to soldering heat Resistance to solvent Terminal strength Solderability Rapid change of temperature ΔR/R ≤ ±(1%+0.05 Ω) with no evidence of mechanical damage 4.18 Permanent resistance change when leads immersed to a point 2.02.5mm from the body in 260℃5℃ solder for 10±1 seconds. No deterioration of protective coatings & markings 4.29 Specimens shall be immersed in a bath of trichloroethylene completely for 3 min. With ultrasonic No evidence of mechanical damage 4.16 Direct load: Resistance to a 2.5 kg direct load for 10 seconds in the direction of the longitudinal axis of the terminal leads. Twist test: Terminal leads shall be bent through 90at a point of about 6mm from the body of the resistor and shall be rotated through 360 about the original axis of the bent terminal in alternating direction for a total of 3 rotations. Coverage must be over 95%. 4.17 The area covered with a new, smooth, clean, shiny and continuous surface free from concentrated pinholes. Test temp. Of solder:245℃±3℃ Dwell time in solder: 2~3seconds. ΔR/R ≤ ±(1%+0.05 Ω） with no evidence of mechanical damage 4.19 30 min at -55 °C and 30 min at 155°C; 100 cycles. 7.9 resistance change after 1,000 hours (1.5 hours “ON”,0.5 hour “OFF”) at RCWV in a humidity test chamber controlled at 40℃±2℃ and 90 to 95% relative humidity. Load life in humidity Normal type: ΔR/R ≤±1.5%; flame retardant type: ΔR/R ≤ ±5% Load life Normal type: ΔR/R ≤±1.5%; flame retardant type: ΔR/R ≤±5% 4.25.1 permanent resistance change after 1,000 hours operating at RCWV with duty cycle of 1.5 hours “ON”, 0.5 hour “OFF” at 70℃±2 ℃ ambient. Low Temperature Storage Normal type: ΔR/R ≤±1.5%; flame retardant type: ΔR/R ≤±5% 4.23.4 Lower limit temperature，for 2H. High Temperature Exposure Normal type: ΔR/R ≤±1.5%; flame retardant type: ΔR/R ≤±5% 4.23.4 Upper limit temperature ，for 16H. Feb.18,2019 V.3 www. uni-royal.cn Page 6/8 Precision Metal Film Fixed Resistors 10. Packing 10.1 Tapes in Box Packing Dimension of T/B (mm) Part No. MF 1/8W MF 1/4WS MF 0.4WSS MF 1/4W MF 1/2WS MF 0.6WS MF 1/2W MF 1WS MF 1W MF 2WS MF 2W MF 3WS MF 3W O P A±5 B±5 C±5 Qty/Box 52±1 52±1 52±1 52±1 52±1 52±1 52±1 52±1 52±1 52±1 64±5 64±5 64±5 5±0.3 5±0.3 5±0.3 5±0.3 5±0.3 5±0.3 5±0.3 5±0.3 5±0.3 5±0.3 10±0.5 10±0.5 10±0.5 75 75 75 75 75 75 75 75 86 86 94 94 90 70 70 70 98 98 98 45 45 82 82 88 88 88 255 255 255 255 255 255 255 255 255 255 255 255 255 5,000pcs 5,000pcs 5,000pcs 5,000pcs 5,000pcs 5,000pcs 1,000pcs 1,000pcs 1,000pcs 1,000pcs 1000pcs 1000pcs 500pcs 10.2 Tapes in Reel Packing Dimension of Reel (mm) Part No. MF 1/8W MF 1/4WS MF 0.4WSS MF 1/4W MF 1/2WS MF 1/2W MF 0.6WS MF 1WS MF 1W MF 2WS MF 2W MF 3WS MF 3W Feb.18,2019 V.3 O 52±1 52±1 52±1 52±1 52±1 52±1 52±1 52±1 52±1 52±1 64±5 64±5 64±5 A 73±2 73±2 73±2 73±2 73±2 73±2 73±2 73±2 73±2 73±2 80±5 80±5 80±5 W±5 85 85 85 85 85 85 85 85 85 85 95 95 95 www. uni-royal.cn H±5 295 295 295 295 295 295 295 295 295 295 295 295 295 L±5 293 293 293 293 293 293 293 293 293 293 293 293 293 Qty/Box 5,000pcs 5,000pcs 5,000pcs 5,000pcs 5,000pcs 2,500pcs 5,000pcs 2,500pcs 2,500pcs 2,500pcs 1,000pcs 1,000pcs 1,000pcs Page 7/8 Precision Metal Film Fixed Resistors 10.3 Bulk in Box Packing Dimension of Box (mm) Part No. A±5 B±5 C±5 Qty/Box MF 1/8W 140 80 240 1,000/20,000pcs MF 1/4WS 140 80 240 1,000/20,000pcs MF 0.4WSS 140 80 240 1,000/20,000pcs MF 1/4W 140 80 240 500/10,000pcs 500/10,000pcs MF 1/2WS 140 80 240 MF 1/2W 140 80 240 250/5,000pcs MF 0.6WS 140 80 240 500/10,000pcs MF 1WS 140 80 240 250/5,000pcs MF 1W 140 80 240 100/2,500pcs MF 2WS 140 80 240 100/2,500pcs MF 2W 140 80 240 100/1,500pcs MF 3WS 140 80 240 100/1,500pcs MF 3W 140 80 240 100/1,500pcs 11. Note 11.1. UNI-ROYAL recommend products store in warehouse with temperature between 15 to 35℃ under humidity between 25 to 75%RH. Even under storage conditions recommended above, solder ability of products will be degraded stored over 1 year old. 11.2. Cartons must be placed in correct direction which indicated on carton, otherwise the reel or wire will be deformed. 11.3. Storage conditions as below are inappropriate: a. Stored in high electrostatic environment b. Stored in direct sunshine, rain, snow or condensation. c. Exposed to sea wind or corrosive gases, such as Cl2, H2S, NH3, SO2, NO2, etc. 12. Record Version Description Page Date Amended by Checked by 1 First version 1~7 Mar.20, 2018 Chen Haiyan Chen Nana 2 Modify coating color 5 May.08, 2018 Chen Haiyan Chen Nana 3 Modify characteristic 5~6 Feb.18, 2019 Chen Haiyan Xu Yuhua © Uniroyal Electronics Global Co., Ltd. All rights reserved. Specification herein will be changed at any time without prior notice Feb.18,2019 V.3 www. uni-royal.cn Page 8/8
