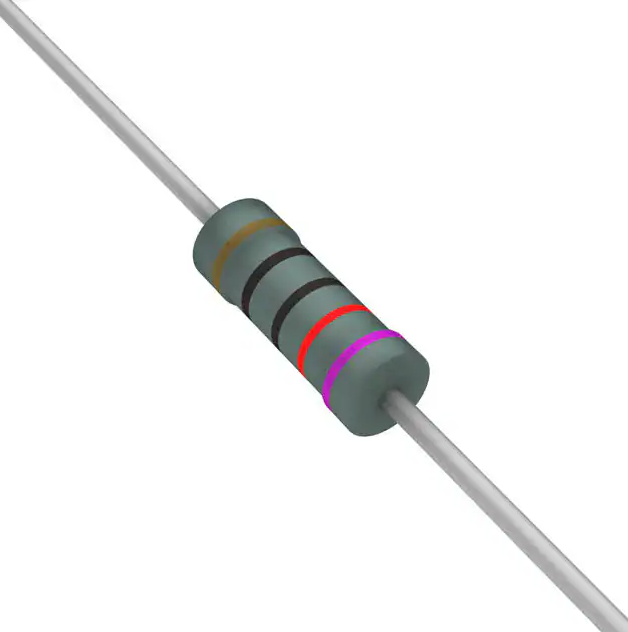

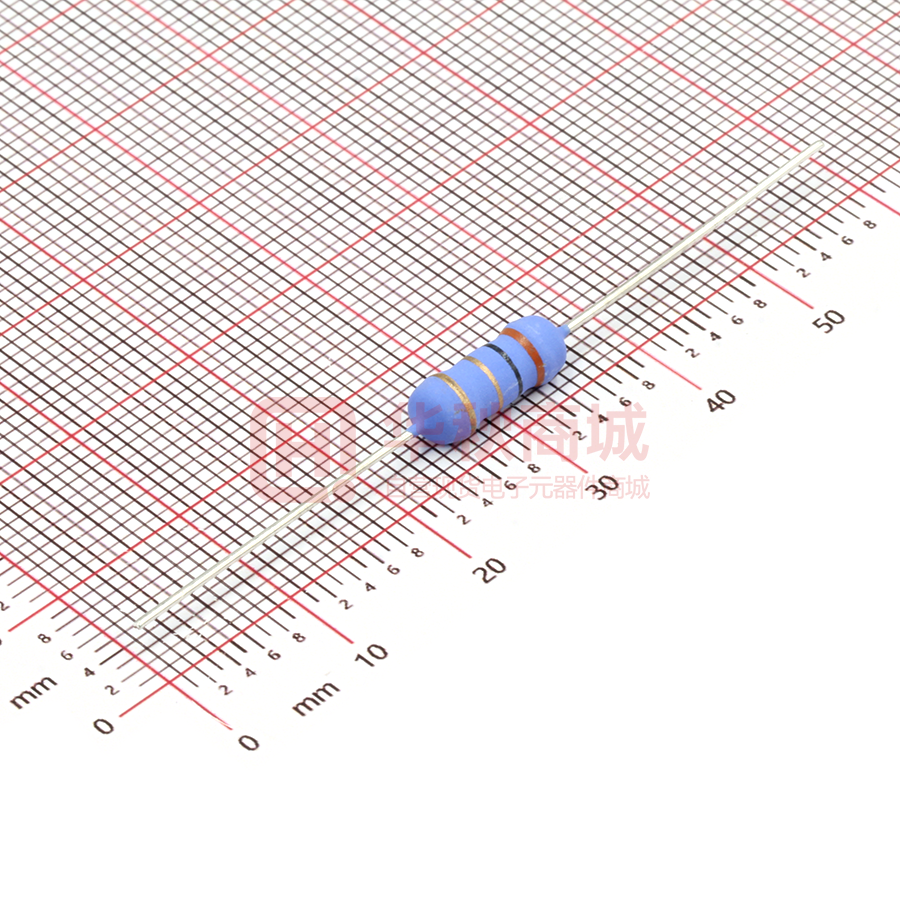

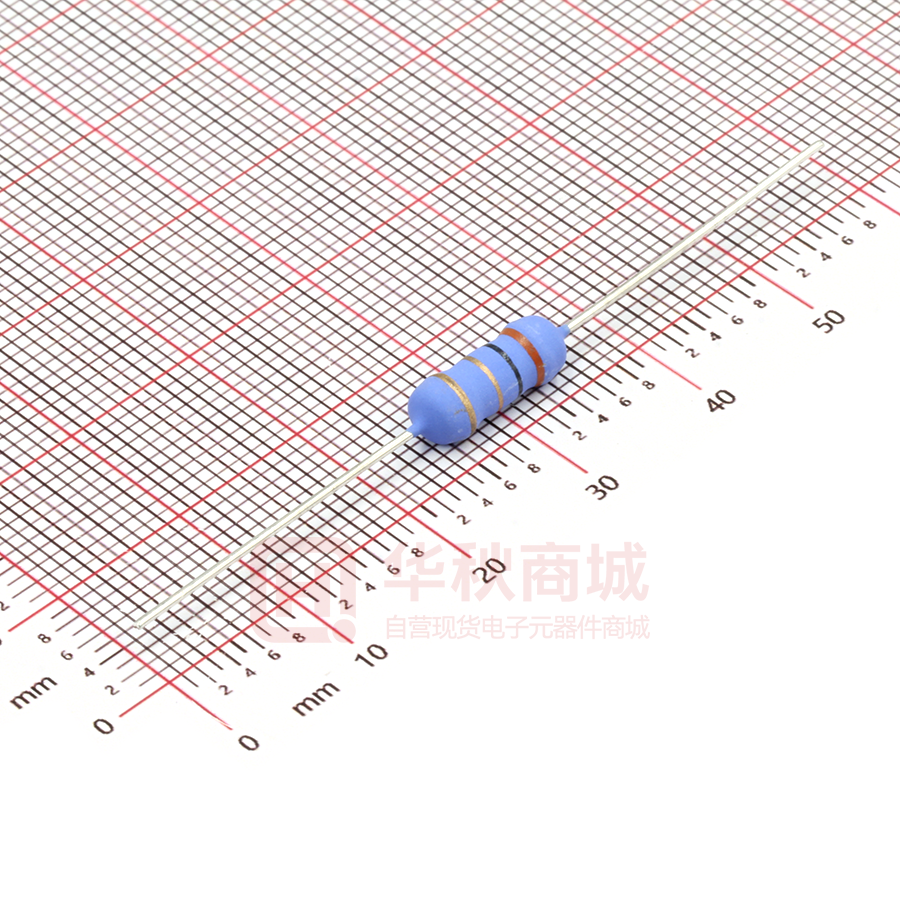

MOR02SJ010JA10

DATA SHEET Product Name Metal Oxide Film Fixed Resistors Part Name MOR Series File No. DIP-SP-004 Uniroyal Electronics Global Co., Ltd. 88#, Longteng Road, Economic & Technical Development Zone, Kunshan, Jiangsu, China Tel Email Manufacture Plant +86 512 5763 1411 / 22 /33 marketing@uni-royal.cn Uniroyal Electronics Industry Co., Ltd. Aeon Technology Corporation Royal Electronic Factory (Thailand) Co., Ltd. Royal Technology (Thailand) Co., Ltd. Metal Oxide Film Fixed Resistors 1. Scope 1.1 This datasheet is the characteristics of Metal Oxide Film Fixed Resistors manufactured by UNI-ROYAL. 1.2 Excellent flame retardant coating 1.3 High stability even in bad environment 1.4 High purity ceramic core 1.5 Meet EIA-RC2655A requirements 1.6 High safety standard 2. Part No. System The standard Part No. includes 14 digits with the following explanation: 2.1 1th ~4th digits For Coated type, the 1st~3rd digits are to indicate the product type and the 4th digit is the special feature. Example: MOR0=Metal Oxide Film Fixed Resistors 2.2 5th~6th digits: 2.2.1 This is to indicate the wattage or power rating. To dieting the size and the numbers, The following codes are used; and please refer to the following chart for detail: W=Normal Size; 1”~“G”to denote“1”~“16”as Hexadecimal: 1/16W~1W: (＜1W ) Wattage 1/2 1/3 1 1/5 1/6 1W~16W (≧1W ) Normal Size Small Size Extra Small Size Wattage Normal Size Small Size Extra Small Size W2 S2 U2 1 1W 1S 1U W3 S3 U3 2 2W 2S 2U W4 S4 U4 3 3W 3S 3U 5 5W 5S 5U W5 S5 U5 7 7W 7S 7U W6 S6 U6 8 8W 8S 8U 1/8 W8 S8 U8 9 9W 9S 9U 1/10 WA SA UA 10 AW AS AU 1/16 WG SG UG 15 FW FS FU 2.2.2 For power rating less or equal to 1 watt, the 5th digit will be the letters W to represent the size required & the 6th digit will be a number or a letter code. Example: WA=1/10W; W4=1/4W 2.3 The 7th digit is to denote the Resistance Tolerance. The following letter code is to be used for indicating the standard Resistance Tolerance. D=±0.5% F=±1% G=±2% J=±5% K= ±10% 2.4 The 8th to 11th digits is to denote the Resistance Value. 2.4.1 If value belongs to standard value of E-24 series, the 8th code is zero, 9th~10th codes are the significant figures of resistance value, and the 11th code is the power of ten. 2.4.2 If value belongs to standard value of E-96 series, the 8th~10th codes are the significant figures of resistance value, and the 11th code is the power of ten. 2.4.3 The following number s and the letter codes are to be used to indicate the number of zeros in the 11th digit: 0=100 1=101 2=102 3=103 4=104 5=105 6=106 J=10-1 K=10-2 L=10-3 M=10-4 2.5 The 12th, 13th & 14th digits. 2.5.1 The 12th digit is to denote the Packaging Type with the following codes: A=Tape/Box; T=Tape/Reel; B=Bulk/Box 2.5 .2 The 13th digit is normally to indicate the Packing Quantity of Tape/Reel packaging types. The following letter code is to be used for some packing quantities: 4=4000pcs 5=5000pcs C=10000pcs D=20000pcs E=15000pcs 2.5.3 For some items, the 14th digit alone can use to denote special features of additional information with the following codes: 0=NIL P=Panasert type 1=Avisert type 1 2=Avisert type 2 3=Avisert type 3 8=PT-58mm 9=PT-64mm 7=Lead wire(H)38mm A=PT-83mm C=PT-73mm D=PT-71mm Oct.28,2022 V.4 www. uni-royal.cn Page 2/8 Metal Oxide Film Fixed Resistors 3. Ordering Procedure (Example: MOR 1WS ±5% 8.2Ω T/B-1000) M O R 0 1 S Product Type: MOR=Metal Oxide Film Fixed Resistors J 0 8 2 J Resistance Value: ±2%、±5%、10% series: The 1st digit will be ”0”; the 2nd & 3rd digits are for the significant figures of the resistance and the 4th digit denotes number of zeros following Example:20KΩ:0203 ≤±1%series: The 1st to 3rd digits are for the significant figures of the resistance and 4th digit denotes number of zeros following. Wattage: Normal size: W4=1/4W W2=1/2W 1W=1W 2W=2W 3W=3W 5W=5W 7W=7W 9W=9W Small size: S2=1/2WS 1S=1WS 2S=2WS 3S=3WS 5S=5WS Example:20KΩ:2002 J=10-1; K=10-2; L=10-3 Special Features: 0= Standard product I= Non-lnductive Tolerance : G=±2% J=±5% K=±10% A 1 0 Packing quantity: 1=1,000pcs 2=2,000pcs 3=3,000pcs 4=4,000pcs 5=5,000pcs A=500pcs B=2,500pcs Additional Information: 0=NIL P=Panasert type 1=Avisert type 1 2=Avisert type 2 3=Avisert type 3 8=PT-58mm 9=PT-64mm 7=Lead wire(H)38mm A=PT-83mm C=PT-73mm D=PT-71mm Packing Type: A=Tape/Box T=Tape/Reel B=Bulk/Box P=Tape/Box of PT-26 product 4. Marking Resistors shall be marked with color coding Colors shall be in accordance with JIS C 0802 4.1 Label: Label shall be marked with following items: (1) Type and style (2) Nominal resistance (3) Resistance tolerance (4) Quantity (5) Lot number (6) PPM Oct.28,2022 V.4 Example: Metal Oxide Film Fixed Resistors WATT: 1WS Q’TY: 1,000 LOT: 5021548 www. uni-royal.cn VAL:8.2Ω TOL: 5% PPM: Page 3/8 Metal Oxide Film Fixed Resistors 5. Dimension Type MOR 1/4W MOR 1/2WS MOR 1/2W MOR 1WS MOR 1W MOR 2WS MOR 2W MOR 3WS MOR 3W MOR 5WS MOR 5W MOR 7W MOR 8W MOR 9W D 2.2±0.5 2.2±0.5 3.0±0.6 3.5±0.6 4.5±0.6 4.5±0.6 5.0±0.6 5.0±0.6 6.0±0.6 6.0±0.6 8.0±0.6 8.0±0.6 8.0±0.6 8.0±0.6 Dimension(mm) d L ±0.05 6.5±1.0 6.5±1.0 9.5±1.0 9.5±1.0 11.5±1.0 11.5±1.0 15.5±1.0 15.5±1.0 17.5±1.0 17.5±1.0 24.5±1.0 29.5±1.0 39.5±1.0 52.5±1.0 0.54 0.54 0.54 0.54 0.70 0.70 0.70 0.70 0.75 0.75 0.75 0.75 1.00 1.00 H ±3 PT 28 28 28 28 25 25 28 28 28 28 38 38 38 38 52 52 52 52 52 52 64 64 64 64 90 B/B B/B B/B Max Working Voltage Max Overload Voltage Dielectric Withstanding Voltage Tolerance Resistance Range 250V 250V 250V 350V 350V 350V 350V 350V 500V 500V 750V 750V 750V 750V 400V 400V 400V 600V 600V 600V 600V 600V 800V 800V 1000V 1000V 1000V 1000V 250V 250V 250V 350V 350V 350V 350V 350V 500V 500V 750V 750V 750V 750V ±2%、±5% ±2%、±5% ±2%、±5% ±2%、±5% ±2%、±5% ±2%、±5% ±2%、±5% ±2%、±5% ±2%、±5% ±2%、±5% ±2%、±5% ±2%、±5% ±2%、±5% ±2%、±5% 0.1Ω~470KΩ 0.1Ω~470KΩ 0.1Ω~560KΩ 0.1Ω~560KΩ 0.1Ω~560KΩ 0.1Ω~560KΩ 0.1Ω~560KΩ 0.1Ω~560KΩ 0.1Ω~560KΩ 0.1Ω~560KΩ 0.1Ω~680KΩ 20Ω~150KΩ 30Ω~200KΩ 50Ω~200KΩ 6. Derating Curve Resistors shall have a power rating based on continuous load operation at an ambient temperature from -55℃ to 70℃. For temperature in excess of 70℃, the load shall be derate as shown in figure 1 Voltage rating: Resistors shall have a rated direct-current (DC) continuous working voltage or an approximate sine-wave root-mean-square (RMS) alternating-current (AC) continuous working voltage at commercial-line frequency and waveform corresponding to the power rating, as determined from the following formula: Remark: RCWV: Rating Continuous Working Voltage (Volt.) P: power rating (Watt) R: nominal resistance (Ω) In no case shall the rated DC or RMS AC continuous working voltage be greater than the applicable maximum value. The overload voltage is 2.5 times RCWV or Max. Overload voltage whichever is lower. Oct.28,2022 V.4 www. uni-royal.cn Page 4/8 Metal Oxide Film Fixed Resistors 7. Structure No. Name Material 1 Basic body Rod type ceramics 2 Resistor Metal Oxide Film 3 End cap Steel (Tin plated iron surface) 4 Lead wire Tin solder coated copper wire 5 Joint By welding Insulated resin Color: 6 Gray (Normal size) Coating Sea blue (Small size) 7 Color code Epoxy resin 8. Performance Specification Characteristic Test Method (GB/T5729&JIS-C-5201&IEC60115-1) Limits 1/4W 1/2WS ≦100KΩ: ±350PPM/℃ 100KΩ
