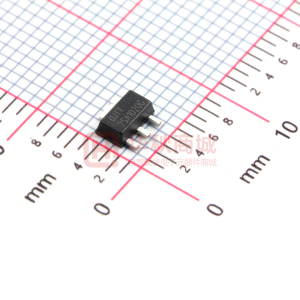

2SA1020-Y-AB3-R

UNISONIC TECHNOLOGIES CO., LTD 2SA1020 SILICON PNP EPITAXIAL TRANSISTOR DESCRIPTION The UTC 2SA1020 is designed for power amplifier and power switching applications. PNP SILICON TRANSISTOR 1 SOT-89 FEATURES *Low collector saturation voltage: VCE(SAT)=-0.5V(max.) (IC=-1A) *High speed switching time: tSTG=1.0µs(Typ.) *Complement to UTC 2SC2655 1 TO-92NL *Pb-free plating product number:2SA1020L ORDERING INFORMATION Order Number Normal Lead Free Plating 2SA1020-x-AB3-R 2SA1020L-x-AB3-R 2SA1020-x-T9N-B 2SA1020L-x-T9N-B 2SA1020-x-T9N-K 2SA1020L-x-T9N-K Package SOT-89 TO-92NL TO-92NL Pin Assignment 1 2 3 B C E E C B E C B Packing Tape Reel Tape Box Bulk 2SA1020L-x-AB3-R (1)Packing Type (2)Package Type (3)Rank (4)Lead Plating (1) B: Tape Box, K: Bulk, R: Tape Reel (2) AB3: SOT-89, T9N: TO-92NL (3) x: refer to Classification of hFE1 (4) L: Lead Free Plating, Blank: Pb/Sn www.unisonic.com.tw Copyright © 2005 Unisonic Technologies Co., Ltd 1 of 4 QW-R211-007,B 2SA1020 PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current PNP SILICON TRANSISTOR ABSOLUTE MAXIMUM RATINGS (Ta=25°C, unless otherwise specified) RATINGS UNIT -50 V -50 V -5 V -2 A TO-92NL 900 mW Collector Power Dissipation PC SOT-89 500 mW Junction Temperature TJ 150 °C Storage Temperature TSTG -55 ~ +150 °C Note Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. SYMBOL VCBO VCEO VEBO Ic ELECTRICAL CHARACTERISTICS (Ta=25°C, unless otherwise specified) PARAMETER Collector to Emitter Breakdown Voltage Collector Cut-off Current Emitter Cut-off Current DC Current Gain Collector to Emitter Saturation Voltage Base to Emitter Saturation Voltage Transition Frequency Collector Output Capacitance Turn-on Time Storage Time Switching Time Fall Time SYMBOL BVCEO ICBO IEBO hFE1 hFE2 VCE(SAT) VBE(SAT) fT Cob tON tSTG tF TEST CONDITIONS Ic=-10mA, IB=0 VCB=-50V, IE=0 VEB=-5V, IC=0 VCE=-2V, IC=-0.5A VCE=-2V, IC=-1.5A Ic=-1A, IB=-0.05A Ic=-1A, IB=-0.05A VCE=-2V, Ic=-0.5A VCB=-10V, IE=0, f=1MHz MIN -50 TYP MAX UNIT V -1.0 µA -1.0 µA 240 -0.5 -1.2 100 40 0.1 1.0 0.1 V V MHz pF µs µs µs 70 40 CLASSIFICATION OF hFE1 RANK RANGE O 70 - 140 Y 120 - 240 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 4 QW-R211-007,B 2SA1020 TYPICAL CHARACTERISTICS PNP SILICON TRANSISTOR UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 4 QW-R211-007,B 2SA1020 TYPICAL CHARACTERISTICS(Cont.) PNP SILICON TRANSISTOR TO-92NL SOT-89 UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 4 of 4 QW-R211-007,B
