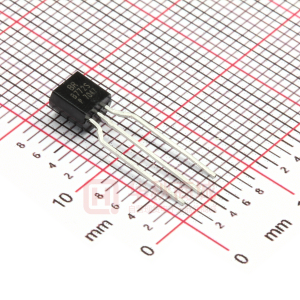

2SB772S-TO92

UNISONIC TECHNOLOGIES CO., 2SB772S MEDIUM POWER LOW VOLTAGE TRANSISTOR DESCRIPTION PNP EPITAXIAL SILICON TRANSISTOR The UTC 2SB772S is a medium power low voltage transistor, designed for audio power amplifier, DC-DC converter and voltage regulator. FEATURES *High current output up to 3A *Low saturation voltage *Complement to 2SD882S 1 TO-92 *Pb-free plating product number: 2SB772SL PIN CONFIGURATION PIN NO. PIN NAME 1 Emitter 2 Collector 3 Base ORDERING INFORMATION Order Number Normal Lead free 2SB772S-T92-B 2SB772SL-T92-B 2SB772S-T92-K 2SB772SL-T92-K Package TO-92 TO-92 Packing Tape Box Bulk www.unisonic.com.tw Copyright © 2005 Unisonic Technologies Co., 1 QW-R201-023.B 2SB772S PARAMETER Collector -Base Voltage Collector -Emitter Voltage Emitter -Base Voltage Peak Collector Current DC Collector Current Base Current Power Dissipation Operating Temperature Storage Temperature PNP EPITAXIAL SILICON TRANSISTOR ABSOLUATE MAXIUM RATINGS (Ta = 25℃) SYMBOL VCBO VCEO VEBO ICM IC IB PD TJ TSTG RATINGS -40 -30 -5 -7 -3 -0.6 0.5 +150 -40 ~ +150 UNIT V V V A A A W ℃ ℃ ELECTRICAL CHARACTERISTICS (Ta= 25℃, unless otherwise specified) PARAMETER Collector Cut-Off Current Emitter Cut-Off Current SYMBOL ICBO IEBO hFE1 DC Current Gain(Note 1) hFE2 Collector-Emitter Saturation Voltage VCE(sat) Base-Emitter Saturation Voltage VBE(sat) Current Gain Bandwidth Product fT Output Capacitance Cob Note 1: Pulse test: PW
