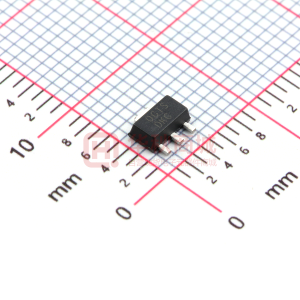

2SC4672G-X-AB3-R

UNISONIC TECHNOLOGIES CO., LTD 2SC4672 LOW FREQUENCY TRANSISTOR (50V,2A) DESCRIPTION The UTC 2SC4672 is a low frequency transistor. Excellent DC current gain characteristics. NPN SILICON TRANSISTOR FEATURES *Low Saturation Voltage, Typically VCE(SAT)=0.1V at IC / IB=1A / 50mA *Excellent DC Current Gain Characteristics ORDERING INFORMATION Normal 2SC4672-x-AB3-R Ordering Number Lead Free Plating 2SC4672L-x-AB3-R Halogen-Free 2SC4672G-x-AB3-R Package SOT-89 Pin Assignment 1 2 3 B C E Packing Tape Reel MARKING www.unisonic.com.tw Copyright © 2010 Unisonic Technologies Co., 1 of 2 QW-R208-004.D 2SC4672 ABSOLUATE MAXIUM RATINGS (Ta = 25°C) NPN SILICON TRANSISTOR PARAMETER SYMBOL RATINGS UNIT Collector to Base Voltage VCBO 60 V Collector to Emitter Voltage VCEO 50 V Emitter to Base Voltage VEBO 6 V Collector Current IC 2 A Collector Current (Pulse) (Note 1) ICP 5 A Collector Dissipation PC 500 mW Junction Temperature TJ +150 °C Storage Temperature TSTG -40 ~ +150 °C Note: 1.Single pulse, PW=10ms 2.Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. ELECTRICAL CHARACTERISTICS (Ta= 25°C, unless otherwise specified) PARAMETER SYMBOL TEST CONDITIONS Collector-Base Breakdown Voltage BVCBO IC =50μA Collector-Emitter Breakdown Voltage BVCEO IC =1mA Emitter-Base Breakdown Voltage BVEBO IE =50μA Collector Cutoff Current ICBO VCB=60V Emitter Cutoff Current IEBO VEB=5V Collector-Emitter Saturation Voltage VCE(SAT) IC /IB=1A/50mA (Note) DC Current Transfer Ratio hFE VCE=2V, IC =0.5A (Note) Transition Frequency fT VCE=2V, IE =-0.5A, f=100MHz Output Capacitance COB VCB=10V, IE =0A,f=1MHz Note : Measured using pulse current. ■ MIN 60 50 6 TYP MAX 0.1 120 210 25 0.1 0.1 0.35 400 UNIT V V V μA μA V MHz pF CLASSIFICATION OF hFE RANK RANGE A 120 ~ 240 B 200 ~ 400 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 4 QW-R208-004.D 2SC4672 TYPICAL CHARACTERISTICS NPN SILICON TRANSISTOR S.O.A IC MAX.(Pulsed) IC MAX (Continuous) IC, Collector Current (A) DC Collector-Emitter Voltage, VCE(V) 140 120 100 80 60 40 20 0 0.001 0.01 0.1 Collector Current, IC (A) 1 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw DC Current Gain, hFE S 1m mS 10 3 of 4 QW-R208-004.D 2SC4672 NPN SILICON TRANSISTOR U TC assum es no responsibility for equipm ent failures that result from using products at v alues that ex ceed, ev en m om entarily, rated v alues (such as m ax im um ratings, operating condition ranges, or other param eters) listed in products specifications of any and all UT C products described or contained herein. UT C products are not designed for use in life support appliances, dev ices or system s where m alfunction of these products can be reasonably expected to result in personal injury. R eproduction in whole or in part is prohibited without the prior written consent of the copyright owner. T he inform ation presented in this docum ent does not form part of any quotation or contract, is believ ed to be accurate and reliable and m ay be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 4 of 4 QW-R208-004.D
