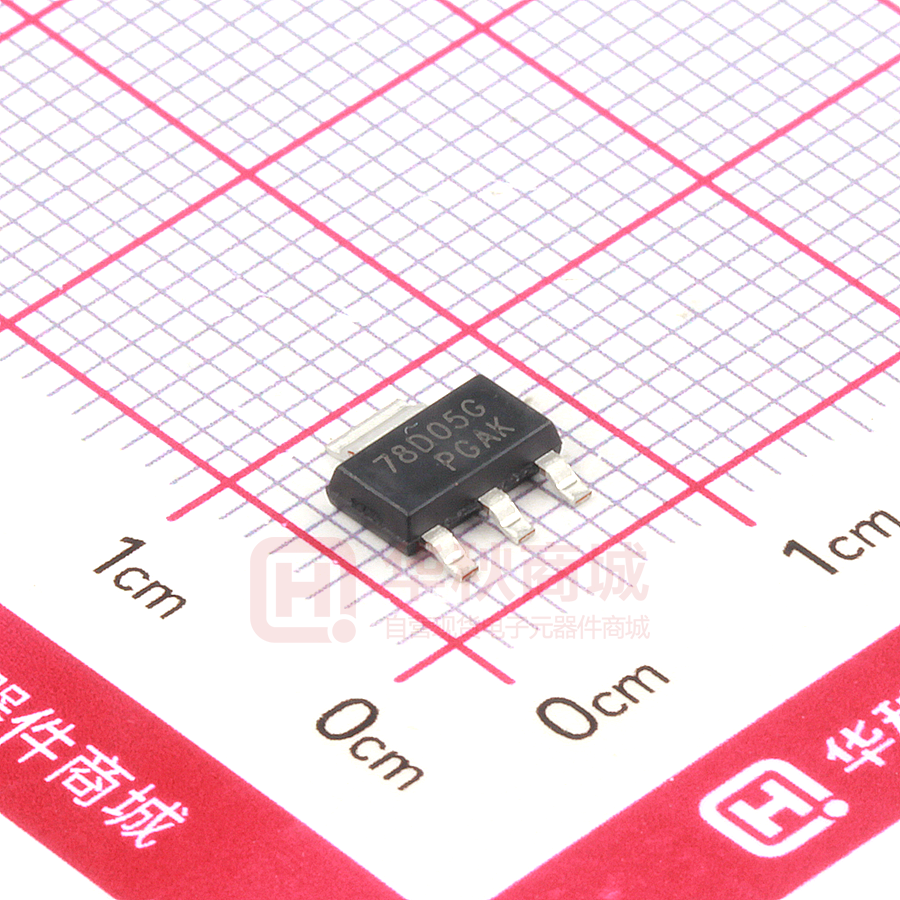

78D05G-AA3-R

UNI SONI C TECHNOLOGI ES CO., LTD 78DXX LINEAR INTEGRATED CIRCUIT 3 -T ERM I N ALS 0 .5 A POSI T I V E V OLT AGE REGU LAT OR 1 1  SOT-223 DESCRI PT I ON The UTC 78DXX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 0.5 A.  1 FEAT U RE TO-252 * Output Current Up To 0.5 A * Fixed Output Voltage Of 5V, 6V, 7V, 8V, 9V, 12V, 15V, 18V, 20V and 24V Available * Thermal Overload Shutdown Protection * Short Circuit Current Limiting * Output Transistor SOA Protection  TO-251 1 1 TO-252-3 DFN5060-8 ORDERI N G I N FORM AT I ON Ordering Number Package Lead Free Halogen Free 78DXXL-AA3-R 78DXXG-AA3-R SOT-223 78DXXL-TM3-T 78DXXG-TM3-T TO-251 78DXXL-TN3-R 78DXXG-TN3-R TO-252 78DXXL-TNA-R 78DXXG-TNA-R TO-252-3 78DXXG-K08-5060-R 78DXXG-K08-5060-R DFN5060-8 Note: 1. XX: Output Voltage, refer to Marking Information 2. Pin Code: I: Input G: GND O: Output www.unisonic.com.tw Copyright © 2017 Unisonic Technologies Co., Ltd 1 I I I I I 2 G G G G I Pin Assignment 3 4 5 6 O O O O I O G G 7 G 8 G Packing Tape Reel Tube Tape Reel Tape Reel Tape Reel 1 of 9 QW-R101-005.AA 78DXX  LINEAR INTEGRATED CIRCUIT M ARK I N G I N FORM AT I ON PACKAGE VOLTAGE CODE MARKING SOT-223 TO-251 TO-252 TO-252-3 05: 5V 06: 6V 07: 7V 08: 8V 09: 9V 12: 12V 15: 15V 18: 18V 20: 20V 24: 24V DFN5060-8 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 9 QW-R101-005.AA 78DXX  LINEAR INTEGRATED CIRCUIT BLOCK DI AGRAM 1 INPUT R13 R17 T10 Z2 R9 T8 T14 T9 R14 T12 R19 R18 R12 T13 T11 R11 T5 R10 3 OUTPUT T6 R8 R15 R5 T4 Z1 T15 R4 R6 T7 R16 R1 R2 R7 C1 T3 T1 T2 R3 2 GND  T Y PI CAL APPLI CAT I ON CI RCU I T VIN 1 UTC 78DXX CI=0.33 μF 2 3 VoUT CO=0.1 μF Note: Bypass capacitors are recommended for optimum stability and transient response and should be located as close as possible to the regulators. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 9 QW-R101-005.AA 78DXX  LINEAR INTEGRATED CIRCUIT ABSOLU T E M AX I M U M RAT I N GS (TJ=25°C, unless otherwise specified) PARAMETER Input Voltage Output Current Power Dissipation (TC=25°C) SOT-223 TO-251/TO-252 TO-252-3 DFN5060-8 SYMBOL VIN IOUT RATINGS 35 0.5 8.3 UNIT V A PD 10 W 8.0 Operating Junction Temperature TJ -20 ~ +150 °C Storage Temperature TSTG -65 ~ +150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  T H ERM AL DAT A PARAMETER Junction to Case  SOT-223 TO-251/TO-252 TO-252-3 DFN5060-8 SYMBOL RATINGS 15 UNIT θJC 12.5 °C/W 15.6 ELECT RI CAL CH ARACT ERI ST I CS (TJ=25°C, CI =0.33μF, CO=0.1μF, PD≤7W, unless otherwise specified) For 78D05 (VIN=10V, IOUT=0.5A) PARAMETER Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage SYMBOL TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN =7.5~20V,IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200 mA VIN =7V~25V ∆VOUT VIN =7.5~20V, IOUT=0.5A IQ IOUT=0.5A VUT =7.5~20V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN =8~18V,f=120Hz IPEAK ISC VIN=VOUT+19V VD UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN 4.8 4.75 62 TYP 5 40 -0.6 80 1.2 250 2 MAX 5.2 5.25 50 25 50 50 8 1 0.5 UNIT V V mV mV mV mV mA mA mA μV mV/°C dB A mA V 4 of 9 QW-R101-005.AA 78DXX  LINEAR INTEGRATED CIRCUIT ELECT RI CAL CH ARACT ERI ST I CS (Cont .) For 78D06 (VIN=11V, IOUT=0.5A) PARAMETER Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage For 78D07 (VIN=13V, IOUT=0.5A) PARAMETER Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage For 78D08 (VIN=14V, IOUT=0.5A) PARAMETER Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage SYMBOL TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN=8.5~21V,IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN=8~25V ∆VOUT VIN=8.5~21V, IOUT=0.5A IQ IOUT=0.5A VIN =8.5~21V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN =9~19V,f=120Hz IPEAK ISC VIN=VOUT+19V VD MIN 5.76 5.7 SYMBOL TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN=9.5~22V,IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN=10.5~25V ∆VOUT VIN=10.5~23V, IOUT=0.5A IQ IOUT=0.5A VIN =10.5~23V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN =11.5~21.5V,f=120Hz IPEAK ISC VIN=VOUT+19V VD MIN 6.72 6.65 SYMBOL MIN 7.68 7.6 TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN=10.5~23V, IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN =10.5~25V ∆VOUT VIN =10.5~23V, IOUT=0.5A IQ IOUT=0.5A VIN =10.5~23V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN =11.5~21.5V, f=120Hz IPEAK ISC VIN=VOUT+19V VD UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 59 59 56 TYP 6 MAX 6.24 6.3 60 30 60 60 8 1 0.5 UNIT V V mV mV mV mV mA mA mA μV mV/°C dB A mA V MAX 7.28 7.35 70 35 70 70 8 1 0.5 UNIT V V mV mV mV mV mA mA mA μV mV/°C dB A mA V MAX 8.32 8.4 80 40 80 80 8 1 0.5 UNIT V V mV mV mV mV mA mA mA μV mV/°C dB A mA V 45 -0.7 75 1.2 250 2 TYP 7 50 -0.8 75 1.2 250 2 TYP 8 58 -0.9 72 1.2 250 2 5 of 9 QW-R101-005.AA 78DXX  LINEAR INTEGRATED CIRCUIT ELECT RI CAL CH ARACT ERI ST I CS (Cont .) For 78D09 (VIN=15V, IOUT=0.5A) PARAMETER Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage For 78D12 (VIN=19V, IOUT=0.5A) PARAMETER SYMBOL TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN =11.5~24V,IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN =11.5~25V ∆VOUT VIN =11.5~24V, IOUT=0.5A IQ IOUT=0.5A VIN=11.5~24V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN=12.5~22.5V,f=120Hz IPEAK ISC VIN=VOUT+19V VD MIN 8.64 8.55 SYMBOL MIN 11.52 11.4 TEST CONDITIONS IOUT=5mA~0.5A Output Voltage VOUT VIN =14.5~27V,IOUT=5mA~0.5A IOUT=5mA~0.5A Load Regulation ∆VOUT IOUT=5mA~200mA VIN=14.5~30V Line Regulation ∆VOUT VIN=14.6~27V, IOUT=0.5A Quiescent Current IQ IOUT=0.5A VIN =14.5~30V Quiescent Current Change ∆IQ IOUT=5mA~0.5A Output Noise Voltage eN 10Hz≤f≤100kHz Temperature coefficient of VOUT ∆VOUT/∆T IOUT=5mA Ripple Rejection RR VIN =15~25V, f=120Hz Peak Output Current IPEAK Short-Circuit Current ISC VIN=VOUT+19V Dropout Voltage VD For 78D15 (VIN=23V, IOUT=0.5A, CI =0.33μF, CO=0.1μF) PARAMETER SYMBOL TEST CONDITIONS IOUT=5mA~0.5A Output Voltage VOUT VIN =17.5~30V, IOUT=5mA~0.5A IOUT=5mA~0.5A Load Regulation ∆VOUT IOUT=5mA~200mA VIN=18.5~30V Line Regulation ∆VOUT VIN=17.5~30V, IOUT=0.5A Quiescent Current IQ IOUT=0.5A VIN=17.5~30V Quiescent Current Change ∆IQ IOUT=5mA~0.5A Output Noise Voltage eN 10Hz≤f≤100kHz Temperature coefficient of VOUT ∆VOUT/∆T IOUT=5mA Ripple Rejection RR VIN=18.5~28.5V, f=120Hz Peak Output Current IPEAK Short-Circuit Current ISC VIN=VOUT+19V Dropout Voltage VD UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 56 55 MIN 14.4 14.25 54 TYP 9 58 -1.1 72 1.2 250 2 TYP 12 75 -1.5 72 1.2 250 2 TYP 15 90 -1.8 70 1.2 250 2 MAX 9.36 9.45 90 45 90 90 8 1 0.5 UNIT V V mV mV mV mV mA mA mA μV mV/°C dB A mA V MAX UNIT 12.48 V 12.6 V 120 mV 60 mV 120 mV 120 mV 8 mA 1 mA 0.5 mA μV mV/°C dB A mA V MAX UNIT 15.6 V 15.75 V 150 mV 75 mV 150 mV 150 mV 8 mA 1 mA 0.5 mA μV mV/°C dB A mA V 6 of 9 QW-R101-005.AA 78DXX  LINEAR INTEGRATED CIRCUIT ELECT RI CAL CH ARACT ERI ST I CS(Cont .) For 78D18 (VIN=27V, IOUT=0.5A) PARAMETER Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage For 78D20 (VIN =29V, IOUT =0.5A) PARAMETER Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage For 78D24 (VIN=33V, IOUT=0.5A) PARAMETER Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage SYMBOL TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN=21~33V,IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN=21~33V ∆VOUT VIN=21~33V, IOUT =0.5A IQ IOUT=0.5A VIN=21.5~33V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN =22~32V,f=120Hz IPEAK ISC VIN=35V VD MIN 17.28 17.1 SYMBOL TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN =23~35V, IOUT=5mA~0.5A IOUT=5mA~0.5A VOUT IOUT=5mA~200mA VIN=23~35V VOUT VIN=23~35V, IOUT=0.5A IQ IOUT≤0.5A VIN=23.5~35V IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz VOUT/T IOUT=5mA RR VIN =24~34V,f=120Hz IPEAK ISC VIN=35V VD MIN 19.20 19.00 SYMBOL MIN 23.04 22.8 TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN=27~38V, IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN=27~38V ∆VOUT VIN=27~38V, IOUT=0.5A IQ IOUT=0.5A VIN=28~38V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN =28~38V, f=120Hz IPEAK ISC VIN=35V VD UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 53 52 50 TYP 18 110 -2.2 69 1.2 250 2 TYP 20.0 130 -2.6 68 1.2 250 2.0 TYP 24 170 -2.8 66 1.2 250 2 MAX UNIT 18.72 V 18.9 V 180 mV 90 mV 180 mV 180 mV 8 mA 1 mA 0.5 mA μV mV/°C dB A mA V MAX UNIT 20.80 V 21.00 V 200 mV 100 mV 200 mV 200 mV 8 mA 1 mA 0.5 mA V mV/C dB A mA V MAX UNIT 24.96 V 25.2 V 240 mV 120 mV 240 mV 240 mV 8 mA 1 mA 0.5 mA μV mV/°C dB A mA V 7 of 9 QW-R101-005.AA 78DXX Output Voltage, VOUT (V) Circuit Operating Current, IBIAS (mA) T Y PI CAL CH ARACT ERI ST I CS Output Voltage vs. Junction Temperature Bias Current vs. Junction Temperature 6 5.5 5.4 4 Output Voltage, VOUT (V) 5 Bias Current, IB (mA)  LINEAR INTEGRATED CIRCUIT VIN=10V IOUT=0A 3 2 1 5.3 5.2 5.1 5.0 4.9 4.8 4.7 4.6 4.5 0 -25 VIN=10V IOUT=5.0mA -5 15 35 55 75 95 115 135 155 Junction Temperature, TJ (°C) Dropout Voltage vs. Junction Temperature 2 1.8 IOUT=0.5A 1.6 -25 -5 15 35 55 75 95 115 135 155 Junction Temperature, TJ (°C) Short Current vs. Input Voltage 1.6 1.4 1.2 1.4 IOUT=0.1A 1.2 1 IOUT=0A 0.8 1 0.8 0.6 0.6 0.4 0.4 0.2 0.2 0 -40 -20 0 20 40 60 80 100 120 140 Junction Temperature, TJ (°C) UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 0 0 3 6 9 12 15 18 21 24 27 30 33 36 40 Input Voltage, VIN (V) 8 of 9 QW-R101-005.AA 78DXX Output Voltage Deviation (mV) T Y PI CAL CH ARACT ERI ST I CS (Cont .) Load Current (mA) Input Voltage Change (V) Output Voltage Deviation (mV)  LINEAR INTEGRATED CIRCUIT UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 9 of 9 QW-R101-005.AA
