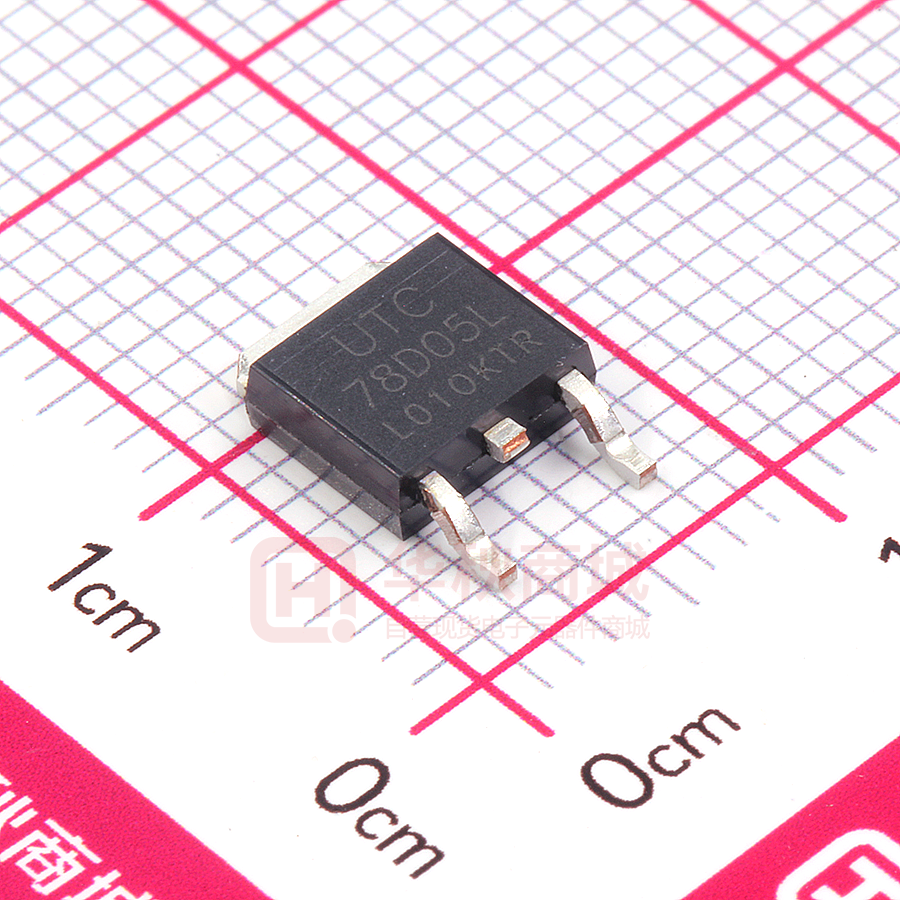

78D05LL-TN3-R

UNISONIC TECHNOLOGIES CO., LTD 78DXXL LINEAR INTEGRATED CIRCUIT 3-TERMINALS 0.5A POSITIVE VOLTAGE REGULATOR  DESCRIPTION The UTC 78DXXL family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 0.5 A.  FEATURE * Output Current Up To 0.5 A * Fixed Output Voltage Of 5V, 6V, 8V, 9V, 12V, 15V and 18V Available * Thermal Overload Shutdown Protection * Short Circuit Current Limiting * Output Transistor SOA Protection  ORDERING INFORMATION Ordering Number Lead Free Halogen Free 78DXXLG-AA3-R 78DXXLG-AB3-B-R 78DXXLL-TM3-T 78DXXLG-TM3-T 78DXXLL-TN3-R 78DXXLG-TN3-R 78DXXLL-TNA-R 78DXXLG-TNA-R Note: 1. XX: Output Voltage, refer to Marking Information 2. Pin Code: I: Input G: GND O: Output www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., Ltd Package SOT-223 SOT-89 TO-251 TO-252 TO-252-3 Pin Assignment 1 2 3 I G O O G I I G O I G O I G O Packing Tape Reel Tape Reel Tube Tape Reel Tape Reel 1 of 8 QW-R101-036.G 78DXXL  LINEAR INTEGRATED CIRCUIT MARKING INFORMATION PACKAGE VOLTAGE CODE MARKING SOT-223 SOT-89 05: 5V 06: 6V 08: 8V 09: 9V 12: 12V 15: 15V 18: 18V TO-251 TO-252 TO-252-3 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 8 QW-R101-036.G 78DXXL  LINEAR INTEGRATED CIRCUIT BLOCK DIAGRAM 1 INPUT R13 R17 T10 Z2 R9 T8 T14 T9 R14 T12 R19 R18 R12 T13 T11 R11 T5 T6 R15 R10 3 OUTPUT R8 R5 T4 Z1 T15 R4 R6 T7 R16 R1 R2 C1 R7 T3 T1 T2 R3 2 GND  TYPICAL APPLICATION CIRCUIT Note: Bypass capacitors are recommended for optimum stability and transient response and should be located as close as possible to the regulators. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 8 QW-R101-036.G 78DXXL  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS (TJ=25°C, unless otherwise specified) PARAMETER SYMBOL VIN IOUT RATINGS UNIT 35 V 0.5 A SOT-223 8.5 Power Dissipation (TC=25°C) SOT-89 PD W 2.3 TO-251 / TO-252 10 Junction Temperature TJ -20~ +150 °C Storage Temperature TSTG -65 ~ +150 °C Notes: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. Input Voltage Output Current  THERMAL DATA PARAMETER SOT-223 Junction to Case SOT-89 TO-251 / TO-252  SYMBOL θJC RATINGS 15 5.5 12.5 UNIT °C/W ELECTRICAL CHARACTERISTICS (TJ=25°C, CI =0.33μF, CO=0.1μF, PD≤7W, unless otherwise specified) For 78D05L (VIN=10V, IOUT=0.5A) PARAMETER Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage SYMBOL TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN =7.5~20V, IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN =7V~25V ∆VOUT VIN =7.5~20V, IOUT=0.5A IQ IOUT=0.5A VUT =7.5~20V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN =8~18V,f=120Hz IPEAK ISC VIN=VOUT+19V VD UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN 4.8 4.75 62 TYP 5 40 -0.6 80 1.2 250 2 MAX 5.2 5.25 100 50 100 100 8 1 0.5 UNIT V V mV mV mV mV mA mA mA μV mV/°C dB A mA V 4 of 8 QW-R101-036.G 78DXXL  LINEAR INTEGRATED CIRCUIT ELECTRICAL CHARACTERISTICS (Cont.) For 78D06L (VIN=11V, IOUT=0.5A) PARAMETER MIN 5.76 5.7 Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN=8.5~21V,IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN=8~25V ∆VOUT VIN=8.5~21V, IOUT=0.5A IQ IOUT=0.5A VIN =8.5~21V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN =9~19V,f=120Hz IPEAK ISC VIN=VOUT+19V VD For 78D08L (VIN=14V, IOUT=0.5A) PARAMETER SYMBOL MIN 7.68 7.6 Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change SYMBOL Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN=10.5~23V, IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN =10.5~25V ∆VOUT VIN =10.5~23V, IOUT=0.5A IQ IOUT=0.5A VIN =10.5~23V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN =11.5~21.5V, f=120Hz IPEAK ISC VIN=VOUT+19V VD For 78D09L (VIN=15V, IOUT=0.5A) PARAMETER SYMBOL Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN =11.5~24V,IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN =11.5~25V ∆VOUT VIN =11.5~24V, IOUT=0.5A IQ IOUT=0.5A VIN=11.5~24V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN=12.5~22.5V,f=120Hz IPEAK ISC VIN=VOUT+19V VD UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 59 56 MIN 8.64 8.55 56 TYP 6 MAX 6.24 6.3 120 60 120 120 8 1 0.5 UNIT V V mV mV mV mV mA mA mA μV mV/°C dB A mA V MAX 8.32 8.4 160 80 160 160 8 1 0.5 UNIT V V mV mV mV mV mA mA mA μV mV/°C dB A mA V MAX 9.36 9.45 180 90 180 180 8 1 0.5 UNIT V V mV mV mV mV mA mA mA μV mV/°C dB A mA V 45 -0.7 75 1.2 250 2 TYP 8 58 -0.9 72 1.2 250 2 TYP 9 58 -1.1 72 1.2 250 2 5 of 8 QW-R101-036.G 78DXXL  LINEAR INTEGRATED CIRCUIT ELECTRICAL CHARACTERISTICS (Cont.) For 78D12L (VIN=19V, IOUT=0.5A) PARAMETER Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage SYMBOL TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN =14.5~27V,IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN=14.5~30V ∆VOUT VIN=14.6~27V, IOUT=0.5A IQ IOUT=0.5A VIN =14.5~30V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN =15~25V, f=120Hz IPEAK ISC VIN=VOUT+19V VD For 78D15L (VIN=23V, IOUT=0.5A, CI =0.33μF, CO=0.1μF,) PARAMETER SYMBOL TEST CONDITIONS IOUT=5mA~0.5A Output Voltage VOUT VIN =17.5~30V, IOUT=5mA~0.5A IOUT=5mA~0.5A Load Regulation ∆VOUT IOUT=5mA~200mA VIN=18.5~30V Line Regulation ∆VOUT VIN=17.5~30V, IOUT=0.5A Quiescent Current IQ IOUT=0.5A VIN=17.5~30V Quiescent Current Change ∆IQ IOUT=5mA~0.5A Output Noise Voltage eN 10Hz≤f≤100kHz Temperature coefficient of VOUT ∆VOUT/∆T IOUT=5mA Ripple Rejection RR VIN=18.5~28.5V, f=120Hz Peak Output Current IPEAK Short-Circuit Current ISC VIN=VOUT+19V Dropout Voltage VD For 78D18L (VIN=27V, IOUT=0.5A) PARAMETER Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Temperature coefficient of VOUT Ripple Rejection Peak Output Current Short-Circuit Current Dropout Voltage SYMBOL TEST CONDITIONS IOUT=5mA~0.5A VOUT VIN=21~33V,IOUT=5mA~0.5A IOUT=5mA~0.5A ∆VOUT IOUT=5mA~200mA VIN=21~33V ∆VOUT VIN=21~33V, IOUT =0.5A IQ IOUT=0.5A VIN=21.5~33V ∆IQ IOUT=5mA~0.5A eN 10Hz≤f≤100kHz ∆VOUT/∆T IOUT=5mA RR VIN =22~32V,f=120Hz IPEAK ISC VIN= 35V VD UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN 11.52 11.4 55 MIN 14.4 14.25 54 MIN 17.28 17.1 53 TYP 12 75 -1.5 72 1.2 250 2 TYP 15 90 -1.8 70 1.2 250 2 TYP 18 110 -2.2 69 1.2 250 2 MAX 12.48 12.6 240 120 240 240 8 1 0.5 UNIT V V mV mV mV mV mA mA mA μV mV/°C dB A mA V MAX UNIT 15.6 V 15.75 V 300 mV 150 mV 300 mV 300 mV 8 mA 1 mA 0.5 mA μV mV/°C dB A mA V MAX UNIT 18.72 V 18.9 V 360 mV 180 mV 360 mV 360 mV 8 mA 1 mA 0.5 mA μV mV/°C dB A mA V 6 of 8 QW-R101-036.G 78DXXL Output Voltage, VOUT (V) Circuit Operating Current, IBIAS (mA) TYPICAL CHARACTERISTICS 6 Output Voltage vs. Junction Temperature Bias Current vs. Junction Temperature 5.5 5.4 4 3 Output Voltage, VOUT (V) Bias Current, IB (mA) 5 VIN=10V IOUT=0A 2 1 -25 VIN=10V IOUT=5.0mA 5.3 5.2 5.1 5.0 4.9 4.8 4.7 4.6 4.5 0 -5 15 35 55 75 95 115 135 155 Junction Temperature, TJ (°C) -25 Dropout Voltage vs. Junction Temperature 2 1.8 1.6 1.4 IOUT=0.1A 1.2 1 IOUT=0A 0.8 0.6 0.4 -5 15 35 55 75 95 115 135 155 Junction Temperature, TJ (°C) Short Current vs. Input Voltage 1.4 IOUT=0.5A 1.6 Short Current, ISC (A) Dropout Voltage, VD (V)  LINEAR INTEGRATED CIRCUIT 1.2 1 0.8 0.6 0.4 0.2 0.2 0 -40 -20 0 20 40 60 80 100 120 140 Junction Temperature, TJ (°C) UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 0 0 3 6 9 12 15 18 21 24 27 30 33 36 40 Input Voltage, VIN (V) 7 of 8 QW-R101-036.G 78DXXL LINEAR INTEGRATED CIRCUIT UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 8 of 8 QW-R101-036.G
