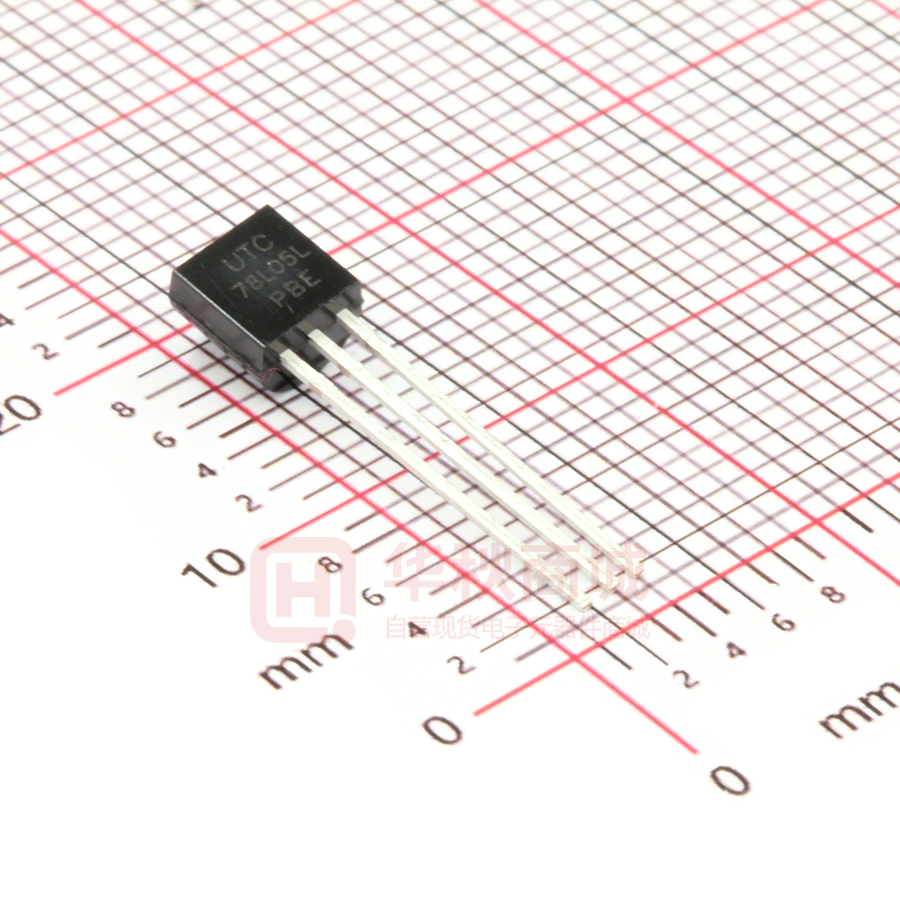

UNISONIC TECHNOLOGIES CO., LTD 78LXX LINEAR INTEGRATED CIRCUIT 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATOR 4 5 1 2  The UTC 78LXX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 100mA.   1 FEATURES * Output current up to 100mA * Fixed output voltage of 5V, 6V, 8V, 9V, 10V, 12V, 15V and 18V available * Thermal overload shutdown protection * Short circuit current limiting SOT-25 SOP-8 DESCRIPTION 3 1 SOT-89 1 TO-92 TO-92NL ORDERING INFORMATION Ordering Number Pin Assignment Package Lead Free Halogen Free 1 2 3 4 5 6 7 8 78LXXL-AB3-R 78LXXG-AB3-R SOT-89 O G I - - - - 78LXXL-AB3-C-R 78LXXG-AB3-C-R SOT-89 G I O - - - - 78LXXL-AF5-R 78LXXG-AF5-R SOT-25 G I O N N 78LXXL-S08-R 78LXXG-S08-R SOP-8 O G G N N G G I 78LXXL-T92-B 78LXXG-T92-B TO-92 O G I - - - - 78LXXL-T92-K 78LXXG-T92-K TO-92 O G I - - - - 78LXXL-T9N-B 78LXXG-T9N-B TO-92NL O G I - - - - 78LXXL-T9N-K 78LXXG-T9N-K TO-92NL O G I - - - - Note: 1. XX: Output Voltage, refer to Marking Information. 2. Pin Assignment: O: Output G: GND I: Input N: No Connection www.unisonic.com.tw Copyright © 2018 Unisonic Technologies Co., Ltd Packing Tape Reel Tape Reel Tape Reel Tape Reel Tape Box Bulk Tape Box Bulk 1 of 8 QW-R101-001.V 78LXX  LINEAR INTEGRATED CIRCUIT MARKING INFORMATION PACKAGE VOLTAGE CODE MARKING SOT-89 SOT-25 05:5.0V 06:6.0V 08:8.0V 09:9.0V SOP-8 10:10V 12:12V 15:15V TO-92 18:18V TO-92NL UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 8 QW-R101-001.V 78LXX  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL RATINGS UNIT 30 Input Voltage V VIN 35 Output Current IOUT 100 mA SOT-89 350 mW SOT-25 240 mW Power Dissipation PD SOP-8 300 mW TO-92/TO-92NL 625 mW Junction Temperature TJ +150 °C Operating Temperature (Note 2) TOPR -40 ~ +125 °C Storage Temperature TSTG -55 ~ +150 °C Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. 2. It is guarantee by design, not 100% be tested. VOUT=5~9V VOUT=10~18V  ELECTRICAL CHARACTERISTICS For UTC78L05 (VIN=10V, IOUT=40mA, 0°C
