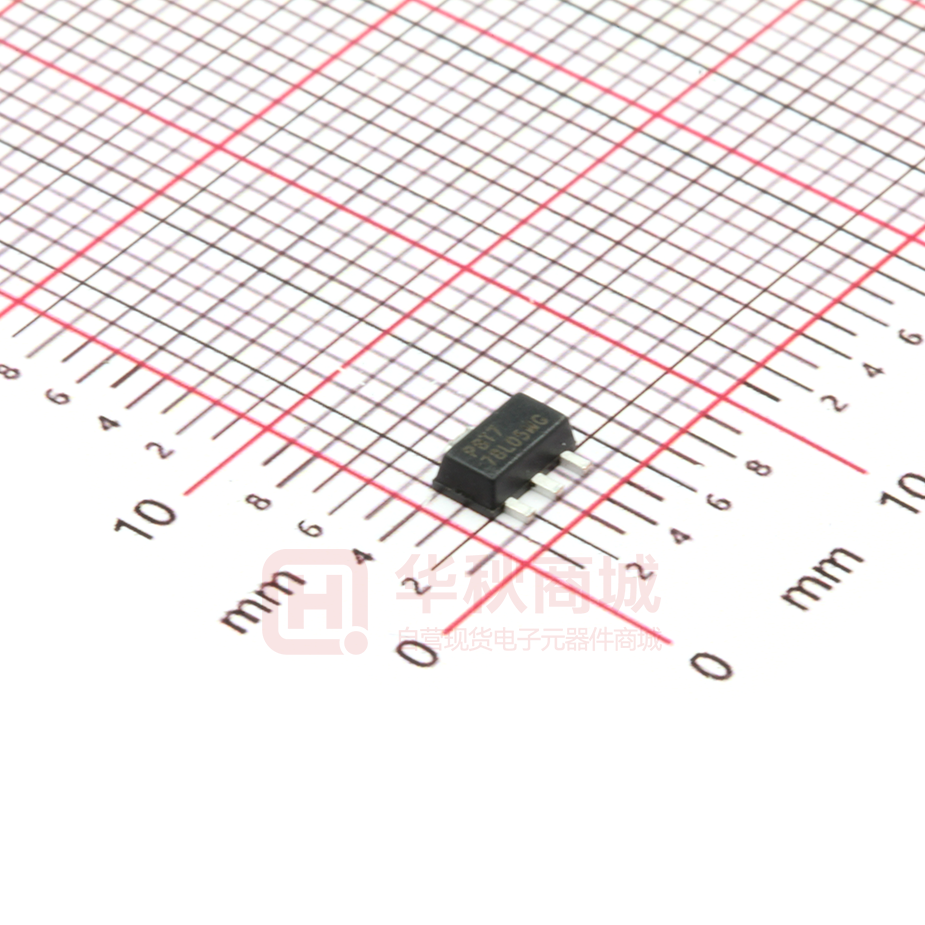

78L05MG-AB3-R

UNISONIC TECHNOLOGIES CO., LTD 78LXXM LINEAR INTEGRATED CIRCUIT 3-TERMINAL 0.2A POSITIVE VOLTAGE REGULATOR 1 TO-92 SOP-8  DESCRIPTION The UTC 78LXXM family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 200mA. 1 1 SOT-89 TO-92NL  FEATURES *Output Current up to 200mA *Fixed Output Voltage of 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V and 24V Available *Thermal Overload Shutdown Protection *Short Circuit Current Limiting  1 SOT-223 ORDERING INFORMATION Ordering Number Lead Free Halogen Free 78LXXMG-AA3-R 78LXXMG-AB3-R 78LXXML-T92-B 78LXXMG-T92-B 78LXXML-T92-K 78LXXMG-T92-K 78LXXML-T9N-B 78LXXMG-T9N-B 78LXXML-T9N-K 78LXXMG-T9N-K 78LXXMG-S08-R Note: 1. XX: Output Voltage, refer to Marking Information 2. Pin Assignment: O: Output G: GND I: Input 78LXXMG-AA3-R (1)Packing Type (2)Package Type (3)Green Package (4)Output Voltage Code www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., Ltd Package SOT-223 SOT-89 TO-92 TO-92 TO-92NL TO-92NL SOP-8 1 O O O O O O O Pin Assignment 2 3 4 5 6 G I - - G I - - G I - - G I - - G I - - G I - - G G NC NC G 7 8 - - - - - - G I Packing Tape Reel Tape Reel Tape Box Bulk Tape Box Bulk Tape Reel (1) B: Tape Box, K: Bulk, R: Tape Reel (2) AA3: SOT-223, AB3: SOT-89, S08: SOP-8, (2) T92: TO-92, T9N: TO-92NL (3) G: Halogen Free and Lead Free, L: Lead Free (4) xx: refer to Marking Information 1 of 8 QW-R101-002.M 78LXXM  LINEAR INTEGRATED CIRCUIT MARKING INFORMATION PACKAGE VOLTAGE CODE MARKING Voltage Code MG 78L SOT-223 Date Code 1 2 3 SOP-8 SOT-89 05:5.0V 06:6.0V 08:8.0V 09:9.0V 10:10V 12:12V 15:15V 18:18V 24:24V Date Code Voltage Code 78L 1 MG 2 3 TO-92 TO-92NL UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 8 QW-R101-002.M 78LXXM  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified.) PARAMETER SYMBOL RATINGS VOUT=5~9V 30 VIN Input Voltage VOUT=12~24V 35 Output Current IOUT 200 SOP-8 500 TO-92 625 TO-92L 800 Power Dissipation PD TO-92NL 800 SOT-89 500 SOT-223 750 Ambient Operating Temperature TOPR -40~+85 Storage Temperature TSTG -55~+150 Note Absolute maximum ratings are those values beyond which the device could be permanently Absolute maximum ratings are stress ratings only and functional device operation is not implied.  UNIT V V mA mW °C °C damaged. ELECTRICAL CHARACTERISTICS (0°C
